Gasmate PC1070 User manual
KEEP THIS APPLIANCE AWAY FROM COMBUSTIBLE MATERIALS
MINIMUM CLEARANCES: REAR 250mm - SIDE 250mm - TOP 1200mm
Nominal gas consumption - 140g/h Injector Size 0.5mm
TROUBLESHOOTING:
Portable Cooker – PC1070
• 7 MJ/h or 6,650 BTU output
• Rotary piezo ignition
• Pressure sensing safety shut-off
device
• Convenient storage/carry case
02902 08/12
Due to continual development, specications are subject to change without notice.
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber, Hamilton, N.Z www.gasmate.co.nz
Important: Retain these instructions for future use.
FOLD FOLD
FOLD FOLD
BACK PAGE FRONT PAGE
WARNING
ONLY USE IN WELL VENTILATED AREAS. CARBON MONOXIDE
HAZARD - THIS APPLIANCE CAN PRODUCE CARBON MONOXIDE WHICH HAS
NO ODOUR. USING IT IN AN ENCLOSED SPACE (FOR EXAMPLE, CARAVAN,
TENT, CAR, MOBILE HOME) MAY CAUSE DEATH.
• Perfect for camping or home
• Uses standard butane cartridge
• For outdoor use only
• AGA Certied
CARE AND CLEANING:
• The outside of the cooker can be wiped clean with a mild solution of dishwashing detergent and
nished off with a dry cloth. Do not use abrasive pads.
• The removable drip pan can be washed thoroughly. Always dry after washing.
• We recommend the burner head be cleaned by gentle scrubbing with a dry brush at least annually.
Ensure that the burner ports are free of any obstructions.
• Occasionally clean the point of the piezo plug with a hard brush or le.
SAFETY TIPS:
DO’S
• Turn gas off at ignition knob after use.
• Check that burner is fully extinguished
before disconnecting the gas container.
• Remove the gas cartridge when not in use.
• Change the gas container outside and away
from people.
• Check the seals before connecting a new
gas container to the appliance.
• Always remove the cooker from the carry
case prior to use.
• Ensure the pan support is turned upright
before inserting the cartridge.
• Keep children away from this appliance.
• Make sure there is adequate ventilation
under the unit.
• Only operate on at, horizontal surfaces.
• Use the cooker in cool places or in the
shade. Keep the cartridge compartment
out of direct sunlight.
• Always check the gas cartridge position
inside the compartment for leaks. If a leak
occurs, turn off the supply and remove the
gas cartridge.
DONT’S
• DO NOT OPERATE IN AN ENCLOSED AREA
WITHOUT VENTILATION.
• DO NOT operate in a boat, caravan or tent.
• DO NOT modify this appliance.
• DO NOT use the cooker in sand or on gravel
surfaces.
• DO NOT move the cooker while it is lit.
• Avoid using the cooker in very windy
conditions.
• DO NOT use a cooking pan that is larger
than 27cm in diameter.
• DO NOT use appliance as a room heater or
clothes drier.
• DO NOT place articles on or against this
appliance.
• DO NOT place chemicals or ammable
materials, or spray aerosols near this
appliance.
FOLD FOLD
FOLD FOLD
IMPORTANT
Read these instructions for use carefully. Familiarise yourself with the appliance before
connecting it to it’s gas container. Keep these instructions for future reference.
This appliance shall only be used with a Butane gas cartridge certied to EN 417 or equivalant.
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CONTAINERS.
* REMOVE ANY TRANSIT PROTRECTION MATERIAL.
WARNING
BEFORE INSERTING A CARTRIDGE, ALWAYS ENSURE THAT THE PAN SUPPORT/DRIP
TRAY HAS BEEN TURNED AND PLACED IN THE UPRIGHT AND CORRECT POSITION.

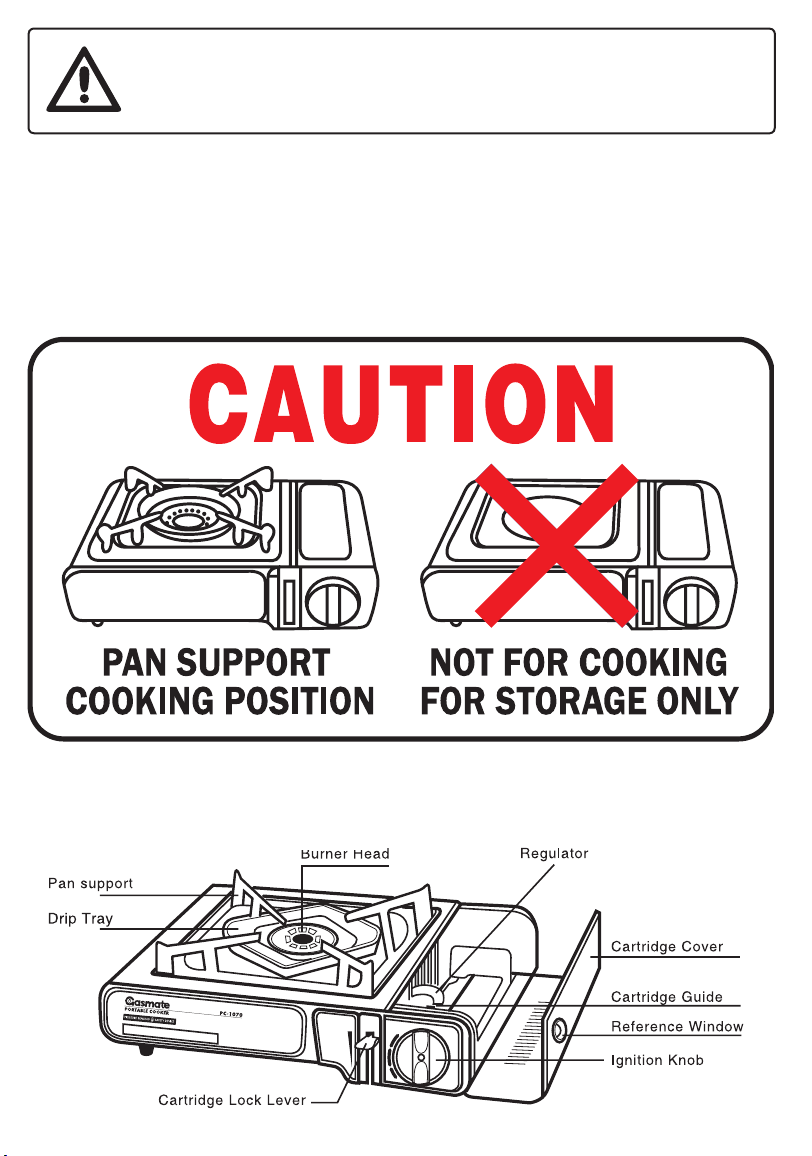

PARTS LIST:
3. Push the Cartridge Lock down to ‘ON’ in
one rm motion (Fig. 3).
Note: If the Pan Support has not been
turned over into its upright position the
lever will not engage.
Fig. 3
WARNING
BEFORE LIGHTING THE COOKER, ALWAYS ENSURE THAT THE PAN SUPPORT/DRIP
TRAY HAS BEEN TURNED AND PLACED IN THE UPRIGHT AND CORRECT POSITION.
WARNING
THE OPENINGS AT THE BASE OF THE BURNER PROVIDE AIR FOR COMBUSTION,
THEY SHOULD NEVER BE OBSTRUCTED. IF THE FLAME BECOMES SIGNIFICANTLY
ORANGE CHECK THESE OPENINGS FOR A BLOCKAGE.
IF THE APPLIANCE CANNOT BE ADJUSTED TO PERFORM CORRECTLY IT SHOULD
NOT BE USED UNTIL SERVICED OR REPAIRED.
TO START:
INSERTING THE GAS CARTRIDGE
1. Turn the Ignition Knob to ‘OFF’ and
set the Cartridge Lock lever to ‘OFF’.
(Fig. 1)
Note: If the Ignition Knob is ‘ON’ the gas
cartridge cannot be loaded into the cooker.
2. Open the Cartridge Cover: slide the gas
cartridge, top end rst and with its notch
up, into the compartment. Align the notch
with the loading guide in the compartment.
(Fig. 2)
Fig. 1
Fig. 2
Check that the seals between the appliance
and the gas container are in place and in good
condition before connecting the gas container.
• DO NOT use this appliance if it has damaged
or worn seals.
• DO NOT use this appliance if it is leaking,
damaged or does not operate properly.
TO SHUT OFF:
1. Turn the Ignition Knob to ‘OFF’ to shut off fuel supply
(Fig. 5). Wait until the ame is fully extinguished
before performing the next step.
2. Raise the Cartridge Lock Lever to ‘UNLOCK’ and
remove the gas cartridge from the compartment.
Note: Do not leave the gas cartridge inside
the unit when not in use.
Fig. 4
Fig. 5
HANDLING WHEN THE AUTOMATIC SAFETY
SHUT-OFF DEVICE IS ACTIVATED:
• When used in high temperature areas, such as the beach during summer or in a hot room, the
internal pressure of the cartridge may rise to more than 7Kg/cm2 (normal pressure = 3-4Kg/cm2)
This will activate the Automatic Safety Shut-off Device inside the regulator.
• Remove the Gas Cartridge from the compartment. Push the nozzle inward to release internal
pressure and place in a cool or shady area.
• Turn the Ignition Knob to ‘ON’ to release any excess gas inside the regulator. Repeat the 3 steps for
inserting the gas cartridge after it has cooled down.
AFTER USE:
1.
Replace the cap on the gas cartridge after removing it from the unit. Store upright in a cool dry place.
2. Make sure the burner is cool to touch before packing unit away.
3. DO NOT store the cartridge near other ammables.
DO NOT store the cartridge near sources of heat or direct sunlight.
DO NOT store in the glove compartment or boot of your car.
DO NOT puncture or incinerate empty cartridges.
LIGHTING THE COOKER:

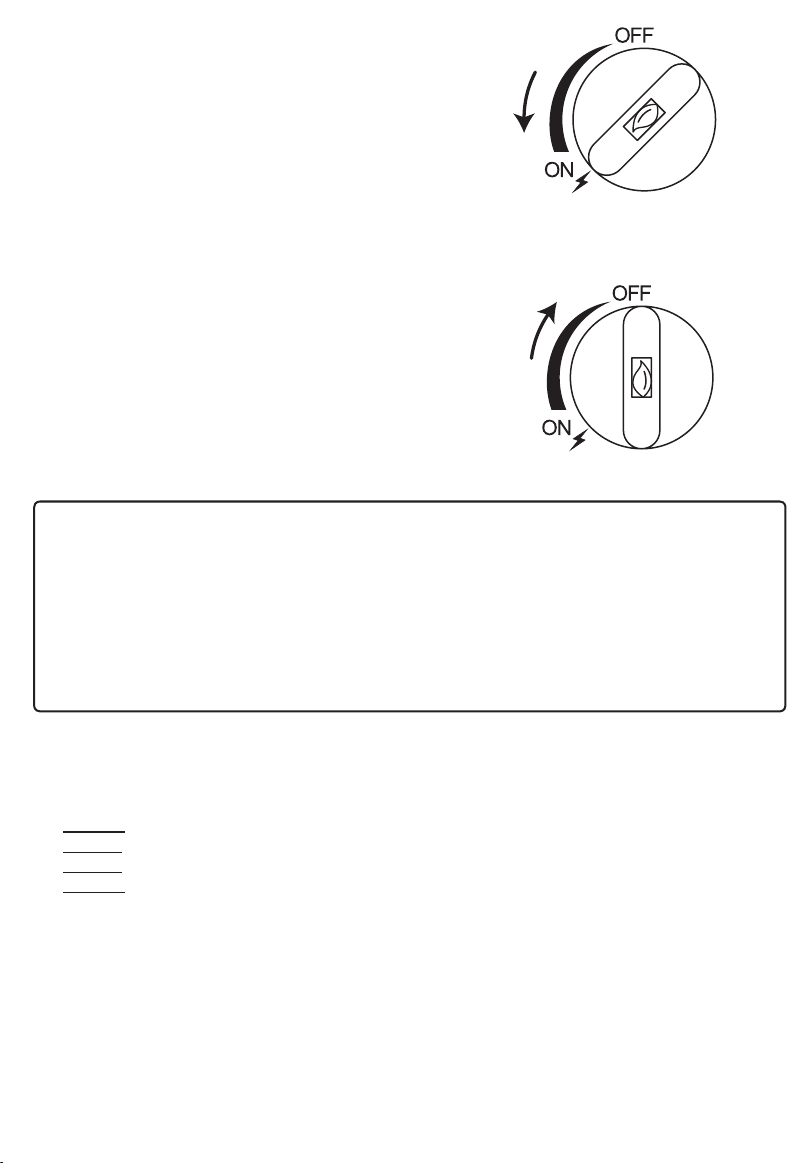

1. Turn the knob anti-clockwise past the ‘ON’ position
until a click is heard.
2. If the burner fails to light, immediately turn the
Ignition Knob to the ‘OFF’ position and repeat Step 1.
TO ADJUST HEAT:
1. Flame can be controlled by turning the Ignition Knob
between the ‘ON’ and ‘OFF’ position.
• The cartridge may be disconnected even if some gas remains.
• Check the contents by shaking and listening for the liquid gas.
Gas containers shall only be changed in a well ventilated location, preferably outside, away from
people and way from sources of ignition; such as naked ames, pilot ames, electric heaters/
equipment.
If there is a leak on your appliance (smell of gas) and you cannot stop the gas ow, remove the
appliance to a well ventilated location away form any ignition source. Only check for leaks outdoors
using soapy water. DO NOT try to detect leaks using a ame.
This appliance must only be serviced by an authorised person.
