Gazebo penguin 41212MR-12 SAND User manual

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 1
41212MR-12 SAND
41212MR-32 SLATE
12 X 12 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Two or more adults required for assembly
Base Dimensions 12’ ½” x 12’ ½”
Largest Dimensions 12’10”x12’10”
Overall Height 110’’
APPROX.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 2
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
12ft x 12ft / 3.66m x 3.66m Solarium
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer
Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.
WARNING:
For outdoor use.
Snow should be regularly cleared from the roof and not allowed to accumulate.
Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation is complete and correct.
The unit may take more than 4 hours and 3 people are required for this assembly.
PRIOR TO ASSEMBLY:
Please don't destroy boxes until completely assembled.
The foundation must be level, flat, and solid, such as concrete or asphalt.
Keep away from overhead utility lines, tree branches, and other structures.
Check for underground pipes or wires if digging or drilling is required.
Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the roof top.
Assemble the structure as close to its final location as possible.
It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
Do not hang from, climb on, or stand on the structure or roof.
Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to warranty
information.
A 6ft (1.8m) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required for
assembly (not included).
Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until ready to insert roof
panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
Proper anchoring of the frame to the base and the wall is required for safety.
Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
How the item is anchored, and the hardware and tools required, will vary based upon the set up location and are not provided.
Please check with your local hardware store if for the appropriate anchors for your surface.
Do not anchor to pavers / pavement slabs because they are not a solid foundation.
Periodically check the anchors to ensure they remain secure
CARE AND MAINTENANCE:
In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer
directly.
Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
Do not use pressure washer.
STRUCTURE:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry.
Do not use pressure washer.
If there are nicks, chips, and/or scratches see the part # of the paint in the parts list to obtain a matching touch-up paint.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 3
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please contact the
manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the roof and
cause it to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability. Subject to the
Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is warranted to be free of
material and manufacturing defects for a period of one year from the date of purchase. Missing and damage due to
transportation is not covered by the manufacture warranty. Should the product become damaged, or the warranty period
has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts
and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover damaged
or missing parts, do not return the product to the place of purchase, but contact Gazebo Penguin Customer
Service Department at the numbers listed below:
Montreal: [phone]
Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online:
https://abrispenguin.com/assemblyinstructions/
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your request might be
rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or accumulation
of snow.
2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail,
strong wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information
on how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written
instructions enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 4
41212 SAND (see page 7 for Slate parts)
DESCRIPTION
PACKED IN
BOX
QTY
DRAWING
DESCRIPTION
PACKED IN
BOX
QTY
DRAWING
08-129-12
REGULAR
FRAME
A
3
6
08-132-12
SLIDING
DOOR FRAME
D
2
2
2
2
17-054
ROOF
PANEL
Aa
6
4
08-165-12
DOOR LATCH
Dd-R
1
2
08-130-12
FRAME
NEXT TO
DOORS
(extra holes)
B
2
2
08-169-12
DOOR LATCH
Dd-L
1
2
08-158-12
SCREW
M6*16
Bb
1
108
08-133-12
CONNECTING
PIECE
E
4
8
08-131-12
SLIDING
DOOR
C
2
2
08-167-12
SCREW
M6X63.5
Ee
1
20
08-161-12
SCREW
M6X70
Cc
1
12
08-136-12
DOOR RAIL
F
4
2
12-037-12
CAPNUT
M5X60
Cc-2
1
12
08-137-12
DOOR RAIL
G
4
2

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 5

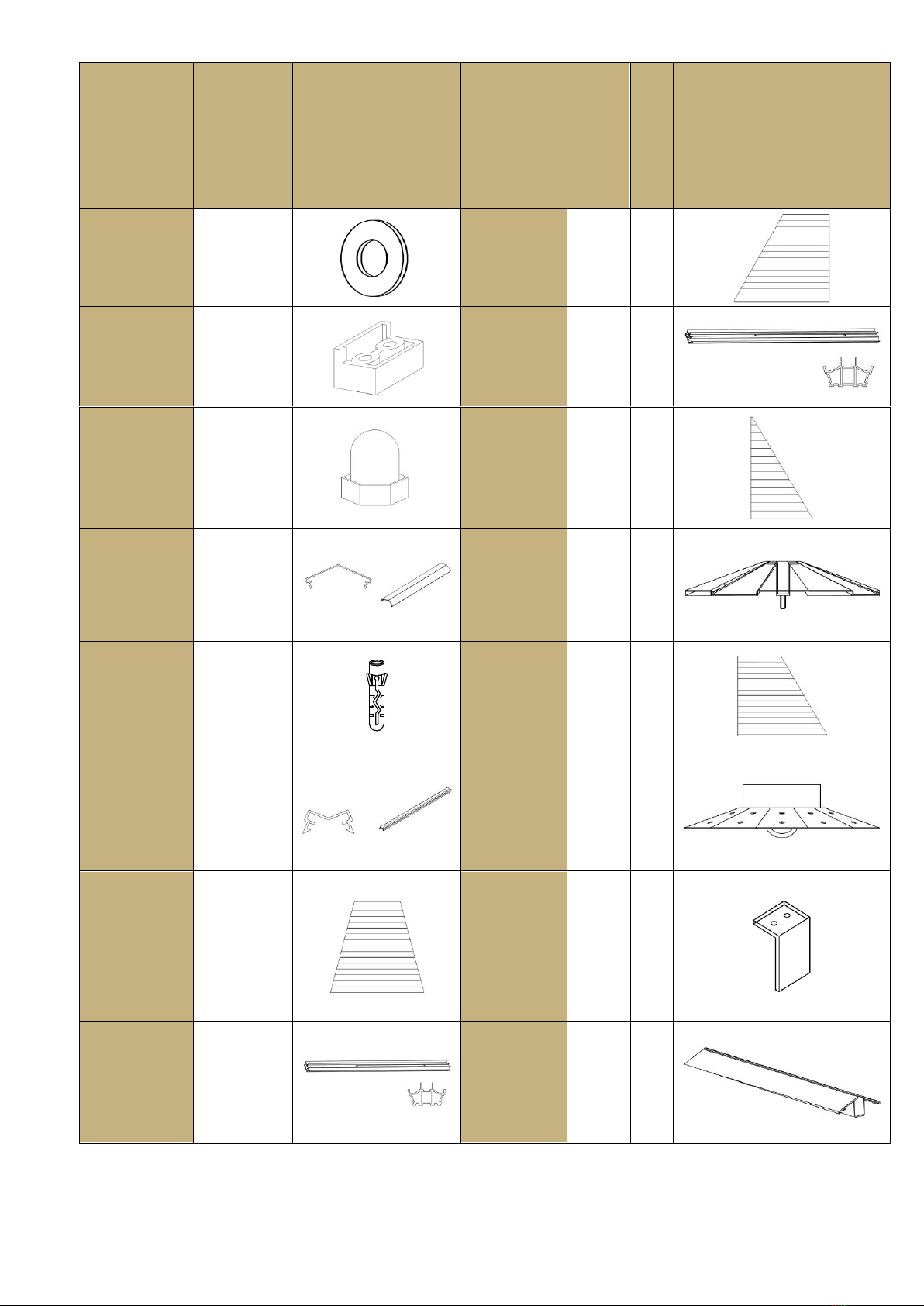

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
08-187-12
WASHER
Gg
1
37
17-061
ROOF
PANEL
Kk
5
4
08-138-12
DOOR
STOPPER
H
1
4
17-044-12
RAFTER
L
4
4
08-189-12
ACORN
NUT
Hh
1
1
17-057
ROOF
PANEL
Ll
6
4
08-139-12
CONNECTING
PIECE
I
4
8
08-143-12
Top Cap
M
1
1
08-193
PLASTIC
PLUG
Ii
1
20
17-058
ROOF
PANEL
Mm
5
4
08-140-12
CONNECTING
PIECE
J
4
8
08-144-12
CENTRAL
HUB
N
1
1
17-055
ROOF
PANEL
Jj
5
4
08-134-12
UPPER
DOOR
RAIL END
CAP
Nn
1
4
17-043-12
RAFTER
K
4
8
17-049-12
COVER
FOR
RAFTERS
O
4
8

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 6

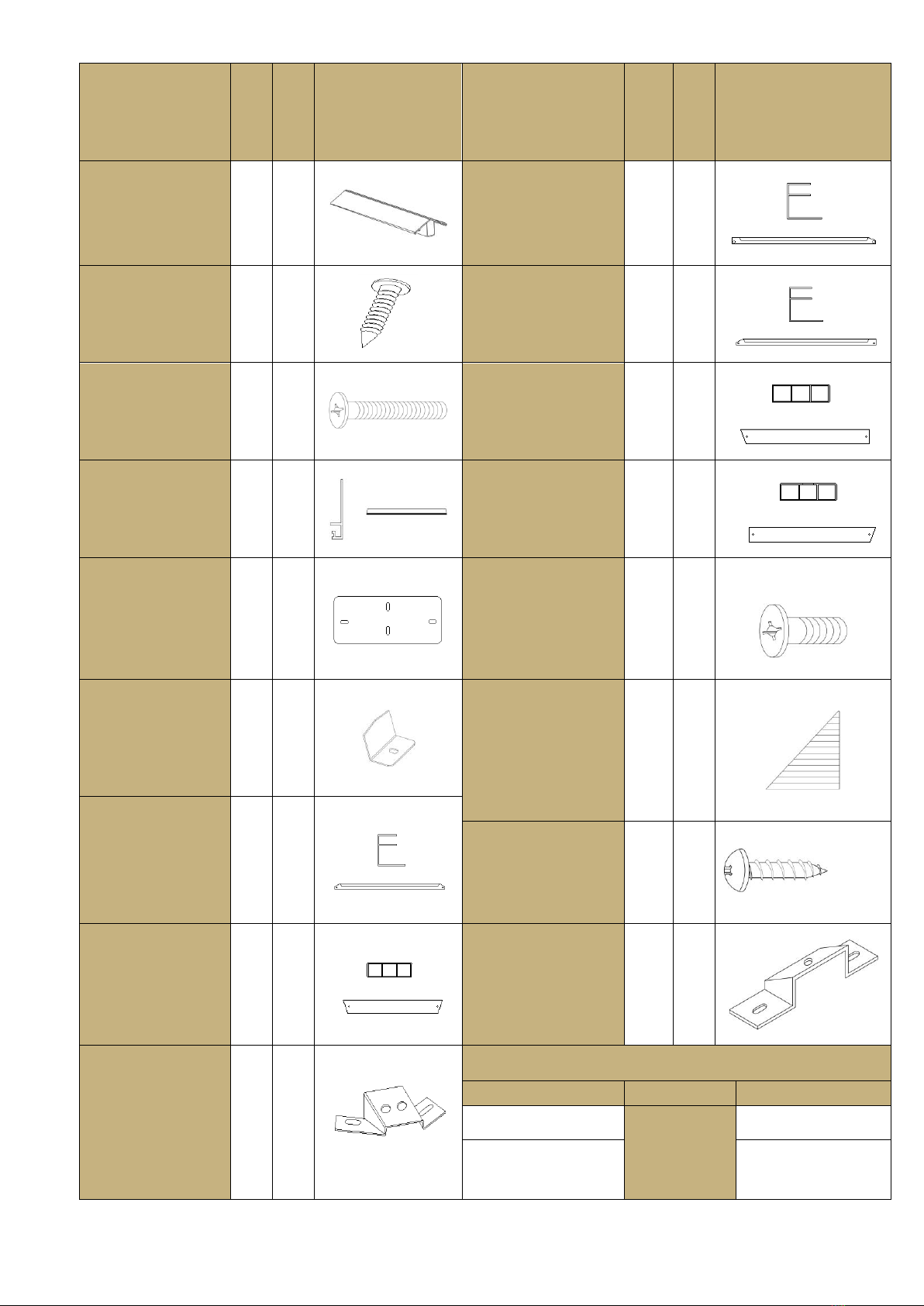

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
17-050-12
COVER
FOR RAFTERS
O1
4
4
17-045-12
FINISHING BAR
U
1
4
08-135-12
SCREW
Oo
1
4
17-071-12
FINISHING BAR
U1
1
4
16-118-12
SCREW M6X36
Oo1
1
50
17-047-12
SOLIDIFYING
BAR
V
1
4
17-051-12
GAP
COVER BAR
P
1
12
17-070-12
SOLIDIFYING
BAR
V1
1
4
18-067-12
SOLIDIFYING
BAR BRACKET
Pp
1
12
12-047-12
SCREW M5X15
Ww
1
12
17-053-12
END CAP
R
1
12
17-060
ROOF PANEL
Y
6
4
17-046-12
FINISHING BAR
S
1
4
08-156-12
SCREW
M4*16
Z
1
28
17-048-12
SOLIDIFYING BAR
T
1
4
15-125-12
STEEL ANGLE
Z2
(assembled
to rafter)
1
4
15-124-12
STEEL ANGLE
Z1
(assembled)
to rafter)
1
8
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SAND
11-699
PAINT PEN
18-245

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 7
41212MR SLATE
DESCRIPTION
PACKED IN
BOX
QTY
DRAWING
DESCRIPTION
PACKED IN
BOX
QTY
DRAWING
08-129-32
REGULAR
FRAME
A
3
6
08-132-32
SLIDING
DOOR FRAME
D
2
2
2
2
17-054
ROOF
PANEL
Aa
6
4
08-165-32
DOOR LATCH
Dd-R
1
2
08-130-32
FRAME
NEXT TO
DOORS
(extra holes)
B
2
2
08-169-32
DOOR LATCH
Dd-L
1
2
08-158-32
SCREW
M6*16
Bb
1
108
08-133-32
CONNECTING
PIECE
E
4
8
08-131-32
SLIDING
DOOR
C
2
2
08-167-32
SCREW
M6X63.5
Ee
1
20
08-161-32
SCREW
M6X70
Cc
1
12
08-136-32
DOOR RAIL
F
4
2
12-037-32
CAPNUT
M5X60
Cc-2
1
12
08-137-32
DOOR RAIL
G
4
2

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 8
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
08-187
WASHER
Gg
1
37
17-061
ROOF
PANEL
Kk
5
4
08-138-32
DOOR
STOPPER
H
1
4
17-044-32
RAFTER
L
4
4
08-189-32
ACORN
NUT
Hh
1
1
17-057
ROOF
PANEL
Ll
6
4
08-139-32
CONNECTING
PIECE
I
4
8
08-143-32
Top Cap
M
1
1
08-193
PLASTIC
PLUG
Ii
1
20
17-058
ROOF
PANEL
Mm
5
4
08-140-32
CONNECTING
PIECE
J
4
8
08-144-32
CENTRAL
HUB
N
1
1
17-055
ROOF
PANEL
Jj
5
4
08-134-32
UPPER
DOOR
RAIL END
CAP
Nn
1
4
17-043-32
RAFTER
K
4
8
17-049-32
COVER
FOR
RAFTER
O
4
8

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 9
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
17-050-32
COVER
FOR RAFTER
O1
4
4
17-045-32
FINISHING BAR
U
1
4
08-135-32
SCREW
Oo
1
4
17-069-32
FINISHING BAR
U1
1
4
16-118-32
SCREW M6X36
Oo1
1
50
17-047-32
SOLIDIFYING
BAR
V
1
4
17-051-32
GAP
COVER BAR
P
1
12
17-070-32
SOLIDIFYING
BAR
V1
1
4
18-067-32
SOLIDIFYING
BAR BRACKET
Pp
1
12
12-047-32
SCREW M5X15
Ww
1
12
17-053-32
END CAP
R
1
12
17-060
ROOF PANEL
Y
6
4
17-046-32
FINISHING BAR
S
1
4
08-156-32
SCREW
M4*16
Z
1
28
17-048-32
SOLIDIFYING BAR
T
1
4
15-125-32
STEEL ANGLE
Z2
(assembled
to rafter L)
1
4
15-124-32
STEEL ANGLE
Z1
(assembled)
to rafter K)
1
8
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SLATE
18-125
PAINT PEN
18-126

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 10
Before you assemble the Solarium
PLEASE DON'T DESTROY THE BOXES UNTIL COMPLETELY
ASSEMBLED
Tools needed:
Step Ladder 6’-8’
#2 Phillips, #2 Robertson Screwdriver (not supplied)
Rubber Mallet
Various Files
12” piece of wood
Based on the location, decide where you would like to position the two (2) doors
panels which can slide open to the left or the right, your choice.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 11
Assembly Instructions
12x12 Solarium

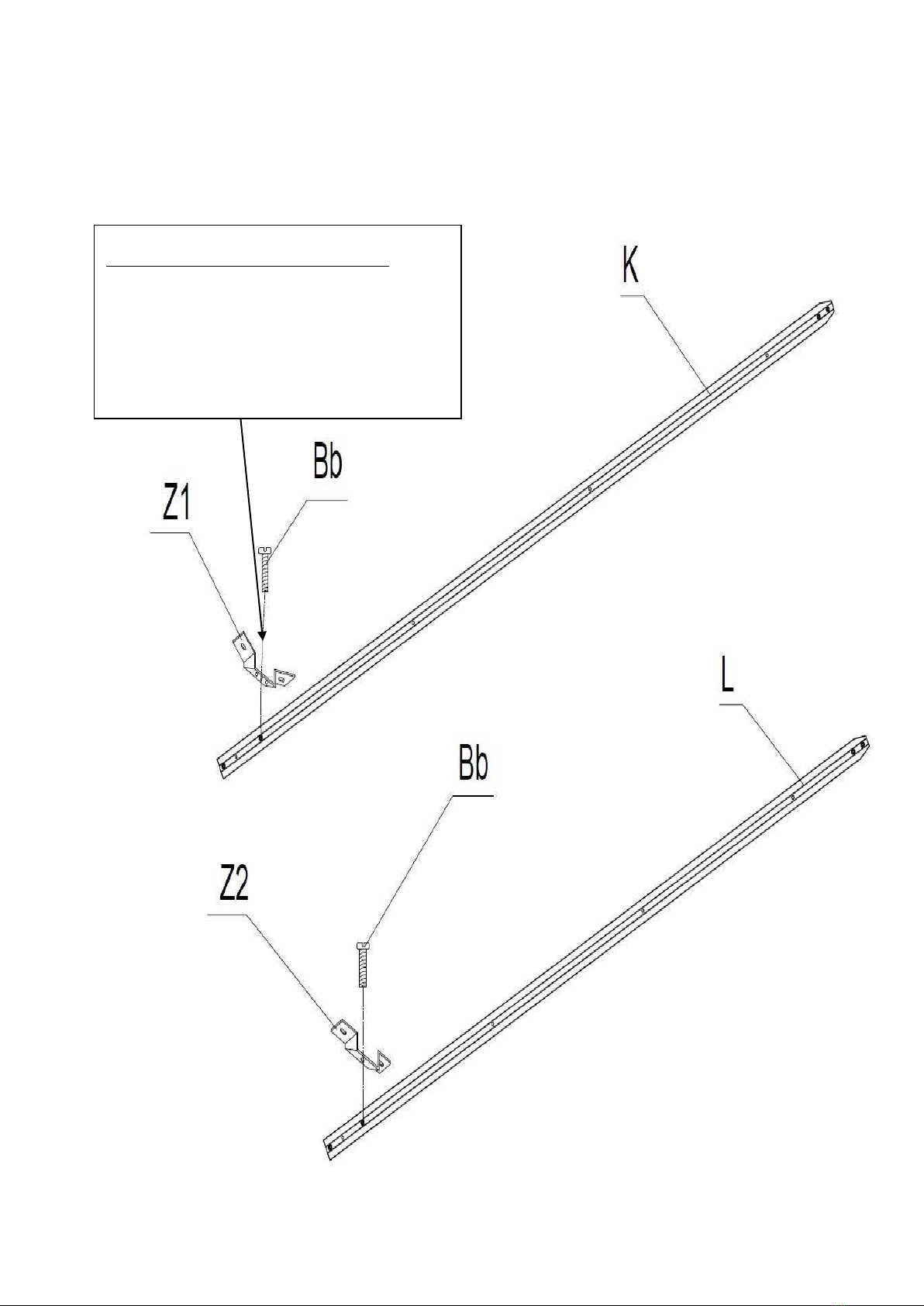

Pre-assembled steel angle (Z1, Z2) to roof Rafters (K, L) respectively, using Bolts (Bb).
.
To Be Assembled Before Packing
4 Steel Angles (Z1) to be attached to
the right hole and remaining 4 to the
left hole.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 12
Step 1:

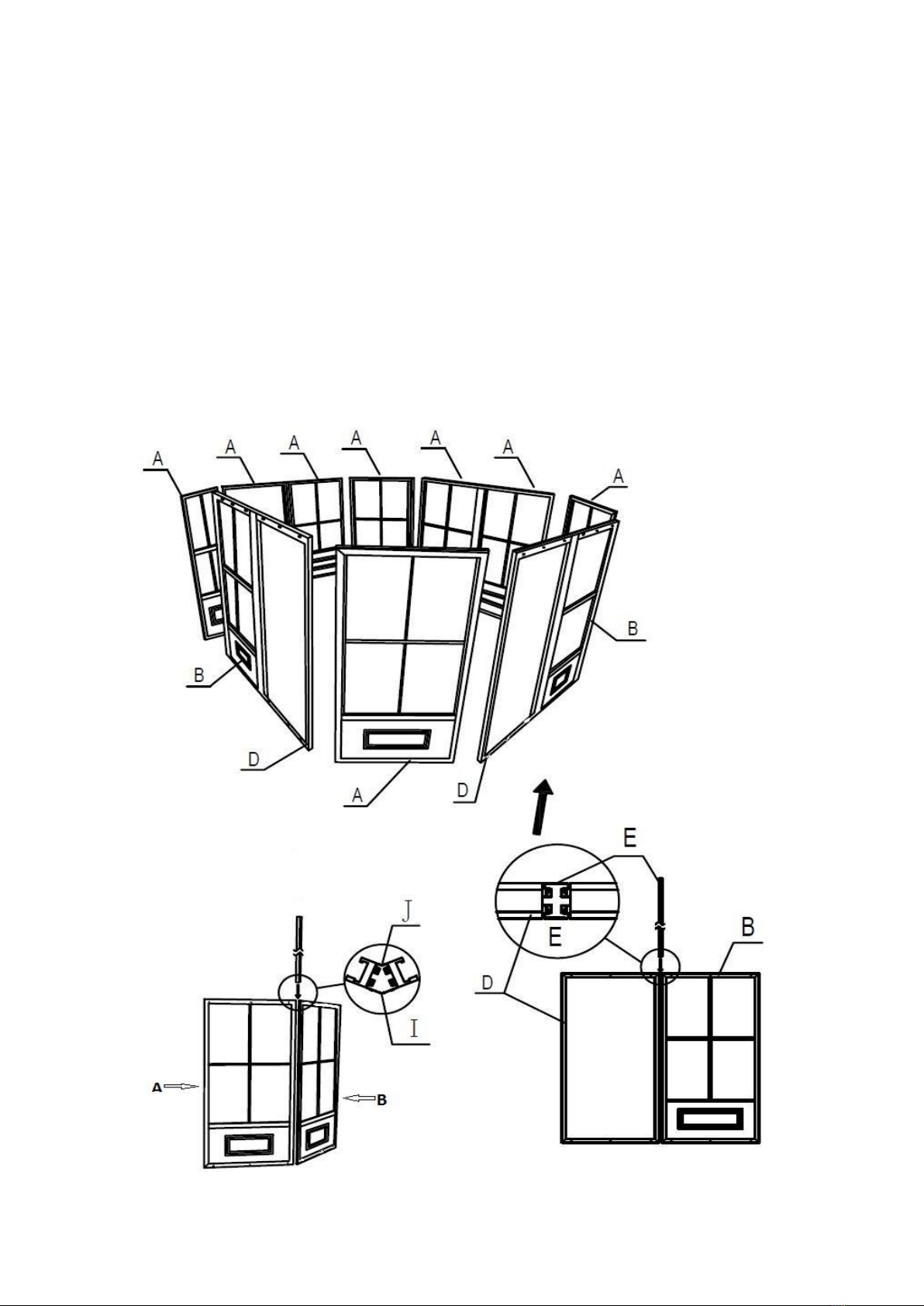

1. Stand up two Frames (A), using two Connecting Pieces (I, J) slide from top to bottom and
affix the panels together.
2. Stand up a frame meant to be next to the Door (B) and a Door Frame (D), placing the door
frame either on the left or right, then use two Connecting Pieces (E) slide from top to bottom
to affix the Panel B and Door Frame D.
3. When assembling Angled Panels (A), you should put the two panels at 135 degree angle
then use the angled Connecting Pieces (I) and (J) slide from top to bottom to affix the panels
together.
4. Frame screening should be facing the outside of the unit.
5. Door frame step down is on the inside of the unit.
6. When sliding the part I, J and E into the frames shake the frames for it too slide. Do not
apply excess force. Make sure the edges are clean from any extra paint if necessary use a
fine file.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 13
Step 2:

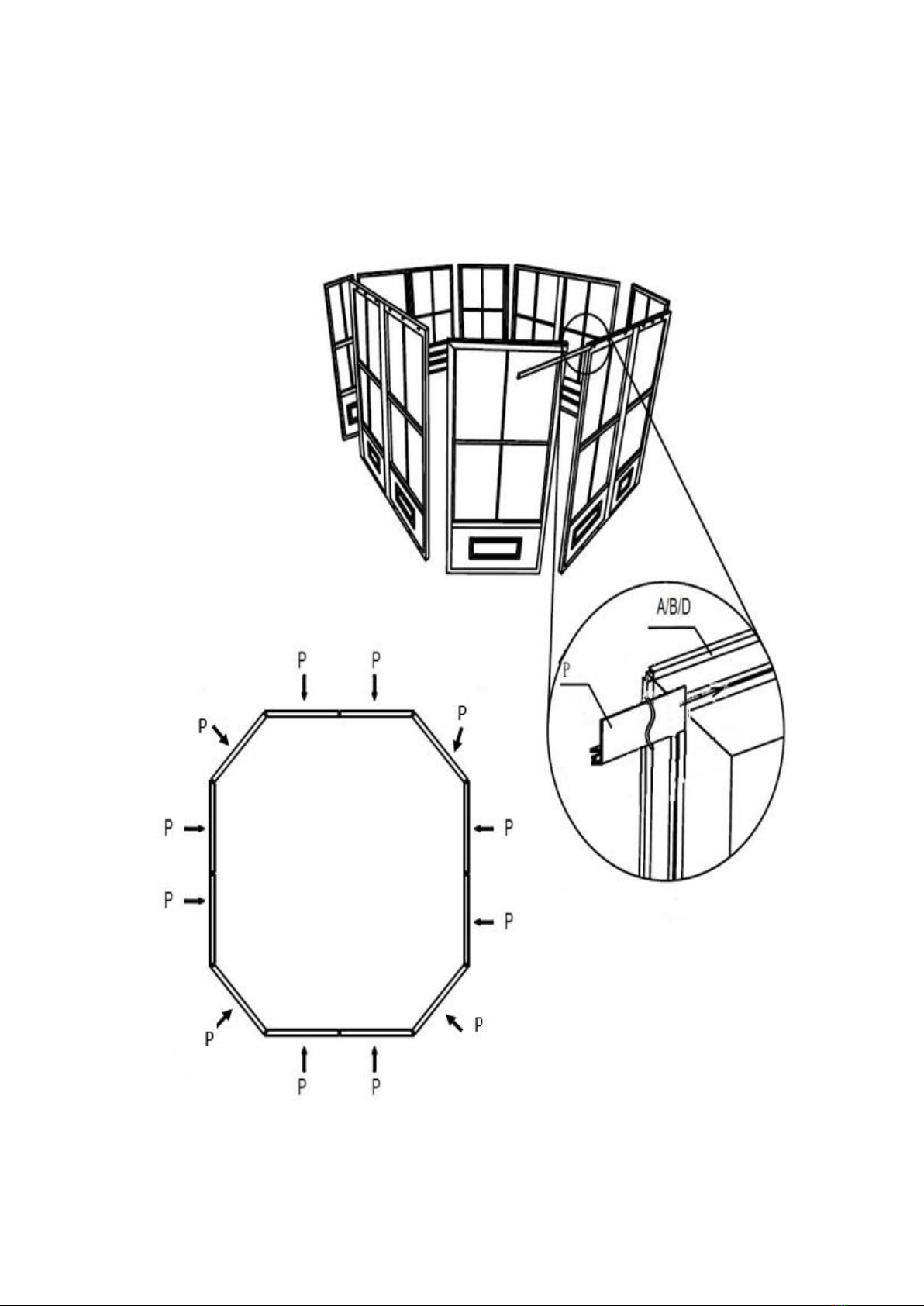

1. Affix Gap Cover Bars (P) by sliding them on top of the exterior groove of the Frames (A, B,
D)
Step 3:

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 14
1. Slide Top Door Rail (F) into wheels of Sliding Door (C).
2. Slide Lower Door Rail (G) into the plastic guide of the Sliding Door (C).
3. Use Bolts (Bb) to affix the plastic Stoppers (H) one on each end of Top Door Rail (F).
4. Using a Screw (Oo) affix the upper door rail End Caps (Nn) one on each end of Top Door
Rail (F).

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 15
Step 4:
Please note the sliding door is suggested to be installed from the inside of the
solarium
1. Place a Bolt (Ww) and Washer (Gg) through the Top Door Frame (D) and Door Top Rail (F),
and place a Female Bolt (Cc-2) from the other side. Once all are inserted, tighten them all
securely.
2. Secure the Bottom Door Rail (G), using a Bolt (Cc) with a Washer (Gg).
3. Use Bolt (Bb) to affix the Door Latch (Dd-R, Dd-L) onto the frame.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 16
Step 5:
1. Attach roof Rafters (K) to the Central Hub (N) using Bolts (Bb).
2. Use Screws (Z) to affix the Rafters (K) onto the top of panels going through the Metal Piece
(Z1) attached to the Rafter (K).
Note:
1. Rafters must be affixed where panels connect to each other.
2. Affix the Rafter (K) such that, the extra hole on the bracket (Z1) are facing each
other as shown below.
NOTE- 2
①
②

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 17
Step 6:
1. Follow the same procedure of Rafter (K) to assemble roof Rafters (L) onto the remaining
panels.
Note: Do not tighten the bolts right away as you may have to adjust the angle
when inserting the roof panels.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 18
Step 7:
1. Now secure the sides of the roof with Finishing Bar (S, U, and U1) with Bolts (Bb) and
Brackets R.
2. Place roof Finishing Bars (S, U, and U1) on the right of the Roof Finishing Bar (S, U, and U1)
and align the holes in each bar one on top of the other. Place End Caps (R) under the
aligned holes and secure with Bolts (Bb).
3. Repeat the process with the remaining finishing bars as illustrated.
4. In order to finish the installation of the last Finishing Bar (S, U, and U1) you have to unscrew
the first Bolts (Bb) at your starting point and place an End Cap (R) then re-install the Bolts
(Bb).
NOTE : Make sure all screws/ bolts are tight, when finished assembling.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 19
Step 8:

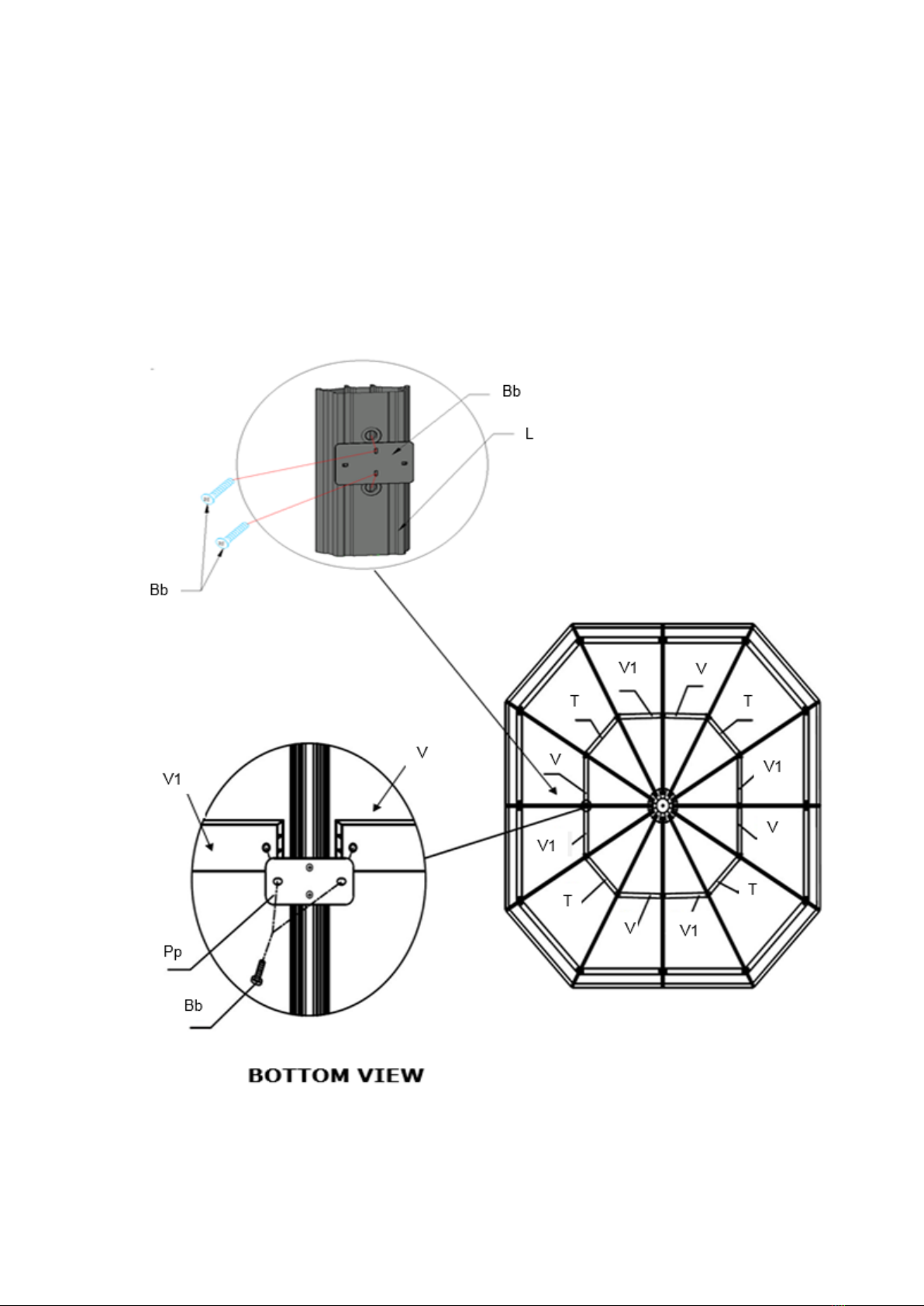

1. From the inside of the solarium, install all the Brackets (Pp) using Bolts (Bb) on the Rafters L
& K.
2. From the inside of the solarium, install the Solidifying Bar (T, V, and V1) as illustrated using
the Bolts (Bb).
NOTE : Make sure all screws/ bolts are tight.

ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION 20
Step 9:
1. Install the bottom Roof Panels (Jj, Kk, and Mm) by sliding them onto Finishing Bar (S, U,
U1).
NOTE:
1. Please refer to the stickers on how to place the roof panels.
2. Make sure all screws/ bolts are tight.
TOP VIEW
