Gazebo penguin FLORENCE User manual

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 1
W1610 ½ -12
SAND
10 X 16 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly by two or three adults is suggested.
Requires 96” clearance at the wall
Base Dimensions 190’’x 118’’
Largest Dimensions 190’’x122’’
(See Last Pg.)
APPROX.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 2
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
10ft x 16ft / 3.04m x 4.87m Solarium
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer Service
Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
WARNING:
•For outdoor use.
•Snow should be regularly cleared from the roof and not allowed to accumulate.
•Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation is complete and correct.
•The unit may take more than 4 hours and 3 people are required for this assembly.
PRIOR TO ASSEMBLY:
•Please don't destroy boxes until completely assembled.
•The foundation must be level, flat, and solid, such as concrete or asphalt.
•Keep away from overhead utility lines, tree branches, and other structures.
•Check for underground pipes or wires if digging or drilling is required.
•Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the roof top.
•Assemble the structure as close to its final location as possible.
•It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
•Do not hang from, climb on, or stand on the structure or roof.
•Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to warranty
information.
•A 6ft (1.8m) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required for assembly
(not included).
•Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until ready to insert roof
panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
•Proper anchoring of the frame to the base and the wall is required for safety.
•Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
•How the item is anchored, and the hardware and tools required, will vary based upon the set up location and are not provided.
•Please check with your local hardware store if for the appropriate anchors for your surface.
•Do not anchor to pavers / pavement slabs because they are not a solid foundation.
•Periodically check the anchors to ensure they remain secure
CARE AND MAINTENANCE:
•In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer directly.
•Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
•Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
•Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
•Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
•Do not use pressure washer.
STRUCTURE:
•Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
•Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
•Rinse using a garden hose and air dry.
•Do not use pressure washer.
•If there are nicks, chips, and/or scratches see the part # of the paint in the parts list to obtain a matching touch-up paint.
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 3
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please
contact the manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.

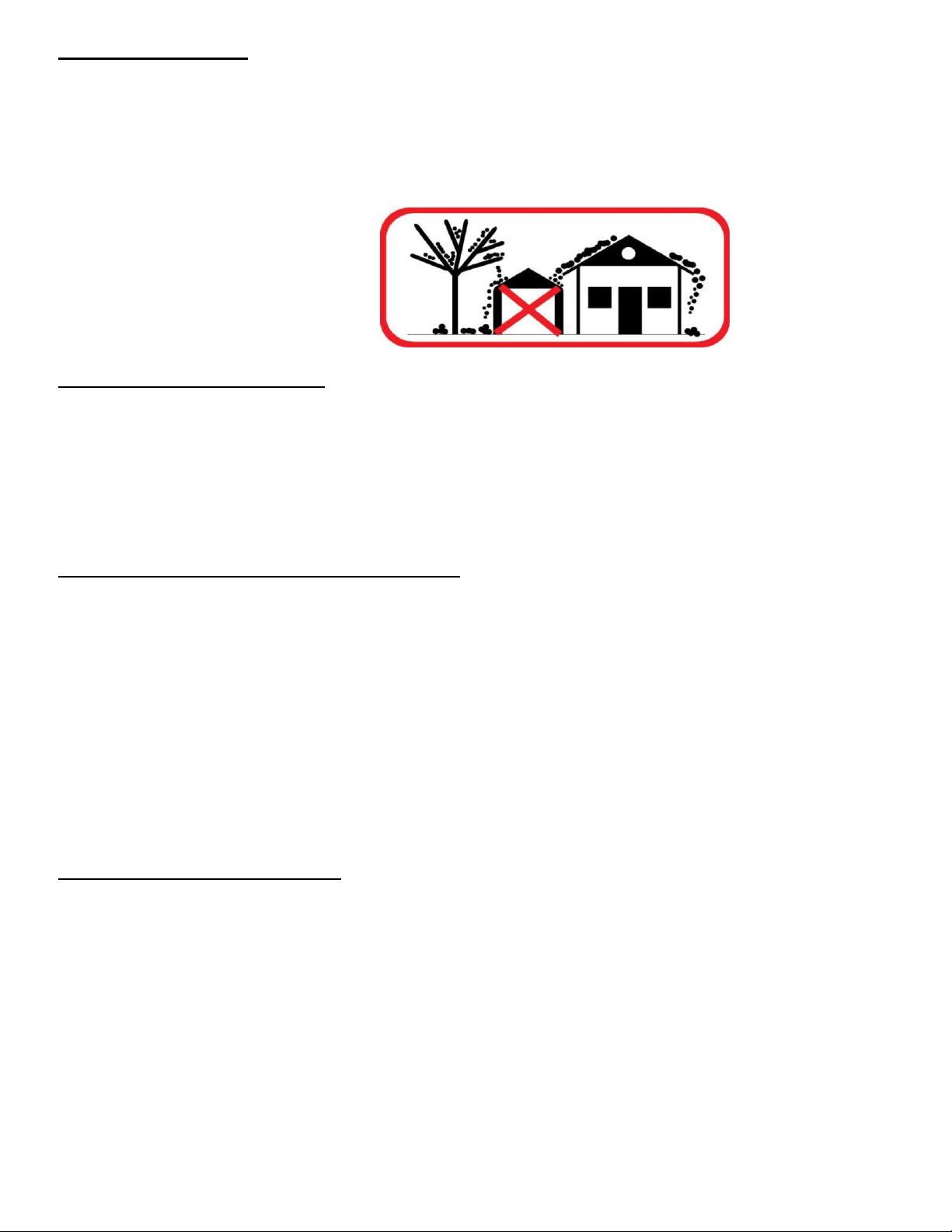

3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the
roof and cause it to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation
of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability.
Subject to the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is
warranted to be free of material and manufacturing defects for a period of one year from the date of purchase.
Missing and damage due to transportation is not covered by the manufacture warranty. Should the product
become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service
Department for a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover
damaged or missing parts, do not return the product to the place of purchase, but contact Gazebo
Penguin Customer Service Department at the numbers listed below:
Montreal: [phone]
Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online:
http://www.abrispenguin.com/forms.html
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your
request might be rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or
accumulation of snow.
2. The product is not warranted against damages due to extreme weather conditions, such as
thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and
information on how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written
instructions enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 4
SOLARIUM W1610 ½

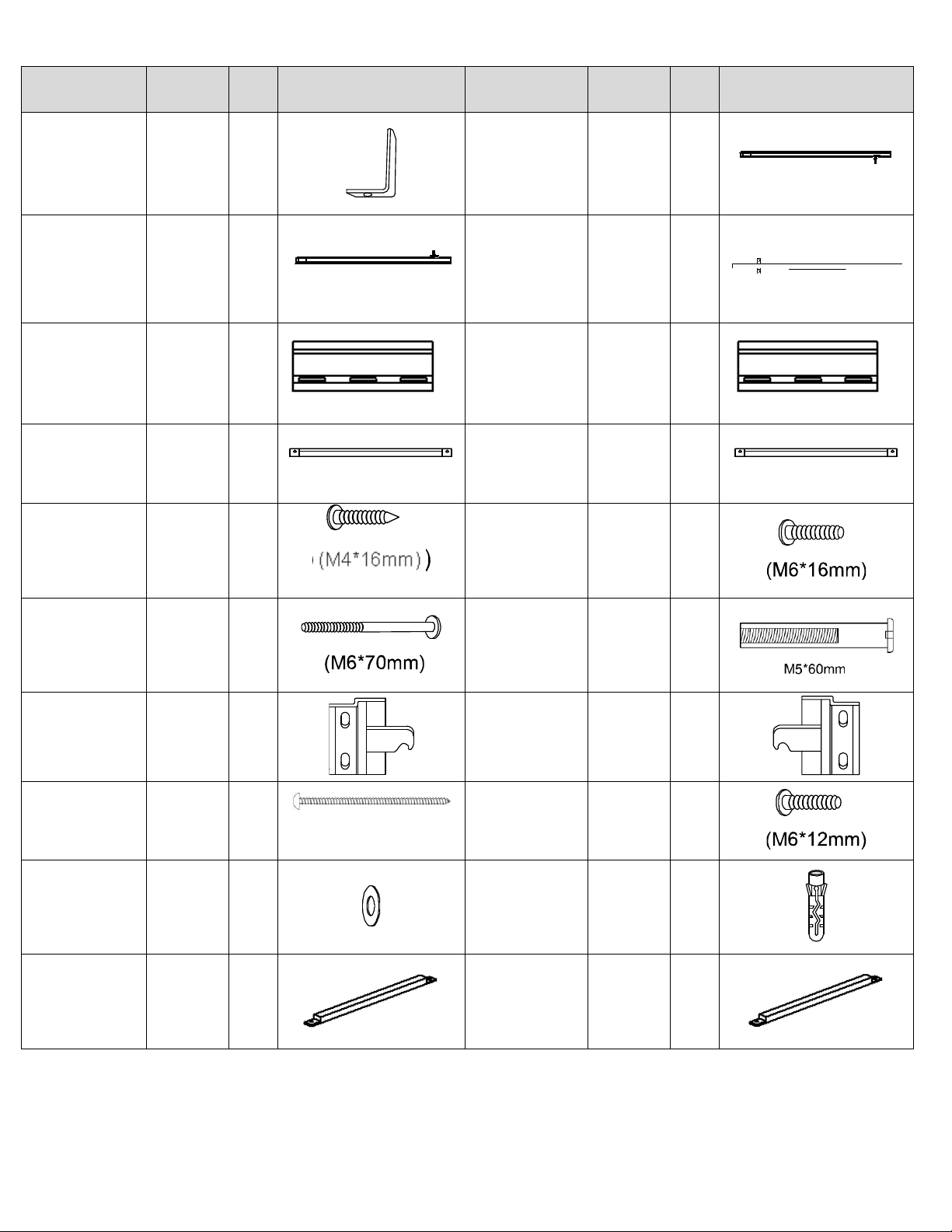

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-496-12
REGULAR
FRAME
A-3
2
2
10-497-12
FRAME NEXT
TO DOOR
B-3 (with extra
holes)
2
1
3
2
3
1
12-141-12
HALF FRAME
A-3 1/2
2
1
10-498-12
SLIDING
DOOR
C-3
2
1
3
1
3
1
10-499-12
SLIDING
DOOR FRAME
D-3
2
1
11-544-12
CONNECTING
PIECE
E-3
4
14
3
1
11-545-12
TOP DOOR
RAIL
F-3
4
2
11-546-12
BOTTOM
DOOR RAIL
G-3
4
2
08-138-12
PLASTIC
STOPPER
H-3
5
4
12-142-12
LEFT SIDE
RECEIVER
I-3
4
1
12-143-12
RIGHT SIDE
RECEIVER
J-3
4
1
10-502-12
CORNER
CONNECTOR
K-3
4
2
12-157-12
LEFT
CROSSBEAM
L-1
4
1
12-156-12
RIGHT
CROSSBEAM
L-2
4
1
10-532-12
TRACK
ML-3
4
1
10-533-12
TRACK
MR-3
4
1
10-505-12
TRACK JOINT
N-3
5
1
10-506-12
RAFTER
BRACKET
O-3
5
6
12-007-12
LEFT GABLE
JOINT
P-3
5
1
12-008-12
RIGHT GABLE
JOINT
Q-3
5
1

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 5
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-509-12
ROOF
RAFTER CAP
R-3
5
9
12-146-12
LEFT SIDE
RAFTER
S-3
4
1
12-147-12
RIGHT SIDE
RAFTER
T-3
4
1
12-148-12
REGULAR
RAFTER
U-3
4
7
10-513-12
MIDDLE ROOF
JOINT
V-3
5
2
10-514-12
MIDDLE
ROOF JOINT
W-3
5
6
10-515-12
EDGING
X-3
5
2
10-516-12
EDGING
Y-3
5
6
08-156-12
SCREW
Z-3
5
14
08-158-12
BOLT
Bb-3
5
32
08-161-12
BOLT
Cc-3
5
25
12-037-12
FEMALE
BOLT
Cc-3-2
5
12
08-165-12
RIGHT DOOR
LATCH
Dd-R-3
5
2
08-169-12
LEFT DOOR
LATCH
Dd-L-3
5
2
08-167-12
SCREW
Ee-3
5
12
(M6*63.5mm)
08-168-12
BOLT
Ff-3
5
20
08-187
WASHER
Gg-3
5
25
08-193
PLASTIC
PLUG
Ii-3
5
12
10-517-12
END ROOF
CROSS BAR
Jj-3
5
2
10-518-12
REGULAR
ROOF
CROSSBAR
Kk-3
5
6

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 6
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-519-12
ROOF TOP
REINFORCE
Ll-3
5
2
10-520-12
ROOF TOP
REINFORCE
Mm-3
5
6
08-134-12
UPPER DOOR
RAIL END CAP
Nn
5
4
08-135-12
SCREW
Oo-3
5
8

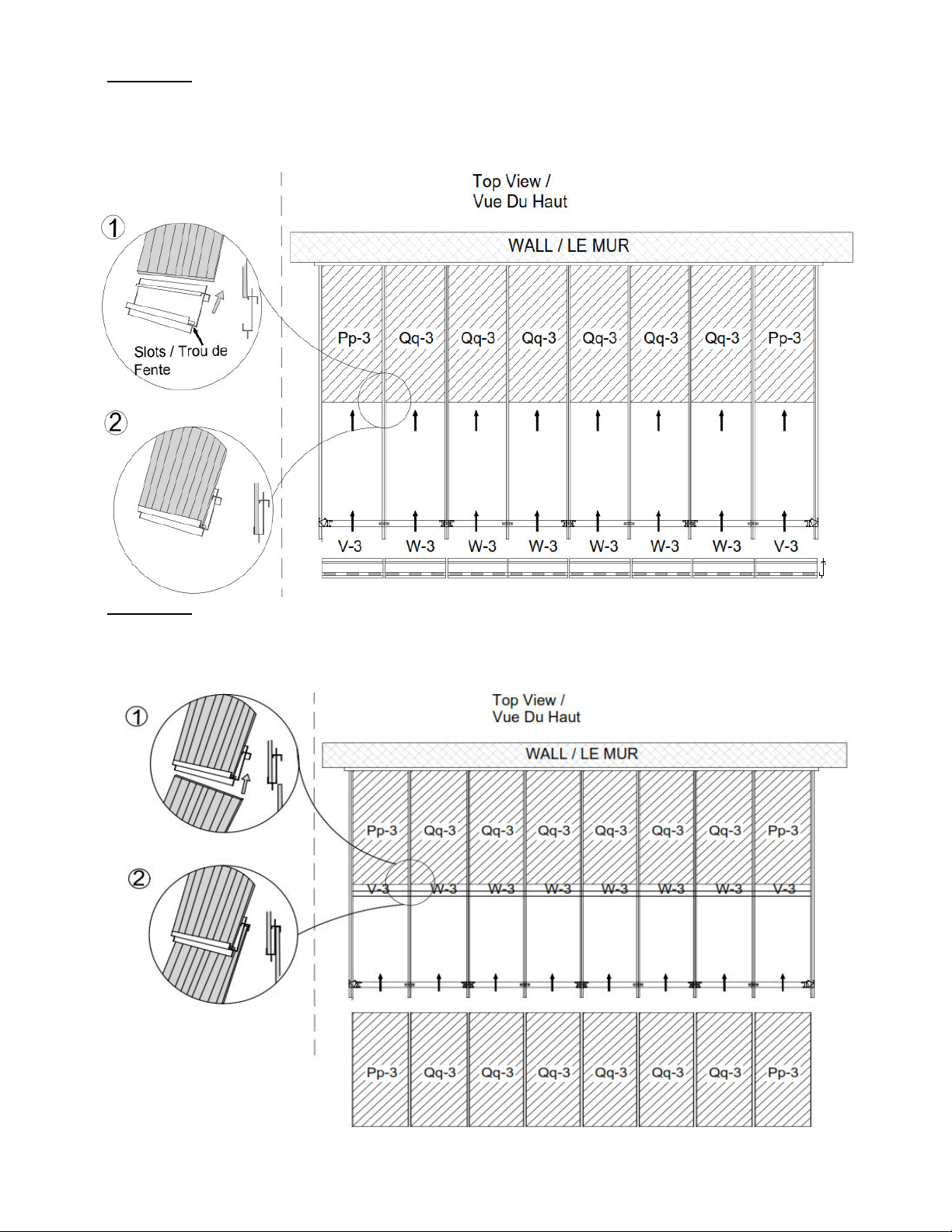

12-149
(63 ¼ x 24 ½”)
LEFT+RIGHT
ROOF PANEL
Pp-3
1
4
12-150
(63 ¼ x 23”)
REGULAR
ROOF PANEL
Qq-3
1
12
12-151
LEFT BACK
GABLE PANEL
Rr-3
1
1
12-152
LEFT FRONT
GABLE PANEL
Ss-3
1
1
12-153
RIGHT BACK
GABLE PANEL
Tt-3
1
1
12-154
RIGHT FRONT
GABLE PANEL
Uu-3
1
1
10-527-12

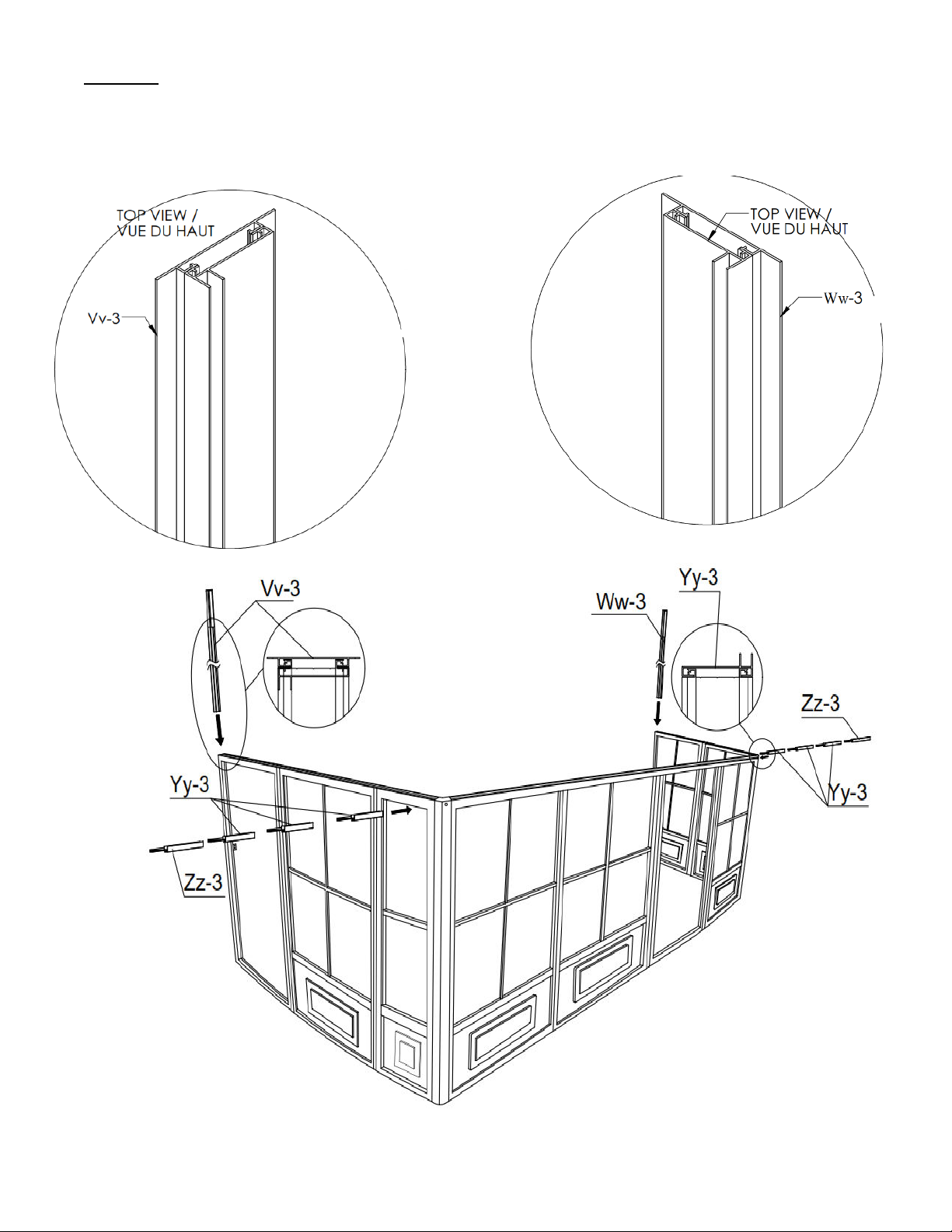

LEFT WALL
GUIDE
Vv-3
4
1
10-528-12
RIGHT WALL
GUIDE
Ww-3
4
1
10-529-12
SCREW FOR
FIXING TO
WALL
Xx-3
5
26
10-530-12
REGULAR TOP
FILLER
Yy-3
5
6
10-531-12
END TOP
FILLER
Zz-3
5
2
12-047-12
BOLT
Ww
5
12
(M5*15mm)
13-045-12
SELF-TAPPING
SCREW
PQ-3
5
4
12-161-12
NUT
FOR 12-160-12
Hh-3-2
5
4

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 7
AVAILABLE REPLACEMENT PARTS
DESCRIPTION
DRAWING
DESCRIPTION
DRAWING
10-435-12
PVC WINDOW
(in frame)
85-014
REPLACEMENT
SCREENING (no
frame)
12-176-12
PVC WINDOW for
HALF FRAME A-3
1/2
85-417-S
ROUND SPLINE FOR
SCREENING
10-493
PVC WINDOW
(replacement
material only)
11-824-12
BOTTOM PLASTIC
PANEL (for wall
panels)
85-417-P
ROUND SPLINE
FOR PVC
WINDOW
11-825-12
BOTTOM PLASTIC
PANEL (for doors)
15-123-12
PIN FOR PVC
WINDOW
12-173-12
BOTTOM PLASTIC
PANEL FOR HALF
FRAME A-3 1/2
13-055
PC WINDOW (for
sliding door)
15-097-12
DOOR WHEEL
ASSEMBLY
12-174-12
MOSQUITO
SCREEN (in
frame)
10-458
REPLACEMENT
WEATHERSTRIP
124”
12-175-12
MOSQUITO
SCREEN FOR
HALF FRAME A-3
1/2
15-125-12
MOUNTING
BRACKET FOR
RAFTER (U-3)
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SAND
11-699
PAINT PEN
18-245

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 8

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 9
TOOLS REQUIRED:
Screwdriver, Knife, Needle-nosed pliers, Rubber mallet, Step ladder (minmum 6' in height)
Spatula, Power dril,Tube of silicon, Drill bit 5/16" cement (according to surface), Round + flat file, 2”x4”x8”
wood, Tapping Screws(optional)
BEFORE STARTING:
Ensure that you have a solid base, such as concrete or wooden deck, not slanted more than 1” per 8’. Avoid
installing unit adjacent to trees or a sloped roof, as snow and ice may slide onto the solarium and cause it to
collapse. Please don't destroy boxes until completely assembled.

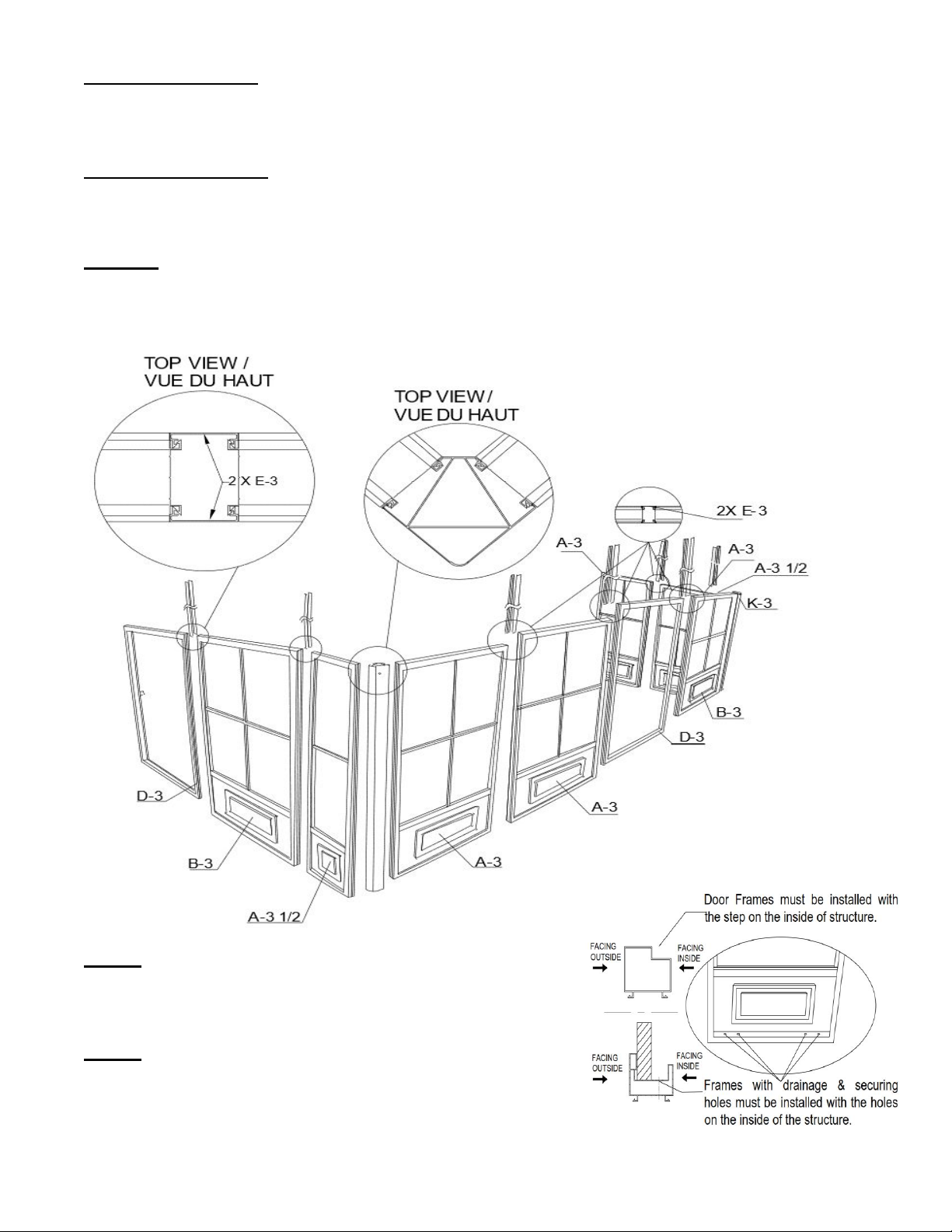

STEP #1
Decide the position of the door frames before assembly according to where you intend to slide the
door. At the front of the solarium, use frame D-3 for the opening of the door and B-3 for the direction of the
door when open. Ensure frames A-3 ½ are at the front of the sides. Use E-3 between frame ends and use

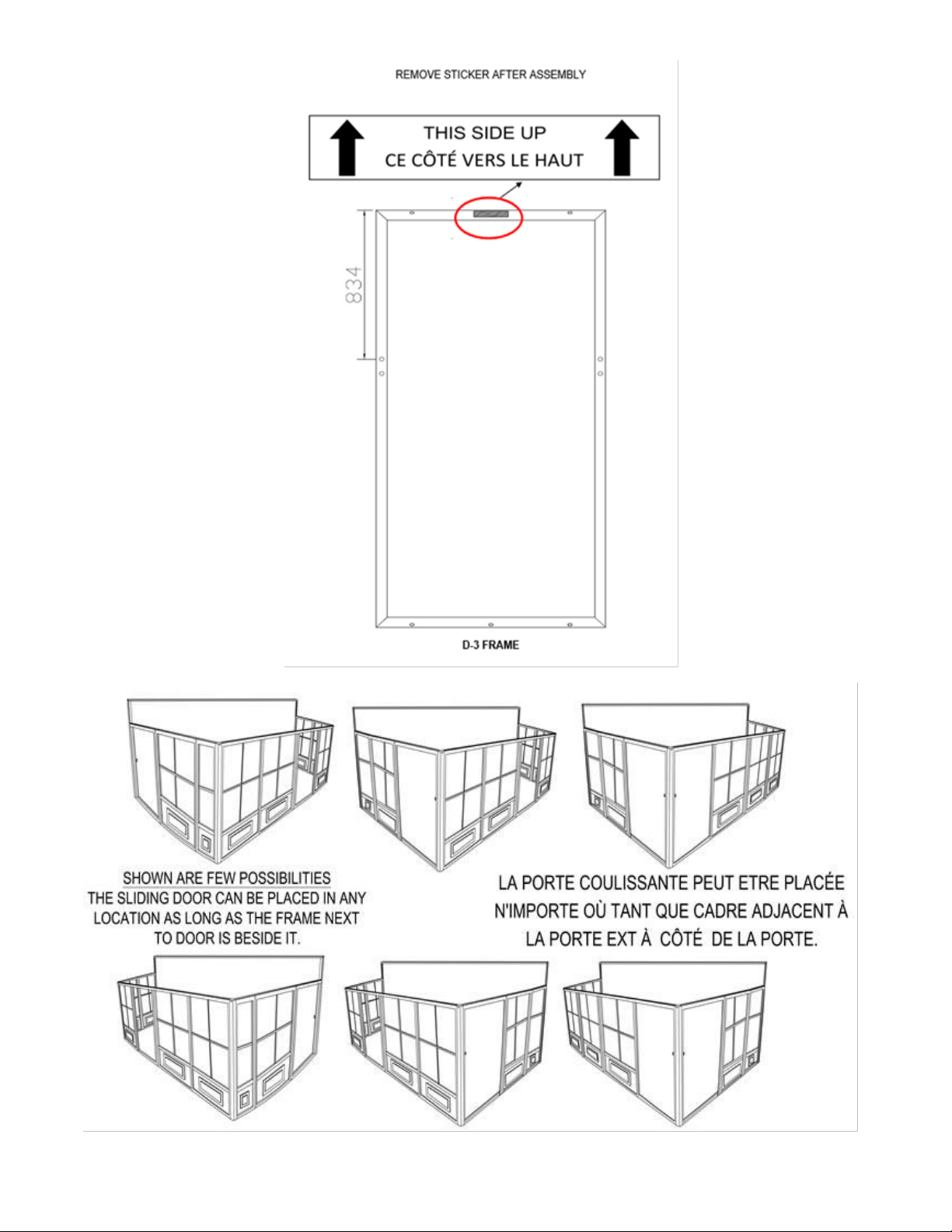

two (2) K-3 joints for corners. (See previous page for possible door locations)
NOTE: When placing the door frame opening, make sure the inserts
on the frame are on the inside and on the upper half of the
frame of the solarium because the door will be set on the inside
due to clearance.
NOTE: When sliding the connectors, shake the frame so that they will slide
easily. Do not use tools to force. If needed, clean paint with a file and make
sure the ends of the frame and joints are not bent or warped. If so,
use the needle-nosed pliers to straighten.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 10
STEP #2
Slide the vertical guides Vv-3 left and Ww-3 right into the 2 ends of the frames along the grooves, shaking
while sliding for easier movement. Next, slide three (3) Yy-3 and one (1) Zz-3 from left side to right on top
of the frame. The groove should be towards the interior of the unit. Repeat from right side and space evenly.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 11

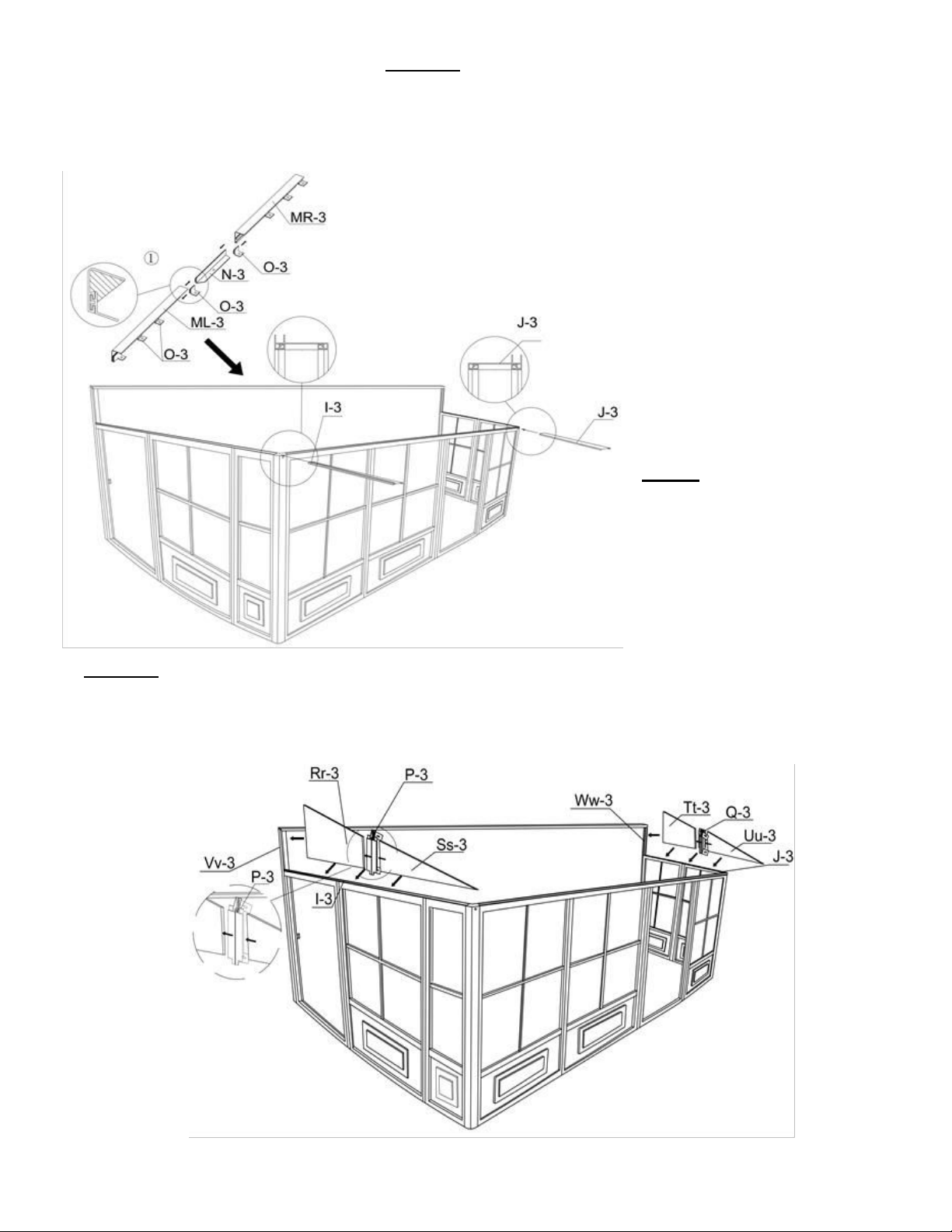

STEP #4
Set polycarbonate exposed side on the outside over horizontal left guide I-3, use one (1) Rr-3 panel, one (1)
P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1)
Uu-3 panel over the J-3 horizontal guide. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping
screws (PQ-3).
NOTE:
Once the wall track is in place,
apply silicone along the top of the
wall track and at the joint of the
two tracks. Silicone is not
supplied.
ASSEMBLE PIECES
BEFORE SCREWING
THEM TO THE WALL
STEP #3
Slide brackets O-3 into ML-3 and MR-3 in equal quantity.
Then join ML-3 and MR-3 using N-3. Once assembled lift the assembled
wall track and position it above the vertical wall guides Vv-3 and Ww-3
(approximate 96”from the ground).
Secure the wall track (ML-3, MR-3) and vertical wall guides (Vv-3 and Ww-
3) to the wall by drilling holes through the aluminum, at intervals of about
16” and using screws Xx-3 or by using appropriate screws according to your
type of wall. Insert the 2 horizontal guides, I3 & J3 at the top of the frame.
Make sure the frames are at the same level, if not, use shims to
compensate.
Do not use tools to force.
ASSEMBLE THE PIECES BEFORE SCREWING THEM TO THE
WALL.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 12

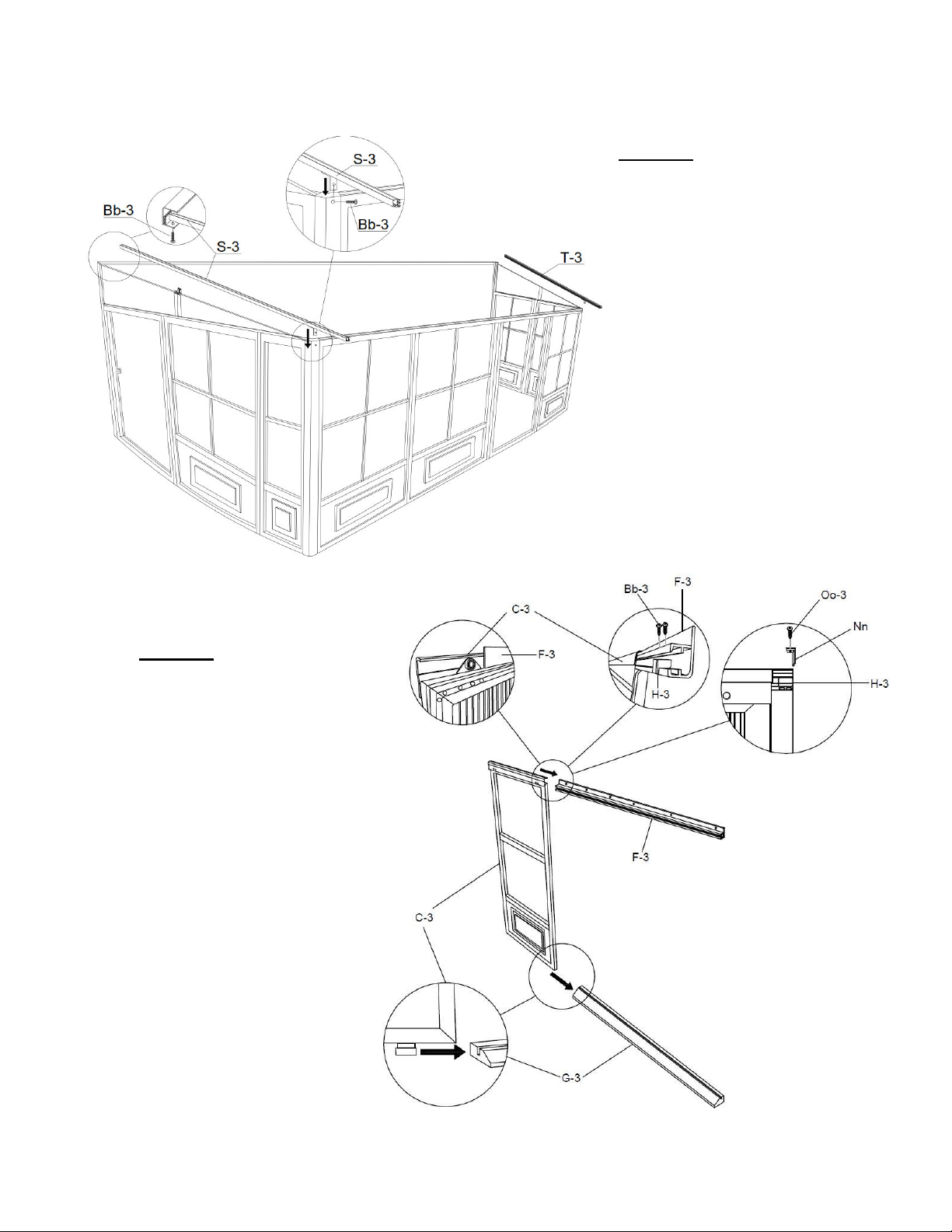

STEP #5
Set right rafter T-3 over last bracket
then secure it with Bb-3 screw and
continue screwing through joint K-3
with the Bb-3 screw. Secure to Q-3
bracket with self-tapping screw
(PQ-3). Repeat on left side with
rafter S-3.
STEP #6
DOOR UNIT(S) MUST BE
ASSEMBLED INSIDE OF
SOLARIUM.
Slide upper door track F-3 into
wheels of sliding door C-3. Slide
lower door track G-3 and make
sure inserts are close enough to
the frame to attach. Use bolt
Bb-3 to affix the plastic stopper
H-3 on each end of top door rail
F-3. Use Oo-3 screws to affix
upper door rail and cap Nn-3, at
each end of top rail door.
Note: Make sure the wheels roll
easily on the track. In case the
movement is not smooth check if
the wheels are tightly set.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 13

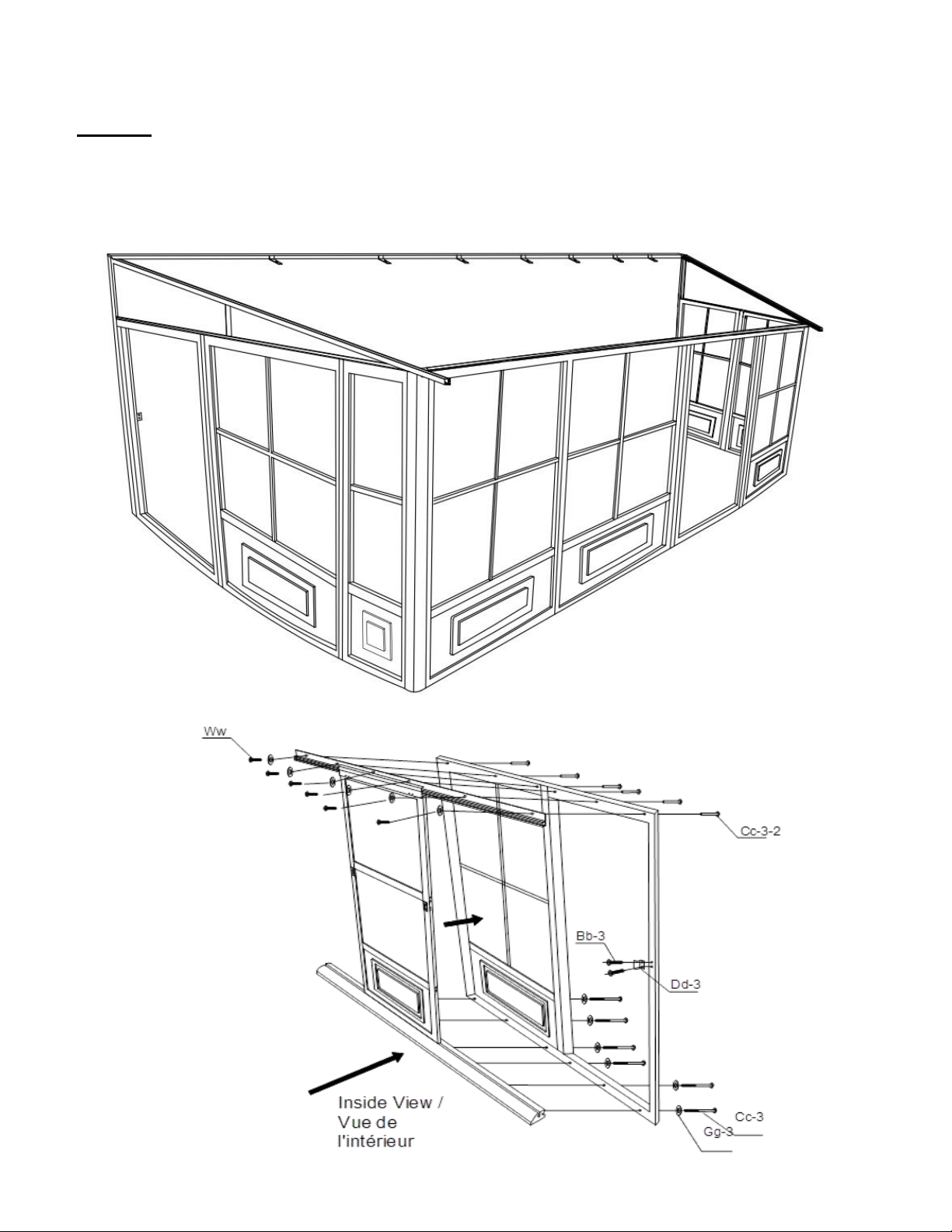

STEP #7
Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First use bolts
(Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly. See
diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door latch(Dd-3) on the side
required for your door to lock, adjust latch as required.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 14
STEP #9
Remove protective
film from two (2)
sides of each
panel and make
sure the top side
of the panel faces
the sunlight.
Insert and slide on
the top groove of
the rafters all the
way to the end.
Pp-3 should go
first and last with
the Qq-3 panels in
between.
STEP #8
Set U-3 rafters over the middle of each panel with Bb-3 screws at the top and two (2) Z-3 screws over the brackets on
frame manually. Set U-3 rafter on each joint and use Z-3 screws manually. Do not use power drill, if necessary, make a
pilot hole 1/8”.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 15
STEP #10
Insert the aluminum middle roof joint between the rafters, making sure the slotted holes are at the bottom.
Slide into upper and lower grooves of the rafters then slide all the way into the panels. Make sure the
panels are inside the aluminum middle roof joint groove. Insert a V-3 at either end, then insert all W-3 and
then the remaining V-3. Tap gently with rubber mallet if needed.
STEP #11
Insert the second row of panels into the lower groove on the rafter. Slide panels until they reach the
aluminum pieces between the panels and gently tap on the panel to guide it into the aluminum groove.
Use a spatula if needed to make it fit. Insert two (2) Pp-3 on either end, then insert the Qq-3 panels.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 16
STEP #12
Starting at either end, add X-3 edging and one (1) R-3 bracket and screw with Bb-3 manually, do not use
power drill. Add Y-3 edging and repeat until you reach the end, then add the X-3 edging.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 17
STEP #13
On the inside of the solarium under each rafter there are two rows of inserts with threads, and one
crossbeam in two pieces. Start the upper row with a Jj-3 at either end and Kk-3 between panels, screwing
them in place with Ff-3. Use Ff-3 screws for the lower row Ll-3 at the 2 ends and Mm-3 between panels.
Lastly, assemble crossbeam L-1 and L-2, then secure to rafters using bolts Cc-3. Make sure screws are
manually tight.
STEP #14
Anchor the solarium to the
deck or floor securely using
screws and shields supplied.
Cc-3
INSIDE TOP VIEW

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 18
SPECIAL NOTES
To remove a screen, remove the two (2) screws at the top of the frame then pull sideways to the opposite end of the
handles to remove. To remove wind panels, push or pull to one side, making sure that locking pin is not locked then
remove panels gently, panels are easy to remove.
NOTE:
This unit is not waterproof. For best protection against rain, close the windows of each frame with the outside window in
the center, and the inside window at the top.
CLEANING INSTRUCTIONS:
Use only mild or warm soapy water, no strong or abrasive cleaning products. Be sure to remove heavy snow and/or ice.
WARNING:
1) Do not use BBQ or any other flammable product inside the solarium.
2) Remove snow from the roof.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 19
*Suggestions
The below mentioned are only suggestions in order to permit drainage, these will vary depending on your
flooring –material, flatness and slope.

ZZZ-210.W1610-12.1129-21.GP.EN TAP-OH 20
Note: The Dimensions are approximate.
