Gazebo penguin W1209 1/2-12 SAND User manual

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 1
W1209 ½-12 SAND
W1209 ½-12 SLATE
10 X 12 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly by two or three adults is suggested.
Requires 96” clearance at the wall
Base Dimensions 144’’x 118’’
Largest Dimensions 144’’x122’’
(see pg.21)
APPROX.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 2
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
10ft x 12ft / 3.05m x 3.66m Solarium
Instruction Manual
IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer Service
Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):
Montreal: [phone] Elsewhere in Canada and the US: 1-800-737-7174
WARNING:
For outdoor use.
Snow should be regularly cleared from the roof and not allowed to accumulate.
Retain your proof of purchase for warranty purposes. Also keep the original boxes
until the installation is complete and correct.
The unit may take more than 4 hours and 3 people are required for this assembly.
PRIOR TO ASSEMBLY:
Please don't destroy boxes until completely assembled.
The foundation must be level, flat, and solid, such as concrete or asphalt.
Keep away from overhead utility lines, tree branches, and other structures.
Check for underground pipes or wires if digging or drilling is required.
Do not install near roof lines or other structures that could shed snow, ice, or excessive rain run-off onto the roof top.
Assemble the structure as close to its final location as possible.
It is recommended to wear safety gloves, safety glasses, and hard hats for installation.
Do not hang from, climb on, or stand on the structure or roof.
Before assembly, read instructions and check that all parts are present in the boxes. If any parts are missing, refer to warranty
information.
A 6ft (1.8m) stepladder, Phillips screwdriver, tape measure, level, mallet, and a tarp to place parts on will be required for assembly
(not included).
Remove top protective film from roof panels prior to assembly; DO NOT remove bottom protective film until ready to insert roof
panels, so as to identify which side is on top.
ANCHORING INSTRUCTIONS:
Proper anchoring of the frame to the base and the wall is required for safety.
Any structure not anchored securely has the potential to fly away during high wind causing damage and safety hazard.
How the item is anchored, and the hardware and tools required, will vary based upon the set up location and are not provided.
Please check with your local hardware store if for the appropriate anchors for your surface.
Do not anchor to pavers / pavement slabs because they are not a solid foundation.
Periodically check the anchors to ensure they remain secure
CARE AND MAINTENANCE:
In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer directly.
Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
ROOF PANELS:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry. If removed, ensure thoroughly dry prior to storage.
Do not use pressure washer.
STRUCTURE:
Gently clean with an environmentally-friendly soap solution and water using a sponge or washcloth.
Do not use abrasive materials, wire brushes, chemicals, harsh cleaners, or bleach.
Rinse using a garden hose and air dry.
Do not use pressure washer.
If there are nicks, chips, and/or scratches see the part # of the paint in the parts list to obtain a matching touch-up paint.
Consult with your local governing authority / local municipal codes regarding installation of temporary structures before
purchase or assembly. Some jurisdictions may require permits for, or otherwise regulate, installation and use.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 3
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please contact the
manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide onto the roof and
cause it to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability. Subject to the
Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below, it is warranted to be free of
material and manufacturing defects for a period of one year from the date of purchase. Missing and damage due to
transportation is not covered by the manufacture warranty. Should the product become damaged, or the warranty period
has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement
parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you discover damaged or
missing parts, do not return the product to the place of purchase, but contact Gazebo Penguin Customer Service
Department at the numbers listed below:
Montreal: [phone]
Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online:
https://abrispenguin.com/assemblyinstructions/
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your request might be
rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects, or accumulation of
snow.
2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail,
strong wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information
on how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions
enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 4
TOOLS REQUIRED:
Screwdriver
Knife
File (smooth)
Needle-nosed pliers
Rubber mallet
Step ladder (minmum 6' in height)
Spatula
Power drill
Tube of silicon
Drill bit 5/16" cement
(according to surface)
BEFORE STARTING:
Ensure that you have a solid base,
such as concrete or wooden deck,
not slanted more than 1” per 8’. Avoid
installing unit adjacent to trees or a sloped
roof, as snow and ice may slide onto the
solarium and cause it to collapse.
Please don't destroy boxes until completely assembled.
STEP #1
Decide the position of the door frames before assembly according to where you intend to slide the door. At
the front of the solarium, use frame D3 for the opening of the door and B3 for the direction of the door when
open. Ensure frames A-3 ½ are at the front of the sides. Use E3 between frame ends and use two (2) K3
joints for corners.
NOTE:
When placing the door frame opening,
make sure the inserts on the frame are
on the inside and on the upper half of
the frame of the solarium because the
door will be set on the inside due to
clearance.
NOTE:
When sliding the connectors, shake the
frame so that they will slide easily. Do
not use tools to force. If needed, clean
the paint with a file and make sure the
ends of the frame and joints are not bent
or warped. If so, use the needle-nosed
pliers to straighten.
STEP #2
Slide the vertical guides Vv-3 left and Ww-3 right into the 2 ends of the frames along the grooves, shaking
while sliding for easier movement. Next, slide two (2) Yy-3 and one (1) Zz-3 from left side to right on top of
the frame. The groove should be towards the interior of the unit. Repeat from right side with two (2) YY-3
and one (1) Zz-3 and space evenly.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 5
ASSEMBLE PIECES
BEFORE SCREWING
THEM TO THE WALL
STEP #4
Set polycarbonate exposed side on the outside over horizontal left guide I-3, use one (1) Rr-3 panel, one (1)
P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1)
Uu-3 panel over the J-3 horizontal panel. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping
screws (PQ-3).
NOTE:
Once the wall track is in place,
apply silicon along the top of the
wall track and at the joint of the
two tracks. Silicon is not
supplied.
STEP #3

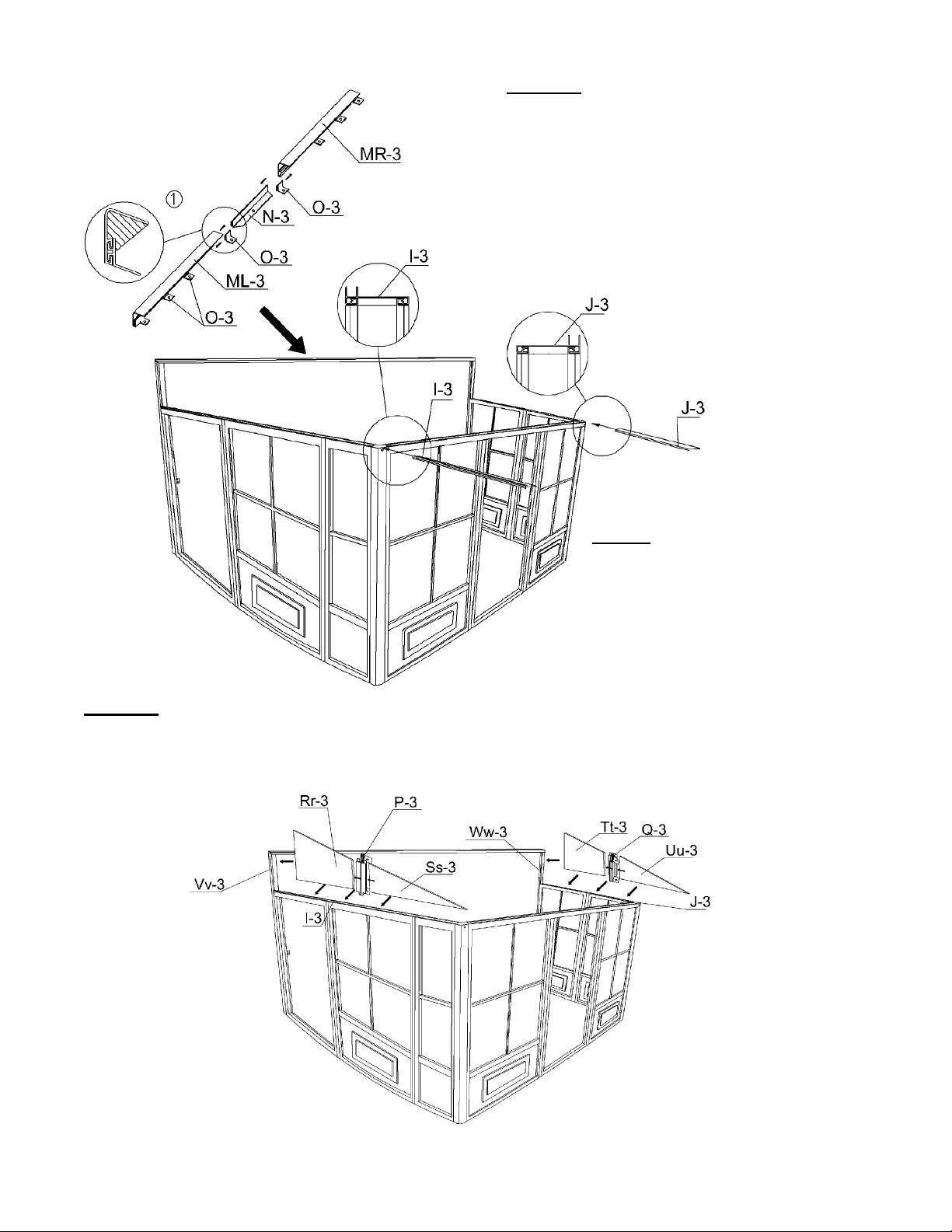

Assemble ML-3, N-3, O-3, and MR-3 as shown
and position evenly above vertical guides, at 96’’
from the ground. Secure wall track and vertical
tracks to brick or cement wall by drilling through
the aluminum and using screws Xx-3. Insert the 2
horizontal guides, I3 & J3 at the top of the frame.
Make sure the 2 frames are at the correct level, if
not, use shims to compensate. Do not use tools to
force.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 6
STEP #5

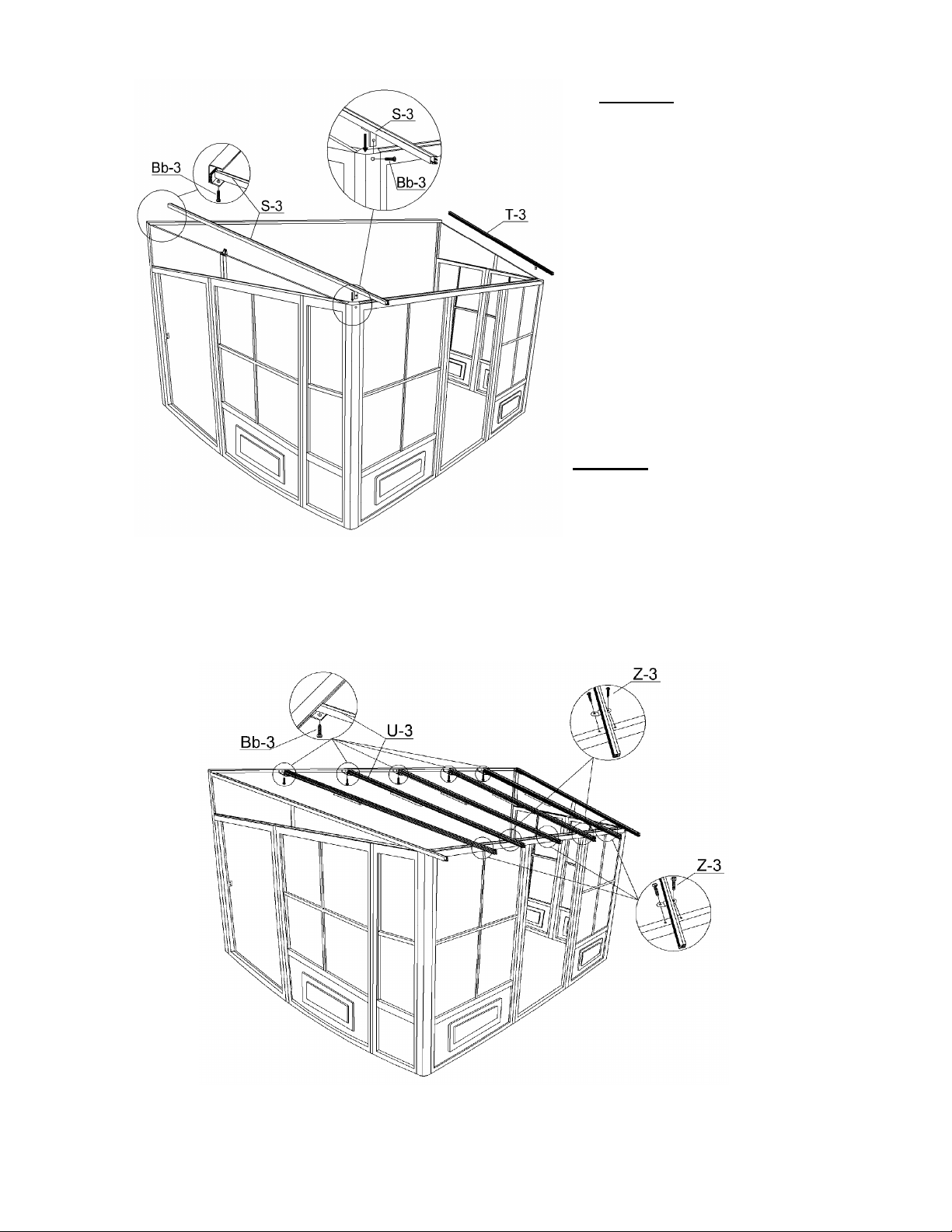

Set right rafter T-3 over last bracket
then secure it with Bb-3 screw and
continue screwing through joint K-3
with the Bb-3 screw. Secure to Q-3
bracket with self-tapping screw
(PQ-3). Repeat on left side with
rafter S-3.
STEP #6

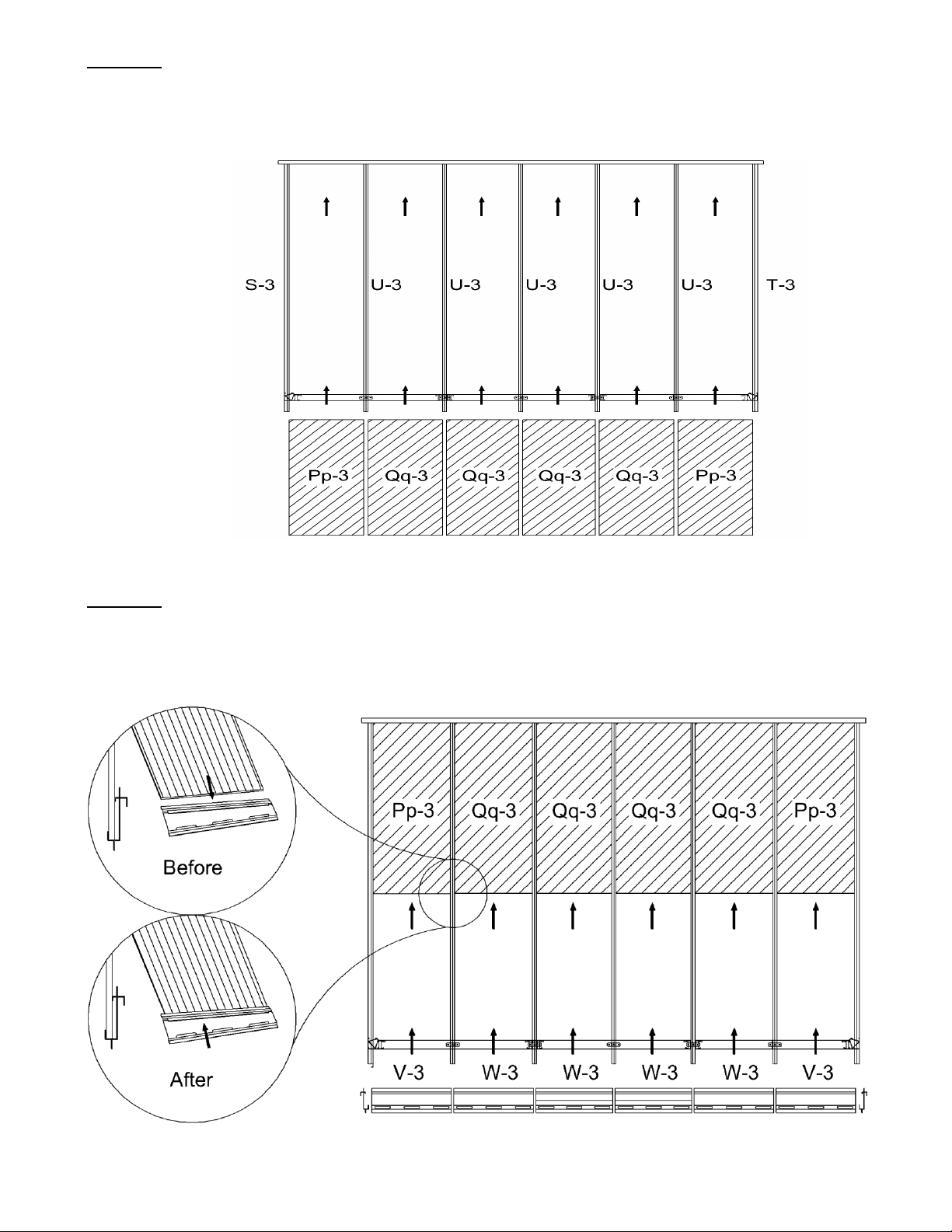

Set U-3 rafters over the middle of each
panel with Bb-3 screws at the top and
two (2) Z-3 screws over the brackets
on frame manually. Set U-3 rafter on
each joint and use Z-3 screws
manually. Do not use power drill.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 7
STEP #7
Remove protective film from two (2) sides of each panel and make sure the top side of the panel faces the
sunlight. Insert and slide on the top groove of the rafters all the way to the end. Pp-3 should go first and last with
the Qq-3 panels in between.
STEP #8
Insert the aluminum middle roof joint between the rafters, making sure the slotted holes are at the bottom. Slide
into upper and lower grooves of the rafters then slide all the way into the panels. Make sure the panels are inside
the aluminum middle roof joint groove. Insert a V-3 at either end, then insert all W-3 and then the remaining V-3.
Tap gently with rubber mallet if needed.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 8
STEP #9
Insert the second row of panels into the lower groove on the rafter. Slide panels until they reach the aluminum
pieces between the panels and gently tap on the panel to guide it into the aluminum groove. Use a spatula if
needed to make it fit. Insert two (2) Pp-3 on either end, then insert the Qq-3 panels.
STEP #10
Starting at either end, add X-3 edging and one (1) R-3 bracket and screw with Bb-3 manually, do not use power
drill. Add Y-3 edging and repeat until you reach the end, then add the X-3 edging.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 9
STEP #11

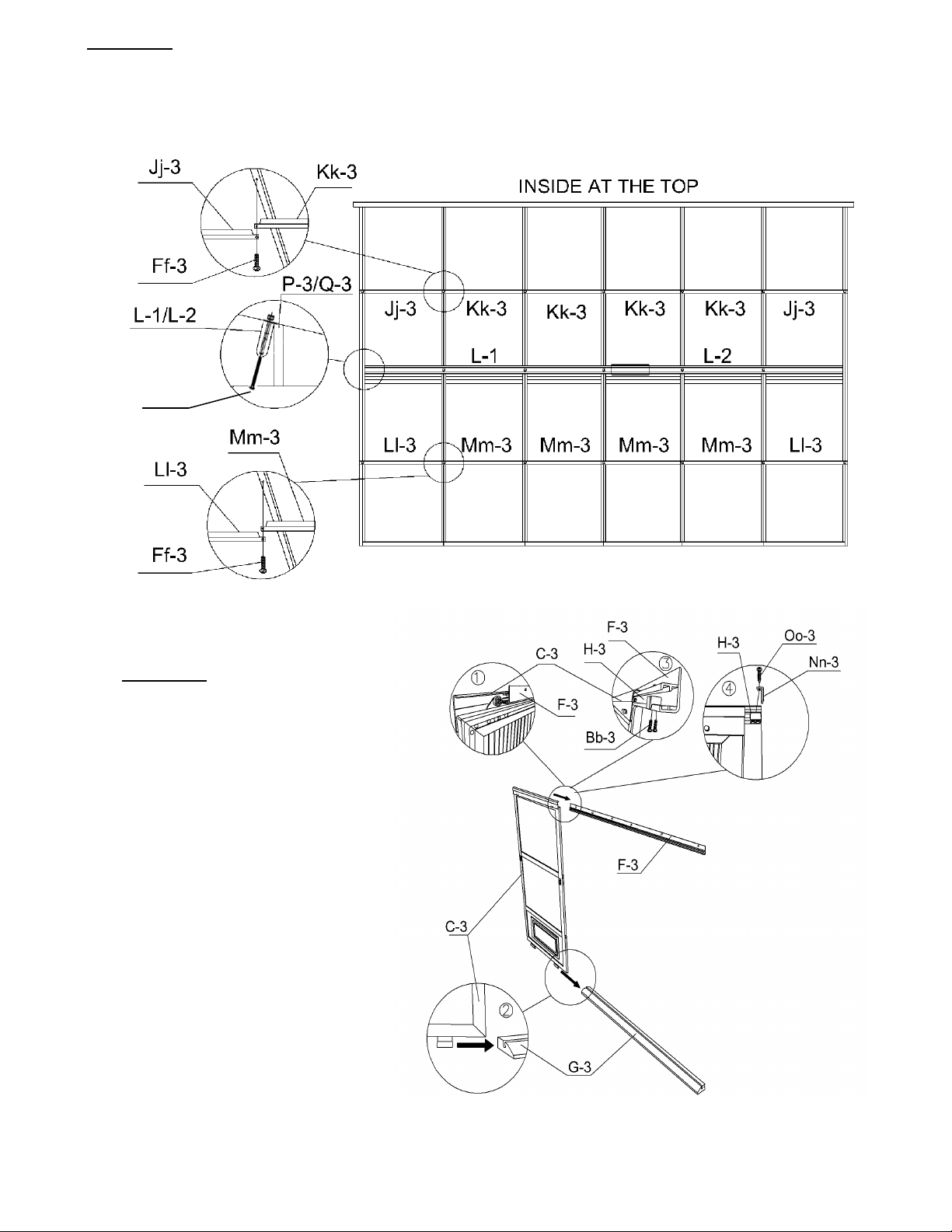

On the inside of the solarium under each rafter there are two rows of inserts with threads, and one crossbeam in
two pieces. Start the upper row with a Jj-3 at either end and Kk-3 between panels, screwing them in place with Ff-
3. Use Ff-3 screws for the lower row Ll-3 at the 2 ends and Mm-3 between panels. Lastly, assemble crossbeam
L-1 and L-2, then secure to rafters using bolts Cc-3. Make sure screws are manually tight.
STEP #12
DOOR UNIT(S) MUST BE
ASSEMBLED INSIDE OF
SOLARIUM.
Slide upper door track F-3 into
wheels of sliding door C-3. Slide
lower door track G-3 and make
sure inserts are close enough to
the frame to attach. Use bolt
Bb-3 to affix the plastic stopper
H-3 on each end of top door rail
F-3. Use Oo-3 screws to affix
upper door rail and cap Nn-3, at
each end of top rail door.
Cc-3

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 10
STEP #13

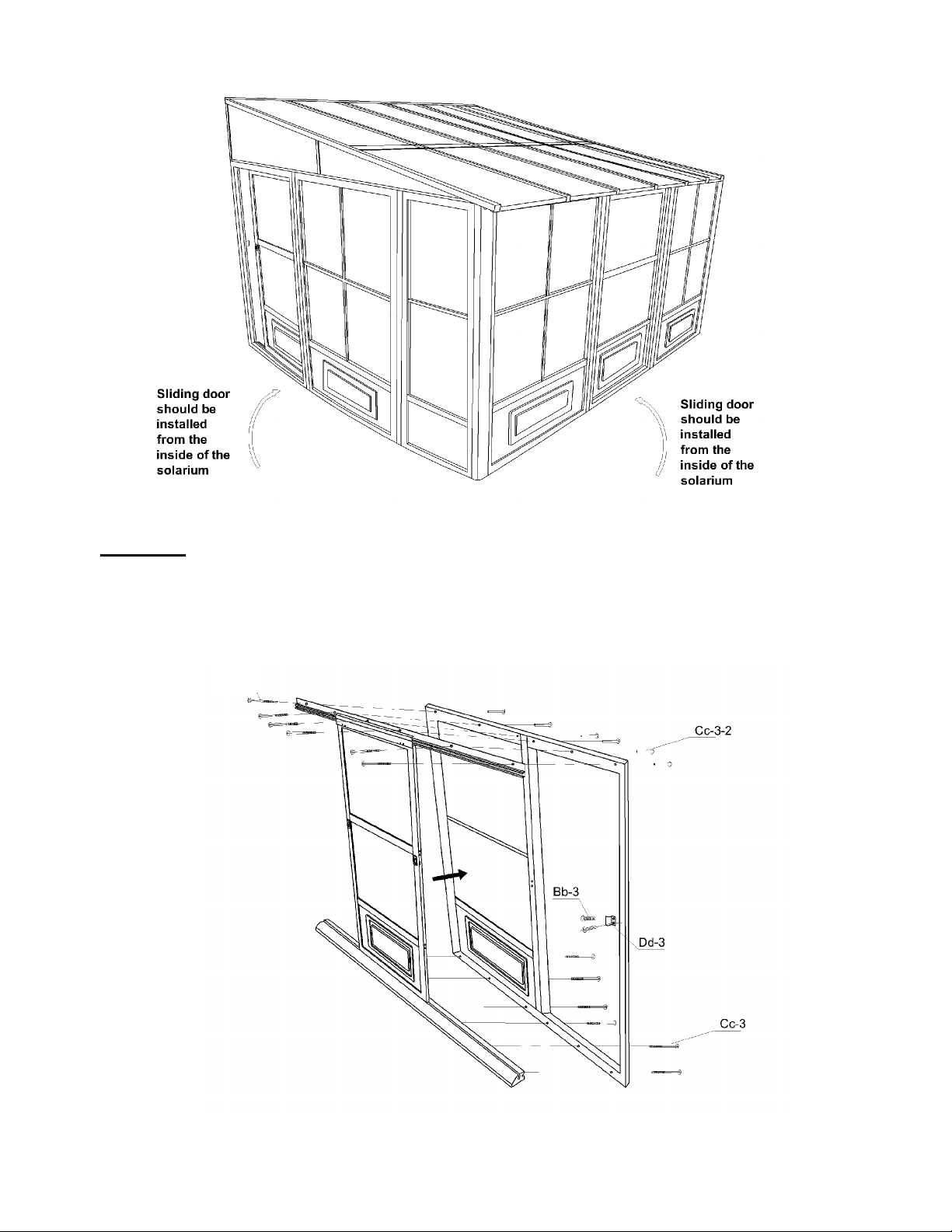

Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First
use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top
assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door
latch on the side required for your door to lock, adjust latch as required.
Ww

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 11
STEP #14

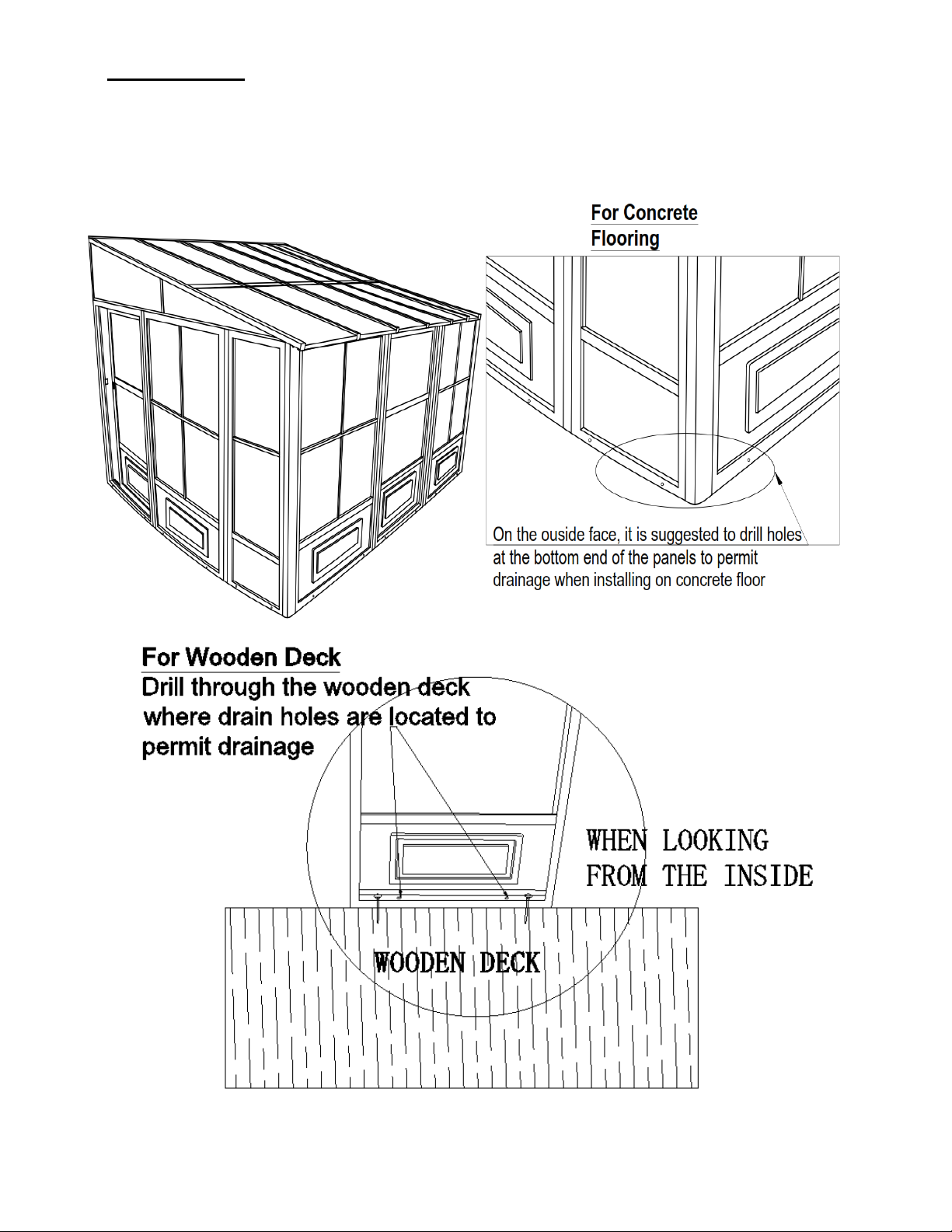

Anchor the solarium to the deck or floor securely using screws and shields supplied. See
diagram below.
SPECIAL NOTES
To remove a screen, remove the two
(2) screws at the top of the frame then
pull sideways to the opposite end of the
handles to remove. To remove wind
panels, push or pull to one side, making
sure that locking pin is not locked then
remove panels gently, panels are easy
to remove.
NOTE:
This unit is not waterproof. For best
protection against rain, close the
windows of each frame with the outside
window in the center, and the inside
window at the top.
CLEANING INSTRUCTIONS:
Use only mild or warm soapy water, no
strong or abrasive cleaning products.
Be sure to remove heavy snow and/or
ice.
WARNING:
1) Do not use a BBQ or any other
flammable product inside the
solarium.
2) Remove snow from the roof.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 12
*Suggestions
The below mentioned are only suggestions in order to permit drainage, these will vary depending on your
flooring –material, flatness and slope.

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 13

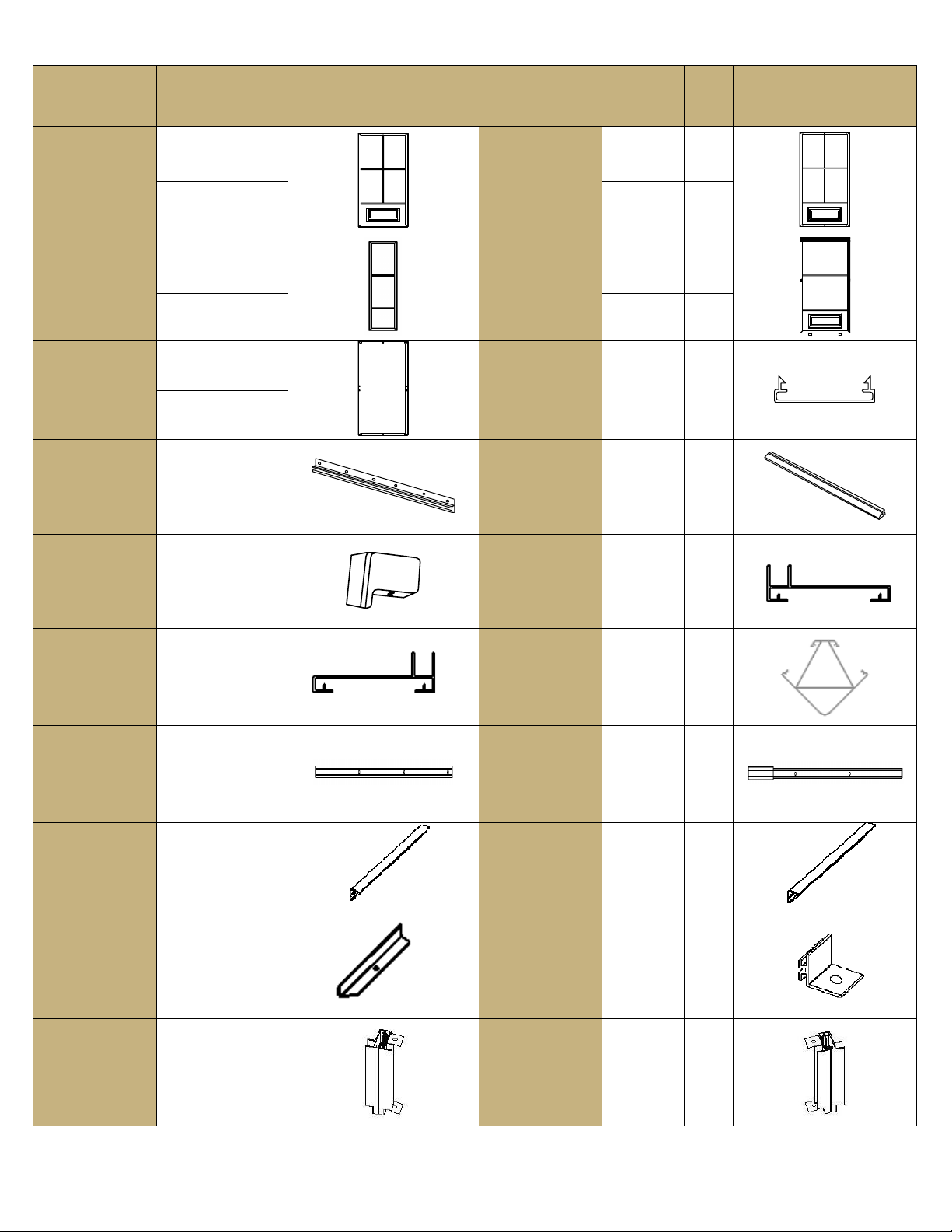

SOLARIUM W1209 ½ SAND (see page 17 for slate parts)
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-496
REGULAR
FRAME
A-3
2
2
10-497
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
2
1
3
1
3
1
12-141
HALF FRAME
A-3 1/2
2
1
10-498
SLIDING
DOOR
C-3
2
1
3
1
3
1
10-499
SLIDING
DOOR FRAME
D-3
2
1
11-544
CONNECTING
PIECE
E-3
4
12
3
1
11-545
TOP DOOR
RAIL
F-3
4
2
11-546
BOTTOM
DOOR RAIL
G-3
4
2
08-138
PLASTIC
STOPPER
H-3
5
4
12-142
LEFT SIDE
RECEIVER
I-3
4
1
12-143
RIGHT SIDE
RECEIVER
J-3
4
1
10-502
CORNER
CONNECTOR
K-3
4
2
12-155
LEFT
CROSSBEAM
L-1
4
1
12-156
RIGHT
CROSSBEAM
L-2
4
1
10-503
TRACK
ML-3
4
1
10-504
TRACK
MR-3
4
1
10-505
TRACK JOINT
N-3
5
1
10-506
RAFTER
BRACKET
O-3
5
4
12-007
LEFT GABLE
JOINT
P-3
5
1
12-008
RIGHT GABLE
JOINT
Q-3
5
1

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 14
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-509
ROOF
RAFTER CAP
R-3
5
7
12-146
LEFT SIDE
RAFTER
S-3
4
1
12-147
RIGHT SIDE
RAFTER
T-3
4
1
12-148
REGULAR
RAFTER
U-3
4
5
10-513
MIDDLE
ROOF JOINT
V-3
5
2
10-514
MIDDLE
ROOF JOINT
W-3
5
4
10-515
EDGING
X-3
5
2
10-516
EDGING
Y-3
5
4
08-156
SCREW
Z-3
5
10
08-158
BOLT
Bb-3
5
28
08-161
BOLT
Cc-3
5
23
12-037
FEMALE
BOLT
Cc-3-2
5
12
08-169
LEFT DOOR
LATCH
Dd-L-3
5
2
08-165
RIGHT DOOR
LATCH
Dd-R-3
5
2
08-167
SCREW
Ee-3
5
10
08-168
BOLT
Ff-3
5
16
08-187
WASHER
Gg-3
5
23
12-161
NUT
Hh-3-2
5
4
08-193
PLASTIC
PLUG
Ii-3
5
10
10-517
END ROOF
CROSS BAR
Jj-3
5
2

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 15

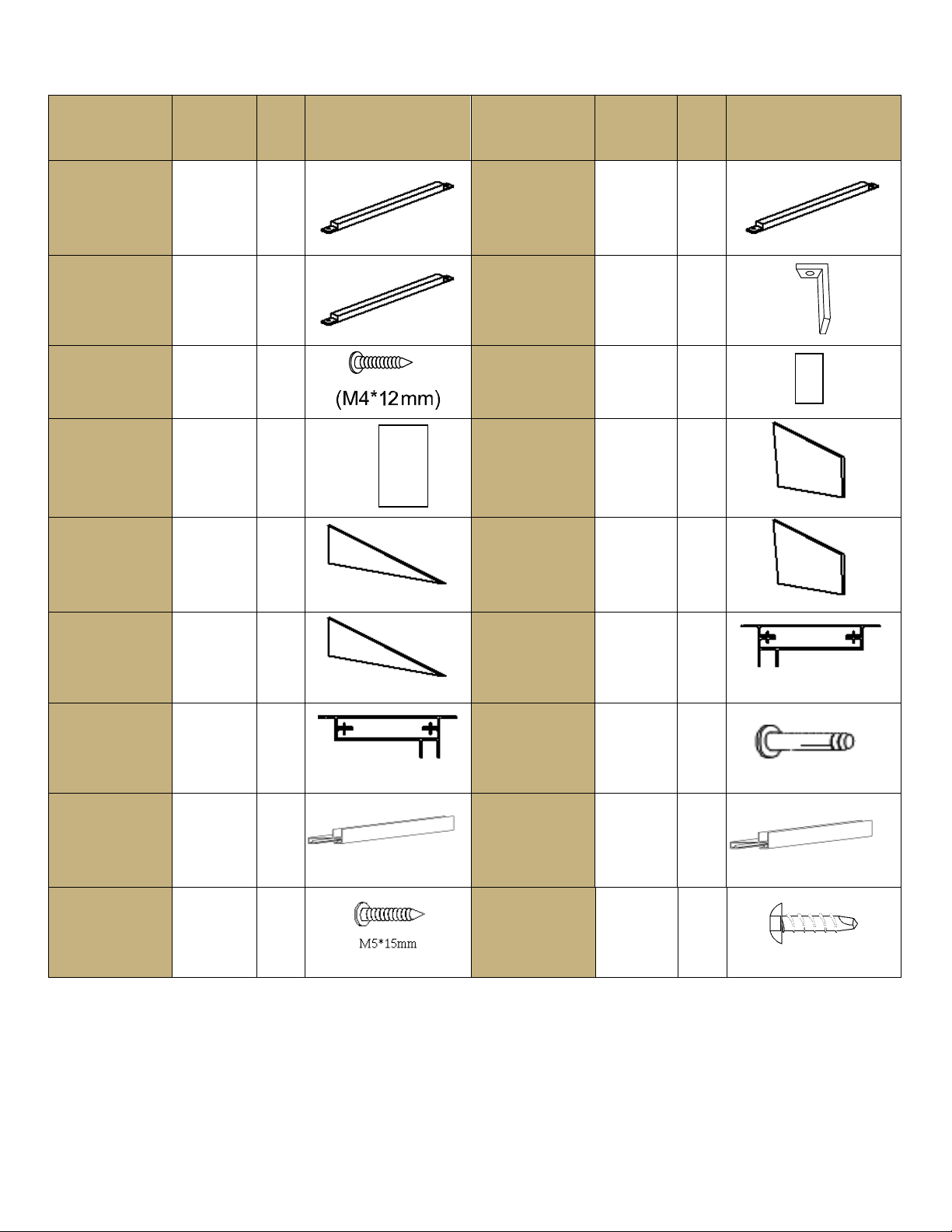

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-518
REGULAR
ROOF
CROSSBAR
Kk-3
5
4
10-519
ROOF TOP
REINFORCE
Ll-3
5
2
10-520
ROOF TOP
REINFORCE
Mm-3
5
4
08-134
UPPER DOOR
RAIL END
CAP
Nn
5
4
08-135
SCREW
Oo-3
5
8
12-149
(63 ¼ x 24 ½”)
LEFT+RIGHT
ROOF PANEL
Pp-3
1
4
12-150
(63 ¼ x 23”)
REGULAR
ROOF PANEL
Qq-3
1
8
12-151
LEFT BACK
GABLE PANEL
Rr-3
1
1
12-152
LEFT FRONT
GABLE
PANEL
Ss-3
1
1
12-153
RIGHT BACK
GABLE PANEL
Tt-3
1
1
12-154
RIGHT FRONT
GABLE
PANEL Uu-3
1
1
10-527
LEFT WALL
GUIDE
Vv-3
4
1
10-528
RIGHT WALL
GUIDE
Ww-3
4
1
10-529
SCREW FOR
FIXING TO
WALL
Xx-3
5
18
10-530
REGULAR
TOP FILLER
Yy-3
5
4
10-531
END TOP
FILLER
Zz-3
5
2
12-047
BOLT
Ww
5
12
13-045
SELF-
TAPPING
SCREW
PQ-3
5
4

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 16
AVAILABLE REPLACEMENT PARTS
DESCRIPTION
DRAWING
DESCRIPTION
DRAWING
10-435-12
PVC WINDOW
(in frame)
85-014
REPLACEMENT
SCREENING (no
frame)
12-176-12
PVC WINDOW for
HALF FRAME A-3
1/2
85-417-S
ROUND SPLINE FOR
SCREENING
10-493
PVC WINDOW
(replacement
material only)
11-824-12
BOTTOM PLASTIC
PANEL (for wall
panels)
85-417-P
ROUND SPLINE
FOR PVC
WINDOW
11-825-12
BOTTOM PLASTIC
PANEL (for doors)
15-123-12
PIN FOR PVC
WINDOW
12-173-12
BOTTOM PLASTIC
PANEL FOR HALF
FRAME A-3 1/2
13-055
PC WINDOW (for
sliding door)
15-097-12
DOOR WHEEL
ASSEMBLY
12-174-12
MOSQUITO
SCREEN (in
frame)
10-458
REPLACEMENT
WEATHERSTRIP
124”
12-175-12
MOSQUITO
SCREEN FOR
HALF FRAME A-3
1/2
15-126-12
MOUNTING
BRACKET FOR
RAFTER (U-3)
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SAND
11-699
PAINT PEN
18-245

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 17
SOLARIUM W1209 ½ SLATE

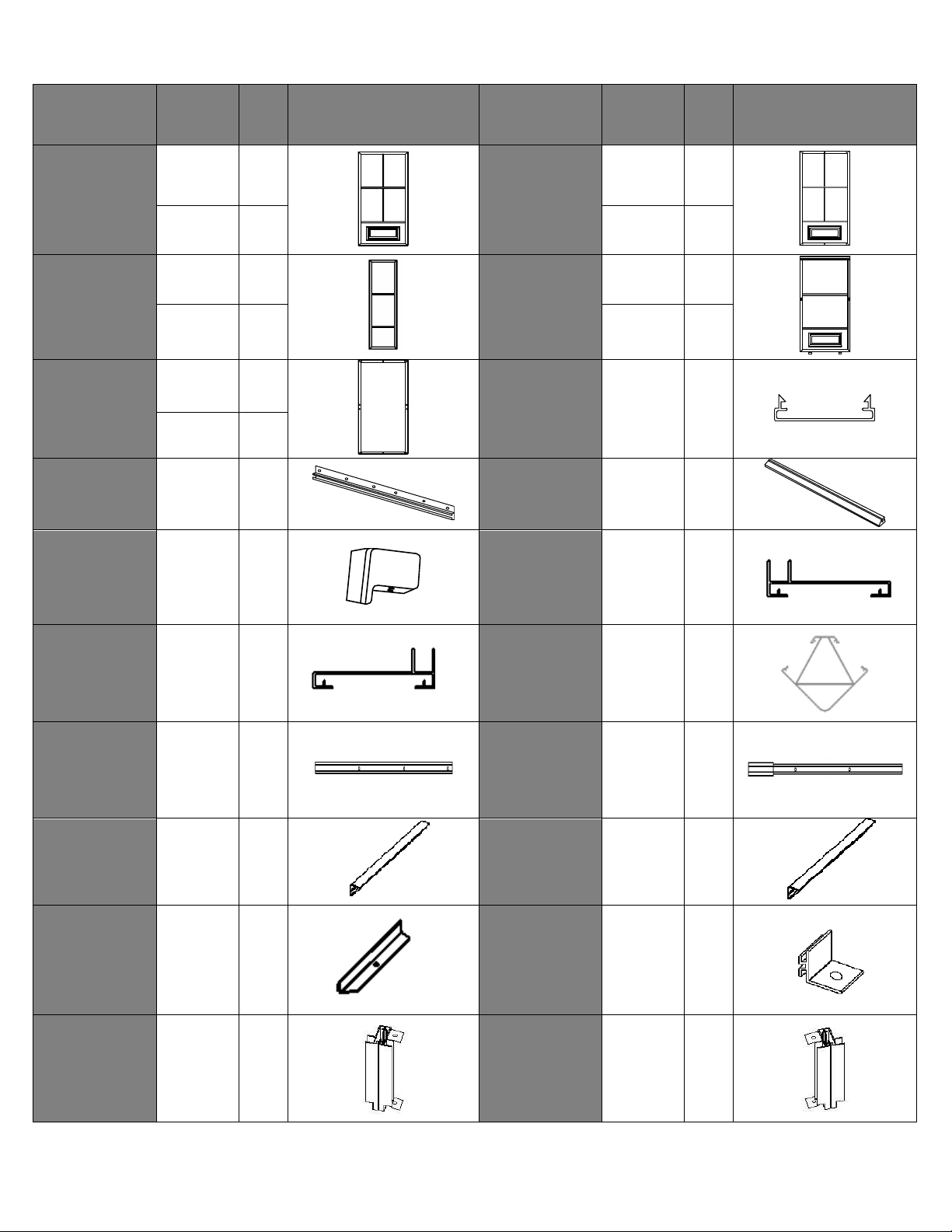

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-496
REGULAR
FRAME
A-3
2
2
10-497
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
2
1
3
1
3
1
12-141
HALF FRAME
A-3 1/2
2
1
10-498
SLIDING
DOOR
C-3
2
1
3
1
3
1
10-499
SLIDING
DOOR FRAME
D-3
2
1
11-544
CONNECTING
PIECE
E-3
4
12
3
1
11-545
TOP DOOR
RAIL
F-3
4
2
11-546
BOTTOM
DOOR RAIL
G-3
4
2
08-138
PLASTIC
STOPPER
H-3
5
4
12-142
LEFT SIDE
RECEIVER
I-3
4
1
12-143
RIGHT SIDE
RECEIVER
J-3
4
1
10-502
CORNER
CONNECTOR
K-3
4
2
12-155
LEFT
CROSSBEAM
L-1
4
1
12-156
RIGHT
CROSSBEAM
L-2
4
1
10-503
TRACK
ML-3
4
1
10-504
TRACK
MR-3
4
1
10-505
TRACK JOINT
N-3
5
1
10-506
RAFTER
BRACKET
O-3
5
4
12-007
LEFT GABLE
JOINT
P-3
5
1
12-008
RIGHT GABLE
JOINT
Q-3
5
1

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 18

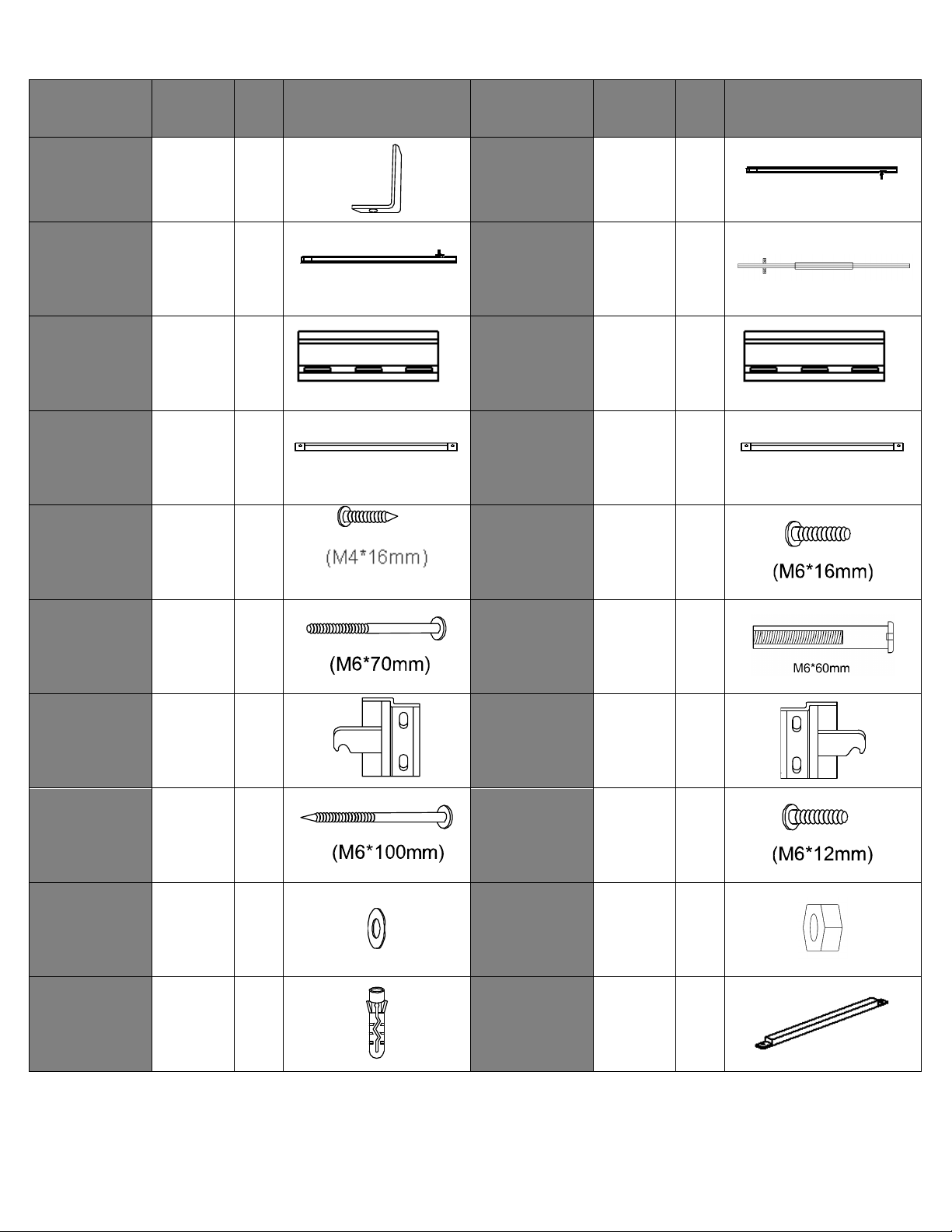

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-509
ROOF
RAFTER CAP
R-3
5
7
12-146
LEFT SIDE
RAFTER
S-3
4
1
12-147
RIGHT SIDE
RAFTER
T-3
4
1
12-148
REGULAR
RAFTER
U-3
4
5
10-513
MIDDLE
ROOF JOINT
V-3
5
2
10-514
MIDDLE
ROOF JOINT
W-3
5
4
10-515
EDGING
X-3
5
2
10-516
EDGING
Y-3
5
4
08-156
SCREW
Z-3
5
10
08-158
BOLT
Bb-3
5
28
08-161
BOLT
Cc-3
5
23
12-037
FEMALE
BOLT
Cc-3-2
5
12
08-169
LEFT DOOR
LATCH
Dd-L-3
5
2
08-165
RIGHT DOOR
LATCH
Dd-R-3
5
2
08-167
SCREW
Ee-3
5
10
08-168
BOLT
Ff-3
5
16
08-187
WASHER
Gg-3
5
23
12-161
NUT
Hh-3-2
5
4
08-193
PLASTIC
PLUG
Ii-3
5
10
10-517
END ROOF
CROSS BAR
Jj-3
5
2

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 19

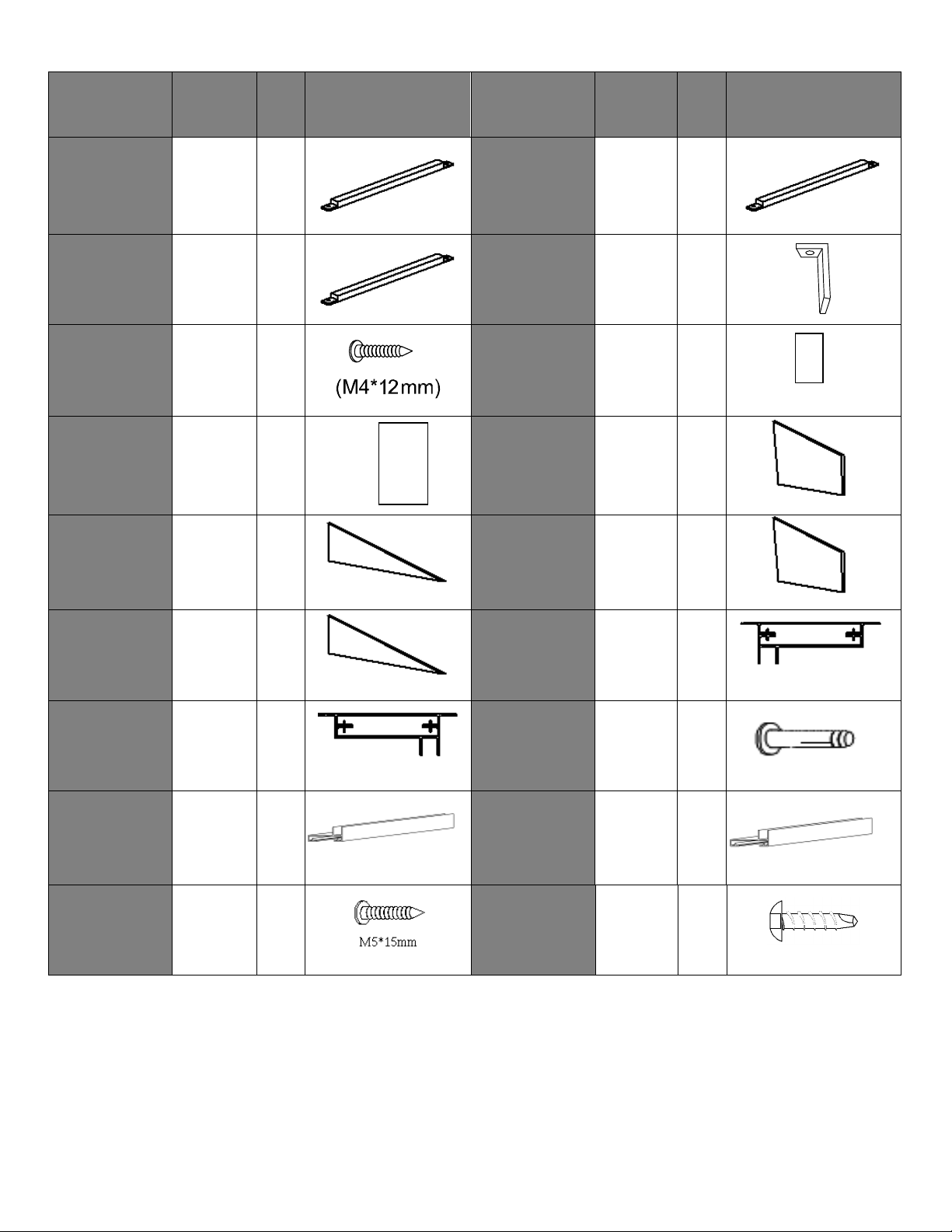

DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-518
REGULAR
ROOF
CROSSBAR
Kk-3
5
4
10-519
ROOF TOP
REINFORCE
Ll-3
5
2
10-520
ROOF TOP
REINFORCE
Mm-3
5
4
08-134
UPPER DOOR
RAIL END
CAP
Nn
5
4
08-135
SCREW
Oo-3
5
8
12-149
(63 ¼ x 24 ½”)
LEFT+RIGHT
ROOF PANEL
Pp-3
1
4
12-150
(63 ¼ x 23”)
REGULAR
ROOF PANEL
Qq-3
1
8
12-151
LEFT BACK
GABLE PANEL
Rr-3
1
1
12-152
LEFT FRONT
GABLE
PANEL
Ss-3
1
1
12-153
RIGHT BACK
GABLE PANEL
Tt-3
1
1
12-154
RIGHT FRONT
GABLE
PANEL Uu-3
1
1
10-527
LEFT WALL
GUIDE
Vv-3
4
1
10-528
RIGHT WALL
GUIDE
Ww-3
4
1
10-529
SCREW FOR
FIXING TO
WALL
Xx-3
5
18
10-530
REGULAR
TOP FILLER
Yy-3
5
4
10-531
END TOP
FILLER
Zz-3
5
2
12-047
BOLT
Ww
5
12
13-045
SELF-
TAPPING
SCREW
PQ-3
5
4

ZZZ-209.W1209.1221-20.GP.EN.doc WEB VERSION 20
AVAILABLE REPLACEMENT PARTS
DESCRIPTION
DRAWING
DESCRIPTION
DRAWING
10-435-32
PVC WINDOW
(in frame)
85-014
REPLACEMENT
SCREENING (no
frame)
12-176-32
PVC WINDOW for
HALF FRAME A-3
1/2
85-417-S
ROUND SPLINE FOR
SCREENING
10-493
PVC WINDOW
(replacement
material only)
11-824-32
BOTTOM PLASTIC
PANEL (for wall
panels)
85-417-P
ROUND SPLINE
FOR PVC
WINDOW
11-825-32
BOTTOM PLASTIC
PANEL (for doors)
15-123-32
PIN FOR PVC
WINDOW
12-173-32
BOTTOM PLASTIC
PANEL FOR HALF
FRAME A-3 1/2
13-055
PC WINDOW (for
sliding door)
15-097-32
DOOR WHEEL
ASSEMBLY
12-174-32
MOSQUITO
SCREEN (in
frame)
10-458
REPLACEMENT
WEATHERSTRIP
124”
12-175-32
MOSQUITO
SCREEN FOR
HALF FRAME A-3
1/2
15-126-32
MOUNTING
BRACKET FOR
RAFTER (U-3)
*NOT INCLUDED IN THE BOX
DESCRIPTION
COLOUR
PART #
SPRAY PAINT
SALTE
18-125
PAINT PEN
18-126
