Gazebo penguin W1209 1/2-32 User manual

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 1
W1209 ½-32
10 X 12 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
Assembly by more than one person is suggested.
Requires 96” clearance at the wall

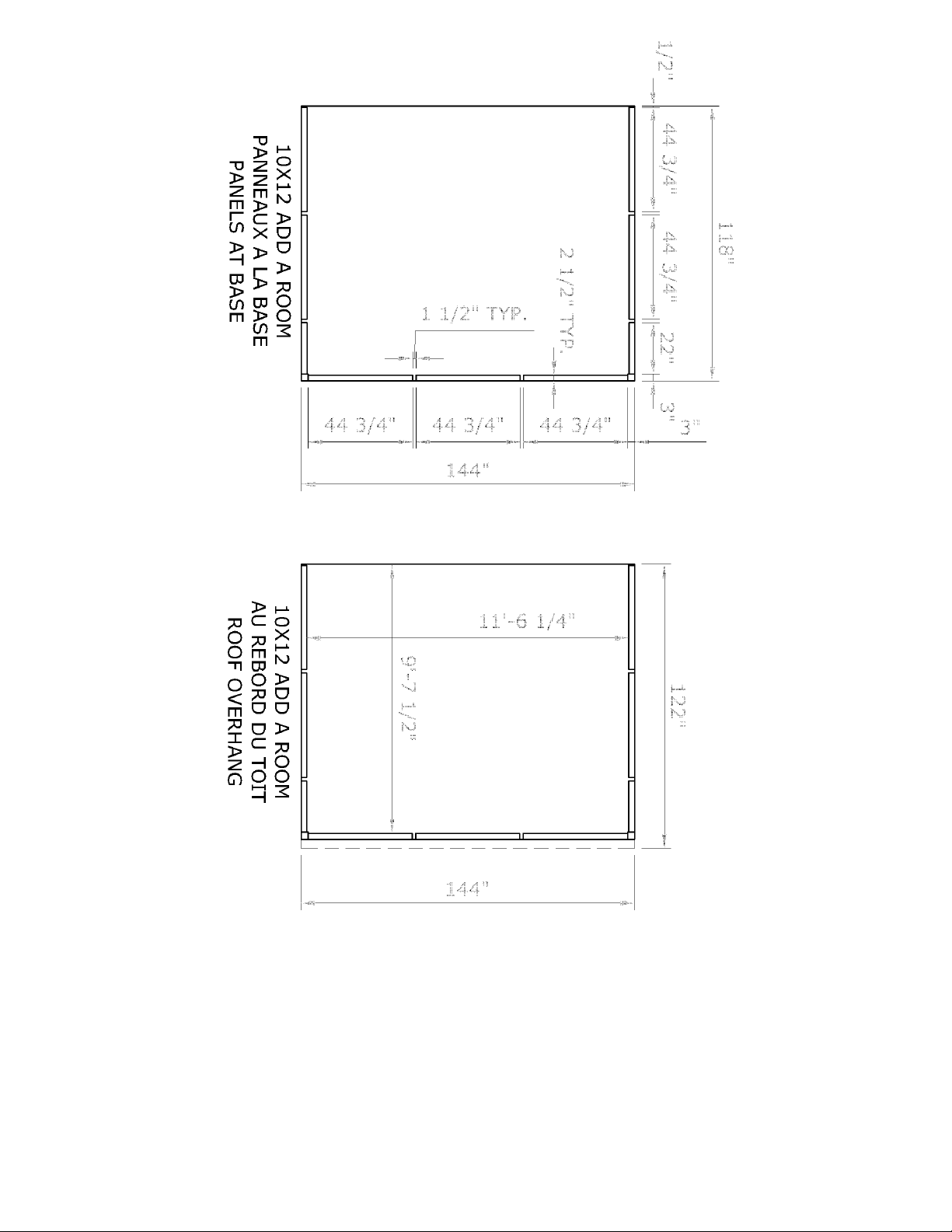

Base Dimensions 144’’x 118’’, Largest Dimensions 144’’x122’’ (see pg.13)
[e-mail]

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 2
TOOLS REQUIRED:
Screwdriver
Knife
File (smooth)
Needle-nosed pliers
Rubber mallet
Step ladder (minmum 6' in height)
Spatula
Power drill
Tube of silicon
Drill bit 5/16" cement
(according to surface)
BEFORE STARTING:
Ensure that you have a solid base,
such as concrete or wooden deck,
not slanted more than 1” per 8’. Avoid
installing unit adjacent to trees or a sloped
roof, as snow and ice may slide onto the
solarium and cause it to collapse.
Please don't destroy boxes until completely assembled.
STEP #1
Decide the position of the door frames before assembly according to where you intend to slide the door. At
the front of the solarium, use frame D3 for the opening of the door and B3 for the direction of the door when
open. Ensure frames A-3 ½ are at the front of the sides. Use E3 between frame ends and use two (2) K3
joints for corners.
NOTE:
When placing the door frame opening,
make sure the inserts on the frame are
on the inside and on the upper half of
the frame of the solarium because the
door will be set on the inside due to
clearance.
NOTE:
When sliding the connectors, shake the
frame so that they will slide easily. Do
not use tools to force. If needed, clean
the paint with a file and make sure the
ends of the frame and joints are not bent
or warped. If so, use the needle-nosed
pliers to straighten.
STEP #2
Slide the vertical guides Vv-3 left and Ww-3 right into the 2 ends of the frames along the grooves, shaking
while sliding for easier movement. Next, slide two (2) Yy-3 and one (1) Zz-3 from left side to right on top of
the frame. The groove should be towards the interior of the unit. Repeat from right side with two (2) YY-3
and one (1) Zz-3 and space evenly.

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 3
ASSEMBLE PIECES
BEFORE SCREWING
THEM TO THE WALL

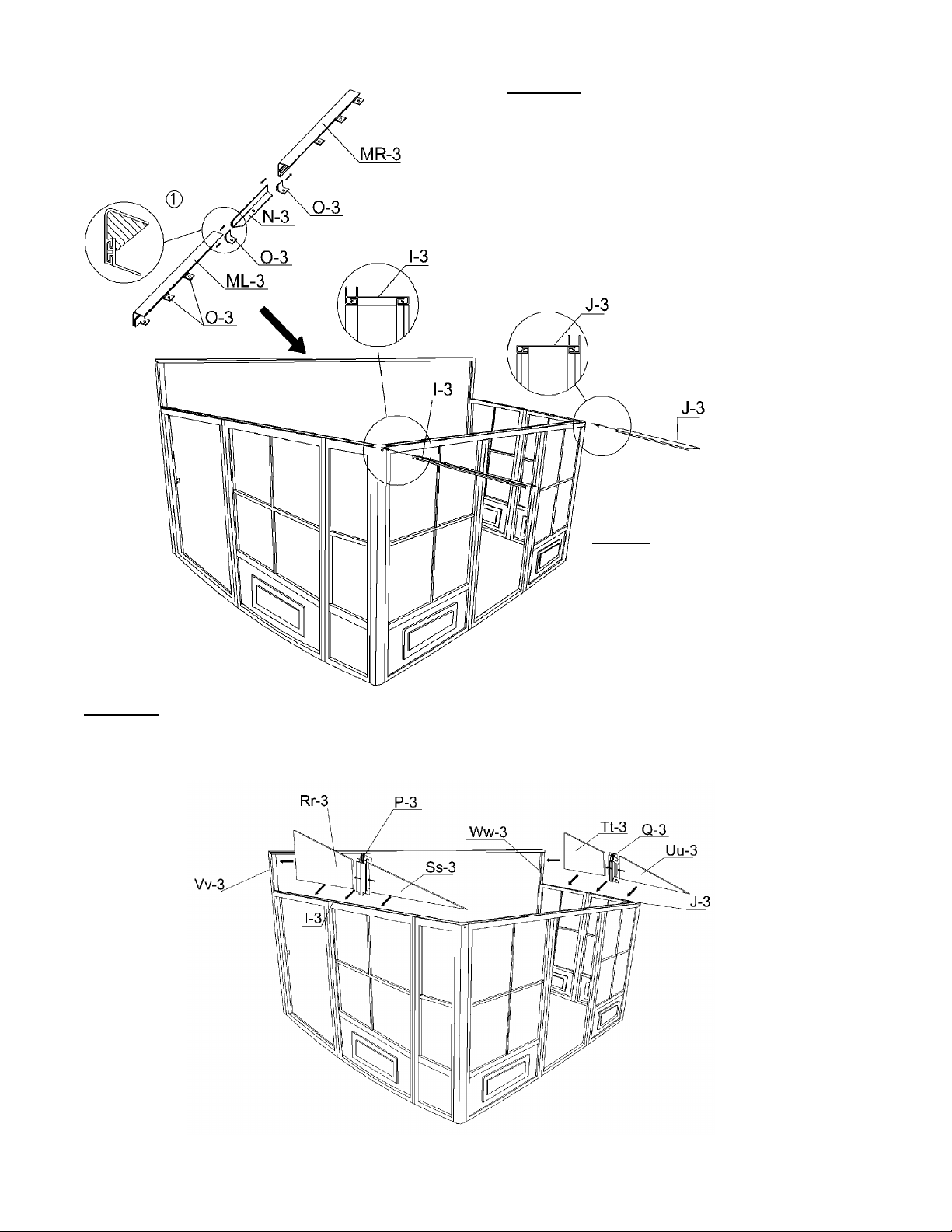

STEP #4
Set polycarbonate exposed side on the outside over horizontal left guide I-3, use one (1) Rr-3 panel, one (1)
P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1)
Uu-3 panel over the J-3 horizontal panel. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping
screws (PQ-3).
NOTE:
Once the wall track is in place,
apply silicon along the top of the
wall track and at the joint of the
two tracks. Silicon is not
supplied.
STEP #3
Assemble ML-3, N-3, O-3, and MR-3 as shown
and position evenly above vertical guides, at 96’’
from the ground. Secure wall track and vertical
tracks to brick or cement wall by drilling through
the aluminum and using screws Xx-3. Insert the 2
horizontal guides, I3 & J3 at the top of the frame.
Make sure the 2 frames are at the correct level, if
not, use shims to compensate. Do not use tools to
force.

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 4
STEP #5
Set right rafter T-3 over last bracket
then secure it with Bb-3 screw and
continue screwing through joint K-3
with the Bb-3 screw. Secure to Q-3
bracket with self-tapping screw
(PQ-3). Repeat on left side with
rafter S-3.
STEP #6
Set U-3 rafters over the middle of each
panel with Bb-3 screws at the top and
two (2) Z-3 screws over the brackets
on frame manually. Set U-3 rafter on
each joint and use Z-3 screws
manually. Do not use power drill.

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 5
STEP #7
Remove protective film from two (2) sides of each panel and make sure the top side of the panel faces the
sunlight. Insert and slide on the top groove of the rafters all the way to the end. Pp-3 should go first and last with
the Qq-3 panels in between.
STEP #8
Insert the aluminum middle roof joint between the rafters, making sure the slotted holes are at the bottom. Slide
into upper and lower grooves of the rafters then slide all the way into the panels. Make sure the panels are inside
the aluminum middle roof joint groove. Insert a V-3 at either end, then insert all W-3 and then the remaining V-3.
Tap gently with rubber mallet if needed.

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 6
STEP #9
Insert the second row of panels into the lower groove on the rafter. Slide panels until they reach the aluminum
pieces between the panels and gently tap on the panel to guide it into the aluminum groove. Use a spatula if
needed to make it fit. Insert two (2) Pp-3 on either end, then insert the Qq-3 panels.
STEP #10
Starting at either end, add X-3 edging and one (1) R-3 bracket and screw with Bb-3 manually, do not use power
drill. Add Y-3 edging and repeat until you reach the end, then add the X-3 edging.

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 7
STEP #11
On the inside of the solarium under each rafter there are two rows of inserts with threads, and one crossbeam in
two pieces. Start the upper row with a Jj-3 at either end and Kk-3 between panels, screwing them in place with Ff-
3. Use Ff-3 screws for the lower row Ll-3 at the 2 ends and Mm-3 between panels. Lastly, assemble crossbeam
L-1 and L-2, then secure to rafters using bolts Cc-3. Make sure screws are manually tight.
STEP #12
DOOR UNIT(S) MUST BE
ASSEMBLED INSIDE OF
SOLARIUM.
Slide upper door track F-3 into
wheels of sliding door C-3. Slide
lower door track G-3 and make
sure inserts are close enough to
the frame to attach. Use bolt
Bb-3 to affix the plastic stopper
H-3 on each end of top door rail
F-3. Use Oo-3 screws to affix
upper door rail and cap Nn-3, at
each end of top rail door.
Cc-3

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 8
STEP #13
Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First
use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top
assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door
latch on the side required for your door to lock, adjust latch as required.
Ww

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 9

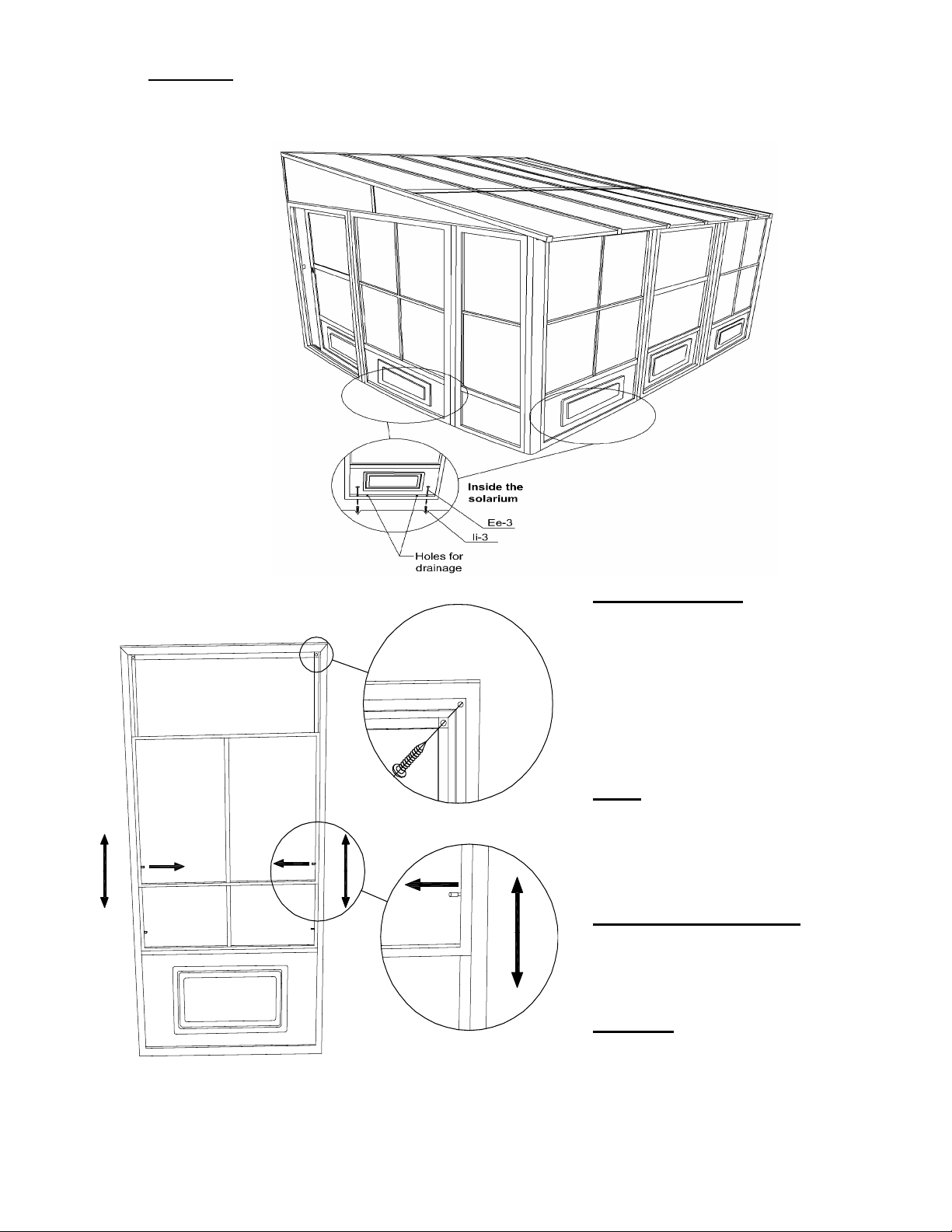

STEP #14
Anchor the solarium to the deck or floor securely using screws and shields supplied. See
diagram below.
SPECIAL NOTES
To remove a screen, remove the two
(2) screws at the top of the frame then
pull sideways to the opposite end of the
handles to remove. To remove wind
panels, push or pull to one side, making
sure that locking pin is not locked then
remove panels gently, panels are easy
to remove.
NOTE:
This unit is not waterproof. For best
protection against rain, close the
windows of each frame with the outside
window in the center, and the inside
window at the top.
CLEANING INSTRUCTIONS:
Use only mild or warm soapy water, no
strong or abrasive cleaning products.
Be sure to remove heavy snow and/or
ice.
WARNING:
1) Do not use a BBQ or any other
flammable product inside the
solarium.
2) Remove snow from the roof.

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 10
SOLARIUM W1209 1/2
DESCRIPTION
QTY
DRAWING
DESCRIPTION
QTY
DRAWING
10-496
REGULAR
FRAME
A-3
3
10-497
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
2
12-141
HALF FRAME
A-3 1/2
2
10-498
SLIDING
DOOR
C-3
2
10-499
SLIDING DOOR
FRAME
D-3
2
11-544
CONNECTING
PIECE
E-3
12
11-545
TOP DOOR RAIL
F-3
2
11-546
BOTTOM
DOOR RAIL
G-3
2
08-138
PLASTIC
STOPPER
H-3
4
12-142
LEFT SIDE
RECEIVER
I-3
1
12-143
RIGHT SIDE
RECEIVER
J-3
1
10-502
CORNER
CONNECTOR
K-3
2
12-155
LEFT
CROSSBEAM
L-1
1
12-156
RIGHT
CROSSBEAM
L-2
1
10-503
TRACK
ML-3
1
10-504
TRACK
MR-3
1
10-505
TRACK JOINT
N-3
1
10-506
RAFTER
BRACKET
O-3
4
12-007
LEFT GABLE
JOINT
P-3
1
12-008
RIGHT GABLE
JOINT
Q-3
1

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 11
DESCRIPTION
QTY
DRAWING
DESCRIPTION
QTY
DRAWING
10-509
ROOF RAFTER
CAP
R-3
7
12-146
LEFT SIDE
RAFTER
S-3
1
12-147
RIGHT SIDE
RAFTER
T-3
1
12-148
REGULAR
RAFTER
U-3
5
10-513
MIDDLE ROOF
JOINT
V-3
2
10-514
MIDDLE ROOF
JOINT
W-3
4
10-515
EDGING
X-3
2
10-516
EDGING
Y-3
4
08-156
SCREW
Z-3
10
08-158
BOLT
Bb-3
28
08-161
BOLT
Cc-3
23
12-037
FEMALE BOLT
Cc-3-2
12
08-169
LEFT DOOR
LATCH
Dd-L-3
2
08-165
RIGHT DOOR
LATCH
Dd-R-3
2
08-167
SCREW
Ee-3
10
08-168
BOLT
Ff-3
16
08-187
WASHER
Gg-3
23
12-161
NUT
Hh-3-2
4
08-193
PLASTIC PLUG
Ii-3
10
10-517
END ROOF
CROSS BAR
Jj-3
2

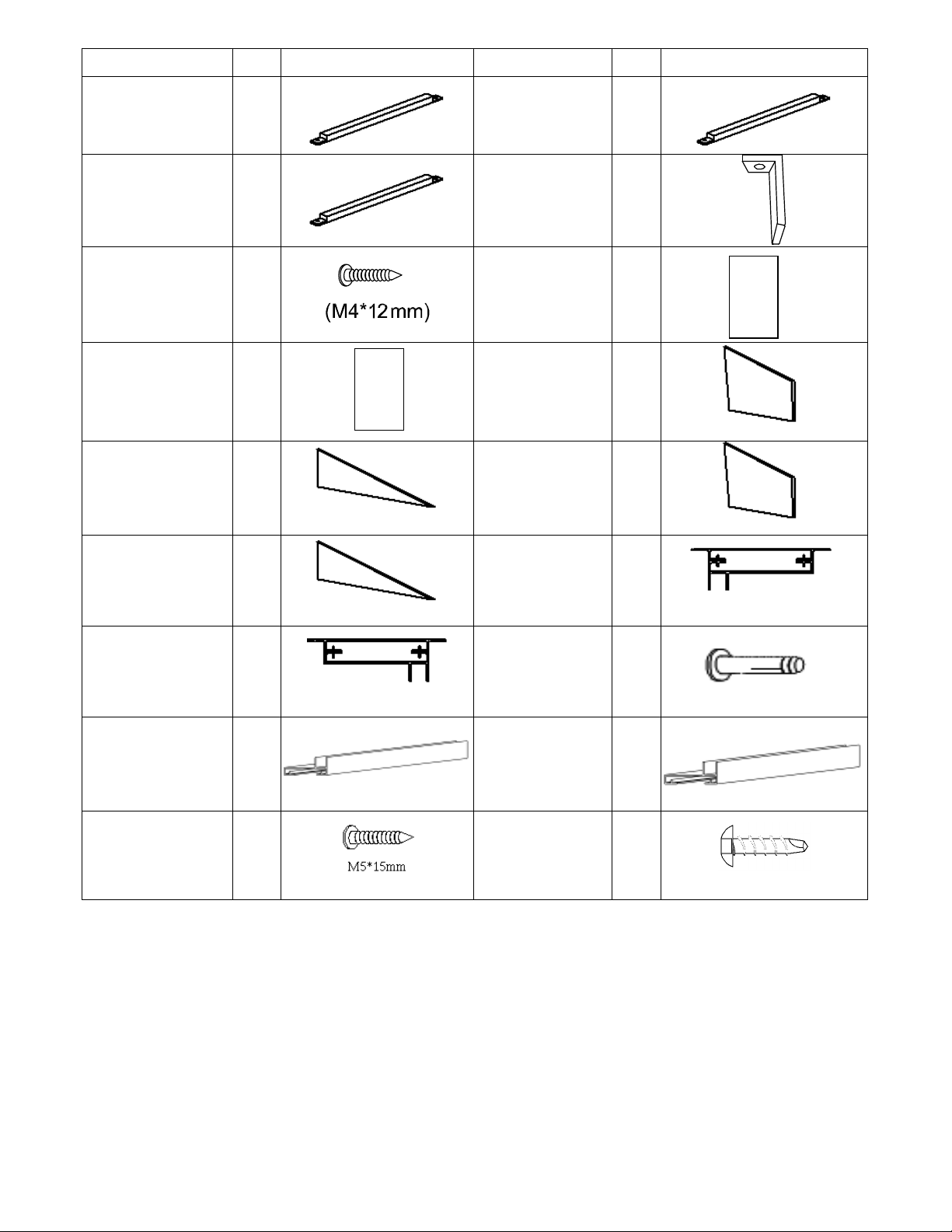

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 12
DESCRIPTION
QTY
DRAWING
DESCRIPTION
QTY
DRAWING
10-518
REGULAR ROOF
CROSSBAR
Kk-3
4
10-519
ROOF TOP
REINFORCE
Ll-3
2
10-520
ROOF TOP
REINFORCE
Mm-3
4
08-134
UPPER DOOR
RAIL END CAP
Nn
4
08-135
SCREW
Oo-3
8
12-149
(63 ¼ x 24 ½”)
LEFT+RIGHT
ROOF PANEL
Pp-3
4
12-150
(63 ¼ x 23”)
REGULAR ROOF
PANEL
Qq-3
8
12-151
LEFT BACK
GABLE PANEL
Rr-3
1
12-152
LEFT FRONT
GABLE PANEL
Ss-3
1
12-153
RIGHT BACK
GABLE PANEL
Tt-3
1
12-154
RIGHT FRONT
GABLE PANEL
Uu-3
1
10-527
LEFT WALL
GUIDE
Vv-3
1
10-528
RIGHT WALL
GUIDE
Ww-3
1
10-529
SCREW FOR
FIXING TO
WALL
Xx-3
18
10-530
REGULAR TOP
FILLER
Yy-3
4
10-531
END TOP
FILLER
Zz-3
2
12-047
BOLT
Ww
12
13-045
SELF-TAPPING
SCREW
PQ-3
4

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 13

ZZZ-209.W1209-32.1129-17.GP.EN.HER HER-HL 14
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product,
please contact the manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting
replacement parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may
slide onto the roof and cause it to collapse.
4. While the product is designed for 4 seasons use, the roof must be kept free of
accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and
durability. Subject to the Conditions for Exercising the Warranty and the Limitations on the
Warranty set forth below, it is warranted to be free of material and manufacturing defects for a
period of one year from the date of purchase. Should the product become damaged, or the
warranty period has expired, please contact Gazebo Penguin Customer Service Department for
a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should
you discover damaged or missing parts, do not return the product to the place of
purchase, but contact Gazebo Penguin Customer Service Department at the numbers
listed below:
Montreal: [phone]
Elsewhere: 1-800-737-7174
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown
objects, or accumulation of snow.
2. The product is not warranted against damages due to extreme weather conditions, such
as thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. The product is only warranted in the event it is installed in accordance with the Gazebo
Penguin’s written instructions enclosed with the product.
4. The product is not warranted in the event it has been improperly anchored.
5. We reserve the right to replace or repair any defective product or parts at our discretion.
