Gazebo penguin W1608MR-12 User manual

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
1
W1608MR-12 SAND
W1608MR-32 SLATE
ASSEMBLY INSTRUCTIONS
8 X 16 SOLARIUM
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly by two or three adults is suggested.
Requires 96” clearance at the wBase Dimensions 190’’x 94 1/2’’, Largest Dimensions 190’’x98
1/2’’ (see pg.15)

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
2
TOOLS REQUIRED:
Screwdriver (Philips #2)
Knife
File (smooth)
Needle-nosed pliers
Rubber mallet
Step ladder (minmum 6' in height)
Spatula
Power drill
Tube of silicon
Drill bit 5/16" cement
(according to surface)
Round file + flat
2”x4”x8” wood
BEFORE STARTING:
Ensure that you have a solid base,
such as concrete or wooden deck,

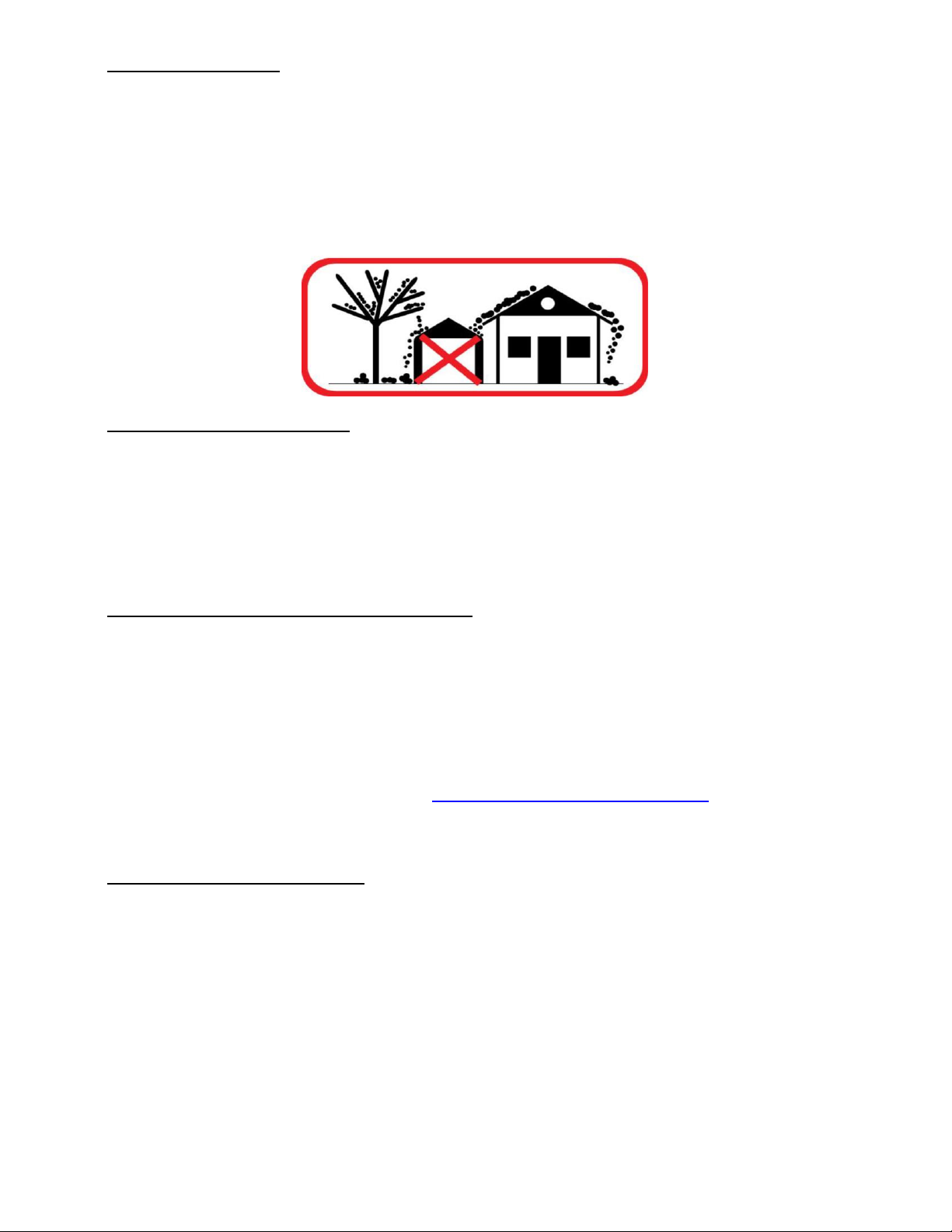

not slanted more than 1” per 8’. Avoid
installing unit adjacent to trees or a sloped
roof, as snow and ice may slide onto the
solarium and cause it to collapse.
Please don't destroy boxes until completely assembled.
STEP #1
Decide the position of the door frames before assembly according to where you intend to slide the door. At
the front of the solarium, use frame D3 for the opening of the door and B3 for the direction of the door when
open. Use E3 between frame ends and use two (2) K3 joints for corners.
Look for the sticker that will show you which side is up. (See sketch on page 14)
NOTE:
When sliding the connectors,
shake the frame so that they
will slide easily. Do not use
tools to force. If needed, clean
the paint with a file and make
sure the ends of the frame and
joints are not bent or warped.
If so, use the needle-nosed
pliers to straighten.
STEP #2
Slide the vertical guides Vv-3
left and Ww-3 right into the 2
ends of the frames along the
grooves, shaking while sliding
for easier movement.

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
3
ASSEMBLE PIECES
BEFORE SCREWING
THEM TO THE WALL
STEP #4
Set polycarbonate exposed side on the outside over horizontal left guide I-3, use one (1) Rr-3 panel, one (1)
P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1)
Uu-3 panel over the J-3 horizontal guide. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping
screws (PQ-3).
NOTE:
Once the wall track is in place,
apply silicon along the top of the
wall track and at the joint of the
two tracks.
Silicon is not supplied.
STEP #3
Assemble ML-3, O-3, N-3, and MR-3 as shown
and position evenly above vertical guides, at 96’’
from the ground. Secure wall track and vertical
tracks to brick or cement wall by drilling through
the aluminum and using screws Xx-3. Insert the 2
horizontal guides, I3 & J3 at the top of the frame.
Make sure the 2 frames are at the correct level, if
not, use shims to compensate. Do not use tools to
force.

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
4
STEP #6
Set G rafters over the bracket with
Bb-3 screws at the top and two (2)
Z-3 screws over the preset
brackets on the rafters.
Set G rafter on each joint and use
Z-3 screws manually. Do not use
power drill to screw Z-3.
F
K3
F
STEP #5
Set left rafter F over last bracket
then secure it with Bb-3 screw and
continue screwing through joint K-3
with the Bb-3 screw. Secure to Q-3
bracket with self-tapping screw
(PQ-3). Repeat on right side with
rafter F1.
STEP #6
Set G rafters over the bracket with
Bb-3 screws at the top and two (2)
Z-3 screws over the preset
brackets on the rafters.
Set G rafter on each joint and use
Z-3 screws manually. Do not use
power drill to screw Z-3.
STEP #6
Set G rafters over the bracket with
Bb-3 screws at the top and two (2)
Z-3 screws over the preset
brackets on the rafters.
Set G rafter on each joint and use
Z-3 screws manually. Do not use
power drill to screw Z-3.

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
5
STEP #7
DOOR UNIT(S) MUST BE
ASSEMBLED INSIDE OF
SOLARIUM.
Slide upper door track F-3 into
wheels of sliding door C-3. Slide
lower door track G-3 and make
sure inserts are close enough to
the frame to attach. Use bolt
Bb-3 to affix the plastic stopper
H-3 on each end of top door rail
F-3. Use Oo-3 screws to affix
upper door rail and cap Nn, at
each end of top rail door.

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
6
STEP #8
Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First
use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top
assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door
latch on the side required for your door to lock, adjust latch as required.
STEP #9
Install crossbeams (L1, L2) under rafters (F, F1, G).
Use Cc-3 screws + Hh-3 nuts for the splice, then secure to the rafter with Cc-3 screws.
Make sure it’s tight.
Ww

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
7
STEP #10
Slide roof panels (A, A1) onto lower track of rafters (F, F1, G).

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
8
STEP #11
Slide roof panels (B, B1) onto middle track of rafters (F, F1, G).

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
9
STEP #12
Set roof panels (C, C1) onto rafters (F, F1, G).
Bb-3

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
10
STEP #13
1. Close front end of rafters using brackets (M) with 2 bolts (Bb-3) for each.
2. Slide back down middle and lower roof panels (A, A1, B, B1)

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
11
STEP #14
Anchor the solarium to the deck or floor securely using screws and shields supplied.
See diagram below.
SPECIAL NOTES
To remove a screen, remove the two
(2) screws at the top of the frame then
pull sideways to the opposite end of the
handles to remove. To remove wind
panels, push or pull to one side, making
sure that locking pin is not locked then
remove panels gently, panels are easy
to remove.
CLEANING INSTRUCTIONS:
Use only mild or warm soapy water, no
strong or abrasive cleaning products.
Be sure to remove heavy snow and/or
ice.
WARNING:
1) Do not use a BBQ or any other
flammable product inside the
solarium.
2) Remove snow from the roof.

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
12
SOLARIUM W1608MR-12 SAND (see page 15 for Slate parts)
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-029-12
ROOF PANEL
A
1
2
19-030-12
ROOF PANEL
A1
1
2
10-496-12
REGULAR
FRAME
A-3
2
2
19-031-12
ROOF PANEL
B
1
2
3
2
19-032-12
ROOF PANEL
B1
1
2
10-497-12
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
2
1
3
1
08-158-12
BOLT
Bb-3
4
69
19-033-12
ROOF PANEL
C
1
2
19-034-12
ROOF PANEL
C1
1
2
10-498-12
SLIDING
DOOR
C-3
2
1
3
1
08-161-12
BOLT
Cc-3
4
23
12-037-12
FEMALE
BOLT
Cc-3-2
4
12
10-499-12
SLIDING
DOOR FRAME
D-3
2
1
08-169-12
LEFT DOOR
LATCH
Dd-L-3
4
2
3
1
08-165-12
RIGHT DOOR
LATCH
Dd-R-3
4
2
11-544-12
CONNECTING
PIECE
E-3
4
10
19-052-12
SCREW
Ee-3
4
12
(M6*63.5mm)
19-035-12
LEFT
ROOF BAR
F
4
1

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
13
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-036-12
RIGHT
ROOF BAR
F1
4
1
11-545-12
TOP DOOR
RAIL
F-3
4
2
19-037-12
REGULAR
ROOF BAR
G
4
3
11-546-12
BOTTOM
DOOR RAIL
G-3
4
2
08-187
WASHER
Gg-3
4
22
08-138-12
PLASTIC
STOPPER
H-3
4
4
12-161
NUT
Hh-3
4
4
10-500-12
LEFT SIDE
RECEIVER
I-3
4
1
08-193-12
PLASTIC
PLUG
Ii-3
4
12
10-501-12
RIGHT SIDE
RECEIVER
J-3
4
1
10-502-12
CORNER
CONNECTOR
K-3
4
2
19-083-12
LEFT
CROSSBEAM
L-1
4
1
19-084-12
RIGHT
CROSSBEAM
L-2
4
1
19-043-12
ROOF
RAFTER CAP
M
4
5
19-082-12
TRACK
ML-3
4
1
19-081-12
TRACK
MR-3
4
1
10-505-12
TRACK JOINT
N-3
4
1
08-134-12
UPPER DOOR
RAIL END
CAP
Nn
4
4
10-506-12
RAFTER
BRACKET
O-3
4
4
08-135-12
SCREW
Oo-3
4
4

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
14
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-048-12
LEFT GABLE
JOINT
P-3
4
1
13-045-12
SELF-
TAPPING
SCREW
PQ-3
4
4
19-049-12
RIGHT GABLE
JOINT
Q-3
4
1
19-044
LEFT BACK
GABLE
PANEL
Rr-3
1
1
19-045
LEFT FRONT
GABLE
PANEL
Ss-3
1
1
19-046
RIGHT BACK
GABLE
PANEL
Tt-3
1
1
15-126-12
MOUNTING
BRACKET
U-3
(ASSEMBLED ON
ROOF BAR G)
4
3
19-047
RIGHT FRONT
GABLE
PANEL
Uu-3
1
1
19-050-12
LEFT WALL
GUIDE
Vv-3
4
1
12-047-12
BOLT
Ww
4
12
M5*15mm
19-051-12
RIGHT WALL
GUIDE
Ww-3
4
1
10-529-12
SCREW FOR
FIXING TO
WALL
Xx-3
4
18
08-156-12
SCREW
Z-3
4
10
M4*16mm

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
15
SOLARIUM W1608MR-32 SLATE
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-029-32
ROOF PANEL
A
1
2
19-030-32
ROOF PANEL
A1
1
2
10-496-32
REGULAR
FRAME
A-3
2
2
19-031-32
ROOF PANEL
B
1
2
3
2
19-032-32
ROOF PANEL
B1
1
2
10-497-32
FRAME NEXT
TO DOOR
B-3
(Has more
holes)
2
1
3
1
08-158-32
BOLT
Bb-3
4
69
19-033-32
ROOF PANEL
C
1
2
19-034-32
ROOF PANEL
C1
1
2
10-498-32
SLIDING
DOOR
C-3
2
1
3
1
08-161-32
BOLT
Cc-3
4
23
12-037-32
FEMALE
BOLT
Cc-3-2
4
12
10-499-32
SLIDING
DOOR FRAME
D-3
2
1
08-169-32
LEFT DOOR
LATCH
Dd-L-3
4
2
3
1
08-165-32
RIGHT DOOR
LATCH
Dd-R-3
4
2
11-544-32
CONNECTING
PIECE
E-3
4
10
19-052-32
SCREW
Ee-3
4
12
(M6*63.5mm)
19-035-32
LEFT
ROOF BAR
F
4
1

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
16
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-036-32
RIGHT
ROOF BAR
F1
4
1
11-545-32
TOP DOOR
RAIL
F-3
4
2
19-037-32
REGULAR
ROOF BAR
G
4
3
11-546-32
BOTTOM
DOOR RAIL
G-3
4
2
08-187
WASHER
Gg-3
4
22
08-138-32
PLASTIC
STOPPER
H-3
4
4
12-161
NUT
Hh-3
4
4
10-500-32
LEFT SIDE
RECEIVER
I-3
4
1
08-193-32
PLASTIC
PLUG
Ii-3
4
12
10-501-32
RIGHT SIDE
RECEIVER
J-3
4
1
10-502-32
CORNER
CONNECTOR
K-3
4
2
19-083-32
LEFT
CROSSBEAM
L-1
4
1
19-084-32
RIGHT
CROSSBEAM
L-2
4
1
19-043-32
ROOF
RAFTER CAP
M
4
5
19-082-32
TRACK
ML-3
4
1
19-081-32
TRACK
MR-3
4
1
10-505-32
TRACK JOINT
N-3
4
1
08-134-32
UPPER DOOR
RAIL END
CAP
Nn
4
4
10-506-32
RAFTER
BRACKET
O-3
4
4
08-135-32
SCREW
Oo-3
4
4

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
17
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
19-048-32
LEFT GABLE
JOINT
P-3
4
1
13-045-32
SELF-
TAPPING
SCREW
PQ-3
4
4
19-049-32
RIGHT GABLE
JOINT
Q-3
4
1
19-044
LEFT BACK
GABLE
PANEL
Rr-3
1
1
19-045
LEFT FRONT
GABLE
PANEL
Ss-3
1
1
19-046
RIGHT BACK
GABLE
PANEL
Tt-3
1
1
15-326-32
MOUNTING
BRACKET
U-3
(ASSEMBLED ON
ROOF BAR G)
4
3
19-047
RIGHT FRONT
GABLE
PANEL
Uu-3
1
1
19-050-32
LEFT WALL
GUIDE
Vv-3
4
1
12-047-32
BOLT
Ww
4
12
M5*15mm
19-051-32
RIGHT WALL
GUIDE
Ww-3
4
1
10-529-32
SCREW FOR
FIXING TO
WALL
Xx-3
4
18
08-156-32
SCREW
Z-3
4
10
M4*16mm

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
18
REMOVE STICKER BEFORE ASSEMBLY
D-3 FRAME

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
19

ZZZ-187.W1608MR.0529-20.GP.EN.doc WEB VERSION
20
MAINTENANCE NOTES
1. In case of a defective or damaged part, or for any other questions concerning the product, please
contact the manufacturer directly.
2. Please have the parts list and part numbers on hand when ordering or requesting replacement
parts.
3. The product should not be installed adjacent to trees or a sloped roof. Snow and ice may slide
onto the roof and cause it to collapse.
4. While the product is designed to stay assembled year long, the roof must be kept free of
accumulation of snow.
ONE YEAR LIMITED WARRANTY
This product has been designed and manufactured to meet the highest standards of quality and durability.
Subject to the Conditions for Exercising the Warranty and the Limitations on the Warranty set forth below,
it is warranted to be free of material and manufacturing defects for a period of one year from the date of
purchase. Missing and damage due to transportation is not covered by the manufacture warranty. Should
the product become damaged, or the warranty period has expired, please contact Gazebo Penguin
Customer Service Department for a complete schedule of replacement parts and prices.
CONDITIONS FOR EXERCISING THE WARRANTY
The warranty only applies to the original purchaser with the bill.
In order to properly exercise your warranty, please comply with the following:
Carefully inspect the contents of the carton for missing or damaged components. Should you
discover damaged or missing parts, do not return the product to the place of purchase, but
contact Gazebo Penguin Customer Service Department at the numbers listed below:
Montreal: (514) 276-3485
Elsewhere: 1-800-737-7174
You can also find a claim form to fill out online: http://www.abrispenguin.com/forms.html
NOTE: Damages/missing parts must be reported within 30 days of delivery. If claimed after your request
might be rejected.
LIMITATIONS ON THE WARRANTY
1. The product is not warranted against damages due to vandalism, abuse, falling or thrown objects,
or accumulation of snow.
2. The product is not warranted against damages due to extreme weather conditions, such as
thunderstorms, hail, strong wind or snow storms, or any other acts of God.
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window
positions and information on how to evacuate the water.
4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s
written instructions enclosed with the product.
5. The product is not warranted in the event it has been improperly anchored.
6. We reserve the right to replace or repair any defective product or parts at our discretion.
7. No change to the unit is allowed. This will void your warranty.
This manual suits for next models
1
Table of contents
Other Gazebo penguin Lawn And Garden Equipment manuals
Popular Lawn And Garden Equipment manuals by other brands

AVILO
AVILO G232480 user manual

DARCHE
DARCHE ECLIPSE 180R Set Up & Care Instructions

Treasure Garden
Treasure Garden AG28 Series Assembly and operation guide

Gardenline
Gardenline 91014 user guide

FRAME IT ALL
FRAME IT ALL Stack & Extend VEGGIE WALL Assembly instructions

Johnny's Selected Seeds
Johnny's Selected Seeds 6220 Assembly, use and maintenance
