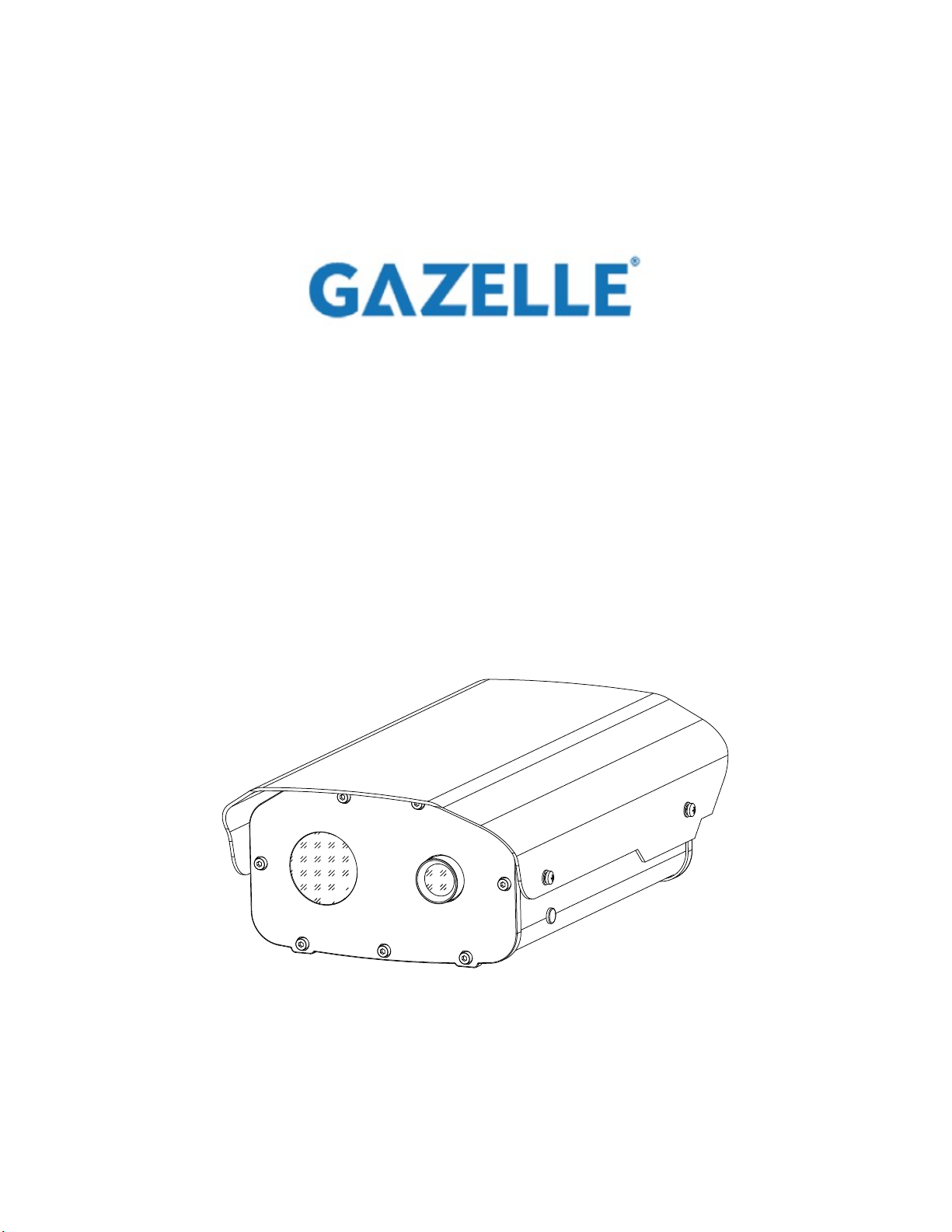

Gazelle G9601 User manual

G9601
Dual Sensor Infrared Body Temperature
Screening Thermal Camera
User Manual
2020-01

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 2 of 34
Thank you for purchasing our Dual Sensor Infrared Body Temperature Screening
Thermal Camera. Please read this manual carefully before using. This camera’s
technical specifications, operational methods and precautions are all included in this
manual.
If you need any other information not included in this manual, please feel free to
contact us.
The company reserves the right to modify this manual without prior notification.

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 3 of 34
Dangers
1.Please read this manual carefully before installation.
2. Please note the warning notices on the camera and in this manual.
3. Please apply exactly the power supply and voltage listed in this manual.
4. For safety and camera’s proper functioning, please don’t power on the camera
while connecting cables.
5. Please ensure the intactness of the power line in case of injury and damage.
6. Please install anti-lighting device in case of thunderstruck.
7. Please mount this camera on a secure platform or bracket in case of injury.
8. Unauthorized dismantling of this camera may incur injury or damage, so please
contact us directly for any malfunction matters.
9. In order to protect the lens from being stained or scratched, please don’t touch it.
Caution
1. For ensuring camera’s proper functioning, please don’t cover camera front.
2. Protect the camera from direct sunlight to ensure the detector not being damaged.
3. In case of water leakage, please don’t use organic solvent to clean camera’s
housing.
4. Please wait for another 30s before restarting camera.
5. For camera with preset function, please pay special attention:
It should avoid to patrol for long time, especially when the stay time is short for each
preset. The motor of zooming & focusing lens is easy broken parts and can be easily
damaged if patrolling for long time. If it is really necessary to use the patrol function,
we strongly recommended NOT to use the preset function or extend the stay time for
each preset. Please kindly contact us if you would like to know more info.
6. The temperature measurement needs to be performed after the thermal imager is
powered for 30 minutes to run stably.

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 4 of 34
CATALOG
Chapter 1 Camera Introduction .................................................................. 5
1. Overview ................................................................................................. 5
2. Appearance .............................................................................................. 6
3. Dimension(mm) ...................................................................................... 7
4. Connector ................................................................................................ 9
Chapter 2 Operation .................................................................................. 10
1. Installation and cable connection .......................................................... 10
2. Recommended installation environment .............................................. 13
3. Common Faults ..................................................................................... 15
Chapter 3 Blackbody use and installation instructions ............................. 16
1. Product appearance ............................................................................... 16
2. Instructions ............................................................................................ 16
3. Precautions for using blackbody ........................................................... 17
4. Installation instructions ......................................................................... 19
Chapter 4 Camera debugging instructions ................................................ 23
Chapter 5 Instructions for software .......................................................... 27
Chapter 6 Warranty and After sales .......................................................... 33

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 5 of 34
hapter 1 Camera Introduction
1. Overview
G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera, It is a
non-contact, large-area, accurate, and efficient temperature measurement and
screening device specially designed for dense crowds in public places. Based on the
accurate temperature measurement technology of thermal imaging, people with
abnormal body temperature can be detected and alarmed in time to assist the
supervision department to implement rapid intervention methods. And emergency
measures to prevent the spread of the virus epidemic in public places from the danger
of spreading infected people in a wide range. It can be widely used in airports, railway
stations, passenger stations, subway stations and other comprehensive transportation
hubs, as well as in crowded areas such as schools and comprehensive parks.
The entire system includes a front-end human body temperature measuring camera
and temperature management software. Customers can configure and control
computers by themselves. The management computer is equipped with temperature
management software for managing temperature measurement equipment and
temperature alarms.

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 6 of 34
2. Appearance
Cable connection
Chart 1-2 Lateral and side view
Thermal camera
Chart 1-1 Front and side view
Visible lens

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 7 of 34
3. Dimension(mm)
Chart 1-3 Front view
Chart 1-4 Lateral view

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 8 of 34
Chart 1-5 Mounting holes at the bottom of the camera

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 9 of 34
4. Connector
Camera output line definitions:
Pin No. 1 2 3 4 5 6
Pin
definition
12V+
Red
GND
Black
Orange
white TX+
(RJ45-1)
Orange
TX-
(RJ45-2)
Green
white RX+
(RJ45-3)
Green
RX-
(RJ45-6)
Pin No. 7 8 9 10 11 12
Pin
definition
Blue Blue white Brown
white
Brown NC NC

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 10 of 34
Chapter 2 Operation
1. Installation and cable connection
(1) Installation
There are various mounting holes on the bottom of the camera, as shown in Chart 1-5.

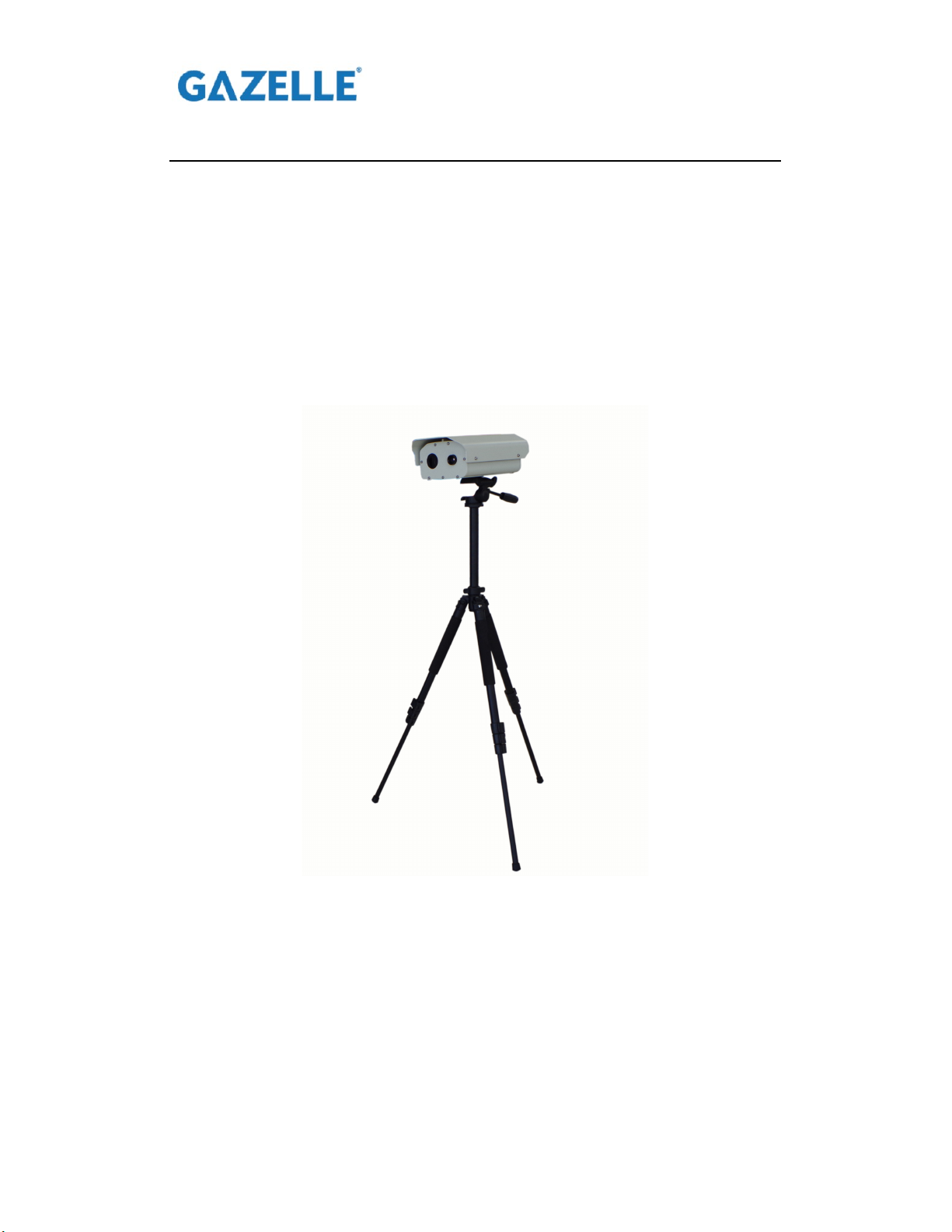

It can be set up quickly with ordinary photography tripod, as shown below.
Chart 2-1 Tripod quick setup drawing

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 11 of 34
(2) Aviation Plug Installation
Chart 2-2 Aviation Plug Hole Chart 2-3 Aviation plug Pin
When installing, please insert the head hole into the socket, make sure that the pin is
inserted into the socket, then twist the upper fixed ring upward and to the right, and
then complete the docking after hearing "Click" .
When removing the plug, please twist the plug to the left, the plug will be removed,
with the pin plug separation.
Chart 2-4 Aviation Plug Finished Installation
Aviation plug retaining ring

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 12 of 34
(3) Cable connection

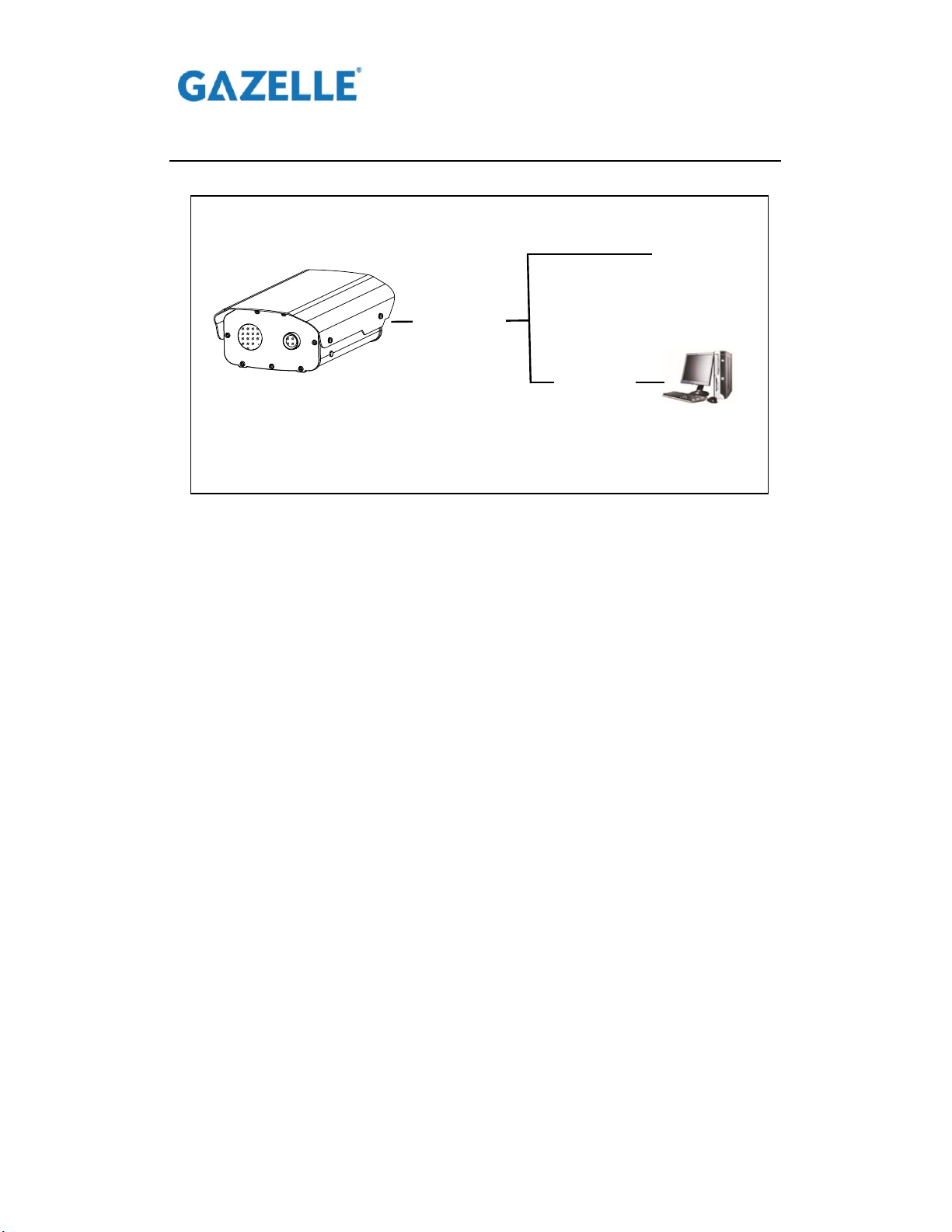

Chart 2-5 connection diagram
Dual Sensor Infrared Body
Temperature Screening
Thermal Camera
Camera
connection
Power supply
Network
cable
Computer

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 13 of 34
2. Recommended installation environment
The temperature measurement principle of the infrared camera is measured by
collecting infrared radiation radiated from the surface of the body of the person. The
environmental conditions related to infrared transmission will affect the temperature
measurement accuracy, especially air flow, air transmission rate, environmental
humidity, and environment Temperature and other factors, it is strongly recommended
that the camera be installed in an indoor environment. And to choose the appropriate
installation height and temperature measurement distance, the following diagram
shows the installation environment recommendations.
Chart 2-6 Camera installation recommendations

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 14 of 34

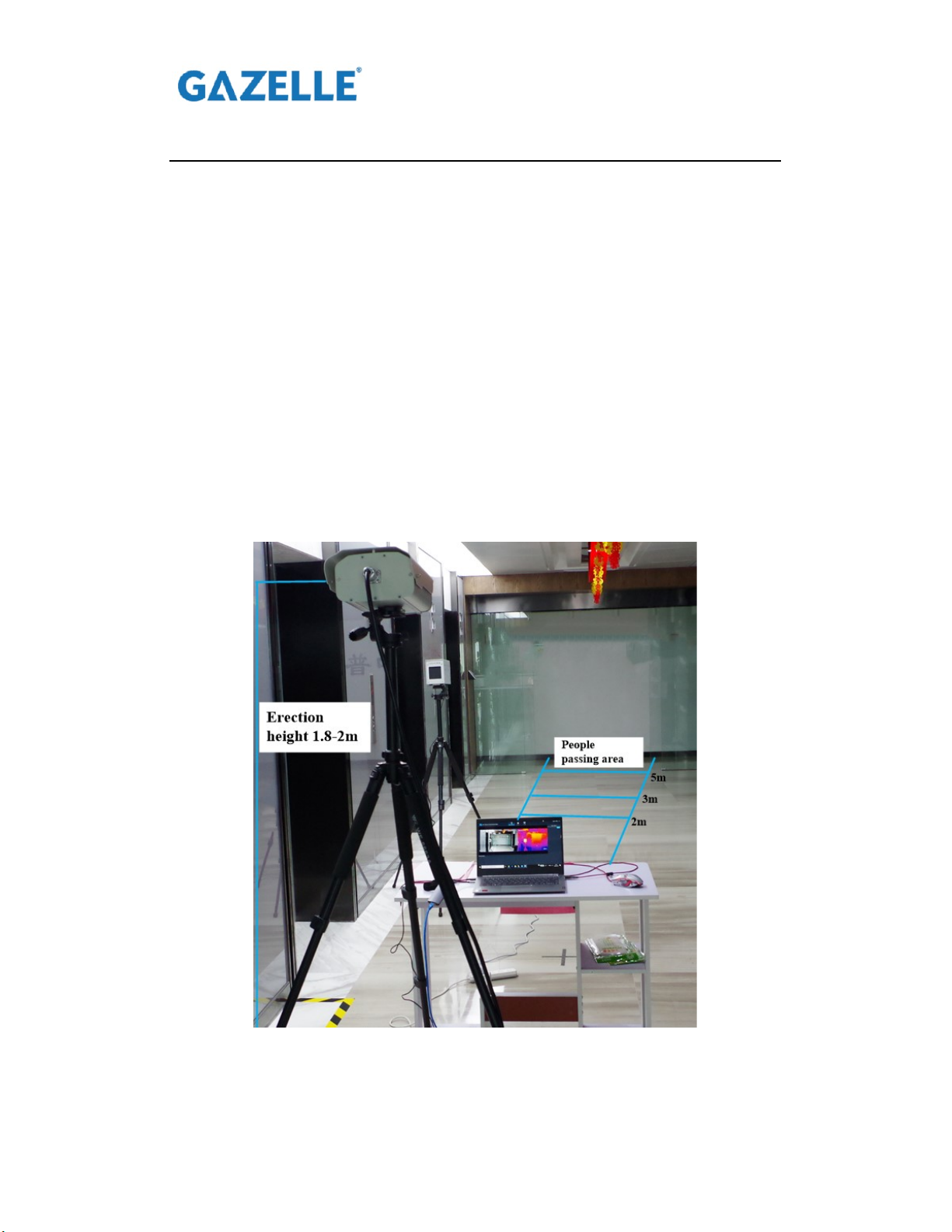

The erection height is about 1.8-2 meters, the working distance is generally 2-5
meters, and the best temperature measurement distance is about 2-3 meters.

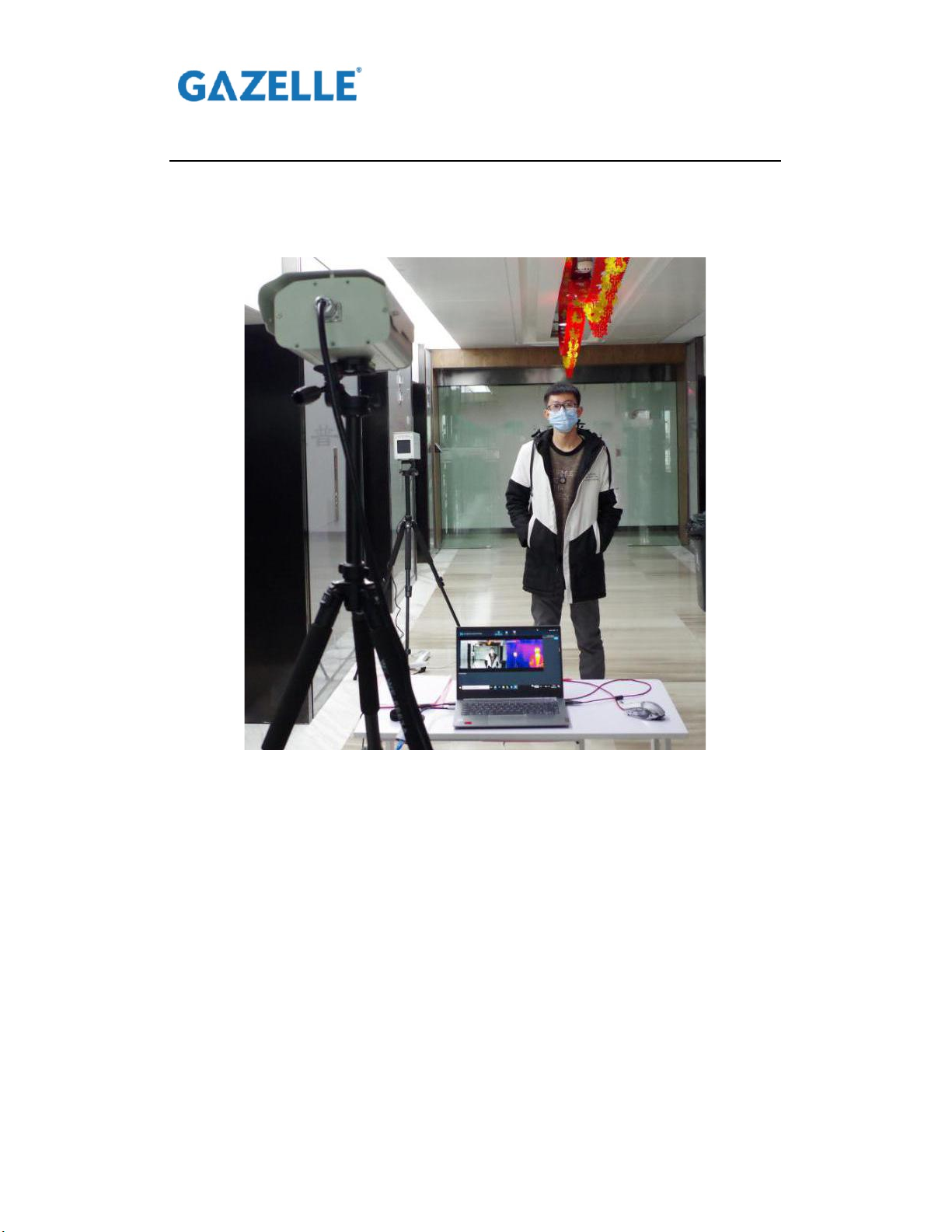

Chart 2-7 Camera installation and display

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 15 of 34
3. Common Faults
The table below includes the common faults during operation. Whenever these
problems occur, you may refer to this table or contact us directly for proper solution.
Fault Possible Cause Solution
No image on
camera after power
on
Power damage or under
power Replace the original power.
Wrong connection of
power line Reconnect
Circuit malfunction Check circuit
The network is not
connected
Check the network connection
cables to ensure that the wiring is
correct and in good contact
Firewall blocks video
transmission
Turn off the firewall on the client
computer
Unclear image Lens covered by objects Check if there is any cover
Dirty lens Clear lens

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 16 of 34
Chapter 3 Blackbody use and installation instructions

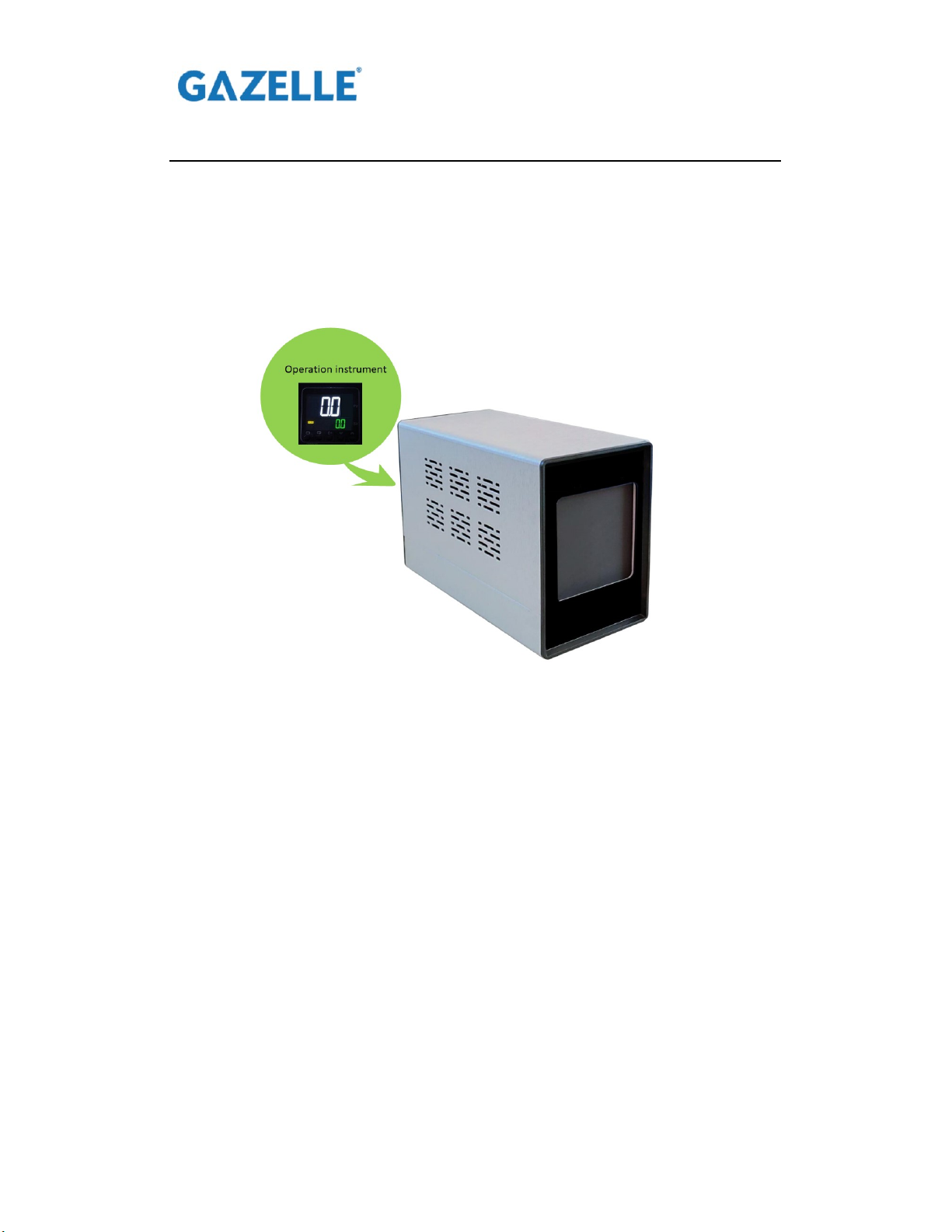

1. Product appearance
Note: Please refer to the real object for the appearance of the blackbody.
This picture is for reference only.
2. Instructions
(1) Connect the power supply, the power supply is AC220V.
(2) Press the power switch, the indicator light is on to indicate that the power is
on.
(3) The factory default is 35 ° C, and the temperature will automatically rise to
35 ° C when the machine is turned on. If other temperature points are set
during use, it will automatically rise to the temperature set last time when it
is turned on next time.

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 17 of 34
(4) Temperature setting:
In this interface,
press ◀. ▲. ▼ key to adjust the value in the (SV) window, set the required
temperature, and after the adjustment, wait for the number to no longer change,
and the temperature can be used for measurement after 30 minutes.
(5) The blackbody furnace has been tested in operation when it leaves the
factory.
All parameters of the intelligent temperature controller have been optimized.
It is forbidden to modify the parameters by yourself when not necessary.
(6) After use, cut off the power.
3. Precautions for using blackbody
Before use, please check if there is enough space around you. The bottom and back of
the device is a heat dissipation area. When using it, pay attention to cleaning up
foreign objects that are easily sucked in to prevent damage to the device!
The black body furnace can be used in a laboratory, a measurement room or a
production site, and it should be placed horizontally on a table during use. When
setting the instrument to be calibrated, it shall be kept at a specified distance from the
bullseye of the black body furnace. At the same time, the instrument calibration
system and the black body radiation surface must be on the same axis.

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 18 of 34
In order to ensure the accuracy of temperature measurement, please place the surface
temperature calibrator in a stable temperature environment. The ideal environment
temperature is 10 ℃ ～ 25 ℃.
The inspection must start from the low temperature point and then to the high
temperature point. In order to prevent the rapid changes in temperature from
damaging the components in the furnace, when the temperature rises from low
temperature to high temperature or decreases from high temperature, it is necessary to
stop the test and wait for the temperature in the furnace to approach room temperature
before starting the test.
Before installing or moving the instrument, turn off the power to avoid accidents such
as electric shock.
When used in the field, the power plug must be reliably grounded!
Do not disassemble the components yourself. If there is any problem, please contact
our company for repair.

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 19 of 34

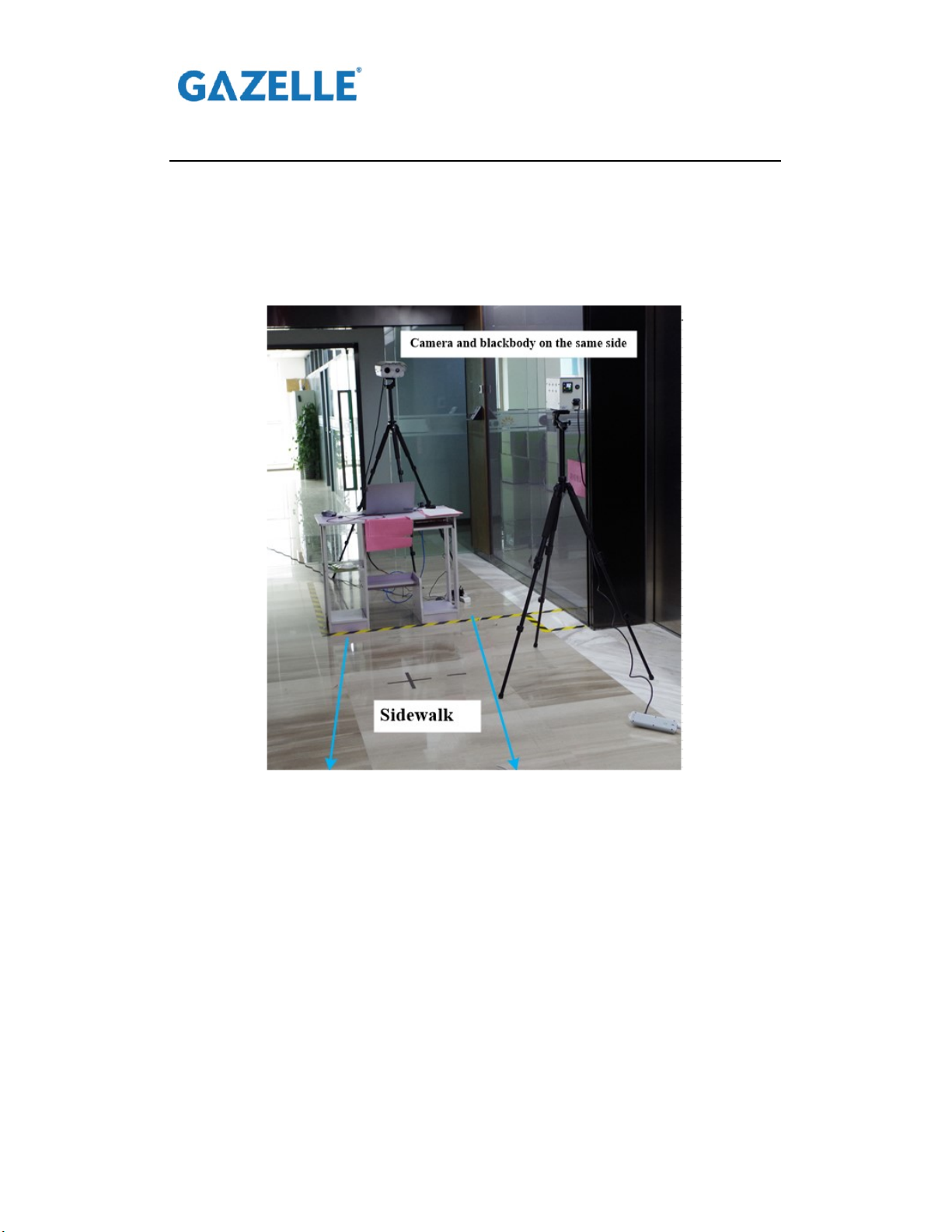

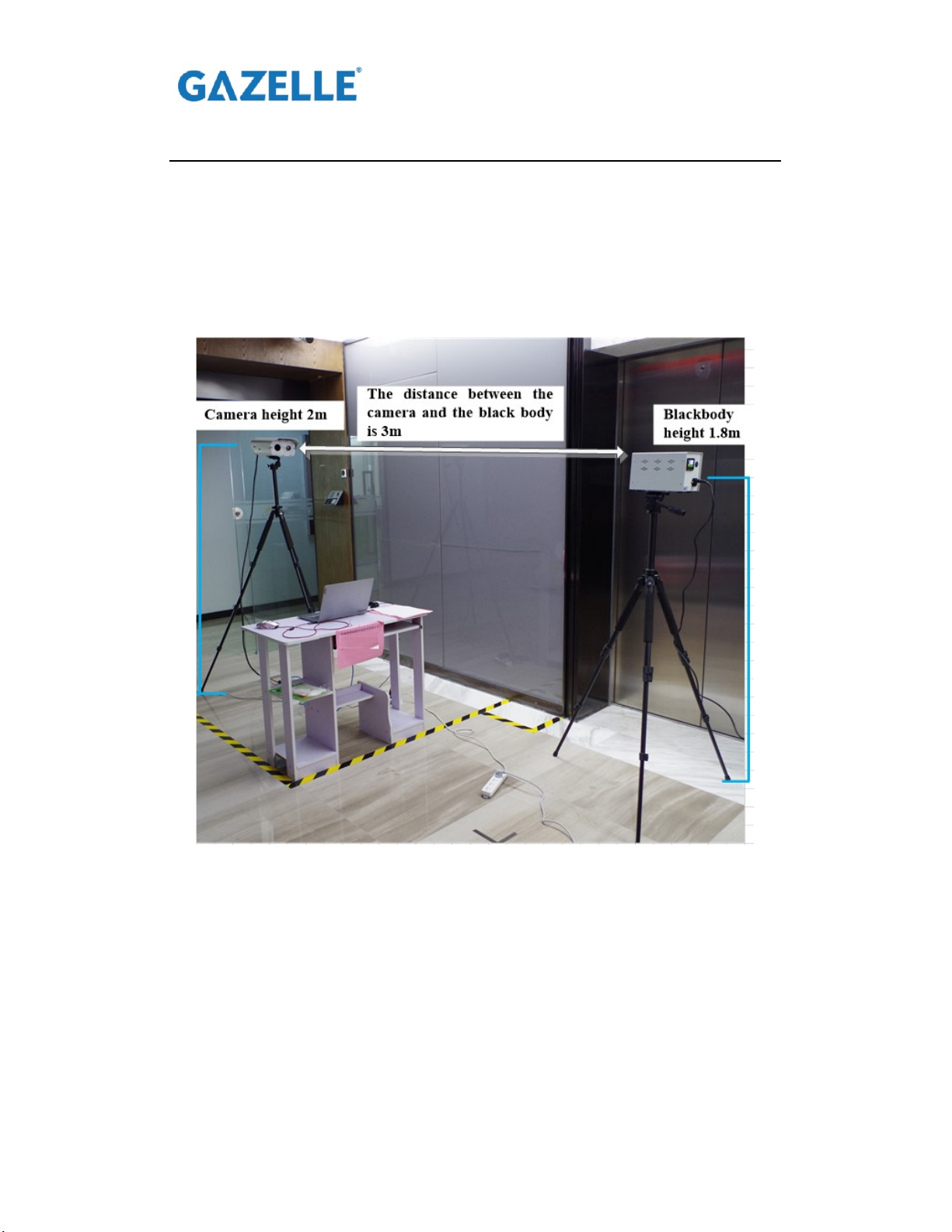

4. Installation instructions
(1) Installation height of thermal imaging temperature measuring camera: 2
meters; installation height of black body: 1.8 meters. The product installation
is shown as follows:
Thermal camera tripod installation diagram

G9601 Dual Sensor Infrared Body Temperature Screening Thermal Camera
Page 20 of 34
(2) The thermal imaging camera and the black body are installed on the same
side, the pedestrian path is on the other side, and the distance between the
camera and the black body is 3 meters, to avoid obstruction between the
camera and the black body during temperature measurement.
Blackbody installation diagram
