239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–1
239 Motor Protection Relay
Chapter 1: Overview
Digital Energy
TRIP
ALARM
AUXILIARY
SERVICE
PICKUP
COMMUNICATE
RESET
STORE
ACTUAL
VALUE
MESSAGE
SETPOINT
239 Motor Protection Relay
CAUSE OF LAST TRIP:
MECHANICAL JAM
Over view
1.1 Overview
1.1.1 239 Relay Features
The GE Multilin 239 relay is designed to fully protect three phase AC motors against
conditions which can cause damage. In addition to motor protection, the relay has
features that can protect associated mechanical equipment, give an alarm before
damage results from a process malfunction, diagnose problems after a fault and allow
verification of correct relay operation during routine maintenance. Using the ModBus serial
communications interface, motor starters throughout a plant can be connected to a
central control/monitoring system for continuous monitoring and fast fault diagnosis of a
complete process.
One relay is required per motor. Since phase current is monitored through current
transformers, motors of any line voltage can be protected. The relay is used as a pilot
device to cause a contactor or breaker to open under fault conditions; that is, it does not
carry the primary motor current. When the over temperature option is ordered, up to 3

1–2 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW
RTDs can be monitored. These can all be in the stator or 1 in the stator and 2 in the
bearings. Installing a 239 in a motor starter for protection and monitoring of motors will
minimize downtime due to process problems.
Table 1–1:
PROTECTION
• Overload (15 selectable curves)
• Short circuit
•Lockedrotor
• Stall / mechanical jam
• Repeated starts (Mod 505)
• Single phase / unbalance
• Ground fault
• Overtemperature (Thermistor & 3 RTDs)
• Undercurrent
• Overload warning
•Breakerfailure
FEATURES
• Status/current/temperature display
•Faultdiagnosis
• Trip record
• Memory lockout
• Thermal capacity / load% / RTD analog output
• Trip / alarm / auxiliary / service relay outputs
• Motor Running Hours
• Motor maximum current on last start
• Simulation mode for field testing
• Clear LCD display
• RS485 Modbus communications interface
• AC/DC control power
• Compact size, fits most starters
• Update options and/or MODs in field
•CSA/ULApproved
• Conformal coating for harsh environment

CHAPTER 1: OVERVIEW
239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–3
FIGURE 1–1: Continuous Protection Features
819763AF.CDR
51
49
38
50
37
86
74
46
50G
48
MOTOR
LOAD
AUXILIARY
RELAY
SERVICE
RELAY
RS485
ALARM
RELAY
TRIP
RELAY
LOCKED ROTOR
SHORT CIRCUIT
TIMED OVERLOAD
INSTANTANEOUS
GROUND FAULT
STATOR OVER
TEMPERATURE
BEARING OVER
TEMPERATURE
UNBALANCE
UNDERCURRENT
SERVICE
ALARM
FAULT/
ALARM/
PROCESS
CONTROL
FAULT/
PROCESS
ALARM
52
3 PHASE
4160V BUS
400A
FUSED
CONTACTOR
3
PHASE
CTs
TRIP
GROUND
CT
THERMISTOR/
STATOR RTD
BEARING
RTDs
RS485 REMOTE
COMMUNICATION
239 RELAY

1–4 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW
FIGURE 1–2: Feature Highlights – Front
TRIP
ALARM
AUXILIARY
SERVICE
PICKUP
COMMUNICATE
RESET
STORE
ACTUAL
VALUE
MESSAGE
SETPOINT
DISPLAY
40 character illuminated display for all light conditions.
•Setpoints •Actual values •Status messages • Fault conditions
STATUS INDICATORS
•Trip: Lit when the 239 detects a trip.
•Alarm: Lit when the 239 detects an alarm.
•Auxiliary: Lit when the auxiliary relay is operated.
•Service: Lit when the 239 detects an internal
fault condition.
•Pickup: Lit when motor full load or ground
is exceeded.
•Communicate: Off if there is no communication at all,
flashes if RS485 activity but invalid messages, and on (steady) if communication is successful.
pickup
KEYPAD
Rubber keypad makes installed unit dust tight and splash
proof. Meets IP53/NEMA12.
PROTECTIVE DOOR
Covers keys when not in use.
COMPACT DESIGN
Replaces many discrete components
with one standard unit.
239 Motor Protection Relay
CAUSE OF LAST TRIP: MECHANICAL JAM
819790A-X2.CDR

CHAPTER 1: OVERVIEW
239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–5
FIGURE 1–3: Feature Highlights – Rear
819790AH-X3.CDR
COMMUNICATIONS
RS485 serial communications, 1200-19200 baud for remote monitoring, setpoint programming, and commands. Modbus RTU protocol.
®
SWITCH INPUTS
Enable/disable setpoint programming.
ACCESS:
Over-rides lockout for process restarting.
RESTART:
Field reset after a trip.
RESET:
User specified inputs.
OPTION 1&2:
OPTIONALANALOGOUTPUT
Select output as: thermal capacity used, current asa%of full load, average current, RTD 1-3 temperature. Isolated 4-20 mAfor PLC process input or 0-1 mAfor thermal capacity meter.
CUSTOMER ACCESSIBLE FUSE
Door slides open for easy access to fuse.
AC/DC CONTROL POWER
Universal control power 90-300 VDC/70-265 VAC .
GROUND CT INPUT
5Aor 50:0.025 CT input for residually connected phase CTs
or separate core balance CT.
PHASE CT INPUTS:
3 isolated phase CT inputs. Accept 1 amp or 5 amp secondary.
TEMPERATURE SENSING NTC or PTC thermistor input.
OPTIONAL3RTD INPUTS
Mix RTD types. Separate stator and bearing monitoring
OPTIONALDIRECTIONALGROUND SENSING
Polarizing voltage input for directional ground sensing (MOD 509)
4RELAYS
Cause motor to trip by opening contactor or energizing breaker trip coil.
TRIP:
Signals an alarm is present.
ALARM:
Programmable for control or separate trip/alarm. Serial port commands for remote control.
AUXILIARY:
Signals internal relay fault. Service is required.
SERVICE:

1–6 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW
1.1.2 Typical Applications
Versatile features and simple programming controls make the 239 an ideal choice for
motor and equipment protection in a wide range of applications. In addition to basic
electrical protection for motors, the 239 can protect against common faults due to process
problems, such as:
1. Mechanical protection of pumps using the undercurrent feature to detect loss of
suction or a closed discharge valve.
2. Mechanical protection of fans against loss of air flow in mines or flow in steam
generating boilers using the undercurrent feature.
3. Electrical protection of compressor motors from excessive run up time caused by an
open outlet using the start timer.
4. Mechanical protection of gears, pumps, fans, saw mill cutters, and compressors
against mechanical jam using the mechanical jam trip feature.
5. Safety to personnel from shock hazard using the ground fault feature to detect
winding shorts from moisture.
6. Protection of motors and equipment from operator abuse using the thermal memory
lockout.
Cost savings are provided using versatile features such as:
1. Diagnostic information after a trip to identify problems and bring the process back on
line quickly.
2. Fault indication of ground fault without shutdown to warn that corrective
maintenance is required.
3. Simplified spare parts stocking and initial specification design using one universal
model for many motor sizes, applications and settings.
4. Serial communication using the popular Modbus protocol to remotely monitor all
values, program setpoints, issue commands and diagnose faults to minimize process
disruptions.
5. Output of motor current suitable for programmable controller interface (4 to 20 mA).

CHAPTER 1: OVERVIEW
239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–7
1.1.3 Order Code
MODIFICATIONS
• MOD 500: Portable test/carrying case
• MOD 501: 20 to 60 V DC / 20 to 48 V AC control power
• MOD 504: Removable terminal blocks
• MOD 505: Enhanced start protection
• MOD 506: Custom programmable overload curve
• MOD 509: Directional ground sensing with 120 V AC polarizing voltage
• MOD 512: 1 AMP Ground CT input
• MOD 513: Class 1 Division 2 operation
• MOD 517: Australian Mines approval
ACCESSORIES
• 239PC Windows software (supplied free)
• Phase and ground CTs
• RS232 to RS485 converter (required to connect a computer to the 239 relay(s) to run
239PC)
• RS485 Terminating Network
• 2.25” collar for limited depth mounting (1009-0068)
• Large size (8.5 x 11”) instruction manual (free upon request)
CONTROL POWER
• 90 to 300 V DC / 70 to 265 V AC standard
• 20 to 60 V DC / 20 to 48 V AC (MOD 501)
239 RTD AN
RTD
AN
3 RTDs: mix stator/bearing
Programmable type:
platinum, nickel, copper
Single, isolated, analog output
0-1, 0-20, 4-20 mA
Programmable output parameter:
thermal capacity, % full load, phase current
RTD1, RTD2, RTD3 temperature
H
H
Harsh environment conformal coating

1–8 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW

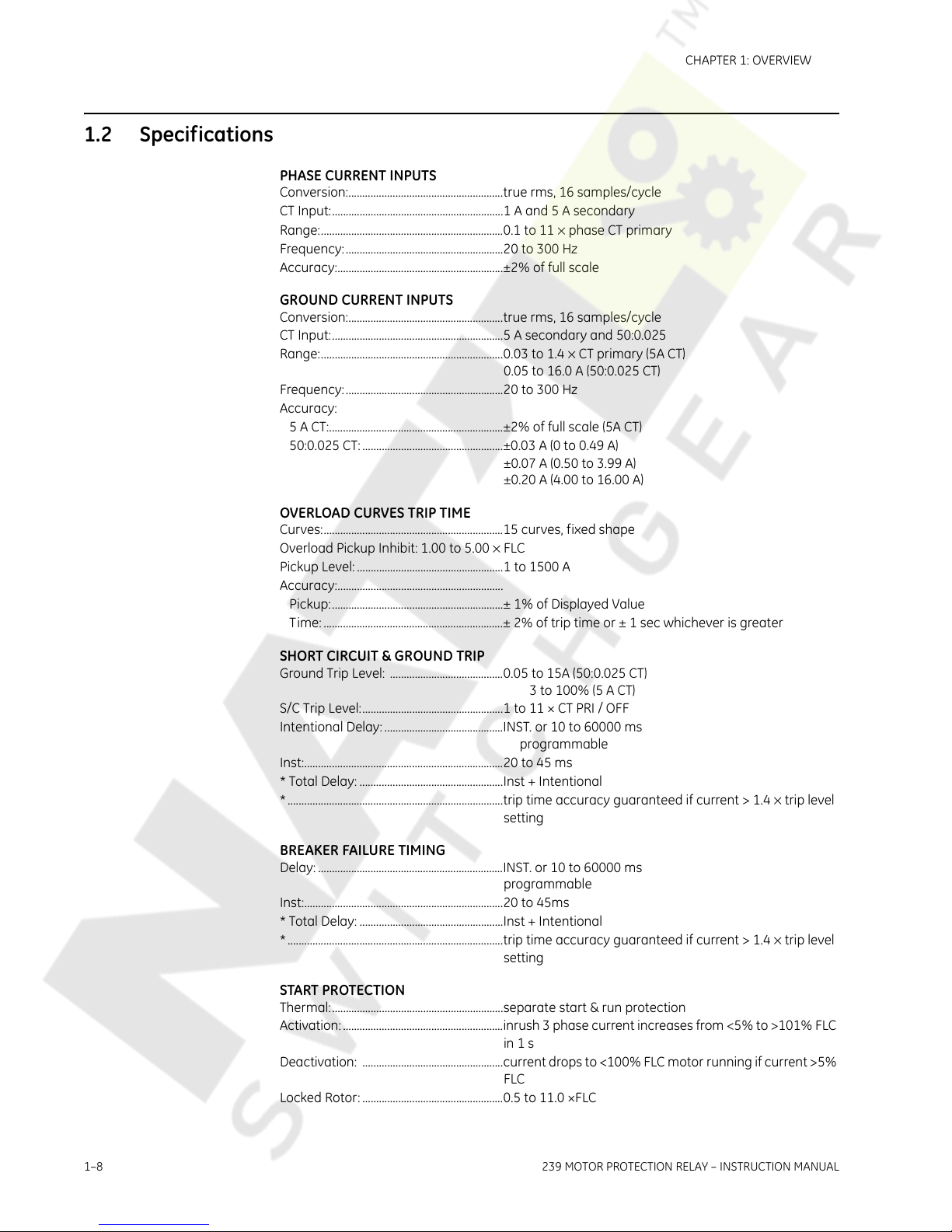

1.2 Specifications
PHASE CURRENT INPUTS
Conversion:........................................................true rms, 16 samples/cycle
CT Input:..............................................................1 A and 5 A secondary
Range:..................................................................0.1 to 11 ×phase CT primary
Frequency: .........................................................20 to 300 Hz
Accuracy:............................................................±2% of full scale
GROUND CURRENT INPUTS
Conversion:........................................................true rms, 16 samples/cycle
CT Input:..............................................................5 A secondary and 50:0.025
Range:..................................................................0.03 to 1.4 ×CT primary (5A CT)
0.05 to 16.0 A (50:0.025 CT)
Frequency: .........................................................20 to 300 Hz
Accuracy:
5 A CT:...............................................................±2% of full scale (5A CT)
50:0.025 CT: ...................................................±0.03 A (0 to 0.49 A)
±0.07 A (0.50 to 3.99 A)
±0.20 A (4.00 to 16.00 A)
OVERLOAD CURVES TRIP TIME
Curves:.................................................................15 curves, fixed shape
Overload Pickup Inhibit: 1.00 to 5.00 ×FLC
Pickup Level: .....................................................1 to 1500 A
Accuracy:............................................................
Pickup:..............................................................± 1% of Displayed Value
Time: .................................................................± 2% of trip time or ± 1 sec whichever is greater
SHORT CIRCUIT & GROUND TRIP
Ground Trip Level: .........................................0.05 to 15A (50:0.025 CT)
3 to 100% (5 A CT)
S/C Trip Level:...................................................1 to 11 × CT PRI / OFF
Intentional Delay: ...........................................INST. or 10 to 60000 ms
programmable
Inst:........................................................................20 to 45 ms
* Total Delay: ....................................................Inst + Intentional
* ..............................................................................trip time accuracy guaranteed if current > 1.4 ×trip level
setting
BREAKER FAILURE TIMING
Delay: ...................................................................INST. or 10 to 60000 ms
programmable
Inst:........................................................................20 to 45ms
* Total Delay: ....................................................Inst + Intentional
* ..............................................................................trip time accuracy guaranteed if current > 1.4 ×trip level
setting
START PROTECTION
Thermal:..............................................................separate start & run protection
Activation:..........................................................inrush 3 phase current increases from <5% to >101% FLC
in 1 s
Deactivation: ...................................................current drops to <100% FLC motor running if current >5%
FLC
Locked Rotor: ...................................................0.5 to 11.0 ×FLC

CHAPTER 1: OVERVIEW
239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–9
Safe Stall Time:................................................1.0 to 600.0 sec
THERMAL MODELING
Thermal Capacity:..........................................separate start/run,
exponential cool down
Cool Rate:...........................................................
Stop:..................................................................1 to 5000 minutes programmable
Run: ...................................................................50% of stopped cool time
Hot/cold: .........................................................50 to 100%, hot after 15 min running
Lockout:...........................................................1 to 5000 min programmable ±20% power on / off
UNBALANCE
Range:..................................................................5 to 100% / OFF
Accuracy: ...........................................................± 2%
Delay: ...................................................................0 - 60 sec
Calculation:
where: IAV = average phase current
IM= current in phase with max dev. from IAV
IFLC = full load current setting
THERMISTOR
Type:.....................................................................PTC or NTC programmable
Hot Resistance: ...............................................100 to 30 000 Ω
Cold Resistance: ............................................100 to 30 000 Ω
Delay: ...................................................................2 sec
Accuracy: ...........................................................±5% or 100 Ω, whichever is greatest
UNDERCURRENT
Range:..................................................................5 to 100% FLC / OFF
Delay: ...................................................................0 to 250 sec
RTDS (OPTIONAL)
Inputs:..................................................................3 RTDs, stator/bearing prog.
Type:.....................................................................100 Pt (DIN 43760), 100 Ni, 120 Ni, 10 Cu programmable
Range:..................................................................–40 to 200 °C/ –40 to 400 °F
Trip/Alm Range:...............................................0 to 200 °C / 0 to 400 °F
Dead Band:........................................................2 °C / 4 °F
Accuracy: ...........................................................±2 °C / ±4 °F
Lead Resistance:
Pt or Ni RTD:...................................................25 Ω max
Cu RTD:.............................................................3 Ω max
3 wire lead resistance compensation
COMMUNICATIONS
Type:.....................................................................RS485 2 wire, half duplex, isolated
Baud Rate: .........................................................1200 to 19.2k bps
Protocol:..............................................................Modbus®RTU
Functions:...........................................................Read/write setpoints, read actual values, execute
commands
If IAV IFLC, UB%≥IMIAV
–
IAV
---------------------100×=
If IAV IFLC, UB%<IMIAV
–
IFLC
---------------------100×=

1–10 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW
ANALOG OUTPUT (OPTIONAL)
Accuracy:............................................................±2% of full scale reading
Isolation: .............................................................36 V DC isolated, active source
OUTPUT RELAYS
Configuration:..................................................Form C NO/NC
Contact Material: ...........................................Silver Alloy
CT INPUTS
PROGRAMMABLE
OUTPUT 0-1 mA 0-20 mA 4-20 mA
MAX LOAD 2400 Ω600 Ω600 Ω
MAX OUTPUT 1.1 mA 21 mA 21 mA
VOLTAGE MAKE/
CARRY
CONTINUOU
S
MAKE/
CARRY
0.2 s
BREAK
RESISTIVE
30 VDC 10 30 10
125 VDC 10 30 0.5
250 VDC 10 30 0.3
INDUCTIVE
(L/R=7 ms)
30 VDC 10 30 5
125 VDC 10 30 0.25
250 VDC 10 30 0.15
RESISTIVE 120 VAC 10 30 10
250 VAC 10 30 10
INDUCTIVE
PF=0.4
120 VAC 10 30 10
250 VAC 10 30 10
CT INPUT
(A)
BURDEN
VA Ω
PHASE CT (1A)
1 0.009 0.01
50.20.01
20 3.5 0.01
PHASE CT (5A)
5 0.04 0.002
25 0.9 0.002
100 16 0.002
GROUND CT
(5A)
5 0.04 0.002
25 1.1 0.002
100 17 0.002
GROUND CT
(50:0.025)
0.025 0.07 116
0.1 1.19 119
0.5 30.5 122

CHAPTER 1: OVERVIEW
239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–11
50:0.025 GROUND INPUT WITHSTAND:
Continuous:....................................................150 mA
Maximum: ......................................................12 A for 3 cycles
50:0.025 input can be driven by a 50:0.025 CT.
SWITCH INPUTS
Type: .....................................................................dry contacts
Output: ................................................................29 V DC, 10 mA (pulsed)
Duration:.............................................................100 ms minimum
CONTROL POWER
Input:....................................................................90 to 300 VDC or
70 to 265 VAC, 50/60 Hz
110 to 250 VDC (nominal)
100 to 240 VAC (nominal), 50/60 Hz
Power:..................................................................10 VA (nominal) 30 VA (max)
Holdup:................................................................non-failsafe trip: 200 ms
failsafe trip: 100 ms
both times at 120VAC / 125VDC
Note It is recommended that all 239 relays be powered up at least once per year to avoid
deterioration of electrolytic capacitors in the power supply.
FUSE TYPE/RATING
5 ×20mm, 2.5 A, 250V
Slow blow, High breaking capacity
INSTALLATION
HAZARD may result if the product is not used for its intended purpose.
Ventilation Requirements: .........................Natural air convection must be assured at all times
Cleaning Requirements: .............................None
BURDEN
1s xCT 5s xCT continuous
xCT
PHASE CT (1A) 100 40 3
PHASE CT (5A) 100 40 3
GROUND CT
(5A) 100 40 3

1–12 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW
TYPE TESTS
APPROVALS
ENVIRONMENTAL
TEST REFERENCE STANDARD TEST LEVEL
Dielectric voltage withstand 2300VAC
Impulse voltage withstand EN60255-27 5KV
Insulation resistance 500VDC >100mohm
Electrostatic Discharge IEC61000-4-2 Level 4
RF immunity IEC61000-4-3 10V/m 80-1Ghz,1.4-2.7Ghz +spot
Fast Transient Disturbance IEC61000-4-4 Class B
Surge Immunity IEC61000-4-5 2Kv & 1KV
Conducted RF Immunity IEC61000-4-6 10Vrms
Radiated & Conducted Emissions CISPR11 /CISPR22/ IEC60255-25 Class A
Power magnetic Immunity IEC61000-4-8 Level 5
Pulsed Magnetic Immunity IEC61000-4-9 1000A/m
Damped Oscillatory magnetic IEC61000-4-10 100A/m
Voltage Dip & interruption IEC61000-4-11 0,40,70,80% dips,250/300cycle interrupts
IEC60255-11 DC interrupts and ripple (15%)
Damped Oscillatory IEC61000-4-18/IEEEC37.90.1 2.5KV @1Mhz 100Khz
Ingress Protection IEC60529 IP40 front, IP10 back
Applicable Council Directive According to:
Low voltage directive EN60255-27 (normative)
CE compliance EMC Directive EN61000-6-2, EN50263 Zone B
(Standard Version,
Mod 502, 504, 505,
506, 512)
EN61000-6-4
LVD Directive EN60255-27
North America cULus e83849 NKCR/7 UL508/C22.2.No 14
cUlus e234799 NOIV/NOIV7 Haz loc Class1 Div 2 (Mod 513)
ISO Manufactured under a
registered quality program ISO9001
Ambient temperatures:
Operating range: -10C to 60C
Altitude: 2000m (max)
Insulation: Class 1
Pollution Degree: II
Overvoltage Category: II
Ingress protection: IP40 Front
IP10 Back

CHAPTER 1: OVERVIEW
239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL 1–13
PRODUCTION TESTS
Dielectric Strength:........................................2200 VAC for 1 second
PACKAGING
Shipping Box:....................................................8½" × 6" × 6" (L × H × D)
215 mm × 152 mm × 152 mm
(L × H × D)
Ship Weight:......................................................5 lbs. / 2.3 kg
CERTIFICATION/COMPLIANCE
ISO:........................................................................Manufactured under an ISO9001 recognized program
UL:..........................................................................E83849 UL listed for the USA and Canada
Note Specifications subject to change without notice.

1–14 239 MOTOR PROTECTION RELAY – INSTRUCTION MANUAL
CHAPTER 1: OVERVIEW
