GE 165D4700P390 User manual

Stainless Steel
Tub Dishwashers
Owner’s Manual
Dishwashers
165D4700P390 49-55066 08-09 JR
GEAppliances.com
Write the model and serial
numbers here:
Model # __________________
Serial # __________________
You can find them on the tub wall
just inside the door.
Safety Instructions . . . . . . . . . . . 2–5
Operating Instructions
Care and Cleaning . . . . . . . . . . . . . . . . . 17
Control Panel and Settings . . . . . . . . 6–8
Loading Place Settings . . . . . . . . . . . . . 16
Loading the Racks . . . . . . . . . . . . . 14–16
Recommended Dishwasher
Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the Dishwasher . . . . . . . . . .10–13
Troubleshooting Tips . . . . . . 18–20
Consumer Support
Consumer Support . . . . . . . . . . . . . . . . .22
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 21
ANTI
BACTERIA
ST
ART
RESET
TOLOCKCONTROLS
PRESSHEATEDDRY
FOR3SECONDS
ENHANCEMENTS
SELECTIONS
SENSINGWASHINGRINSINGDRYINGSANITIZEDCLEAN
COOK
WARE
NORMAL
WASH
SPEED
CYCLE
CHINA
CRYST
AL
RINSE
ONL
Y2 4 8
DELA
Y
HOURS
ADDED
HEA
T
PRE
WASH
HEA
TED
DRY

2
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING —
SAVE THESE INSTRUCTIONS
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, and to prevent property damage, personal injury, or death.
WATER HEATER SAFETY
PROPER INSTALLATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive an Installation Instructions sheet with
your dishwasher, you can receive one by visiting our website at GEAppliances.com.
■Contents washed in Anti-bacterial mode, if
available, may be hot to the touch. Use care
before handling.
■Using a detergent that is
not specifically designed
for dishwashers will cause
the dishwasher to fill with
suds.
■If your dishwasher is connected to a
wall switch, ensure that the switch is
on prior to use.
■On dishwashers with electronic
controls, if you choose to turn the wall
switch off between wash cycles, allow
5–10 seconds after turning the switch on before
touching START/RESET to allow the control to
reboot.
■Non-Dishware Items: Do not wash items such
as electronic air cleaner filters, furnace filters and
paint brushes in your dishwasher. Damage to
dishwasher and discoloration or staining of
dishwasher may result.
■Close supervision is necessary if this appliance
is used by or near children.
■Load light, plastic items so they will not
become dislodged and drop to the bottom
of the dishwasher—they might come into
contact with the heating element and be
damaged.
■Connect to a grounded metal, permanent wiring
system; or run an equipment-grounding
conductor with the circuit conductors and
connect to the equipment-grounding terminal
or lead of the appliance.
■Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
■Dispose of discarded appliances and shipping
or packing material properly.
■Do not attempt to repair or replace any part
of your dishwasher unless it is specifically
recommended in this manual. All other servicing
should be referred to a qualified technician.
■To minimize the possibility of electric shock,
disconnect this appliance from the power supply
before attempting any maintenance.
NOTE: Turning the dishwasher off does not
disconnect the appliance from the power supply.
We recommend having a qualified technician
service your appliance.
WARNING!
CAUTION: To prevent minor injury or property damage
Under certain conditions, hydrogen gas may be produced in a water heater that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury
by turning on all hot water faucets and allow them to run for several minutes. Do this before using any
electrical appliance which is connected to the hot water system. This simple procedure will allow any built-
up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance
during this process.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
3
SEGURIDAD DEL CALENTADOR DE AGUA
¡ADVERTENCIA!
Bajo ciertas condiciones, puede producirse gas de hidrógeno en un calentador de agua que no se ha usado
durante dos semanas o más. EL GAS DE HIDRÓGENO ES EXPLOSIVO.
Si el agua caliente no se ha utilizado por dos semanas o más, evite la posibilidad de daños o lesiones
abriendo todos los grifos de agua caliente y dejándolas correr durante varios minutos. Haga esto antes
de utilizar cualquier aparato eléctrico que se encuentre conectado al sistema de agua caliente. Este simple
procedimiento permitirá que se libere cualquier clase de acumulación de gas de hidrógeno. Ya que el gas
es inflamable, no fume o utilice una llama abierta o un aparato durante este proceso.
INSTALACIÓN Y MANTENIMIENTO ADECUADOS
Este lavaplatos debe instalarse de manera adecuada y ubicarse de acuerdo con las Instrucciones de
Instalación antes de comenzar el uso. Si usted no ha recibido una página de Instrucciones de instalación
con su lavaplatos, puede obtener una visitando nuestro sitio Web en GEAppliances.com.
■Conecte el lavaplatos/aparato a un sistema
de cableado permanente con conexión a tierra
o debe utilizarse un conductor de conexión a tierra
del equipamiento con los conductores de circuito,
y debe conectarse a la terminal de conexión
a tierra o conductor del aparato.
■Una conexión inadecuada del conductor de
conexión a tierra de equipo puede provocar
un riesgo de descarga eléctrica. Consulte a un
electricista calificado o representante de servicio
técnico si tiene dudas sobre la correcta conexión
a tierra del aparato.
■Elimine los aparatos que no va a utilizar más y el
material de empaque o envío como corresponde.
■No intente reparar o cambiar ninguna pieza de
su lavaplatos a menos que esté específicamente
recomendado en este manual. Cualquier otro
servicio debe realizarlo un técnico calificado.
■Para minimizar la posibilidad de una descarga
eléctrica, desconecte este aparato de la fuente
de energía antes de realizar cualquier clase de
mantenimiento.
NOTA: Apagar el lavaplatos no desconecta el
aparato del suministro de energía. Recomendamos
que un técnico calificado realice el servicio técnico
de su aparato.
■Los elementos lavados en el modo anti-bacterial,
si se encuentra disponible, pueden quedar
calientes al tacto. Tenga cuidado antes de
tocarlos.
■Utilizar un detergente no
diseñado específicamente
para lavaplatos provocará
que el aparato se llene
de espuma.
■Si su lavaplatos se encuentra conectado
a un interruptor de pared, verifique que
el interruptor se encuentre encendido
antes del uso.
■En lavaplatos con controles electrónicos, si usted
elije apagar el interruptor de pared entre ciclos
de lavado, deje pasar 5-10 segundos después de
encender el interruptor antes de presionar
START/RESET para permitir que el control se inicie.
■Elementos no aptos para lavaplatos: No lave
elementos como filtros de limpiadores de aire
electrónicos, filtros de hornos y pinceles de pintura
en su lavaplatos. Pueden producirse daños en el
lavaplatos y decoloración o manchas en el
aparato.
■Se requiere una supervisión estricta cuando
cualquier aparato es utilizado por niños o en
su cercanía.
■Cargue elementos livianos y plásticos de modo
que no se desplacen y caigan al fondo del
lavaplatos, ya que pueden entrar en contacto con
el elemento calentador y dañarse.
PRECAUCIÓN: Para evitar lesiones menores y daños a la propiedad
INFORMACIÓN IMPORTANTE DE SEGURIDAD
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR—
GUARDE ESTAS INSTRUCCIONES GEAppliances.com
¡ADVERTENCIA!
Para su seguridad, debe cumplirse con la información de este manual a fin de minimizar
el riesgo de incendio o explosión, descarga eléctrica o para prevenir daños a la propiedad,
lesiones personales o la muerte.

4
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
WARNING! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are dangerous…
even if they will sit for “just a few days.” If you are
getting rid of your old dishwasher, please follow
the instructions to help prevent accidents.
Before You Throw Away Your Old Dishwasher

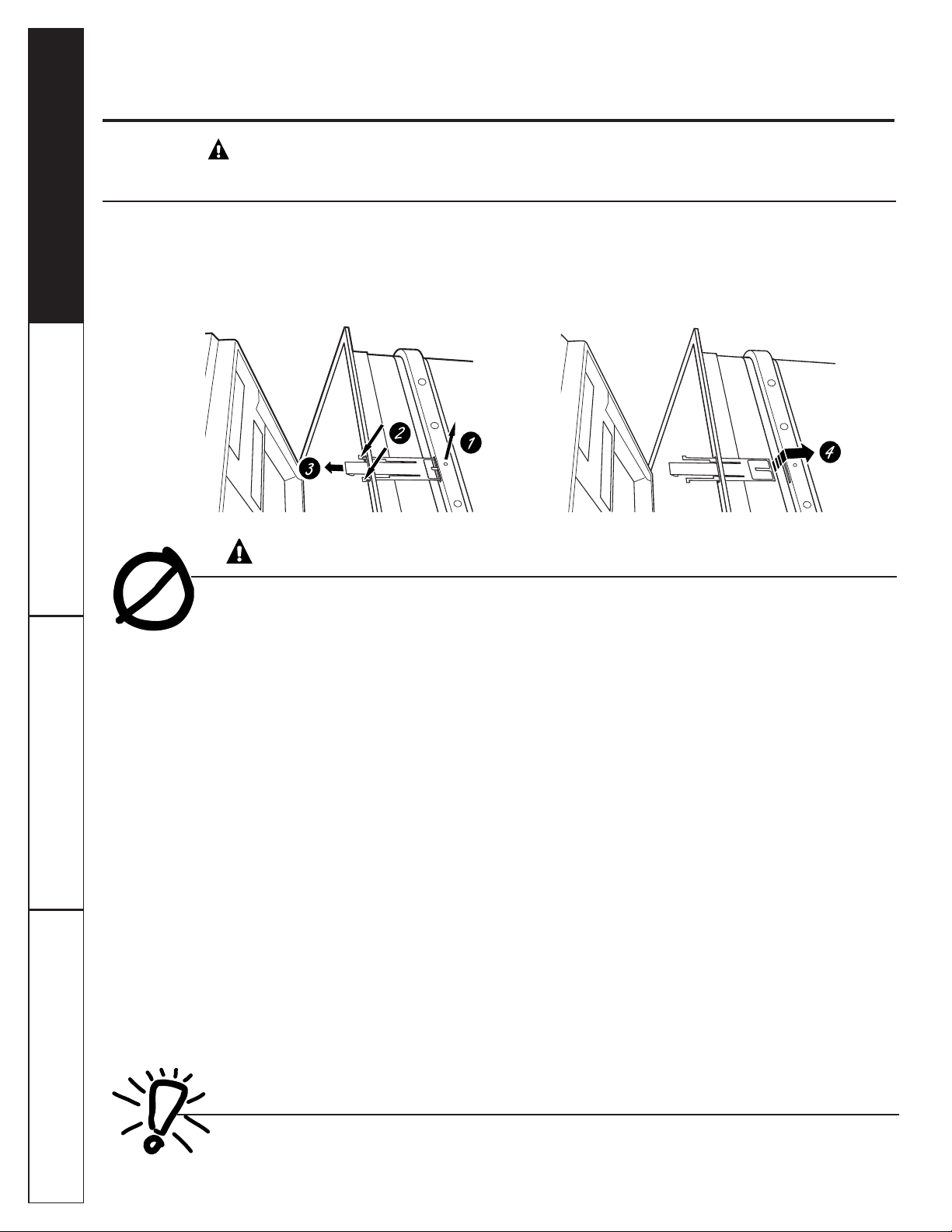

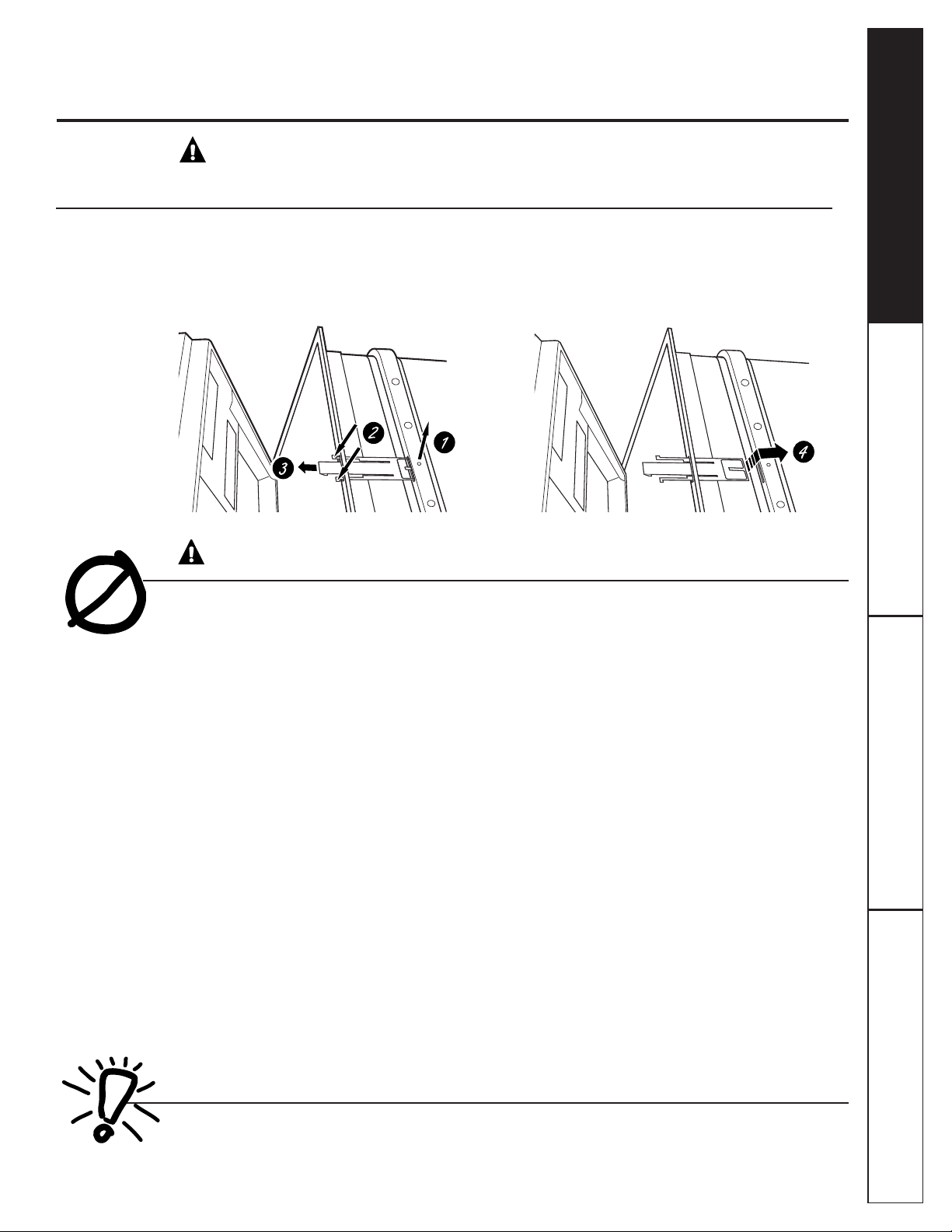

Take off the door of the washing compartment or
remove the door latch (as shown).
Screw
(on some
models)
■Use this appliance only for its intended purpose
as described in this Owner's Manual.
■Use only powder, tabs, liquid detergents or rinse
agents recommended for use in a dishwasher and
keep them out of the reach of children. Cascade®
and Cascade®Complete Automatic Dishwashing
Detergents, and Cascade Crystal Clear®rinse
agents have been approved for use in all GE
dishwashers.
■On models with the SmartDispense™system,
do not mix any chlorine bleach-based automatic
dishwashing detergent with any dishwashing
detergent containing enzymes as this could
cause the detergents to congeal and lead to
blockage of the SmartDispenseTM system.
■Locate sharp items so that they are not likely
to damage the door seal.
■Load sharp knives with the handles up to reduce
the risk of cut-type injuries.
■Do not wash plastic items unless marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
■Do not touch the heating element during or
immediately after use.
■Do not operate your dishwasher unless all
enclosure panels are properly in place.
■Do not tamper with controls.
■Do not abuse, sit on or stand on the door or dish
rack of the dishwasher.
■Do not allow children to play around dishwasher
when opening or closing door due to the possibility
of small fingers being pinched in door.
■Do not discard a dishwasher without first removing
the door of the washing compartment or the door
latch.
■Do not store or use combustible materials, gasoline
or other flammable vapors and liquids in the
vicinity of this or any other appliance.
■Do not allow children to play with, on or inside this
appliance or any discarded appliance.
WARNING! When using your dishwasher, follow basic precautions,
including the following:
READ AND FOLLOW THIS SAFETY INFORMATION
CAREFULLY.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING—
SAVE THESE INSTRUCTIONS

5
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
INFORMACIÓN IMPORTANTE DE SEGURIDAD
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR—
GUARDE ESTAS INSTRUCCIONES GEAppliances.com
ELIMINACIÓN CORRECTA DEL LAVAPLATOS
Un lavaplatos desechado o abandonado resulta
peligroso…aún si quedará en un lugar por “sólo
unos días”. Si va a desechar su viejo lavaplatos,
siga las siguientes instrucciones para prevenir
accidentes.
Antes de desechar su viejo lavaplatos:
■Quite la puerta del compartimento de lavado
o saque la traba de la puerta (como puede
verse).
¡ADVERTENCIA! RIESGO DE ENCIERRO PARA NIÑOS
Tornillo
(en algunos
modelos)
■Use este aparato sólo con el objetivo para el que
fue creado, como se describe en este Manual del
Propietario.
■Utilice sólo detergentes en polvo, líquido o tabletas
o agentes de enjuague recomendados para uso
en lavaplatos y manténgalos alejados del alcance
de los niños. Los detergentes para lavaplatos
automáticos Cascade® yCascade®Complete,
y los agentes de enjuague Cascade Crystal Clear®
han sido aprobados para el uso en todos los
lavaplatos GE.
■En modelos con el sistema SmartDispense™, no
mezcle detergentes para lavaplatos automáticos
a base de blanqueador con detergentes para
lavaplatos que contengan enzimas porque los
detergentes pueden solidificarse y provocar
bloqueos en el sistema SmartDispense™.
■Cargue cuchillos filosos con los mangos hacia arriba
para reducir el riesgo de una lesión personal.
■No lave elementos plásticos a menos que estén
marcados como aptos para lavaplatos o
equivalente. En el caso de elementos plásticos
que no estén marcados así, verifique las
recomendaciones del fabricante.
■No toque el elemento calentador durante el uso
o inmediatamente después de finalizar el uso.
■No haga funcionar el lavaplatos a menos que todos
los paneles del recinto se encuentren en su lugar.
■No altere o modifique los controles.
■No maltrate, ni se siente o se pare sobre la puerta
o bandejas de los platos del lavaplatos.
■No permita que los niños jueguen alrededor del
lavaplatos cuando abra o cierre la puerta debido
a la posibilidad de pellizcar sus dedos con la puerta.
■No deseche el lavaplatos sin antes quitar la puerta
del compartimento de lavado o la traba de la
puerta.
■No almacene o use materiales combustibles,
gasolina u otros vapores o líquidos inflamables
cerca de este o cualquier otro aparato.
■No permita que los niños jueguen sobre, con
o dentro de este o cualquier otro aparato
desechado.
¡ADVERTENCIA! Cuando use su lavaplatos, siga precauciones básicas
de seguridad, incluyendo las siguientes:
LEA Y SIGA ESTA INFORMACIÓN DE SEGURIDAD CUIDADOSAMENTE.
GUARDE ESTAS INSTRUCCIONES

6
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

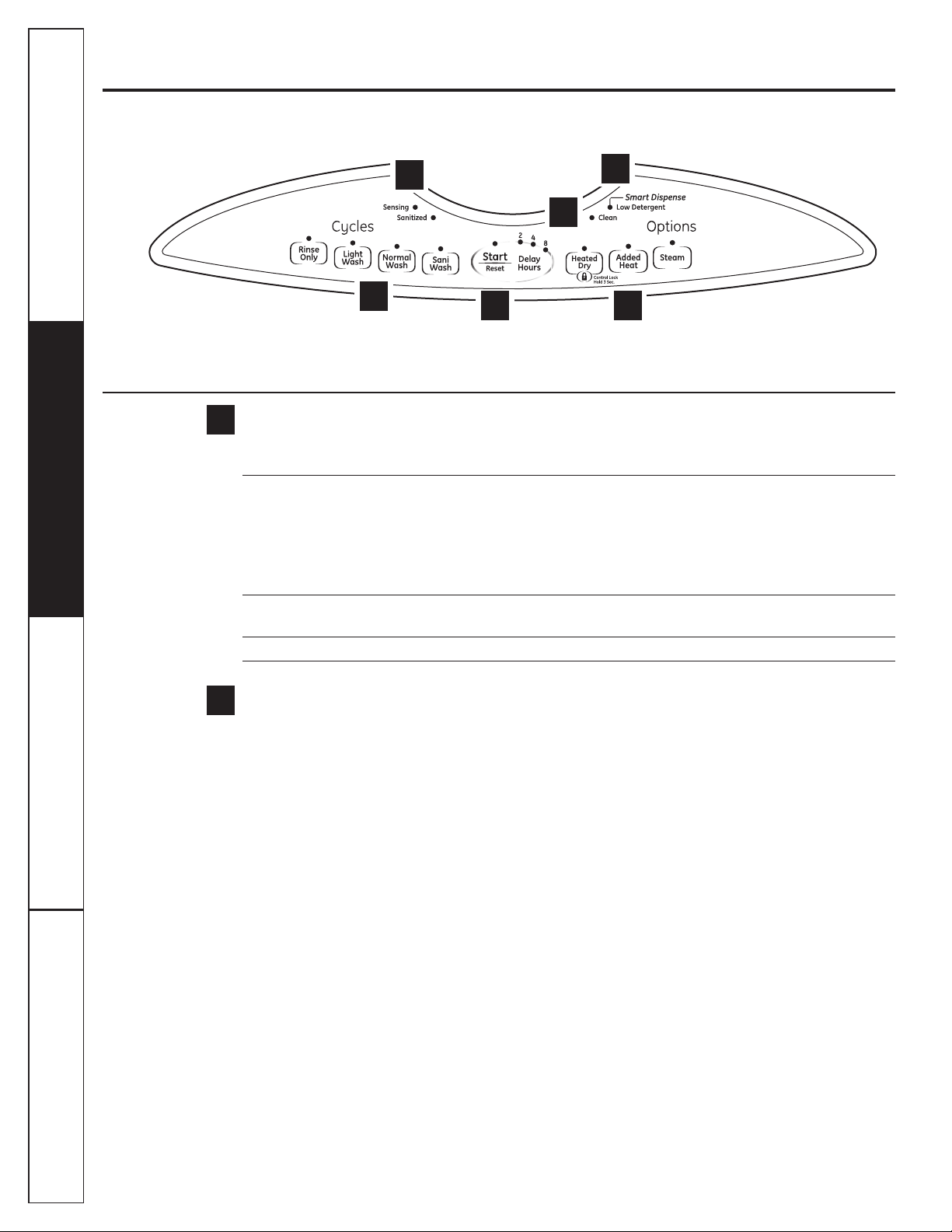

About the dishwasher control panel.
You can locate your model number on the tub wall just inside the door. Throughout this manual, features and appearance may vary from your model.
Control Settings
Status Indicator Lights (Indicators vary by models)
The Status display tells you what is happening while the dishwasher is in operation and may flash,
indicating a malfunction. The lights will come ON indicating the sequence of the dishwasher operation.
LOW DETERGENT Displayed when the SmartDispenseTM needs to be refilled with liquid or gel automatic
dishwasher detergent.
NOTE: If you are not using SmartDispenseTM and you want to turn the LOW DETERGENT
LED light off, press the ADDED HEAT pad 5 times within 3 seconds. You will hear 3
beeps; then the light will go off. You can turn the light back on by pressing the ADDED
HEAT pad 5 times within 3 seconds.
SENSING Displayed while the Clean SensorTM is measuring the amount of soil and temperature
of water. The dishwasher will adjust the selected cycle to achieve optimal performance.
SANITIZED Displayed when cycle has met sanitization conditions.
CLEAN Displayed when a wash cycle is complete.
Wash Programs (Selections)
With the dishwasher door closed and latched, press the pad for the desired wash cycle.
NOTE: All cycle times and water usage information contained in the following section are approximate
values. Actual results will depend on several factors, including but not limited to inlet temperature,
household water pressure and amount of soil in the wash water.
The light above or next to the selected pad will be ON to indicate which WASH CYCLE has been selected.
2
1
1
234
1
5

Wash Programs (Selections) (continued)
SANI WASH 7.5–8.75 gal., 50–135 min.
This cycle raises the water temperature in the final rinse to sanitize your dishware.
The cycle length will vary depending on the temperature of your inlet water.
NOTE: The Sani Wash cycle is monitored for sanitization requirements. If the cycle is
interrupted during or after the main wash portion or if the incoming water temperature
is so low that adequate water heating cannot be achieved, the sanitizing conditions may
not be met. In these cases, the sanitized light will not illuminate at the end of the cycle.
NOTE: NSF-certified residential dishwashers are not intended for licensed food
establishments .
NORMAL WASH 5.2 gal., 60–90 min.
This cycle is for medium/heavily soiled dishes and glassware .
Cycle time and water usage are approximate values. Results will depend on
several factors, including but not limited to inlet temperature, household water
pressure and amount of soil in the wash water.
LIGHT WASH 7.5 gal., 40–60 min.
(on some models) This cycle is for everyday dishes and glassware.
RINSE ONLY 2.5 gal., 11 min.
For rinsing partial loads that will be washed later. Do not use detergent with this cycle.
NOTE: This dishwasher is equipped with CleanSensorTM with automatic temperature control; therefore,
cycle length and time will vary depending on soil and water temperature conditions.
NOTE: Only the Sani Wash cycle has been designed to meet the requirements of Section 6, NSF 184 for soil
removal and sanitization efficacy.
2
7
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
GEAppliances.com

8
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
Enhancements
The light above the selected pad will be ON to indicate which ENHANCEMENT has been selected.
DELAY HOURS You can delay the start of a wash cycle for up to 24 hours (depending on model).
Press the DELAY HOURS pad to choose the number of hours you want to delay the
start of the cycle; then press START/RESET.
The machine will count down and start automatically at the correct time.
NOTE: To cancel the DELAY HOURS selection before the cycle begins, repeatedly press
the DELAY HOURS pad until the display is blank.
ADDED HEAT When selected, the cycle will run longer with heating element on to improve both wash
and dry performance.
NOTE: Cannot be selected with RINSE ONLY cycle.
STEAM For use with heavily soiled and/or dried-on, baked-on soils. This option MUST be
selected PRIOR to starting the cycle. The STEAM option adds 26 minutes to
the cycle time.
NOTE: Cannot be selected with RINSE ONLY cycle.
HEATED DRY When HEATED DRY is off, dishes will air dry.
Light Off
HEATED DRY Turns the heater on for faster drying. This will extend the total cycle time between
Light On 8 and 38 minutes depending on the cycle selected. NOTE: Cannot be selected with
RINSE ONLY cycle.
LOCK You can lock the controls to prevent any selections from being made. Or you can lock
the controls after you have started a cycle.
Children cannot accidentally start dishwasher by touching pads with this option
selected.
To unlock the dishwasher controls, press and hold the HEATED DRY pad for 3 seconds.
The light above the lock pad will turn off. To lock the dishwasher, press and hold the
HEATED DRY pad for 3 seconds. The light above the LOCK pad will turn on.
RESET To change a cycle after washing starts…
Touch the START/RESET pad to cancel the cycle. The START/RESET light will flash while
the water is pumped out if needed. This takes approximately 2 minutes.
Start
Close and latch the dishwasher door and select the cycle and desired enhancements. Touch the
START/RESET pad once to begin the cycle. Water fill begins immediately, and approximately 60 seconds
later the wash action begins.
When the dishwasher door is fully closed and latched, the control panel lights will display the last settings
you selected. If you don’t want to change any of the settings, simply touch the START/RESET pad to
begin the cycle.
If the door is closed, the indicator lights will turn off if the START/RESET pad is not selected within 5 minutes.
To activate the display, open and close the door or press any pad.
Clean
The CLEAN light will illuminate and a double beep will sound when a wash cycle is complete. The CLEAN
light will turn off when the door is opened.
5
3
4
About the dishwasher control panel.

9
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
GEAppliances.com
Flashing display lights.
Status Indicator Lights What It Means
START/RESET Cycle has been interrupted by pressing the START/RESET pad, or there
has been a power failure. The START/RESET light will stop flashing after the
dishwasher automatically drains out the water. The dishwasher will restart if
the interruption was the result of a power failure.
Recommended dishwasher products.
GE recommends the following products for use in its
dishwashers:
■For your manual detergent dispenser, Cascade®
powder, liquid or gel automatic dishwasher
detergents are approved.
■For your SmartDispenseTM Detergent Dispenser, use
only the recommended detergents listed on page
12 of this manual.
■Cascade Crystal Clear ®rinse agent to remove
spots and prevent new film buildup on your dishes,
glasses, flatware, cookware and plastic. Using rinse
agent also improves dry performance.
■Cascade®Plastic BoosterTM to remove red staining
inside your dishwasher that can come from some
tomato-based foods.
■Cerama Bryte®Stainless Steel Appliance Cleaner
to clean the exterior stainless steel panel of GE and
ProfileTM dishwashers (for stainless steel exterior
models only).

10
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
Using the dishwasher.
The entering water should be at least 120°F and not more than 150°F for effective cleaning and to
prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the
hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run
continuously into the glass until the temperature stops rising.
Check the Water Temperature
Cascade Crystal Clear®rinse agent improves drying, removes spots and prevents new film buildup on
your dishes, glasses, flatware, cookware and plastic.
Use Cascade Crystal Clear®Rinse Agent
Filling the Dispenser
The rinse agent dispenser holds 3.5 oz. of rinse agent.
Under normal conditions, this will last approximately
one month. Try to keep it full, but do not overfill.
Make sure the dishwasher door is fully open.
Turn the dispenser
cap to the left and
lift it out.
Add rinse agent until
the indicator window
looks full.
Clean up any spilled
rinse agent with a
damp cloth.
Replace the dispenser cap.
Rinse Aid Setting
The amount of rinse agent released into the final
wash can be adjusted. The factory setting is at the
midpoint; however, it is recommended that the
maximum setting be used. If there are rings of
calcium (hard water) spots on dishes, try a higher
setting. If there is foaming, use a lower setting.
To adjust the setting:
Remove the dispenser cap;
then turn the adjuster
counterclockwise to
increase the amount
of rinse agent or
clockwise to reduce
the amount of rinse agent dispensed.
5
4
3
2
1
Rinse agent
adjuster
■No prerinsing of normal food soil is required.
■Scrape off hard soils, bones, toothpicks, skins and
seeds.
■Remove large quantities of any remaining food.
■Remove leafy vegetables, meat trimmings and
excessive amounts of grease or oil.
Dish Preparation Prior to Loading
Indicator
window Dispenser cap
A forgotten dish can be added any time before
the main wash.
Squeeze the door latch to release the door.
Do not open the door until the water spray
action stops. Steam may rise out of the
dishwasher.
Add forgotten dishes.
Close the door.
4
3
2
1
Forget to Add a Dish?

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Some models come equipped with an automatic liquid
dishwasher detergent dispenser (SmartDispense
TM
) and
a manual dispenser. You can use either of these dispensers
but don’t use both at the same time.
The cover of the manual dispenser will open during the
wash cycle. If you are using SmartDispense
TM
, leave the
cover of the manual dispenser open before starting the
cycle.
For the manual dispenser, Cascade®Automatic
Dishwashing Detergents have been approved. You may use
powder, liquid, gel or tablets in this dispenser. It is important
to keep powdered detergents and tablets fresh and dry so
they don’t lose effectiveness. Therefore, do not put
detergent into the manual dispenser until you are ready to
wash dishes.

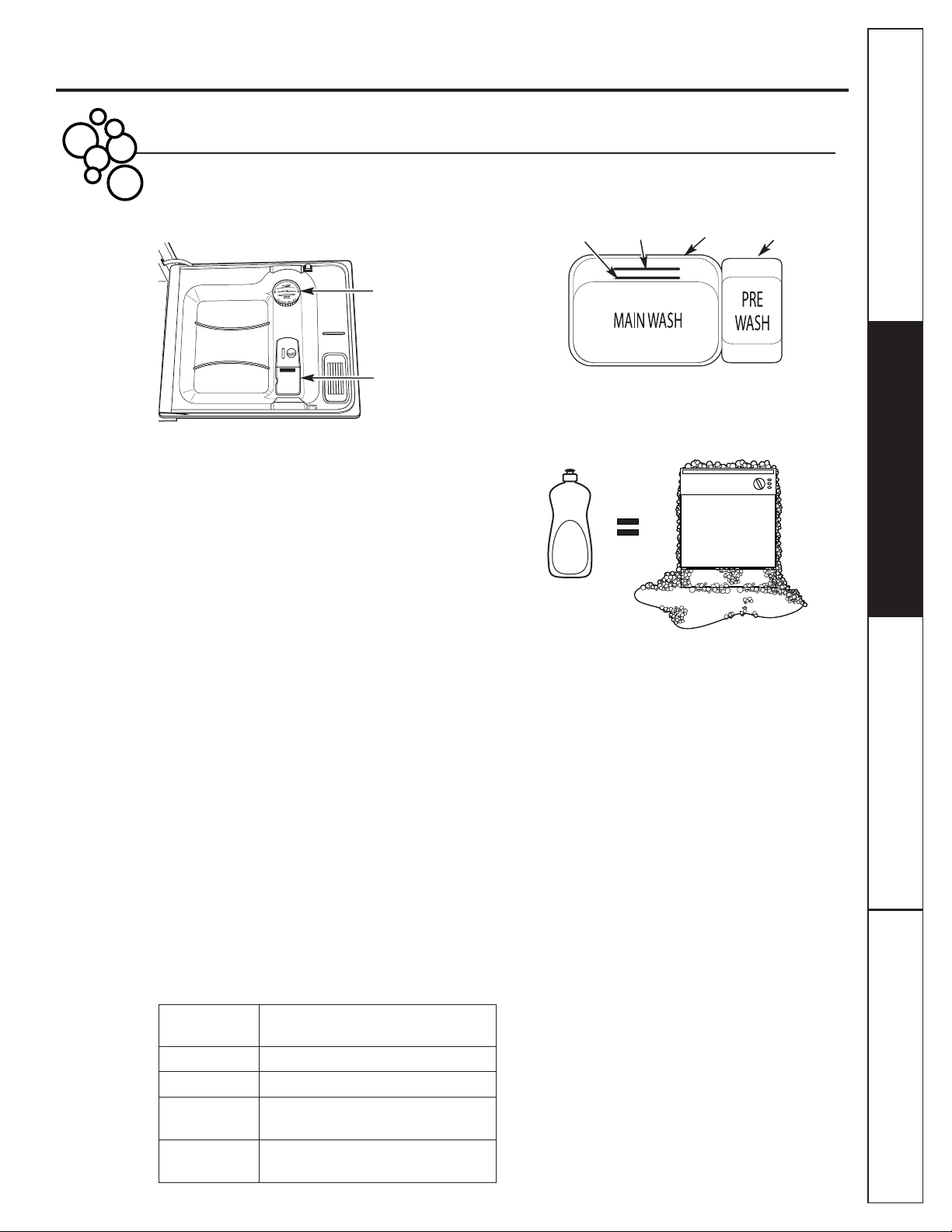

Filling Manual Detergent Dispenser
The amount of detergent to use depends on whether your
water is hard or soft. With hard water, you need extra
detergent. With soft water, you need less detergent.
Protect your dishes and dishwasher by contacting your
water department and asking how hard your water is.
Twelve or more grains is extremely hard water. A water
softener is recommended. Without it, lime can build up in
the water valve, which could stick while open and cause
flooding. Too much detergent with soft water can cause
a permanent cloudiness of glassware, called etching.
Use the information in the table below as a guide to
determine the amount of automatic dishwasher detergent
to place in the dispenser. You may use powder, liquid, gel
or tablets in this dispenser.
When using automatic dishwashing detergent tablets,
simply place one tablet in the main wash section and close
the cover.
For heavily soiled loads, use a bit more detergent. For water
temperatures above 140°F, use a bit less detergent.
For heavily soiled loads, use the Pots and Pans or Heavy Wash cycle.
DO NOT USE HAND DISH DETERGENT
NOTE: Using a detergent that is not specifically designed
for dishwashers will cause the dishwasher to fill with suds.
During operation, these suds will spill out of the dishwasher
vents, covering the kitchen floor and making the floor wet.
Because so many detergent containers look alike, store
the dishwasher detergent in a separate space from all
other cleaners. Show anyone who may use the dishwasher
the correct detergent and where it is stored.
While there will be no lasting damage to the dishwasher,
your dishes will not get clean using a dishwashing
detergent that is not formulated to work with dishwashers.
Soft
Medium
Soft
Medium
Hard
Extremely
Hard
Manual Detergent Dispenser
Detergent Cups to Fill
Fill cup to soft line (1/3 full)
Fill cup to medium soft line (2/3 full)
Fill cup to medium hard line
(completely full)
Fill both main wash cup
and pre wash cup
Number
of Grains
Less than 4
4 to 8
8 to 12
Greater
than 12
SmartDispenseTM
Manual Detergent
Dispenser
11
GEAppliances.com

12
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
Using the dishwasher.
SmartDispenseTM Detergent Dispenser (some models)
This dishwasher may have SmartDispenseTM, a
feature which automatically dispenses liquid
automatic dishwasher detergent into each cycle
based on soil level and water hardness. To utilize
the SmartDispenseTM Detergent Dispenser, it must
first be filled. Although any liquid or gel automatic
dishwashing detergent can be used in the
SmartDispenseTM system, all liquid or gel automatic
dishwashing detergents are not the same. Most
automatic dishwashing detergents are chlorine
bleach-based (such as Cascade®) while others
contain enzymes (such as Cascade Complete®).
Do not mix any chlorine bleach-based automatic
dishwashing detergent with any dishwashing
detergent containing enzymes as this could
cause the detergents to congeal and lead to
blockage of the SmartDispenseTM system.
Check the detergent label to determine if the
detergent is chlorine bleach-based or one that
contains enzymes. It is recommended that the
same type of detergent be used when refilling
your SmartDispenseTM system.
To open the dispenser for filling, push down and
turn the blue cap counterclockwise until the cap is
loose. Lift cap off.
Set the door at a comfortable angle to fill the
dispenser.
Aim the detergent bottle at the opening in the door
and begin to fill.
The dispenser will hold 45 oz of liquid dishwasher
detergent (standard size bottle).
When full, replace the cap and turn clockwise until
tight to ensure no water enters the SmartDispenseTM
dispenser. If residue is left on the door, it will be
washed off in the next cycle.
An indicator light will turn on to notify you when
the dispenser needs to be filled again. After filling,
the light will not turn off until the door is closed. A
full dispenser will last approximately 1 month for
the average user.
NOTE: If you are not using SmartDispenseTM and
you want to turn the LOW DETERGENT LED light
off, press the ADDED HEAT pad 5 times within 3
seconds. You will hear 3 beeps; then the light will
go off. You can turn the light back on by pressing
the ADDED HEAT pad 5 times within 3 seconds.
CAUTION! Absolutely do not add
powder detergent, tablets or any liquid soap
or detergent normally used for washing hands
or dishes in a sink. Only use liquid or gel
detergent specifically designed for use in
an automatic dishwasher.
Light Will
Turn On
When
Time to
Refill
(appearance may vary)
Turn clockwise.
¡PRECAUCIÓN! Bajo ninguna
circunstancia agregue detergente en polvo,
tabletas, o jabón o detergente líquido normalmente
utilizado para lavar manos o platos en un
fregadero. Sólo utilice detergente líquido o en gel
específicamente diseñados para utilizar en
lavaplatos automáticos.

Prior to the first use, the dishwasher needs
to be calibrated for water hardness. Please follow
the directions below to calibrate the dishwasher
to the hardness of your tap water.
Determine the Hardness of Your Tap Water
In the bag that contained these instructions, you
should find a water hardness test strip package.
Read the instructions on the package, remove the
test strip and follow the instructions to determine
the hardness level of your tap water. You will use
this information to calibrate your dishwasher to
dispense the optimal amount of detergent.
Water hardness test strip indication.
Calibration for Water Hardness
Close and latch the door (lights on, dishwasher
not running).

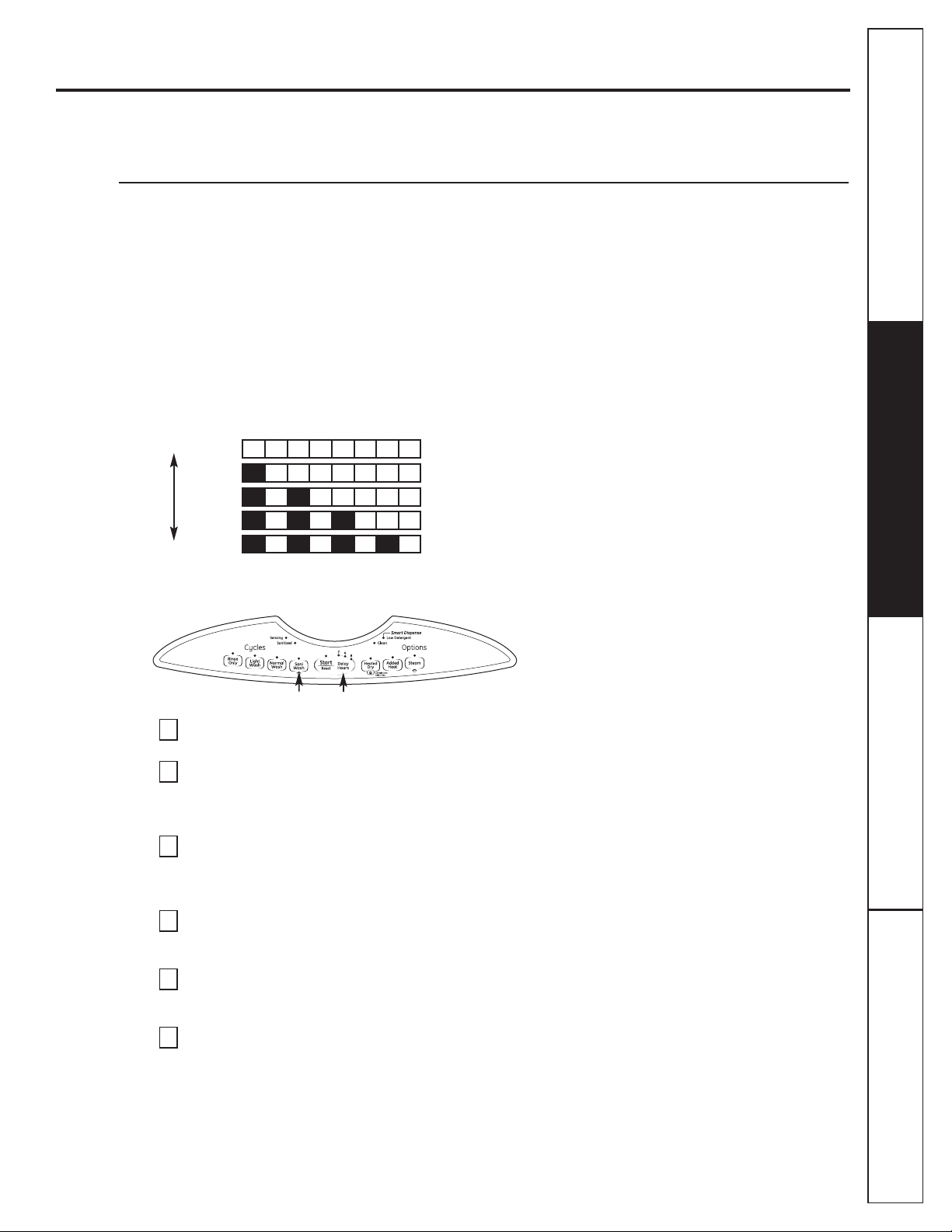

Press the SANI WASH and DELAY HOURS pads
together for 3 seconds. All lights will light up and
you will hear 1 to 5 beeps. The number of beeps
indicates the current hardness value.
To change the setting, press the DELAY HOURS
pad the number of times that corresponds to the
water hardness value determined above. The
control will beep each time you press the pad.
Once finished pressing the pad, you will hear a
confirmation with beeps for the number of times
you pressed the pad.
If the number of beeps is not what you desire,
start pressing the DELAY HOURS pad again to
reenter a new water hardness level.
Once the water hardness is set, press the
START/RESET pad to save the setting and return
the dishwasher to normal operation.
6
5
4
3
2
1
13
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
GEAppliances.com
SmartDispenseTM Detergent Dispenser
Water Hardness Calibration
0 RED
1 RED
2 RED
3 RED
4 RED
1
2
3
4
5
SOFT
HARD
Value to Enter
into Dishwasher
Press at the same time.

Lower Rack
The lower rack is best used for plates, saucers
and cookware. Large items such as broiler
pans and baking racks should go along the
left-hand side. Load platters, pots and bowls
along the sides, in corners or in the back. The
soiled side of items should face the center of
the rack. If necessary, oversized glasses and
mugs can be placed in the lower rack to
maximize loading flexibility.
Also, be careful not to let a portion of an item
such as a pot or dish handle extend through
the bottom rack. This could block the wash
arm and cause poor washing results.
Fold-down tines (on some models) provide
flexibility for extra-large and hard-to-fit items.
The tines may be left in the up position or
folded down to customize the lower rack.
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
14
Loading the dishwasher racks.
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
Upper Rack
Although the upper rack is primarily for
glasses, cups and saucers, pots and pans can
be placed in this rack for effective cleaning.
Cups and glasses fit best along the sides. This
is also a secure place for dishwasher plastics.
The utility shelf (some models) may be placed
in the up or down position to add flexibility. A
wine glass holder (some models) secures wine
glasses for best washability.
Some models have contoured metal cup
shelves that can secure up to 12 wine glasses
(as shown).
Because wine glasses come in various sizes,
after loading, slowly push in the rack to make
sure they will clear the top of the dishwasher.
Some models have an Angled Rack System,
which allows you to angle your dishes, such
as coffee mugs, for better cleaning and
quicker drying. To position the tines, pull the
lever forward then drop the tines into
position, then release the lever.
The upper rack is good for all kinds of
odd-shaped utensils. Saucepans, mixing
bowls and other items should be placed face
down. Fold-down tines (on some models)
provide flexibility for extra-large and hard-
to-fit items.
Secure larger dishwasher-safe plastics over
2 tines when possible.
Make sure small plastic items are secure so
they can’t fall onto the heater.
Be sure that items do not protrude through
the bottom of the rack and block rotation of
the middle spray arm. This could result in
poor wash performance for items in the
upper rack.
Check to make sure that no items will block
rotation of the wash arm.

To Remove the Upper Rack
Press thumb tab out and remove the
front end caps on each side of the rail.
Pull the rack straight out and off the rails.
Replace the end caps.
Push the rails all the way back into the
dishwasher.
Then fill the lower rack and begin
your cycle.
5
4
3
2
1
15
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Remove end cap
Press thumb
tab out
Don’t let any
item extend through
bottom.
To remove end baskets, grasp the basket at
opposite corners and slide apart.
Three-piece basket (on some models)
One-piece basket (on some models)
Silverware Basket
To load flatware, simply push the adjustable
handle to either side (on some models). Put
flatware in the removable basket with fork
and knife handles up to protect your hands.
Place spoons in the basket with handles
down. Mix knives, forks and spoons so they
don’t nest together. Distribute evenly. Small
plastic items, such as measuring spoons and
lids from small containers should go in the
bottom of the silverware basket with the
silverware on top.
The one-piece silverware basket (on some
models) can be placed in the front, right side
or back of the lower rack.
A variety of options is available regarding
the three-piece silverware basket (on some
models) in your dishwasher. The complete
basket is designed to fit on the right side of
the lower rack. Additionally, each end of
the basket is removable to add loading
flexibility to accommodate flatware and
lower rack capacity needs.
The lids of both end and middle baskets (on
some models) can be closed to contain small
items. Long items can be placed on the utility
shelf in the upper rack.
GEAppliances.com

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
16
Loading the dishwasher racks.
Extra Rack Features (on some models)
Cutlery Tray
The cutlery tray holds up to 4 large knifes
such as a carver, chef’s knives, bread knife,
etc., that are too tall to fit in the silverware
basket.
Hook the tray onto the rear of the upper rack.
Lay the knives between the guides
(as shown).
Bowl Tines
The special large-bowl tines in the lower rack
add flexibility to your loading pattern. They
are useful for serving bowls or other large
bowls.
To use the bowl tines, fold down the
2 rows of flex tines in front of the bowl
tines and load bowls just as you would
in the upper rack.
Loading place settings…
Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets may
vary from your model.
NOTE: Silverware should be individually loaded into the slots on the silverware basket lid.
Upper Rack—10 place settings Lower Rack—10 place settings
Follow these guidelines for loading 12 place settings. Features and appearance of racks and silverware baskets may
vary from your model. NOTE: Silverware should be individually loaded into the slots on the silverware basket lid.
Upper Rack—12 place settings Lower Rack—12 place settings
These tines fold down Large-bowl tines

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Caring for the dishwasher. GEAppliances.com
Cleaning the Exterior Door Panel
Before cleaning the front panel, make
sure you know what type of panel you have.
Refer to the last two letters of your model
number. You can locate your model number
on the left-hand tub wall just inside the door.
If your model number ends with BB, CC, WW,
SA or BG, then you have a Painted Door
panel. If your model number ends with SS,
then you have a Stainless Steel Door panel. If
your model number ends with CS, then you
have a CleanSteel panel.
Follow the instructions below for cleaning the
door panel for your specific model.
Painted Door Panel (model numbers ending
in BB–black, CC–bisque, WW–White, SA–silver
metallic or BG–graphite black)
Use a clean, soft, lightly dampened cloth,
then dry thoroughly. You may also use a
good appliance wax or polish.
Stainless Steel Door Panel (model numbers
ending in SS)
The stainless steel panels can be cleaned
with Stainless Steel Magic or a similar product
using a clean, soft cloth. Do not use appliance
wax, polish, bleach or products containing
chlorine on Stainless Steel doors.
You can order Stainless Steel Magic
#WX10X15 through GE Parts by calling
800.626.2002.
CleanSteel Door Panel (model numbers
ending in CS)
Use a clean, soft, lightly dampened cloth,
then dry thoroughly. Do not use appliance
wax, polish or any chemical agent on
CleanSteel doors.
Do not wipe the dishwasher with a soiled
dish cloth or wet towel. These may leave
a residue. Do not use scouring pads or
powdered cleaners because these products
can scratch the finish.
Cleaning the Control Panel
To clean the control panel, use a lightly
dampened cloth. Then dry thoroughly.
Check the air gap any time your
dishwasher isn’t draining well.
An air gap protects your dishwasher
against water backing up into it if a drain
clogs. The air gap is not a part of the
dishwasher. It is not covered by your
warranty. Not all plumbing codes require
air gaps, so you may not have one.
The air gap is easy to clean.
Turn off the dishwasher and lift off the
cover.
Remove the plastic cap and clean with
a toothpick.
2
1
Air gap Does Your Dishwasher Have an Air Gap?
Stainless Steel Interior—Tub and Inner Door
The stainless steel used to make the
dishwasher tub and inner door provides
the highest reliability available in a GE
dishwasher. If the dishwasher tub or inner
door should be scratched or dented during
normal use, they will not rust or corrode.
These surface blemishes will not affect
their function or durability.
17
If your dishwasher is left in an unheated
place during the winter, ask a service
technician to:
Cut off electrical power to the
dishwasher. Remove fuses or trip
circuit breaker.
Turn off the water supply and disconnect
the water inlet line from the water valve.
Drain water from the water inlet line
and water valve. (Use a pan to catch
the water.)
Reconnect the water inlet line to the
water valve.
4
3
2
1
Protect Against Freezing

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
Problem Possible Causes What To Do
Dishes and flatware Low inlet water temperature • Make sure inlet water temperature is correct (see page 8). Turn on the hot
not clean water faucet nearest the dishwasher; let run until the water temperature
stops rising. Then start the dishwasher and turn off the faucet. This ensures
the entering water is hot.
•Try not to use the dishwasher when hot water is being used elsewhere
in the house; for example, when doing laundry or when a family member
is using the shower.
Water pressure is temporarily low • Turn on a faucet. Is water coming out more slowly than usual? If so, wait
until pressure is normal before using your dishwasher.
•Try not to use the dishwasher when hot water is being used elsewhere
in the house; for example, when doing laundry or when a family member
is using the shower.
Air gap or disposer is clogged • Clean the air gap or flush the disposer.
Improper rack loading • Make sure large dishware does not block the detergent dispenser or the
wash arms. See the Loading the dishwasher racks section.
No air gap or high drain loop • Verify that you have an air gap or a high drain loop. Refer to the
Installation Instructions.
Spots and filming •Use Cascade Crystal Clear®rinse agents to remove spots and
on glasses and prevent new film buildup.
flatware •Make sure water temperature is at least 120°F.
•Load dishwasher as shown in the Loading Place Settings section.
•Make sure detergent is fresh.
•If water is extremely hard, a softener may be required.
Error Messages Possible Causes What To Do
START/RESET status You have pressed the • Press the START/RESET pad only one time to start the dishwasher. When the
indicator light flashing START/RESET pad while the dishwasher is running, only press the START/RESET pad if you wish to cancel
dishwasher is running. This will (reset) the cycle.
cancel the cycle. The light will
stop flashing after the dishwasher
drains (about 90 seconds).
Power to the dishwasher was • The light will stop flashing after the dishwasher drains out the water. A new
turned off while a cycle was cycle will start automatically when the drain ends.
running and power has just been
restored to the dishwasher. The
blinking lights indicate that the
dishwasher is draining water
inside.
Dishwasher BEEPS This is a reminder that your • Close and latch the door after opening it mid-cycle. Beeping will stop and
once every 15 seconds dishwasher door has been left dishwasher will complete cycle.
open during operation. It will
continue beeping until you close
the door.
Beeping at the end This is normal. The dishwasher • To turn off the double beep indicator (or re-activate it if it was previously
of the cycle will beep twice at the end of turned off), press the HEATED DRY pad 5 times within 3 seconds. A triple
the cycle. beep will sound to indicate the end-of-cycle beep option has been turned
on or off.
Before you call for service…
Troubleshooting Tips
Save time and money! Review the charts on the following
pages, or visit ge.com. You may not need to call for service.
18
Extremely hard water
Low inlet water temperature
Overloading the dishwasher
Improper loading
Old or damp powder detergent
Rinse agent dispenser empty
Too little detergent

Problem Possible Causes What To Do
Cloudiness on Combination of soft water and • This is called etching and is permanent. To prevent this from happening,
glassware too much detergent use less detergent if you have soft water. Wash glassware in the shortest
cycle that will get them clean.
Water temperature entering • This could be etching. Lower the water heater temperature.
the dishwasher exceeds 150°F
Suds in the tub Correct detergent • Use only automatic dishwasher detergents to avoid sudsing.
wasn’t used Cascade®Automatic Dishwashing Detergents have been approved for use
in all GE dishwashers.
•To remove suds from the tub, open the dishwasher and let
suds dissipate. Close and latch the dishwasher door. Pump out water
by touching the START/RESET pad once; then 30 seconds later,
touch the START/RESET pad again. Repeat if necessary.
Rinse agent was spilled • Always wipe up rinse agent spills immediately.
Detergent left in Dishes are blocking the • Reposition the dishes, so the water from the lower spray arm can
dispenser cups detergent cup flush the detergent cup. Avoid placing large bowls face down in the left-front
corner of the lower rack.
Water in the Cap not tightened after filling • Use a baster to remove as much water as possible from the
SmartDispense™the dispenser SmartDispense™dispenser and refill it as normal. Be sure to tighten the
dispenser cap fully to prevent water from entering the dispenser.
Black or gray Aluminum utensils have • Remove marks with a mild, abrasive cleaner.
marks on dishes rubbed against dishes
Dishes don’t dry Low inlet water temperature • Make sure inlet water temperature is at least 120°F.
•Select HEATED DRY.
•Use ADDED HEAT option.
•Select a higher cycle, such as SANI WASH.
Rinse agent dispenser is empty • Check the rinse agent dispenser and fill as required.
Control panel responded Door latch may not be properly • Make sure the door is firmly closed.
to inputs but dishwasher seated
never filled with water Water valve may be turned off • Make sure water valve (usually located under the sink) is turned on.
Stained tub interior Some tomato-based foods can • Use of the RINSE ONLY cycle after adding the dish to the load
cause reddish stains can decrease the level of staining. GE recommends Cascade®
Plastic Booster to help remove these types of stains.
Tea or coffee stains • Remove the stain by hand, using a solution of 1/2 cup bleach
and 3 cups warm water.
WARNING
Before cleaning interior, wait at least 20 minutes after a cycle for the
heating elements to cool down. Failure to do so can result in burns.
ADVERTENCIA
Antes de limpiar el interior, espere por lo menos 20 minutos después de
un ciclo para que los elementos calentadores se enfríen. No hacerlo puede
provocar quemaduras.
An overall yellow or brown film can • A special filter in the water supply line is the only way to correct
be caused by iron deposits in water this problem. Contact a water softener company.
White film on inside surface— • GE recommends Cascade Crystal Clear®to help prevent hard water
hard water minerals mineral deposits from forming.
•Run dishwasher with citric acid to remove mineral deposits. Citric
acid (Part number: WD35X151) can be ordered through GE Parts.
See back cover for ordering information.
19
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
GEAppliances.com

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
20
Before you call for service…
Problem Possible Causes What To Do
Dishwasher won’t run Fuse is blown or circuit breaker • Replace fuse or reset circuit breaker. Remove any other appliances from
is tripped the circuit.
Power is turned off • In some installations, the power to the dishwasher is provided through a
wall switch, often located next to the disposer switch. Make sure it is on.
Control panel is locked • Unlock control panel. See page 8.
Control panel needs to be • Turn off power to the dishwasher (circuit breaker or wall switch) for
rebooted 30 seconds; then turn back on.
Control panel lights Time too long between • Each pad must be touched within 5 minutes of the others.
go off when you’re touching of selected pads To relight, touch any pad again, or unlock and relatch door.
setting controls
Water standing in This is normal • A small amount of clean water around the outlet on the tub
the bottom of the tub bottom at the back of the tub keeps the pump seal lubricated.
Water won’t pump Drain is clogged • If you have an air gap, clean it. See page 17.
out of the tub •If the dishwasher drains into a disposer, run disposer clear.
•Check to see if your kitchen sink is draining well. If not, you
may need a plumber.
Steam This is normal • Warm, moist air comes through the vent by the door latch during drying
and when water is being pumped out. This is necessary for drying.
Sanitized light does The door was opened and the • Do not interrupt the cycle anytime during or after main wash.
not illuminate at the cycle was interrupted during
end of the cycle or after the main wash portion
(Anti-Bacteria The incoming water • Raise the water heater temperature to between 120°F and 140°F.
cycle only) temperature was too low
The cycle is complete and • This is normal. No action is required.
the door has been open for
longer than 60 seconds
Noise Normal operating sounds • These are all normal. No action is required.
Detergent cup opening
Water entering dishwasher
The motor stops and starts at
various times during the cycle
Drain pump sounds during
pump out
Drying fan running for 2–4 hours
after CLEAN light is illuminated
(Top Control Panel models only)
Rattling dishes when the spray • Make sure dishes are properly loaded. See the Loading the
arm rotates dishwasher racks section.
Troubleshooting Tips
