GE JGGN24 User manual

1
Questions? Call 866.GE.GRILL (866.434.7455) or Visit our Website at: www.GEAppliances.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Assembly Outdoor Cooking
Instructions Center
Read these instructions completely and carefully.
•IMPORTANT –Observe all
governing codes and ordinances.
•Note to Assembler –Be sure to leave these
instructions with the Consumer.
•Note to Consumer –Keep these
instructions for future reference.
•Skill level – Assembly of this grill requires basic
mechanical skills.
BEFORE YOU BEGIN
•Proper assembly is the responsibility of the assembler.
•Product failure due to improper assembly is not
covered under the Warranty.
•If you received a damaged grill, you should contact
your dealer.
•Note –Grill must be completely assembled before
any gas connections are made.
TOOLS YOU WILL NEED
Phillips screwdriver
7/16″open end wrench or deep socket with extension
Rubber mallet (optional)
JGGN24, JGGR24
Block of wood or cardboard
(optional)

2
Assembly Instructions

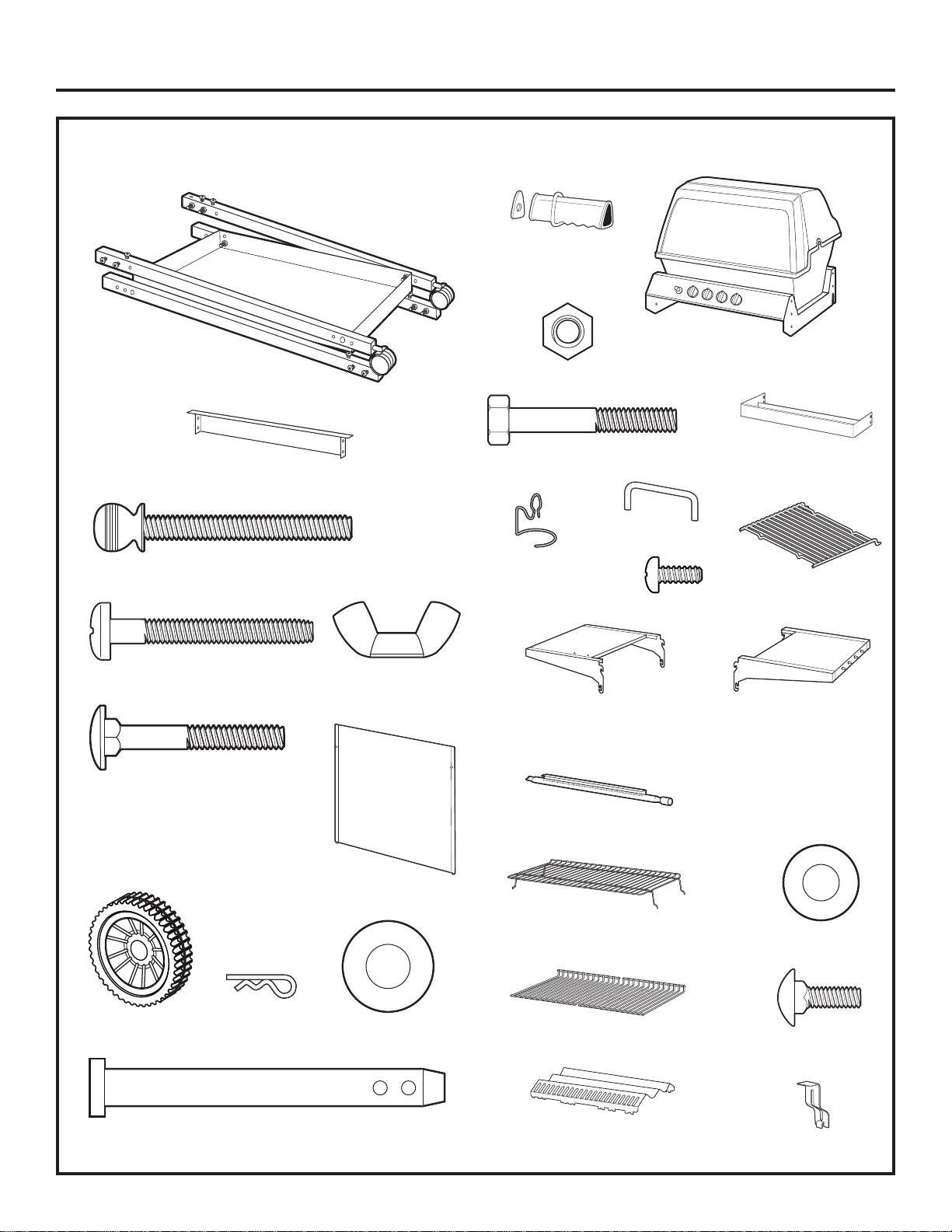

PARTS INCLUDED (Not all models have all parts)
Wheel Axle Bolt (2)
Thumb Screw (2)
Large Bolt (8)
Large Wheel Washer (2)
Wheel Clip (2)
Wheel (2)
Wing Nut (19)
Handle Bolt (2)
Handle Nut (2)Base Assembly (1)
Rotisserie Burner (1)
(On some models)
Retractable Shelf (1)
Side-by-side Grids (2)
LP Tank Bracket (1)
Small Bolt (1)
(For LP Tank Bracket)
Small Washer (1)
(For LP Tank Bracket)
Upper Rear Brace (1)
Front Banner (1)
Side Grid (1)
Left Side Burner/Shelf (1) Side Shelf (1 or 2)
Bin (1)
Grease Cup
Holder (1)
Flav-R-Wave®* (1)
or
Grill Body (1)
Handle with
Spacer (2)
Shelf Handle (1)
Screw (2)
(Depending on model)
Carriage Bolt (2)
*Flav-R-Wave®is a registered trademark of Onward Multi-Corp, Inc.

3
•Carefully cut open the box, remove the contents
and group like parts together.
UNPACK THE GRILL
1
Assembly Instructions
4. Grasp the pan on both sides and raise it up until
the legs are standing squarely on the floor.
To aid assembly, all parts in bold type in the following
assembly steps match the illustrations shown in the
PARTS INCLUDED section.
NOTE TO ASSEMBLER
1. Make sure the open side of the pan in the base
assembly is facing up.
2. Lift up on the right side of the pan.
3. Lift the left ends of the legs and swing them over
the wheels to lay flat on the floor.
UNFOLD THE BASE ASSEMBLY
2
RIGHT
SIDE
LEFT
SIDE
Casters should
be on the
right top side
Pan

3. Slide a wheel axle bolt through a wheel, large wheel
washer, and through the top hole on the left leg.
Secure the wheel in place by sliding a wheel clip
through the hole in the wheel axle bolt. Repeat for
the other leg.
4
1. Thread a thumb screw into each of the lower holes
on the right side and through the pan. Secure them
in place with wing nuts.
2. Insert a carriage bolt into each of the center holes
on the left side and through the pan. Secure them
in place with wing nuts.
ASSEMBLE THE LOWER BASE
3
Carriage
Bolt
RIGHT
SIDE
LEFT
SIDE
Assembly Instructions
Wheel Axle Bolt (2)
Thumb Screw (2)
Wing Nut (4)
Large Wheel Washer (2)
Wheel Clip (2)
Wheel
Axle Bolt
Wheel
Large
Wheel
Washer
Wheel Clip
Wing
Nut
RIGHT
SIDE
LEFT
SIDE Thumb
Screw
Wing
Nut
Carriage Bolt (2)
Pan
Pan

5

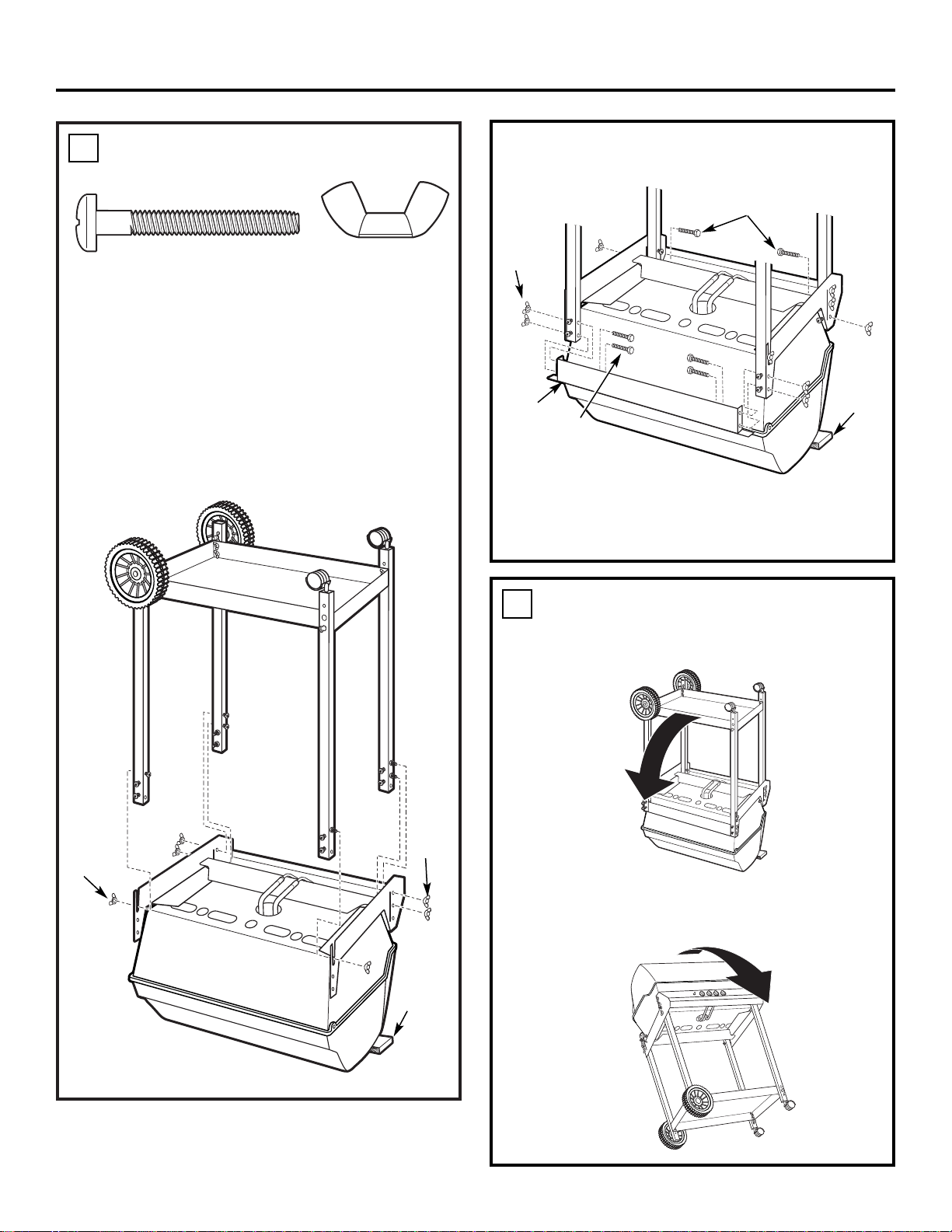

1. Turn the grill body upside-down and wedge
cardboard or a block of wood under the front side
to prevent tipping during assembly.
2. Slide the bolt on each of the back legs into the
slots on the back ends of the grill. Secure in place
with wing nuts.
3. Hook the two bolts in the front legs into the holes
on the front ends of the grill. Secure in place with
wing nuts.
ASSEMBLE BASE TO GRILL BODY
4
Wing
Nuts
Wing
Nuts
Assembly Instructions
4. Thread a large bolt into the front bottom hole on
each side. Secure in place with wing nuts.
5. Position the upper rear brace between the upper
back legs and secure it to the legs at each end with
two large bolts and wing nuts.
Wing
Nuts
Upper
Rear
Brace Large
Bolts
Large Bolt (6)
Wing Nut (10)
1. Lower the wheels toward you and rest the back legs
on the floor.
2. From the back top side of the grill, lift the grill
onto its wheels.
SET THE GRILL ON ITS WHEELS
5
BACK OF
GRILL
Block of
wood or
cardboard
BACK OF
GRILL
Block of
wood or
cardboard
BACK OF GRILL
FRONT OF
GRILL
BACK OF GRILL
Large Bolts

6
NOTE: If your model has a burner/shelf, it must be
installed on the left side.
1. Peel off the protective shipping film from the side
shelves, if present.
2. Hook the bottom slotted holes of the shelf onto
the lower bolt heads. Repeat for the other shelf
on the other side.
3. If desired, raise the shelf and hook it in the up
position. It may also be locked in the up position
by inserting a large bolt in the center back hole
and securing it with a wing nut.
INSTALL THE SIDE SHELVES
8
Assembly Instructions
•Slide a handle bolt through a handle and spacer
and into the hole in the grill top. Align and tighten
in place with a handle nut using a 7/16″open end
wrench or deep socket. Repeat for the other side.
INSTALL THE HANDLES
6
•Hook the bottom holes of the front bin onto the
bottom bolt heads on both sides and lock it down
into the neck of the keyhole slot.
INSTALL THE FRONT BIN
7
Keyhole
Slot
Handle
Nut
Spacer
Handle
Handle
Bolt
Handle Bolt (2) Handle Nut (2)
Large Bolt (1 or 2) Wing Nut (1 or 2)
Wing Nut
Back
Hook on
bottom bolt
Back
Hook on bottom
bolt in slot
Large Bolt

4. Remove the side grid and peel off the protective
shipping film, if present. Guide the two pins on the
grid into the two holes in the side burner/shelf and
lower it into position.
5. The shelf should be locked in the up position by
inserting a large bolt in the center back hole and
securing it with a wing nut.
7
Assembly Instructions
1. Peel off the protective shipping film from the side
shelves, if present.
2. Hook the bottom slotted holes of the burner/shelf
onto the lower bolt heads. Raise the shelf and hook
it in the up position.
3. Peel off the protective shipping film from the
burner shelf door and burner area, if present.
Attach the shelf handle with two screws.
INSTALL THE LEFT SIDE
BURNER/SHELF (on some models)
9
Screw (2)
Large Bolt (1) Wing Nut (1)
Shelf
Handle
Screws
Side
Grid
Wing
Nut
Large
Bolt
Hook on
bottom bolt
Back
Hook on bottom
bolt in slot
Back

8
1. Connect the side burner hose by pressing the
fitting onto the side burner gas tube.
2. Pull the side burner hose into the neck of the
keyhole bracket and hand-tighten the nut to
lock in place.
Assembly Instructions
CONNECT THE LEFT SIDE
BURNER/SHELF (on some models)
10
Side Burner
Gas Tube
Side Burner
Hose Fitting
Make side burner
gas connection
Pull side
burner hose
fitting into
neck
3. Hand connect the side burner electrode wire to
the connector under the control panel.
(The connector is under the control panel,
on the stem of the red igniter button).
Make a firm
connection

9

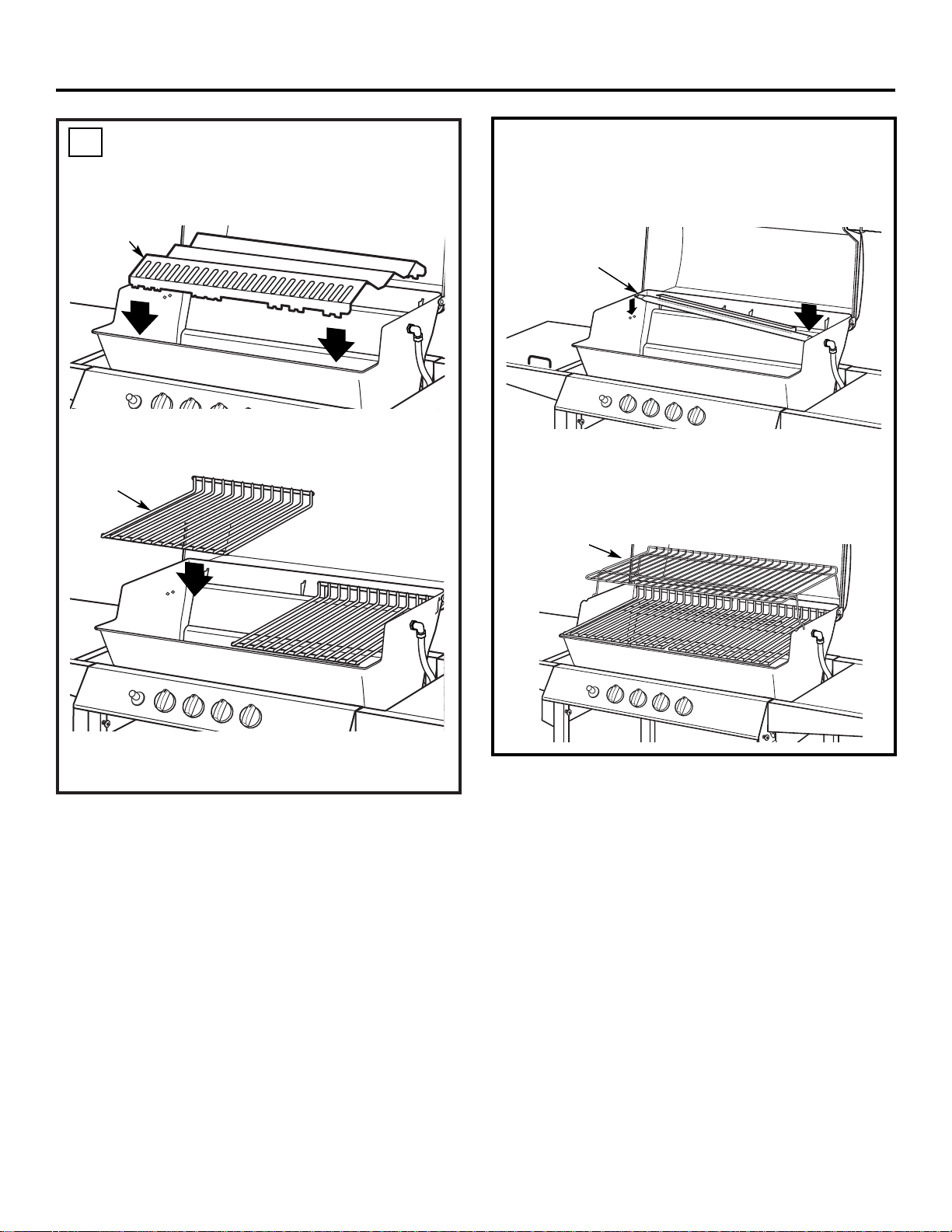

1. Place the Flav-R-Wave® on the supports in the
bottom of the grill. The Flav-R-Wave® should lie flat.
2. Place the side-by-side grids on the front and back
supports*.
ASSEMBLE THE GRILL
COMPARTMENT
11
Assembly Instructions
3. With the deflector on top (holes facing front),
press the round end of the rotisserie burner (on
some models) into the hole on the right. Press
down and snap the left side into the two holes in
the left side of the grill.
4. Hook the back feet of the retractable shelf into the
holes in the lid. Place the swivel feet in the small
back notches in the grill sides.
Side-by Side
grids
Retractable
Shelf
Flav-R-Wave®
Rotissere
burner
* See the Owner’s Manual for available grid
positions for your model.

10
1. Insert the pointed support of the front banner into
the slot behind the front leg at the base.
2. Snap the upper support button into the hole in the
back of the leg. Use a rubber mallet, if needed.
Repeat on the opposite side.
INSTALL THE FRONT BANNER
12
Assembly Instructions
1. Under the left shelf, insert the small bolt from the
inside through the square hole in the side support.
2. Attach the LP tank bracket to the side support with
the small washer and a wing nut.
ATTACH THE LP TANK BRACKET
13
•Your grill is designed
to be used with an LP
gas tank equipped
with the new QCC-1
Quick Closing
Coupling system
and the new
OPD handwheel.
•The QCC-1 system
is recognizable by
the external threads
on the inlet port of
the valve.
•The OPD handwheel
is recognizable by its
shape as shown.
•The LP gas tank used with this grill must NOT have
a capacity larger than 20 lbs. (9kg).
•Approximately:18″(46 cm) high
12″(31 cm) diameter
•These tanks are available from your local gas
grill dealer.
•WARNING:Make sure that the
cylinder valve on the LP tank is closed. Close
by turning clockwise.
1. Place the LP tank on the grill base with the LP tank
connector facing to the front of the grill. Slide the
LP tank bracket over the inner rim of the LP tank.
2. Tighten the wing nut on the LP tank bracket to
lock the LP tank in position.
MOUNT THE LP TANK
(not included—obtain locally)
14
LP Tank
Bracket
Wing Nut
and Small
Washer
Small Bolt
Wing Nut (1)
Small Bolt (1) Small Washer (1)
QCC1¤
NEW OPD
HANDWHEEL
O
P
E
N
C
L
O
S
E
L
P
-
G
A
S
O
P
D
LP tank
valve

11
1. Press the clip end of the grease cup holder into the
center hole on the grill bottom. It should hang
snugly in place.
2. Snap a clean empty can into the ring. A can with
ribbed sides is best so that it stays securely in place.
HANG THE GREASE CUP HOLDER
17
Grease Cup
Holder
Can
(not included)
1. Remove the plastic cover from the LP
tank connector.
2. Screw the regulator coupling (on the gas hose)
onto the LP tank connector in a clockwise direction.
Hand tighten only.
NOTE: The regulator coupling tightens clockwise
and will not allow gas to flow unless the connection
is tight. The connection requires tightening by
hand only.
WARNING: Do not use a wrench to tighten
the connection. Using a wrench could damage the
regulator coupling and could cause a gas leak. The
regulator vent holes should be at 3 o’clock (facing
forward). They should not be pointed up.
CONNECT THE LP TANK
15
Regulator
(vent holes
at 3 o’clock)
LP Tank
Connector
Regulator
Coupling
Assembly Instructions
Read your Owner’s Manual carefully for proper use
and care of your grill.
READ YOUR OWNER’S MANUAL
18
TO TEST FOR LEAKS:
•Prepare a soap solution of one part water, one part
liquid detergent.
1. Extinguish any open flame or cigarettes in the area.
2. Make sure the LP tank valve is closed and the grill
controls are turned to OFF.
3. Connect the LP gas tank. See the CONNECT THE
LP TANK step.
4. With a full LP tank, open the tank valve slowly.
TEST FOR LEAKS
16
WARNING —A complete gas tightness
check must be performed at the final use site.
DO NOT use grill until all connections have been
leak tested.
5. Wet each connection with the soap solution.
6. A leak is identified by a flow of bubbles from the
area of the leak.
7. If a leak is detected, close the LP tank valve, tighten
the connection, and retest (Steps 4–6).
8. If you smell gas, read and follow the complete Leak
Test section in the Owner's Manual.
9. If the leak persists, contact your grill dealer for
assistance. Do not attempt to operate the grill
if a leak is present.
TEST FOR LEAKS (CONTINUED)
LP Tank Connection

12

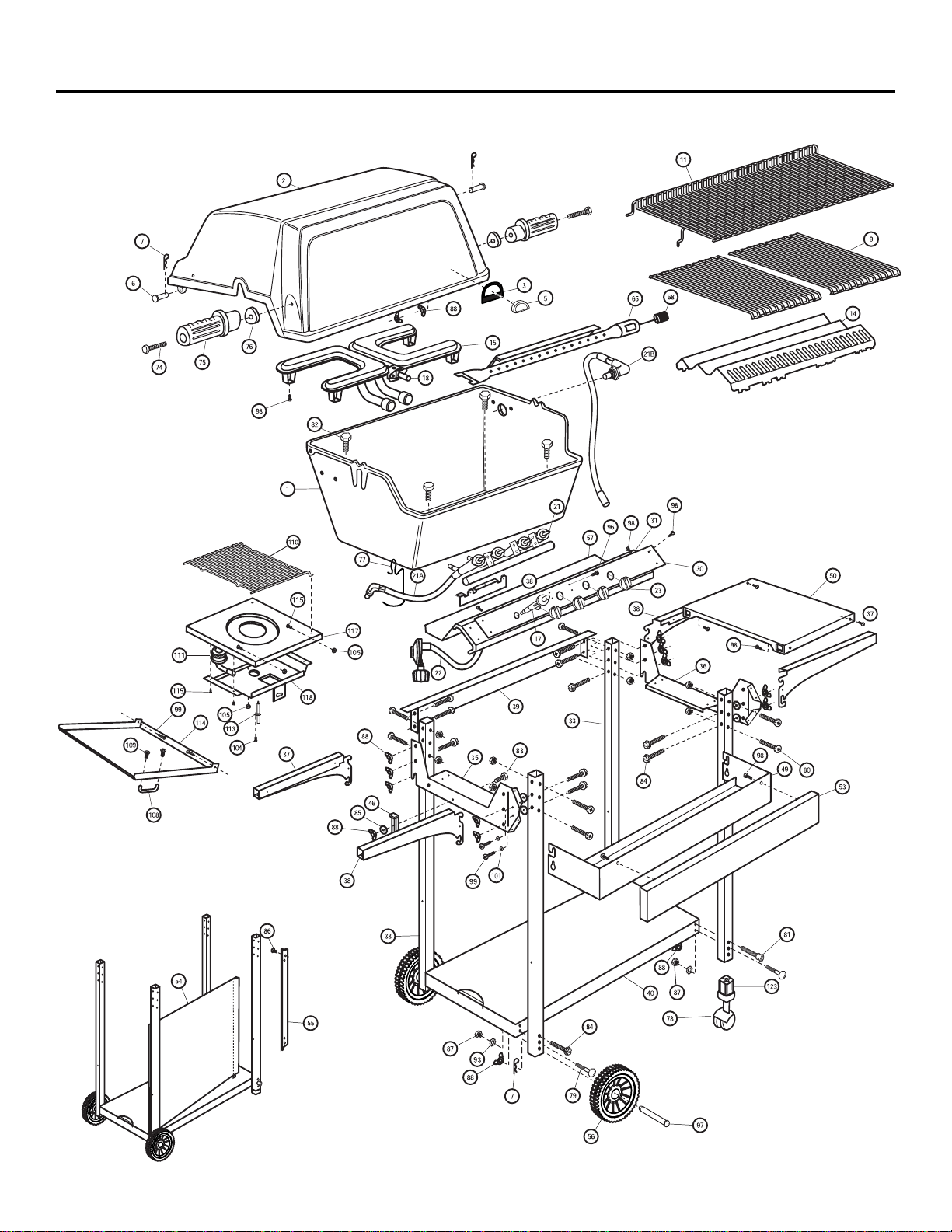

PARTS LIST

13
GENERAL ELECTRIC PARTS CATALOG
REF. NO. PART NO. PART DESCRIPTION JGGN24 JGGR24
1. S11425 CASTING BOTTOM 1 1
2. S11296 CASTING TOP 1 1
3. 164D4388 NAMEPLATE 1 1
5. 10571-6 HEAT INDICATOR 1 1
6. S21235 HINGE PIN 2 2
7. S21233 HINGE CLIP 4 4
9. S12029 GRID 2 2
11. S12207 GRID RETRACTABLE 1 1
14. 10222-T425 FLAV-R-WAVE® 1 1
15. S10017 BURNER ASSEMBLY 1 1
17. 10342-21 IGNITOR 1 -
10342-22 IGNITOR - 1
18. S15500 ELECTRODE 1 1
21. 10440-K50 CONTROL ASSEMBLY LP 1 -
10440-K56 CONTROL ASSEMBLY LP - 1
21A. S10125 HOSE - SIDE BURNER LP - 1
21B. S10133 HOSE - REAR BURNER LP - 1
22. 10114-18 HOSE & REGULATOR LP - QCC1 1 1
23. 10472-K37 CONTROL KNOB 2 4
30. 164D4377 DECO PLATE - 1
164D4378 DECO PLATE 1 -
31. 10194-R50 CONTROL COVER 1 1
32. 10184-R001 VALVE BRACKET - 1
33. 10338-K581 POST WHEEL 4 4
35. 10184-K561 SUPPORT - CASTING - LEFT 1 1
36. 10184-K571 SUPPORT - CASTING - RIGHT 1 1
37. 10184-K581 SUPPORT - SIDE SHELF - LEFT 2 2
38. 10184-K591 SUPPORT - SIDE SHELF - RIGHT 2 2
39. 10956-K501 BRACE - UPPER REAR 1 1
40. 10711 -K521 SHELF - LOWER 1 1
46. S17105 BRACKET - CYLINDER LP 1 1
49. 10711-K541 CONDI-BIN 1 1
50. 10711-K551 SHELF - SIDE 2 1
53 S16144-2 SHELF BOARD - FRONT 1 1
54. 10088-35 FRONT BANNER 1 1
55. 10184-K631 FRONT BANNER BRACKET 2 2
56. 10892-8 WHEEL 2 2
57. 10156-K55 SHIELD 1 1
65. S13003 BURNER ROTISSERIE - 1
68. S21361 SPRING - 1

14
GENERAL ELECTRIC PARTS CATALOG (cont.)
REF. NO. PART NO. PART DESCRIPTION JGGN24 JGGR24
74. Y-6616 BOLT 1/4-20 x 11⁄222
75. 10338-145 HANDLE 2 2
76. 10239-6 WASHER - HANDLE 2 2
77. S15111 GREASE CUP HOLDER 1 1
78. 10892-13 CASTER 2 2
79. Y-11984 CARRIAGE BOLT - 1/4-20 x 15⁄844
80. Y-11549 BOLT - 1/4-20 x 17⁄816 16
81. Y-11982 SCREW - THUMB - 1/4-20 x 13⁄422
82. Y- 12860 SCREW - 1/4-20 x 1 4 4
83. S21141 BOLT - 1/4-20 x 5/8 1 1
84. S21017 HEX-HEAD SCREW - 1/4 -20 x 13⁄488
85. S21255 WASHER 1 1
86. Y-12656 PLUG - BUTTON 2 2
87. Y-11793 NUT - 1/4 10 10
88. Y-11598 NUT WING - 1/4 19 19
89. Y-11212 NUT TINNERMAN - 1/4 6 6
93. Y-12852 WASHER - EXT. TOOTH 2 2
96. Y-29305 BOLT 10-24 x 3/8 2 4
97. 10240-13 WHEEL BOLT 2 2
98. S21124 SCREW - 8 x 1/2 22 19
99. Y-12646 SCREW – SHOULDER 8 x 1/2 4 4
101. Y-12853 WASHER - #8 4 4
104. Y-12835 SCREW - 6-32 x 1/4 8 9
105. Y-29307 NUT - 10-24 - 1
108. PB20-60 LID HANDLE - 1
109. S21136 SCREW 8-32 x 3/8 - 2
110. 10225-T10 GRID - 1
111. 10390-T10 SIDE BURNER - 1
113. 10342-T08 ELECTRODE - SIDE BURNER - 1
114. 10393-K40 COVER - SIDE BURNER - 1
115. Y-29305 SCREW 10-24 x 3/8 - 4
117. 10393-K50 SHELF - SIDE BURNER - 1
118. 10393-T221 SHIELD - SIDE BURNER - 1
123. 10184-D60 CASTOR INSERT 2 2
To obtain replacement parts, call during normal business hours: 866.GE.GRILL (866.434.7455).

15
NOTES

Part No. 164D4290P034
Pub. No. 49-80076
04-01 JR Printed in Canada
