GE Monogram
®
Assembly Instructions
Before you Begin – Read these instructions completely and carefully.
Note To Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Use and Care Book for future reference.
Assembly of this grill cart requires basic mechanical
skills. Proper assembly is the responsibility of the
installer.
For Monogram local service in your area,
1-800-444-1845.
For Monogram service in Canada, 1-888-880-3030.
For Monogram Parts and Accessories, call
1-800-626-2002.
If you have questions concerning the installation of
this product, call the GE Answer Center®Consumer
Information Service at 800.626.2000, 24 hours a day,
7 days a week.
If you received a damaged Grill Cart, you should
contact your dealer.
Step 1:
Remove
Packaging

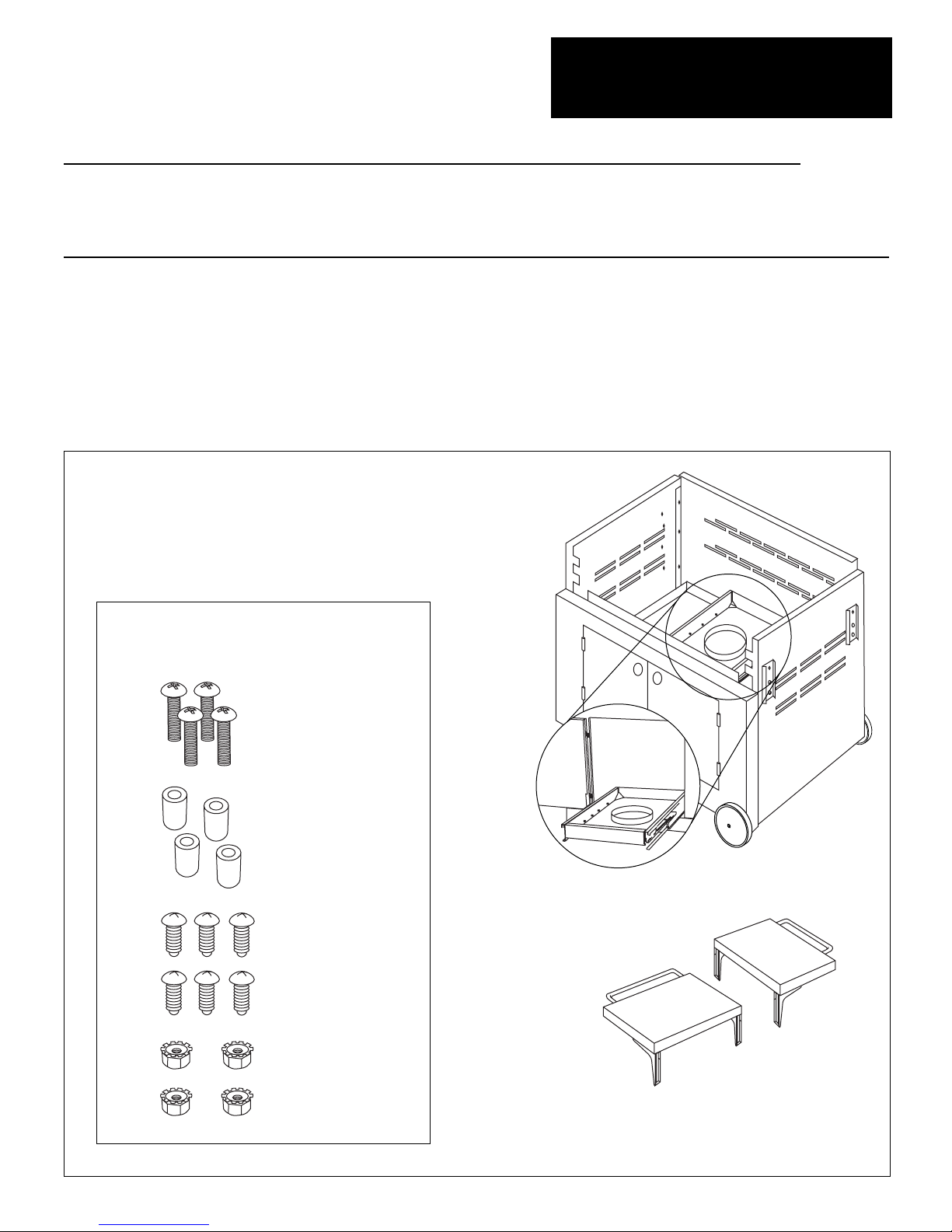

Open the box and remove the contents.
• Remove packaging and protective film from
shelves.
• Remove the packaging inside the cart used
to protect the slide-out tray during shipping
Side Shelves
Locate the hardware accessory package and
check contents.
10-24 x 1-1/2 Screws
Count 4
Aluminum Spacers
Count 4
Phillips Head Screws
Count 6
1/4-20 Nuts
Count 4
36" and 48" Outdoor Cooking Center
Grill Carts
Models ZX36CTACSS/ZX48CTACSS
Grill Cart With
Slide-Out Tank Tray

2
Installation
36" and 48" Grill Cart Assembly
Tools
You Will
Need
Step 2:
Mount Grill
on Assembled
Cart
CAUTION: Lock front caster on the cart to
prevent movement.
See Installation instructions packed with the
grill. Remove packaging, drip tray, smoker
tray, burner grates and parts box.
CAUTION: The grill is extremely heavy. 2
people are required to lift and place the grill
onto the cart.
• Carefully, lower the grill onto the cart. The
grill should be behind the lip on the front of
the cart.
• Check to be sure the grill rests securely and
fits square on the cart. The screw holes at the
front and back should be aligned.
• 3/8" wrench or socket
• Phillips head screwdriver
• Gloves to protect against sharp edges
• Remove the top screw in the front shelf slide
on the left and right sides. Retain screws.
Le gril est extremement
lourd, Il faut deux personnes pour le
soulever et le mettre ur un chariot.
CAUTION
PRUDENCE
The grill is extremely heavy.
2 people are required to lift and place the
grill onto the cart.
CAUTION
CAUTION

3
Installation
36" and 48" Grill Cart Assembly
Step 3:
Secure Grill
to Cart
Step 4:
Install
Side Shelves
• Install 3 screws along the front and 3 screws
along the back with a phillips head screw-
driver.
• Re-install long screws previously removed in
the top of each front slide.
• Slide shelf supports up and into the chan-
nels on the sides of the cart.
• When the shelf reaches stops at the top, fold
the shelf out horizontally.
• The shelf should rest securely in the
channels.
• Install the long 10-24 screws and spacers
below the shelf supports. Secure with nuts on
the inside of the cart. (2 on each side.)
• The spacers and screws will prevent the shelf
from sliding out of the channels when folded
down.

To obtain specific information concerning any
Monogram product or service, call GE Answer Center®
consumer information service at 800.626.2000—any
time, day or night.
For Monogram local service in your area, call
1-800-444-1845.
NOTE: Product improvement is a continuing endeavor at General
Electric. Therefore, materials, appearance and specifications are
subject to change without notice.
Monogram.
®
General Electric Company
Louisville, KY 40225
Pub. No. 49-80008
Dwg. No. 164D3333P226
 2000 GE Appliances
(N.D. 536) 2/00
32562
Installation
36" and 48" Grill Cart Assembly
Step 4:
Install
Side Shelves
(continued)
To fold the shelves down:
– Lift the shelf up until it clears the channels.
– Fold down and let the shelf slide down and
stop on the spacers.
• Fold both shelves down.
