GE Spacemaker JVM1750DMBB Manual

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
340119
Specification Revised 8/07
Listed by
Underwriters
Laboratories
JVM1750DMWW/CC/BB

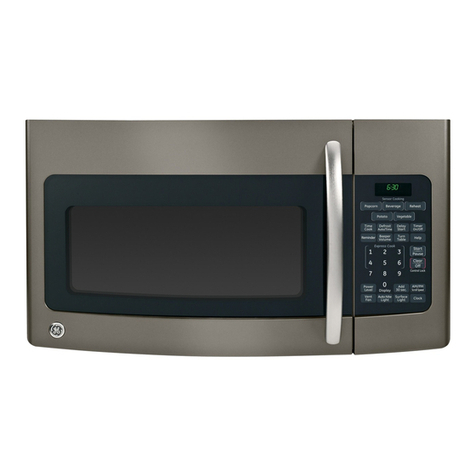

GE Spacemaker® Over-the-Range Microwave Oven
Note: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above Spacemaker microwave oven.
No additional wiring, venting or cabinet rebuilding necessary
in many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed with
the Spacemaker microwave oven.
Important Information: When installing the Spacemaker
microwave oven over a range, allow minimum of 2" from bottom
of Spacemaker microwave oven to top of range backguard to
allow for removal of light covers.
Ventilation Options: The Spacemaker microwave ovens
are designed for adaptation to the following three types of
ventilation:
• Outside exhaust (vertical – as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless – see Filter Kit drawing)
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product/kit for current
dimensional data.
66" MIN.
Mounting
height
from
floor
30"
MIN.
width
required Exhaust outlet
connects to
3-1/4" X 10" duct
16-13/32
(rear)
105°
Door open
15-1/4
24-1/2
16
29-7/8
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
(without
obstruction)
13"
MAX.
12"
MIN.
Dimensions (in inches)
Over-the-Range Microwave Oven
Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
340119
Specification Revised 8/07
Listed by
Underwriters
Laboratories
JVM1750DMWW/CC/BB
GE Spacemaker® Over-the-Range Microwave Oven
Hood Exhaust Duct: Outside ventilation requires a HOOD EXHAUSTDUCT. Read the
following carefully.
Exhaust Connection: The hood exhaust has been designed to mate with a standard
3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round transition
adaptor must be used. Do not use less than a 6" diameter duct
Rear Exhaust: If a rear or horizontal exhaust is to be used, care should be taken to
align exhaust with space between studs, or wall should be prepared at the time it is
constructed by leaving enough space between the wall studs to accommodate exhaust.
Maximum Duct Length: For satisfactory air movement, the total duct length of
3-1/4" x 10" rectangular or 6" diameter round duct should not exceed 120 equivalent feet.
Elbows, Transitions, Wall and Roof Caps, etc., present additional resistance to airflow
and are equivalent to a section of straight duct which is longer than their actual physical
size. When calculating the total duct length, add the equivalent length of all transitions
and adaptors plus the lengths of all straight duct sections. The chart below shows the
approximate feet of equivalent length of some typical ducts.
Duct Equivalent Feet
A. Rectangular-To-round
Transition Adaptor 5 ft.
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
Optional Accessories (Available at additional cost)
12" Filler Panel Kits
JX41–Black
JX40WH–White
15" Filler Panel Kits
JX48BL–Black
JX48WH–White
When replacing a 36" or
42" range hood, this kit fills
in the additional width to
provide a custom built-in
appearance. For installation
between cabinets only; not
for end-of-cabinet installation.
Each kit contains two 3"-wide
filler panels.
Filter KitsJX81–
Recirculating Charcoal
Filter KitTo be used
when the Spacemaker
microwave oven
cannot be vented to
the outside.
Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
340119
Specification Revised 8/07
Listed by
Underwriters
Laboratories
JVM1750DMWW/CC/BB
GE Spacemaker® Over-the-Range Microwave Oven
JVM1750DMWW
JVM1750DMCC
JVM1750DMBB
C ONVENIENCE C OOKING
Popcorn Beverage
Time
Cook
T imer
on/off
AM/PM
Potato
Power
Level
Surface
Light
Vent
Fan
Add
30 Sec.
Vegetable
ExpressCook
1
4
2
5
3
6
7 8
0
9
Start
Pause
Reminder
Turn
Table
DISPLAY
S CROLL S PEED
Defrost
Auto/Time
Clear
Off
Delay
Start
Clock
Help
Auto Nite
Light
Beeper
Volume
Reheat
Features and Benefits
• 1.7 Cu. Ft. Capacity - 1000 Watts (IEC-705 test procedure)
• Sensor Cooking Controls - Automatically adjust time and power for
exceptional cooking results
• Auto and Time Defrost - Automatically defrosts for a specified amount
of time
• Turntable On/Off - Ideal for oversized, oblong-shaped dishes
• Two-Speed, 300-CFM Venting System - Quickly removes smoke and steam
from the cooktop
• Removable Oven Rack with Two positions – Makes multi-dish
cooking possible
• Full-view Cooktop Lighting – Illuminates the cooking surface below
• Model JVM1750DMBB – Black
• Model JVM1750DMCC – Bisque
• Model JVM1750DMWW - White
