Publication No: 500-9300007768-000 Rev. E
Hardware Reference
V7768/V7769*
Intel
®
Core™ Duo Processor VME Single Board
Computer
THE V7768/V7769 IS DESIGNED TO MEET THE EUROPEAN UNION (EU) RESTRICTIONS OF
HAZARDOUS SUBSTANCE (ROHS) DIRECTIVE (2002/95/EC) CURRENT REVISION.

Document History
Hardware Reference Document Number: 500-9300007768-000 Rev. E
January 4, 2012
Waste Electrical and Electronic Equipment (WEEE) Returns
GE is registered with an approved Producer Compliance Scheme (PCS) and, subject to suitable
contractual arrangements being in place, will ensure WEEE is processed in accordance with
the requirements of the WEEE Directive.
GE will evaluate requests to take back products purchased by our customers before
August 13, 2005 on a case by case basis. A WEEE management fee may apply.

Table of Contents 3
.
Table of Contents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
List of Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1 • Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.1 Unpacking Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.2 Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.2.1 V7768 Board Layout Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
1.2.2 Mezzanine Board Layout Information (V7769) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
1.3 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
1.3.1 BIOS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
1.4 Front/Rear Panel Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
1.5 Front Panel Layouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
2 • Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
2.1 BGA CPU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
2.2 Physical Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
2.3 Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
2.4 I/O Port Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
2.5 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
2.5.1 Legacy PIC System Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
2.5.2 PCI Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
2.6 Integrated Peripherals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
2.7 Ethernet Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
2.8 Video Graphics Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
3 • Embedded PC/RTOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.1 VME Bridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.1.2 I2C/SMBus Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
3.2 Embedded PCI Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
3.3 Timers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.3.1 Timer Control Status Register 1 (TCSR1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.3.2 Timer Control Status Register 2 (TCSR2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.3.3 Timer 1 & 2 Load Count Register (TMRLCR12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.3.4 Timer 3 Load Count Register (TMRLCR3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.3.5 Timer 4 Load Count Register (TMRLCR4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.3.6 Timer 1 & 2 Current Count Register (TMRCCR12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.3.7 Timer 3 Current Count Register (TMRCCR3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.8 Timer 4 Current Count Register (TMRCCR4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.9 Timer 1 IRQ Clear (T1IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.10 Timer 2 IRQ Clear (T2IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.11 Timer 3 IRQ Clear (T3IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.3.12 Timer 4 IRQ Clear (T4IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

4 V7768/V7769 Hardware Reference Manual
3.4 Watchdog Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.4.1 WDT Control Status Register (WCSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.4.2 WDT Keepalive Register (WKPA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
3.5 NVRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
3.6 VME Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.7 CompactFlash Disk (V7768 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.7.1 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.8 Remote Ethernet Booting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
3.8.1 Boot BIOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
A • Appendix A: Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
A.1 V7768 VME Connectors and Pinouts (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
A.2 V7768 PCI-X PMC Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
A.2.1 V7768 PCI-X PMC Site Connector and Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
A.2.2 V7768 PCI-X PMC Site Connector and Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
A.2.3 V7768 PCI-X PMC Site Connector and Pinout (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
A.2.4 Mezzanine PCI-X PMC Site Connector and Pinout (J14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
A.3 V7769 Mezzanine Backplane Connectors (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
A.4 V7769 Mezzanine PCI-X PMC Site 1 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
A.4.1 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
A.4.2 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
A.4.3 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
A.5 V7769 Mezzanine PCI-X PMC Site 2 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
A.5.1 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
A.5.2 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
A.5.3 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J23) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
A.5.4 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
A.6 USB Connectors and Pinout (J29 and J30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
A.7 Gigabit Ethernet Connectors and Pinouts (J15 and J18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
A.8 Video Graphics Adapter and Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
A.9 Serial Connector and Pinout (J35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
A.10 Mouse/Keyboard Connector and Pinout (J38) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
A.11 V7769 Mezzanine SAS Connector and Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
B • Appendix B: AMI BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
B.1 First Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
B.2 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
B.3 Advanced BIOS Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
B.4 PCI/PnP Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
B.5 Boot Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
B.6 Security Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
B.7 Chipset Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
B.8 Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
C • Appendix C: Remote Booting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
C.1 Enabling the Front Panel (FP) LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
C.2 Boot Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
C.2.1 First Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
C.2.2 Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
C.3 BIOS Features Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

List of Figures 5
.
List of Figures
Figure 1 V7768 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Figure 2 Illustration of V7768 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Figure 3 V7769 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

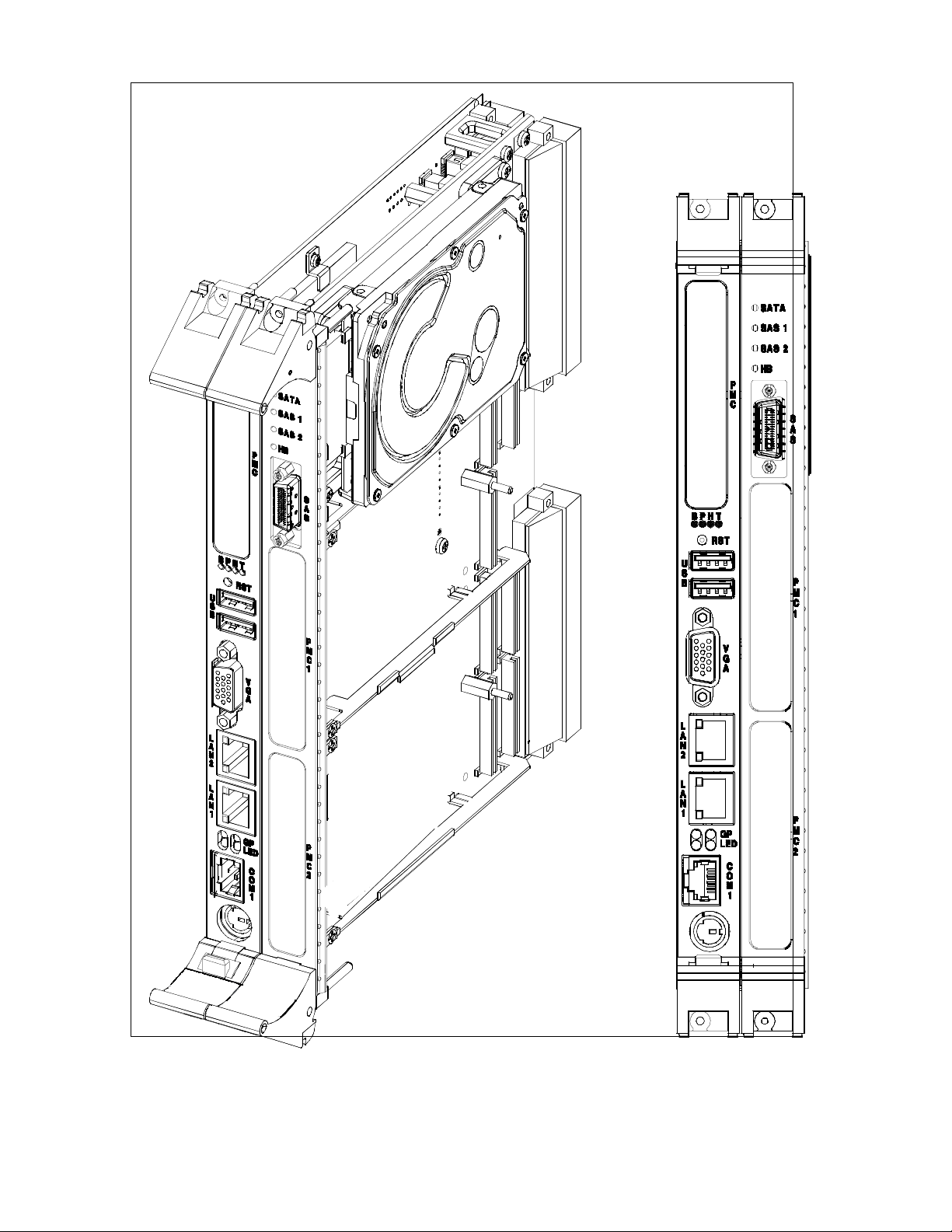

Figure 4 Illustration of V7769 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 1-1 V7768 Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Figure 1-2 COM1 Termination Headers (E13, E14, E17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Figure 1-3 Mezzanine Board Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Figure 1-4 Installing the PMC Card on the V7768/V7769 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Figure 1-5 Backside Mounting for the PMC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Figure 1-6 Installation of Mezzanine Board onto the Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Figure 1-7 V7768 Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Figure 1-8 Mezzanine Front Panel Layout (for V7769) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Figure 2-1 Connections for the PC Interrupt Logic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Figure A-1 V7768 Connector Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure A-2 V7769 Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Figure A-3 VME Connectors (P1/P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Figure A-4 V7768 PCI-X PMC Site Connector (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Figure A-5 V7768 PCI-X PMC Site Connector (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Figure A-6 V7768 PCI-X PMC Site Connector (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Figure A-7 Mezzanine PCI-X PMC Site Connector (J14 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Figure A-8 V7769 Backplane Connectors (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Figure A-9 Mezzanine PCI-X PMC Site Connector (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Figure A-10 Mezzanine PCI-X PMC Site Connector (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Figure A-11 Mezzanine PCI-X PMC Site Connector (J13 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Figure A-12 Mezzanine PCI-X PMC Site Connector (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Figure A-13 Mezzanine PCI-X PMC Site Connector (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Figure A-14 Mezzanine PCI-X PMC Site Connector (J23) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Figure A-15 Mezzanine PCI-X PMC Site Connector (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Figure A-16 USB Connector (J29 and J30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Figure A-17 Gigabit Ethernet Connector (J18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Figure A-18 SVGA Connector (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Figure A-19 Serial Connector (J35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Figure A-20 Mouse/Keyboard Connector (J38) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Figure A-21 Mouse/Keyboard Splitter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Figure A-22 Mezzanine Connector (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

6 V7768/V7769 Hardware Reference Manual
List of Tables
Table 1-1 V7768 Connectors and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 1-2 Universe IID Mapping/SYSFAIL Generation - Switch (S6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 1-3 VME Strapping - Switch (S7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 1-4 VME System Controller - Switch (S10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table 1-5 Battery Enable - Switch (S11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table 1-6 Password Clear/BIOS Boot Mode - Switch (S12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table 1-7 COM1 Configuration (RS232/RS422 Select) - Header (E13, E14, E17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Table 1-8 Mezzanine Connectors and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Table 1-9 Switch (S2) Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Table 2-1 Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Table 2-2 V7768/V7769 I/O Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Table 2-3 Interrupt Line Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Table 2-4 Interrupt Vector Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Table 2-5 PCI Device Interrupt Mapping by the BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Table 2-6 Supported Graphics Video Resolutions for Windows XP (Analog) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Table 3-1 PCI Configuration Space Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Table 3-2 TCSR1 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Table 3-3 Selectable Clock Source for Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Table 3-4 TCSR2 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Table 3-5 TMRLCR12 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 3-6 TMRLCR3 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 3-7 TMRLCR4 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 3-8 TMRCCR12 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Table 3-9 TMRCCR3 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Table 3-10 TMRCCR4 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Table 3-11 WCSR Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Table 3-12 Selecting Timeout Value of the WDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Table 3-13 Register Definitions Offset from BAR0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Table A-1 V7768 VME Connector Pinout (P1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Table A-2 V7768 VME Connector Pinout (P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Table A-3 V7768 PCI-X PMC Site Connector Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Table A-4 V7768 PCI-X PMC Site Connector Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Table A-5 V7768 PCI-X PMC Site Connector Pinout (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Table A-6 Mezzanine PCI-X PMC Site Connector Pinout (J14 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Table A-7 V7769 Backplane Connector Pinouts (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Table A-8 Mezzanine PMC Site Connector Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Table A-9 Mezzanine PCI-X PMC Site Connector Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Table A-10 Mezzanine PCI-X PMC Site Connector Pinout (J13 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Table A-11 Mezzanine PMC Site Connector Pinout (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Table A-12 Mezzanine PCI-X PMC Site Connector Pinout (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

List of Tables 7
.
Table A-13 Mezzanine PCI-X PMC Site Connector Pinout (J23) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Table A-14 Mezzanine PCI-X PMC Site Connector Pinout (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Table A-15 USB Connector Pinout (J29 and J30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Table A-16 Gigabit Ethernet Connector Pinout (J18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Table A-17 SVGA Connector Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Table A-18 Serial Connector Pinout (J35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Table A-19 Mouse/Keyboard Connector Pinout (J38) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Table A-20 Mouse/Keyboard Splitter Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Table A-21 Mezzanine SAS Connector Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Table B-1 AMI BIOS First Boot Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Table B-2 AMI BIOS Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Table B-3 AMI BIOS Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Table B-4 AMI BIOS PCI/PnP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Table B-5 AMI BIOS Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Table B-6 AMI BIOS Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Table B-7 AMI BIOS Chipset Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Table B-8 AMI BIOS Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Table C-1 Enable the Front Panel LAN for Remote Booting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Table C-2 Boot-from-LAN BIOS First Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Table C-3 Boot-from-LAN BIOS Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

8 V7768/V7769 Hardware Reference Manual
Overview
GE’s V7768/V7769* are single board computers (SBCs) in a dual-slot, passively
cooled, VME Eurocard form factor.
The V7768* is a full featured Intel
®
CoreTM 2 Duo or Celeron
®
M-based SBC, and
the V7769* is a full featured Intel Core 2 Duo-based SBC. The V7768/V7769 utilize
the advanced technology of Intel’s 945GM chipset and the ICH7-M I/O Controller
Hub. The 945GM chipset runs on a 533 MHz front-side bus with the Celeron M
processor and a 667 MHz front-side bus with the Core 2 Duo processor.
The V7768/V7769 are compliant with the VMEbus Specification VITA 1-1994 and
feature a transparent PCI-to-VME bridge, allowing your board to function as a
system controller or peripheral CPU in multi-CPU systems.
The V7768 is a single-slot board, and the V7769 is a dual-slot board. The V7769
has the same functionality as the V7768 and also connects to the ACC-0623*
(which will be referred to as the mezzanine board throughout this manual),
making it a dual-slot board. Because the functionality is so similar, this manual
will refer to both boards (V7768/V7769) throughout unless the material is
referring to the V7768 or V7769 only.

Overview 9
Desktop Features of the V7768/V7769
• Up to 2.0 GByte DDR2 SDRAM (One SODIMM)
• SVGA port (front I/O)
• Dual Gigabit Ethernet (GbE) (front I/O)
• One RS232/422 COM port (front I/O)
• One RS232/422 COM support (rear I/O)
• Two USB 2.0 ports (front I/O)
• Four USB 2.0 support (rear I/O)
• Supports two SATA connections (rear I/O)
• One 2.5-in. SATA hard drive (optional for V7769 only)
• Dual SAS connector (front I/O on V7769 only)
• Real-Time clock/calendar
• Front panel reset switch
• PS/2 Keyboard/Mouse connection (front I/O)
• Onboard parallel connector
The 945GM chipset allows the V7768/V7769 to be capable of executing many of
today’s desktop operating systems such as Microsoft
®
’s Windows
®
XP, Windows
Vista
®
, Linux
®
2.6.x, and VxWorks
®
6.x. The standard desktop features of the
V7768/V7769 are described in Chapter 2: Standard Features of this manual.

10 V7768/V7769 Hardware Reference Manual
Embedded Features of the V7768/V7769
• Remote booting out the front panel only
• Up to 8 GByte of bootable CompactFlash (optional)
• PCI-X capable PMC site with VITA 35 P2 I/O (factory populated on V7768
and main board of V7769)
• VITA 1-1994 with byte swap
• 32 KByte NVRAM
• Software-selectable Watchdog Timer with reset
• PMC expansion site Chapter 3: Embedded PC/RTOS Features
The embedded features of the V7768/V7769 are described in Chapter 3 of this
manual.
The V7768/V7769 are suitable for use in a variety of applications, such as:
telecommunications, simulation, instrumentation, industrial control, process
control and monitoring, factory automation, automated test systems, data
acquisition systems and anywhere that the highest performance processing
power for VME in a single or dual slot is desired.

Overview 11
Intel 945GM Chipset
The V7768/V7769 incorporate the latest Intel chipset technology, the 945GM. The
Intel 945GM chipset is an optimized integrated graphics solution with up to a
667 MHz system bus. The chipset has a low power design, advanced power
management, supporting up to 2 GByte of DDR2 system memory. The 945GM is a
Memory Controller Hub (MCH) component, providing the processor interface,
system memory interface (DDR2 SDRAM) and SVGA port.
Key features for the 945GM:
• 533 MHz Processor system bus controller for the Celeron M
• 667 MHz Processor system bus controller for the Intel Core 2 Duo
• Up to 2 GByte DDR2 Memory via SODIMM
• High-speed DMI architecture interface for communication with the ICH7-M
(I/O controller)
The 945GM supports the Intel ICH7-M I/O controller hub. The ICH7-M supports
most of the high speed I/O interfaces of the V7768/V7769.
Key features for the ICH7-M:
• USB 2.0
• SATA
• IDE (Primary only)
• PCI
• PCI Express (PCIe)

12 V7768/V7769 Hardware Reference Manual
Figure 1 V7768 Block Diagram
SVGA
RJ45
RJ45
RJ45
Mouse/
Keyboard
P
C
I
33
M
H
z
32
b
i
t
Intel
82801GMB
I/O Controller
(ICH7-M)
Intel 82571
Dual
Gigabit
Ethernet
PCIX
PMC
Site
USB 2.0 x2
P1
P2
FWH
LEDs
Reset
Intel
Core 2 Duo
or
Celeron M
Processor
667MHz
FSB
Intel
945GM
Express
DDR2
Memory
Up to 2 GByte
SODIMM
DMI
x 4
Super I/O
L
P
C
PEX8114
PCIe-PCIX
Bridge
Tundra
Universe IID
VME
VME
USB 2.0 x 4
SATA x 2
FPGA NVRAM
PCIX
133MHz
64-bit
LAN2
PCIe x1
PCIe x4
LAN1
COM2 (RS232/RS422)
DDR2
USB
Up to 8 GByte
CompactFlash
PATA
PMC I/O (VITA-35)
VME
M
e
a
z
z
a
n
i
n
e
C
o
n
n
PCIe x8
P
C
I
33
M
H
z
32
b
i
t
USB
COM 1 (RS232/RS422)
Byte Swap Logic

Overview 13
Figure 2 Illustration of V7768

14 V7768/V7769 Hardware Reference Manual
Figure 3 V7769 Block Diagram
P1
P2
M
e
a
z
z
a
n
i
n
e
C
o
n
n
SAS
2.5 in.SATA Drive
Connector
LSI1064
SAS/SATA
Controller
PEX8114
PCIE-PCIX
Bridge
PEX8518
PCIE Switch
2 x SAS
SATA
PCIE x4
SATA to IDE
Converter
Up to 4 GByte
CompactFlash
S ATA
IDE
PCIE x4
PCIE x8
PCI-X 64, 100
PCI-X
PMC
Site 1
PCI-X
PMC
Site 2
Vita 35

Overview 15
Figure 4 Illustration of V7769

16 V7768/V7769 Hardware Reference Manual
Organization
This manual is composed of the following chapters and appendices:
Chapter 1 - Installation and Setup describes unpacking, inspection, hardware
jumper settings, connector definitions, installation, system setup and operation of
the V7768/V7769.
Chapter 2 - Standard Features describes the unit design in terms of the standard
PC memory and I/O maps, along with the standard interrupt architecture.
Chapter 3 - Embedded PC/RTOS Features describes the unit features that are
beyond standard functions.
Maintenance provides information relative to the care and maintenance of the
unit.
Appendix A - Connector Pinouts illustrates and defines the connectors included
in the unit’s I/O ports.
Appendix B - AMI BIOS Setup Utility describes the menus and options
associated with the American Megatrends, Inc
. (system) BIOS.
Appendix C - Remote Booting describes the menus and selections necessary to
boot from the SBC remotely.

Overview 17
References
Intel Celeron M Processor on 65 nm Processor
January 2007, Order Number 312726-004
Intel Core 2 Duo Processor for Intel Centrino
®
Duo Processor Technology
Process Datasheet
September 2007, Revision 004, Order Number 314078-004
Mobile Intel 945 Express Chipset Family
November 2006, Order Number 309219-003
Intel I/O Controller Hub 7 (ICH 7) Family Datasheet
January 2006, Order Number 307013-002
Intel 82571EB/82572EI Gigabit Ethernet Controller Product Datasheet
December 2006, Revision 2.0
PCI Local Bus Specification, Rev. 2.2
PCI Special Interest Group
P.O. Box 14070
Portland, OR 97214
[phone] (U.S.)
[phone] (International)
[phone] (FAX)
LPC47M107 100-Pin Enhanced Super I/O with LPC Interface for Consumer
Applications
Standard Microsystems Corp.
80 Askay Dr.
Hauppauge, NY 11788-8847
www.smsc.com
CMC Specification, 1386 from:
IEEE Standards Department
Copyrights and Permissions
445 Hoes Lanes, P.O. Box 1331
Piscataway, NJ 08855-1331
PMC Specification, 1386.1 from:
IEEE Standards Department
Copyrights and Permissions
445 Hoes Lanes, P.O. Box 1331
Piscataway, NJ 08855-1331, USA

18 V7768/V7769 Hardware Reference Manual
Safety Summary
The following general safety precautions must be observed during all phases of
the operation, service and repair of this product. Failure to comply with these
precautions or with specific warnings elsewhere in this manual violates safety
standards of design, manufacture and intended use of this product.
GE assumes no liability for the customer's failure to comply with these
requirements.
Ground the
System
To minimize shock hazard, the chassis and system cabinet must be connected to
an electrical ground. A three-conductor AC power cable should be used. The
power cable must either be plugged into an approved three-contact electrical
outlet or used with a three-contact to two-contact adapter with the grounding
wire (green) firmly connected to an electrical ground (safety ground) at the power
outlet.
Do Not Operate in
an Explosive
Atmosphere
Do not operate the system in the presence of flammable gases or fumes. Operation
of any electrical system in such an environment constitutes a definite safety
hazard.
Keep Away from
Live Circuits
Operating personnel must not remove product covers. Component replacement
and internal adjustments must be made by qualified maintenance personnel. Do
not replace components with power cable connected. Under certain conditions,
dangerous voltages may exist even with the power cable removed. To avoid
injuries, always disconnect power and discharge circuits before touching them.
Do Not Service or
Adjust Alone
Do not attempt internal service or adjustment unless another person capable of
rendering first aid and resuscitation is present.
Do Not Substitute
Parts or Modify
System
Because of the danger of introducing additional hazards, do not install substitute
parts or perform any unauthorized modification to the product. Return the
product to GE for service and repair to ensure that safety features are maintained.
Dangerous
Procedure
Warnings
Warnings, such as the example below, precede only potentially dangerous
procedures throughout this manual. Instructions contained in the warnings must
be followed.
WARNING
Dangerous voltages, capable of causing death, are present in this system.
Use extreme caution when handling, testing and adjusting.

Overview 19
Warnings,
Cautions
and Notes
STOP
Informs the operator that a practice or procedure should not be performed. Actions could result in
injury or death to personnel, or could result in damage to or destruction of part or all of the
system.
WARNING
WARNING denotes a hazard. It calls attention to a procedure, practice, or
condition, which, if not correctly performed or adhered to, could result in
injury or death to personnel.
CAUTION
CAUTION denotes a hazard. It calls attention to an operating procedure,
practice, or condition, which, if not correctly performed or adhered to, could
result in damage to or destruction of part or all of the system.
NOTE
NOTE denotes important information. It calls attention to a procedure, practice, or condition which
is essential to highlight.
TIP
Tip denotes a bit of expert information.
LINK
This is link text.

20 V7768/V7769 Hardware Reference Manual
1 • Installation and Setup
This chapter describes the hardware jumper settings, connector descriptions,
installation, system setup and operation of the V7768/V7769.
1.1 Unpacking Procedures
Any precautions found in the shipping container should be observed. All items
should be carefully unpacked and thoroughly inspected for damage that might
have occurred during shipment. The board(s) should be checked for broken
components, damaged printed circuit board(s), heat damage and other visible
contamination. All claims arising from shipping damage should be filed with the
carrier and a complete report sent to GE Customer Care along with a request for
advice concerning the disposition of the damaged item(s).
CAUTION
Some of the components assembled on GE products may be
sensitive to electrostatic discharge and damage may occur on
boards that are subjected to a high energy electrostatic field. When
the board is placed on a bench for configuring, etc., it is suggested
that conductive material be inserted under the board to provide a
conductive shunt. Unused boards should be stored in the same
protective boxes in which they were shipped.
1.2 Hardware Setup
The V7768/V7769 are factory populated with user-specified options as part of the
V7768/V7769 ordering information. Contact Sales for ordering information at
1-800-322-3616. For option upgrades or for any type of repairs, contact customer
care to receive a Return Material Authorization (RMA).
GE Customer Care is available at:
(1-800-433-2682), 1-780-401-7700.
Or, visit our website www.ge-ip.com.
The V7768/V7769 are tested for system operation and shipped with factory-
installed header jumpers. The physical locations of the headers and connectors for
the SBC with the PMC option are illustrated in Figure 1-1 on page 21 and
Figure 1-1 on page 21. The definitions of the connectors, headers and switches are
included in Table 1-1 on page 22.
CAUTION
All jumpers marked User Configured in the following tables may be
changed or modified by the user. All jumpers marked Factory
Configured should not be modified by the user.
Care must be taken when making jumper modifications to ensure
against improper settings or connections. Improper settings may
result in damage to the unit.
Modifying any jumper not marked User Configured will void the
Warranty and may damage the unit.
