JTP25SH – GE® 30" Built-In Single Oven
Dimensions (in inches)
Single Oven Wall-Mount or Cabinet Installation (in inches)
KW Rating
240V 3.6
208V 2.7
Breaker Size
240V 20 Amps
208V 20 Amps
Note: These ovens are not approved for stackable or side-by-side installations.
Most 30" Wall Cabinets can be used with this unit.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
29-3/4
28-1/4
30
Recommended
cutout location
32-1/2"
from floor
21
Junction
box
location
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
Conduit
(48-1/2"
long)
5
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
A
B
23-1/2'' MIN.
Cutout depth
22'' MIN.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation instructions packed
with product for current dimensional data.
C
L
(Must Support 275 LBS.)
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(Must support 275 lbs.)
Specification Revised 2/06
320218
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.

GE Appliances
JTP25SH – GE® 30" Built-In Single Oven

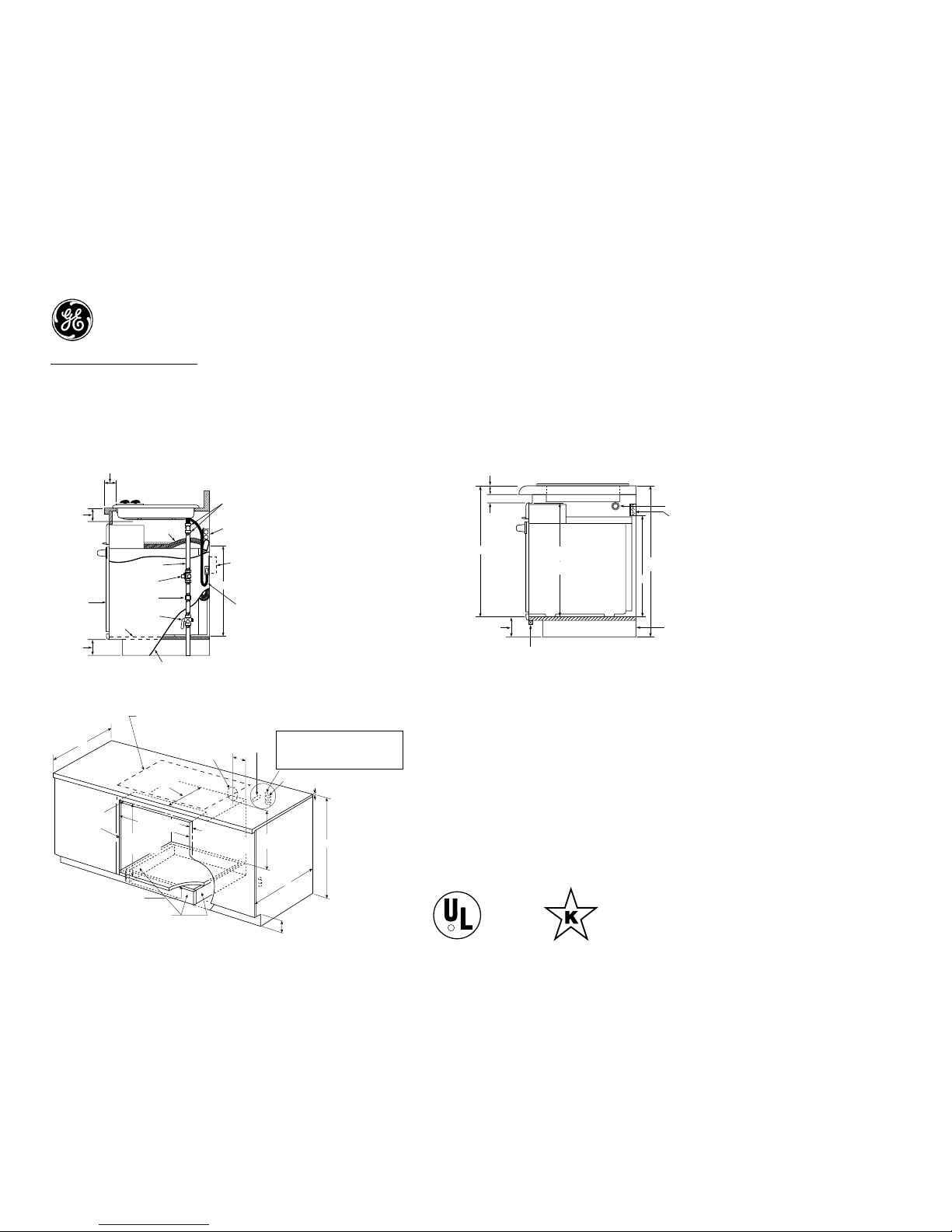

Optional Undercounter Installation
with 36" Gas Cooktop (in inches)
Optional Undercounter Installation With
30" CleanDesign or Sealed Burner Gas Cooktop (in inches)
Specification Revised 2/06
320218
Power cord
for cooktop
Junction box
for oven
Junction box in
adjacent cabinet
for cooktop
hook-up
2 (two) 90°elbows &
sufficient pipe to
connect in adjacent
cabinet
Right cabinet side
3/4" Support
Shut-off
valve
Pressure
regulator
1/2" Black
iron pipe
Union
Conduit
(48-1/2" long)
30" built-in
oven
3-1/2" MIN.
Free space
4" To 4-1/2"
3-1/4
22
Side View
5-9/16"
Reference dim. for
MAX. support height
with typical 36" countertop
height
36" Typical
Countertop height
Power cord
Reference
5-9/16
30-7/16
Free space
1-1/2" MIN.
1-1/2" Typical countertop
Side View
22
27-5/16" MAX.
Cutout height
27-1/4" MIN.
Junction box(s) for
oven & radiant
cooktop 22" from 
floor
Add suitable filler
to match adjacent
cabinets when needed
to maintain toe kick
alignment
30" Oven W/ Rad. Cktp.
Undercounter Installation (in inches)
5
24
25
Gas or electric cooktops may be installed over
this oven. See cooktop installation instructions
for cutout size. See label on top of oven for
approved cooktop models. Gas (including the pressure regulator) and
electrical connections for gas cooktop must
be located in an adjacent accessible location.
For a 30" gas cooktop, the connections are
more conveniently made to the right.
120 Volt
Outlet
Gas
connection
Junction box
location
240/208V
36'' MIN.
4'' To 4-1/2 '' Toe kick allowable
Match toe kick height
front and two sides
22'' MIN. above
support platform
Top and/or side
fillers may be
necessary if unit
is positioned
between
existing cabinets
28-1/2'' MIN.
28-5/8'' MAX.
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
3/4'' Support
platform required
23-1/2" MIN.
Cutout depth
Allow 11/16''
overlap over side
edges of cutout
1-1/2"
Countertop
This installation is to achieve minimum gap between bottom of countertop and control panel.
Note: For this installation, the bottom trim will not be flush with a typical 4" toe kick.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a
194°F temperature rating.
Note: 36" ribbon cooktops (excluding JP969) are approved for use over GE 30" single wall ovens
only. 30" ribbon cooktops (excluding JP939) are approved for use over GE 30" and GE 27" single
wall ovens. Model JP939 can be installed over 27" wall ovens except stainless model JK915 and
JK912SF. Refer to cooktop and wall oven installation information packed with products for current
dimensional data.
Installation Information: Before installing, consult installation instructions packed with product for
current dimensional data.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.

GE Appliances
Specification Revised 2/06
320218
JTP25SH – GE® 30" Built-In Single Oven
JTP25SHSS
Features and Benefits
• Self-Clean oven – Conveniently cleans oven cavity without the need for scrubbing.
• Super large oven capacity – Provides the impressively large oven interior for cooking more
dishes and large meals at one time.
• Electronic oven controls – One-touch electronic pads are easy-to-use and allow for simple
oven operation.
• TrueTemp™ system – Delivers even heat distribution and maximum oven control.
• Big ClearView™ window – An extra large clear window makes monitoring the progress of
the food easy.
• Interior oven light – Supplies light to make viewing the progress of cooking easy and convenient.
• Dual element bake – Alternates the upper broiling element and the lower baking element for
even heating and optimal baking results.
• Model JTP25SHSS – Stainless steel
