GE JTP90BM Manual

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 9/07 320140
KW Rating
240V 6.4
208V 5.6
Breaker Size
240V 30 Amps
208V 30 Amps
JTP90BM/CM/WM
GE®30" Built-In Double Microwave/Thermal Wall Oven
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"
B – Overlap of oven at top and bottom of cutout 1"
C – Overall of oven at top of cutout 1/2"
Oven
D – Overall depth* 23-1/2"
E – Overall height with trim 44"
Overall height without trim 43-1/2"
E –Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
20''
28''
21''
A
F
A
B
C
CONDUIT
(72'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
Minimum
cutout location
21-5/8''
from the floor
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
D
CUTOUT DEPTH
23-1/2'' MIN.
E
Note: Cabinets installed adjacent to wall
ovens must have an adhesion spec of at
least a 194°F temperature rating.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45°
and 90° walls should be placed to avoid
interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle. They
must be hard wired in accordance with
installation instructions.
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"
B – Overlap of oven at top and bottom of cutout 1"
C – Overall of oven at top of cutout 1/2"
Oven
D – Overall depth* 23-1/2"
E – Overall height with trim 44"
Overall height without trim 43-1/2"
E –Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
20''
28''
21''
A
F
A
B
C
CONDUIT
(72'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
Minimum
cutout location
21-5/8''
from the floor
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
D
CUTOUT DEPTH
23-1/2'' MIN.
E

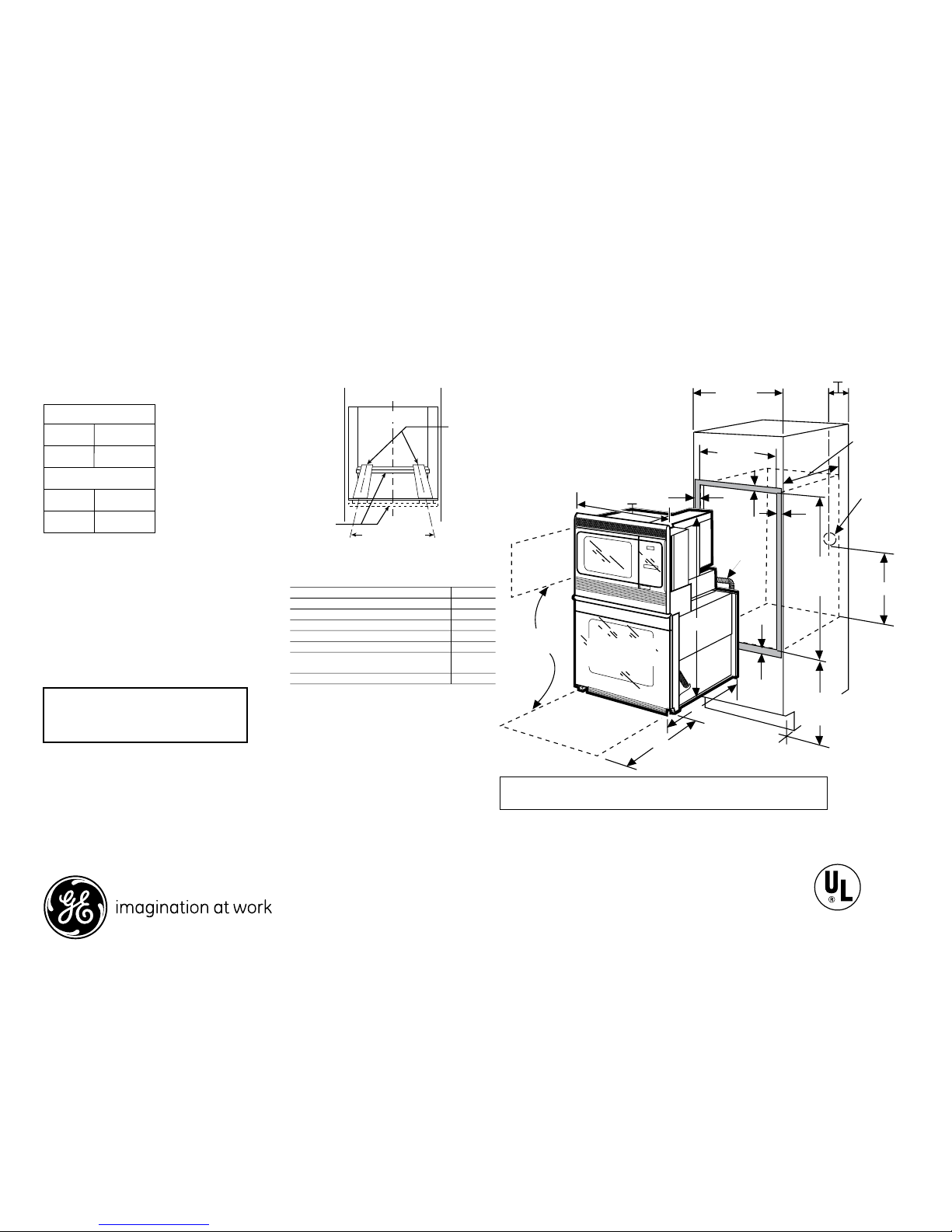

Dimensions and Installation Information (in inches)

JTP90BM/CM/WM
GE®30" Built-In Double Microwave/Thermal Wall Oven
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 9/07 320140
JTP90CM/WM/BM
Features and Benefits
• Self Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items at once
• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for simple
oven operation
• TrueTemp™System - Delivers even heat distribution and maximum oven control
• 1.6 Cu. Ft. Capacity (Upper Oven Only) - Provides a large interior to accommodate a variety of
cookware, dinnerware and food containers
• Sensor Cooking Control (Upper Oven Only) - Provides a built-in sensor in the upper
microwave that automatically calculates and adjusts cooking times and power levels for
your favorite foods
• Turntable (Upper Oven Only) - Steadily rotates your food and ensures even cooking with no
cold spots
• Hidden Bake Oven Interior - Hides previously exposed bottom element to deliver a clean
interior appearance
• Six-Pass Bake Element/Dual Element Bake (Lower Oven) - Alternates the upper broiling
element and the lower baking element for even heating and optimal results
• Model JTP90BMBB – Black on black
• Model JTP90CMCC – Bisque on bisque
• Model JTP90WMWW – White on white
