GE PT9550DFBB Manual

Listed by
Underwriters
Laboratories
For answers to your Monogram®or GE appliance
questions, visit our website at geappliances.com
or call GE Answer Center®service, 800.626.2000.
Note: Cabinets installed adjacent to wall
ovens must have an adhesion spec of at least
a 194°F temperature rating.
Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45°
and 90° walls should be placed to avoid
interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle.
They must be hard wired in accordance
with installation instructions.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.

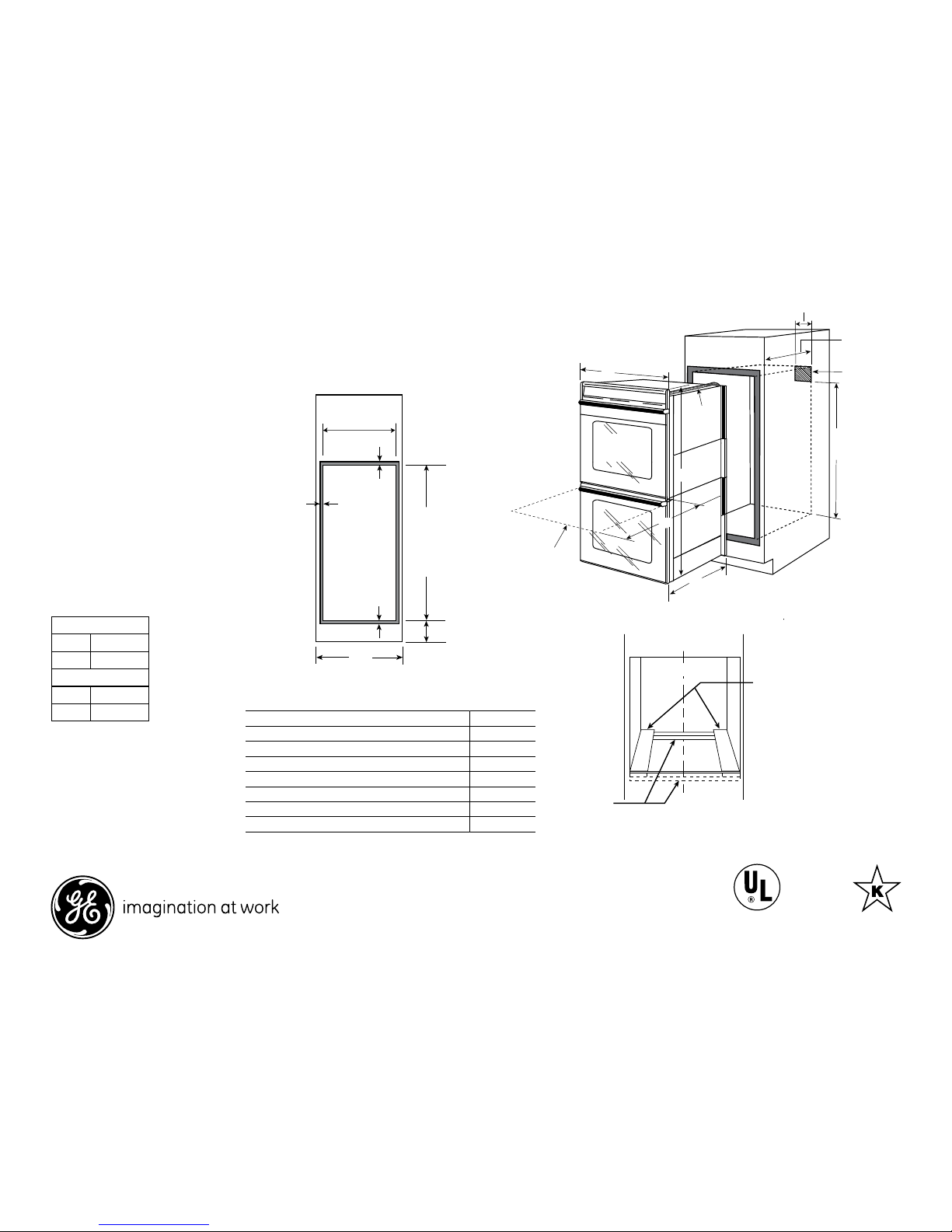

Dimensions and Installation Information (in inches)
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
47" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 30"
A – Overlap of oven at top of cutout 1-1/4"
B – Overlap of oven over side of edges of cutout 3/4"
C – Overlap of oven at bottom of cutout 1-1/4"
Oven
D – Overall depth with handle 27-3/16"
E – Overall height with trim 52-5/8"
F – Overall width 29-3/4"
9-1/2" MAX.
PT9550
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the floor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
47" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 30"
A – Overlap of oven at top of cutout 1-1/4"
B – Overlap of oven over side of edges of cutout 3/4"
C – Overlap of oven at bottom of cutout 1-1/4"
Oven
D – Overall depth with handle 27-3/16"
E – Overall height with trim 52-5/8"
F – Overall width 29-3/4"
9-1/2" MAX.
PT9550
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the floor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
47" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 30"
A – Overlap of oven at top of cutout 1-1/4"
B – Overlap of oven over side of edges of cutout 3/4"
C – Overlap of oven at bottom of cutout 1-1/4"
Oven
D – Overall depth with handle 27-3/16"
E – Overall height with trim 52-5/8"
F – Overall width 29-3/4"
9-1/2" MAX.
PT9550
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the floor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
23" minimum
door opening
allowance
Cutout depth
23-1/2" MIN
47" to
bottom of
junction box
22"
D
F
E
Conduit
40"
Junction box
location
C
L2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Suitable
bracing
to support
runners
(must support 375 lbs.)
Cabinet 30"
A – Overlap of oven at top of cutout 1-1/4"
B – Overlap of oven over side of edges of cutout 3/4"
C – Overlap of oven at bottom of cutout 1-1/4"
Oven
D – Overall depth with handle 27-3/16"
E – Overall height with trim 52-5/8"
F – Overall width 29-3/4"
9-1/2" MAX.
PT9550
B
30''
A
C
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the floor
12"
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
KW Rating
240V 9.0
208V 6.8
Breaker Size
240V 40 Amps
208V 40 Amps
Specification Revised 4/13 220154
PT9550DF
GE Profile™Series 30 in. Built-In Double Convection Wall Oven

Features and Benefits
• True European Convection with Direct Air (Both Ovens) - Bakes evenly
as warm air blows from the top in and around bakeware
• Connected - Wirelessly control oven functions from your smartphone
• Notification Lighting - Know the status of your oven functions with a
quick glance
• Ten-Pass Bake Element - Even baking is assured with heat that covers
more surface area
• Ten-Pass Dual Broil Element - Large and small dishes brown evenly
with two, full-coverage elements
• Self-Clean Heavy-Duty Roller Rack - Easily access items with a
rack that glides smoothly
• Progressive Halogen Oven Lighting - See what you’re baking with
lights that slowly illuminate the oven
• Self-clean with Steam Clean Option (Both Ovens) - Clean your oven the
way you want
• Glass Touch Controls - Set temperatures quickly and clean with
little effort
• Double Oven 10.0 cu. ft. Total Oven Capacity (5.0 cu. ft. Both Ovens) -
Large meals are easy with capacity that fits more at one time
• Model PT9550DFBB – Black on black
PT9550DFBB
Specification Revised 4/13 220154
PT9550DF
GE Profile™Series 30 in. Built-In Double Convection Wall Oven
