GE GSCS3PGXSS - 22.7 cu. Ft. Refrigerator Manual

"94 SxS Refer
A
Front View
Top View
G
D
C
F
BE
H
†Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 10-3/4" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 15".
Allow additional space for any necessary leveling adjustments.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Specification Revised 4/08 310287
Dimensions and Installation Information (in inches)
GSCS3PGX
GE®Counter-Depth 22.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Overall
Dimensions
Height to top of hinge (in.) A69-3/4
Height to top of case (in.) B68-3/4
Case depth without door (in.) C†23-7/8
Case depth less door handle (in.) D†26-3/4
Case depth with door handle (in.) E†29-1/4
Depth with fresh food door open 90° (in.) F†45-5/8
Width (in.) G35-3/4
Width with door open 90° inc. door handle (in.) H41
Air
Clearances
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1/2
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers'
standards.

Standard, New Construction
and Replacement Installation
Installation Tips to Maximize
the Built-In Look
• All wall/floor molding should be removed
prior to installation.
• Water recess on rear wall recommended to
prevent water line damage. 48" minimum
length, 1/4" diameter water line tubing
recommended.
• When possible, recess both copper water
line and electrical outlet. (See local codes)
• Front and rear leveling legs are adjustable
for the built-in look. (See owner’s manual)
• If optional collar trim kit is to be used or
anticipated, see collar trim installation on
next page for different rough-in dimensions.

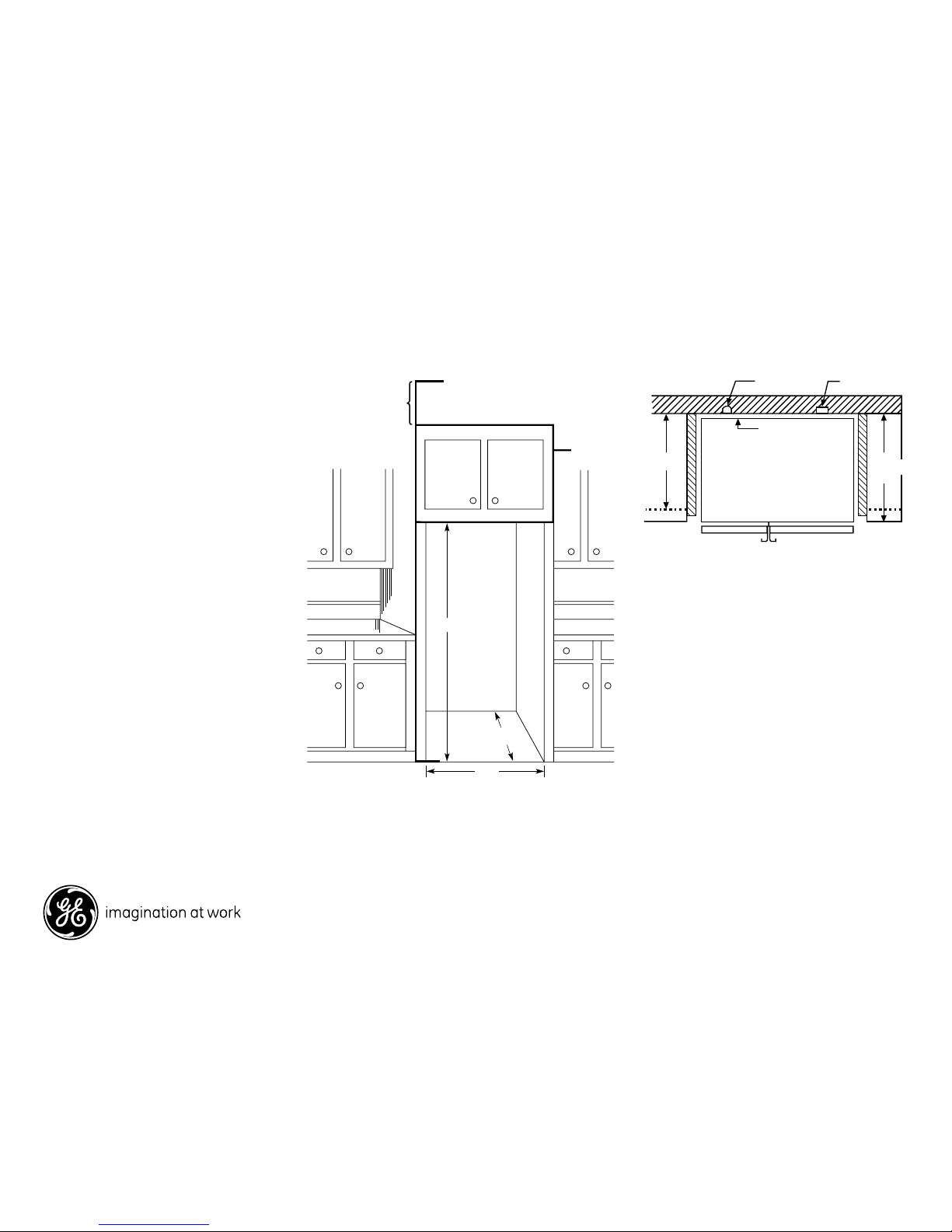

Rough-In Dimensions
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-3/4"*
36"
24"
*The rough-in dimension of 70-3/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (71") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Collar Trim In. w/ceiling
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-3/4"*
36"
24"
*The rough-in dimension of 70-3/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (71") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Collar Trim In. w/ceiling
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
Fig 2A eps
Specification Revised 4/08 310287
GSCS3PGX
GE®Counter-Depth 22.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser

Features and Benefits
• Counter-depth configuration - Counter-depth configuration makes it possible to have the look of a
built-in without the added expense
• Stainless steel exterior - Stainless steel adds elegance to any kitchen décor
• ClimateKeeper™system - Electronic controls, multiple electronic sensors and a multi-flow air system
help provide even cooling
• External controls with actual-temperature display and UltraFlow100 - See the exact temperature
and dispense 100 ounces of filtered water per minute
• Quick Ice™setting - Speed up your icemaker to keep up with your life
• Integrated Ice™system - Designed to give you more room to store your favorite frozen foods
• TurboCool™setting - Restores proper temperature to the refrigerator after frequent door openings
• Integrated shelf support system - Strong shelf supports add a contemporary look
• Adjustable ClearLook™door bins - Store gallon containers with ease in the door and free up valuable
shelf space
• In-the-door beverage rack - Beverages are easy to grab when you’re on the go
• Adjustable, slide-out spillproof glass shelves - Adjustable shelves are designed to make clean up
quick and easy
• GE water filtration - one year filter - Removing impurities means fresh-tasting water for your family
• F r o s t G u a r d ™technology - Controlled defrosting keeps frozen foods from feeling the burn
• Premium quiet design - Enjoy the sound of GE’s most advanced sound control system
• Model GSCS3PGXSS - Stainless steel
GSCS3PGXSS
