GE GTS22JCPARCC Original instructions

wwvv.GEAppliances.com
Safety Instructions
Adapter Plugs ................... 4
Connect Electricity ............... 4
Extension Cords ................. 3
Proper Disposal .................... 3
Safety Precautions ................ 2
Operating Instructions
Additional Features .............. 8
Automatic Icemaker .............. 9
Controls ....................... ,5
Shelves and Bins ............... 6, 7
Crispe_ and Pans .............. 8, 9
Care and Cleaning
Care and Cleaning ........... 10, 11
Replacing the Light Bulbs ........ 12
Installation Instructions
Preparing to Install
the Reli'igerator ................ 13
Rever_ing the Door Swing ...... 18-23
Water Line Installation ........ 14-17
Troubleshooting Tips
Before You Call For Service .... 25, 26
Normal Operating Sounds ........ 24
Consumer Support
Consumer Support ....... Back Cover
Product Registration .......... 27, 28
Warranty for Canadian Customers . .29
Warranty lbr U.S. Customers ...... 30
Write themodelandserial numbershere:
Model #
Serial #
Find these numbers on the gray label
on the left side, near the top of the
refi'igerator compartment.
Models22,25
200D2462PO02 49-60231 02-03JR

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner's ManuaL

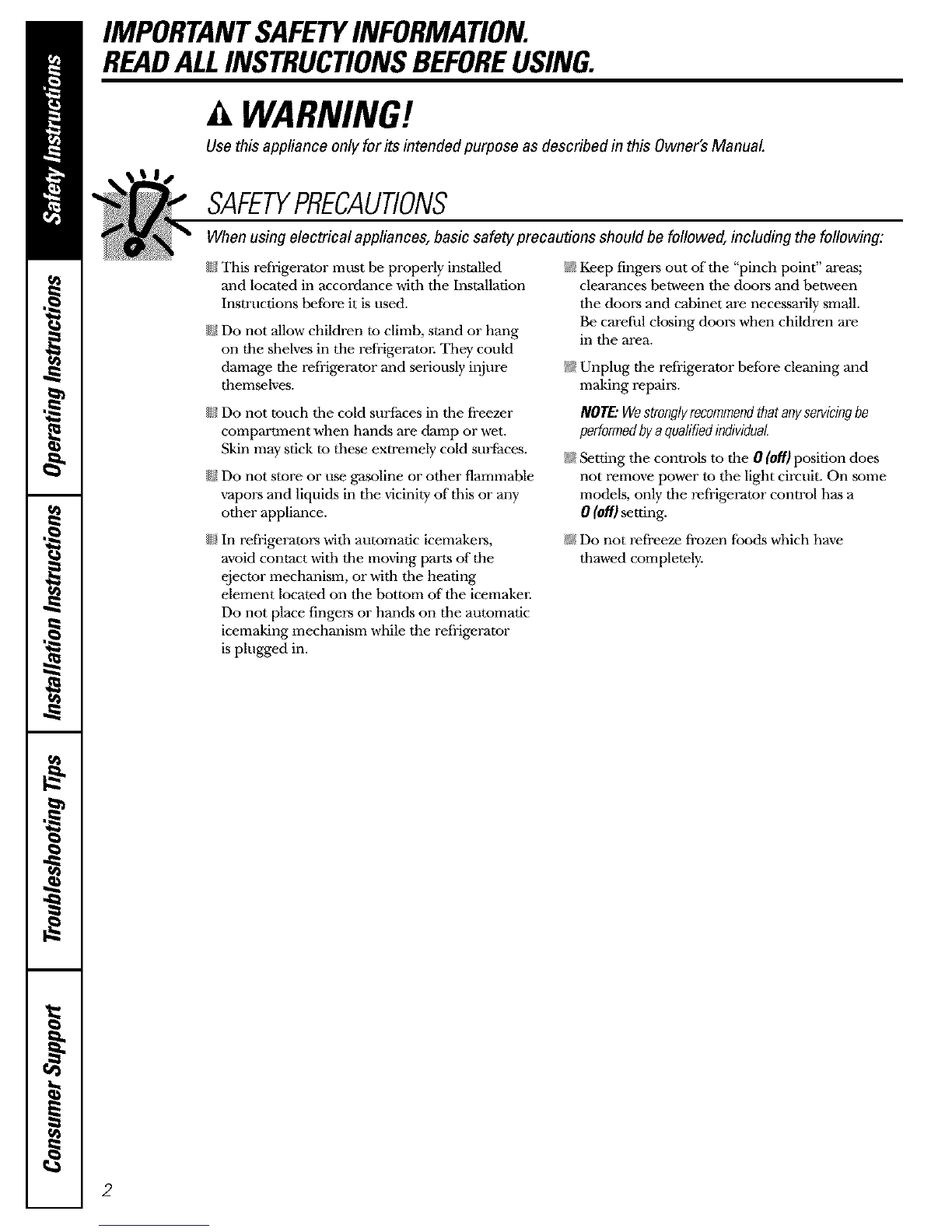

SAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
{ This refrigerator must be properly installed
and located in accordance with tile Installation
Instructions before it is used.
{_ Do not allow children to climb, stand or hang
on @e shelves in the refrigerator. They could
damage @e refiigerator and seriously injure
themselves.
{ Do not touch tile cold surfaces in tile freezer
compartment when hands are damp or wet.
Skin may stick to these extremely cold surfaces.
{_ Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
o@er appliance.
{ In refiigerators with automatic icemakers,
avoid contact with tile moving parts of @e
ejector mechanism, or with the heating
element located on the bottom of the icemaker.
Do not place fingers or hands on the automatic
icemaking mechanism while the refiigerator
is plugged in.
@ Keep fingm.-sout of the "pinch point" areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be care{hi closing doors when children are
in the area.
_ Unplug the refiigerator be{bre cleaning and
making repairs.
NOTE:Westronglyrecommendthatanyservicingbe
performedbyaqualifiedindividual
_ Setting the controls to the 0 (Off)position does
not remove power to the light circuit. On some
models, only the refiigerator control has a
0 (Off)setting.
@ Do not refreeze frozen foods which have
thawed completely.
2

ww_.GEAppliances.com
ADANGER!RISKOFCHILDENTRAPMENT
PROPERDISPOSALOFTHEREFRIGERATOR
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous...even if they
will sit for '.'just a few days." lfyou are getting
rid of your old refrigerator, please follow the
instructions below to help prevent accidents.
Before YouThrew Away YourOld
Refrigeratoror Freezer.
N Take off the doors.
Refrigerants
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an
old refrigeration product, check with the company
handling the disposal about what to do.
/}_5Leave the shelves in place so that children
may not easily climb inside.
USEOFEXTENSIONCORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the
use of an extension cord.
However; if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the elecnical rating of the cord be 15 amperes (minimum) and 190 volts.
3

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
AWARNING!

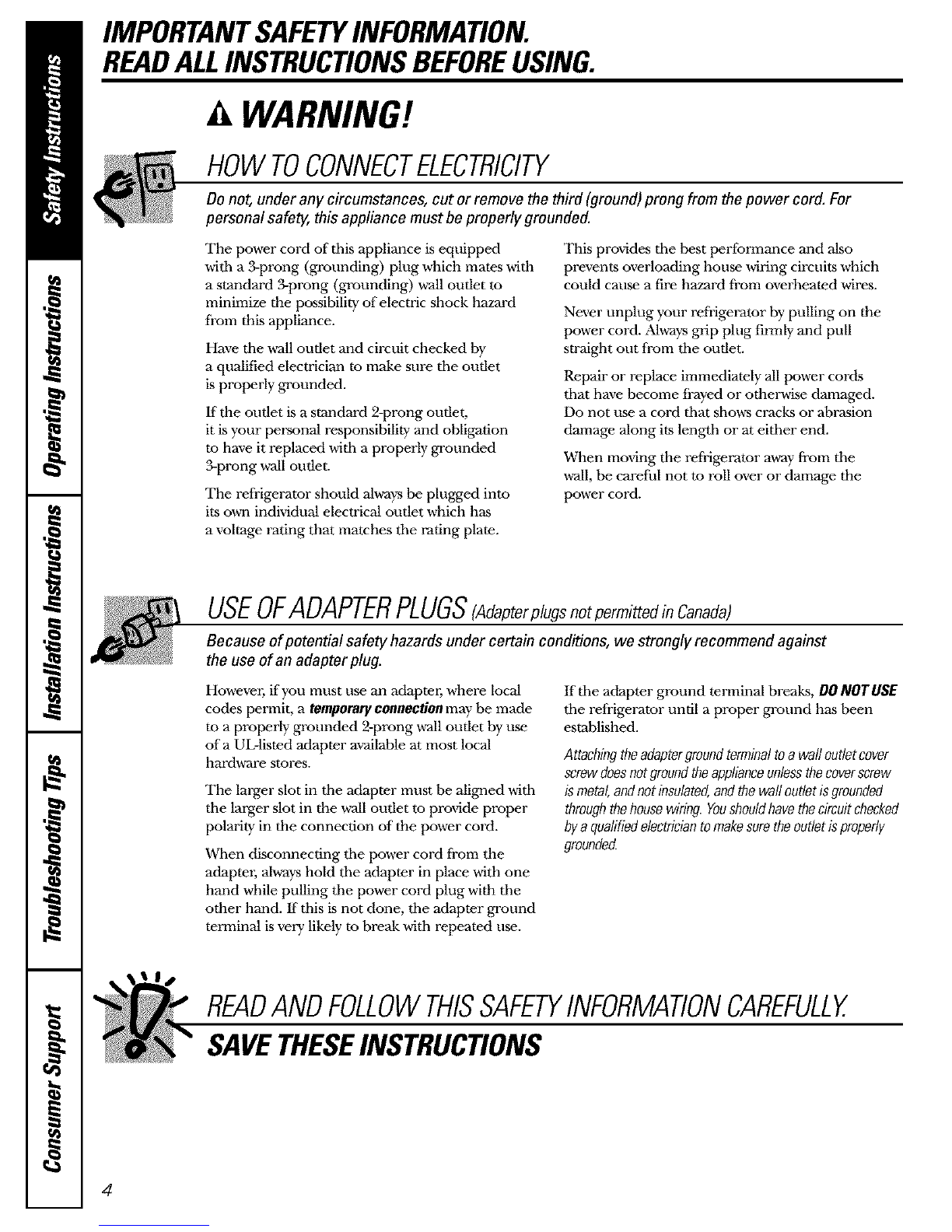

HOWTOCONNECTELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of tbis appliance is equipped
witb a g-prong (grounding) plug which mates with
a standard 3-prong (grounding) wall outlet to
minimize the possibility of electric shock hazard
from this appliance.
Have tile wall outlet and circuit checked by
a qualified electrician to make sure tile outlet
is properly grounded.
If the oudet is a standard 2-prong outlet,
it is your personal responsibility and obligation
to have it replaced witb a properly grounded
3-prong wall oudet.
The refrigerator should always be plugged into
its own individual electrical outlet which has
a voltage rating that matches tile rating plate.
This provides tile best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
Never unplug your refiigerator by pulling on the
power cord. _Mwaysgrip plug firmly and pull
sn'aight out from tim outlet.
Repair or replace immediately all power cords
tbat have become frayed or otherwise damaged.
Do not use a cord tbat shows cracks or abrasion
damage along its lengtb or at eitber end.
When moving the refiigerator away fi'om tim
wall, be careful not to roll over or damage the
power cord.
USEOFADAPTERPLUGS(Adoptorp/ugsnotpormi_dinC_nod_;
Because of potential safety hazards under certain conditions, we strongly recommend against
the use of an adapter plug.
Howevm; if you must use an adapter, where local
codes permit, a temporaryconnectionmay be made
to a properly grounded 2-prong wall outlet by use
ofa UL-listed adapter a'_ailable at most local
hardware stores.
The larger slot in tlle adapter must be aligned witb
tim la_er slot in tim wall outlet to provide proper
polarity in tim connection of tim power cord.
When disconnecting tlle power cord from the
adapter, al,a-ayshold tlle adapter in place with one
hand while pulling tlle power cord plug with tim
other hand. If tbis is not done, tlle adapter ground
terminal is very likely to break witb repeated use.
If tbe adapter ground terminal breaks, DO NOT USE
tbe refrigerator until a proper ground has been
established.
Attachingtheadaptergroundterminaltoa walloutletcover
screwdoesnotgroundtheapplianceunlessthecoverscrew
ismetal,andnotinsulated,andthewaftoutletisgrounded
throughthehousewiring.Youshouldhavethecircuitchecked
bya qualifiedelectriciantomakesuretheoutletisproperly
grounded.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
4

Aboutthecontrolson therefrigerator, www.GEAppliances.com
Thecontrols will look like one of the following:
Initially, set the refrigerator control at 5and the freezer control at 5
and allow 12-24 hours for the temperature to stabilize.
Several adjustments may be required. Adjust the controls one
increment at a time, and allow 12hours after each adjustment for
the refrigerator to reach the temperature you have set.
Setting the controls to 0stops cooling in both the refrigerator and
freezer compartments but does not shut off electrical power to
the refrigerator. Onsome models, only the refrigerator control has
aOsetting.
Touchpad controls
•Setting either control at 0will automatically set the other control at O.
The zeros will blink until you set the controls.
• If both controls are set at 0and either COLDERpad is pressed, the
controls will automatically reset to 5.
Control settings will varybased onpersonal preferences, usage and
operating conditions and may require more than one adjustment.
Locking the Controls (onsomemodels)
This feature allows you to lock the controls
so tile settings cannot be changed.
Tolockthecontrols:
O Set tile controls to the desired settings.
Press and hold tile lock pad for
3 seconds.
When the controls are locked, tile indicator
light will come on and tile control settings
will not be displayed.
Tounlockthecontrols:
Press and hold the lock pad for 3 seconds.
After unlocking tile controls, tile settings
will be displayed, tile lock indicator light
will go out and the settings can be changed.
5

Abouttheshelvesand bins.
Not all features are on all models.
Rearranging the Shelves
Shelves in the refiigerator and freezer compartments are adjustable.
Refrigerator Compartment
Toremove:
0 Tilt the shelf up at the fi'ont.
0 LifttheshelftheshelfUPout. at the back and bring
Somemodels have wire shelves that
can be adjusted in the same manne_
Toreplace:
While tilting tile shelf up, insert, tile top
hook at the hack of the shelf in a slot
on tile track.
Lower the fi'ont of the shelf until the
bottom of tile shelf locks into place.
Freezer Compartment
Toremove:
Lift up tile left side of the shelf and
slide it left into the center of the shelf
supports.
Rotate the right side of the shelf up and
out of"the shelf supports.
Toreplace:
Holding the shelf diagonally, insert the
left end of tile shelf into the center of
the shelf supports on the side wall at the
desired level.
Insert the right end of the shelf into tile
shelf supports at the same level. Rest
each end of the shelf on tile bottom of
tile shelf supports.
NOTE:Formodelswithanautomaticicemaker,
thefreezershelfmustbein thelowerposition
fortheicecubebuckettocatchthecubes.
Spillproof Shelves (on somemodels)
Spillproof shelves have special edges to
help prevent spills fi'om dripping to lower
shelves. To remove or replace tile shelves,
see Rearranging the Shelves.
6

ww_.GEAppliances.com

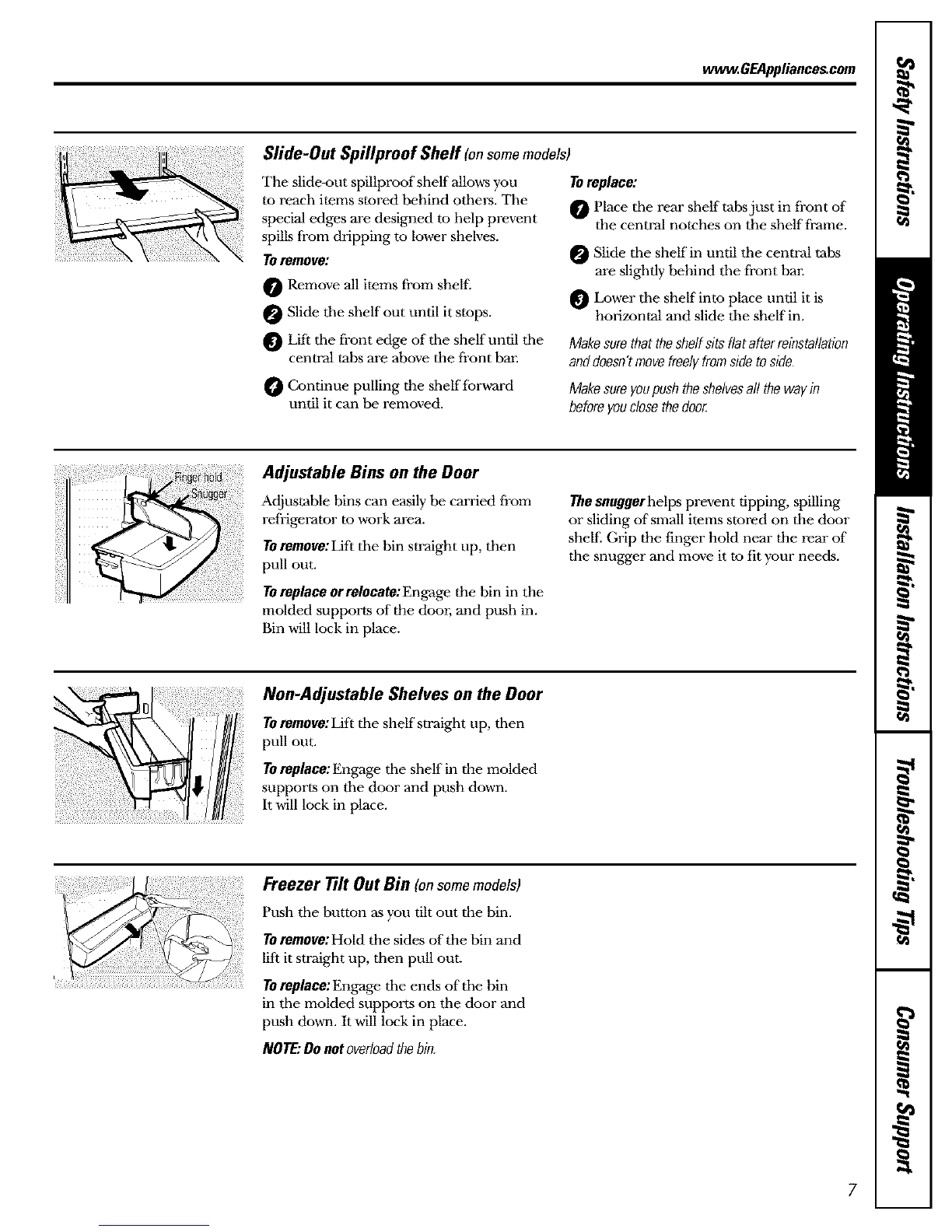

Slide-Out Spillproof Sheff (onsomemodels)
The slide-out spillproof shelf allows you
to reach items stored behind othm.-s.The
special edges are designed to help prevent
spills from dripping to lower shelves.
Toremove:
O Remove all items from shel£
Slide the shelf out until it stops.
Lift the front edge of the shelf until the
central tabs are above the front bar.
Continue pulling the shelf fbrward
until it can be removed.
Toreplace:
Place tile rear shelf tat)s just in front of
the central notches on the shelf frame.
Slide tile shelf in until tile central tabs
are slightly behind tile front bar.
Lower tile shelf into place until it is
horizontal and slide tile shelf in.
Makesurethattheshelfsitsflatafterreinstallation
anddoesn'tmovefreelyfromsidetoside.
Makesureyoupushtheshelvesall thewayin
beforeyouclosethedoor.
Adjustable Bins on the Door
Adjustable bins can easily be carried from
refrigerator to work area.
TOremove:Lift the bin sn'aight up, then
pull out.
TOreplace orrelocate:Engage the bin in the
molded supports of the door, and push in.
Bin will lock in place.
The snuggerhelps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Grip the finger hold near the rear of
the snugger and move it to fit your needs.
Non-Adjustable Shelves on the Door
To remove:Lift the shelf sn'aight up, then
pull out.
TOreplace: Engage the shelf in the molded
supports on the door and push down.
It will lock in place.
Freezer Tilt Out Bin (onsomemodels)
Push the button as you tilt out the bin.
TOremove: Hold the sides of the bin and
lift it straight up, then pull out.
1"0replace: Engage the ends of the bin
in the molded supports on the door and
push down. It will lock in place.
NOTE:Donotoverloadthebin.

Abouttheadditionalfeatures.
Not all features are on all models.
_Sheff Saver Rack (onsomemodels)
Slide-out beverage rack holds 12 cans of
soda or 2 wine/water botdes (lengthwise).
It can be removed for cleaning.
TOremove, slide tile lack out to tile stop
position, lift the rack up and past tile stop
position and lift it out.
Aboutthecrispersandpans.
Not all features are on all models.
Fruit and Vegetable Crisper
Excess water that may accumulate in the
bottom of the drawers or under the drawers
should be wiped dry.
Adjustable Humidity Crisper (onsomemodels)
Slidethecon ol.'lthewaytothe Slidethecon olallthewartothe'OW
_5.. m _ -- _. b HIGHsetting to provide high humidivy setting to provide lower humidivy levels
recommended for most vegetables, recommended for most fruits.
Snack Pan (onsomemodels)
This pan can be moved to the most
useful location for your family's needs. TOremove, slide the pan out to the stop position, lift the pan up and past the
stop position and lift it out.
Adjustable Temperature Deli Pan (onsomemodels)
When the pan is placed in the top 6 slots on
the left side and the lever is set at COLDESt,
air fi'om the fi'eezer is fbrced around the
pan to keep it very cold.
You can move the pan to any location if
you don't want the extra cold storage.
The settings can be adjusted anyyvhere
between cold _ and coldest j_.
When set at cold, the pan will stay at the
normal refi'igerator temperature.
The coldest setting provides the coldest
storage area.
8

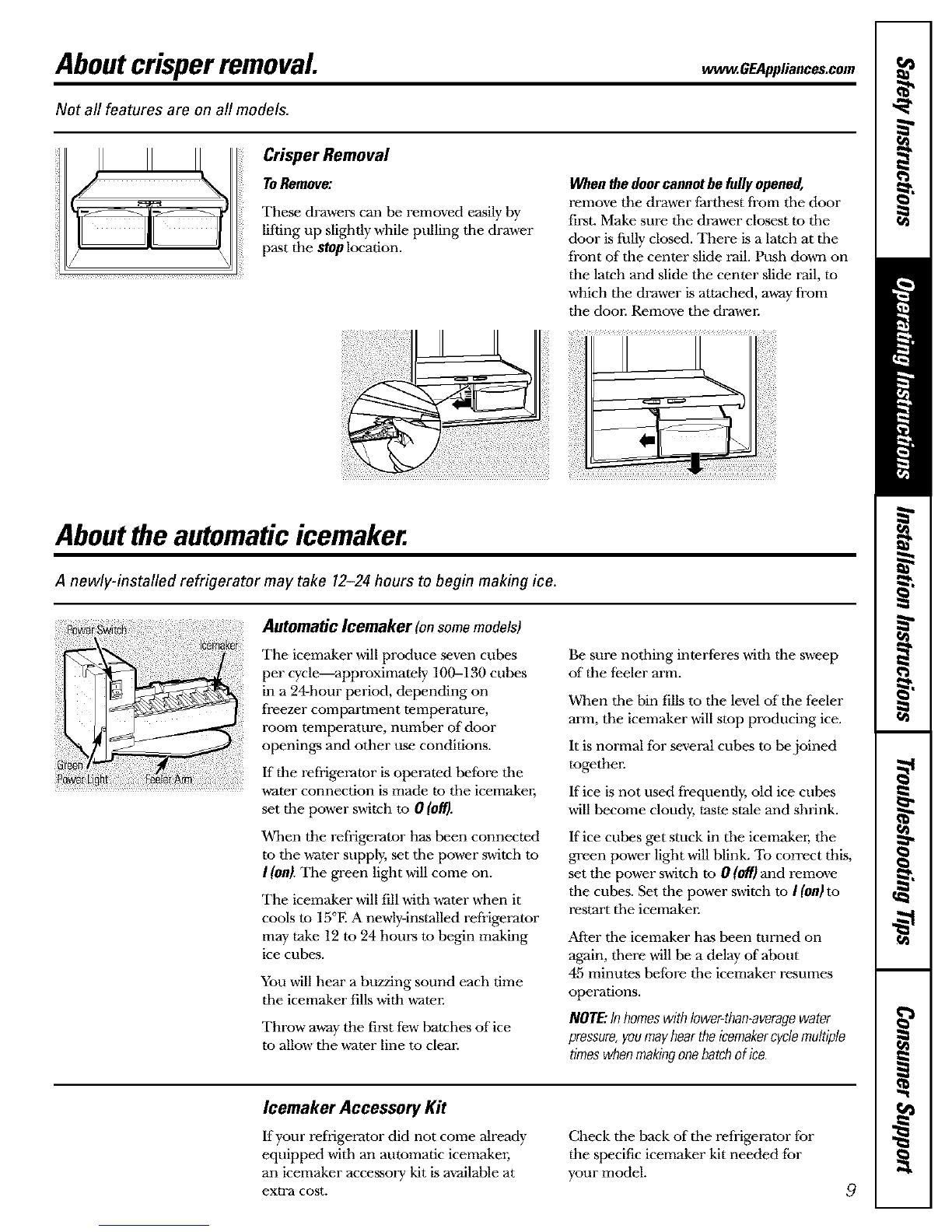

Aboutcrisperremoval ww_.GEAppliances.com
Not all features are on all models.
Crisper Removal
ToRemove:
These drawers can be removed easily by
lifting up slightly while pulling tile drawer
past the stoplocation.
Whenthedoorcannotbefullyopened,
remove the drawer t:arthest from tile door
first. Make sure tile drawer closest to tile
door is fiallyclosed. There is a latch at tile
front of the center slide rail. Push down on
the latch and slide the center slide rail, to
which tile drawer is attached, away from
the door. Remove the drawee
Abouttheautomaticicemaker.
A newly-installed refrigerator may take 12-24 hours to begin making ice.
Automatic Icemaker (onsomemodels)
The icemaker will produce seven cubes
per cycle---approximately 100-130 cubes
in a 24-hour period, depending on
freezer compamnent temperature,
room temperature, number of door
openings and other use conditions.
If the refrigerator is operated before the
..................................................................................water connection is made to the icemake_;
set the power switch to 0 (Off).
When the refrigerator has been connected
to the water supply, set the power switch to
1(on).The green light will come on.
The icemaker will fill with water when it
cools to 15°E A newly-installed refrigerator
may take 12 to 24 hours to begin making
ice cubes.
You will hear a buzzing sound each time
the icemaker fills with water.
Throw away the first few batches of ice
to allow the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal fbr several cubes to be joined
together.
ff ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
ff ice cubes get stuck in the icemake_; the
green power light will blink. To correct this,
set the power switch to 0 (off) and remove
the cubes. Set the power switch to I (on)to
restart the icemaker.
After the icemaker has been turned on
again, there will be a delay of about
45 minutes before the icemaker resumes
operations.
NOTE:Inhomeswithlower-than-averagewater
pressure,youmayheartheicemakercyclemultiple
timeswhenmakingonehatchofice.
Icemaker Accessory Kit
If your refiigerator did not come already
equipped with an automatic icemake_;
an icemaker accessory kit is available at
extra cost.
Check the back of the refrigerator for
the specific icemaker kit needed for
your model. 9

Careand cleaning oftherefrigerator.
Cleaning the Outside
Thedoorhandlesandtrim.Clean with a cloth
dampened with soapy water. Dry with a
soft cloth.
Keep the outside clean. Wipe with a clean
cloth lightly dampened with mild liquid
dish detergent. Dry with a clean, soft cloth.
Donotwipetherefrigeratorwitha soileddish
clothorwettowel Thesemayleavea residuethat
canerodethepaint.Donotusescouringpads,
powderedcleaners,bleachorcleanerscontaining
bleachbecausetheseproductscanscratchand
weakenthepaintfinish.
Cleaning the Inside
TOhelpprevent odors, leave an open box of
baking soda in the refiigerator and freezer
compartments.
Unplugtherefrigeratorbeforecleaning.
If"this is not practical, wring excess moisture
out of sponge or cloth when cleaning
around switches, lights or controls.
Use warm water and baking soda solution--
about a tablespoon (15 ml) of baking soda
to a quart (1 liter) ofwateE This both cleans
and neutralizes odors. Thoroughly rinse
and wipe &T-
Avoidcleaningcoldglassshelves[onsomemodels)
withhotwaterbecausetheextremetemperature
differencemaycausethemtobreakHandleglass
shelvescarefully.Bumpingtemperedglasscan
causeit toshatter.
Donotwashanyrefrigeratorpartsin thedishwasher
Washicetraysinlukewarmwateronly--do notput
theminanautomaticdishwasher.
10

ww_.GEAppliances.com
Behind the Refrigerator
Be carefill when moving tim refiigerator
avcay from tbe w_ll. All types of floor
coverings can be damaged, particularly
cushioned coverings and tbose with
embossed surfaces.
Pull tile refrigerator straigbt out and return
it m position by pushing it straight in.
Moving the refrigerator in a side direction
may result in damage to the floor covering
or reffigeraton
Whenpushingtherefrigeratorback,makesureyou
don'trolloverthepowercordoricemakersupplyline
&nsomemodels).
Preparing for Vacation
For long vacations or absences, remove
food and unplug the refiigeraton Move
tile freezer control to the 0['Off)position,
and clean tim interior with a baking soda
solution of one tablespoon (15 ml) of
baking soda to one quart (1 liter) ofwaten
Leave the doors open.
Set tbe icemaker power switch to tbe 0 (Off)
position and shut off tbe water supply to
tim refiigeraton
ff tbe temperature can drop below freezing,
have a qualified servicer drain tbe water
supply system (on some models) to prevent
serious propervy damage due to flooding.
Preparing to Move
Secure all loose items such as base grille,
shelves and drawers by taping them securely
in place to prevent damage.
Besuretherefrigeratorstaysinanuprightposition
duringmoving.
11

Replacingthe light bulbs.
Turning the control to the 0 (off) position does not remove power to the light circuit.
Refrigerator Compartment
ACAUTlON:Light .l sma ehot.
0 Unplug the refrigerator.
The bulbs are located at the top of
the refrigerator compartment near
the opening. On rome models, a light
shield will have to be removed.
To remove the light shield, grasp the
shield as shown. Squeeze the shield
and rotate the shield tovcard the back
of the refrigerato_: The light shield
will pop out.
Replace tile bulb with an appliance
bulb of the same or lower wattage.
On models with a light shield, replace
tile light shield.
Plug the refrigerator back in.
Lightshield
' ' ] _ I I r¢ '_]' i] ' ......
Freezer Compartment Light (onsome models)
CAUTlON:Ligh ho .
Unplug the refrigerator.
The bulb is located behind a light
shield at the back of the freezer
compartment. To remove, squeeze
the mp and bottom of the shield and
pull the shield off
After replacing with an appliance bulb
of the same or lower wattage, replace
the shield.
Plug the refrigerator back in.
_:_ _. Pocket
i ¸;> /; ;;;i¸;;;;;;!;;;;;;
Freezer Compartment Dome Light (onsomemodels)
ACAUTlON:Ligh .l eho .
Unplug the refrigerator.
_The bulb is located at the top of the
freezer compamnent inside the dome
light shield. To remove the shield, place
your finger in the pocket at the back
of"the shield. Pull the shield forward
and down.
After replacing with an appliance
bulb of the same or lower wattage,
replace the shield.
Plug the refrigerator back in.
12

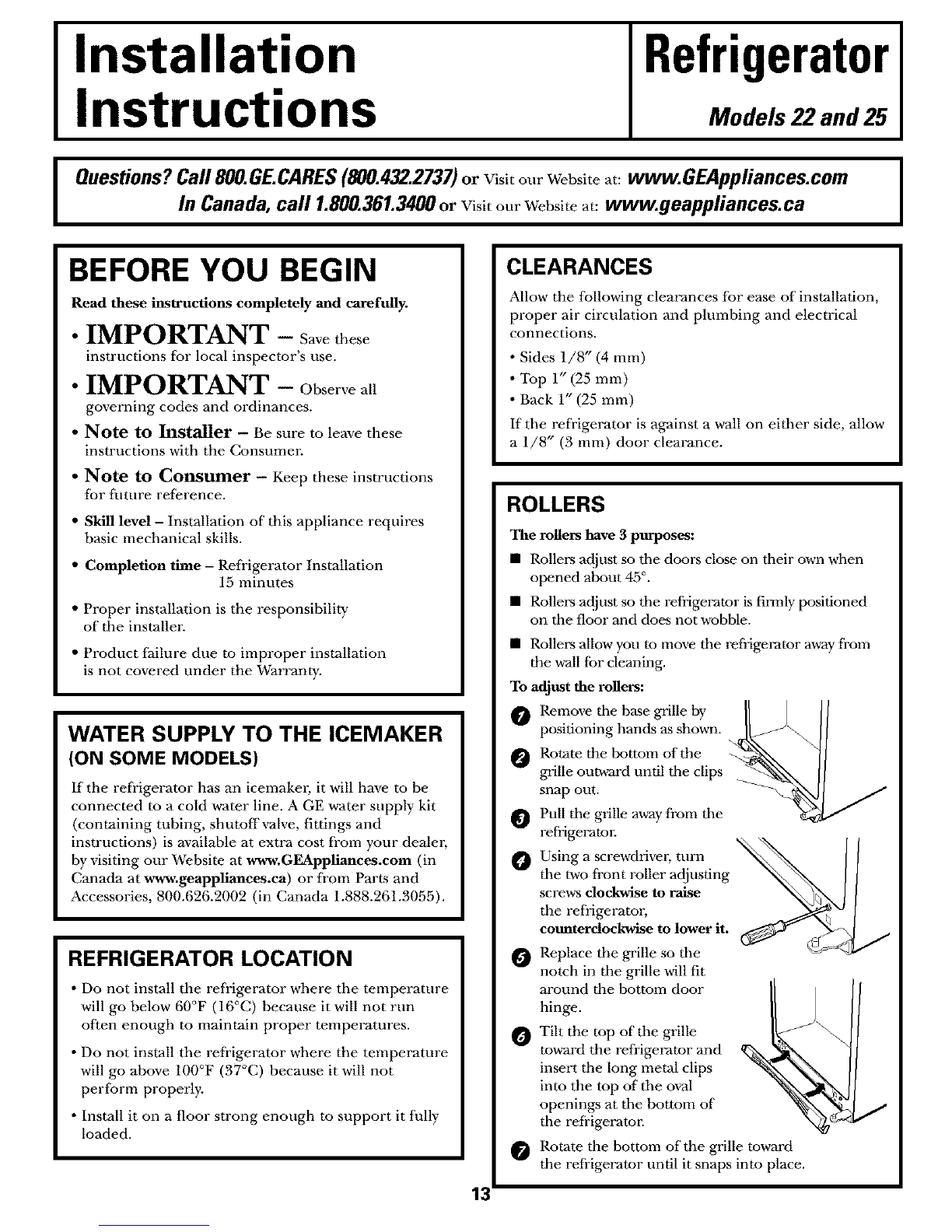

Installation
Instructions Refrigerator
Models 22and 25
Questions?Call800.GE.CARES(800.432.2737)or Visitour Wehsite at: www.GEAppliances.com
In Canada,call 1.800.361.3400or VisitourWehsiteat:www.geappliances.ca I
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT - Savetheso
instructions for local inspector's use.
•IMPORTANT - Obsorvoall
governing codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumes:
• Note to Consunmer - Keep these instructions
tor flKure reference.
• Skill level - Installation of this appliance requires
basic mechanical skills.
• Completion time - Refrigerator Installation
15 minutes
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under the Warranty.
WATER SUPPLY TO THE ICEMAKER
(ON SOME MODELS)
If the refrigerator has an icemakm; it will have to be
connected to a cold v_-ater line. AGE w-ater supply kit
(containing tubing, shutoff valve, fittings and
instructions) is available at extra cost fi'om your dealm;
by visiting our Website at www.GEAppliances.com (in
Canada at www.geappliances.ea) or from Parts and
Accessories, 800.626.2002 (in Canada 1.888.261.3055).
REFRIGERATOR LOCATION
• Do not install the refrigerator where the temperature
will go below 60°F (16°C) because it will not run
often enough to maintain proper temperatures.
• Do not install the refrigerator where the temperature
will go above 100°F (37°C) because it will not
perform properly.
• Install it on a floor strong enough to support it fully
loaded.
13
CLEARANCES
Allow the following clearances tor ease of installation,
proper air circulation and plumbing and electrical
connections.
• Sides 1/8" (4 mm)
• Top 1" (25 mm)
• Back 1" (25 mm)
If the refrigerator is against a wall on either side, allow
a 1/8" (3 mm) door clearance.
ROLLERS
The rollers have 3 pml_oses:
• Rollers adjust so the doors close on their own when
opened about 45 °.
• Rollers adjust so the refrigerator is firmly positioned
on the floor and does not wobble.
• Rollers allow you to move the refiigerator away from
the wall for cleaning.
To adjust the rollers:
ORemove the base grille by
positioning hands as sho_n.
Rotate the bottom of the
grille outu_ard until the clips
snap out.
Pull the grille away from the
refrigerator.
Using a screwdriver, turn f
the two front roller adjusting
scre,a_ clockwise to raise
the refrigerator,
counterclockwise to lower it.
O
O
Replace the grille so the
notch in the grille will fit
around the bottom door
hinge.
Tilt the top of the grille
toward the refiigerator and
insert the long metal clips
into the top of the oval
openings at the bottom of
the refrigerator.
Rotate the bottom of the grille toward
the refrigerator until it snaps into place.
>
J
J

Installation Instructions
INSTALLING THE WATER LINE (ON SOME MODELS)
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of
tubing you need. Approved plastic v_-ater supply lines
are GE SmartConnect '' Refrigerator Tubing
(WX08X10002, WX08X10006, WX08X10015 and
WX08X10025).
When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation
is with a GE RVKit. For other reverse osmosis water
systems, follow the manufacturer's recommendations.
This water line installation is not warranted by the
refrigerator or icemaker manufacturen Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing
the water supply line to the refi'igeratol:
To prevent burns and product damage, do not hook
up the w-ater line to the hot water line.
If you use your refrigerator befbre connecting the
water line, make sure the icemaker power switch is
in the 0foil') position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent tile
hazard of electric shock, or is battery powered.
All installations must be in accordance with local
plumbing code requirements.
WHAT YOU WILL NEED
•Copper or GE SmartConnect TM Refrigerator Tubing
kit, 1/4" outer diameter to connect the refrigerator
to the water supply. If using coppm; be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance fi'om the w-ater valve on the back of the
refrigerator to the water supply pipe. Then add 8"
(2.4 m). Be sure there is sufficient extra tubing
(about 8' [2.4 m] coiled into 3 turns of about 10"
[25 cm] diameter) to allow the refrigerator to move
out J[i'om the wall after installation.
GE SmartConnect ''_Refrigerator Tubing Kits are
available in the follo,adng lengths:
2' (0.6 m) - WX08X10002
6' (1.8 m) - WX08X10006
15" (4.6 m) - WX08X10015
25" (7.6 m) - WX08X10025
Be sure that the kit you select allows at least 8" (2.4 m)
as described above.
NOTE: The only GE approved plastic tubing is that
supplied in GE SmartConnect TM Refrigerator Tubing
kits. Do not use any other plastic water supply line
because the line is under pressure at all times. Certain
types of plastic will crack or rupture with age and
cause water damage to your home.
14

Installation Instructions

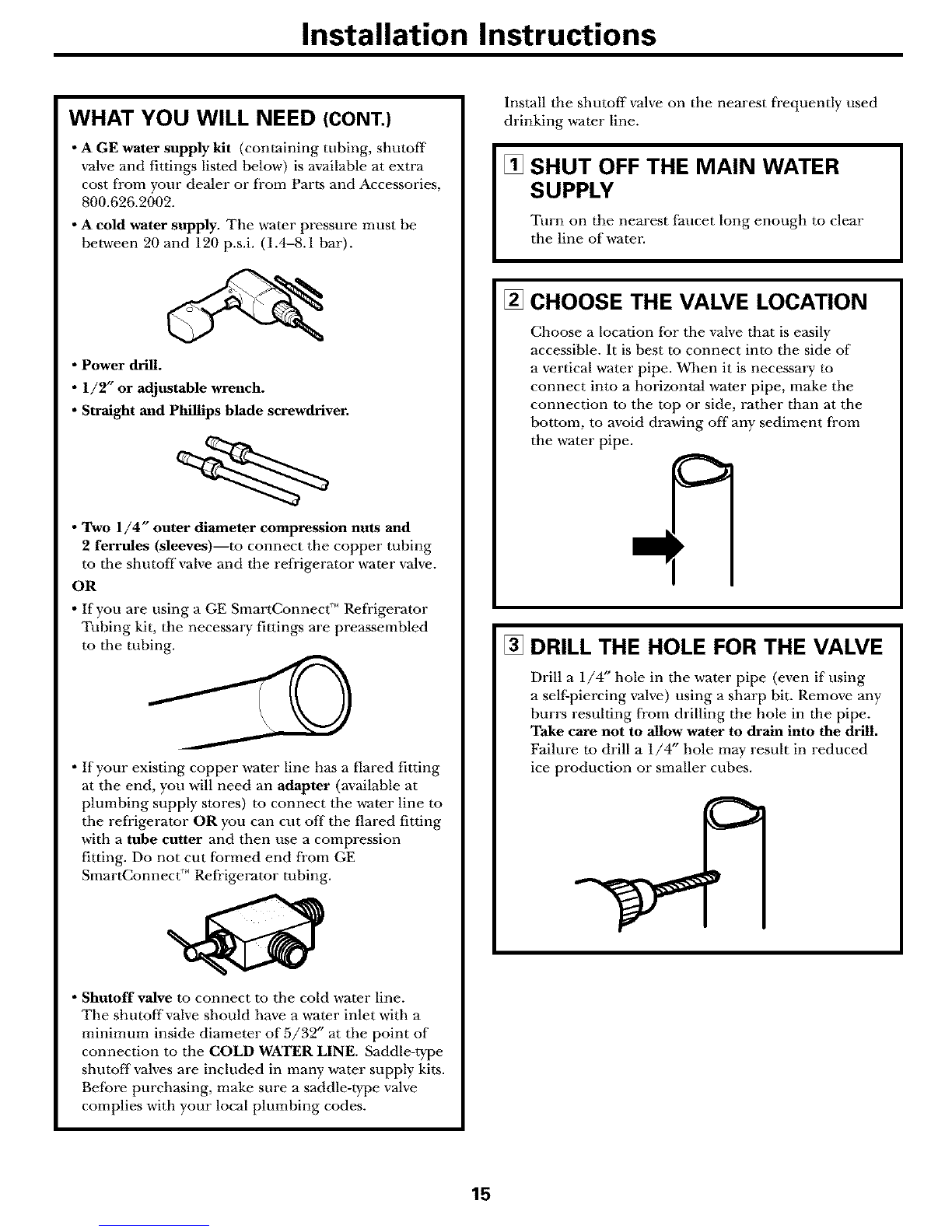

WHAT YOU WILL NEED (CONT.)
• AGE water supply kit (conVaining tubing, shutoff
valve and fittings listed below) is available at extra
cost from your dealer or from Parts and Accessories,
800.626.2002.
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i. (1.4-8.1 bar).
•Power drill.
• 1/2" or adjustable wrench.
•Straight and Phillips blade screwdriver.
•Two 1/4 "outer diameter compression nuts and
2 ferrules (sleeves)--to connect the copper tubing
to tile shutoffvalve and the refrigerator water valve.
OR
• If you are using a GE SmartConnect '_ Refi'igerator
Tubing kit, the necessary fittings are preassembled
to tile tubing.
• If your existing copper ,a-ater line has a flared fitting
at the end, you will need an adapter (available at
plumbing supply stores) to connect the water line to
the refrigerator OR you can cut off the flared fitting
with a tube cutter and then use a compression
fitting. Do not cut formed end from GE
SmartConnec( _ Refi'igerator tubing.
• Shutoff valve to connect to the cold water line.
The shutoffvalve should have a water inlet with a
minimum inside diameter of 5/32" at the point of
connection to the COLD WATER LINE. Saddle-type
shutoff valves are included in many ,a-ater supply kits.
Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
Install the shutoff valve on the nearest fi'equently used
drinking ,a-arer line.
[] SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough to clear
the line of w-aten
[] CHOOSE THE VALVE LOCATION
Choose a location for the valve that is easily
accessible. It is best to connect into the side of
a vertical water pipe. When it is necessary to
connect into a horizontal water pipe, make the
connection to the top or side, rather than at the
bottom, to avoid drawing off any sediment from
the water pipe.
[] DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water pipe (even if using
a self-piercing valve) using a sharp bit. Remove any
burrs resulting from drilling the hole in the pipe.
Take care not to allow water to drain into the drill.
Failure to drill a1/4" hole may resuh in reduced
ice production or smaller cubes.
15

Installation Instructions
INSTALLING THE WATER LINE (CONT.)
[] FASTEN THE SHUTOFF VALVE
Fasten tile shutoff valve to the cold water pipe with
the pipe clamp.
PipeClamp--
Saddle-TypeJ JerticalCold
ShutoffVaNe Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered m. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumbm:
[] TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the
tubing. Washer
PipeClamp_ _lnlet End
Clam€
[] ROUTE THE TUBING
Route tile tubing between the cold water line and
the refrigerator.
Route tile tubing through a hole drilled in tile wall
or floor (behind the refrigerator or ac{jacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing
(about 8 feet [244 cm] coiled into 3 turns of about
10" [25 cm] diameter) to allow the refl'igerator to
move out from the wall after installation.
[] CONNECT THE TUBING TO THE
VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into tbe
valve. Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect _'_
Refrigeratur Tubing kit, insert the molded end
of the tubing into the shutuff valve and tighten
compression nut until it is hand tight, then tighten
one additional turn with a wrench. Overdghtening
may cause leaks.
Nut
Saddle-Type
ShutoffValve ,_ SmartConnect_
Tubing
PackingNut /
OutletValve_/ Ferrule{sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered tu. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumbm:
[] FLUSH OUT THE TUBING
Turn tbe main ,a-ater supply on and flush out the
tubing until the water is clea_:
Shut the water offat the water valve after about
one quart (1 liter) of water has been flushed
through the tubing.
16

Installation Instructions
[] CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
• Before making the connection to the refrigerator,
be sure the refrigerator power cord is not plugged
into the wall outlet.
• We recommend installing a w-ater filter if your
w-ater supply has sand or particles that could clog
tile screen of tile refrigerator's water valve. Install
it in tile water line near the refrigerator: If using
GE SmartConnect '" Refrigerator Tubing kit,
you will need an additional tube (WX08X10002)
to connect the fllten Do not cut plastic tube to
install filtm:
Remove the access covm:
Remove the plastic flexible cap from the water
valve (refrigerator connection).
Place the compression nut and ferrule (sleeve)
onto tile end of the tubing as shown. On GE
SmartConnect TM Refrigerator Tubing kit,
the nuts are already assembled to the tubing.
[] CONNECT THE TUBING TO THE
REFRIGERATOR (CONT.)
Insert the end of the tubing into the water valve
connection as far as possible. While holding the
tubing, tighten the fitting.
For plastic tubing from a GE SmartConnect _"
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoffvalve and tighten
compression nut until it is hand tight, then
tighten one additional turn with a wrench.
Overtightening may cause leaks.
Fasten the tubing into the clamp proxdded to
hold it in a vertical position. You may need to
pry open the clamp.
_1/4" Tubing
1/4"Compression
Nut
Ferrule
(sleeve}
Refrigerate SmartConnecU
Connection Tubing
[] TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that leak.
Reattach the access coven
17

Installation Instructions
INSTALLING THE WATER LINE (CONT.)

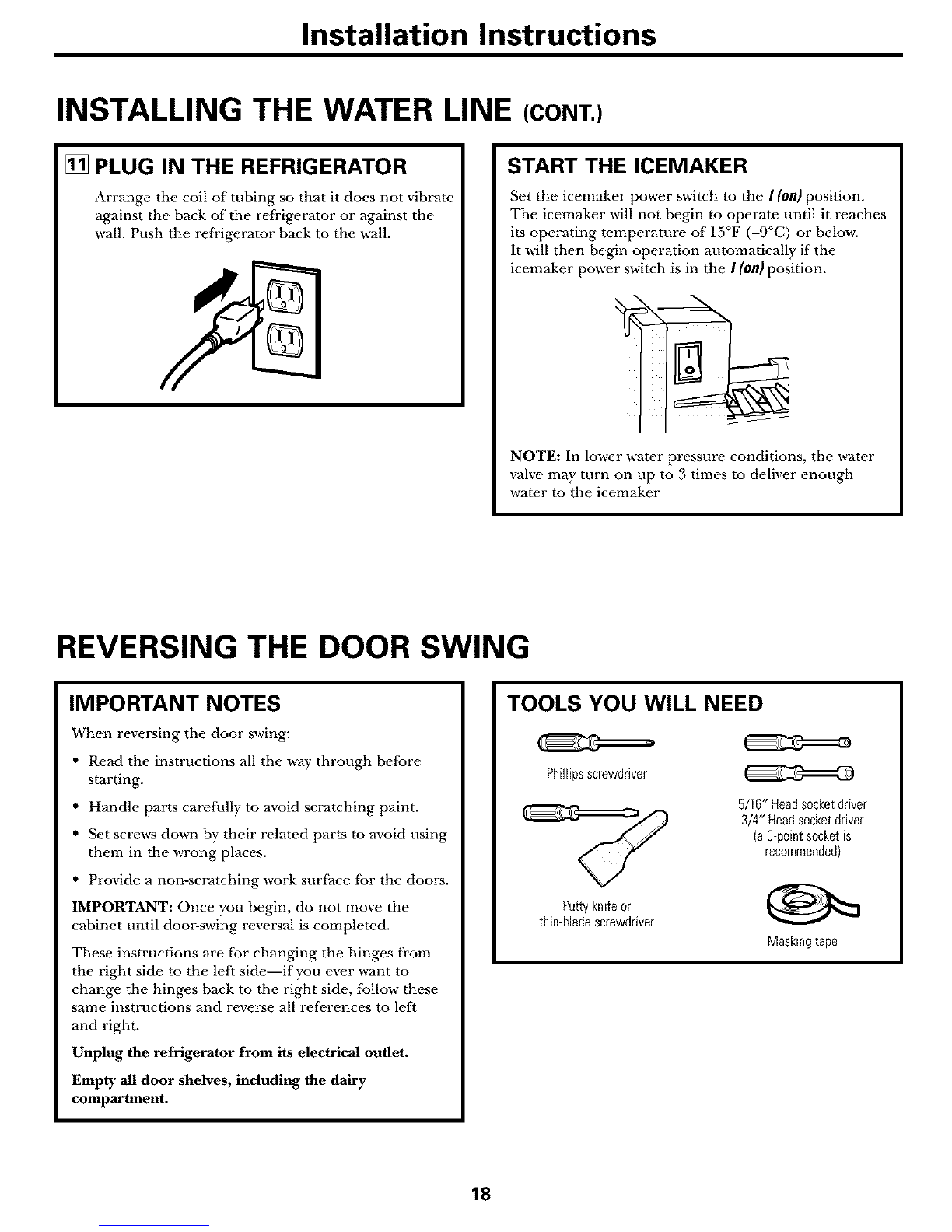

[] PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of tile refi'igerator or against the
wall. Push the refrigerator back to the wall.
START THE ICEMAKER
Set the icemaker power s,Mtch to the I (On)position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (-9°C) or below.
It will then begin operation automatically if the
icemaker power switch is in the I(On}position.
NOTE: In lower water pressure conditions, the w-ater
valve may turn on up to 3 times to deliver enough
water to the icemaker
REVERSING THE DOOR SWING
IMPORTANT NOTES
When reversing the door swing:
• Read the instructions all the way through before
starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using
them in tile wrong places.
• Provide a non-scratching work surface for the doors.
IMPORTANT: Once you begin, do not move the
cabinet until door-swing reversal is completed.
These instructions are fbr changing the hinges fi'om
the right side to the left side--if you ever want to
change the hinges back to tile right side, follow these
same instructions and reverse all references to left
and right.
Unplug the refrigerator from its electrical outlet.
Empty all door shelves, including the dairy
compartment.
TOOLS YOU WILL NEED
Phillipsscrewdriver
Puttyknifeor
thin-bladescrewdriver
5/16"Headsocketdriver
3/4" Headsocketdriver
{a 6-pointsocketis
recommeeded)
Maskingtape
18

Installation Instructions

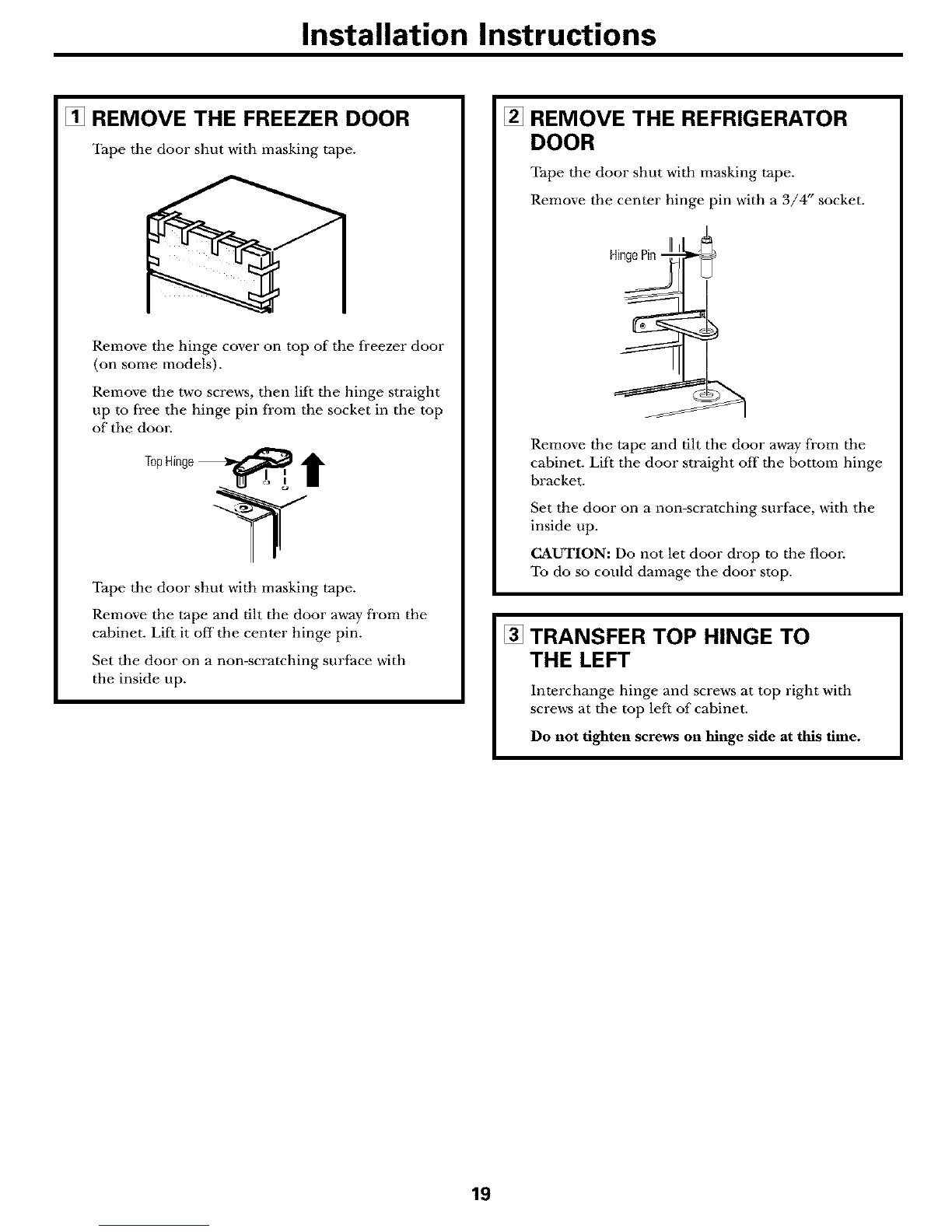

[] REMOVE THE FREEZER DOOR
Tape the door shut with masking tape.
Remove the hinge cover on top of the fi'eezer door
(on some models).
Remove the two screws, then lit} tbe hinge straight
up to free the hinge pin from the socket in the top
of the door.
Tape the door shut with masking tape.
Remove the tape and tilt the door away from the
cabinet. Lift it off the center hinge pin.
Set the door on a non-scrawhing surface with
the inside up.
[] REMOVE THE REFRIGERATOR
DOOR
Tape the door shut with masking tape.
Remove the center hinge pin with a 3/4" socket.
HingePinI_
Remove the tape and tilt the door away from the
cabinet. Lit} the door straight off tile bottom hinge
bracket.
Set the door on a non-scratching surface, with the
inside up.
CAUTION: Do not let door drop to the flora:
To do so could damage the door stop.
[] TRANSFER TOP HINGE TO
THE LEFT
Interchange hinge and screws at top right with
screws at tile top left of cabinet.
Do not tighten screws on hinge side at this time.
19

Installation Instructions

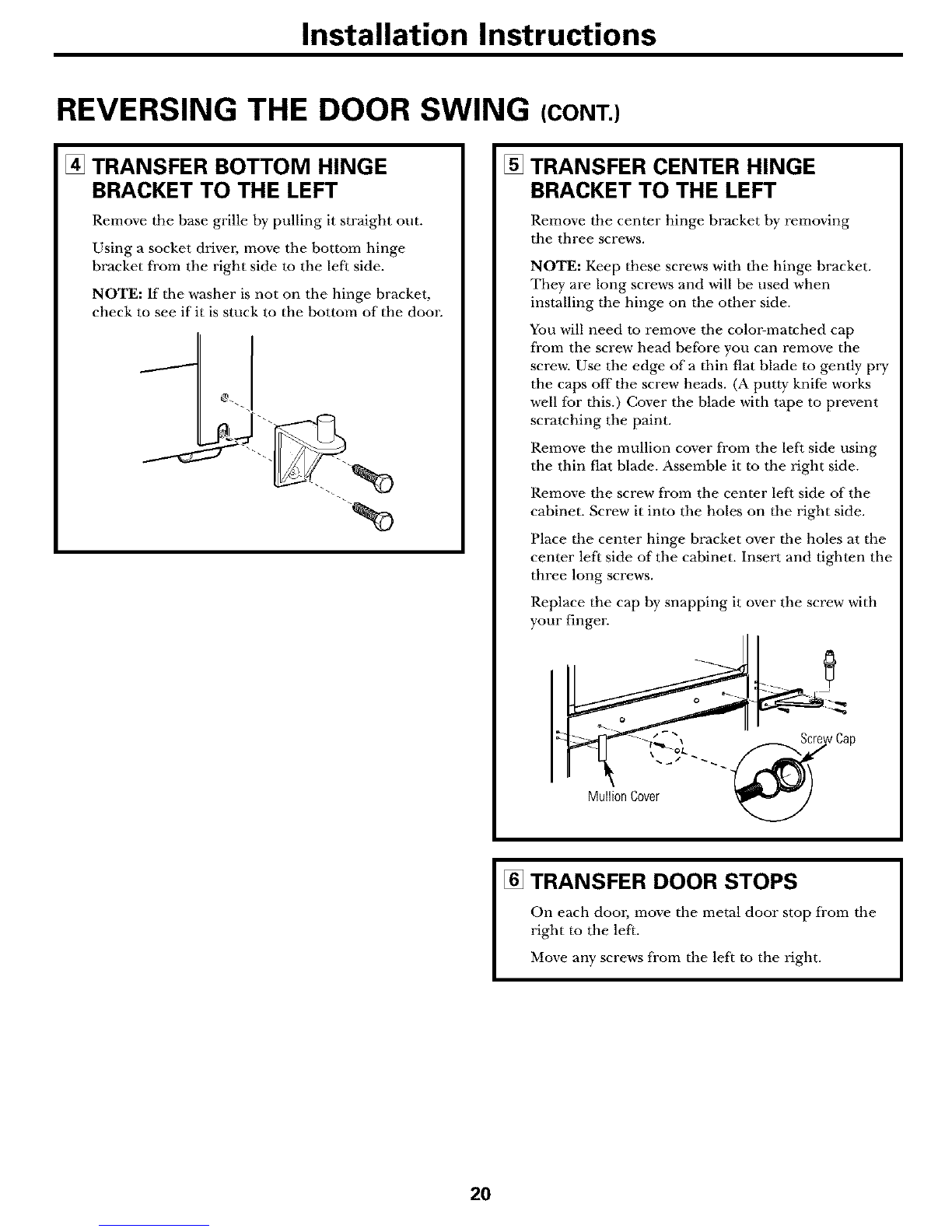

REVERSING THE DOOR SWING (CONT.)
[] TRANSFER BOTTOM HINGE
BRACKET TO THE LEFT
Remove the base grille by pulling it straight out.
Using a socket drivel; move the bottom hinge
bracket from the right side to the left side.
NOTE: If tile washer is not on the hinge bracket,
check to see if it is stuck to the bottom of the door.
%
[] TRANSFER CENTER HINGE
BRACKET TO THE LEFT
Remove the center hinge bracket by removing
the three screws.
NOTE: Keep these screws with tile hinge bracket.
They are long screws and will be used when
installing the hinge on the other side.
You will need to remove the color-mawhed cap
from the screw head before you can remove the
screw. Use the edge of a tbin fiat blade to gently pry
the caps off the screw heads. (A putty knife works
well for tbis.) Cover the blade with tape to prevent
scratching the paint.
Remove the mullion cover from the left side using
the thin flat blade. Assemble it to the right side.
Remove the screw from the center left side of the
cabinet. Screw it into the holes on tile right side.
Place the center hinge bracket over tile holes at the
center left side of the cabinet. Insert and tighten the
three long screws.
Replace the cap by snapping it over the screw with
your finger.
[] TRANSFER DOOR STOPS
On each doo_; move the metal door stop from the
right to the left.
Move any screws from the let} to the right.
2O
