Models PVD and GVE
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
REFRIGERATORS
Bottom Freezer
GE is a trademark of the General Electric Company. Manufactured under trademark license.
SAFETY INFORMATION .....3
OPERATING INSTRUCTIONS
Features ..........................6
Controls ..........................9
Dispenser.........................11
Autofill* ..........................11
WiFi ............................ 12
Water Filter ...................... 13
Refrigerator Storage Options. . . . . . . 14
Climate Zone..................... 16
Convertible Drawer ............... 16
Freezer.......................... 17
Automatic Icemaker............... 18
CARE AND CLEANING ...... 19
Replacing the Lights ..............20
INSTALLATION INSTRUCTIONS
Preparing to Install the
Refrigerator...................... 21
Installing the Refrigerator..........24
Installing the Water Line...........34
TROUBLESHOOTING........37
Normal Operating Conditions ......37
Troubleshooting Tips..............38
Truth or Myth ....................40
LIMITED WARRANTY .......42
CONSUMER SUPPORT
XWF Water Filter Cartridge
Limited Warranty .................43
Performance Data Sheet ...........44
Consumer Support ................46
2 49-1000332 Rev. 0
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-1000332 Rev. 0 3
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow
these basic safety precautions:
Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHG
and located in accordance with the Installation
Instructions before it is used.
Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUVRU
cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the cont rol panel.
NOTE: Repairs must be performed by a qualified
Service Professional.
Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJ
Ŷ 'RQRWXVHDQH[WHQVLRQFRUG
Ŷ .HHSIODPPDEOHPDWHULDOVDQGYDSRUVDZD\IURPWKH
refrigerator.
Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVRO
cans with a flammable propellant in this appliance.
Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGV
WRFKLOGUHQUHPRYHWKHUHIULJHUDWRUDQGIUHH]HU
doors from any refrigerator before disposing of it or
discontinuing its use.
Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRW
stand on, or play in or with the appliance.
Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\
or mental capabilities or lack of experience and
knowledge can use this appliance only if they are
supervised or have been given instructions on safe
XVHDQGXQGHUVWDQGWKHKD]DUGVLQYROYHG
Ŷ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROG
and similar applications such as: staff kitchen areas
in shops, offices and other working environments;
farm houses; by clients in hotels, motels, bed
& breakfast and other residential environments;
catering and similar non-retail applications.
Ŷ &RQQHFWWRSRWDEOHZDWHUVXSSO\RQO\$FROGZDWHU
supply is required for automatic icemaker operation.
The water pressure must be between 40 and 120 psi
(275-827 kilopascals).
Ŷ 'RQRWDSSO\KDUVKFOHDQHUVWRWKHUHIULJHUDWRU
Certain cleaners will damage plastic which may
cause parts such as the door or door handles to
detach unexpectedly. See the Care and Cleaning
section in your Owner’s Manual for detailed
instructions.
CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.
Ŷ'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUPZDWHU
when they are cold. Glass shelves and covers may
break if exposed to sudden temperature changes or
impact, such as bumping or dropping. Tempered
glass is designed to shatter into many small pieces if
it breaks.
Ŷ.HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDV
clearances between the doors and between the doors
and cabinet are necessarily small. Be careful closing
doors when children are in the area.
Ŷ'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HU
compartment when hands are damp or wet, skin may
stick to these extremely cold surfaces.
Ŷ'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHG
completely.
Ŷ In refrigerators with automatic icemakers, avoid
contact with the moving parts of the ejector
mechanism, or with the heating element that
UHOHDVHVWKHFXEHV'RQRWSODFHILQJHUVRUKDQGV
on the automatic ice making mechanism while the
refrigerator is plugged in.
WARNING FIRE OR EXPLOSION HAZARD
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVDZD\IURPUHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQILUHH[SORVLRQRU
death.
4 49-1000332 Rev. 0
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
SURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKH
SRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVDSSOLDQFH
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
'RQRWXVHDQDGDSWHU
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
$9ROW$&+]RUDPSIXVHGJURXQGHG
electrical supply is required. This provides the best
performance and also prevents overloading house
ZLULQJFLUFXLWVZKLFKFRXOGFDXVHDILUHKD]DUGIURP
overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
Immediately discontinue use of a damaged supply
cord. If the supply cord is damaged, it must be
replaced by a qualified service professional with an
DXWKRUL]HGVHUYLFHSDUWIURPWKHPDQXIDFWXUHU
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
'RQRWUHPRYHWKHJURXQGSURQJ
'RQRWXVHDQDGDSWHU
'RQRWXVHDQH[WHQVLRQFRUG
)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQGHDWKILUHRUHOHFWULFDOVKRFN
WARNING FIRE OR EXPLOSION HAZARD Flammable Refrigerant
This appliance contains isobutane refrigerant,
also known as R600a, a natural gas with high
environmental compatibility. However, it is also
combustible. Adhere to the warnings below to
reduce the risk of injury or property damage.
1. When handling, installing and operating the
appliance, care should be taken to avoid damage to
the refrigerant tubing.
2. 6HUYLFHVKDOORQO\EHSHUIRUPHGE\DXWKRUL]HG
VHUYLFHSHUVRQQHO8VHRQO\PDQXIDFWXUHUDXWKRUL]HG
service parts.
3. 'LVSRVHRIUHIULJHUDWRULQDFFRUGDQFHZLWK)HGHUDO
DQG/RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWDQG
insulation material used require special disposal
procedures. Contact your local authorities for the
environmentally safe disposal of your refrigerator.
4. .HHSYHQWLODWLRQRSHQLQJVLQWKHDSSOLDQFH
enclosures or in the built-in structure clear of
obstruction.
5. To remove frost,scrape with a plastic or wood
VSDWXODRUVFUDSHU'RQRWXVHDQLFHSLFNPHWDO
or sharp-edged instrument as it may puncture the
IUHH]HUOLQHUDQGWKHQWKHIODPPDEOHUHIULJHUDQW
tubing behind it.
6. 'RQRWXVHHOHFWULFDODSSOLDQFHVLQVLGHWKHIRRG
storage compartment of the appliance.
7. 'RQRWXVHDQ\HOHFWULFDOGHYLFHLQGHIURVWLQJ\RXU
IUHH]HU
49-1000332 Rev. 0 5
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
WARNING SUFFOCATION AND ENTRAPMENT HAZARD
)DLOXUHWRIROORZWKHVHGLVSRVDOLQVWUXFWLRQVFDQUHVXOWLQGHDWKRUVHULRXVLQMXU\
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
refrigerators are still dangerous even if they will sit
IRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXUROG
refrigerator, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old Appliance
Ŷ7DNHRIIWKHUHIULJHUDWRUDQGIUHH]HUGRRUV
Ŷ Leave the shelves in place so that children may not
easily climb inside.
Refrigerant and Foam Disposal:
'LVSRVHRIDSSOLDQFHLQDFFRUGDQFHZLWK)HGHUDODQG/RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWDQGLQVXODWLRQ
material used requires special disposal procedures. Contact your local authorities for the environmentally safe
disposal of your refrigerator.
6 49-1000332 Rev. 0
Features
USING THE REFRIGERATOR:)HDWXUHV
Space-saving ice maker
Ice maker and bin are located on the door creating
more usable storage space.
Showcase LED lighting
/('OLJKWLQJLVSRVLWLRQHGWKURXJKRXWWKHLQWHULRUWR
VSRWOLJKWDUHDVLQWKHUHIULJHUDWRU/('VDUHORFDWHG
under the refrigerator door to light the convertible
GUDZHUDQG/('VDUHXQGHUWKHFRQYHUWLEOHGUDZHUWR
OLJKWWKHIUHH]HUGUDZHU
QuickSpace™ shelf
)XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG
and easily slides back to store tall items below.
Spillproof shelves
'HVLJQHGWRFDSWXUH\RXUVSLOOVIRUHDVLHUFOHDQXS
Removable door bin
Can be removed for those with a wall limiting the
door opening.
Climate zone bin
Separate bins for produce storage.
Water filter
)LOWHUVZDWHUDQGLFH
Rotating Bin (on some models)
Can be rotated out for easy access.
Door in Door Latch (on some models)
6TXHH]HWKHODWFKRQWKHXQGHUVLGHRIWKHKDQGOHWR
open the outer door.
Convertible drawer
Select the best temperature to store your food.
Profile Models PVD28
49-1000332 Rev. 0 7

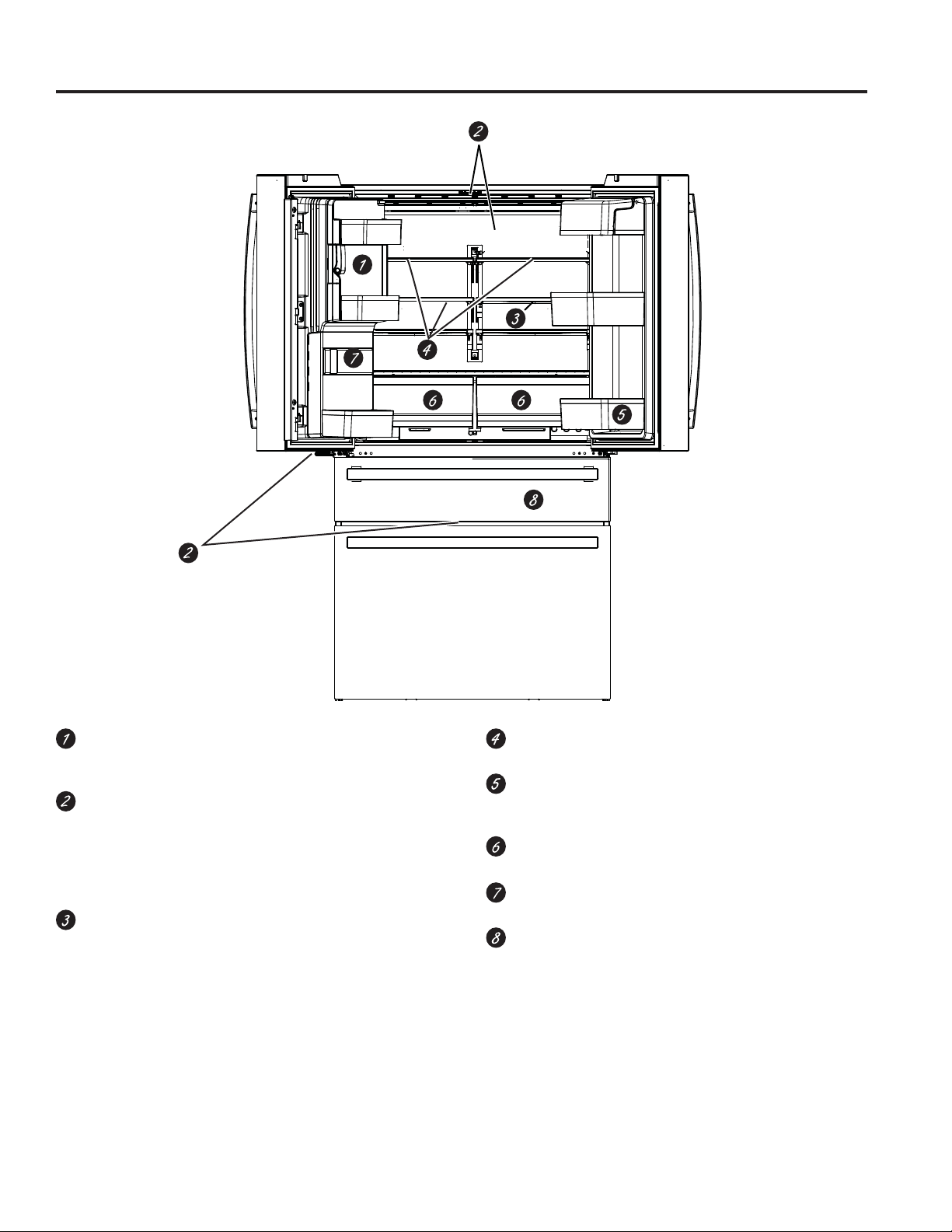

Features
USING THE REFRIGERATOR:)HDWXUHV
Space-saving ice maker
Ice maker and bin are located on the door creating
more usable storage space.
Showcase LED lighting
/('OLJKWLQJLVSRVLWLRQHGWKURXJKRXWWKHLQWHULRUWR
VSRWOLJKWDUHDVLQWKHUHIULJHUDWRU/('VDUHORFDWHG
under the refrigerator door to light the convertible
GUDZHUDQG/('VDUHXQGHUWKHFRQYHUWLEOHGUDZHUWR
OLJKWWKHIUHH]HUGUDZHU
QuickSpace™ shelf
)XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG
and easily slides back to store tall items below.
Spillproof shelves
'HVLJQHGWRFDSWXUH\RXUVSLOOVIRUHDVLHUFOHDQXS
Removable door bin
Can be removed for those with a wall limiting the door
opening.
Climate zone bin
Separate bins for produce storage.
Water filter
)LOWHUVZDWHUDQGLFH
Convertible drawer
Select the best temperature to store your food.
GE Models GVE28
8 49-1000332 Rev. 0
Features

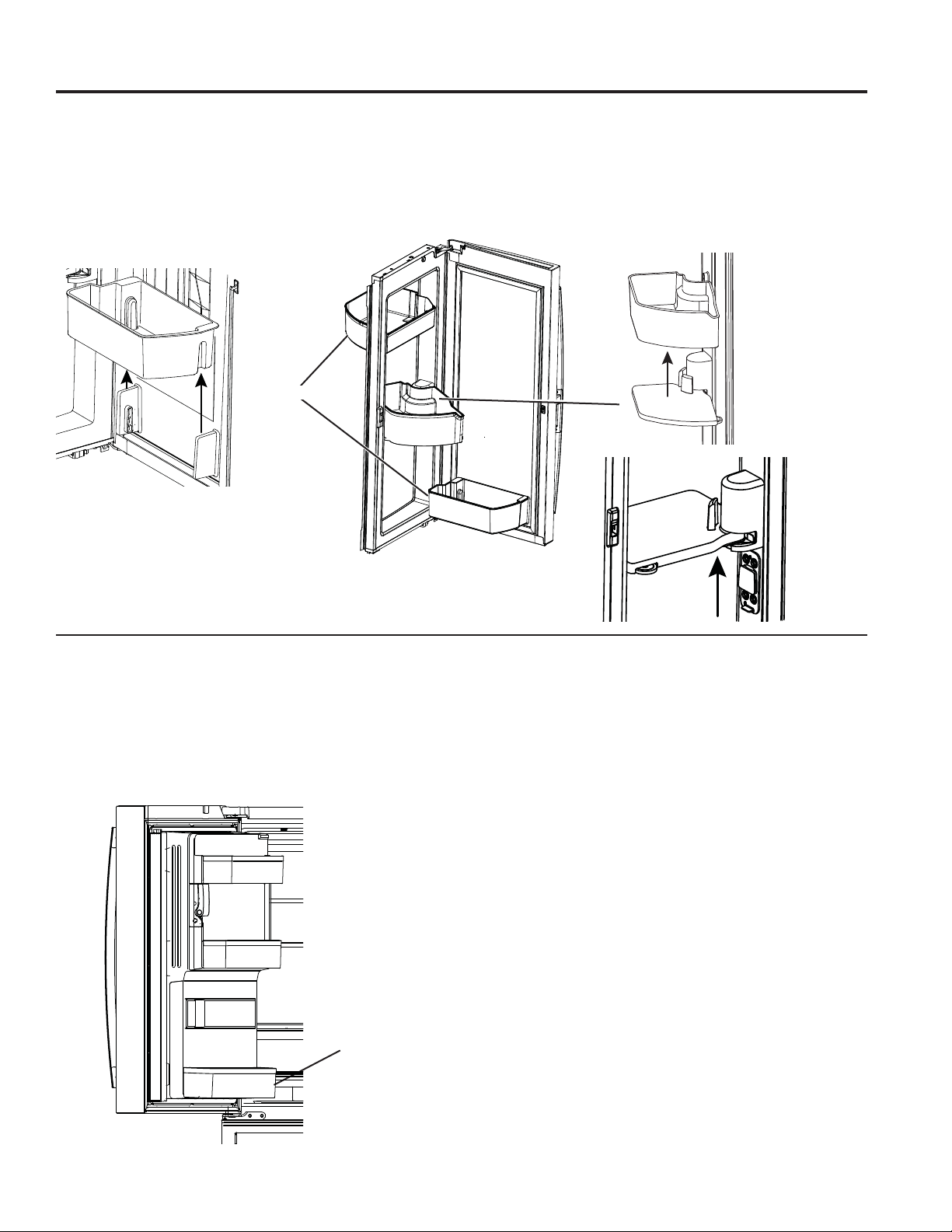

Door ice bin
1. Open left refrigerator door.
2. Pull down latch to release bin door.
8VLQJKDQGKROGOLIWLFHEXFNHWXSDQGRXWWRFOHDU
locators in bottom of bin.

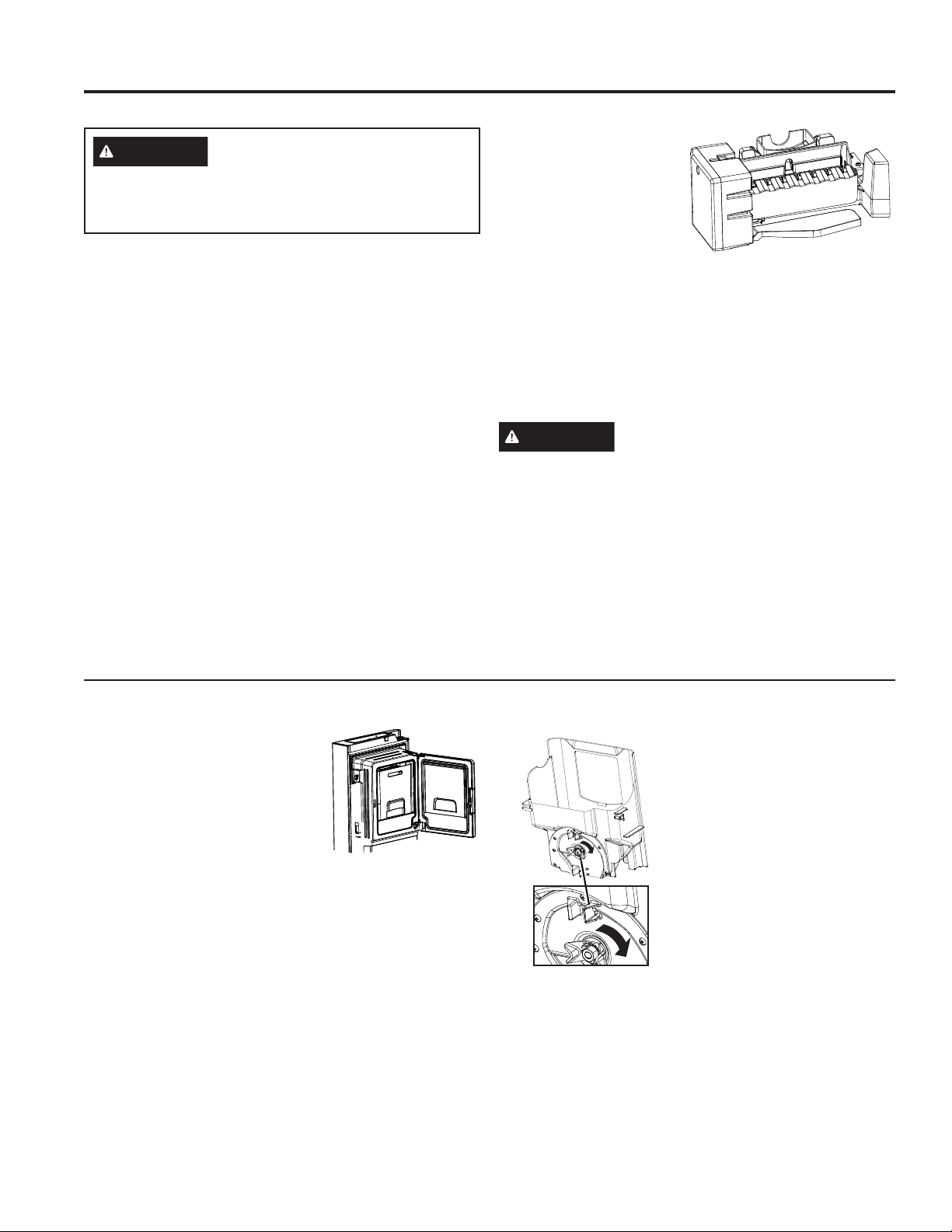

4. To replace the ice bucket, set it on the guide
brackets and push until the ice bucket seats properly.
5. If bucket cannot be replaced, rotate the Ice Bucket
)RUNWXUQFORFNZLVH
Ice/water filter
Certified to reduce chlorine-resistant cysts, lead, select
SKDUPDFHXWLFDOVDQGPRUH)RUHDV\ILOWHUUHSODFHPHQW
instructions see page 13.
Ice bucket
Latch
USING THE REFRIGERATOR: Controls
49-1000332 Rev. 0 9
USING THE REFRIGERATOR:)HDWXUHV
Controls
Changing the Temperature
To Change the Refrigerator Temperature:
Press the SettingsEXWWRQXQWLO³)ULGJH´LVKLJKOLJKWHG3UHVVWKH8SRU'RZQDUURZEXWWRQVWRLQFUHDVHRUGHFUHDVH
temperature settings.
To Change the Freezer Temperature:
3UHVVWKH6HWWLQJVEXWWRQXQWLO³)UHH]HU´LVKLJKOLJKWHG3UHVVWKH8SRU'RZQDUURZEXWWRQVWRLQFUHDVHRU
decrease temperature settings.
7KHFRROLQJV\VWHPFDQEHWXUQHGRIIE\SUHVVLQJWKH6HWWLQJVEXWWRQXQWLOHLWKHU³)ULGJH´RU³)UHH]HU´LVKLJKOLJKWHG
3UHVVDQGKROGERWKWKH8SDQG'RZQDUURZEXWWRQVIRUVHFRQGV³´ZLOOEHGLVSOD\HGZKHQWKHV\VWHPLVRII
Turning the cooling system off stops the cooling to the refrigerator, but it does not shut off the electrical power. The
FRROLQJV\VWHPFDQEHWXUQHGRQE\UHWXUQLQJWRWKH³)ULGJH´RU³)UHH]HU´VHWWLQJDQGSUHVVLQJWKH2QEXWWRQ
REFRIGERATOR/FREEZER CONTROLS
We are continuously updating our software. Please reference the full owner’s manual online for the latest
functionality at GEAppliances.com. In Canada, visit GEAppliances.ca.
The refrigerator is shipped with protective film covering the controls. If the film was not removed during installation,
remove it now.
7KHUHFRPPHQGHGWHPSHUDWXUHVHWWLQJVSUHVHWIURPWKHIDFWRU\DUH)&IRUWKHUHIULJHUDWRUDQG)&
IRUWKHIUHH]HU

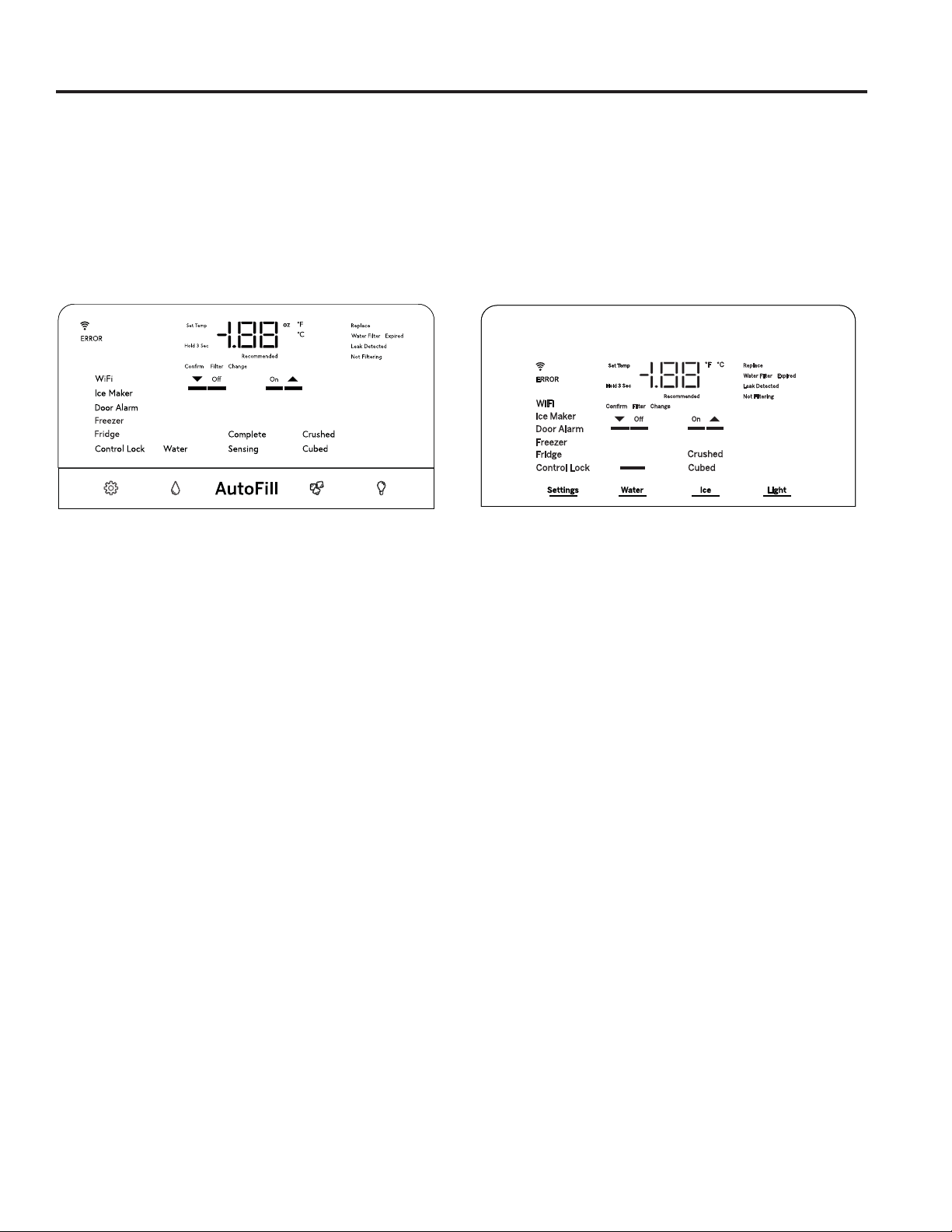

39'&RQWURO6W\OH$ GVE28, Control Style B
10 49-1000332 Rev. 0
Controls
USING THE REFRIGERATOR: Controls
Settings () - Press to scroll through the refrigerator
functions.
ƔControl Lock - Press ON to lock out ice and water
dispenser and all feature and temperature buttons.
3UHVVDQGKROG2))IRUVHFRQGVWRGHDFWLYDWH
Ɣ Fridge3UHVV8SRU'RZQEXWWRQWRLQFUHDVHRU
GHFUHDVHWHPSHUDWXUHIURP)&WR)&
Ɣ Freezer3UHVV8SRU'RZQEXWWRQWRLQFUHDVH
RUGHFUHDVHWHPSHUDWXUHIURP)&WR)
(-15°C).
ƔDoor Alarm6RXQGVDQDOHUWZKHQWKHIUHH]HU
RUUHIULJHUDWRUGRRUVKDYHEHHQOHIWRSHQ6QRR]H
the alert by pressing any key. Press On or Off to
DFWLYDWHRUGHDFWLYDWH'RRU$ODUP
ƔIce Maker3UHVV2QRU2IIWRVWDUWVWRS,FH0DNHU
ƔWiFi 3UHVV2QRU2IIWRDFWLYDWH:L)LRQVRPH
models).
*(3URILOH'RRULQ'RRUPRGHOV39'KDYH
built-in Wifi
GEA models GVE28 are Connect Plus Ready
Water ( ) - Press to select Water to dispense when the
paddle is pressed.
AutoFill* - Press to initiate automatic sensing to fill from
dispenser.
Ice ( ) - Press to select crushed or cubed ice when the
paddle is pressed.
Light ( ) - Press to control dispenser lighting. Chime
will accompany each press.
Fahrenheit / Celsius:
Temperature display can be switched between
)DKUHQKHLWDQG&HOVLXV3UHVV6HWWLQJVEXWWRQ( ) to
QDYLJDWHWR³)ULGJH´RU³)UHH]HU´WKHQSUHVVDQGKROGWKH
Ice button and Light button for three seconds.
Volume Control:
Alert volume can be adjusted from High to Low and Off.
Press Settings button ( ) WRQDYLJDWHWR³,FHPDNHU´
then press and hold the Ice button and Light button for
three seconds.
Sabbath Mode:
Simultaneously hold the Settings ( ), Water, and Light
buttons for three seconds to enter and exit Sabbath
mode.
*Select models only
CONVERTIBLE DRAWER
7HPSHUDWXUHLQWKH&RQYHUWLEOH'UDZHULVVHOHFWHGE\
pressing the food item to be kept in the drawer. The
corresponding temperatures are:
0HDW )°C)
%HYHUDJHV )°C)
6QDFNV )°C)
:LQH )°C)
The temperature setting is locked by default. Button
must be pressed for 3 seconds to unlock.
49-1000332 Rev. 0 11
*Select models only
USING THE REFRIGERATOR: 'LVSHQVHU
Important Facts About Your Dispenser
Ŷ'RQRWDGGLFHIURPWUD\VRUEDJVWRWKHGRRULFH
maker bucket. It may not crush or dispense.
Ŷ Avoid overfilling glass with ice and use of narrow
glasses. Backed-up ice can jam the chute or cause the
GRRULQWKHFKXWHWRIUHH]HVKXW,ILFHLVEORFNLQJWKH
chute remove the ice bucket, poke it through with a
wooden spoon.
Ŷ Beverages and foods should not be quick-chilled in the
door ice maker bin. Cans, bottles or food packages in
the storage drawer may cause the ice maker or auger
to jam.
Ŷ To keep dispensed ice from missing the glass, put the
glass close to, but not touching, the dispenser opening.
Ŷ Some crushed ice may be dispensed even though you
selected CUBED. This happens occasionally when a
few cubes accidentally get directed to the crusher.
Ŷ After crushed ice is dispensed, some water may drip
from the chute.
Ŷ Sometimes a small mound of snow will form on the
door in the ice chute. This condition is normal and
usually occurs when you have dispensed crushed ice
repeatedly. The snow will eventually evaporate.
Water & Ice Dispenser
(See About the controls
with temperature
settings & About the
control features)
WARNING Laceration Hazard
Ŷ Never put fingers or any other object into ice crusher
GLVFKDUJHRSHQLQJ'RLQJVRFDQUHVXOWLQFRQWDFWLQJ
the ice crushing blades and lead to serious injury or
amputation
Ŷ8VHDVWXUG\JODVVZKHQGLVSHQVLQJLFH$GHOLFDWH
glass may break and result in personal injury.
If no water is dispensed when the refrigerator is first
installed, there may be air in the water line system.
Press the dispenser paddle for at least five minutes to
remove trapped air from the water line and to fill the
water system. To flush out impurities in the water line,
throw away the first six full glasses of water.
Dispenser
AUTOFILL*
To Use HANDS FREE AUTOFILL:
Ŷ &HQWHUFRQWDLQHURQ5HFHVV'LVSHQVHU7UD\DVIDU
back as possible without activating paddle and remove
hand from container
Ŷ Press AUTOFILL
To Stop AUTOFILL
Ŷ Press AUTOFILL to stop.
Important Facts about AUTOFILL
Ŷ)RURSWLPXPUHVXOWVXVHDXQLIRUPFRQWDLQHUEHWZHHQ
´FPWDOODQG´FPZLGH
Ŷ)LOOOHYHODQGIXQFWLRQDOLW\PD\YDU\RQFRQWDLQHUVWDOOHU
WKDQ´FPRUZLGHUWKDQ´FP
Ŷ&RQWDLQHUYROXPHVPD\YDU\LIHUURUPHVVDJH³1RW
)RXQG´LVJLYHQWU\DGLIIHUHQWFRQWDLQHU
Ŷ$872),//ZLOOWLPHRXW
Ŷ Handles, straws, and garnishes on the rim of the
container my cause overfilling or variation in fill
volumes.
Ŷ Splashing may occur depending on the location of the
container, water flow rate, container shape, and ice
cubes.
Ŷ.HHSVHQVRUVFOHDQZLWKDFOHDQGDPSFORWKDQGGR
not spray liquid or cleaners directly on sensors
Ŷ$872),//ZRUNVEHVWZLWKKRXVHKROGZDWHUSUHVVXUH
of 60 to 100 psi (414 to 689 kPa).
Ŷ Ice in container may affect fill volume. If issues are
experienced, use less ice.
12 49-1000332 Rev. 0
USING THE REFRIGERATOR::L)L
WiFi (on some models)
(for customers in the United States, its territories, and Canada)
REGULATORY INFORMATION
FCC/IC Compliance Statement:
7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
RIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQD
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLRWHOHYLVLRQWHFKQLFLDQIRUKHOS
Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
Ŷ 'RZQORDGWKHGE Appliances app.
• Available for iPhone from the Apple Store or from
link at GEAppliances.com.
• Available for Android from Google Play or from link
at GEAppliances.com.
Ŷ Select Create Account on app.
• Enter information, and select Register. An e-mail
will be generated.
• When you receive the e-mail, select Verify
Account.
• Sign in with your credentials and select Authorize
to allow the app to communicate with your
refrigerator.
Ŷ Set up the app.
• Press the (+) on the bottom of the screen.
• Choose Fridge (Cap Touch).
• The info button will show a picture of the touch
display on the appliance. Select OK.
• Select Next.
Ŷ 6HOHFW:L)LRQWKHUHIULJHUDWRUGLVSOD\E\SUHVVLQJWKH
Settings symbol.
• Select OnWKH:L)LV\PEROZLOOIODVKHYHU\VHFRQG
• Select Next in the app.
Ŷ )LQGWKHSDVVZRUGLQVLGHWKHUHIULJHUDWRUGRRURQWKH
³&RQQHFWHG$SSOLDQFH,QIRUPDWLRQ´ODEHO
• Enter the password into the app.
Ŷ &RQQHFWWRWKHUHIULJHUDWRU¶V:L)L0RGXOHLQWKH
SKRQH¶V:L)LVHWWLQJVWKHQUHWXUQEDFNWRWKH.LWFKHQ
App and select Next.
•7KH:L)LZLOOKDYHWKHIRUPDW³*(B02'8/(B
;;;;´7KHPRGXOHQXPEHUFDQDOVREHIRXQGRQ
the Connected Appliance Information label inside
the fridge door.
•&RQQHFWWRWKHKRPH:L)LQHWZRUNDQGW\SHLQWKH
KRPH:L)LSDVVZRUG
• If all check marks appear and the user gets a
screen that says the device is connected, the device
has been successfully connected.
- If the app fails to connect, the user will also show
an error on the refrigerator’s display where the
/('ZLOOHLWKHUEHIODVKLQJRUVROLG
6HOHFWFRUUHFW/('PRGHRQWKH³2RSV
6RPHWKLQJ:HQW:URQJ´VFUHHQ7KHXVHUZLOOEH
given possible reasons why connection failed and
the option to retry.
49-1000332 Rev. 0 13
XWF Water Filter
USING THE REFRIGERATOR: ;:):DWHU)LOWHU
Water Filter Cartridge
The water filter cartridge is located in the left-hand
refrigerator door behind the rectangular access panel.
When to Replace the Filter Cartridge
The Replace Water Filter message on the control panel
will illuminate when the water filter cartridge needs to
be replaced soon. The Water Filter Expired message
will illuminate when the water filter cartridge needs to be
replaced. The water filter can be replaced earlier if the
flow of water to the dispenser or icemaker decreases.
Once either message is illuminated, dispensing water
will show Confirm Filter Change; do not confirm until
the water filter is replaced

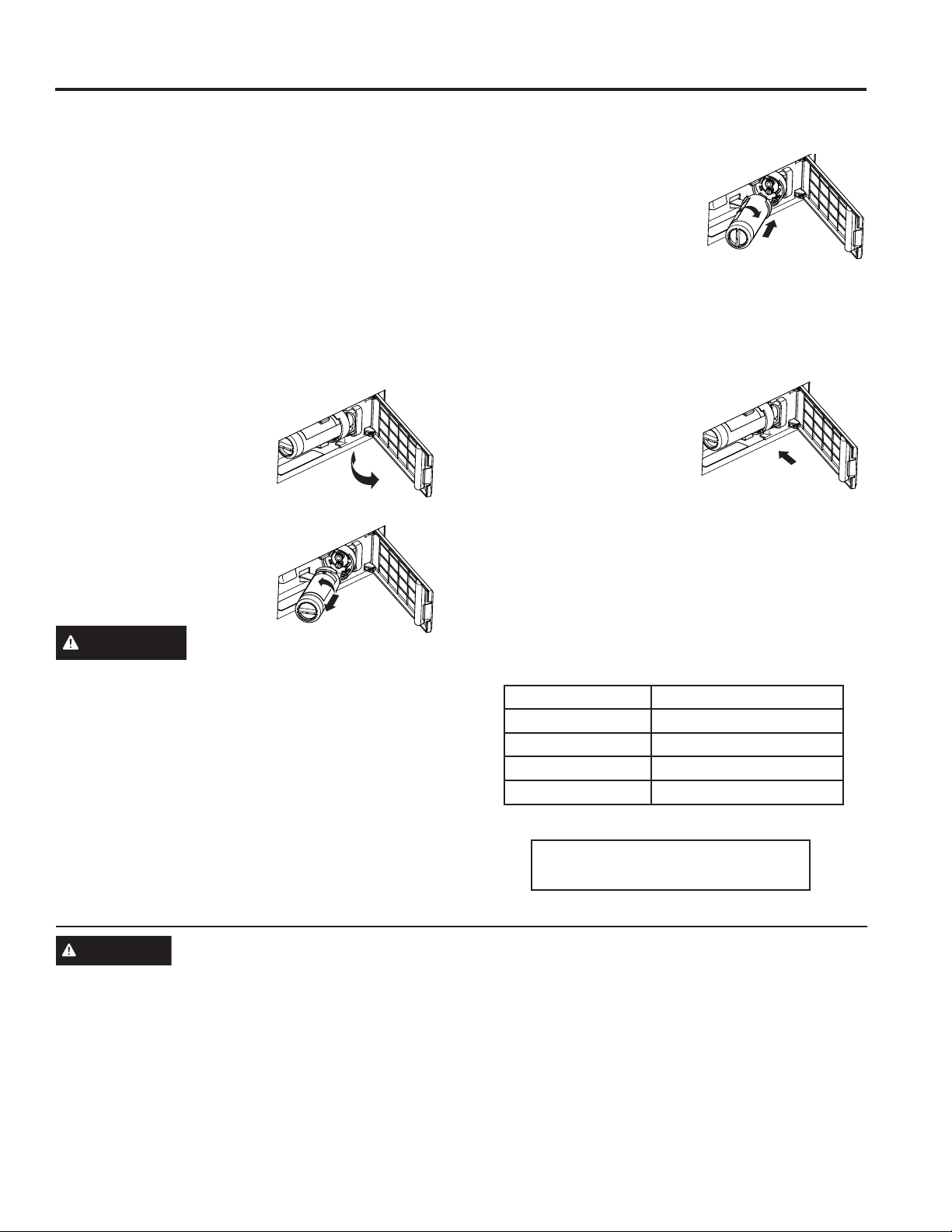

REMOVING THE FILTER
If you are replacing the filter,
first remove the previous one
by gently grasping the filter and
slowly turning it to the left,
about a ¼ turn. The filter
should automatically release
itself when you have rotated it
far enough to the left. A small
amount of water may drip
down.
CAUTION
If air has been trapped in the system, the filter cartridge
PD\EHHMHFWHGDVLWLVUHPRYHG8VHFDXWLRQZKHQ
removing.
FILTER BYPASS PLUG
To reduce the risk of property damage due to water
OHDNDJH\RX0867XVHWKHILOWHUE\SDVVSOXJZKHQD
replacement filter cartridge is not available. Some models
do not come equipped with the filter bypass plug. To
obtain a free bypass plug, call 800-GECARES. In
Canada, call 800.561.3344. The dispenser and icemaker
will not operate without either the filter or bypass plug
installed. The bypass plug is installed in the same way as
a filter cartridge.
INSTALLING THE FILTER IN A BOTTOM
FREEZER REFRIGERATOR
1. Open the filter cartridge
housing by pulling the door
open.
2. Line up the ports on the filter
with the ports on the filter
cartridge holder, and gently
insert the filter.
6ORZO\WXUQWKHILOWHUWRWKHULJKWXQWLOLWVWRSV'2
NOT OVERTIGHTEN. As you turn the filter, it will
automatically adjust itself into position. The filter will
move about a ¼ turn or 90 degrees, until the filter
cannot be turned, and the label faces outward.
4. Slowly push the filter up into
the clips.
5. Close the filter cartridge
housing by gently pushing
the door closed until the tabs
lock into place.
6. Run water from the
dispenser for 2 gallons or approximately 5 minutes to
clear the system. Water may spurt out and air bubbles
may be visible during this process. If water is not
flowing, check to make sure the filter has been fully
rotated to the right.
7. When dispensing water, press the button underneath
the Confirm Filter Change message.
Application Guidelines/Water Supply
WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to
have access to small parts during the installation of this product. The disposable filter cartridge should be
replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.
)RUWKHPD[LPXPEHQHILWRI\RXUILOWUDWLRQV\VWHP*($SSOLDQFHVUHFRPPHQGVWKHXVHRI*($SSOLDQFHVEUDQGHG
ILOWHUVRQO\8VLQJ*($SSOLDQFHVEUDQGHGILOWHUVLQ*($SSOLDQFHVDQG+RWSRLQW® refrigerators provides optimal
SHUIRUPDQFHDQGUHOLDELOLW\*($SSOLDQFHVILOWHUVPHHWULJRURXVLQGXVWU\16)VWDQGDUGVIRUVDIHW\DQGTXDOLW\WKDW
are important for products that are filtering your water. GE Appliances has not qualified non-GE Appliances-branded
filters for use in GE Appliances and Hotpoint refrigerators and there is no assurance that non-GE Appliances-
branded filters meet GE Appliances standards for quality, performance and reliability.
If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com or call
GE Appliances Parts and Accessories, 877.959.8688.
Customers in Canada should consult the yellow pages for the nearest Camco Service Center.
6HUYLFH)ORZ 0.5 gpm (1.89 lpm)
Water Supply Potable Water
Water Pressure 25-120 psi (172-827 kPa)
Water Temperature ))&&
Capacity 170 gallons (643.5 liters)
Sign-up for TEXT REMINDERS by
texting REPLACE to 70543.
14 49-1000332 Rev. 0
USING THE REFRIGERATOR: Refrigerator Storage Options
Refrigerator Storage Options

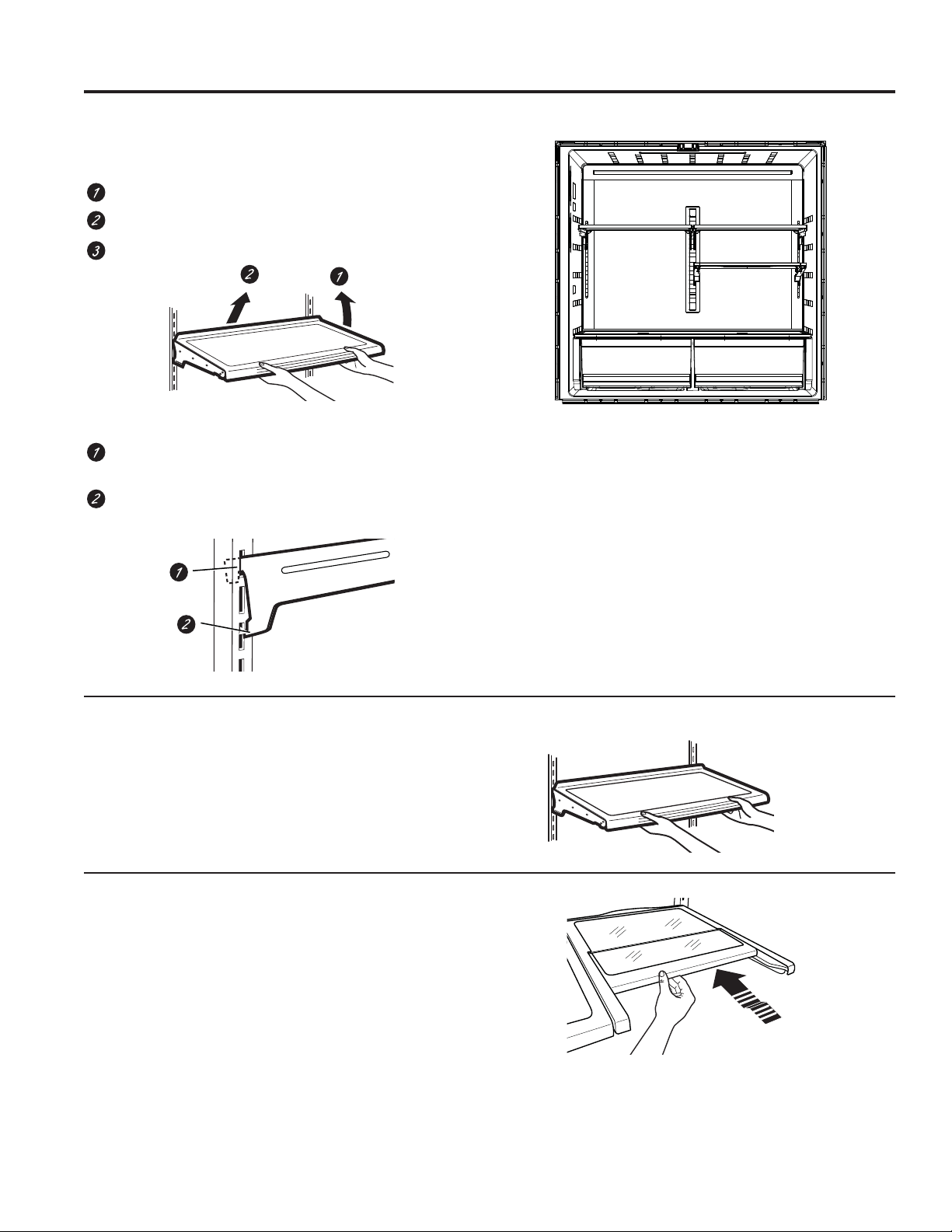

Rearranging the Shelves
Shelves in the refrigerator compartment are adjustable.
To remove:
Remove all items from the shelf.
Tilt the shelf up at the front.
Lift the shelf up at the back and bring the shelf out.
To replace:
While tilting the shelf up, insert the top hook at the
back of the shelf in a slot on the track.
Lower the front of the shelf until the bottom of the
shelf locks into place.
Spillproof Shelves
Spillproof shelves have special edges to help prevent
spills from dripping to lower shelves.
Quick Space Shelf
This shelf splits in half and slides under itself for storage of
tall items on the shelf below.
This shelf can be removed and replaced or relocated (just
like spillproof shelves).
NOTE: The back half of the Quick Space Shelf is not
adjustable.
49-1000332 Rev. 0 15
USING THE REFRIGERATOR: Refrigerator Storage Options
Refrigerator Storage Options
Left Door Bins
FIXED BIN
To remove: Lift the bin straight up, then pull out.
The ice maker door bins are not interchangeable, note the
location upon removal and replace the bin in its proper
location.
Right Door Bins
FIXED BINS can easily be carried from refrigerator to
work area.
To remove: Lift bin straight up, then pull out.
ROTATING BIN:
To remove: Rotate bin outward then lift straight up. To
remove Place hand under metal base and lift up.
To remove Metal Base: Place hand under metal base
and lift up.
)L[HG%LQV
)L[HG%LQ
Remove
Rotating Bin
5HPRYH)L[HG%LQV Remove
Metal Base
16 49-1000332 Rev. 0

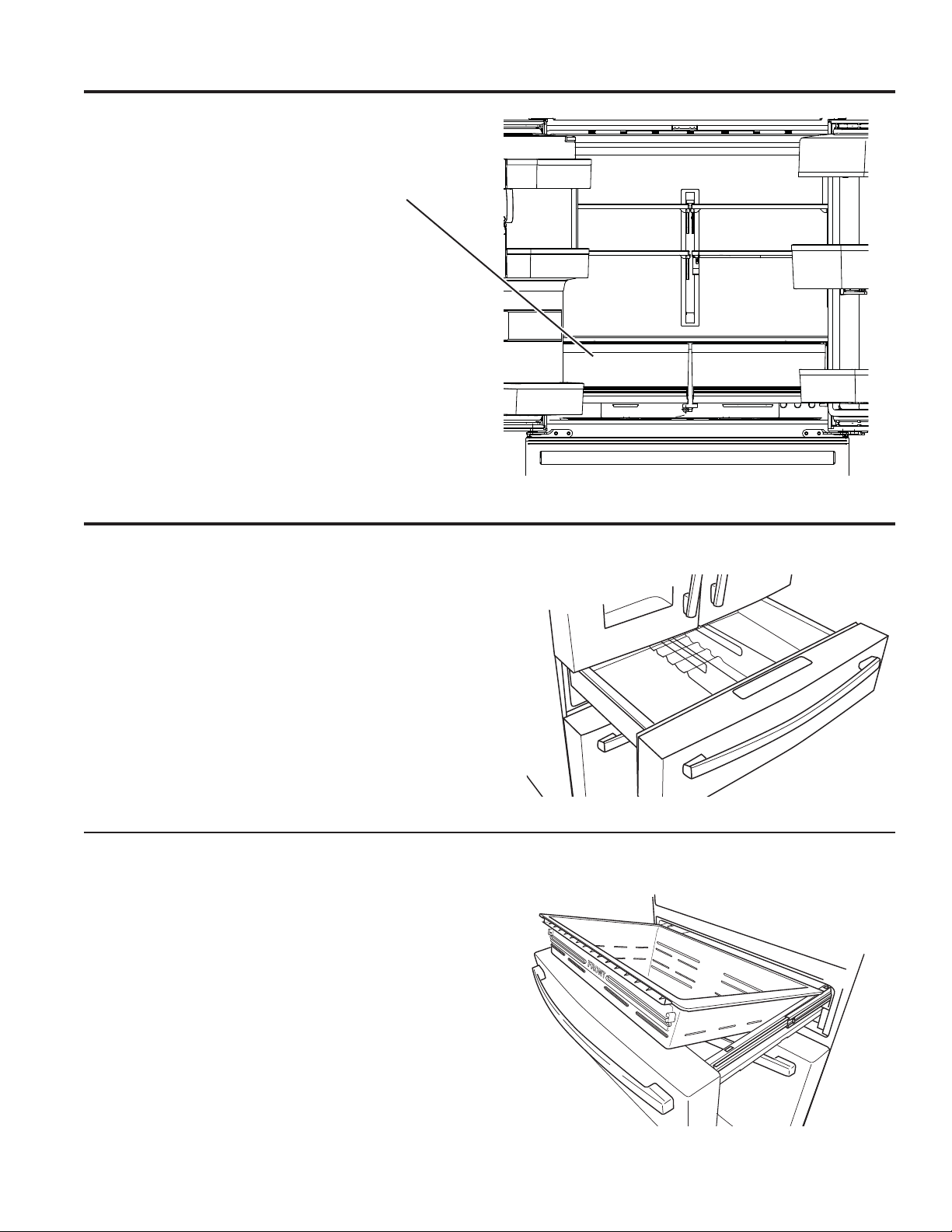

How to Remove and Replace Drawer Organizer
To remove:
1. Pull the drawer out to the stop position.
6OLJKWO\UDLVHWKHRUJDQL]HUWKHQURWDWHWRUHPRYH
To replace:
1. Place the back of the divider on the rear wall of the drawer.
5RWDWHWKHRUJDQL]HULQWRWKHGHVLUHGSRVLWLRQ
How to Remove and Replace Drawer
To remove:
1. Pull the drawer out to the stop position.
2. Remove the convertible drawer basket by lifting while
rotating the basket upward.
To replace:
1. Place drawer back in first and rotate drawer front down to
seat on slide.
2. Push the drawer in to closed position.
Convertible drawer basket will be loose if re-installed
EDFNZDUGV/RRNIRU³)5217´HPERVVWRKHOSZLWK
re-installation.
USING THE REFRIGERATOR:&OLPDWH=RQH&RQYHUWLEOH'UDZHU
Convertible Drawer
Climate Zone
.HHSIUXLWVDQGYHJHWDEOHVRUJDQL]HGLQVHSDUDWH
compartments for easy access.
Excess water that may accumulate in the bottom of the
drawers or under the drawers should be wiped dry.
49-1000332 Rev. 0 17
USING THE FREEZER:%DVNHWV'UDZHUVDQG%LQV
Freezer Basket and Drawer
Basket.
'UDZHU
Tilt-Out Bin in the Freezer
To remove:
Press the tab on the right side bracket to remove the
IUHH]HUGUDZHUELQ
To replace:
Slide bin into location until it locks into place.
Basket Removal
To remove:
3XOOWKHWRSIUHH]HUGUDZHUEDVNHWIRUZDUGXQWLOLWLV
RXWRIWKHWUDFNLQWKHIUHH]HUFRPSDUWPHQW/LIWZKLOH
rotating the basket upward to remove.
2. Press the tab on the right side bracket to remove the
IUHH]HUGRRUELQ
/LIWWKHERWWRPIUHH]HUGUDZHUEDVNHWVOLJKWO\EDFN
then up and out of the drawer.
4. Remove 2 screws from each side of the frame with a
´VRFNHW
5. Remove door by lifting off hooks.
To replace, reverse removal steps.
Baskets, Drawers, and Bins
18 49-1000332 Rev. 0
Ice Bucket and Dispenser
• Open the ice box door on inside
of the left door.
• Pull up and out on the ice bucket
in the left hand door to remove it
from the compartment .
• To replace the ice bucket, set it
on the guide brackets and push
until the ice bucket seats properly.
• If bucket cannot be replaced, rotate the ice bucket fork
WXUQFORFNZLVH
USING THE FREEZER: Automatic Icemaker
Automatic Icemaker
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Ice maker
The ice maker will produce seven cubes per cycle
approximately 100–130 cubes in a 24-hour period,
GHSHQGLQJRQIUHH]HUFRPSDUWPHQWWHPSHUDWXUHURRP
temperature, number of door openings and other use
conditions.
7KHLFHPDNHUZLOOILOOZLWKZDWHUZKHQLWFRROVWR)
(-10°C). A newly installed refrigerator may take 12 to 24
hours to begin making ice cubes.
If the refrigerator is operated before the water line
connection is made to the unit or if the water supply to
an operating refrigerator is turned off, make sure that
the ice maker is turned off. Once the water has been
connected to the refrigerator, the ice maker may be
turned on. See the table below for details.
<RXPD\KHDUDEX]]LQJVRXQGHDFKWLPHWKHLFHPDNHU
fills with water.
To fill the bucket to maximum capacity after installation,
dispense 3-4 cubes at 12 hours and 18 hours. Allow 2-3
days for the bucket to completely fill with ice.
Throw away the first few
batches of ice to allow
the water line to clear.
Be sure nothing interferes
with the sweep of the
feeler arm.
When the bin fills to the
level of the feeler arm,
the ice maker will stop producing ice. It is normal for
several cubes to be joined together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale and shrink.
NOTE: In homes with lower-than-average water
pressure, you may hear the ice maker cycle multiple
times when making one batch of ice.
CAUTION 7RPLQLPL]HWKHULVNRISHUVRQDOLQMXU\
avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
WKHFXEHV'RQRWSODFHILQJHUVRUKDQGVRQWKH
automatic ice making mechanism while the refrigerator is
plugged in.
To turn the icemaker ON/OFF, use the Settings button
to navicate to the Icemaker selections. See CONTROLS,
page 9.
WARNING Connect to potable water supply
only.
A cold water supply is required for automatic icemaker
operation. The water pressure must be between 40
and 120 psi (275-827 kilopascals).
49-1000332 Rev. 0 19
CARE AND CLEANING
Care and Cleaning
Cleaning the Inside
To help prevent odors, leave an open box of baking
VRGDLQWKHUHIULJHUDWRUDQGIUHH]HUFRPSDUWPHQWV
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture out of
sponge or cloth when cleaning around switches, lights or
controls.
8VHDQDSSOLDQFHZD[SROLVKRQWKHLQVLGHVXUIDFH
between the doors.
8VHZDUPZDWHUDQGEDNLQJVRGDVROXWLRQ²DERXWD
tablespoon (15 ml) of baking soda to a quart (1 liter) of
ZDWHU7KLVERWKFOHDQVDQGQHXWUDOL]HVRGRUV5LQVHDQG
wipe dry.
To clean the inside metal panel*, open the outer door
XVLQJWKH'RRULQ'RRU/DWFK&OHDQWKHSDQHOZLWKD
PLOGGHWHUJHQWDQGWKHQZLSHGU\ZLWKDVRIWFORWK'RQRW
use any stainless steel cleaner on the panel as it may
damage the surrounding plastic.
CAUTION 'RQRWFOHDQJODVVVKHOYHVRUFRYHUV
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
'RQRWZDVKDQ\SODVWLFUHIULJHUDWRUSDUWVLQWKH
dishwasher.
DO USE DO NOT USE
Soft, clean cloth or sponge
Microfiber cloth
Abrasive cloths, paper towels, scrubbing sponges (with or without soap),
scouring or steel wool pads
Mild detergent mixed with warm
water
Abrasive powders, liquids, or sprays
Window sprays, ammonia, or bleach
Citrus or plant oil-based cleaners
Acidic or vinegar-based cleaners
Oven cleaners
Alkaline cleaners
Stainless steel cleaners
DO NOT use Stainless Steel cleaners on the door surfaces.
IMPORTANT:7KHXVHRILQFRUUHFWSURGXFWVPD\GDPDJHWKHRXWHUILQLVKRI)LQJHUSULQW5HVLVWDQW6WDLQOHVVDQG
Black Stainless models. Please follow these instructions and use only the appropriate items below to clean your
appliance surfaces.
Ɣ&OHDQLQWHULRUH[WHULRUVXUIDFHVZLWKZDUPZDWHUPLOGVRDSRUGHWHUJHQWDQGDVRIWRUPLFURILEHUFORWKWRDYRLG
damage.
Ɣ:LSHWKHDSSOLDQFHVXUIDFHGU\ZLWKDVRIWFOHDQFORWKRUPLFURILEHUWRZHOWRDYRLGVWUHDNLQJRUZDWHUVSRWWLQJ
DO USE DO NOT USE
Soft, clean cloth or sponge Abrasive cloths, scrubbing sponges (with or without
soap), scouring or steel wool pads
Mild detergent mixed with warm water
$SSURYHGVWDLQOHVVVWHHOFOHDQHUV)RUDSSURYHG
stainless steel cleaners, visit GEAppliances.com/parts
or call 800.GE.CARES.
&OHDQHUVZLWKR[DOLFDFLGVXFKDV%DU.HHSHUV)ULHQG6RIW
Cleanser™ can be used to remove surface rust, tarnish
and small blemishes on stainless steel surfaces only.
Abrasive powders or sprays
Window Sprays or Ammonia
Citrus or plant oil-based cleaners
Acidic or vinegar-based cleaners
Oven cleaners
Cleaners containing acetone (propanone)
Any cleaner with WARNING about plastic contact
NOTE: DO NOT allow stainless steel cleaner to come in contact with any plastic parts such as trim pieces, handle
hardware and liners. If unintentional contact of cleaners with plastic parts does occur, clean plastic part with a
sponge and mild detergent mixed with warm water.
STAINLESS STEEL - Outside surfaces, door handles, and trim
FINGERPRINT RESISTANT STAINLESS STEEL*, BLACK STAINLESS, SLATE, DARK
SLATE, PAINTED - Outside surfaces, door handles, and trim
Cleaning the Outside
*Easily wipe away smudges and fingerprints.
20 49-1000332 Rev. 0
CARE AND CLEANING
Behind the Refrigerator
Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with
embossed surfaces.
Raise the leveling legs located at the bottom front of the
refrigerator.
Pull the refrigerator straight out and return it to position
by pushing it straight in. Moving the refrigerator in a side
direction may result in damage to the floor covering or
refrigerator.
Lower the leveling legs until they touch the floor.
WARNING
ELECTRICAL SHOCK HAZARD
When pushing the refrigerator back, make sure you
don’t roll over the power cord or water supply line.
Preparing for Vacation
)RUORQJYDFDWLRQVRUDEVHQFHVUHPRYHIRRGDQG
unplug the refrigerator. Clean the interior with a baking
soda solution of one tablespoon (15 ml) of baking soda
to one quart (1 liter) of water. Leave the doors open.
,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHD
qualified service technician drain the water supply
system to prevent serious property damage due to
flooding.
1. Turn refrigerator off or unplug the refrigerator.
2. Empty ice bucket
3. Turn water supply off
If you cut the water supply off, turn off the ice
maker.
8SRQUHWXUQLQJIURPYDFDWLRQ
1. Replace the water filter.
2. Run 2 gallons (7.57 liters) of water through the cold
water dispenser (about 5 minutes) to flush the system.
Preparing to Move
Secure all loose items such as shelves and drawers by
taping them securely in place to prevent damage.
When using a hand truck to move the refrigerator, do not
rest the front or back of the refrigerator against the hand
truck. This could damage the refrigerator.
Handle only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright position
during moving.
Care and Cleaning
Replacing the Lights
Refrigerator Lights (LEDs)
Appearance may vary by model.
7KHUHLV/('OLJKWLQJLQWKHUHIULJHUDWRUFRPSDUWPHQWWKH
bottom of the left-hand refrigerator door, and the bottom
of the convertible drawer.
$QDXWKRUL]HGWHFKQLFLDQZLOOQHHGWRUHSODFHWKH/('
light.
If this assembly needs to be replaced, visit
GEAppliances.com/service or call 800.GE.CARES.
In Canada, visit GEAppliances.ca/service or call
800.561.3344.
/('/LJKWV
This manual suits for next models
2
Table of contents
Languages:
Other GE Refrigerator manuals
GE
GE GTK17JBBBS Assembly instructions
GE
GE GSH25JFT Manual
GE
GE Profile PGCS1PJZSS Assembly instructions
GE
GE PSC25NGS Manual
GE
GE Monogram ZIS360N User manual
GE
GE GTH18EBBWW Assembly instructions
GE
GE ZFSB26DRISS User manual
GE
GE Monogram ZIFS240 User manual
GE
GE Spacemaker GMR04AAMWW User instructions
GE
GE ZIC30GN How to use
GE
GE 20 Operating instructions
GE
GE TOP-FREEZER 16 User manual
GE
GE GE Profile Performance CustomStyle... User manual
GE
GE GDS20KBS Manual
GE
GE GME04GGKBB Original instructions
GE
GE TFX19 User manual
GE
GE Profile PSC23NSWSS Manual
GE
GE GE Energy Star GDSL3KCYLS Manual
GE
GE 20 User manual
GE
GE Profile PFSS5NJWSS User manual
