GE ZIC360NXDLH User manual

Design Guide with
Installation
Instructions
36" Built-In Bottom Freezer
Refrigerators
Pub, No, 49-60706-1
Part No, 224D3735PO01
03-14 GE
monogram,corn

Safety Information
BEFOREYOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT- Savetheseinstructions
for local inspector's use, Observe all governing codes
and ordinances,
• Note to Installer - Besure to leave these
instructions with the Consumer,
• Note to Consumer - Keep these instructions
with your Owner's Manual for future reference,
WARNING:
This appliance must be properly grounded, See
"Grounding the Refrigerator," page 9,
AVERTISSEMENT
Cet appareil dolt 6tre correctement mis _ la terre,
Consulter <<Mise _ la terre du refrigerateur >>,page 9,
If you received a damaged refrigerator, you should
immediately contact your dealer or builder,
CAUTION:
Due to the weight and size of this refrigerator, and to
reduce the risk of personal injury or damage to the
product--THREE PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION,
PRUDENCE
A cause du poids et de la taille de ce refrigerator et
pour reduire le risque de blessure et de dommages, IL
FAUT TROIS PERSONNES POUR FAIRE L'INSTALLATION
CORRECTEMENT,
Skill Level -Installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills,
Proper installation is the responsibility of the installer,
Product failure due to improper installation is not
covered under the GE Appliance Warranty, See the
Owner's Manual for warranty information,
WARNING:
. These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward, Anti-Tip protection is required, See page 11
for details,
. Use this appliance only for its intended purpose,
. Immediately repair or replace electric service cords
that become frayed or damaged,
. Unplug the refrigerator before cleaning or making
repairs,
. Repairs should be made by a qualified service
technician,
AVERTISSEMENT
. Ces refrigerateurs sont Iourds en haut et il faut
les arrimer pour eviter leur basculement, IIfaut avoir
un systeme de protection contre le renversement,
Voir les details page 11,
. II ne faut utiliser cet appareil que pour I'utilisation
appropriee,
. Reparer ou remplacer immediatement tout cordon
electrique effiloche ou endommage,
. II faut debrancher le refrigerateur avant le nettoyage
ou toute intervention,
. Les reparations doivent 6tre faites par un technicien
qualifie,
For Monogram local service in your area, call
1.800.444.1845.
For Monogram service in Canada, call
1.800.561.3344
For Monogram Parts and Accessories, call
1.800.626.2002.
www. monogram.corn
CONTENTS
Planning Guide
The Installation Space ..............................3
Dimensions and Clearances .................3
130 ° Door Swing .........................................4
90 ° Door Swing ............................................5
Customization Basics ...............................6
Panel Dimensions .......................................7
Side Panels ....................................................8
ZUG2 Grille Panel Dimensions ..............8
Installation Instructions
Tools, Hardware, Materials ....................9
Grounding the Refrigerator ...................9

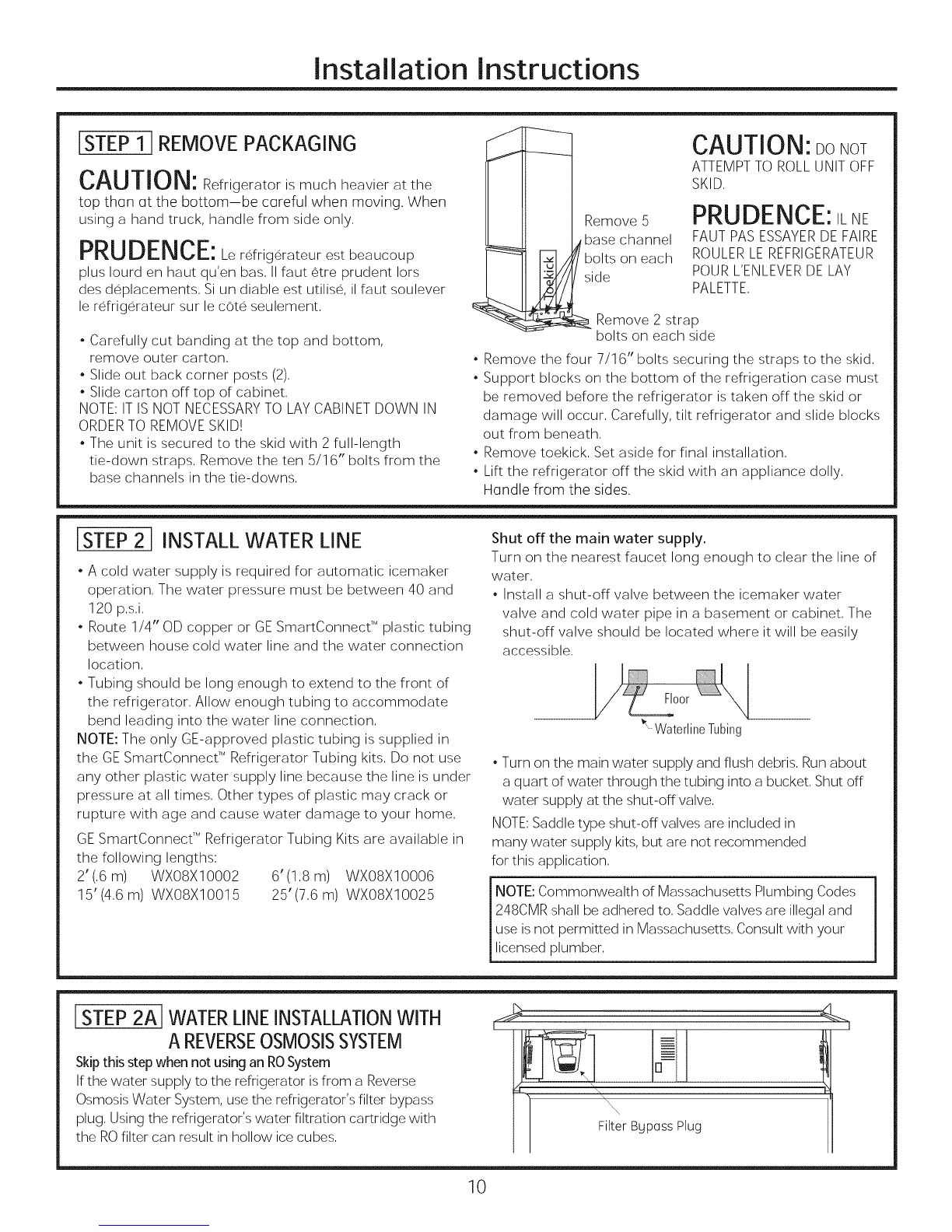

Step 1, Remove Packaging .................10
Step 2, Install Water Line .....................10
Step 2A, RO Water Line ........................11
Step 3, Install Side Panels ....................11

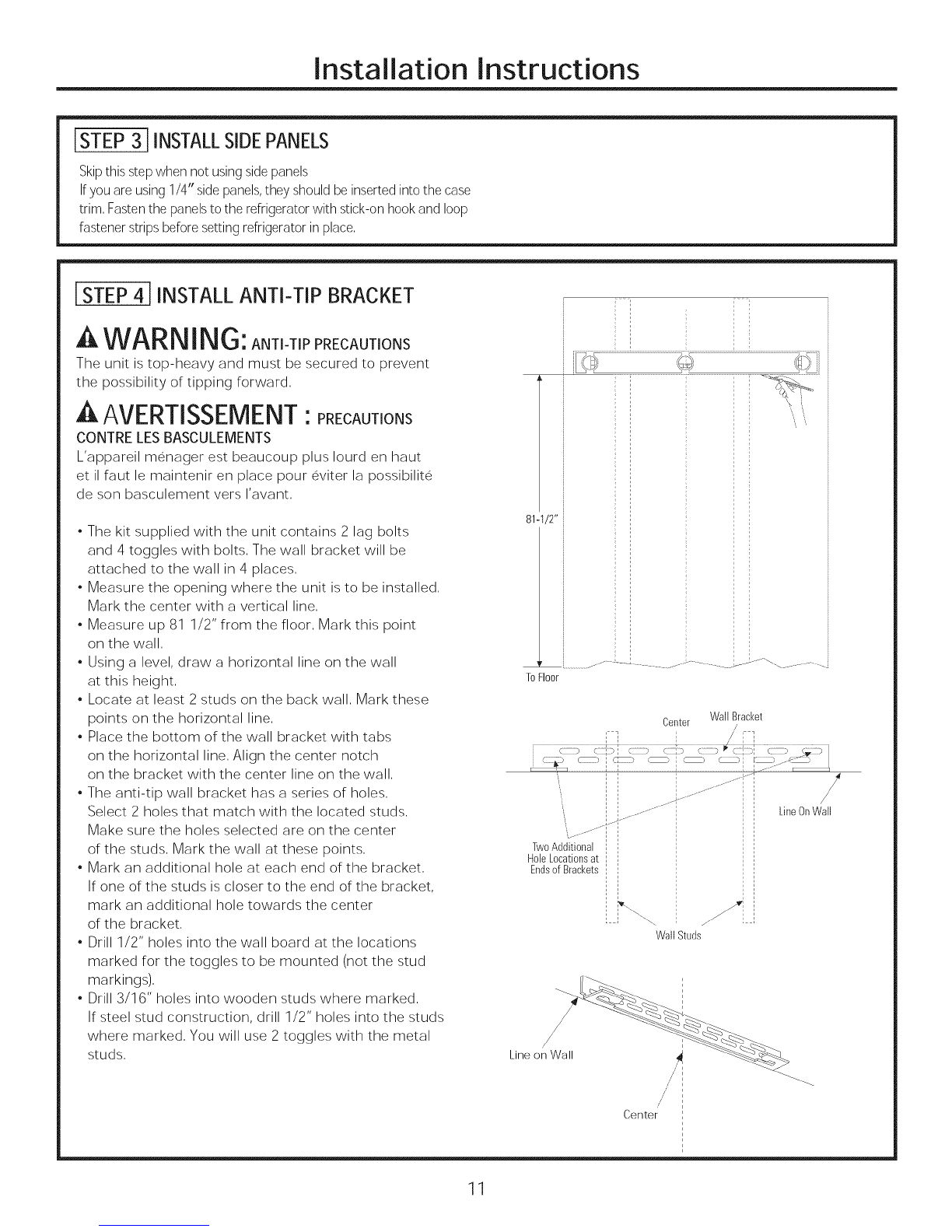

Step 4, Install Anti-Tip Brackets ........11
Step 5, Level Refrigerator ....................13
Step 6, Secure Refrigerator to
Cabinetry .....................................13

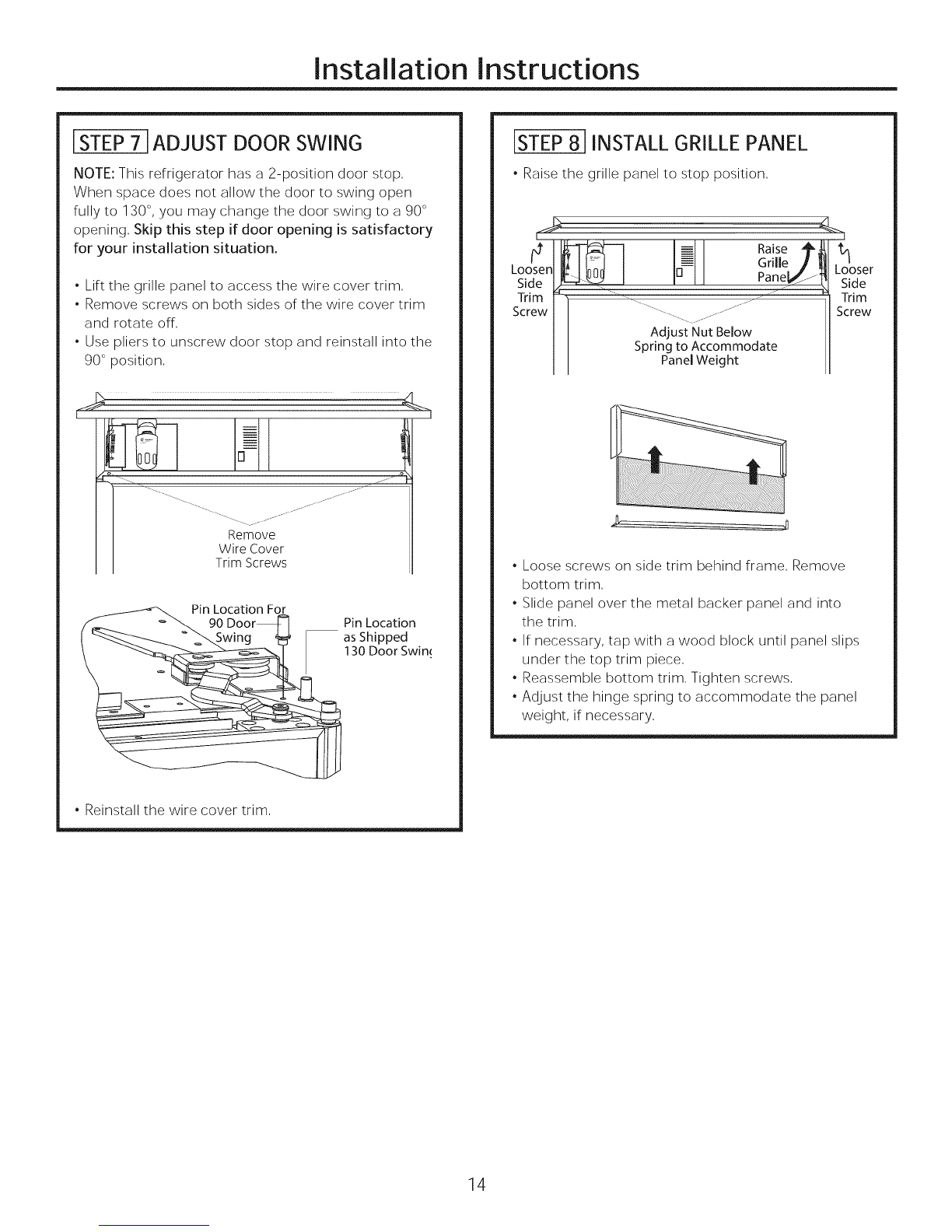

Step 7, Adjust Door Swing ...................14
Step 8, Install Grille Panel ....................14

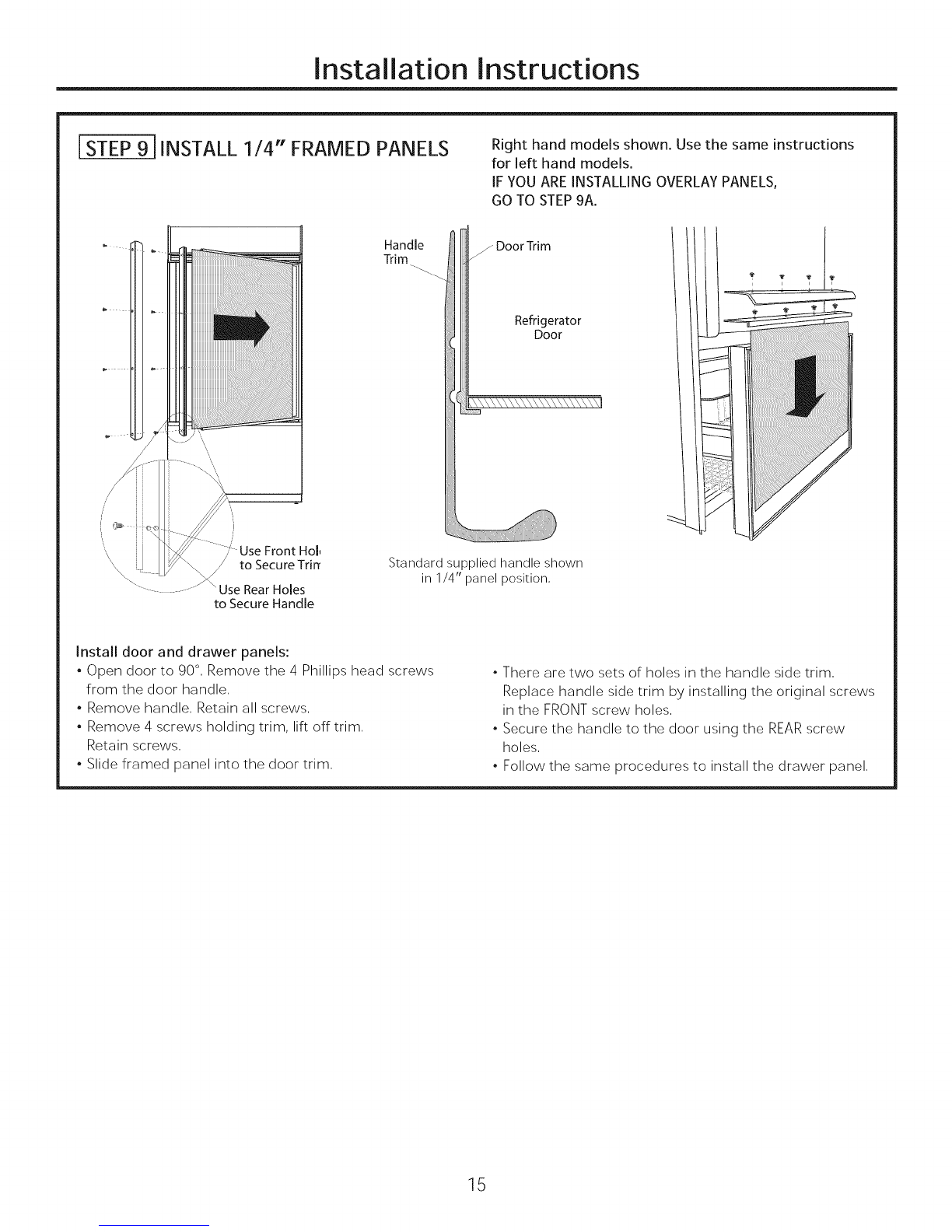

Step 9, Install Framed Panels ............15
Step 9A, Install Overlay Panels ..........16
Step 10, Connect Water Supply .......17
Step 11, Connect Power .......................17
Step 12, Start Icemaker ........................17
Step 13, Install Toekick .........................18

Design Guide
THE INSTALLATION SPACE
The finished
cutout width
must be
35-1/2",
84-1/2"max
83-1/2"min
Finished
35-1/2"
FinishedWidth
I_2-5/16" I_ WallView
II m e,, II
I"t 24"CutoutDepth I I 75"From
I I I I FloortoBottom
I I WaterSupply It ofElectricalArea
113-1/2"/ \, 3-1/2"H I
3-1/2"
Water And Electrical Locations
Electrical and water supply must be located as shown,
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation,
Allow minimum 1/8" air gap between case back & wall,
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24" installation depth shown, The top case trim
overlaps the bottom of the soffit,
Additional Specifications
, A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended, Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall, Electrical must be located
on rear wall as shown,
Note: GFI (ground fault interrupter)is not recommended,
. Water line can enter the opening through the floor
or back wall, Route GE SmartConnect TM kit or 1/4" O,D,
copper tubing between the cold water line and the
water connection location, The tubing should be
long enough to extend to the front of the refrigerator,
Installation of an easily accessible shut-off valve in the
water line is required,
DIMENSIONS AND CLEARANCES
35"
CaseWidth
"83-1/2"
at
Rear
........ 36"Frameto
FrameWidth
DepthIncludingHandles:
26-7/8"FramedModels
27-3/4"StainlessSteelModels
28-11/16"ProfessionalStyleModels
25-3/8"FramedModels
25-3/4"StainlessSteelModels
CaseDepth Shipping height, The
refrigerator can be
adjusted to fit into a
*84"From cutout that is 83-1/2"
Floorto min, to 84-1/2" max,
TopFrame height, Note that the top
J case trim at the front is
.1/2" higher and will
- overlap upper cabinetry
or soffit, Use leveling
legs and wheels for a
maximum 1" height
adjustment,
Product Clearances
These refrigerators are equipped with a 2-position door
stop, The factory set 130 ° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted,
, 25"--
130° DoorSwing , MinimUmtoWall
iI [
130°
t
23-7/8"
90°DoorSwing Behind
Frame
L i']
1
..... 136-3/4",
i / -
o I j *4 Stainless
90 .... i , andFramed
• _ ,,m°dels.
. -- 5 ProSeries
Min.DistancetoWall
Allow 25" minimum clearance for a full 130° door
swing, Allow 15"for pan removal,
For a 90 ° door swing, allow 4" min, clearance to a wall,
for framed and stainless steel models, Allow 5" min,
clearance for professional style models, If the 90° door
stop position is used, pan access is maintained, but pan
removal is restricted,
See illustrations pages 4 and 5 to determine door swing
interaction with adjacent cabinets or countertops,
ZUG2, ZUGSS2 Unified Grille Panel Kit
. If you are installing two refrigerators, side by side,
the installation space must be 71-1/2"wide,
Note: Additional cutout width may be required when side
panels are used, Add side panel thickness to the finished
cutout to calculate rough-in width,
. The water and electrical locations for each product
must be located as shown,
o A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product,

Design Guide
Refrigerator 23-7/8"From
Rearof
Refrigerator
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides,
Therefore, frameless cabinets
may require filler strips to prevent
interference with cabinet door swing,
The opening must allow for filler strips,
Door
3/4"
1/2"
.... -'-.... 1/2"
i ..... 3/4"
3/4" Overlay
Panel
NominalSize
"4
4
1 ,F
i!ii!i_!,,
........................i-1/4"
Top View
130° DOOR SWING
(factory setting)
Scale 1:1

Design Guide
Refrigerator
Top View
90° DOOR SWING
(optional setting)
Scale 1:1
Door
_Case _im
23-7/8"
FromRearof
Refricerator
Frameless Cabinets:
The case trim overlaps
cabinets at the top and
sides, Therefore, frameless
cabinets may require
filler strips to prevent
interference with cabinet
door swing, The opening
must allow for filler strips,
u
uuuu
.... 1/4"
uuuu
uuuu
uuuu
' ' ' -- 1/2"
' 3/4"
u
u
u
u ......... 1"
,,
3/4" Overlay
Panel
(NominalSize)
1-1/4"

Design Guide
CUSTOMIZATION BASICS:
Framed Or Overlay Panels, Custom Handles and Accessory Kits
Professional Style Stainless Steel Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and professional style handles, These models are shipped
ready for installation,
Stainless Steel Wrapped Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and tubular stainless steel handles that coordinate with
other Monogram appliances, These models are shipped
ready for installation,
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized with
decorative panels, Field installed custom door and grille
panels are required,

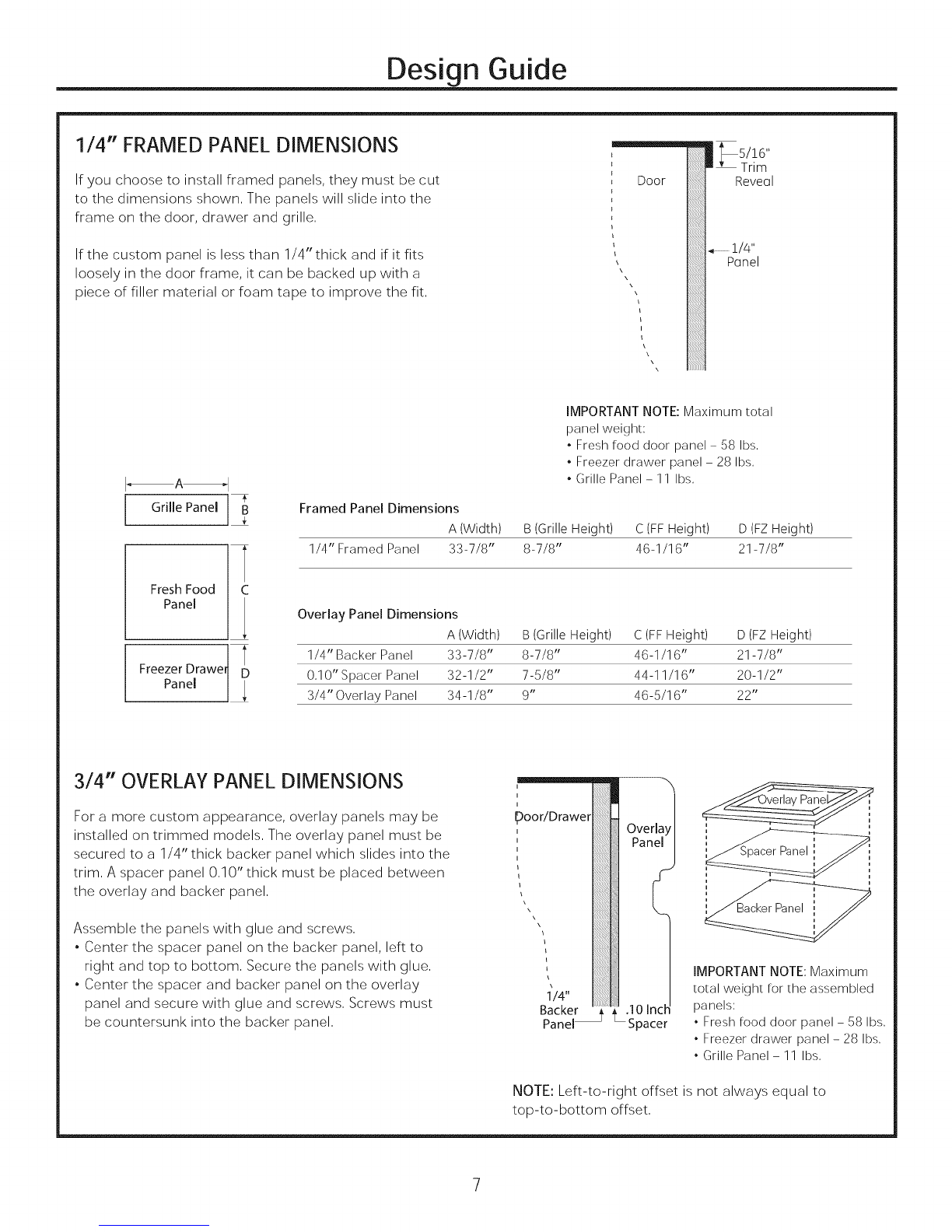

Framed panels
You may install 1/4"thick custom panels from your
cabinet manufacturer, The decorative panel slides into the
factory installed trim, Or, order black, white and stainless
steel accessory panels from your Monogram dealer,
Overlay panels
You may also choose to install custom overlay panels from
your cabinet manufacturer, This design provides
a seamless appearance which integrates smoothly
with surrounding cabinetry,
J
.............Standard
Door Handle
i 3/4"Overlay Panel
i...... .I0" Thick SpacerPan_
..............I/4" Thick Backer Pan
Standard supplied handles shown in 3/4" overlay panel position,
Door and Drawer Handles
The standard supplied handles can be adjusted to
accommodate both framed or overlay panels, Custom
handles of your choice, supplied by your cabinet maker
can also be installed on overlay panels, If desired, you may
order ZKHCSS2 Monogram stainless steel tubular handle
kit for 3/4" overlay panels,
Standard Door Handle Framed Panel
Standard supplied handles shown in 1/4" panel position,

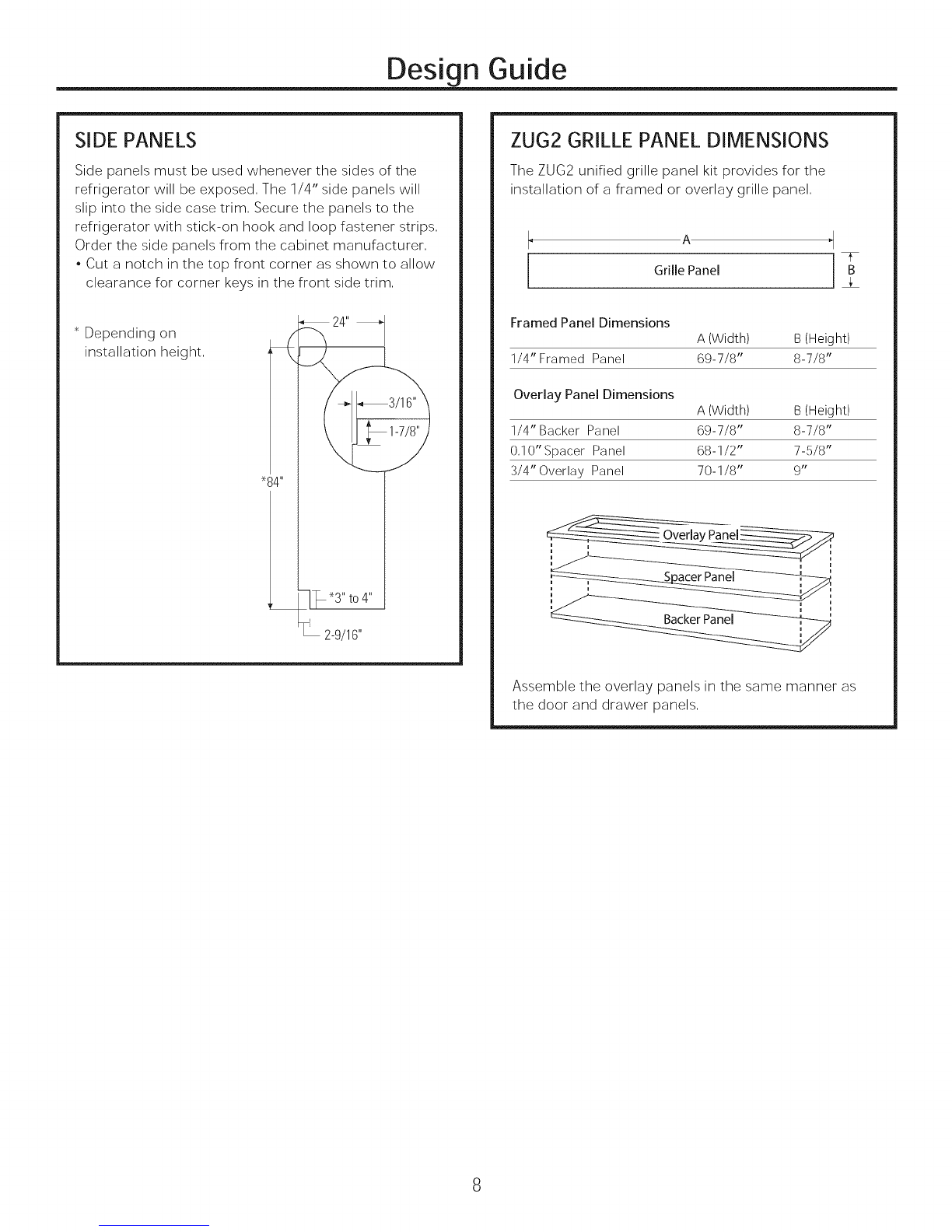

Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed,
Optional Accessory Kits
.ZKHCSS2: Honogram Tubular Stainless Steel handles
designed to fit 3/4" overlay panels, This kit also includes
a handle side trim for custom handles,
. ZKHPSS!: Professional Tubular Stainless Steel Handle
designed to fit 3/4" overlay panels, Kit includes one
handle, Order 2 kits for bottom-freezer refrigerators from
your Monogram supplier,
.ZUG2: For side-by-side installation of two trimmed
bottom-freezer refrigerators, This kit provides for the
installation of a unified custom grille panel to span the
width of two units using a framed or overlay panel,
. ZUOPP2: For side-by-side installation of two professional-
style bottom-freezer refrigerators, This kit provides a
unified stainless steel grille panel to span the width of
two units,
.ZUGSS2: For side-by-side installation of two stainless
steel wrapped bottom-freezer refrigerators, This kit
provides a unified stainless steel grille panel to span
the width of two units,
. ZKHCT: Handle side trim for left-hand and right-hand
doors, For use on 3/4" custom panels when using a
custom handle,

Design Guide
1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must be cut
to the dimensions shown, The panels will slide into the
frame on the door, drawer and grille,
If the custom panel is less than 1/4"thick and if it fits
loosely in the door frame, it can be backed up with a
piece of filler material or foam tape to improve the fit,
Door
s/!6"
Trim
Reveal
1!4"
Panel
I_A_
Grille Panel ]
Fresh Food
Panel
F o
reezer rawe_ D
Panel [ ;
IMPORTANT NOTE: Maximum total
panel weight:
• Fresh food door panel- 58 Ibs,
• Freezer drawer panel - 28 Ibs,
• Grille Panel - 11 Ibs,
Framed Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4" Framed Panel 33-7/8" 8-7/8" 46-1/16" 21-7/8"
Overlay Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4" Backer Panel 33-7/8" 8-7/8" 46-1/16" 21-7/8"
0,10" Spacer Panel 32-1/2" 7-5/8" 44-11/16" 20-1/2"
3/4" Overlay Panel 34-1/8" 9" 46-5/16" 22"
3/4" OVERLAYPANEL DIMENSIONS
For a more custom appearance, overlay panels may be
installed on trimmed models, The overlay panel must be
secured to a 1/4" thick backer panel which slides into the
trim, A spacer panel 0,10" thick must be placed between
the overlay and backer panel,
Assemble the panels with glue and screws,
. Center the spacer panel on the backer panel, left to
right and top to bottom, Secure the panels with glue,
. Center the spacer and backer panel on the overlay
panel and secure with glue and screws, Screws must
be countersunk into the backer panel,
)oor/Drawer
Panel
114"
Backe_ _.
Panel Spacer
IMPORTANT NOTE: Maximum
total weight for the assembled
panels:
Fresh food door panel- 58 Ibs,
Freezer drawer panel - 28 Ibs,
Grille Panel- 11 Ibs,
NOTE: Left-to-right offset is not always equal to
top-to-bottom offset,

Design Guide
SIDE PANELS
Side panels must be used whenever the sides of the
refrigerator will be exposed, The 1/4" side panels will
slip into the side case trim, Secure the panels to the
refrigerator with stick-on hook and loop fastener strips,
Order the side panels from the cabinet manufacturer,
. Cut a notch in the top front corner as shown to allow
clearance for corner keys in the front side trim,
* Depending on
installation height,
_84"
ZUG2 GRILLE PANEL DIMENSIONS
The ZUG2 unified grille panel kit provides for the
installation of a framed or overlay grille panel,
A
Grille Panel
Framed Panel Dimensions
A (Width) B (Height)
1/4" Framed Panel 69-7/8" 8-7/8"
Overlay Panel Dimensions A (Width) B (Height)
1/4" Backer Panel 69-7/8" 8-7/8"
0,10" Spacer Panel 68-1/2" 7-5/8"
3/4" Overlay Panel 70-1/8" 9"
Assemble the overlay panels in the same manner as
the door and drawer panels,

Installation Instructions
TOOLS REQUIRED
. Tinsnips to cut banding
. Stepladder
. Bucket
. Level
, Appliance Hand Truck
. Tubing cutter
.7/16"openend wrench
. #2 Phillips screwdriver
. Drill and appropriate bits
.5/16" 7/16" socket
. Safety glasses
. 1-1/4"open end wrench
. Pliers
.1/4" ratchet
HARDWARE SUPPLIED
. Water filter bypass plug
. AntiTip brackets
.1/4" nut and ferrule
MATERIALS REQUIRED
.35" long 2x4 for Anti-Tip support
. 1/4" copper water line tubing or GE SmartConnect TM
Refrigerator Tubing kits
. Water shut-off valve
. Custom panels for fresh food door, freezer drawer
and grille panel
. Screws to secure refrigerator to cabinetry,
. Stick-on hook and loop fastener strips for
1/4" side panels
FLOORING
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring, This surface should
be strong enough to support a fully loaded refrigerator,
or approximately 1,200 Ibs,
NOTE: Protect the finish of the flooring, Cut a large
section of the cardboard carton and place under the
refrigerator where you are working,
GROUNDING THE REFRIGERATOR
IMPORTANT--(Please read carefully)
FORPERSONALSAFETY,THISAPPLIANCEMUSTBE
PROPERLYGROUNDED.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle
to minimize the possibility of electric shock hazard
from this appliance,
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded,
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet,
DO NOT,UNDERANY
CIRCUMSTANCES,CUT
ORREMOVETHETHIRD
(GROUND)PRONGFROM
THEPOWERCORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT THE
REFRIGERATORTO A 2-PRONG OUTLET,
DO NOTUSEAN EXTENSIONCORDWITH THIS
APPLIANCE.

Installation Instructions
[STEP1] REMOVEPACKAGING
CAUTION:Refrigerator is much heavier at the
top than at the bottom-be careful when moving. When
using a hand truck, handle from side only,
PRUDENCE:Le rdrige.rateur est beaucoup
plus Iourd en haut qu'en bas. IIfaut 6tre prudent Iors
des deplacements. Si un diable est utilise, il faut soulever
le re.frige.rateur sur le cote. seulement.
, Carefully cut banding at the top and bottom,
remove outer carton.
, Slide out back corner posts (2).
, Slide carton off top of cabinet.
NOTE: IT IS NOT NECESSARYTO LAY CABINET DOWN IN
ORDER TO REMOVE SKID!
, The unit is secured to the skid with 2 full-length
tie-down straps. Remove the ten 5/16" bolts from the
base channels in the tie-downs.
Remove 5
base channel
bolts on each
side
CAUTION: DoNOT
ATTEMPT TO ROLL UNIT OFF
SKID.
PRUDENCE: ILNE
FAUT PAS ESSAYER DE FAIRE
ROULER LE REFRIGERATEUR
POUR L'ENLEVER DE LAY
PALETTE,
Remove 2 strap
bolts on each side
, Remove the four 7/16" bolts securing the straps to the skid.
, Support blocks on the bottom of the refrigeration case must
be removed before the refrigerator is taken off the skid or
damage will occur. Carefully, tilt refrigerator and slide blocks
out from beneath.
, Remove toekick. Set aside for final installation.
, Lift the refrigerator off the skid with an appliance dolly.
Handle from the sides.
STEP 2 INSTALL WATER LINE
, A cold water supply is required for automatic icemaker
operation. The water pressure must be between 40 and
120 p,s,i,
, Route 1/4" OD copper or GE SmartConnect TMplastic tubing
between house cold water line and the water connection
location.
, Tubing should be long enough to extend to the front of
the refrigerator. Allow enough tubing to accommodate
bend leading into the water line connection.
NOTE: The only OE-approved plastic tubing is supplied in
the GESmartConnect TMRefrigerator Tubing kits. Do not use
any other plastic water supply line because the line is under
pressure at all times. Other types of plastic may crack or
rupture with age and cause water damage to your home.
GE SmartConnect TMRefrigerator Tubing Kits are available in
the following lengths:
2'(.6 m) WXO8XIO002 6'(1.8 m) WXO8XIO006
15'(4.6 m) WXOSXlO015 25'(7.6 m) WXOSXlO025
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the line of
water.
, Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet. The
shut-off valve should be located where it will be easily
accessible.
WaterlineTubing
, Turn on the main water supply and flush debris. Run about
a quart of water through the tubing into a bucket. Shut off
water supply at the shut-off valve.
NOTE:Saddle type shut-off valves are included in
many water supply kits, but are not recommended
for this application.
NOTE: Commonwealth of Massachusetts Plumbing Codes
248CMR shall be adhered to. Saddle valves are illegal and
use is not permitted in Massachusetts. Consult with your
licensed plumber.
STEP2A WATERLINEINSTALLATIONWITH
AREVERSEOSMOSISSYSTEM
Skip this step when not using an ROSystem
If the water supply to the refrigerator is from a Reverse
Osmosis Water System, use the refrigerator's filter bypass
plug. Using the refrigerator's water filtration cartridge with
the RO filter can result in hollow ice cubes.
\\,
Filter Bgpass Plug
10

Installation Instructions
iSTEP 3 iINSTALLSIDEPANELS
Skipthis step when not using side panels
Ifyou are using 1/4" side panels,they should be inserted into the case
trim, Fasten the panels to the refrigerator with stick-on hook and loop
fastener strips before setting refrigerator in place,
ISTEP4 INSTALL ANTI-TIP BRACKET
a,WARNING:ANT,-T,PPRECAUT,ONS
The unit is top-heavy and must be secured to prevent
the possibility of tipping forward,
A AVERTiSSEMENT"PRECAUTIONS
CONTRE LES BASCULEMENTS
L'appareil menager est beaucoup plus Iourd en haut
et il faut le maintenir en place pour eviter la possibilite
de son basculement vers I'avant,
, The kit supplied with the unit contains 2 lag bolts
and 4 toggles with bolts, The wall bracket will be
attached to the wall in 4 places,
, Measure the opening where the unit is to be installed,
Mark the center with a vertical line,
, Measure up 81 1/2" from the floor, Mark this point
on the wall,
, Using a level, draw a horizontal line on the wall
at this height,
, Locate at least 2 studs on the back wall, Mark these
points on the horizontal line,
, Place the bottom of the wall bracket with tabs
on the horizontal line, Align the center notch
on the bracket with the center line on the wall,
, The anti-tip wall bracket has a series of holes,
Select 2 holes that match with the located studs,
Make sure the holes selected are on the center
of the studs, Mark the wall at these points,
, Mark an additional hole at each end of the bracket,
If one of the studs is closer to the end of the bracket,
mark an additional hole towards the center
of the bracket,
, Drill 1/2" holes into the wall board at the locations
marked for the toggles to be mounted (not the stud
markings),
, Drill 3/16" holes into wooden studs where marked,
If steel stud construction, drill 1/2" holes into the studs
where marked, You will use 2 toggles with the metal
studs,
81-1/2"
ToFloor
Center Wall Bracket
/
I/_
_ooo.J -oj°_°l°_l
i .- --Z°_°°
i,,...............i..............
[VvoAdditional
HoD Locationsat
Endsof Brackets I
Wall Studs
/
Line OnWall
/
/
/
Line on Wall
/
/
/
/
Center
11

Installation Instructions
[STEP4 ]INSTALL ANTI-TIP BRACKET
(cont.)
Install Wall Toggles:
The wall toggles and bolts can be ordered as Service Kit
#WR49X10193, Wall toggles are installed in the drywall
and metal studs for stability, Install the wall toggles as
follows:
. Drill 1/2" holes at the wall markings made in the holes at
the ends of the wall bracket,
. Hold the metal channel flat against the plastic straps
and slide the channel through the hole,
. Insert the bolts into the toggle by hand until snug,
Tighten with a wrench,
Drywallor
SteelStud
\\ \\
B01t
Metal Channel
. Gently pull back at the ends of the plastic straps to
make the channel rest flush behind the wall,
. Hold the ends of the straps in one hand and slide the
plastic cap along the straps until the flange of the cap is
flush with the wall,
. Place your thumb between the plastic straps and bend
up and down to snap the straps off at the wall,
Anti-TipWall Bracket
Wall Toggle
Power Cord
Locate the power cord inside the left cavity, If it has not
been adjusted so the plug is easily accessible,
do so now,
"L"Bolt
/
PowerCordLocation
Install Screws and Bolts:
. Have someone hold the wall bracket centered in place
with each of the holes aligned with the correct opening
in the bracket and level with the horizontal line,
. Insert the lag screws through the bracket and into the
stud, Tighten with a wrench,
Wood Stud
Move Unit into Final Position
. Open the access panel,
. Move refrigerator toward its final installed location, Align
the tabs on the wall bracket with the openings in the back
of the unit,
. The unit has an "L" bolt in the upper left corner inside of
the access compartment, This bolt will interlock with the
wall bracket and secure the unit using the washers and
hair pin cotter in the hardware kit once the unit has been
leveled and is in the final position,
Anti-TipWallBracket
12

Installation Instructions
[STEP 5 LEVEL REFRIGERATOR
All models have 4-point leveling, The front is supported
by leveling legs, the rear is supported by adjustable
wheels, Both are accessible from the front of the
refrigerator,
. To level the back of the refrigerator, turn the 7/16" hex
nut located above the front wheels, Turn clockwise to
raise or counterclockwise to lower the refrigerator,
. For front leveling, use a 1-1/4" open-end wrench,
. Adjust height of refrigerator to match installation
cutout opening 83-1/2 to 84-1/2", The refrigerator
should be level and plumb with cabinetry,
U
Hex Nut Adjusts -_!_
RearWheels
Leveling
CAUTION:
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1", If the
installation requires more than 84-1/2" height, the
installer should elevate the refrigerator on a sheet
of plywood or runners, Cabinetry trim could also be
added across the top of the opening to shorten the
opening, If you attempt to raise the refrigerator more
than 1", you will damage the front leveling legs and the
rear leveling wheels,
PRUDENCE
Les roues de nivellement arriere et les pattes de
nivellement avant permettent un reglage maximal
de 25 mm (1 po), Si I'ouverture pour le refrigerateur
a une hauteur superieure _ 2,15 m (84-1/2 po),
I'installateur dolt elever le refrigerateur sur une feuille
de contre-plaque ou des glissieres, II est egalement
possible d'ajouter des baguettes de finition des
placards sur le haut de I'ouverture afin de la reduire,
Lever le refrigerateur de plus de 25 mm (1 po)
endommage les pattes de nivellement avant
et les roues de nivellement arriere,
STEP6 SECUREUNIT TO WALL
The "L" rod can be found in the upper left corner of
the unit in the access compartment, Look through the
access compartment to make sure the rod lines up with
the anti-tip bracket,
There are 2 washers and a hair pin cotter with the rod,
Remove the washers and hair pin cotter from the end of
the rod,
Rotate and move the ,:: .......
"L" rod into the slot in : .....
the anti-tip bracket tab, " ----.
Once it is in the slot,
rotate the "L" rod so the
hook portion is pointing ',,,
,,,
down, The holes at the ',,
front end of the rod "L"RodPointingDown
should be in a vertical EngagedinBracket
position,
Pull out on the end of the rod to make sure it is secure
in the bracket,
Locate the hole on the rod that is closest to the unit, A
hair pin cotter will be put through this hole to secure the
rod, If this hole appears to be too far away for a snug fit
against the unit, add the washers one at a time until the
pin will fit tightly into the hole,
Align the straight section of the pin with the hole from
the underside of the rod, Push the pin up until it snaps
into position, Pliers may be used, NOTE: The hair pin
cotter must be vertical when this step is completed to
ensure the "L" rod is engaged in the bracket,
Check the rod for tightness by pulling forward, If the rod
moves, remove the hair pin cotter and place another
washer on the rod, Reinsert the pin,
"L"Rod
/
Hair Pin Cotter
is Vertical
13

Installation Instructions
[STEP 7 lAD JUST DOOR SWING
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130 °, you may change the door swing to a 90 °
opening. Skip this step if door opening is satisfactory
for your installation situation.
, Lift the grille panel to access the wire cover trim.
, Remove screws on both sides of the wire cover trim
and rotate off.
, Use pliers to unscrew door stop and reinstall into the
90 ° position.
-. o-.
Remove
Wire Cover
Trim Screws
Pin Location For
90 Pin Location
as Shipped
130 Door Swin!
, Reinstall the wire cover trim.
STEP8 INSTALL GRILLE PANEL
, Raise the grille panel to stop position.
Side ,
Trim :_
Screw
i _ Raise
IFI tl Pane_ Looserside
Adjust"Nut Below Trim
' .................................................... Screw
Spring to Accommodate
PanelWeight II
, Loose screws on side trim behind frame. Remove
bottom trim.
, Slide panel over the metal backer panel and into
the trim.
, If necessary, tap with a wood block until panel slips
under the top trim piece.
, Reassemble bottom trim. Tighten screws.
, Adjust the hinge spring to accommodate the panel
weight, if necessary.
14

Installation Instructions
ISTEP 9 ]INSTALL 1/4" FRAMED PANELS Right hand models shown. Use the same instructions
for left hand models.
IF YOUAREINSTALLINGOVERLAYPANELS,
GOTO STEP9A.
/'
/'
',\ /Use Front Hol,
_\ " to SecureTrh_
...... -............ \ UseRearHoles
to Secure Handle
Door Trim
Refrigerator
Door
k\,\\\\\\\\\\\\\\\\\'\\\/
Standard supplied handle shown
in 1/4" panel position,
i i
Install door and drawer panels:
, Open door to 90 °, Remove the 4 Phillips head screws
from the door handle,
, Remove handle, Retain all screws,
, Remove 4 screws holding trim, lift off trim,
Retain screws,
, Slide framed panel into the door trim,
, There are two sets of holes in the handle side trim,
Replace handle side trim by installing the original screws
in the FRONT screw holes,
, Secure the handle to the door using the REAR screw
holes,
, Follow the same procedures to install the drawer panel,
15

Installation Instructions
[STEP 9A] INSTALL OVERLAY PANELS Right hand models shown. Use the same instructions
for left hand models.
/
/
/
\\\\x\
/Use Front Hol
to Secure Hone
...... -- _Use Reor Holes
to Secure Trim
Handle
Trim....
Move
Forward
For 3/4"
Panel
DoorTrim
Refrigerator
Door
I,\\\\\\\\\\\\\\\\\\\\\1
Supplied handle shown in the
overlay panel position,
i i
I
II
I
I
? ?
Install door and drawer panels:
, Open door to 90 °, Remove the 4 Phillips head screws
from the door handle,
, Remove handle, Retain all screws,
, Remove 4 screws holding trim, lift off trim,
Retain screws,
, Slide overlay panel into the door trim,
, There are two sets of holes in the handle side trim,
Replace handle side trim by installing the original screws
in the REAR screw holes,
, Secure the handle to the door using the FRONT
screw holes,
, Follow the same procedures to install the drawer panel,
Custom handles
If you are using custom handles, the handle must be
properly secured to the panel before sliding the panel
into the trim,
, The cabinet manufacturer will supply the custom
handle and hardware,
, Secure the door/drawer trim using both the FRONT
and REAR screw holes, Discard supplied handle,
16

Installation Instructions
ISTEP 10 ICONNECT WATER SUPPLY
. Locate and bring tubing to the front of the cabinet,
. Turn the water on to flush debris from line, Run about
a quart of water through tubing into a bucket, then
shut off water,
Copper Tubing:
. Slip a 1/4" nut and ferrule (provided) over both ends
of the copper tubing, Insert tube into the union fitting
on the unit and tighten nut to union,
. Turn on the water to check for leaks,
GE SmartConnect ,MTubing:
. Insert the molded end of the tubing into the
refrigerator connection, Tighten the compression nut
until it isjust hand tight,
. Tighten one additional turn with a wrench,
Overtightening can cause leaks!
. Turn on the water to check for leaks,
Note: Make sure excess tubing length does not
interfere with drawer closing or toekick installation,
[STEP 11 ICONNECT POWER
" Check to be sure the power cord is plugged into the
receptacle,
Electrical
Outlet Master Light Switch
4
Raise1"!
Grille]
PanelJ
, Check to make sure power to refrigerator is on
by opening refrigerator door to see if interior lights
are on.
, The temperature controls are preset at 37°F
for the fresh food section and 0°F for the freezer.
, Allow 24 hours to stabilize before making
adjustments.
STEP 12 START ICEMAKER
Flip the switch to I (ON),The icemaker will begin
operation automatically,
. Be sure nothing interferes with the sweep of
the feeler arm,
. Discard the first full bucket of ice cubes,
. To turn the icemaker off, set the switch to 0 (OFF),
17

Installation Instructions
[STEP 131 INSTALL TOEKICK
. Locate the supplied toekick (shipped taped to
the side of the refrigerator), Install the toekick
assembly with the 3 screws provided, adjust to the
desired height and tighten the screws,
_% "% %
. A custom toekick can be installed to match or
complement the surrounding cabinetry, Use the
supplied toekick as a template to cut the shape,
IMPORTANT: The gap between the bottom of the
refrigerator cabinet and the top of the toekick must
remain unobstructed for proper air circulation,
18

Notes
19

NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram '_ local service in your area, call
1.800.444.1845.
NOTE: Product improvement is a continuing endeavor
at General Electric. Therefore, materials, appearance and
specifications are sul_ject to change without notice.
Pub, No, 49-60706-1
Part No, 224D3735P001
03-14 GE
GE Consumer & Industrial
Applionces
Generol Electric Compong
Louisville, KY/40225
GEAppliances.com
