GE ZIPP360NZA User manual

OW er's
Manual
French Door,
Bottom-Freezer
Built-In Refrigerotors
22403548P00149-60699
12-13 GE
monogram.com

Consumer Information
Bottom Freezer Refrigerator

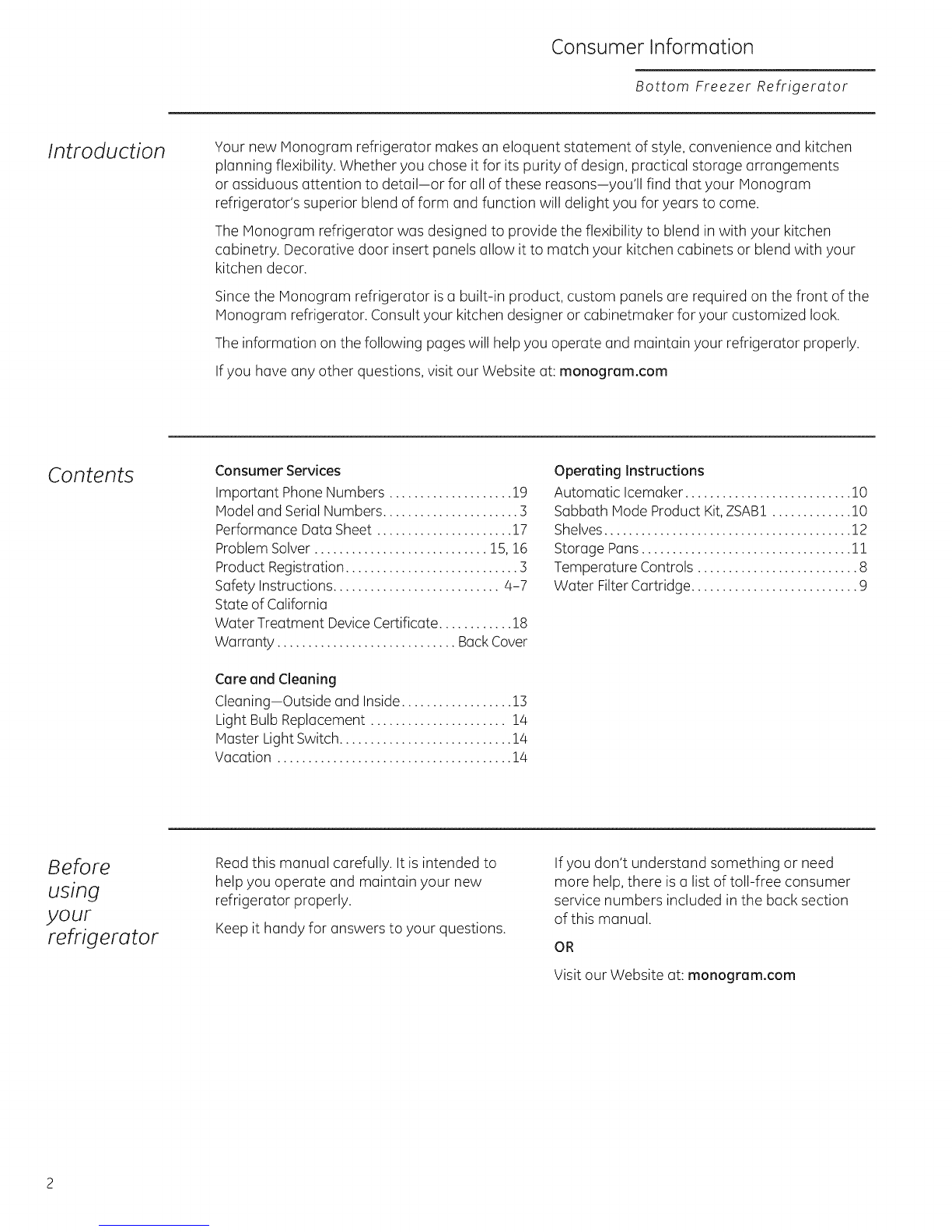

Introduction Your new Monogram refrigerator makes an eloquent statement of style, convenience and kitchen
planning flexibility. Whether you chose it for its purity of design, practical storage arrangements
or assiduous attention to detail-or for all of these reasons-you'll find that your Monogram
refrigerator's superior blend of form and function will delight you for years to come.
The Monogram refrigerator was designed to provide the flexibility to blend in with your kitchen
cabinetry. Decorative door insert panels allow it to match your kitchen cabinets or blend with your
kitchen decor.
Since the Monogram refrigerator isa built-in product, custom panels are required on the front of the
Monogram refrigerator. Consult your kitchen designer or cabinetmaker for your customized look.
The information on the following pages will help you operate and maintain your refrigerator properly.
If you have any other questions, visit our Website at: monogram.cam
Contents Consumer Services
Important Phone Numbers .................... 19
Model and Serial Numbers ...................... 3
Performance Data Sheet ...................... 17
Problem Solver ............................ 15, 16
Product Registration ............................ 3
Safety Instructions ........................... /4-7
State of California
Water Treatment Device Certificate ............ 18
Warranty ............................. Back Cover
Care and Cleaning
Cleaning-Outside and Inside.................. 13
Light Bulb Replacement ...................... 1/4
Master Light Switch............................ 14
Vacation ...................................... 14
Operating Instructions
Automatic Icemaker ........................... 10
Sabbath Mode Product Kit,ZSAB! ............. !0
Shelves........................................ 12
Storage Pans.................................. !!
Temperature Controls .......................... 8
Water FilterCartridge ........................... 9
Before
using
your
refrigerator
Read this manual carefully. It is intended to
help you operate and maintain your new
refrigerator properly.
Keep it handy for answers to your questions.
If you don't understand something or need
more help, there isa list of toll-free consumer
service numbers included in the back section
of this manual.
OR
Visit our Website at: monogram.cam

Consumer Information
Bottom Freezer Refrigerator

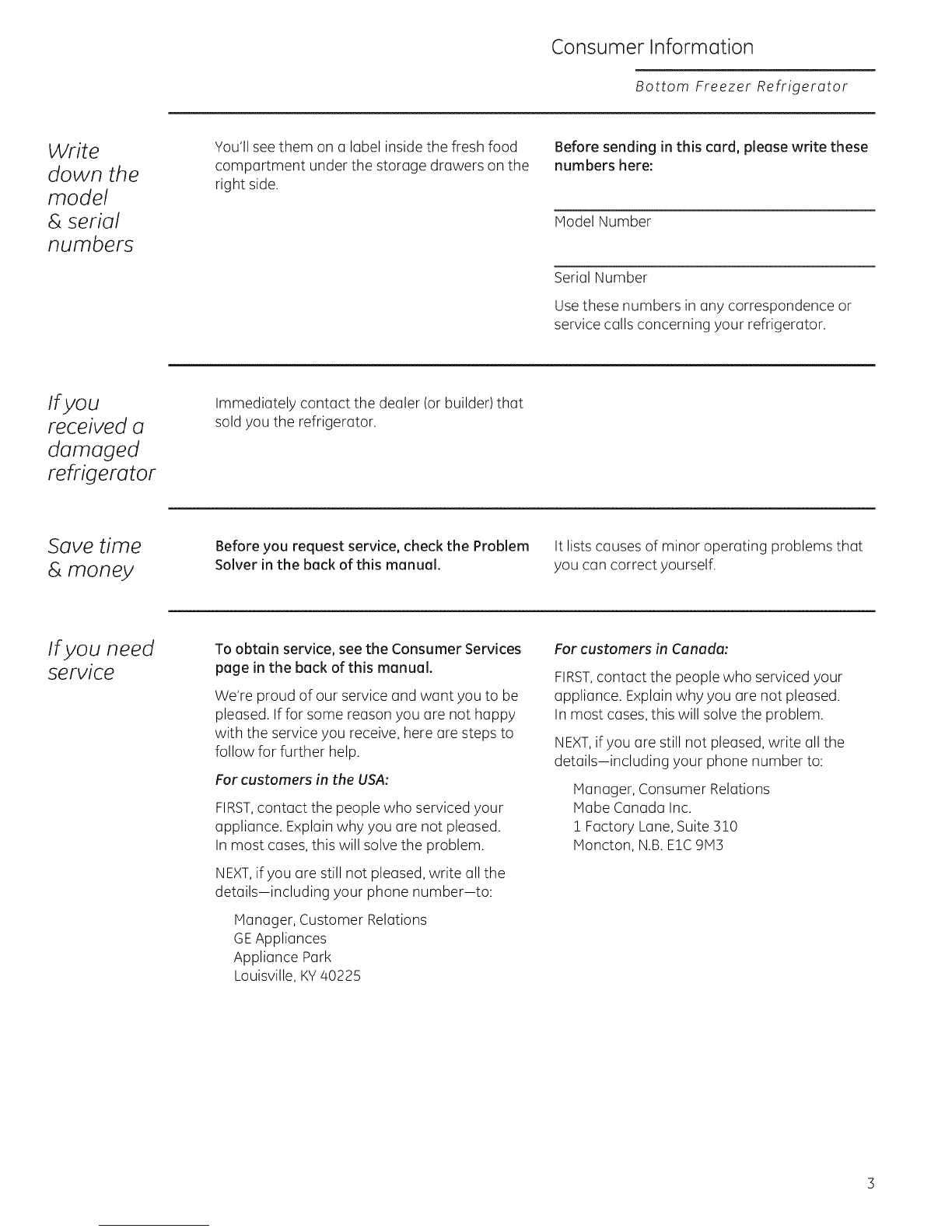

Write
down the
model
& serial
numbers
You'll see them on a label inside the fresh food
compartment under the storage drawers on the
right side.
Before sending in this cord, please write these
numbers here:
M1odelNumber
Serial Number
Use these numbers in any correspondence or
service calls concerning your refrigerator.
Ifyou
received o
damaged
refrigerator
Immediately contact the dealer (or builder) that
sold you the refrigerator.
Sove time
&money Before you request service, check the Problem
Solver in the back of this manual. It lists causes of minor operating problems that
you can correct yourself.
Ifyou need
service To obtain service, see the Consumer Services
page in the beck of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are steps to
follow for further help.
For customers in the USA:
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, write all the
details-including your phone number-to:
M1anager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY40225
For customers in Canada:
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, write all the
details-including your phone number to:
M1anager,Consumer Relations
M1abeCanada Inc,
1 Factory Lane, Suite 3!0
Moncton, N.B.E1C9M13

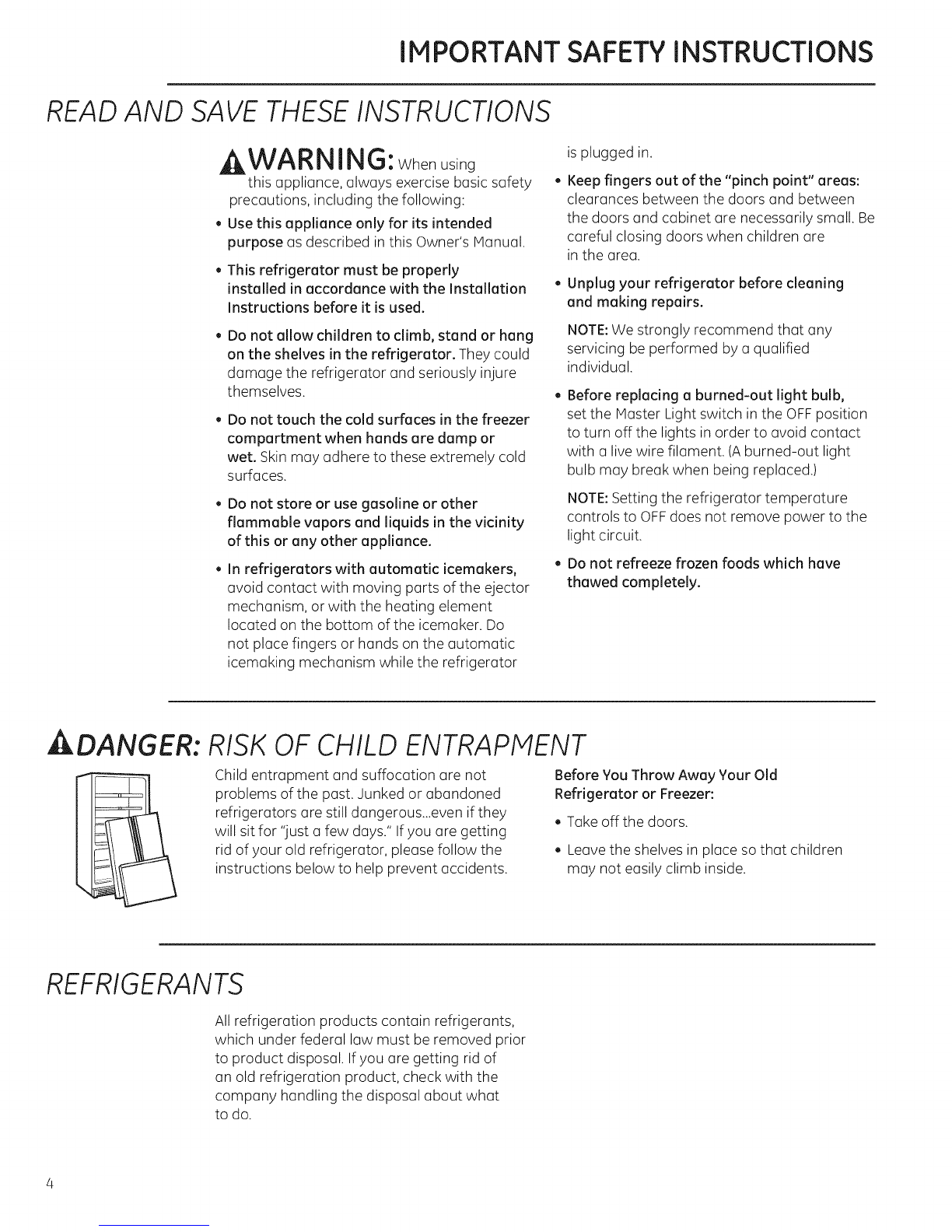

IMPORTANT SAFETYINSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARNING:when using
this appliance, always exercise basic safety
precautions, including the following:
. Use this appliance only for its intended
purpose as described in this Owner's Manual.
. This refrigerator must be properly
installed in accordancewith the Installation
Instructions before it is used.
Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could
damage the refrigerator and seriously injure
themselves.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or
wet. Skin may adhere to these extremely cold
surfaces.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
In refrigerators with automatic icemakers,
avoid contact with moving parts of the ejector
mechanism, or with the heating element
located on the bottom of the icemaker. Do
not place fingers or hands on the automatic
icemaking mechanism while the refrigerator
is plugged in.
Keep fingers out of the "pinch point" areas:
clearances between the doors and between
the doors and cabinet are necessarily small. Be
careful closing doors when children are
in the area.
Unplug your refrigerator before cleaning
and making repairs.
NOTE:We strongly recommend that any
servicing be performed by a qualified
individual.
Before replacing a burned-out light bulb,
set the Master Light switch in the OFFposition
to turn off the lights in order to avoid contact
with a live wire filament. (Aburned-out light
bulb may break when being replaced.)
NOTE: Setting the refrigerator temperature
controls to OFF does not remove power to the
light circuit.
Do not refreeze frozen foods which have
thawed completely.
ADANGER: RISK OF CHILD ENTRAPHENT
Child entrapment and suffocation are not
problems of the pest. Junked or abandoned
refrigerators are still dangerous...even if they
will sit for "just a few days." If you are getting
rid of your old refrigerator, please follow the
instructions below to help prevent accidents.
Before You Throw Away Your Old
Refrigerator or Freezer:
. Take off the doors.
. Leavethe shelves in place so that children
may not easily climb inside.
REFRIGERANTS
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. Ifyou are getting rid of
an old refrigeration product, check with the
company handling the disposal about what
to do.

J J

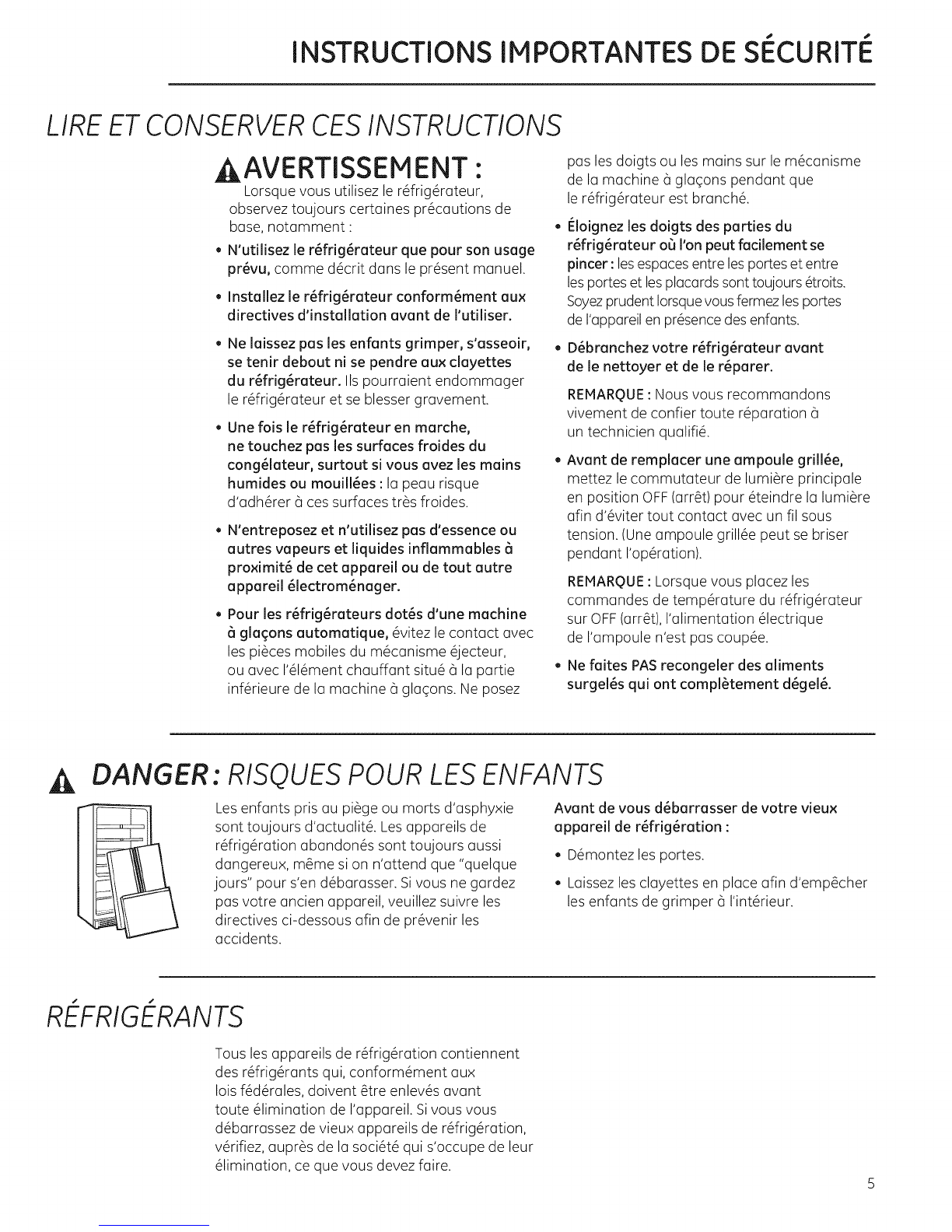

INSTRUCTIONS IMPORTANTES DE SECURITE
LIRE ET CONSERVER CESINSTRUCTIONS
AVERTISSEMENT :
Lorsque vous utilisez le r6frig_rateur,
observez toujours certaines pr6cautions de
base, notamment :
. N'utilisez le r_frig_rateur que pour son usage
pr_vu, comme d6crit dens le pr6sent manuel.
. Installez le r_frig_rateur conform_ment au×
directives d'installation event de I'utiliser.
Ne laissez pus les enfents grimper, s'asseoir,
se tenir debout ni se pendre aux clayettes
du r_frig_rateur. IIspourraient endommager
le r6frig6rateur et se blesser gravement.
Une fois le r_frig_rateur en marche,
ne touchez pas les surfaces froides du
cong_lateur, surtout si vous avez les mains
humides ou mouill_es :lu peau risque
d'adh6rer 6 ces surfaces tr_s froides.
N'entreposez et n'utilisez pus d'essence ou
autres vapeurs et liquides inflammables 6
proximit_ de cet apporeil ou de tout autre
appereil _lectrom_nager.
Pour les r_frig_rateurs dot_s d'une machine
6 gla(_onsautomatique, 6vitez le contact avec
les pi_ces mobiles du m6canisme 6jecteur,
ou avec 1'61_mentchauffant situ6 5 la partie
inf6rieure de la machine 6 glaqons. Ne posez
pas les doigts ou les mains sur le m6canisme
de la machine 6 glaqons pendant que
le r6frig6rateur est branch6.
I_loignez les doigts des parties du
r_frig_rateur o6 I'on pout facilement se
pincer: lesespacesentre lesportes et entre
lesportes etles placards sont toujours 6troits.
Soyezprudent Iorsquevous fermezlesportes
de I'appareil en pr6sence desenfants.
D_branchez votre r_frig_rateur event
de le nettoyer et de le r_parer.
REMARQUE :Nous vous recommandons
vivement de confier toute r6paration 6
un technicien qualifi6.
Avant de remplacer une ampoule grill_e,
mettez le commutateur de lumi_re principale
en position OFF(arr_t) pour _teindre la lumi_re
afin d'6viter tout contact avec un fil sous
tension. (Une ampoule grill6e peut se briser
pendant I'op6ration).
REMARQUE: Lorsque vous placez les
commandes de temp6rature du r6frig6rateur
sur OFF(arr_t), I'alimentation _lectrique
de I'ampoule n'est pas coup6e.
Nefaites PASrecongeler des aliments
surgel_s qui ont compl_tement d_gel_.
DANGER : RISQUES POUR LES ENFANTS
Les enfants pris au pi_ge ou morts d'asphyxie
sont toujours d'actualit_. Lesappareils de
r6frig_ration abandon_s sont toujours aussi
dangereux, m_me si on n'attend que "quelque
jours" pour s'en d_barasser. Si vous ne gardez
pas votre ancien appareil, veuillez suivre les
directives ci-dessous afin de pr_venir les
accidents.
Avant de vous d_barrasser de votre vieux
appareil de r_frig_ration :
, D_montez les portes.
, Laissezles clayettes en place afin d'emp_cher
les enfants de grimper 6 I'int_rieur.
Rb FRIGERANT5
Tousles appareils de r_frig_ration contiennent
des r_frig_rants qui, conform_ment aux
lois f_d_rales, doivent _tre enlev_s event
toute _limination de I'appareil. Sivous vous
d_barrassez de vieux appareils de r_frig_ration,
v_rifiez, aupr_s de la soci_t_ qui s'occupe de leur
_limination, ceque vous devez faire.

IMPORTANT SAFETYINSTRUCTIONS

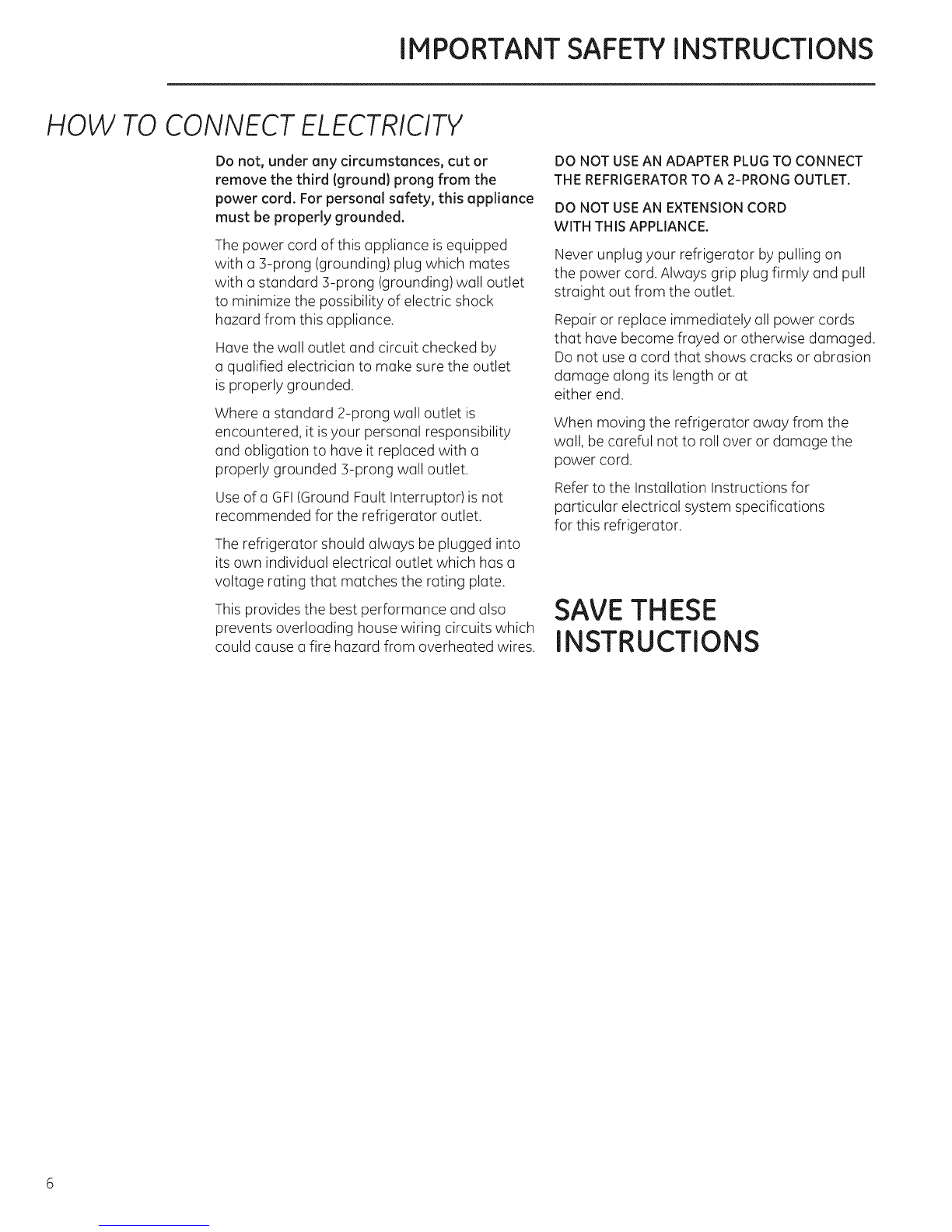

HOW TOCONNECTELECTRICITY
Do not, under any circumstances, cut or
remove the third (ground} prong from the
power cord. For personal safety, this appliance
must be properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a standard 2-prong wall outlet is
encountered, it isyour personal responsibility
and obligation to have it replaced with a
properly grounded 3-prong wall outlet.
Use of a GFI(Ground Fault Interruptor) is not
recommended for the refrigerator outlet.
The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USEAN EXTENSION CORD
WITH THIS APPLIANCE.
Never unplug your refrigerator by pulling on
the power cord. Always grip plug firmly and pull
straight out from the outlet.
Repair or replace immediately all power cords
that have become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion
damage along its length or at
either end.
When moving the refrigerator away from the
wall, be careful not to roll over or damage the
power cord.
Refer to the Installation Instructions for
particular electrical system specifications
for this refrigerator.
SAVE THESE
INSTRUCTIONS

J J
INSTRUCTIONS IMPORTANTES DE SECURITE
RACCORDEIVlENT 4LLECTRIQUE
Ne coupez ni retirez en aucun cas la troisi_me
broche (raise 6 la terre) de la fiche du cordon
d'alimentetion. Pour votre s_curit_, cet
appereil doit 6tre correctement mis 6 le terre.
Le cordon d'alimentation de cet appareil est
muni d'une fiche 6 3 broches (mise6 la terre)
qui se branche dans une prise mural ordinaire
6 3 alv6oles (mise 6 la terre) pour r6duire au
minimum les risques du chocs 61ectriques.
Faites examiner la prise de courant et le circuit
par un 61ectricienqualifi6 pour vous assurer que
la prise est correctement mise 6 la terre.
Si la prise murale est du type standard 6
2 alv6oles, il vous incombe de la faire remplacer
par une prise 6 3 alv6oles correctement mise
6 la terre.
L'utilisation d'un interrupteur de d6faut 6 la
terre (GFI--Ground Fault Interruptor) n'est
pas recommand6 pour la prisede courant du
r6frig@ateur.
Le r6frig@ateur doit toujours _tre branch6
dans sa propre prise de courant, dont la tension
nominale est identique (3celle indiqu_e sur
la plaque signal@ique.
Cette pr6caution est recommand6e pour
garantir un rendement optimum et 6viter
une surcharge des circuits 61ectriques de
la r6sidence, ce qui pourrait cr6er un risque
d'incendie par surschauffe des ills.
N'UTILISEZ PAS UNE FICHE D'ADAPTATION
POUR RACCORDER LE RI_FRIGt_RATEUR DANS
UNE PRISE MURALE #, 2 ALVI_OLES.
N'UTILISEZ PAS DE CORDONS PROLONGATEURS
AVEC CET APPAREIL.
Ne d6branchezjamais I'appareil en tirant le
cordon d'alimentation. Saisissezfermement
la fiche du cordon et tirez droit pour la retirer
de la prise.
R6parez ou remplacez imm6diatement tout
cordon effiloch6 ou endommag& N'utilisez
pas un cordon fendill6 ou pr6sentant des signes
d'usure.
Lorsque vous d6placez I'appareil du mur, faites
attention de ne pas la faire rouler sur le cordon
d'alimentation afin de ne pas I'endommager.
Voyez les Instructions d'lnstallation pour
les sp6cifications particuliers du syst6me
d'616ctrique de cet appareil.
CONSERVEZ CES
DIRECTIVES

Operating Instructions
Bottom Freezer Refrigerator

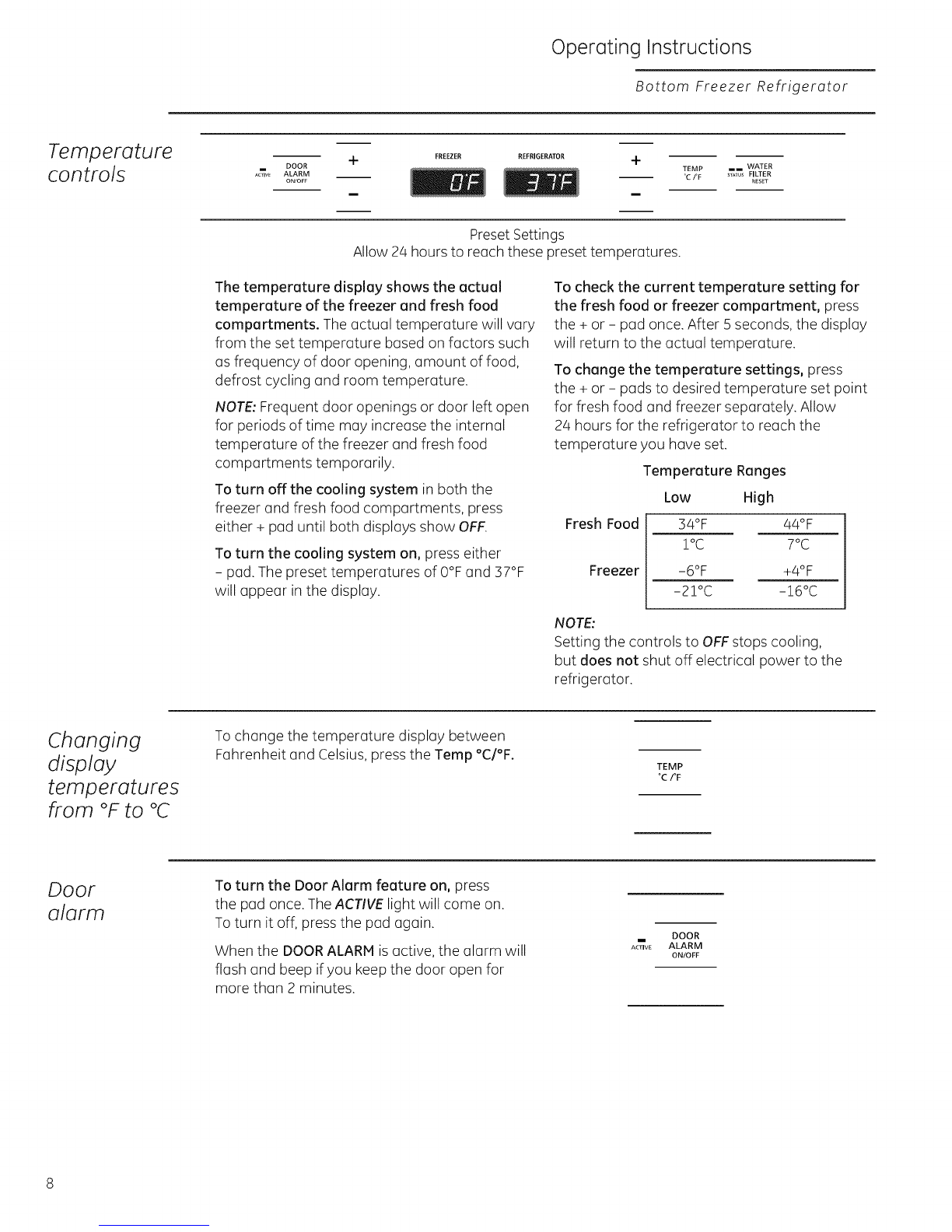

Temperature
controls DOOR "1"
m
Acuv_ ALARM
ON/OFF
m
FREEZER REFRIGERATOR +TEMP m_ WATER
"C fF STAtus FITTER
RES[T
Preset Settings
Allow 24 hours to reach these preset temperatures.
The temperature display shows the actual
temperature of the freezer and fresh food
compartments. The actual temperature will vary
from the set temperature based on factors such
as frequency of door opening, amount of food,
defrost cycling and room temperature.
NOTE:Frequent door openings or door left open
for periods of time may increase the internal
temperature of the freezer and fresh food
compartments temporarily.
To turn offthe cooling system in both the
freezer and fresh food compartments, press
either + pad until both displays show OFF.
To turn the cooling system on, press either
- pad. The preset temperatures of 0°F and 37°F
will appear in the display.
To check the current temperature setting for
the fresh food or freezer compartment, press
the + or - pad once.After 5 seconds, the display
will return to the actual temperature.
To change the temperature settings, press
the + or - pads to desired temperature set point
for fresh food and freezer separately. Allow
24 hours for the refrigerator to reach the
temperature you have set.
Fresh Food
Freezer
Temperature Ranges
Low High
34°F 44°F
!°C 7°C
-6°F +4°F
-2!°C -!6°C
NOTE:
Setting the controls to OFFstops cooling,
but does not shut off electrical power to the
refrigerator.
Changing
display
temperatures
from °F to °C
Tochange the temperature display between
Fahrenheit and Celsius, press the Temp °C/°F. TEMP
°C/°F
Door
alarm To turn the Door Alarm feature on, press
the pad once. The ACTIVE light will come on.
To turn it off, press the pad again.
When the DOORALARM is active, the alarm will
flash and beep if you keep the door open for
more than 2 minutes.
DOOR
AC_W ALARM
ON/OFF

Automatic Icemoker Ion some models)
Bottom Freezer Refrigerator
water filter

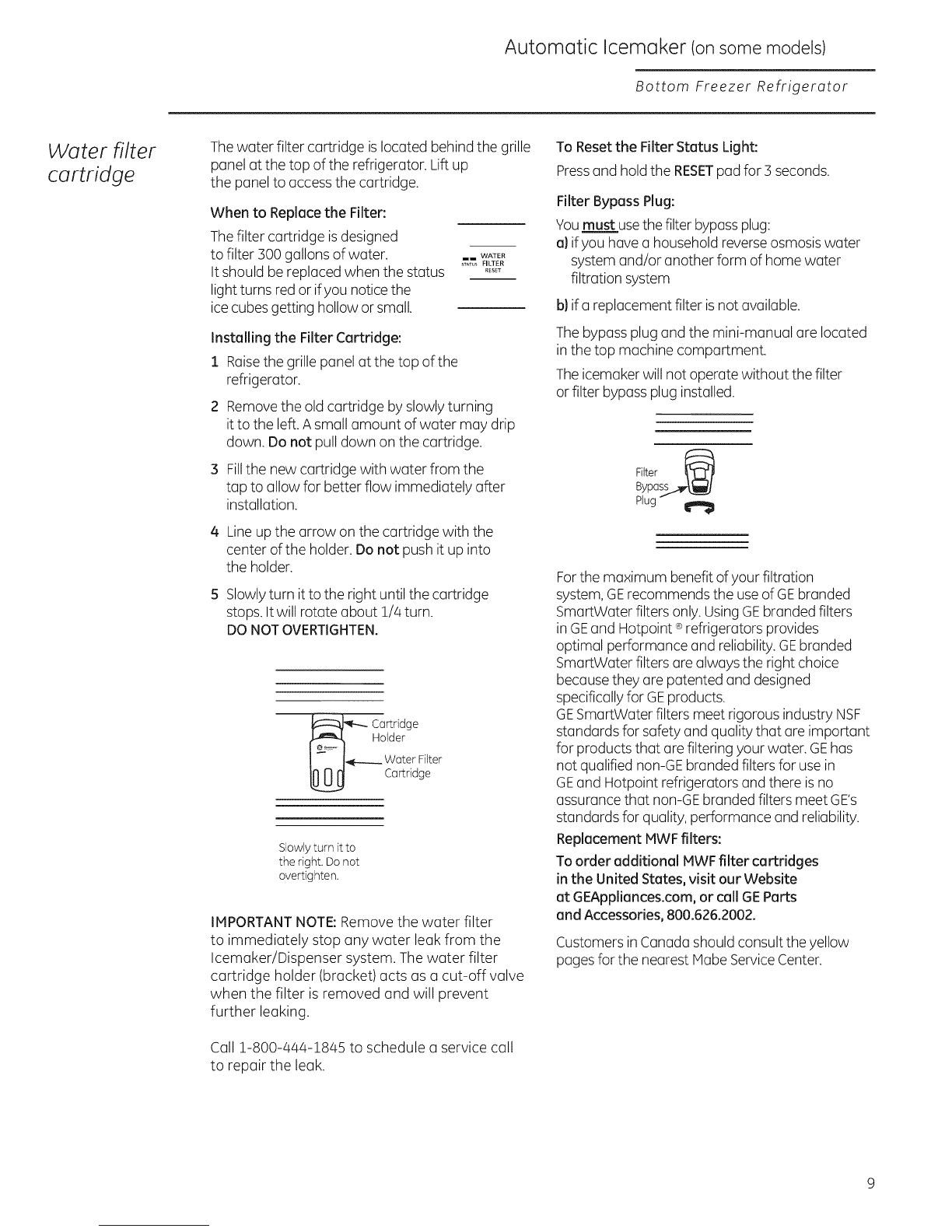

cartridge Thewater filter cartridge is located behind the grille
panel at the top of the refrigerator. Lift up
the panel to access the cartridge.
When to Replacethe Filter:
Thefilter cartridge isdesigned
to filter 300 gallons ofwater.
It should be replaced when the status
light turns red or ifyou notice the
icecubes getting hollow or small.
mR WATER
S_ATUS FILTER
R£SET
Installing the Filter Cartridge:
1 Raisethe grille panel atthe top of the
refrigerator.
Removethe old cartridge by slowly turning
it to the left.A small amount of water may drip
down. Do not pull down on the cartridge.
Fillthe new cartridge with water from the
tap to allow for better flow immediately after
installation.
4 Lineup the arrow on the cartridge with the
center of the holder.Do not push it up into
the holder.
5 Slowlyturn it to the right untilthe cartridge
stops. Itwill rotate about 1/4turn.
DONOTOVERTIGHTEN.
Cartridge
Holder
Water Filter
Cartridge
Slowly turn it to
the right. Do not
overtighten.
IMPORTANTNOTE:Remove the water filter
to immediately stop any water leak from the
Icemaker/Dispenser system. The water filter
cartridge holder (bracket) acts as a cut-off valve
when the filter is removed and will prevent
further leaking.
Call 1-800-4/44-1845 to schedule a service call
to repair the leak.
To Resetthe Filter Status Light:
Pressand hold the RESETpad for 3 seconds.
Filter Bypass Plug:
Youmust usethe filter bypassplug:
a) ifyou have a householdreverse osmosiswater
systemand/or another form of homewater
filtration system
b} ifa replacement filter isnot available.
Thebypass plug and the mini-manual are located
in the top machine compartment.
Theicemaker will not operate without the filter
or filter bypass plug installed.
Filter @
Plug_
Forthe maximum benefit ofyour filtration
system, GErecommends the useof GEbranded
SmartWater filters only. UsingGEbranded filters
in GEand Hotpoint ®refrigerators provides
optimal performance and reliability.GEbranded
SmartWater filters are always the right choice
because they are patented and designed
specificallyfor GEproducts.
GESmartWater filters meet rigorous industry NSF
standards for safety and quality that are important
for products that are filtering your water. GEhas
not qualified non-GEbranded filters for usein
GEand Hotpoint refrigerators and there isno
assurance that non-GEbranded filters meet GE's
standards for quality,performance and reliability.
Replacement HWF filters:
Toorder additional HWF filter cartridges
in the United States, visit our Website
at 6EAppliances.com, or coil GEPorts
and Accessories, 800.626.2002.
Customersin Canada should consultthe yellow
pages forthe nearest MabeServiceCenter.

Automatic Icemoker Ion some models)and Sabbath Mode Product Kit
Bottom Freezer Refrigerator

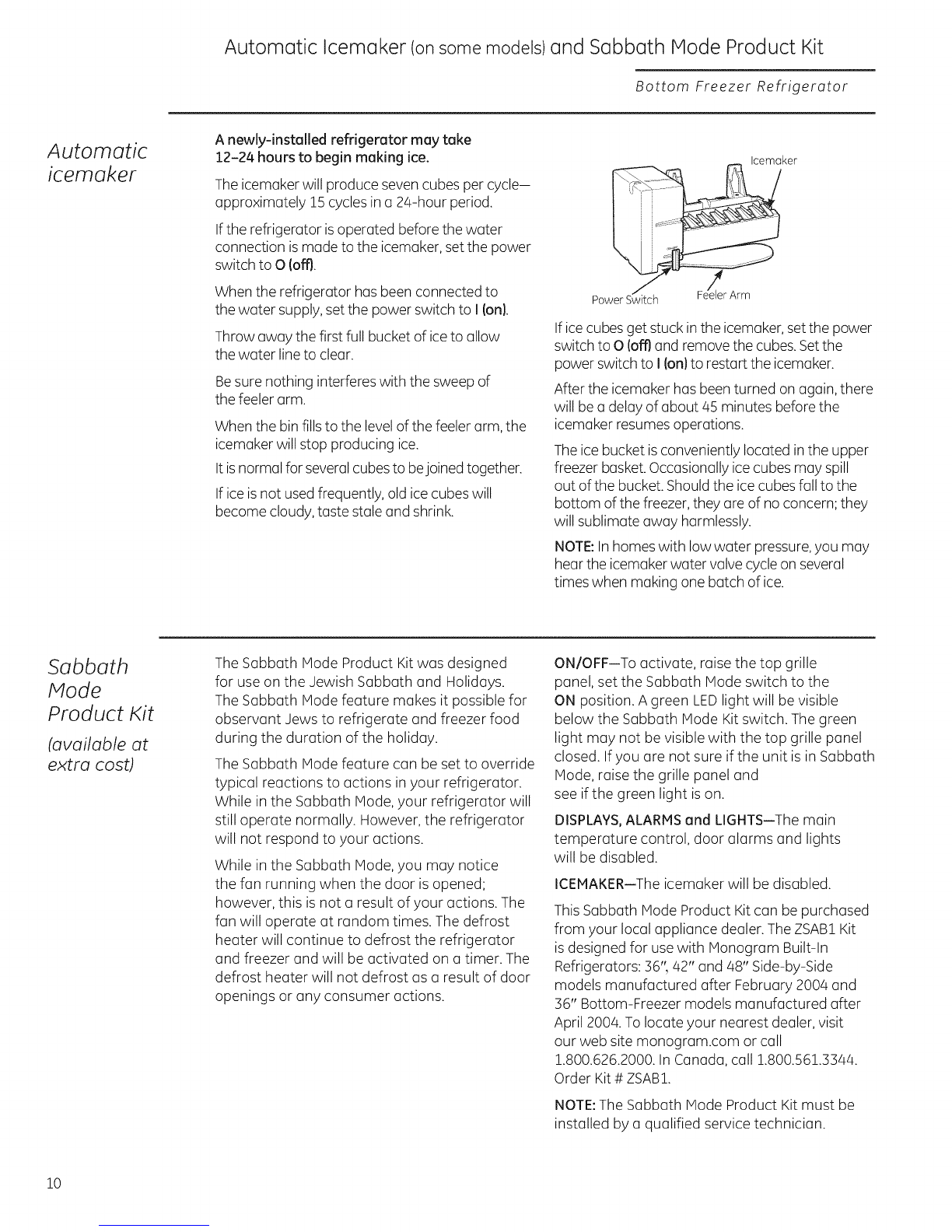

Automatic
icemaker
A newly-installed refrigerator may take
12-24 hours to begin making ice.
Theicemaker will produce seven cubes per cycle-
approximately 15 cycles in a 24-hour period.
If the refrigerator isoperated before the water
connection ismade to the icemaker, set the power
switch to O (off}.
When the refrigerator hasbeen connected to
the water supply,set the power switch to I (on}.
Throw away the first full bucket of iceto allow
the water line to clear.
Besure nothing interfereswith the sweep of
the feeler arm.
When the bin fillsto the levelof the feeler arm,the
icemaker will stop producing ice.
It isnormal for severalcubes to bejoined together.
If ice isnot usedfrequently, old icecubes will
become cloudy, taste stale and shrink.
__ Icemaker
If icecubes get stuck in the icemaker,setthe power
switch to O (off}and remove the cubes.Setthe
power switch to I(on}to restart the icemaker.
After the icemaker has been turned on again,there
will be a delayof about 45 minutes before the
icemaker resumesoperations.
Theice bucket isconveniently located inthe upper
freezer basket. Occasionally ice cubes may spill
out ofthe bucket. Should the ice cubes fall to the
bottom of the freezer,they are of no concern; they
will sublimate away harmlessly.
NOTE:Inhomes with lowwater pressure,you may
hear the icemaker water valve cycle on several
times when making one batch of ice.
Sabbath
Mode
Product Kit
(available at
extra cost)
The Sabbath Mode Product Kit was designed
for use on the Jewish Sabbath and Holidays.
The Sabbath Mode feature makes it possible for
observant Jews to refrigerate and freezer food
during the duration of the holiday.
The Sabbath Mode feature can be set to override
typical reactions to actions in your refrigerator.
While in the Sabbath Mode, your refrigerator will
still operate normally. However, the refrigerator
will not respond to your actions.
While in the Sabbath Mode, you may notice
the fan running when the door is opened;
however, this isnot a result of your actions. The
fan will operate at random times. The defrost
heater will continue to defrost the refrigerator
and freezer and will be activated on a timer. The
defrost heater will not defrost as a result of door
openings or any consumer actions.
ON/OFF--To activate, raise the top grille
panel, set the Sabbath Mode switch to the
ON position. A green LEDlight will be visible
below the Sabbath Mode Kit switch. The green
light may not be visible with the top grille panel
closed. If you are not sure if the unit is in Sabbath
Mode, raise the grille panel and
see if the green light ison.
DISPLAYS,ALARMSand LIGHTS--The main
temperature control, door alarms and lights
will be disabled.
ICEMAKER--Theicemaker will be disabled.
ThisSabbath Mode Product Kitcan be purchased
from your local appliance dealer.The ZSAB1Kit
is designed for use with Monogram Built-In
Refrigerators: 36", 42" and 48" Side-by-Side
models manufactured after February 2004 and
36" Bottom-Freezer models manufactured after
April 2004.To locate your nearest dealer,visit
our web site monogram.cam or call
1.800.626.2000. In Canada, call 1.800.561.3344.
Order Kit# ZSAB1.
NOTE:The Sabbath Mode Product Kit must be
installed by a qualified service technician.
10

Shelves and Bins
Bottom Freezer Refrigerator

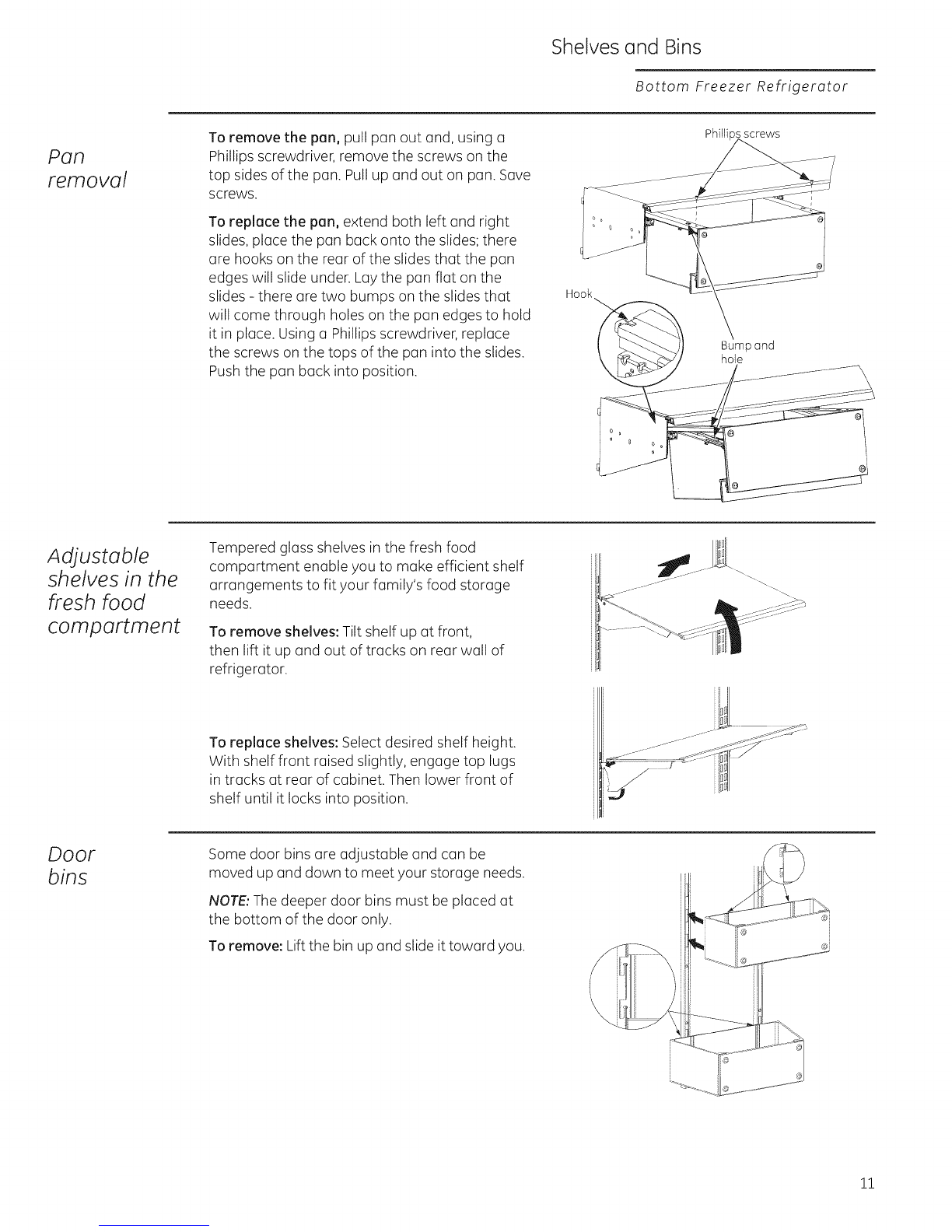

Pan
removal
To remove the pan, pull pan out and, using a
Phillips screwdriver, remove the screws on the
top sides of the pun. Pull up and out on pun. Save
screws.
To replace the pan, extend both left and right
slides, place the pan buck onto the slides; there
are hooks on the rear of the slides that the pan
edges will slide under. Laythe pan flat on the
slides - there are two bumps on the slides that
will come through holes on the pan edges to hold
it in place. Using a Phillips screwdriver, replace
the screws on the tops of the pan into the slides.
Push the pun buck into position.
Hook
Phillips screws
Bump and
hole
Adjustable
she/yes in the
fresh food
compartment
Tempered glass shelves in the fresh food
compartment enable you to make efficient shelf
arrangements to fit your family's food storage
needs.
To remove shelves: Tilt shelf up at front,
then lift it up and out of tracks on rear wall of
refrigerator.
To replace shelves: Select desired shelf height.
With shelf front raised slightly, engage top lugs
in tracks at rear of cabinet. Then lower front of
shelf until it locks into position.
Door
bins Some door bins are adjustable and can be
moved up and down to meet your storage needs.
NOTff:The deeper door bins must be placed at
the bottom of the door only.
To remove: Lift the bin up and slide it toward you.
!!

Shelves and Bins
Bottom Freezer Refrigerator
Pan cover
removal
-veg
-deft
The glass shelves over the veg and dell pans may
be removed for cleaning.
To remove the pan cover:
1 Extend the pans.
2 Find the lever on either side in the front under
the cover trim.
21Push the right clip down and gently pull the
edge of the pan cover forward to disengage
the clip. Repeat on the left side.
4 Once both clips are disengaged, gently pull the
pan cover out of the refrigerator.
To replace the pan cover:
1 Line up the pan cover with the grooves on the
side supports making sure the cover is over
the clips.
2Gently slide the cover back into place until
clips engage.
Push down on the lever
and pull cover forward
to disengage the clip
one side at a time.
Cover trim
Side support
Lever
Pan
cover
Freezer
drawer
with
basket
Inside the freezer drawer isa wire slide-out
freezer basket.
This basket can be pushed back so items on the
bottom of the freezer drawer can be reached.
To remove the upper freezer basket:
1 Open the freezer drawer.
2 Lift up the back of the basket, then slide the
basket back until it clears the front hooks.
Ensure that the freezer drawer is fully closed
after each opening to maintain normal
operating performance.
To remove the lower freezer basket:
1 Lift straight up until the tabs on the sides
disengage from the slots on the slide brackets.
2 Rotate the front of the basket about 90°and
pull up and out.
To replace the lower freezer basket:
1 Open the freezer door fully.
2 Rotate the front of the basket into a vertical
position with the bottom of the basket pointing
toward you.
21Lower the basket into the freezer
compartment rotating the front down after it
clears the freezer door.
4 Align tabs with slots on slide brackets and
lower basket into place.
To remove upper freezer basket
Tabs fit into slots
on side brackets.
12

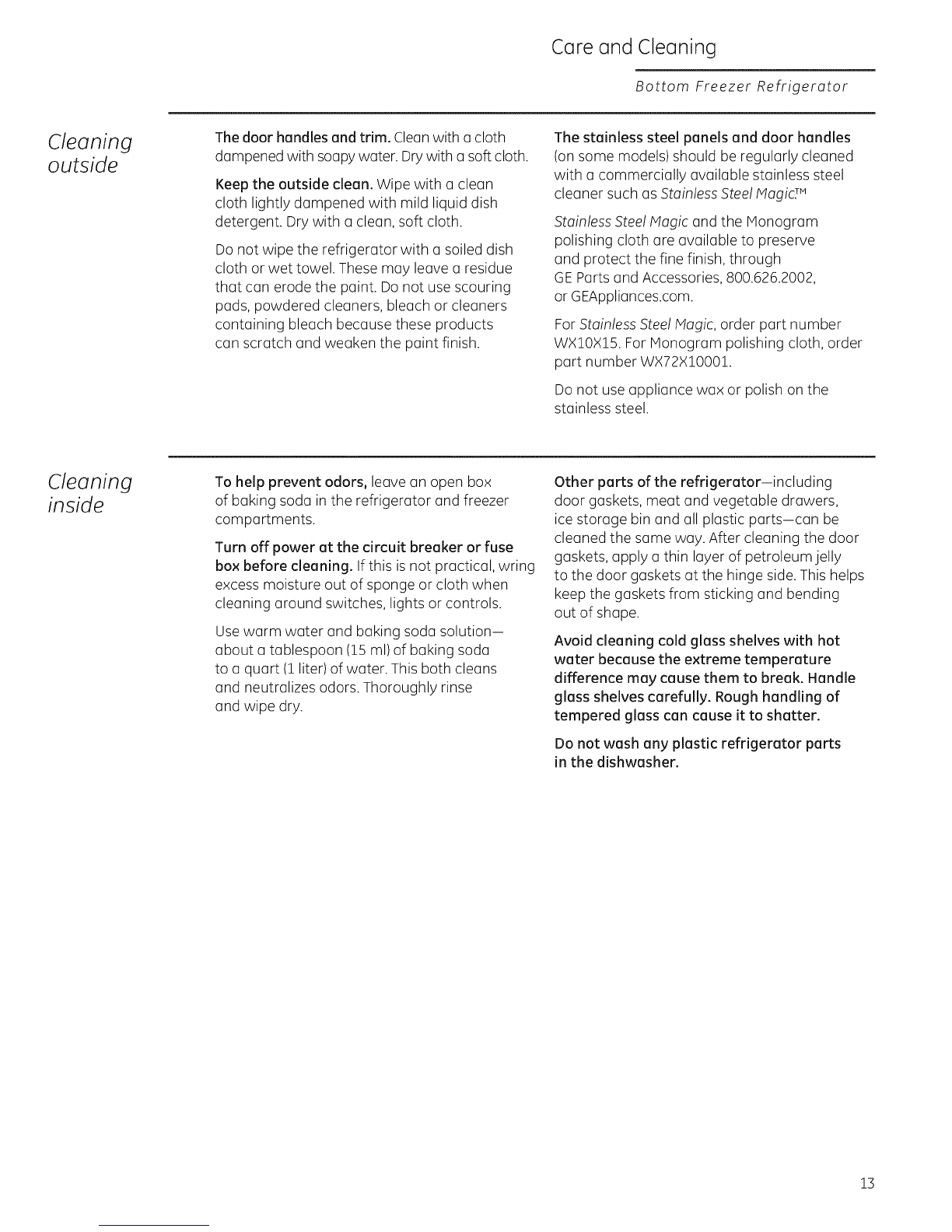

Careand Cleaning
Bottom Freezer Refrigerator
Cleaning
outside The door handles and trim. Cleanwith a cloth
dampened with soapy water. Drywith asoft cloth.
Keep the outside clean. Wipe with a clean
cloth lightly dampened with mild liquid dish
detergent. Dry with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish
cloth or wet towel. These may leave a residue
that can erode the paint. Donot use scouring
pads, powdered cleaners, bleach or cleaners
containing bleach because these products
can scratch and weaken the paint finish.
The stainless steel panels and door handles
(on some models) should be regularly cleaned
with a commercially available stainless steel
cleaner such as Stainless SteelMagid M
Stainless SteelMagic and the Monogram
polishing cloth are available to preserve
and protect the fine finish, through
GEParts and Accessories, 800.626.2002,
or GEAppliances.com.
For Stainless SteelMagic, order part number
WX!0X!5. For Monogram polishing cloth, order
part number WX72X!000!.
Do not use appliance wax or polish on the
stainless steel.
Cleaning
inside To help prevent odors, leave an open box
of baking soda in the refrigerator and freezer
compartments.
Turn off power at the circuit breaker or fuse
box before cleaning. If this is not practical, wring
excess moisture out of sponge or cloth when
cleaning around switches, lights or controls.
Use warm water and baking soda solution-
about a tablespoon (15 ml)of baking soda
to a quart (! liter) of water. This both cleans
and neutralizes odors. Thoroughly rinse
and wipe dry.
Other parts of the refrigerator-including
door gaskets, meat and vegetable drawers,
ice storage bin and all plastic parts-can be
cleaned the same way. After cleaning the door
gaskets, apply a thin layer of petroleum jelly
to the door gaskets at the hinge side. This helps
keep the gaskets from sticking and bending
out of shape.
Avoid cleaning cold gloss shelves with hot
water because the extreme temperature
difference may cause them to break. Handle
glass shelves carefully. Rough handling of
tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts
in the dishwasher.
13

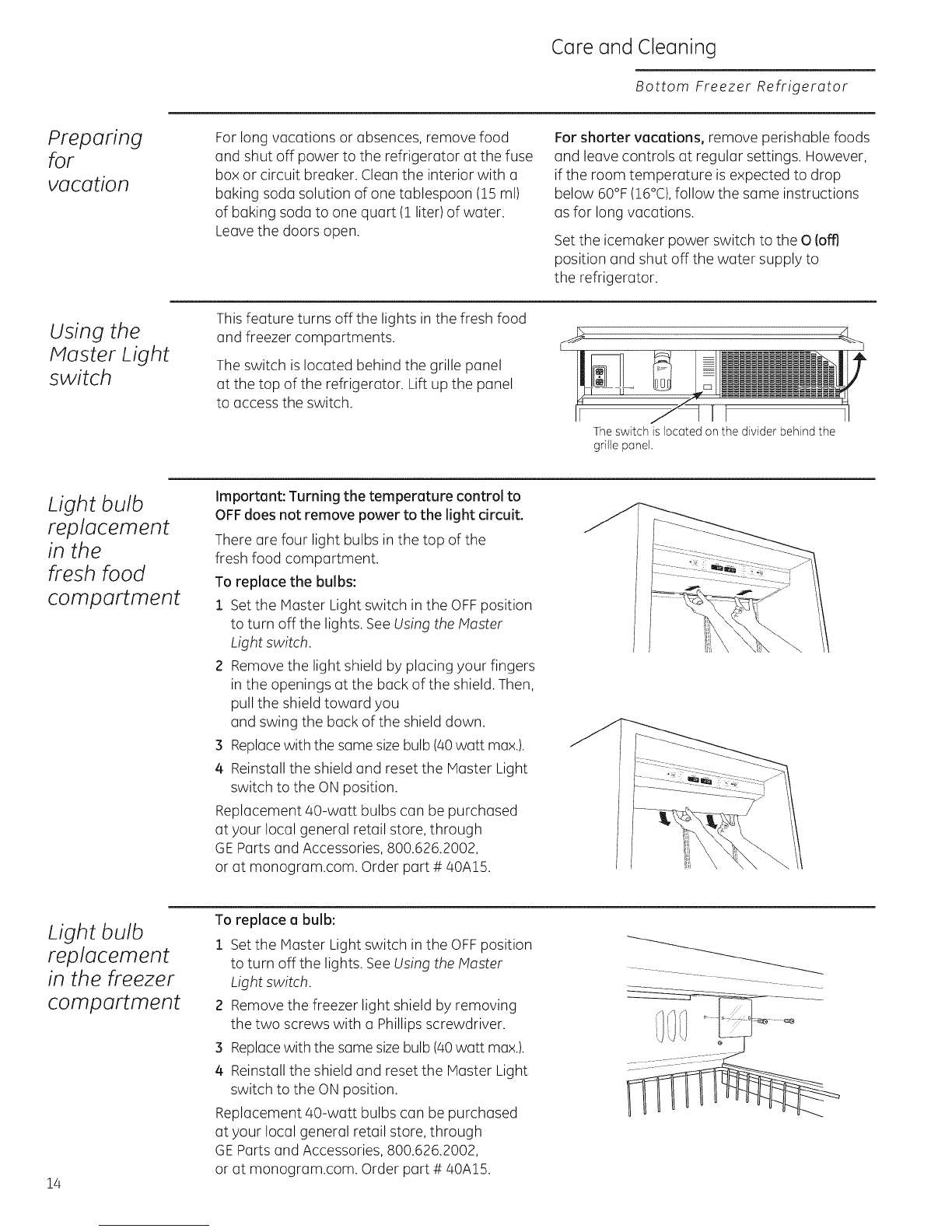

Careand Cleaning
Bottom Freezer Refrigerator
Preparing
for
vacation
Using the
Master Light
switch
For long vacations or absences, remove food
and shut off power to the refrigerator at the fuse
box or circuit breaker. Clean the interior with a
baking soda solution of one tablespoon (15 ml)
of baking soda to one quart (! liter) of water.
Leave the doors open.
For shorter vacations, remove perishable foods
and leave controls at regular settings. However,
if the room temperature isexpected to drop
below 60°F (!6°C), follow the same instructions
as for long vacations.
Set the icemaker power switch to the 0 (off}
position and shut off the water supply to
the refrigerator.
This feature turns off the lights in the fresh food
and freezer compartments.
The switch is located behind the grille panel
at the top of the refrigerator. Lift up the panel
to access the switch. JJJJJJJJJJJJ -
The switch is located on the divider behind the
grille panel.
Light bulb
replacement
in the
flesh food
compartment
Important: Turning the temperature control to
OFFdoes not remove power to the light circuit.
There are four light bulbs in the top of the
fresh food compartment.
To replace the bulbs:
1 Setthe Master Light switch in the OFFposition
to turn off the lights. See Using the Master
Light switch.
2 Removethe light shield by placing your fingers
in the openings at the back of the shield. Then,
pull the shield toward you
and swing the back of the shield down.
3 Replacewith the same size bulb (40watt max.).
4 Reinstall the shield and reset the Master Light
switch to the ON position.
Replacement 40-watt bulbs can be purchased
at your local general retail store, through
GEParts and Accessories, 800.626.2002,
or at monogram.com. Order part # 40A!5.
Light bulb
replacement
in the freezer
compartment
14
To replace a bulb:
1 Setthe Master Light switch in the OFFposition
to turn off the lights. See Using the Master
Light switch.
2 Removethe freezer light shield by removing
the two screws with a Phillipsscrewdriver.
$ Replacewith the same size bulb (40watt max.).
4 Reinstall the shield and reset the Master Light
switch to the ON position.
Replacement 40-watt bulbs can be purchased
at your local general retail store, through
GEParts and Accessories, 800.626.2002,
or at monogram.com. Order part # 40A!S.

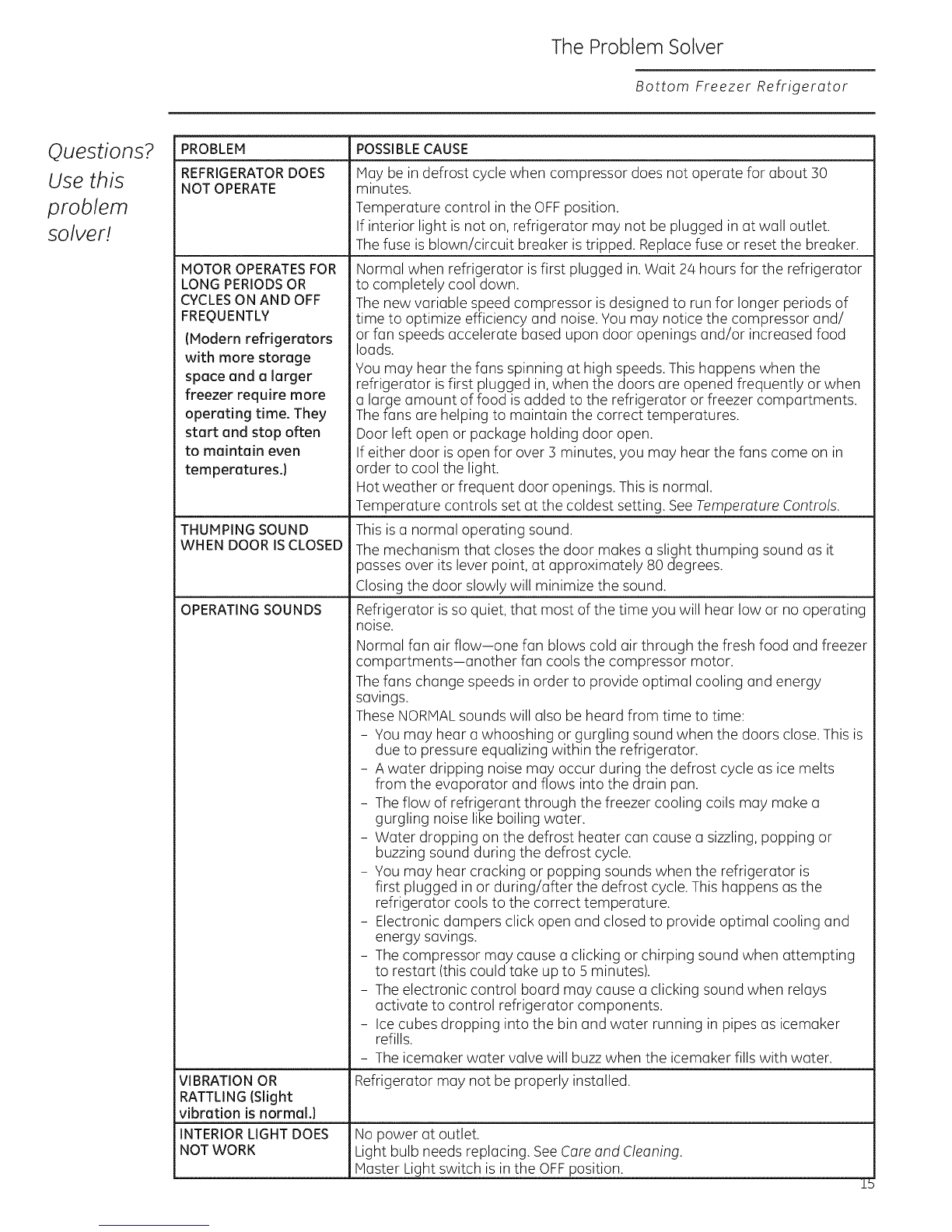

The Problem Solver
Bottom Freezer Refrigerator
Ouestions?
Use this
problem
solver!
POSSIBLE CAUSEPROBLEM
REFRIGERATOR DOES
NOT OPERATE
MOTOR OPERATES FOR
LONG PERIODS OR
CYCLES ON AND OFF
FREQUENTLY
{Modern refrigerators
with more storage
space and a larger
freezer require more
operating time. They
start and stop often
to maintain even
temperatures.)
THUMPING SOUND
WHEN DOOR IS CLOSED
OPERATING SOUNDS
May be in defrost cycle when compressor does not operate for about 30
minutes.
Temperature control in the OFFposition.
If interior light is not on, refrigerator may not be plugged in at wall outlet.
The fuse is blown/circuit breaker is tripped. Replace fuse or reset the breaker.
Normal when refrigerator isfirst plugged in. Wait 24 hours for the refrigerator
to completely cool down.
The new variable speed compressor isdesigned to run for longer periods of
time to optimize efficiency and noise. You may notice the compressor and/
or fan speeds accelerate based upon door openings and/or increased food
loads.
You may hear the fans spinning at high speeds.This happens when the
refrigerator is first plugged in,when the doors are opened frequently or when
a large amount of food isadded to the refrigerator or freezer compartments.
The fans are helping to maintain the correct temperatures.
Door left open or package holding door open.
If either door is open for over 3 minutes, you may hear the fans come on in
order to cool the light.
Hot weather or frequent door openings. This is normal.
Temperature controls set at the coldest setting. SeeTemperature Controls.
This isa normal operating sound.
The mechanism that closes the door makes a slight thumping sound as it
passes over its lever point, at approximately 80 degrees.
Closing the door slowly will minimize the sound.
Refrigerator isso quiet, that most of the time you will hear low or no operating
noise.
VIBRATION OR Refrigerator may not be properly installed.
RATTLING {Slight
vibration is normal.)
INTERIOR LIGHT DOES No power at outlet.
NOT WORK Light bulb needs replacing. See Care and Cleaning.
Master Light switch is in the OFF position. !ff
Normal fan air flow--one fan blows cold air through the fresh food and freezer
compartments-another fan cools the compressor motor.
The fans change speeds in order to provide optimal cooling and energy
savings.
These NORMALsounds will also be heard from time to time:
- You may hear a whooshing or gurgling sound when the doors close.This is
due to pressure equalizing within the refrigerator.
- A water dripping noise may occur during the defrost cycle as ice melts
from the evaporator and flows into the drain pan.
- Theflow of refrigerant through the freezer cooling coils may make a
gurgling noise like boiling water.
- Water dropping on the defrost heater can cause a sizzling, popping or
buzzing sound during the defrost cycle.
- You may hear cracking or popping sounds when the refrigerator is
first plugged in or during/after the defrost cycle. This happens as the
refrigerator cools to the correct temperature.
- Electronic dampers click open and closed to provide optimal cooling and
energy savings.
- Thecompressor may cause a clicking or chirping sound when attempting
to restart (this could take up to 5 minutes).
- Theelectronic control board may cause a clicking sound when relays
activate to control refrigerator components.
- Ice cubes dropping into the bin and water running in pipes as icemaker
refills.
- The icemaker water valve will buzz when the icemaker fills with water.

The Problem Solver
Bottom Freezer Refrigerator
Ouestions?
Use this
problem
solver!
16
PROBLEM
DOOR NOT CLOSING
PROPERLY
FRESH FOOD FREEZER OR
COMPARTMENT TOO WARM
FROST OR ICE CRYSTALS ON
FROZEN FOOD (Frost within
package is normal.)
SLOW ICE CUBE FREEZING
ICE CUBES HAVE ODOR/
TASTE
AUTOMATIC ICEMAKER
DOES NOT WORK
MOISTURE FORMS ON
OUTSIDE OF REFRIGERATOR
MOISTURE COLLECTS
INSIDE
REFRIGERATOR HAS ODOR
SHALL OR HOLLOW CUBES
CLICKING SOUND WHEN
FREEZER DRAWER IS
OPENED OR CLOSED
POSSIBLECAUSE
Package holding door open.
Check the door gasket; it may be out of position.
Refrigerator not level. See Installation Instructions.
Articulating mullion rotated out of position.
Rotate mullion against door liner and close door
Articulatingmullionin ,
positionforclosingdoor
Temperature controls not set cold enough. SeeTemperature Controls.
Warm weather or frequent door openings.
Door left open for long time or freezer door left ajar.
Package may be holding door open.
Door left open or package holding door open.
Frequent or long door openings.
Freezer door left ajar.
Door may have been left open or freezer door left ajar.
Temperature of freezer compartment too warm.
Old cubes need to be discarded.
Ice storage bin needs to be emptied and washed.
Unsealed packages in freezer compartment may be transmitting odor/taste
to ice cubes.
Keep open box of baking soda in refrigerator; replace every 3 months.
Interior of refrigerator needs cleaning. SeeCare and Cleaning.
Poor-tasting incoming water. Replace water filter.
Icemaker power switch is in the O (off} position.
Water supply turned off, restricted or not connected. Callyour installer for
proper water supply line connection.
Water filter clogged. Replace the filter or usethe filter bypass plug.
Freezer compartment too warm.
Piled up cubes in storage bin may cause icemaker to shut off too soon. Level
cubes in bin.
Ice cubes stuck in icemaker. Turn off the icemaker, remove cubes and turn
the icemaker back on.
Not unusual during periods of high humidity. Wipe surface dry.
Door left open or package holding door open.
Controlling humidity and temperature in the kitchen with air conditioning.
In humid weather, air carries moisture into refrigerator when doors are
opened.
Controlling humidity and temperature in the kitchen with air conditioning.
Foods with strong odors should be tightly covered.
Check for spoiled food.
Interior needs cleaning. See Care and Cleaning.
Keep open box of baking soda in refrigerator; replace every 3 months.
Water filter clogged. Replace the filter or usethe filter bypass plug.
Check for a connection to a Reverse Osmosis water system. If an ROis
connected, remove the water filter and install the original bypass plug that
came with the unit.
This unit isequipped with a hold shut feature, which can be heard when the
drawer front is within 2" of the face of the cabinet.
FREEZERDRAWERNOT Package holding drawer open.
CLOSINGPROPERLY Drawer hold -shut needs reset, open drawer fully and forcefully close.

Consumer Services
Bottom Freezer Refrigerator
With the purchase of your new Monogram appliance, receive
the assurance that if you ever need information or assistance
from GE, we'll be there. All you have to do is call-toll-free!
GE Answer
Center ®
In the USA:
800.626.2000
Whatever your question about any Monogram major appliance, GEAnswer Center®information
service is available to help. Your call-and your question-will be answered promptly and
courteously. Call the GEAnswer Center®Monday to Friday, 8 a.m. to 10 p.m. EST,and Saturday, 8
a.m. to 7. p.m. EST.
OR
Visit our Website at: monogram.cam
In Canada, call 1.800.561.3344.
In-Home Repair
Service
In the USA:
800.444.1845
In Canada:
1.800.561.3344
AGE consumer service professional will provide expert repair service, scheduled at u time
that's convenient for you. To schedule service, cull Monday to Friday, 7 u.m. to 10 p.m. EST,
or Saturday and Sunday, 8 u.m.to 6 p.m. EST.Many GEConsumer Service company-operated
locutions offer you service today or tomorrow, or at your convenience. Our factory-trained
technicians know your appliance inside and out-so most repairs can be handled injust one
visit.
In Canada: Monday through Friday, 7 a.m. to 8 p.m., and Saturday, 8 a.m. to 5 p.m. EST
For Customers
With Special
Needs...
In the USA:
800.626.2000
SECTION
GEoffers Braille controls for u variety of GEappliances, and
o brochure to assist in planning u barrier-free kitchen for persons
with limited mobility.
Consumers with impaired hearing or speech who have access to
a TDD or u conventional teletypewriter may cull 800.TDD.GEAC
(800.833.4322) to request information or service.
Service Contracts
In the USA:
800.626.2224
In Canada:
1.800.561.3344
You can have the secure feeling that GEConsumer Service will still be there after your
warranty expires. Purchase a GEcontract while your warranty isstill in effect and you'll receive a
substantial discount. With a multiple-year contract, you're assured of future service at
today's prices.
Parts and
Accessories
In the USA:
800.626.2002
In Canada:
1.800.561.3344
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their home. TheGEparts system provides access to over z_7,000parts...and all GEGenuine
Renewal Parts are fully warranted. VISA,MasterCard and Discover cards are accepted.
User maintenance instructions contained in this manual cover procedures intended to be
performed by any user. Other servicing generally should be referred to qualified service
personnel. Caution must beexercised, since improper servicing may cause unsafe operation.
17

Warranty
WHA T IS
COVERED
From the Date
o1:the Original
Purchase
WHAT IS NOT
COVERED
Bottom Freezer Refrigerator
YOUR MONOGRAM REFRIGERATOR WARRANTY
Staple sales slip or canceled check here. Proof of original
purchase date is needed to obtain service under warranty.
UNITED TWO-YEAR WARRANTY
For two years from date of original purchase, we will provide, free of charge, parts and service labor inyour home
to repair or replace anyport of the refrigerator that fails because of amanufacturing defect.
LIMITED FIVE-YEAR WARRANTY
For five years from date of original purchase, we will provide, free of charge, parts and service labor
in your home to repair or replace anyport of the sealed refrigerating system (the compressor, condenser,
evaporator and all connecting tubing) that fails because of a manufacturing defect.
UMITED ADDITIONAL SIXTH- THROUGH TWELFTH-YEAR WARRANTY ON THE SEALED SYSTEM
For the sixth through twelfth year from the date of the original purchase, we will provide, free of charge,
replacement parts for any port of the sealed refrigerating system (the compressor, condenser, evaporator and
all connecting tubing) that fails because of a manufacturing defect. You pay for the service trip to your home
and for service labor charges.
UMITED THIRTY-DAY WARRANTY ON WATER FILTER CARTRIDGE (Water filter, if included}
From the date of the original purchase we will provide, free of charge, replacement parts for onypart of the
water filter cartridge that fails because of a manufacturing defect. During this limited thirty-day warranty,
we will also provide, free of charge, a replacement water filter cartridge.
QI••••® ® I • ® • • • • Q Q • • • •® Q Q • • ••®•I•••• • ® I Q • ® • ® ® Q Q •
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
ordinary home use in the/48 mainland states, Hawaii, Washington, D.C.or Canada. Ifthe product is located in an
area where service bya GEAuthorized Servicer is not available, you may be responsible for a trip charge or you
may be required to bring the product to an Authorized GEService location for service. InAlaska the warranty
is the same except that it is LtiqITEDbecause you must pay to ship the product to the service shop or for the
service technician's travel costs to your home.
All warranty service will be provided by our Factory Service Centers or by our authorized Customer Cure_
servicers during normal working hours.
Should your appliance need service, during warranty period or beyond, in the USAcall 800./444.1845.
In Canada: 800.561.3344. Pleasehave your serial number and model number available when calling for service.
• Service trips to your home to teach you how
to use the product.
Replacement of house fuses or resetting of circuit
breakers.
Damage to the product caused by accident, fire,
floods or acts of God.
Failure of the product if it is used for other than
its intended purpose or used commercially.
Damage caused after delivery.
Improper installation, delivery or maintenance.
If you have an installation problem, contact
your dealer or installer. You are responsible
for providing adequate electrical, plumbing
and other connecting facilities.
Replacement of the light bulbs, if included, or
water filter cartridge, if included, other than as
noted above.
Replacement of the water filter cartridge, if
included, due to water pressure that is outside
the specified operating range or due to excessive
sediment in the water supply.
Loss of food due to spoilage (in the USAonly}.
Incidental or consequential damage caused
by possible defects with this appliance.
Product not accessible to provide required
service.
Damage caused by a non-GE brand water filter.
22403548PO01
49-60699
11-15 GE
Printed in the United States
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product repair us provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for uparticular purpose, ere limited to one .veer or the shortest period allowed by law.
Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages,
sothe above limitation or exclusion may not apply to you.This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state/province to province. To know what your legal rights
are inyour state/province, consult your local or state/provincial consumer affairs office or your state's Attorney
General.
Warrantor in USA:General Electric Company, 6E Consumer & Industrial
Louisville, KY40225 Appliances
General Electric Compang
Warrantor in Canada: Mabe Canada Inc. Louisville, KY/40225
GEApptiances.com
