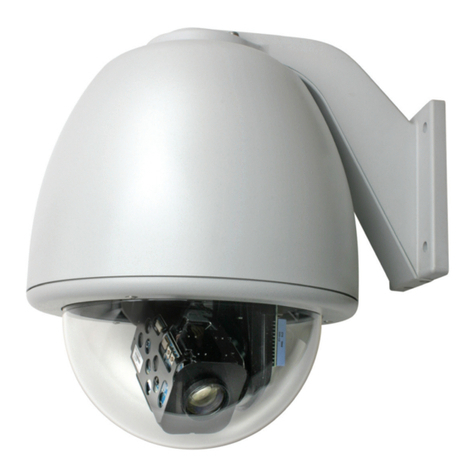

GE CyberDome II User manual

CyberDome II updates the best-selling integrated PTZ camera from GE Security with
enhanced features. The dome works with multiple vendor systems and can easily
be installed in existing systems. Available housings are more durable and permit
installation of the dome in a range of applications. Choose from compatible camera
modules that include day/night and wide dynamic range functionality.
Four cameras - a color 22x, day/
night 18x, day/night 23x with wide
dynamic range and day/night 26x
- offer several options for different
environments. The WDR option
is ideal for use in high contrast
lighting conditions. Digital zoom
extends the range of the cameras
beyond standard optical zoom
lenses.
Mount the cameras in indoor or
outdoor housings that can hold
up in a variety of environmental
conditions. Standard outdoor
housings have an IP66
environmental rating and operate
to -40ºF/C with the optional heater.
A special day/night light sensor in
the dome controls day/night mode
and has multiple thresholds. With
a choice to use either the external
sensor or the camera sensor, users
can take advantage of the choice
to select the one that provides best
settings for a camera’s position. An
auto slow shutter feature on the
day/night cameras slows down
Features
• Comprehensive programming
choices with advanced options to
meet almost any application
• 128 preset positions, 4 preset
tours, and 4 Shadow Tours
• Control day/night settings
through the camera module or a
unit sensor to get best results
• Choose from many options in
camera module, housing and
accessories
• Quick Spin feature spins camera
180 degrees automatically when
bottom of tilt travel is reached
• Variable speed pan/tilt
• Site-tied memory allows
camera replacement without
reprogramming
CyberDome II
integrated PTZ dome camera
CyberDome II
GE
Security
shutter speed for better images in
dark areas.
CyberDome II allows the user
to preset up to 128 positions,
repeatable to within ±0.1 degree.
Set areas, privacy masks, and
preset and Shadow Tours for
maximum surveillance.
Variable speed pan/tilt lets
users move the camera through
survelliance areas at any of 32
speeds, with a maximum pan/tilt of
400 degrees per second.
The Quick Spin feature lets the
camera spin automatically when
the bottom of tilt travel is reached.
Track motion directly under a
camera without losing the picture.
Set specific operations when the
camera is powered on or when no
external command is received in a
defined period of time. Operations
include calling a preset position or
initiating a preset tour or a Shadow
Tour.

CyberDome II Options
Available housings:
• Flush mount ceiling
• Plenum-rated fl ush mount
• Pendant mount
• Pendant mount with heater
• Wall mount
• Wall mount with heater
• Heavy duty
• Heavy duty with heater
• Rugged pendant
• Rugged pendant with heater
Available bubbles:
• Clear acrylic
• Smoke acrylic
• Chrome mirrored acrylic
• Gold mirrored acrylic
• Clear polycarbonate (HD, rugged)
• Smoke polycarbonate (HD, rugged)
Available cameras (NTSC or PAL):
• 22x color camera
• 18x day/night camera
• 23x day/night camera with WDR
• 26x day/night camera
General Specifications
• Manual pan speed: 0.5 to 200°/sec
• Manual tilt speed: 0.5 to 120°/sec
• Max. pan/tilt speed: 400°/sec
• Presets: 128 with 24-character title
• Shadow tours: 4 with 4 min. each
• Protocols: Digiplex RS422, Impac
RS485, ASCII RS422, Pelco D,
Pelco P, Ultrak
• Operating temperature, without
heater: 32 to 122°F (0 to 50°C)
• Operating temperature, with
heater: -40 to 122°F (-40 to 50°C)
• Regulatory: FCC, CE, C-Tick, UL,
RoHS
Bubble Specifications
Choose from four different acrylic
bubbles or two polycarbonate
bubbles, based on how you wish to
balance discreet camera position
and available light. Polycarbonate
bubbles work with heavy duty and
rugged pendant housings only.
Bubble Light loss
Clear acrylic none
Smoke acrylic 1/2 f-stop
Chrome mirrored acrylic 2 f-stop
Gold mirrored acrylic 2 f-stop
Clear polycarbonate none
Smoke polycarbonate 1/2 f-stop
Flush mount ceiling housing and plenum-rated flush mount housing
The indoor flush-mount housing is
designed for in-ceiling applications. A T-
bar support kit is included. A flush-mount
housing for plenum-rated applications is
also available.
Electrical
• Operating voltage: 24 VAC +/- 4 VAC
• Power: 25 VA startup; 20 VA running
Mechanical
• Environmental enclosure: Rated IP50
• Dimensions: 9.5 in. dia. x 9.6 in. high (241 x
243 mm)
• Weight (housing, PTZ): 6 lb., 8.5 oz. (2.96 kg)
• Construction: ABS plastic
• Color: Gray
Pendant mount housing and pendant mount housing with heater
The weatherproof pendant-mount
housing can be used for indoor or outdoor
applications. Both the pendant mount and
pendant mount with heater and fan are rated
IP66. With the heater option, the housing can
be used in temperatures to -40°F (-40°C).
Electrical
• Operating voltage: 24 VAC +/- 4 VAC
• Power: 25 VA startup; 20 VA running
• Power, with heater: 93 VA startup; 45 VA
running
Mechanical
• Environmental enclosure: Rated IP66
• Dimensions: 9.5 in. dia. x 11.9 in. high (241
x 303 mm)
• Weight (housing, htr/fan, PTZ): 6 lb., 8.5 oz.
(2.96 kg)
• Construction: ABS plastic
• Color: Gray
Wall mount housing and wall mount housing with heater
The weatherproof wall-mount housing can
be used for indoor or outdoor applications.
The wall arm is constructed of cast
aluminum. Both the wall mount and wall
mount with heater and fan are rated IP66.
With the heater/fan option, the housing can
be used in temperatures to -40°F (-40°C).
Electrical
• Operating voltage: 24 VAC +/- 4 VAC
• Power: 25 VA startup; 20 VA running
• Power, with heater: 93 VA startup; 45 VA
running
Mechanical
• Environmental enclosure: Rated IP66
• Dimensions: 9.5 in. dia. x 9.6 in. high (241 x
243 mm)
• Weight (housing, htr/fan, PTZ): 8 lb., 8.5 oz. (3.87 kg)
• Construction: ABS plastic
• Color: Gray

Heavy duty housing and heavy duty
housing with heater
The weatherproof heavy
duty housing is designed to
hold up under tough outdoor
use. Both the heavy duty and
heavy duty with heater and
fan come with adjustable
wall mount brackets. With
the heater/fan option, the
housing can be used in
temperatures to -13°F (-
25°C).
Electrical
• Operating voltage: 24 VAC
+/- 4 VAC
• Power: 25 VA startup; 20 VA
running
• Power, with heater: 153 VA
startup; 66 VA running
Mechanical
• Dimensions: 10.56 in. wide x 9.29 in. high (268 x 236 mm)
• Weight (housing, htr/fan, PTZ): 13 lb., 8 oz. (6.12 kg)
• Construction: Cast aluminum
• Color: Gray
Camera Specifications
Camera: 22x color
• Image sensor: 1/4 in. CCD
• Zoom: Optical 22x
• Resolution: 470 TVL NTSC; 460 TVL
PAL
• Synchronization: Internal/external
• Lens: F=4 mm (wide) to 64 mm (tele);
F1.6
• Angle of view (H): 47.3° (wide) to 2.2°
(tele)
• Sensitivity: 3 lux
• Electronic shutter speed: 1/60
to 1/30,000 sec, NTSC; 1/50 to
1/30,000 sec, PAL
• Video output: 1.0 V p-p
Camera: 18x day/night
• Image sensor: 1/4 in. CCD
• Zoom: Optical 18x, digital 12x
• Resolution: 470 TVL NTSC; 460 TVL
PAL
• Synchronization: Internal/external
(V-Lock)
• Lens: F=4.1 mm (wide) to 73.8 mm
(tele); F1.4 to F3.0
• Angle of view (H): 48° (wide) to 2.8°
(tele)
• Sensitivity: 0.7 lux at 1/60 sec NTSC
or 1/50 sec PAL; 0.05 lux at 1/4 sec
NTSC or 1/3 sec PAL
• Electronic shutter speed: 1/1 to
1/10,000 sec, 14 steps, NTSC; 1/1 to
1/10,000 sec, 14 steps, PAL
• Video output: 1.0 V p-p
Camera: 23x day/night w/ WDR
• Image sensor: 1/4 in. CCD
• Zoom: Optical 23x, digital 10x
• Resolution: 470 TVL NTSC; 460 TVL
PAL
• Synchronization: Internal/line lock
• Lens: F=3.6 mm (wide) to 82.8 mm
(tele); F1.6 to F3.7
• Angle of view (H): 54° (wide) to 2.5°
(tele)
• Sensitivity: 0.2 lux at 1/4 sec NTSC or
1/3 sec PAL
• Sensitivity, ICR-on: 3 lux at 1/60 sec
NTSC or 1/50 sec PAL; 0.2 lux at 1/4
sec NTSC or 1/3 sec PAL
• Electronic shutter speed: 1/60 to 1/4
ksec, NTSC; 1/50 to 1/4 ksec, PAL
• Video output: 1.0 V p-p
Camera: 26x day/night
• Image sensor: 1/4 in. CCD
• Zoom: Optical 26x, digital 12x
• Resolution: 470 TVL NTSC; 460 TVL
PAL
• Synchronization: Internal/line lock
• Lens: F=3.5 mm (wide) to 91 mm
(tele); F1.6 to F3.8
Rugged pendant housing and rugged pendant
housing with heater
The weatherproof
rugged pendant
housing is for outdoor
applications that require
tamper resistance. Both
the rugged pendant and
rugged pendant with
heater and fan are rated
IP66. With the heater/fan
option, the housing can
be used in temperatures
to -40°F (-40°C).
Electrical
• Operating voltage: 24
VAC +/- 4 VAC
• Power: 25 VA startup; 20 VA running
• Power, with heater: 153 VA startup; 66 VA running
Mechanical
• Environmental enclosure: Rated IP66
• Dimensions: 9.5 in. dia. x 11.1 in. high (241 x 283 mm)
• Weight (housing, heater/fan, and PTZ): 12 lb., 8.5 oz. (5.68 kg)
• Construction: Cast aluminum
• Color: Gray
• Angle of view (H): 54.2° (wide) to 2.2°
(tele)
• Sensitivity: 1.0 lux at 1/60 sec NTSC
or 1/50 sec PAL; 0.07 lux at 1/4 sec
NTSC or 1/3 sec PAL
• Sensitivity, ICR-on: 0.15 lux at 1/60
sec NTSC or 1/50 sec PAL; 0.01 lux
at 1/4 sec NTSC or 1/3 sec PAL
• Electronic shutter speed: 1/1 to
1/10,000 sec, 14 steps, NTSC; 1/1
to 1/10,000 sec, 14 steps, PAL
• Video output: 1.0 V p-p

Americas
503-885-5700
888-GE-SECURITY
(437-3287)
[email protected]
www.gesecurity.com
Asia
tel [phone]
fax [phone]
Australia
tel [phone]
fax [phone]
Europe
tel [phone]
fax [phone]
Latin America
tel [phone]
fax [phone]
© 2007 GE Security. As a company of innovation, GE Security reserves the right to change product specifications without notice. For the latest product
specifications, visit GE Security online at www.GESecurity.com or contact your GE Security sales representative.
DET-372A_CyberDomeII_DS / 20070130
Accessories
GEA-102
Cast-aluminum wall-mount
arm
• Weight: 2.0 lb. (0.91 kg)
• Material: Aluminum
• Finish: Gray
GEA-104
Parapet swing-arm mount
• Weight: 7.75 lb. (3.52kg)
• Material: Aluminum
• Finish: Gray powder coat
GEA-105
Corner-mount adapter
• Weight: 1.9 lb. (0.86 kg)
• Material: Aluminum
• Finish: Gray powder coat
GEA-106
Pole-mount adapter
• Weight: 14.4 oz. (408 g)
• Material: Aluminum
• Finish: Gray powder coat
GEA-107
Roof-mount adapter
• Weight: 1.2 lb. (0.54 kg)
• Material: Aluminum
• Finish: Gray powder coat
1056208A
Sunshield
• Dimensions: 10.75 in. (273 mm)
dia. x 7.51 in. (191 mm) H
• Material: ABS plastic
• Finish: Gray powder coat
GEA-113
Ceiling panel
• Weight: 3.2 oz. (91 g)
• Material: Steel
• Finish: White enamel
GEA-114
T-bar support kit
• Weight: 6.4 oz. (181 g)
• Material: Steel
• Finish: Galvanized
Parapet-capping brackets
• Material: 0.25 in. aluminum
• Finish: Gray powder coat
GEA-108: Corner, narrow
• 6 to 12 in. (152 to 305 mm)
• Weight: 7 lb. (3.18 kg)
GEA-109: Corner, wide
• 12 to 17 in. (305 to 432
mm)
• Weight: 8 lb. (3.63 kg)
GEA-110: Straight, narrow
• 6 to 12 in. (152 to 305
mm)
• Weight: 14 lb. (6.4 kg)
GEA-111: Straight, wide
• 12 to 17 in. (305 to 432 mm)
• Weight: 15 lb. (6.8 kg)
CyberDome II ordering guide
Housing
FFlush mount
FP Plenum rated flush mount
HPendant mount
HE Pendant mount with heater and fan
CWall mount
CE Wall mount with heater and fan
DHeavy duty
DE Heavy duty with heater and fan
RRugged pendant
RE Rugged pendant with heater and fan
PTZ Camera Assembly
C22N 22x select color camera, NTSC
C18P 22x select color camera, PAL
D18N 18X day/night camera, NTSC
D18P 18X day/night camera, PAL
D23N 23X day/night camera, NTSC
D23P 23X day/night camera, PAL
D26N 26X day/night camera, NTSC
D26P 26X day/night camera, PAL
Dome Bubble
3Clear acrylic
4Smoke acrylic
6Chrome mirrored
acrylic
7Gold mirrored
acrylic
8Clear polycarbonate†
9Smoke polycarbonate†
†Available for F, FP, D, DE, R,
and RE housing options
-
CY -
Model
SSelect
BStandard
