GE Profile WPDH8850 Original instructions

GEAppliances.com
£
Safetg Instructions ............. 2,s
Operating Instructions
Available Accessories ................. 14
Control Panel ......................... 4
Control Settings .................... 5-9

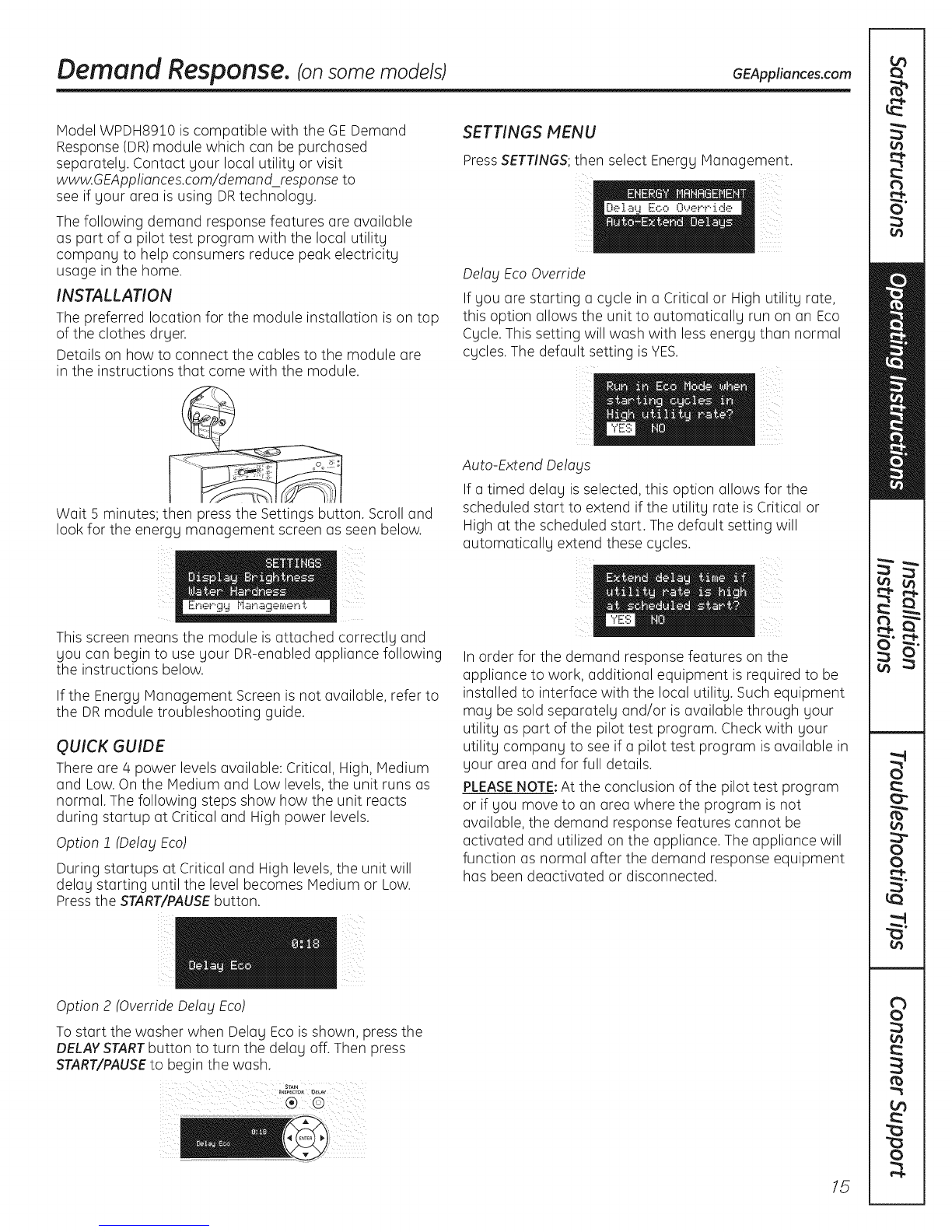

Demand Response ................... 15
Features ............................. 10

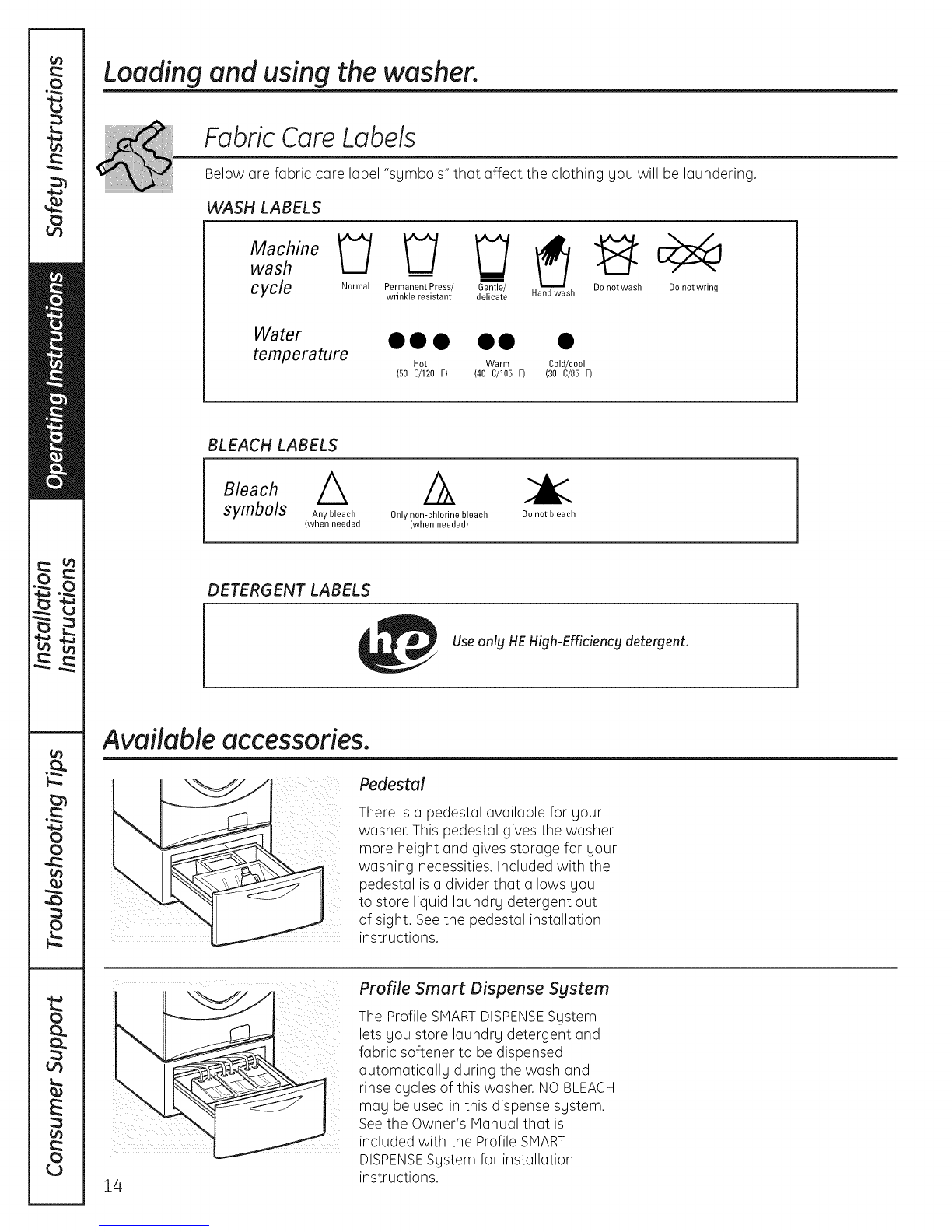

Loading and Using the Washer .... 11-14

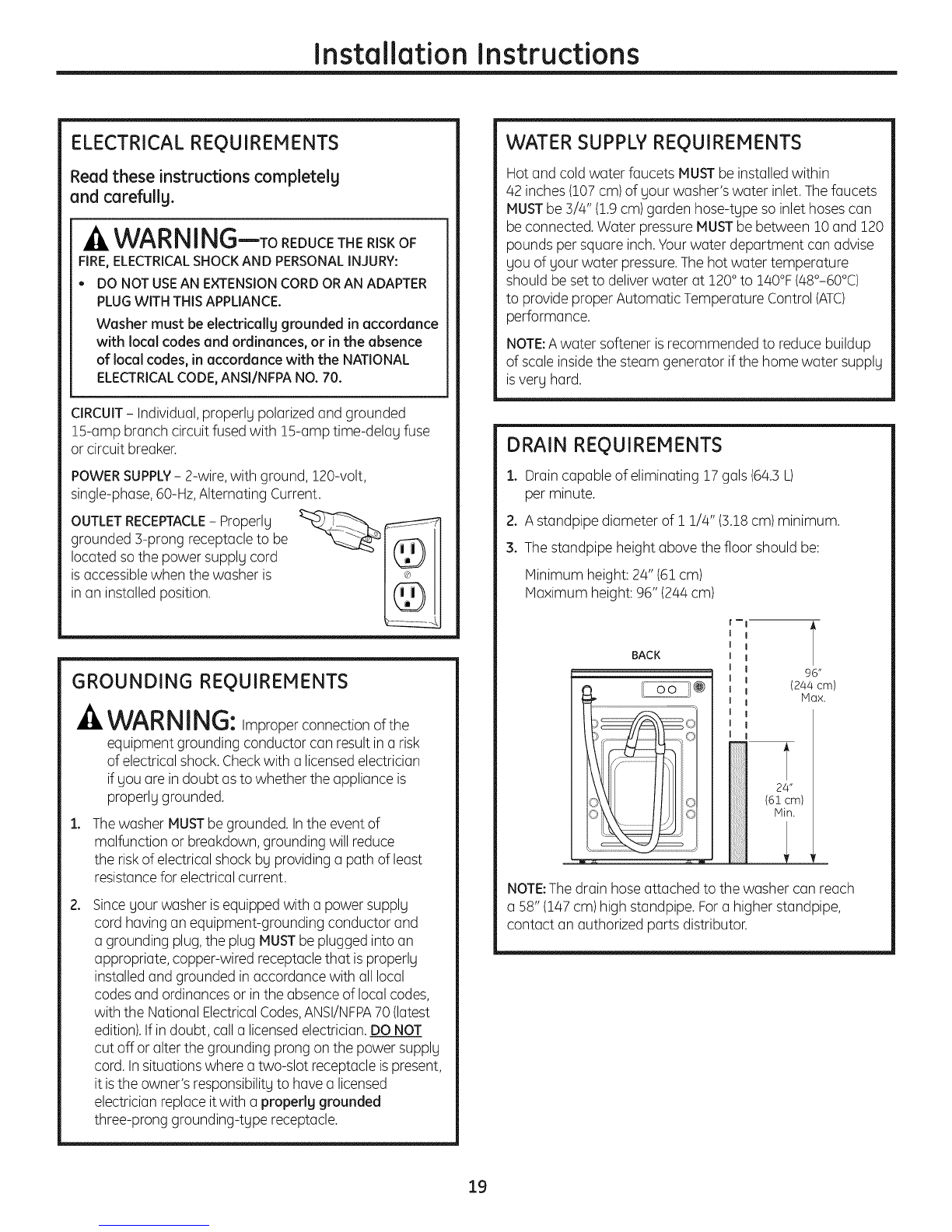

Installation Instructions ..... 16-21
Drain Requirements .................. 19
Electrical Requirements ............... 19
Grounding Requirements ............. 19

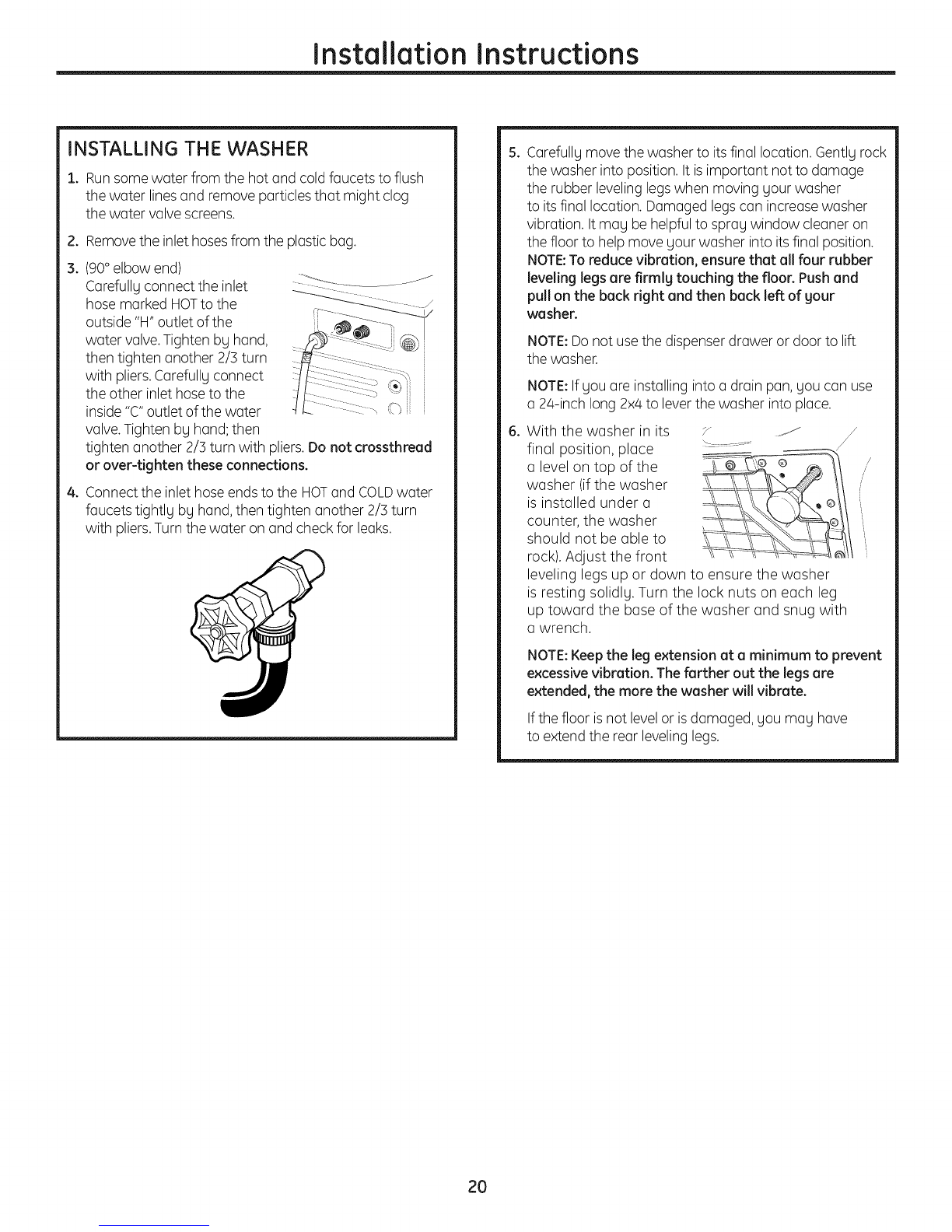

Installing the Washer ............. 20, 21
Location of Your Washer ............. 17
Preparing to Install Your Washer ...... 16
Replacement Parts ................... 21
Rough-In Dimensions ................. 17
Unpacking Your Washer .............. 18
Water Supplg Requirements .......... 19
Troubleshooting Tips ......... 22-24
Consumer Support
Consumer Support .......... Back Cover
Warrantg (Canada) .................. 26
Warrantg (U.S.) ...................... 25
WPDH8850
WPDH8910
WPDH8900
Laveuses
Profile
La section frangaise commence 6 la page 27
Lavadoras
Profile
La secci6n en espaffol empieza en la p6gina 55
ENERGYSTAR
As an ENERGYSTAR®partner,
GEhas determined that this
product meets the ENERGYSTAR®
guidelines for energy efficiency.
Write the model and serial
numbers here:
Model #
Serial #
Youcan find them on a label on the
sideof the washer. 175D1807P63149-90366 05-09 JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
of fire or explosion, electric shock, or to prevent property damage, personal injury or
loss of life.
The instructions in this manual and all other literature included with this washer are
not meant to cover every possible condition and situation that may occur. Good, safe
practices and caution MUSTbe applied when installing, operating and maintaining
an_t appliance.
WATERHEATERSAFETY
Undercertain conditions, hydrogengas may beproduced in a water heaterthat hasnot been usedfor two weeks
or more.Hydrogen gascan be explosiveunder these circumstances.
Ifthe hotwater hasnot been usedfor two weeksormore, preventthe possibilityof damage or injury by
turning on all hot water faucets and allowingthem to run for several minutes. Dothis before usingany electrical
appliance which isconnectedto the hotwater system.Thissimpleprocedurewill allow any built-up hydrogen
gas to escape.Sincethe gas isflammable, do not smokeor usean open flame or appliance during this process.
PROPERINSTALLATION
Thiswasher must be proper!ginstalled and located in accordancewith the Installation Instructionsbefore it isused.
[] Installor storewhere itwill not beexposed [] Properlygroundwasher to conformwith all governing
to temperatures belowfreezingor exposed codesand ordinances.Followdetailsin Installation
to the weather,which couldcausepermanent Instructions.
damage and invalidatethewarranty.
YOURLAUNDRYAREA
[] Keepthe area underneath and around your
appliances free of combustible materials such as
lint, paper,rags and chemicals.
[] Donot leavethe washer door open.An open door
could entice childrento hang on the door or crawl
insidethe washer.
[] Closesupervision isnecessary ifthis appliance is
used by or near children. Do not allow children to
play on,with or insidethis or any other appliance.
2

GEAppliances.com
WHEN USINGTHEWASHER
[]
Use this []
appliance
only for its
intended
purpose as
described in []
this Owner's
Nanual.
[]
Never reach into washer while it is moving.
Wait until the machine has completely stopped
before opening the door.
Do not mix chlorine bleach with ammonia
or acids such as vinegar and/or rust remover.
Mixing different chemicals can produce a toxic
gas which may cause death.
Do not wash or dry articles that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.)which may ignite or
explode. Do not add these substances to the
wash water. Do not use or place these substances
around your washer or dryer during operation.
The laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer's
wash and care instructions.
[]
[]
[]
Never attempt to operate this appliance
if it isdamaged, malfunctioning, partially
disassembled, or has missing or broken parts,
including a damaged cord or plug.
Donot slam the washer door closed. Do not try
to force the door open when locked (LOCKED
indicator ON).This could result in damage to
the washer.
The washer is equipped with an electrical
overload protector. The motor will stop
if it becomes overheated. The washer will
automatically restart after a cool-down
period of up to 2 hours, if the washer
has not been manually turned off
during this time.
[] To minimize the possibility of electric shock,
unplug this appliance from the power supply
or disconnect the washer at the building's
distribution panel by removing the fuse or
switching off the circuit breaker before attempting
any maintenance or cleaning. NOTE:Pressing the
power button does NOT disconnect the appliance
from the power supply.
WHEN NOT IN USE
[]Turn off water faucets to relieve pressure
on hoses and valves and to minimize leakage
if a break or rupture should occur. Check
the condition of the fill hoses; they should
be replaced every 5 years.
[] Before discarding a washer, or removing it
from service, remove the washer door to prevent
children from hiding inside.
[] Do not attempt to repair or replace any part of
this appliance unless specifically recommended
in this Owner's Manual, or in published user-repair
instructions that you understand and have the
skillsto carry out.
[] Do not tamper with controls.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVE THESE INSTRUCTIONS

About the washer control panel.
Youcan locate Fourmodelnumber on a labelonthe sideofthe washer.
a, WARNING! _o_d__h__ko_, _/_ _ho_k,o__nj_y_o_on_,_od_h_,_o_
SAFETY INSTRUCTIONS before operating this appliance.
Quick Start
Ifthe screen isdark, pressthe POWERbutton to "wake up"
the displag.
r_ Pressthe POWERbutton. POWER
r_ if sou selected acycle other
than the SPECIALTYCYCLE,
pressthe START/PAUSEbutton.
r_ Selecta wash cgcle
or Steam Refreshcgcle.
(Defaultsare setfor each
cycle. Thesedefault settings
can be changed. SeeContro!
settings for more information.)
If SOUselectedSPECIALTYCYCLE,choose between Drain
&Spin, Garments, Bed and Bath, OtherSpecialty and
Basket Cleanfor sour specific needsbefore pressing
START/PAUSE.SeeSpecialtyCyclesfor more information.
WPDH8900J, WPDH8910K -Profile HA Steam Washer w/SmartDispense'"
DEUCATES
POWER WASHABLE R$NSE &SPIN
_ _ .... S........
O
0
0
WPDH8850J -Profile HA Steam Washer
4
WHr ES /
STEAMASSIST COLORS/ HE TY
CYCLES ¢J
ACTIVEWEAR
WASHABLE RINSE & SP_N
WOOL SPEED WASH
O
O
O
Po we r
Pressto "wake up" the displag. If the displag is active, press to put the washer into standbg mode.
NOTE:Pressing POWERdoes not disconnect the appliance from the power supp!g.

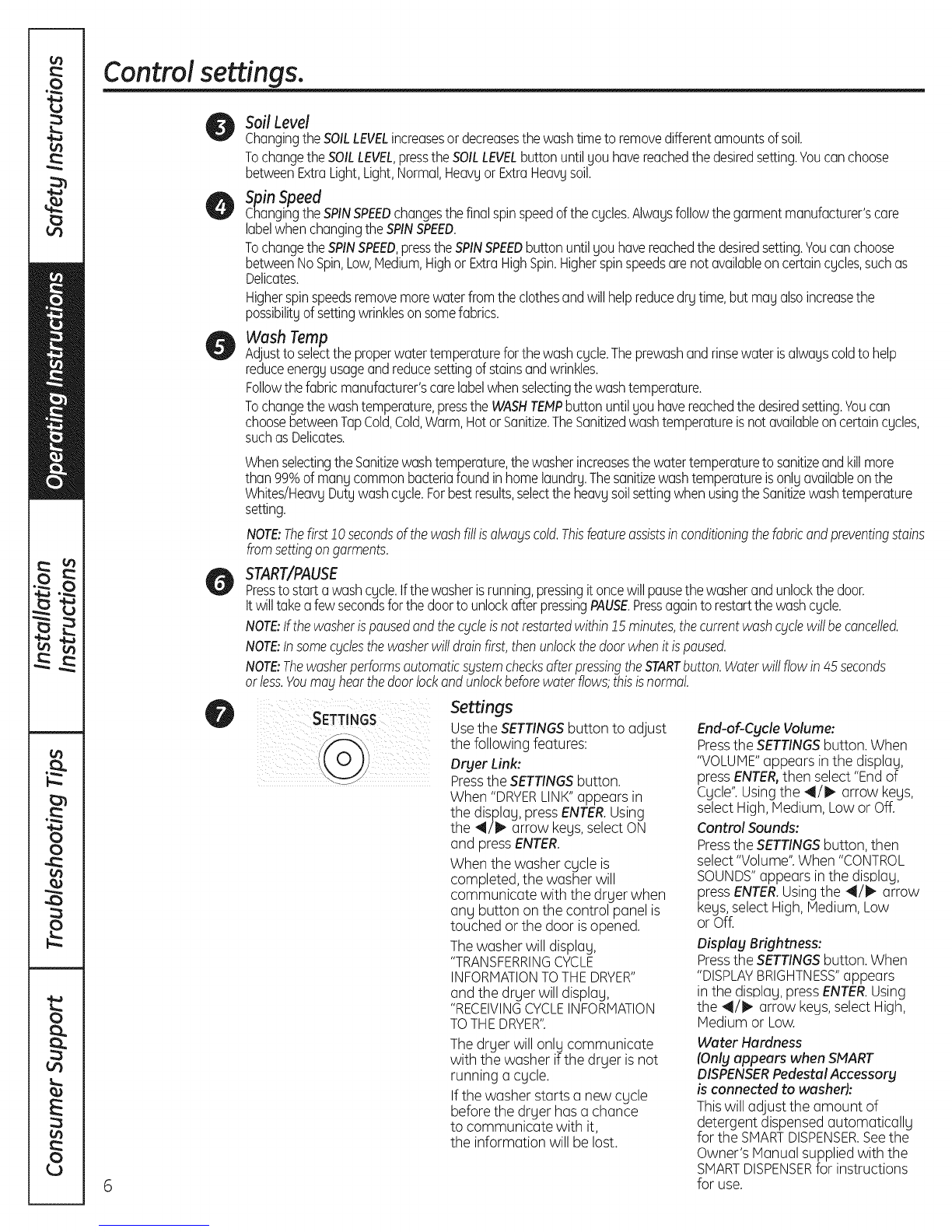

Control settings. GEAppliances.com
Wash Cycles
The wash cycles are optimized for specific types of wash loads. The chart below will help you match
the wash setting with the loads. The GentleCleanT"lifters lightly tumble the clothes into the water and
detergent solution to clean the load.
WHITES/ Forheavily to lightly soiled white cottons, household linens, work and play clothes.
HEAVYDUTY Can use the STEAH ASSISToption with this cycle.
COLORS/NORMAL Forheavy to lightly soiled colorfast cottons, household linens, work and play
clothes. Can use the STEAMASSISToption with this cycle.
WRINKLE FREE For Easy Care and permanent press items. Can use the STEAMASSISToption with
(PERMAPRESS} this cycle.
ACTIVEWEAR Foractive sports, exercise and some casual wear clothes. Fabrics include modern
technology finishes and fibers such as spandex, stretch and micro-fibers. Can use
the STEAMASSISToption with this cycle.
STEAMREFRESH To de-wrinkle 1 to 5 cotton blend items. This is not a wash cycle, but a cycle that
applies only steam to the garments. Select the correct number of garments using
the arrow keys and press ENTER.
The washer will beep upon completion of the cycle, and will continue to tumble
for 50 minutes to keep wrinkles from setting in. PressSTART/PAUSEto remove
clothes.
If clothes are slightly damp after completion of the cycle, hang dry clothes
for 5 minutes before wearing.
HANDWASH Foritems labeled hand-washable with light soils. Provides gentle rocking to mimic
the handwashing action.
DELICATES Forlingerie and special-care fabrics with light to normal soil. Provides gentle
tumbling and soak during wash and rinse.
WASHABLE Forthe washing of machine washable wool products, provided that they are
WOOL washed according to the instructions on the garment label. When selecting this
cycle, you must use a detergent suitable for washing wool.
SPEEDWASH Forlightly soiled items that are needed in a hurry. Cycle time is approximately
]0 minutes, depending on selected options.
RINSE&SPIN To quickly rinse out any items at any time.
SPECIALTYCYCLES Forunique garments that may need special treatment.
Specialty Cycles
BASKETCLEANDRAIN & SPIN
Drain & spin
at any time.
GARMENTS
Coats
Dress Shirts
Hosiery/Bras
Jeans
Khakis
Sweaters
BED end BATH
Blankets (cotton)
Comforters
Sheets
Towels
SPECIALIZEDCYCLES
Athletic Shoes
EnergySavings
Fabric Refresh
Fleece
FragileCottons
Performance Fabrics
PetBedding
PlayClothes
Single ItemWash
SleepingBag
Soak
SuperCleon
Throw Rugs
ACTIVE WEAR
HANDWASH
5TEAMREFRESH
DELICATES RINSE & SPIN
WASHABLE
WOOL SPEED WASH
While in the Specialty Cycle, use the A and V
arrow keys to scroll between the different options.
Press ENTERto select the cycle. PressBACKto go
to the previous menu.

Control settings.
6
Soil Level
ChangingtheSOILLEVELincreasesordecreasesthewashtimetoremovedifferentamountsofsoil.
TochangetheSOILLEVEL,presstheSOILLEVELbuttonuntilyouhavereachedthedesiredsetting.Youcanchoose
betweenExtraLight,Light,Normal,HeavyorExtraHeavysoil.
StrainSpeed
ngingtheSPINSPEEDchangesthefinalspinspeedofthecycles.Alwaysfollowthegarmentmanufacturer'scare
labelwhenchangingtheSPINSPEED.
TochangetheSPINSPEED,presstheSPINSPEEDbuttonuntilyouhavereachedthedesiredsetting.Youcanchoose
betweenNoSpin,Low,Hedium,Highor ExtraHighSpin.Higherspinspeedsarenotavailableoncertaincycles,suchas
Delicates.
Higherspinspeedsremovemorewaterfromtheclothesandwillhelpreducedrytime,butmay alsoincreasethe
possibilityof settingwrinklesonsomefabrics.
Wash Temp
Adjustto selectthe properwatertemperatureforthewashcycle.Theprewashandrinsewaterisalwayscoldtohelp
reduceenergyusageandreducesettingofstainsandwrinkles.
Followthefabricmanufacturer'scarelabelwhenselectingthewashtemperature.
Tochangethewashtemperature,pressthe WASHTEMPbuttonuntilyouhavereachedthedesiredsetting.Youcan
choosebetweenTapCold,Cold,Warm,Hotor Sanitize.TheSanitizedwashtemperatureisnotavailableoncertaincycles,
suchasDelicates.
WhenselectingtheSanitizewashtemperature,thewasherincreasesthewatertemperatureto sanitizeandkillmore
o
than99_ of manycommonbacteriafoundinhomelaundry.Thesanitizewashtemperatureisonlyavailableonthe
Whites/HeavyDutywashcycle.Forbestresults,selecttheheavysoilsettingwhenusingtheSanitizewashtemperature
setting.
NOTE:Thefirst10secondsofthewashfillisalwayscold.Thisfeatureassistsinconditioningthefabricandpreventingstains
fromsettingongarments.
START/PAUSE
Presstostarta washcycle.Ifthewasherisrunning,pressingitoncewillpausethewasherandunlockthedoor.
Itwilltakeafew secondsforthedoortounlockofferpressingPAUSE.Pressagainto restartthewashcycle.
NOTE:Ifthewasherispausedandthecycleisnotrestartedwithin25minutes,thecurrentwashcyclewillbecancelled.
NOTE:Insomecgctesthewasherwilldrainfirst,thenunlockthedoorwhenitispaused.
NOTE:ThewasherperformsautomaticsystemchecksafterpressingtheSTARTbutton.Waterwillflowin 45seconds
or tess.Youmayhearthedoortackandunlockbeforewaterflows;thisisnormal.
Settings
Usethe SETTINGSbutton to adjust
the following features:
Dryer Link:
Pressthe SETTINGSbutton.
When "DRYERLINK"appears in
the display, pressENTER.Using
the 4/_ arrow keys,selectON
and pressENTER.
When the washer cycle is
completed, the washer will
communicate with the dryer when
any button on the control panel is
touched or the door isopened.
Thewasher will display,
"TRANSFERRINGCYCLE
INFORHATIONTOTHEDRYER"
and the dryer will display,
"RECEIVINGCYCLEINFORMATION
TOTHEDRYER".
Thedryer will only communicate
with the washer ifthe dryer is not
running acycle.
Ifthe washer starts anew cycle
before the dryer has achance
to communicate with it,
the information will be lost.
End-of-Cycle Volume:
Pressthe SETTINGSbutton. When
"VOLUME"appears inthe display,
pressENTER,then select"Endof
Cycle".Usingthe 411/1_arrow keys,
selectHigh, Medium,Low or Off.
Control Sounds:
Pressthe SETTINGSbutton, then
select"Volume".When "CONTROL
SOUNDS"appears in the display,
pressENTER.Usingthe _1/1_arrow
keys,select High,Medium, Low
or Off.
Display Brightness:
Pressthe SETTINGS button. When
"DISPLAYBRIGHTNESS"appears
in the display, pressENTER.Using
the 41/1_arrow keys, selectHigh,
Medium or Low.
Water Hardness
(Only appears when SMART
DISPENSERPedestal Accessory
is connected to washed:
Thiswill adjust the amount of
detergent dispensedautomatically
for the SMARTDISPENSER.Seethe
Owner's Manual supplied with the
SMARTDISPENSERfor instructions
for use.

GEAppliances.com
WASH
Prewash
Prewash is an extra wash before
the main wash. Use it for heavily soiled
clothes or for clothes with a care label
that recommends prewashing before
washing. Be sure to add high-efficiency
detergent, or the proper wash additive
to the prewash dispenser.
The prewash feature will fill the washer
(adding the prewash detergent), tumble
the clothes, drain and spin. Then the
washer will run the selected wash
cycle.
NOTE:In some specia! cycles,
the prewash is selected automatically
as the default. You con modify this
selection at any time.
EXTRA
RINSE Extra Rinse Use an extra rinse when additional
rinsing isdesired to remove excess dirt
and detergent from soiled loads.
NOTE:In some specia! cycles, the extra
rinse is selected automatically as the
default. You can modify this selection at
anbttime. Some cblcleshave additiona!
rinses done automatica!lg.
DELAYSTART Delay Start
You can delay the start of awash cycle
for up to 2/4hours. Press the DELAY
STARTbutton to choose the number
of hours you want to delay the start
of the cycle. Use the A and V (up and
down) arrows to find the desired delay
time; then press ENTERto select the
delay time. Finally, press the START
button after the desired cycle is
selected. The machine will count
down and start automatically
at the correct time.
NOTE:If blouforget to fully close
the door, a reminder signa! wi!! beep
reminding you to do so.
NOTE:If you open the door when the
delay is counting down, the machine
will enter the pause state. You must
close the door and press START again
in order to restart the countdown.
Push to Lock Control
Hold3 Secs to Unlock
Lock
You can lock the controls to prevent
any selections from being made. Or
you can lock or unlock the controls
after you have started a cycle.
Children cannot accidentally start
the washer by touching pads with
this option selected.
To lock the washer, press and hold
the LOCKbutton for ] seconds.
To unlock the washer controls,
press and hold the LOCKbutton for
] seconds. A sound is made to indicate
the lock/unlock status.
The control lock icon on the display will
light up when it is on.
NOTE:ThePOWERbutton can stil! be
used when the machine is locked.
CYCLE
Hold 3Secs
to Store
MY CYCLE (on some models)
To save a favorite cycle, set the desired
settings for wash cycle, soil level, spin
speed and wash temp settings and
hold down the MYCYCLEbutton for
] seconds. A beep will sound to indicate
the cycle has been saved.
To use your custom cycle, press
the MYCYCLEbutton before washing
a load.
To change the saved cycle, set
the desired settings and hold down
the MYCYCLEbutton for ] seconds.
NOTE:When using MY CYCLE,
wash options cannot be modified
after the cycle has been started.
NOTE:If you change wash options
with MYCYCLEbefore starting the cycle,
the MY CYCLE light wil! turn off and you
wi!!be returned to the base cycle.

Control settings.
Stain inspector
The STAININSPECTORfeature allows you
to indicate what stains are on the garments in your
load. This feature can be used with any wash cycle.
To use STAIN iNSPECTOR:
3[.Select the wash cycle.
2. Pressthe STAININSPECTORbutton (the button will
light up when it is on).
3. Check the wash instructions on your garment.
6. Pressthe ENTERbutton to select the stain
category.
7. Use the A and T arrows to select the desired
stain.
4. Pressthe ENTERbutton to continue.
5. Usethe A and Y arrows to find the desired stain
category.
You have the following stains available to choose from:
OUTDOOR
Clay
Grass
Mud/Dirt
RustIron
TreeSap
COSMETICS
Lipstick/LipBalm
Deodorant
Lotions
Makeup (water-based)
Oil(hair/mineral)
BEVERAGES FOOD/COOKI NG
GrapeJuice
Coffee/Tea
FruitJuice Other
Milk/Dairy
Wine (red/white)
Butter/Margarine
Cooking/VegetableOil
Chocolate
Tomato Based
BarbecueSauce
PERSONAL
Blood
Perspiration
Urine/Feces
Mouthwash
Vomit
SCHOOL/OFFICE/HOME LAUNDRY
AdhesiveTape
Ballpoint Ink
Glue (white common)
PencilMark
Correction Fluid
Dingy White Socks
Collar/Cuff Soil
Dye Transfer
FabricSoftener
Yellowing
OIL/GREASE/WAX
Motor Oil/Lube
Ointment/Salve
CandleWax
Crayon
ChapstickT"
8
8. Pressthe ENTERbutton to select the stain.
9. Your selected stain will appear on the display.
lO. Pressthe STARTbutton to start the cycle.
NOTE:Toturn off STAININSPECTORor to select a
different stain, press the STAININSPECTORbutton
again.
NOTE:Prewash is selected automatica!lbl
as the default for some stains. When selected
automatica!lbl, the PREWASHbutton wi!! light.
For optimum stain remova!, it is recommended
to add high-efficiency detergent or proper wash
additive to the prewash dispenser. Youcan turn
off the prewash option if you do not want to add
the prewash to the cycle.

GEAppliances.com
SMARTDISPENSE"-optionalaccessor£(onsomemodels)
If you have purchased the PROFILESMARTDISPENSE
System, refer to the Owner's manual that comes with
the SMARTDISPENSESystem.
If you have not purchased the PROFILESMART
DISPENSESystem, you will not have bulk-dispensing
capability. If you select the SMARTDISPENSEoption,
a message will be displayed advising that your unit
does not have the capability. You should then put
detergent and other selected additive in the flow-
through dispenser drawer located at the top left of
the unit. To purchase the PROFILESMARTDISPENSE
System, go online to GEAppliances.com or contact
your local retailer.
STEAM ASSIST
STEAMASSISTadds steam into the washer during
WHITES/HEAVYDUTY,COLORS/NORMAL,WRINKLE
FREEor ACTIVEWEARcycles.
To use:
1.
2.
3.
Turn power ON and select a wash cycle.
The STEAM ASSIST option is only available
on WHITES/HEAVY DUTY, COLORS/NORMAL,
WRINKLE FREE or ACTIVE WEAR cycles.
Select the STEAH ASSIST button to activate Steam.
Press the START/PAUSE button.

About the washer features.
w
The Dispenser Drawer
Slowlyopenthe dispenserdrawer by pulling
it out until it stops.
After addinglaundryproducts,slowlyclose
the dispenserdrawer.Closingthedrawer
too quicklgcouldresultin eorlgdispensing
of thebleach,fabricsofteneror detergent.
Youmay seewater in thebleachand Fabric
softenercompartmentsatthe endof thecycle.
Thisis o resultoftheflushing/siphoningaction
and ispart of thenormal
operationofthe washer.
Useonlg HEHigh-Efficiency
detergent.
The Prewash Compartment
mOnlyusethe PrewashCompartmentif you
areselectingthe Prewashcyclefor heavily
soiledclothes.Add measureddetergentor
prewashadditive to the backleft prewash
compartmentof the dispenserdrawer.
[] Detergentor prewashadditiveisflushed
from the dispenserin the prewashcycle
(ifselected).
NOTE:Liquiddetergentwill drain
into thewasherdrum asit isadded.
[] Detergentusagemay needto be adjusted
for water temperature,water hardness,size
and soillevelof the load.Avoidusingtoo
much detergent in your washerasit can
leadto oversudsingand leavedetergent
residueon the clothes.
Insertin rearpositionfor powder
detergent
Liquid_/ _.
Insertin forwardpositionfor liquid
detergent
The Detergent Compartment
[] Onlg usehigh-efficiency detergent
in this washer. MAXline isfor normal
detergent. DONOTfill abovethe HA×
line.
DO NOT fill high-efficiency detergent
to the HA× line. Use detergent
manufacturer's recommended amount.
Thedetergent selectioninsert mustbe placed
inthe detergentcompartment in a specific
positionaccordingto thetype of detergent
youare using.
[] PowderDetergent - Placethe insert
inthe rear position.ThePowderIcons_
mustline up on centerwhenthe insert
isinthe powderposition.
[] Liquid Detergent- Placethe insertin
the forward position.TheLiquidIcons
mustline up on centerwhenthe insert
isinthe liquid position.
Hovethe insertby pullingit up and replace
it by slidingit down betweeneitherthe rear
or front detergentcompartment moldedrails,
asdesired,for powderor liquid detergent.
[] Add measureddetergentto thefront left
detergentcompartment of the dispenser
drawer.
[]
[]
[]
Detergentisflushedfrom the dispenser
at the beginningofthe washcycle.Either
powderedor liquiddetergent canbe used.
Detergentusagemay needto beadjusted
for water temperature,water hardness,
sizeand soillevelof the load.Avoidusing
too much detergentin yourwasher asit
can leadto oversudsingand detergent
residuebeing left on the clothes.
DO NOT put clumped detergent
in the dispenser. Clumped detergent
can cause a leak.
The Liquid Bleach Compartment
Ifdesired,measureoutthe recommended
amount of liquidbleach,notto exceed
1/3cup (80ml)and pour into thecenter
compartment labeled"LIQUIDBLEACH"
markedwith this symbol___.
It isrecommendedto useHigh-Efficiency(HE)
bleachin this front-loadwasher.
Donot exceedthemaximum fill line.Overfilling
concauseearlydispensingof thebleachwhich
couldresultin damagedclothes.
NOTE:Donotusepowderedbleachin the
dispenser.
The Fabric Softener Compartment
If desired,pourthe recommendedamount
of liquidfabric softenerintothe compartment
labeled"FABRICSOFTENER."
Useonly liquidfabric softenerin the dispenser.
Dilutewith water tothe maximumfill line.
Donotexceedthemaximumfill line.Overfilling
concauseearlydispensingofthe fabric
softener,which couldstainclothes.
NOTE:Donotpour fabricsoftenerdirectly
3.0 on thewashload.

Loading and using the washer.
Always follow fabric manufacturer's care label when laundering. GEAppliances.cam
Sorting Wash Loads
[]
[]
[]
[]
Colors Soil Fabric Lint
Whites Heavg Delicates LintProducers
Lights Normal EasgCare LintCollectors
Darks Light SturdgCottons
Combine large and small items in a load. Load large items first. Large items should not be more than
half the total wash load.
Washing single items is not recommended. This may cause an out-of-balance load. Add one or two
similar items.
Pillows and comforters should not be mixed with other items. This mablcause an out-of-balance load.
Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency
washer, so it uses less water, making dye transfer more common.
Loading the Washer
The wash drum may be fully loaded with loosely
added items. Do not wash garments containing
flammable materials (waxes, cleaning fluids, etc.).
To add items after the washer has started, press
START/PAUSEand wait until the door is unlatched.
The washer may take up to 30 seconds to unlock
the door after pressing START/PAUSE,depending
on the machine conditions. Do not try to force
the door open when it is locked. After the door
unlocks, open gently. Add items, close the door
and press START/PAUSEto restart.
Loading Examples*
WORKWEAR
4 Jeans
5 Work Wear
Shirts
5 Work Wear
Pants
LINENS
2 Bath Sheets
10 Bath Towels/
12 Washcloths
7 Hand Towels/
2 Terrycloth Bath
Mats
OR
2 Flat Queen-Sized
Sheets
2 Fitted Queen-
SizedSheets
4 Pillowcases
MIXED LOAD
4 Pillowcases
2 Hand Towels
DELICATES*
7 Bras
7 Panties
2 Flat Sheets/
2 Fitted Sheets
2 Bath Towels/
4 Washcloths
OR
6 Shirts (Men's
or Women's)
4 Pair Pants
(Khakis
or Twills)
5 T-shirts
7 Pairsof Boxers
4 Pairsof Shorts
OR
6 T-shirts
4 Pairs of
Sweatpants
4 Sweatshirts
2 Hoodies
7 Pairs of Socks
3 Slips
2 Camisoles
4 Nightgowns
*Using a nylon
mesh bag for
small items is
recommended.
SPEEDWASH
(2-4 GARMENTS}
2 Casual Wear
Work Shirts
1Pair Casual Wear
Work Pants
OR
3 Soccer Uniforms
*Using a nylon mesh bag for small items is recommended. 11

Loading and using the washer.
Careand Cleaning/GeneralMaintenance
Exterior: Immediatelg wipe off any spills. Wipe with damp cloth. Do not hit surface with sharp objects.
Interior: Drg around the washer door opening, flexible gasket (including attached hoses) and door glass.
These areas should alwags be clean to ensure a water-tight seal.
It is recommended to rinse the washer at least once per month with 1 cup of bleach (or other
commerciallg available product manufactured for this purpose) poured into the prewash section
of the dispenser (no clothes) using the BASKETCLEAN CYCLE(found in the SPECIALTYCYCLESmenu).
Check to ensure the steam nozzle is not clogged. Clean the nozzle if necessaru.
Moving end Storuge: Ask the service technician to remove water from drain pump and hoses.
Do not store the washer where it will be exposed to the weather. When moving the washer,
the tub should be kept stationarg bg using the shipping bolts removed during installation.
See Installation Instructions in this manual. If these parts are not available, theg can be ordered
bg visiting our Website at GEAppliances.com or bg calling 800.GE.CARES.
Long Vucutions: Be sure water supplg isshut off at faucets. Drain all water from hoses if weather
will be below freezing.
Cleon Pump Filter
Due to the nature of the front-load washer, it is sometimes possible for small articles to pass
to the pump. The washer has a filter to capture lost items so theg are not dumped to the drain.
To retrieve lost items, clean out the pump filter.
1. Using a coin in the notch on the door, open the access door.
2. Placea shallow pan or dish under the pump access door
and towels on the floor in front of the washer to protect
the floor. It isnormal to catch about a cup of water when
the filter is removed.
3. Turn the pump filter counterclockwise and remove the filter.
4. Clean the debris from the filter.
5. Replace the filter and turn clockwise to the marked position.
& Close the access door.
filter
12
Cleuning the Door Gusket
Open the washer door. Using both hands, press down the door gasket.
Remove ang foreign objects if found trapped inside the gasket. Hake sure
there is nothing blocking the holes behind the gasket.
While holding down the door gasket, inspect the interior gasket bg pulling
it down with gour fingers. Remove ang foreign objects if found trapped
inside this gasket. Hake sure there is nothing blocking the holes behind
the gasket.
When gou are finished cleaning the door gasket, remove gour hands and
the gaskets will return to the operating position.

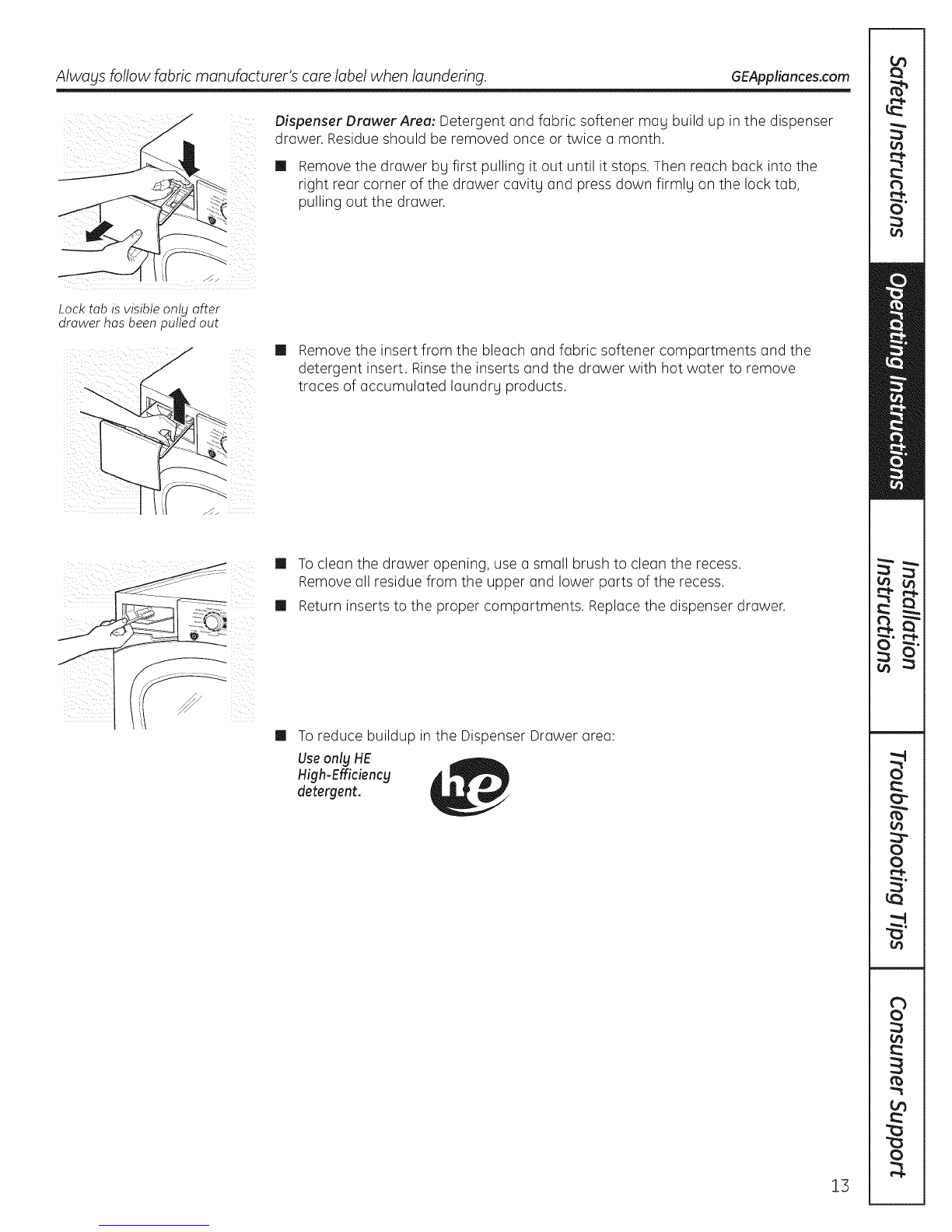

Alwa_Isfollow fabricmanufacturer's carelabelwhen laundering. GEAppliances.cam
Lock tab is visible only after
drawer has been pulled out
Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser
drawer. Residue should be removed once or twice a month.
[] Remove the drawer by first pulling it out until it stops. Then reach back into the
right rear corner of the drawer cavity and press down firmly on the lock tab,
pulling out the drawer.
[] Remove the insert from the bleach and fabric softener compartments and the
detergent insert. Rinsethe inserts and the drawer with hot water to remove
traces of accumulated laundry products.
[] To clean the drawer opening, use a small brush to clean the recess.
Remove all residue from the upper and lower parts of the recess.
[] Return inserts to the proper compartments. Replace the dispenser drawer.
[] To reduce buildup in the Dispenser Drawer area:
Useonly HE
High-EfficiencU
detergent.
13

Loading and using the washer.
FabricCareLabels
Below are fabric care label "sgmbols" that affect the clothing gou will be laundering.
WASH LABELS
Machine____
wash m
cycle N...... i p........ t Press/
wrinkle resistant Gentle/ De not wash Do not wring delicate Hand wash
Water
temperature 000 O0 •
Hot Warm Cold/cool
(50 C/120 F) (40 C/105 F) (30 C/85 F)
BLEACH LABELS
Bleach_., A A
symuols Aev bleach Only ..... hlorine bleach
(when needed) (when needed) Do not bleach
DETERGENT LABELS
Use only HE High-Efficiency detergent.
Available accessories.
h
Pedestal
There is a pedestal available for gour
washer. This pedestal gives the washer
more height and gives storage for gour
washing necessities. Included with the
pedestal is a divider that allows gou
to store liquid laundrg detergent out
of sight. See the pedestal installation
instructions.
I
14
Profile Smart Dispense System
The Profile SMARTDISPENSESgstem
lets gou store laundrg detergent and
fabric softener to be dispensed
automaticallg during the wash and
rinse cgcles of this washer. NO BLEACH
mag be used in this dispense sgstem.
See the Owner's Manual that is
included with the Profile SMART
DISPENSESgstem for installation
instructions.

Demand Response. Ionsome models) GEAppliances.com
Hodel WPDH89!O is compatible with the GEDemand
Response (DR)module which can be purchased
separatelg. Contact gour local utilitg or visit
www.GEAppliances.com/demond_response to
see if gour area is using DRtechnologg.
The following demand response features are available
as part of a pilot test program with the local utilitg
compang to help consumers reduce peak electricitg
usage in the home.
INSTALLATION
The preferred location for the module installation ison top
of the clothes drger.
Details on how to connect the cables to the module are
in the instructions that come with the module.
Wait 5 minutes; then press the Settings button. Scroll and
look for the energg management screen as seen below.
This screen means the module is attached correctlg and
gou can begin to use gour DR-enabled appliance following
the instructions below.
If the Energg Hanagement Screen is not available, refer to
the DRmodule troubleshooting guide.
QUICK GUIDE
There are 4 power levels available: Critical, High, Hedium
and Low. On the Hedium and Low levels,the unit runs as
normal. The following steps show how the unit reacts
during startup at Critical and High power levels.
Option !(Delay Eco)
During startups at Critical and High levels, the unit will
delay starting until the level becomes Hedium or Low.
Press the START/PAUSEbutton.
Option 2(Override Dela_lEco)
Tostart the washer when Delag Eco isshown, press the
DELAVSTARTbutton to turn the delay off. Then press
START/PAUSEto begin the wash.
SETTINGS HENU
Press SETTINGS; then select Energg Hanagement.
Eco O,...,er'ride
De!a_jEcoOverride
If you are starting a cycle in a Critical or High utilitg rate,
this option allows the unit to automatica% run on an Eco
Cycle. This setting will wash with less energy than normal
cycles. The default setting isYES.
Auto-Extend De!o_IS
w
%
If a timed delag is selected, this option allows for the
scheduled start to extend if the utility rate is Critical or
High at the scheduled start. The default setting will
automatically extend these cycles.
Inorder for the demand response features on the
appliance to work, additional equipment is required to be
installed to interface with the local utility. Such equipment
mag be sold separatelg and/or isavailable through your
utility as part of the pilot test program. Check with your
utility company to see if a pilot test program is available in
your area and for full details.
PLEASENOTE:At the conclusion of the pilot test program
or if you move to an area where the program is not
available, the demand response features cannot be
activated and utilized on the appliance. The appliance will
function as normal after the demand response equipment
has been deactivated or disconnected.
15

Installation
I str cti Washer
WPDH8850, WPDH8910, WPDH8900
If gou have ang questions, coil 800.GE.CARES (800.432.2737)
or visit our Website at: GEAppliances.com
In Canada, coil J.800.56J.3344 orvisitwww.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT - Savetheseinstructions
for local inspector's use.
•IMPORTANT - Observea,,governing
codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keepthese instructions
for future reference.
• Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time - 1-3 hours
• Proper installation isthe responsibilitg of the installer.
• Product failure due to improper installation is not
covered under the Warrantg.
FOR YOUR SAFETY:
-AWARNING
• This appliance must be properlg grounded and
installed as described in these Installation Instructions.
Do not install or store appliance in an area where
it will be exposed to water/weather. See Location
of Your Washer section.
• NOTE:This appliance must be properlg
grounded, and electrical service to the washer
must conform with local codes and ordinances
and the latest edition of the National Electrical
Code, ANSI/NFPA 70.
TOOLS REQUIRED FOR
WASHER INSTALLATION
rj 1/4" nut driver
rj 3/8" socket with ratchet
rj ]/8" open-end wrench
rj Adjustable wrench or 7/16" socket with ratchet
rj Adjustable wrench or 9/16" open-end wrench
rj Channel-lock adjustable pliers
rj Carpenter's level
PARTS SUPPLIED
@
rj Water Hoses (2)
rj Cable Tie
rj Hose Guide
16

Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1.In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60°F (15.6°O for proper
washer operation.
2.In an area where it will come in contact with curtains
or drapes.
3.On carpet. The floor MUSTbe a hard surface with
a maximum slope of 1/2" per foot (1.27cm per
30 cm).To make sure the washer does not vibrate
or move, gou mag have to reinforce the floor.
NOTE:If floor is in poor condition, use 3/4" impregnated
plgwood sheet solidlg attached to existing floor covering.
IMPORTANT:
Minimum Installation Clearances
• When installed in alcove: Sides, Rear,
Top = 0" (0 cm)
• When installed in closet: Sides, Rear,
Top = 0" (0 cm), Front = !" (2.54cm)
• Closet door ventilation openings required:
2 louvers each 60 square in. (387 cm2),located 3"
(7.6cm) from top and bottom of door
ROUGH-IN DIMENSIONS
FRONT
"_ 27.0" D,-
(68.6 cm)
SIDE
32.1"
(81.5cm)
*NOTE:
With Washer Legs: 40.5" (102.5 cm)
(0.75" adjustabilitg)
With Pedestal: 53.75" (136.6 cm)
(0.75" adjustabilitg)
Stacked: 82.75" (209.8 cm)
17

Installation Instructions
UNPACKING THE WASHER
WARNING: Recycleor destroy the carton
and plQsticbQgsafter the washer isunpQcked.Make
materiQIsinQccessibleto children. Childrenmight use
them for plQy.Cartonscovered with rugs, bedspreQds
or plQsticsheets can become airtight chambers causing
suffocation.
1. Cut and remove the top and bottom packaging straps.
2. While it isin the carton, carefully lay the washer on its
side.DONOTlay the washer on its front or back.
3. Turn down the bottom flaps-remove all base packaging,
including the cardboard, styrofoam baseand styrofoam
tub support (insertedin center of base).Savethe stacking
brackets located on the styrofoam pad that covered
the top ofthe washer.
NOTE: If you are installing a pedestal, proceed to
the installation instructions that come with the pedestal.
4. Carefully return the washer to an upright position and
remove the carton.
5. Carefully move the washer to within/4 feet (122cm)
of the final location.
6. Removethe following from the back sideof the washer:
/4bolts
/4plastic spacers (includingrubber grommets)
/4power cord retainers
7. Removethe shipping bolt. Insert plug into shipping
bolt hole.
J
is
J
NOTE: Failure to remove the shipping braces can cause
the washer to become severely unbalanced.
Save all bolts for future use.
NOTE:If you must transport the washer at a later date,
you must reinstallthe shipping support hardware to prevent
shipping damage. Keepthe hardware inthe plastic bag
provided.
18

Installation Instructions
ELECTRICAL REQUIREMENTS
Read these instructions completely
and carefully.
-AWARNING--TOREDUCETHERISKOF
FIRE,ELECTRICALSHOCKAND PERSONALINJURY:
• DO NOTUSEAN EXTENSIONCORDORANADAPTER
PLUGWITH THISAPPLIANCE.
Washer must be electrically grounded in accordance
with local codes and ordinances, or in the absence
of local codes, in accordance with the NATIONAL
ELECTRICALCODE,ANSI/NFPANO.70.
CIRCUIT- Individual,properly polarizedand grounded
15-amp branch circuit fused with 15-amp time-delay fuse
or circuit breaker.
POWERSUPPLY- 2-wire, with ground, 120-volt,
single-phase,60-Hz,Alternating Current.
OUTLETRECEPTACLE-Properly _
grounded 3-prong receptacleto be
located sothe power supply cord
isaccessiblewhen the washer is
inan installed position.
GROUNDING REQUIREMENTS
-& WARNING: Improper connectionofthe
equipment grounding conductor can result in a risk
ofelectrical shock.Checkwith a licensedelectrician
ifyou are in doubt as to whether the appliance is
properly grounded.
,Thewasher MUSTbe grounded. Inthe event of
malfunction or breakdown, grounding will reduce
the riskof electricalshock by providing apath of least
resistancefor electricalcurrent.
.Sinceyour washer isequipped with a powersupply
cord havingan equipment-grounding conductor and
a grounding plug,the plug MUSTbe plugged into an
appropriate, copper-wired receptaclethat isproperly
installedand grounded inaccordance with all local
codes and ordinances or in the absence of localcodes,
with the National ElectricalCodes,ANSI/NFPA70 (latest
edition).If in doubt, calla licensedelectrician.DONOT
cut off or alter the grounding prong on the power supply
cord. Insituations where a two-slot receptacle ispresent,
it isthe owner's responsibilityto havea licensed
electrician replaceit with a properly grounded
three-prong grounding-type receptacle.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUSTbe installedwithin
42 inches (107cm) of your washer's water inlet.The faucets
MUSTbe 3/4" (1.9cm) garden hose-type so inlethoses can
be connected. Water pressureMUSTbe between 10and 120
pounds per square inch. Yourwater department can advise
you of your water pressure.Thehot water temperature
should be set to deliver water at 120°to 140°F(48°-60°C)
to provideproper Automatic Temperature Control (ATC)
performance.
NOTE:A water softener is recommended to reduce buildup
of scale insidethe steam generator ifthe home water supply
isvery hard.
DRAIN REQUIREMENTS
i. Drain capable of eliminating 17gals (64.3L)
per minute.
2. A standpipe diameter of i 1/4" (3.18cm) minimum.
3. The standpipe height above the floor should be:
Minimum height: 24" (61cm)
Maximum height:96" (244cm)
BACK
1
T
96"
(244 cm)
Max.
24"
(61 cm)
Min.
NOTE:Thedrain hose attached to the washer can reach
a 58" (147cm) high standpipe. Fora higher standpipe,
contact an authorized parts distributor.
19

Installation Instructions
INSTALLING THE WASHER
1. Runsome water from the hot and cold faucets to flush
the water linesand remove particles that might clog
the water valve screens.
2. Removethe inlethosesfrom the plastic bag.
3. (90°elbow end)
Carefullgconnect the inlet
hose marked HOTto the
outside "H" outlet of the
water valve.Tighten bg hand,
then tighten another 2/] turn
with pliers.Carefullg connect
the other inlet hoseto the
inside"C"outlet of the water
valve.Tighten bg hand; then
@
tighten another 2/] turn with pliers.Do not crossthreed
or over-tighten these connections.
4. Connectthe inlet hoseendsto the HOTand COLDwater
faucets tightlg bg hand,then tighten another 2/] turn
with pliers.Turnthe water on and check for leaks.
S.
.
Carefullg move the washer to its final location. Gentlgrock
the washer into position.It is important notto damage
the rubber levelinglegswhen moving gour washer
to its final location. Damaged legscan increase washer
vibration. It mag be helpfulto sprag window cleaneron
the floor to help move gour washer into its final position.
NOTE:To reduce vibration, ensure that ell four rubber
leveling legsere firmly touching the floor. Pushend
pull on the beck right end then beck left of your
washer.
NOTE:Do not usethe dispenser drawer or door to lift
the washer.
NOTE:If you are installing into a drain pan,you can use
a 24-inch long 2x4to leverthe washer into place.
With the washer in its
final position, place
a level on top of the
washer (ifthe washer
is installed under a
counter, the washer
should not be able to
rock).Adjust the front
leveling legs up or down to ensure the washer
is resting solidlg. Turn the lock nuts on each leg
up toward the base of the washer and snug with
a wrench.
NOTE: Keep the leg extension et e minimum to prevent
excessive vibration. The farther out the legs ere
extended, the more the wesher will vibrate.
Ifthe floor isnot levelorisdamaged, gou mag have
to extend the rear levelinglegs.
2O
