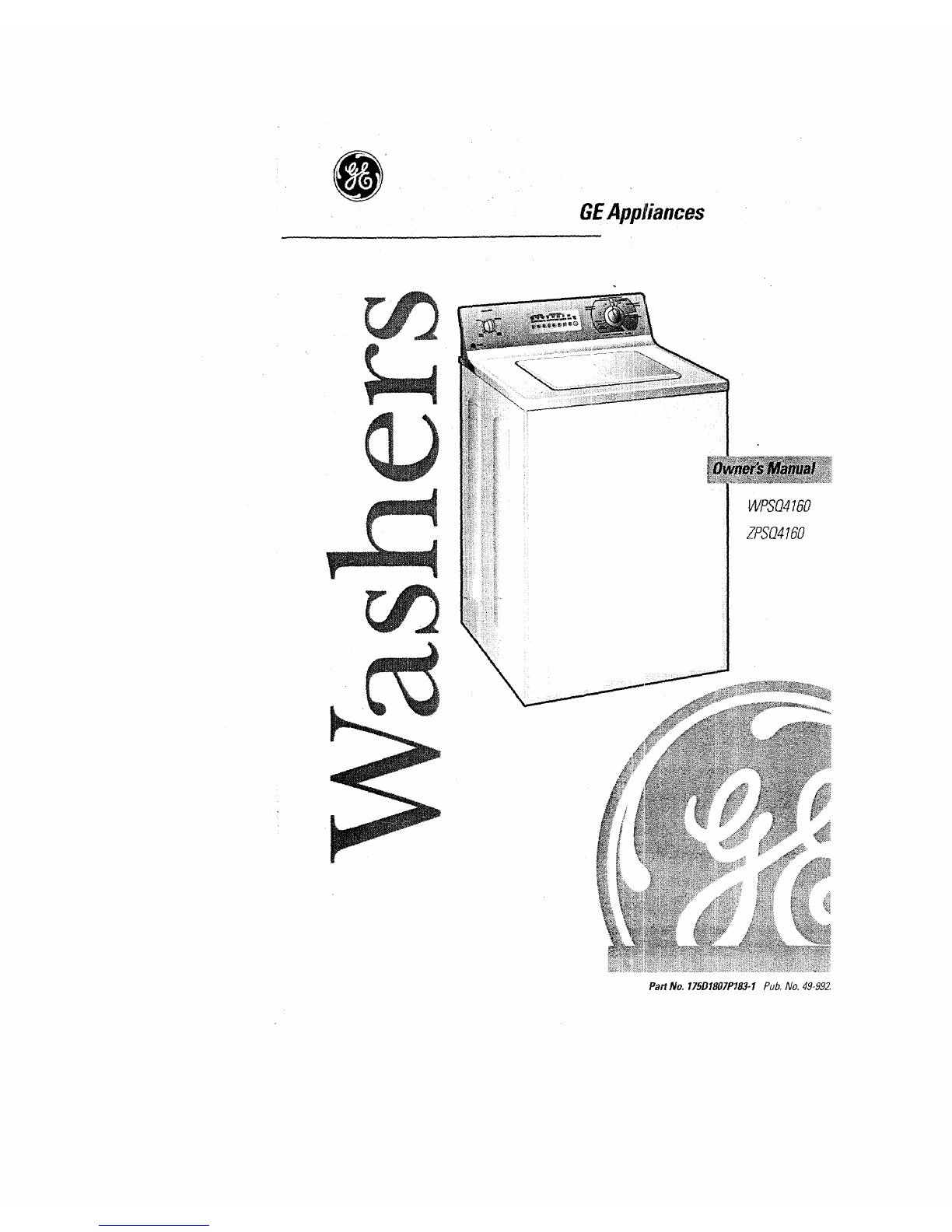

GE WPSQ4160 User manual

GEAppfiances
WPSQ4160
ZPSQ4160
PartNo. 175DISO7PIM°1 Pub.No.49-992,

Congratulations!
YouAre Now PartoftheGEFamily.
Welcome to the GE family.
We're proud of our quality
products and we are
committed to providing
dependable service. You'll
see it in this easy-to-use
Owner's Manual and you'll
hear it in the friendly voices
of our customer service
department.
Best of all, you'll experience
these values each time you
do the laundry. That's
important, because your
new washer will be part of
your family for many years.
And we hope you will be
part of ours for a long time
to come.
We thank you for buying
GE: We appreciate your
purchase, and hope you
will continue to rely on us
whenever you need quality
appliances for your home. Important!
Staplesales slip orcancelled
check here.
Proof of the original punzhase date
is needed to obtain service under
the warranty.
Write tbO modeland serial
numbershere.
#
2
#
Youcan fina them behind typetop edge
of the control panel

iGE& You,
A ServicePartnership.
Ask any GEappliance Owner and they will
tell you we stand behind our products with
unmatched quality service. However, did
you know that most questions result from
simple problems that you can easily fix
yourself injust a few minutes? This
Owner's Manual can tell you how.
ReadthisManual
Inside you will find many
helpful hints on how to use and
maintain your washer properly.
Just a little preventive care on
your part can save you a great
deal of time and money over the
life of your WC,Lsher.
ReviewtheSectionon
Troubleshootingtips
You'll find man), answers to
common problems here.
If you re,few our chart of
Troubleshooting Tips first, yo u may
not need to call for service at all.
If YouNeedService
If you do need service, you can
relax knowing help is only a
phone call away. A list of toll-free
customer sen-ice numbers is
included in the back section.
Or call in the UnitedStatesthe GE
Answer Center ®at 800.626.2000,
24 hours a day, 7 days a week. In
Canada,call 800-361-3400.
Languages
English .................. 2
Frangais................ 23
Espa#ol................. 45
SafetyiMormation ...... .4-7
•,: ,,.; ,
,+
+
Oper_rb'ng.lnstructions
ContrclPanels ".8
Con_c,lSe_'ngs._ _8,9
WasherFeatures"10L12
LOadir,'gandUsing
theWasher....... ..... 13,14
Troubleshooting][ips
Before,You
CallFt_rService.......... 15-19
CustomerService
Warranty ................ _20
Servic,9Telephone ,_
Numb,_rs........... BackCover
_:" ""i'4" .
3{:: .:-

{
l

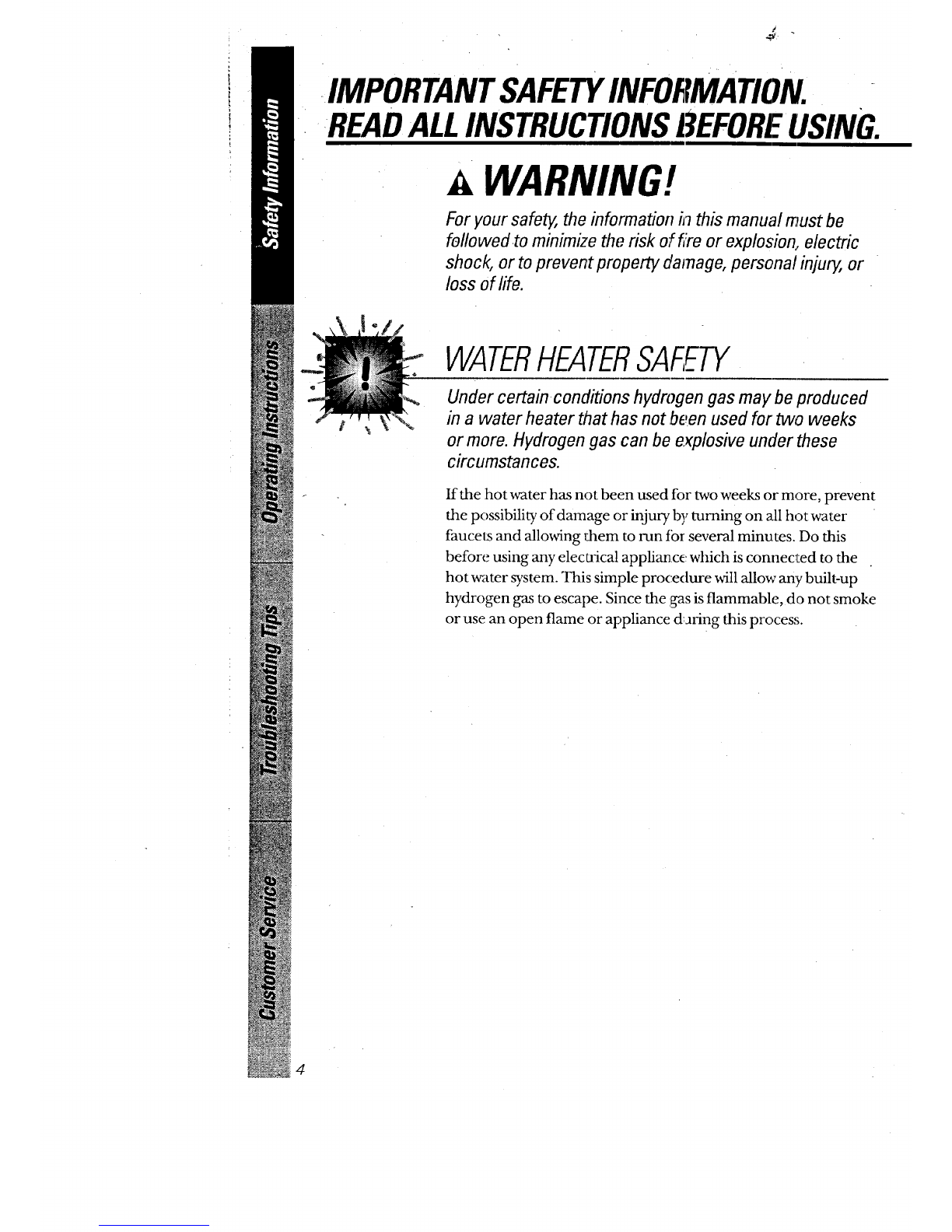

IMPORTANTSAFETYINFORMATION.
,READALLINSTRUCTIONS BEFORF.USING.
WARNING!
For your safety, the information in this manual must be
followed to minimize the risk of fire or explosion.,electric
shock, or to prevent property damage, personal injury, or
loss of life.
WATERHEATERSAFF_TY
Under certain conditions hydrogen gas may be produced
in a water heater that has not been used for two weeks
or more. Hydrogen gas can be e._plosiveunder these
circumstances.
fithe hot water has not been used for two weeks or more, prevent
the possibility of damage or injury by turning on all hot water
faucets and allowing them to run tot several minutes. Do this
before using any electrical appliance which is connected to the
hot water system. This simple procedure will allow any built-up
hydrogen gas to escape. Since the :gas is flammable, do not smoke
or use an open flame or appliance d:Jring this process.

I\

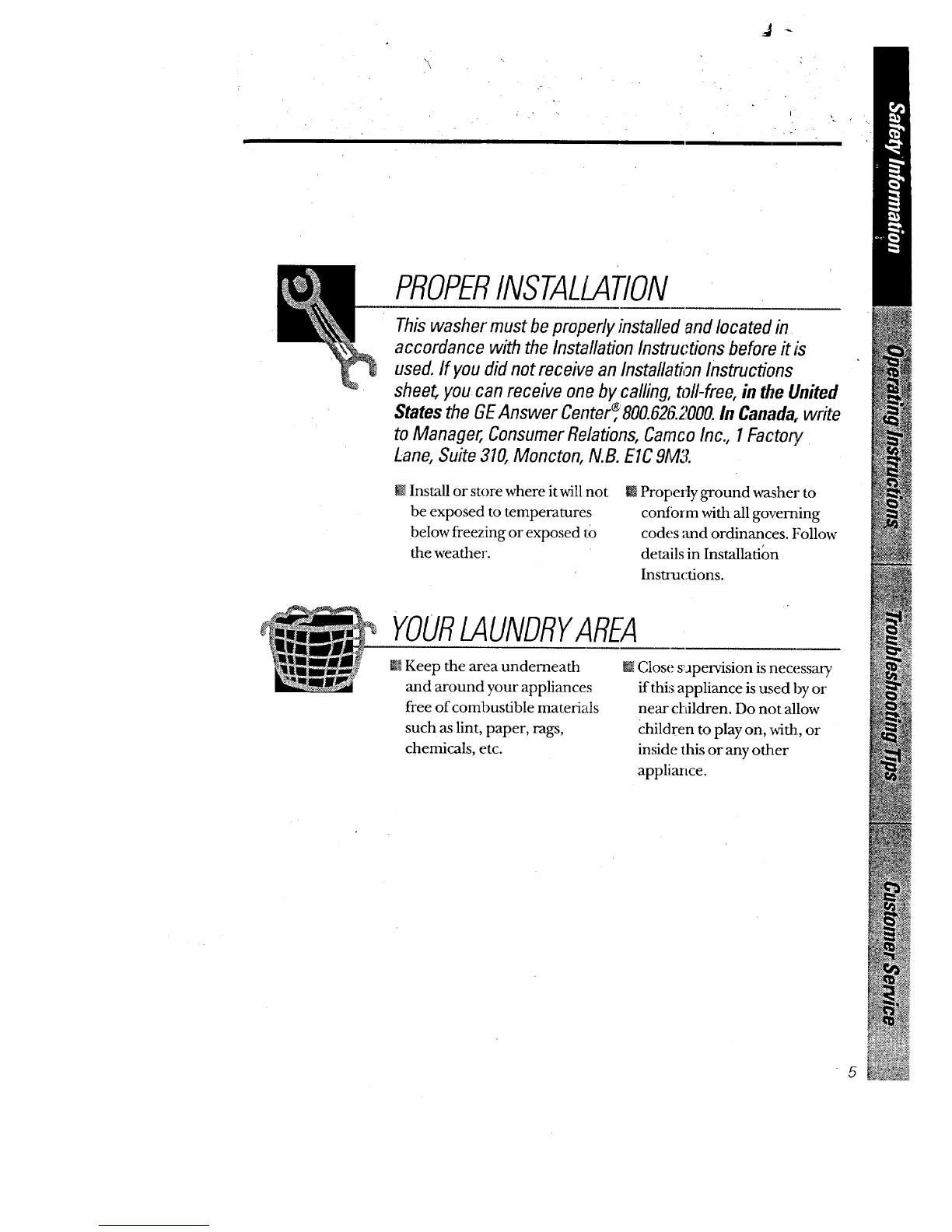

PROPERINSTALLATION
Thiswasher must be properly installed and located in
accordance with the Installation Instructions before it J_
used. If you did not receive an Installation Instructions
sheet, you can receive one by calling, toll-free, in the United
States the GEAnswer Center_ 800.626.2000.In Canada,.write
to Manager, ConsumerRelations, Camco Inc., 1Factor,
Lane, Suite 310,Moncton, N.B. EIC 9M'_.
N Install or store where it will not
be exposed to temperatures
below freezing or exposed t0
the weather.
INProperly ground washer to
contorm with all governing
codes :rod ordinances. Follow
details in Installation
Instructions.
YOURLAUNDRYAREA
N Keep the area underneath
and around your appliances
free of combustible materials
such as lint, paper, rags,
chemicals, etc.
N Close s_apervision is necessary
if this appliance is used by or
near children. Do not allow
children to play on, with, or
inside this or any other
appliance.
5

,f ,4
j, -. •

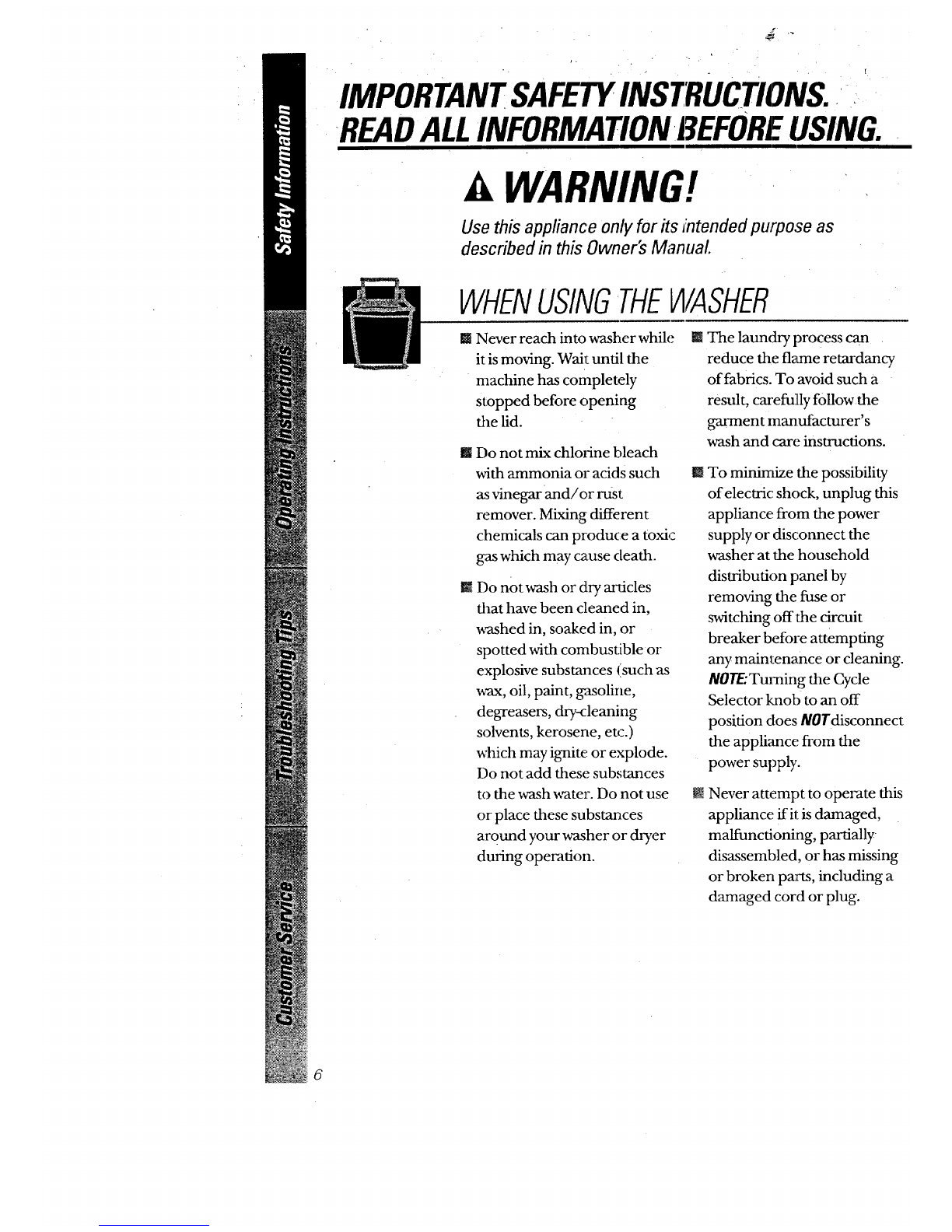

IMPORTANTSAFETYINSTRUCTIONS.•
READALLINFORMATIONIBEFOREUSING.
AWARNING!
Use this appliance only for its Jntendedpurpose as
described in this Owner's Manual
WHENUSINGTHEWASHER
B
M
E
Never reach into washer while
it is moving. Wai!Luntil the
machine has completely
stopped before opening
file lid.
Do not mix chlorine bleach
with ammonia or acids such
as vinegar and/or rust
remover. Mixing different
chemicals can produce a toxic
gas which may cause death.
Do not wash or dry articles
that have been cleaned in,
u_ashed in, soaked in, or
spotted with combustible or
explosive substmaces (such ,as
wax, oil, paint, gzasoline,
degreasers, dry-cleaning
solvents, kerosene, etc.)
which may ignite: or explode.
Do not add these substances
to the wash v#ater. Do not use
or place these substances
around your washer or dryer
during operation.
mThe laundry process can
reduce the flame retardancy
of fabrics. To avoid such a
result, carefully f011ow the
garment manufacturer's
wash and care instructions.
B
N
To minimize the possibility
of electric shock, unplug this
appliance: from the power
supply or disconnect the
washer at the household
distribution panel by
removing the fuse or
switching off the circuit
breaker before attempting
any maintenance or cleaning.
NOTE:Turning the Cycle
Selector _aaob to an off
position does NOTdisconnect
the appliance from the
power supply.
Never attempt to operate this
appliance if it is damaged,
malfunctioning, partially
disassembled, or has missing
or broken parts, including a
damaged cord or plug.
6

J
"2-
WHENNOTINUSE
N Turn offwater faucets to
-relieve pressure on hoses and
valves and to minimize
leakage ira break or rupture
should occur. Check the
condition of the fill hoses;
they may need replacement
after 5 years.
mBefore discarding a washer:,
or removing it from service:,
remove the washer lid to
prevent children from
hiding inside.
HDo not attempt to repair or
replace any part of this
appliance unless specifically
recommended in this
Owner's Manual, orin
published user-repair
instru,:dons that you
understand and have the
,1
skills to carry out.
INDo not tamper with controls.
REMEMBER...
Yourcontinued health and safety are important to u,;.
Please read and follow this Safety Information carefullg
We want you to remain a happy and healthy part of our
GEfamily.
SAVETHESEINSTRUCTIONS

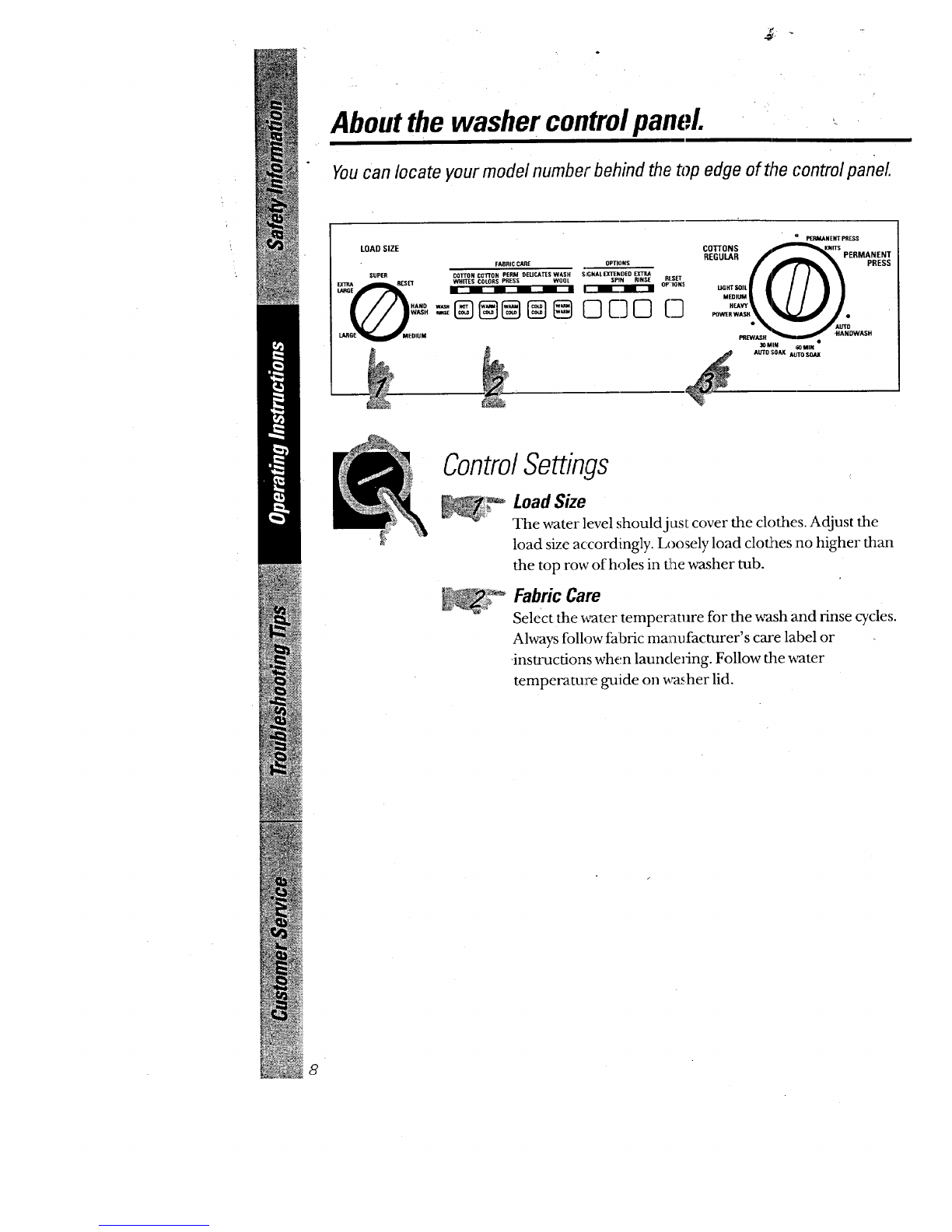

Aboutthewashercontrolpanel
Youcan locate your model number behind the,top edge of t_e control panel
LOAD SIZE
FABRIC CRRE OPTIONS
SUPER COTTON COTTON PERM DELICATES WASH S_GNALIEXTENDEU EXTRA
WHITES COLORS PRESS WOOL SPIN RINSE HES_i"
=
• P'ERMAN E_ PB_
coTr0NS
REGULAR PERMANENT
PRESS
LIGHT ,TOll.
MEDIUM I
"HANDWASH
PAEWASH
ZOMIN _OMM •
AUTOSOAK AUTOSOAK
ControlSettings
__ LoadSize
The water level shouldj us tcover the ch)thes. Adjust the
load size accordingly. Loosely load clothes no higher than
the top row of holes in _he washer tub.
L_ F_b,oc_
select the _<ater temperature for the ,_-ash a,nd rinse cycles.
Always follow fabric manufacturer's care label or
instructions when laundering. Follow the -_viter
temperature guide on washer lid.

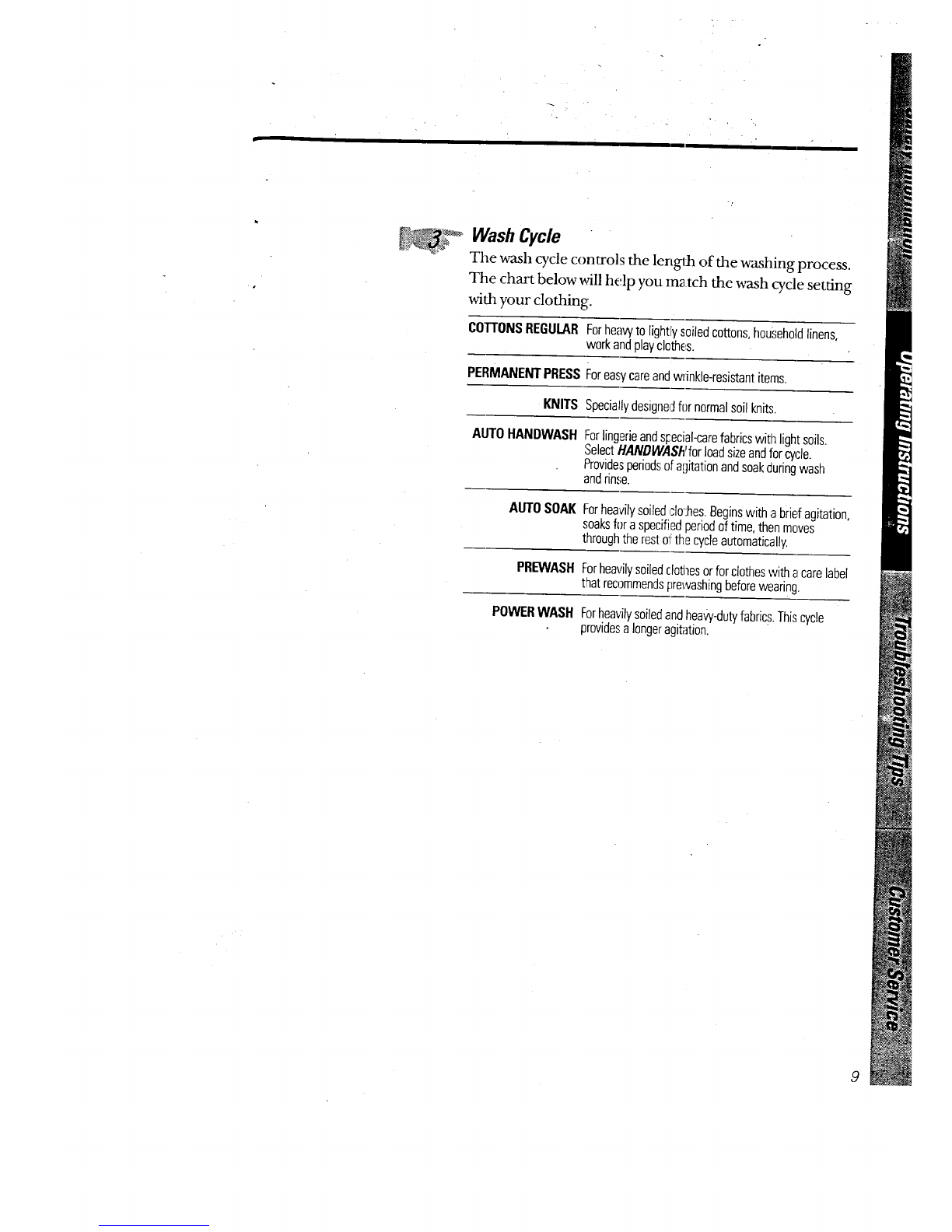

WashCycle
The wash cycle controls the length of the washing process.
The chart below will help you m_tch the u_sh cycle setting
with your clothing.
COrI'ONSREGULARForheawtolightlysoiledcottons,householdlinens,
workandplayclclbes.
PERMANENTPRESSForeasycareandwrinkle-resistantitems.
KNITS Speciallydesignedfornormalsoilknits.
AUTOHANDWASHForlingerieandspecial-carefabricswithlightsoils.
SelectHANBWASNforloadsizeandforcycle.
Providesperiodsofagitationandsoakduringwash
andrinse.
AUTOSOAKForheavilysoiled,:lo:hes.Beginswithabriefagitation,
soaksfora specifiedperiodoftime,thenmoves
throughtheresto1:thecycleautomatically.
PREWASHForheavilysoiledclothesorforclotheswithacarelabel
thatrecommendsprewashingbeforewearing.
POWERWASH Forheavilysoiledandheaw-dutyfabricsThiscycle
providesalongeragitation.
9

; \,
, . )
.. - .
"About the washerfeatures.
II
ff the SIGNALoptionisselected,a signal will sound just
before the end of the cycte. This reminds you to remove
the clothes to avoid excess wafinkling before drying. If
you selected EXTRARINSEthe signal _11 sound at the
end of the cycle and at the end of the £krTRARINSE.
The EXTENDEDSPIN option is recommended for washable
woolens and sweaters. It will extend thespin without
stretching; the knit.
When you use extra detergent or bleach to dean heavily
soiled clothes, you ma,! want to use the EXTRA RINSE
option. This opdon provides a second deep cold rinse in
the COTTONSREGULARand PERMANENT PRESScycles.
Select EXTRA RINSE.The washer will pause for a few
minutes before the EXTR¢IRINSEbe_ns.
Selecting RESETOPTlON$;cancelsall options that have
been selected.
a,
LiquidBleach Dispenser
The dispenser dilutes liquid chlorine bleach before it
reaches into your wash toad.
_ Check clothing care labels for special instructions.
_ Measure liquid bleach carefully, following
instnzcdons on the bottle.
_ Before stm-ting the ,aasher, pour mea.sured amount
of bleach direcdy :intobleach dispenser. Avoid
splashing or over-filling dispenser, ffvou prefer to
use powdered bleach, add it into the "washbasket
with your detergent.
Neverpour undilutedfiqukfcJ)lorinebleachdirectfvontoClothesor
into thewashbasket
Donotpourpowderedbleachinto bleachdispenser.
Donotmixchlorinebleachwith ammoniaor acidssuchas vinegar
and/orrust removerMiXiw _anproducea ta_icgasw/Tich,may
causedeath.
10

FabricSoftenerDispenser
This dispenser automatically releases liquid fabric
softener at the proper time during the cycle. To use,
follow these steps:
Make sure dispenser is securely attached to agitator.
Use only liquid fabric softener. Pour into dispenser,
using amount recommended on package.
Add water to dispenser until it reaches the
maximum fill line.
Donotstop the washerduringthefirst spin.Thiswifl causethe
dispenserto emptytoosoon. _
Donot_usetheFabricSoftenerDispenser
EXTRARINSE.
Neverpour fabricsoftenerdirectlyon clothes.It maystain them.
Don_tpouranythinginto_eagitat_
ifb_etopisremoved.
r
1I

Aboutthe washerfeatures.
•Separateforcleaning.
CleaningtheFabric Softener Dispenser
_Remove the dispenser from the top of the agitator.
_ eparate the dispenser cup from the (:over by
grasping the top and pushing down on the inside of
the cup with your fingers. Dispenser cup will pop
free from the cover.
_{ To clean dispenser, soak both the dispenser cup
_4 and the dispenser cowx in the following solution:
1USgallon(3.8fiters)warm water
@1/4cup(60ml) heavyduty liquiddetergent
I cup(240ml)bleach
_ ffnecessary, loosen build-up with a clean, soft cloth
after soaking. Do not use a stiffbmsh; you may
roughen the surface of the dispenser.
Rinse and reassemble dispenser. Place dispenser
back on the agitator.
12

Loadingand usingthe washer.
Always follow fabric manufacturer's care label when laundering.
Sorting
Colors
Soil
Fabric
Lint
Wash Loads
Whites lights Darks
Heavy Normal Light
Delicates ' Easy Care Sturdy Cottons
Lint Producers Lint Collectors
ProperUseof Detergent
Add detergent before adding clothes so that the detergent (:an
work eftectively. Follow the detergent package directions. Using too
little detergent isa common cause of laundry problems. Use more
detergent if you have hard water, large loads, greasy or oily .,;oilsor
lower water temperature.
LoadingtheWasher
Load dUitems loosely, no higher than the top row of holes in the
washer tub. When loading wet items make sure you set the
load/water level high enough to allow the items to move freely.
Water level should just cover the clothes. To add items after washer
has started, push in Cycle knob and submerge additional items next
to the agitator. Close the lid and pull Cycle knob out to restart.
Washe_will not_ta_withthe:lidup.
13

Loadingand usingthe washer.
CareandCleaningof the Washer
Wash Basket Leave the lid open after _ashing to allow moisture
to evaporate, ffyou want to clean the basket use a clean soft cloth
dampened with liquid detergent, then rinse. (Do not use harsh or
gritty cleaners.)
FillHoses:Hoses connecting washer to faucet should be replaced
every 5 years.
LintFilter. It is sell-cleaning, requires no maintenance, :rod is located
under the agitator.
Exterior. Immediately wipe offany spills. Wipe with damp cloth.
Try not to hit surface with sharp objects.
Moving and Storage:Ask the service technician to remove water from
drain pump and hoses. Do not store the washer where it will be
exposed to the weather. In the United States call the GE Answer
Center _,800.626.2000 for information on how to keep the tub
stationary when moving the washer. In Canada write to Manager,
Consumer Relations, Camco Inc., 1Factory Lane, Suite 310,
Moncton, N.B. E1C 9M3.
Long Vacations:Be sure water supply is shut offat faucets. Drain all
water from hoses if weather will be below freezing.
14

Beforeyoucarlforservice...
Troubleshooting tips
Saw?time and money! Review the charts on the following pages
first and you may not need to call for service.
Possible Causes What To Do
Washer 'onloperate Washer is unplugged
t:
• :(%
Make sure cord is plugged
securely into a working
outlet.
Water supply is turned off * Turn both hot and cold
faucets fully on.
Controls are not set o Check controls and
properly make sure Cycle knob is
pulled out to 0Nposifion.
Lid is open _Close lid and pull Cycle
knob out to 0Nposition.
Circuit breaker/fuse ks * Check house circuit
:: ..:.. : , :,
tripped/blown breakers/fuses. Replace
fuses or reset breaker.
Washer should have
separate outlet.
Control is not set properly * Check water temperature
control and adjust.
Water supply is turned off
or improperly connected
Water valve screens are
stopped up
* Ttma both hot and cold
faucets fully on and make
sure hoses are connected
to correct faucets.
Turn off the water source
and remove the water
connection hoses from
the upper back of the
washer: Use a brush or
toothpick to clean the
screens in the machine.
Reconnect the hoses and
turn the water back on.
House water heater is
not set properly
* Make sure house water
heater is delivering water
at 120°F.-140°F.
(48°C.-60°C.).
i " 15

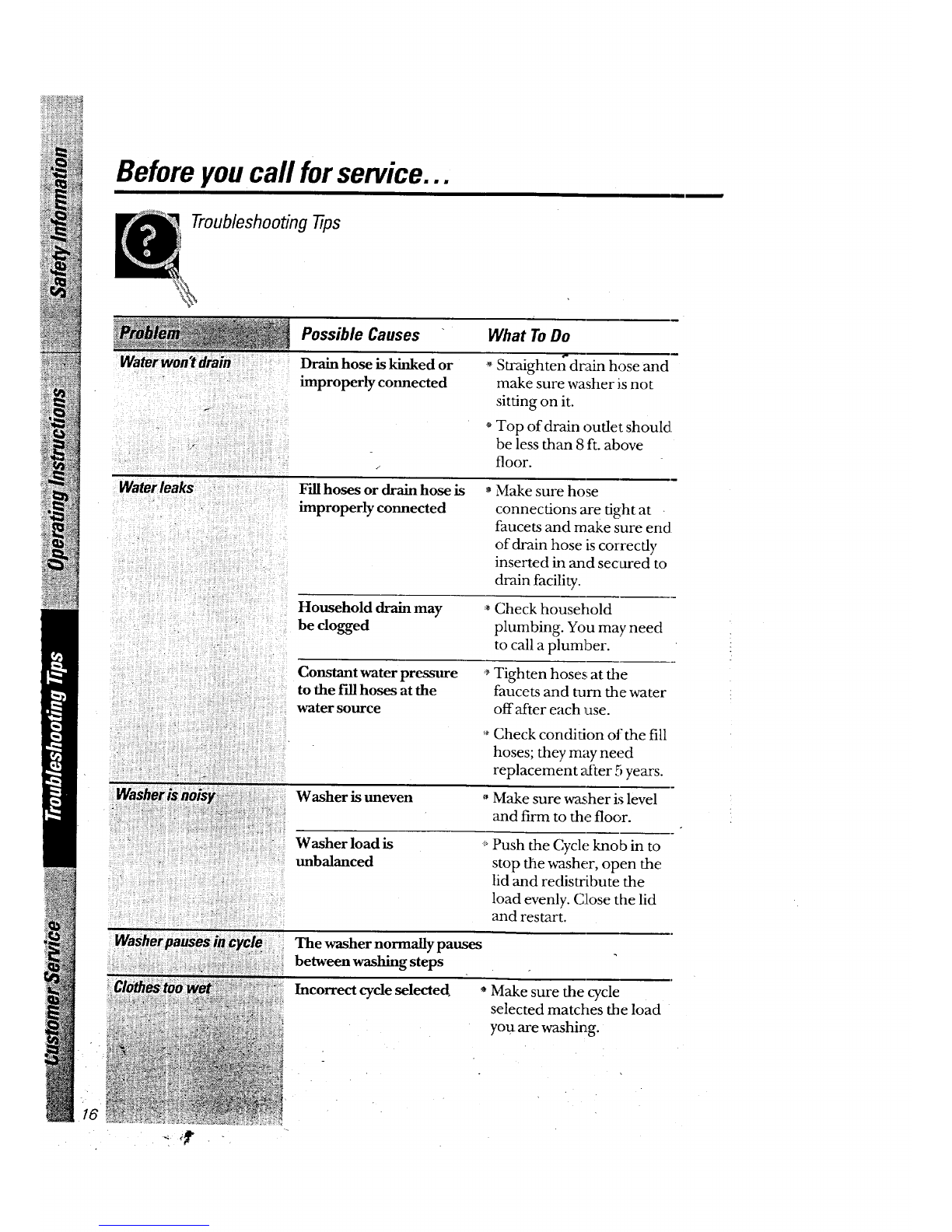

Beforeyou call forservice...
Troubleshooting tips
Possible Causes What To Do
Straightendrain hose and
make sure washer is not
sitting on it.
Top of drain outlet should•
be less than 8 ft. above
floor.
Water leaks
, " ._ ]"
Fill hoses or drain hose is
improperly connected "Make sure hose
connections are tight at
faucets and make sure end
of drain hose is correctly
inserted in madsecured to
drain facility.
Household drain may
be dogged Check household
plumbing. You may need
to call a plumber.
Constant water pressure
to the fill hoses at the
water source
'Tighten hoses, at the
faucets and turn the water
offafter each use.
:"Check condition of the fill
hoses; they may need
replacement after 5 years,
_::_ Washer is uneven "Make sure washer is level
and firm to the floor.
Washer load is
• " unbalanced ° Push the Cycle knob in to
stop the washer, open the
lid and redistribute the
load evenly. Close the lid
and restart.
The washer normally pauses
between washing steps
Incorrect cycle selected *Make sure the cycle
selected matches the load
you are washing.

Possible Causes What To Do
Unt _,rresidue on clothes Incorrect sorting _ Sepm'ate lint produoers
from lint collectors.
Washing too long Wash small loads for a
shorter time than larger
loads.
Detergent not dissolving
Overloading
Add detergent as wash
basket fills with water,
before you load clothes.
_,Try,a liquid detergent.
Use wanner water
temperature.
Load clothes no higher
than the top row of holes
in the washer nlb.
Make sure load size
selector matches clo.thes
load size.
., -"
_0'):
.. ,.%
"4_' }i_
-;a=_q-4
•{ ";" ,;a
_.,-_ .!
,:_ ."4
,"=l.'_'s
_.""_"J 7- t
• ,'=" >
q!= ,
Coloredspots
$.._.*,,'._'. _,_. _,.:. ,.._.
.,&2x_ - _ .'_.N.X_.. ., ÷,. ; _,...
_.,w@._ ,4,2,_, .......
Incorrect use of fabric
softener
Incorrect use of fabric
softener
Dye transfer
Check fabric softener
package for instructions
and follow directions for
using dispenser.
Check fabric softener
package for instructions
and follow directions for
using dispenser.
Pretreat stain and rewash.
_'Sort whites or lightly
colored items from dark
colors.
17

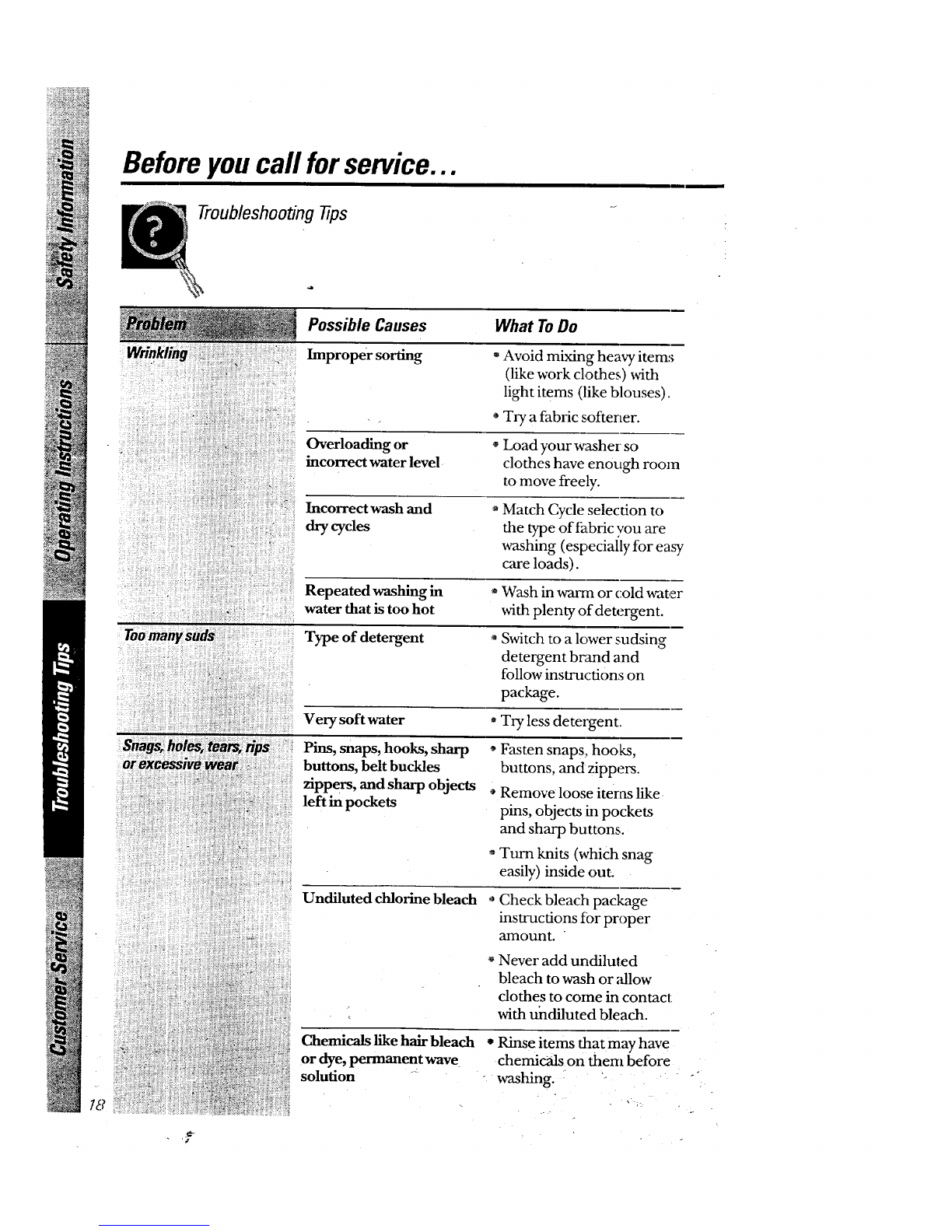

Beforeyoucall forservice...
Troubleshooting tips
Possible Causes What ToDo
Wrinkling: :;_._:J__i.:i:: " ....": Improper sorting
_ : _;:i)::i,i!,_:iii¸::__-:._---;......
Overloading or
incorrect water level
Incorrect wash and
dry cycles
* Avoid mixing heavy items
(like work clothes) with
light items (like blouses).
*TITa fabric s,ofiener.
*Load your washer so
clothes have enough room
to move freely.
*Match Cycle selection to
the type of fabric you are
washing (especially for easy
care loads).
.,.:..: :
Toomany suds :"
Repeated washing in
water that is too hot
Type of detergent
Wash in warm or (:old water
with plenty of detergent.
Switch to a lower sudsing
detergent brand and
follow instructions on
package.
Very soft water
Pins, snaps, hooks, sharp
buttons, belt buckles
zippers, and sharp objects
left in pockets
Undiluted chlorine bleach
*TITless detergent.
- Fasten snaps., hooks,
buttons, and zippers.
* Remove loose items like
pins, objects in pockets
and sharp buttons.
Turn knits (which snag
easily) inside out.
Check bleach package
instructions for proper
amount.
Never add undiluted
bleach to wash or _fllow
clothes to come in contact
with tmdiluted bleach.
Chemicals like hair bleach
or dye, permanent wave
solution
" Rinse items tha t may have
chemicals on them before
washing.

Possible Causes What ToDo
Result of normal wear on
poly-cotton blends and
fuzzy fabrics
"While this is not caused by
the washer, you can slow
the pilling process by
washing garments inside
out.
Grayedor yellowed ! _ ,
clothes
(. .
::! _i _
Not enough detergent Use more detergent
(especially with larger
loads).
Hard water Use a water conditioner
like Calgon bran d or install
a water softener.
Water is not hot enough Make sure water heater is
deliveiing water at
120°F.-140°F.
(48°C.-60°C.).
Washer is overloaded Select load size to match
clothes load.
Detergent is not
dissolving
Dye transfer
Add detergent as wagh
basket, fills with water
before you load clothes.
Sort clothes by color, ff
fabric label states wash
separately, unstable dyes
may be indicated.
19

GEWasherWarranty(ForcustomersintheUnitedStates)
All warranty service provided by our Factory Service Centers, or an
authorized Customer Care_technician. For service, call 800-GE-CARES.
Warranty may vary in Canada. See your approved Profile dealer for details.
_mm
" __"__ "_ " " _'_ ......._ GE Will Replace, At No Charge To You:
Anypart of the washer which fails due to a detect
in materials or workmanship. During this full one-year
warranty,GE will also provide, free of charge, all labor
and in-home service to replace the defective part.
Anypatt of the washer which fails due to a defect
in materials or workmanship. During this two-year
limited warranty, you will be responsible for any labor
or in-home service costs.
Thesuspensionrodand springassembly,if any of these
parts should fall due to a defect in materials or
workmanship. GE will also replace the washer lid or
cover, if they should rust under normal operating
conditions. During this five-year limited warranty,
you will be responsible for any labor or in-home
service costs.
The transmissionand washer lub, if any of these parts
should fail due to a defect in materials or workmanship;
During this ten-year limited warranty, you will be
responsible for any labor or in-home service costs.
The washerhaskeg if it should fail due to a defect in
materials or workmanship. During this litefime
limited warranOt, you will be responsible for an), labor
or in-home service costs.
2O
[mService trips to your home to teach you
how to use the product.
WImproper installation.
Failure of the product if it is
abused, misused, or used for other
than the intended purpose or used
commercially.
W Replacement of house fuses or
resetting of circuit breakers.
Damage to the product caus_xt by
accident, fire, floods or acts of God.
Incidental or consequential damage to
personal property caused by possible
defects with this appliance.
Thiswarrantyisextendedto theoriginalpurchaserandanysucceedingownerforproducts.purchased
for homeusewithin theUSA.InAlaska,thewarrantyexcludesthecostofshippingor servicecallstc
yourhome.
Somestatesdo notallow theexclusionor limitationof incidentalor consequentialdamages.This
warrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights which varyfromstate to
state. Toknov_,what yourlegalrightsare,consultyourlocalor stateconsumeraffairs officeor your
state'sAttomey General
