GEAppliances gdwt708vbb User manual

Installation
Instructions
Built-In
Dishwasher
If you have questions, call 800.GE.CARES (800.432.2737) or visit our website at: www.ge.com
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT– Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these instructions
for the consumer’s and local inspector’s use.
• Note to Consumer – Keep these instructions with your
Owner’s Manual for future reference.
• Skill Level – Installation of this dishwasher requires
basic mechanical, electrical and plumbing skills.
Proper installation is the responsibility of the
installer. Product failure due to improper installation
is not covered under the GE Appliance Warranty.
See warranty information.
• Completion Time – 1 to 3 Hours. New installations
require more time than replacement installations.
IMPORTANT– The dishwasher MUST be
installed to allow for future removal from the enclosure
if service is required.
If you received a damaged dishwasher, you should
immediately contact your dealer or builder.
Optional Accessories – See the Owner’s Manual for
available custom panel kits.
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS
shown throughout these instructions. While performing
installations described in this booklet, gloves, safety
glasses or goggles should be worn.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.


Installation Preparation
2
PARTS SUPPLIED:
Two #8-18 x 5/8" Phillips special head screws,
to secure dishwasher to underside of countertop
or to side of cabinets. (Taped to top or side of
dishwasher.)
Side and top trim pieces on some models
2 Side-mounting brackets with four #8 Pan-head
mounting screws (for non-wood countertops) on
some models
Drain hose
Clamp
MATERIALS YOU WILL NEED:
Ferrule, compression nut and 90°Elbow (3/8"NPT external
thread on one end, opposite end sized to fit water supply)
Thread seal tape
UL Listed wire nuts (3)
Materials For New Installations Only:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw type hose clamps
Strain relief for electrical connection
Hand shut-off valve (recommended)
Water line 3/8" min. copper or 1/2" min. plastic
(plastic must be tested for temperature and pressure)
Coupler for extending drain line, if applicable
TOOLS YOU WILL NEED:
Phillips head screwdriver
1/4" and 5/16" nutdriver
6" adjustable wrench
Level
Carpenters square
Measuring tape
Safety glasses
Flashlight
Bucket to catch water when flushing the line
15/16" socket (optional for skid removal)
Gloves
For New Installations Only:
Tubing cutter
Drill and appropriate bits
Hole saw set
90°Elbow,
Ferrule and
Compression Nut
Wire Nuts (3)
Waste Tee Electrical Cable
(or Power Cord, if applicable) Hot Water Line
Screw Type
Hose Clamps
Coupler
Hand
Shut-Off
Valve Thread
Seal Tape
Side and Top Trim Pieces on some models
#8 Phillips
Special Head
Screws
5/8" long
#8 Phillips Pan-head Screws
3/8" long for side-mounting
on some models
Air Gap
Hole Saw Set
Measuring Tape
Tubing Cutter
Drill and Bits
Phillips
Head
Screwdriver
15/16" Socket
Safety Glasses
6"
Adjustable
Wrench
Bucket
Flashlight
Carpenters
Square
Strain Relief
Side-Mounting Brackets
on some models
Gloves
Level
Drain Hose Clamp
1/4" and 5/16"
Nutdriver

Installation Preparation
3
PREPARE DISHWASHER ENCLOSURE
• The rough cabinet opening must be at least 24" deep,
24" wide and approximately 34-1/2" high from floor to
underside of the countertop.
• The dishwasher must be installed so that drain hose is
no more than 10' in length for proper drainage.
• The dishwasher must be fully enclosed on the top,
sides and back, and must not support any part of the
enclosure.
CLEARANCES: When
installed into a corner,
allow 2" min. clearance
between dishwasher and
adjacent cabinet, wall or
other appliances. Allow
28-3/8" min. clearance
from the front of the
dishwasher for door
opening. Figure B
DRAIN REQUIREMENTS
• Follow local codes and ordinances.
• Do not exceed 10' distance to drain.
Note: This dishwasher is equipped with a high drain
loop. There is no minimum height required for drain hose
routing. However, 18" minimum from floor to center of
waste tee or disposer inlet is required. See Figure D.
DETERMINE DRAIN METHOD
The type of drain installation depends on the following
questions.
Do local codes or ordinances require an air gap?
Is waste tee less than 18" above floor?
If the answer to either question is YES, Method 1 MUST
be used.
• If the answers are NO, either method may be used.
CABINET PREPARATION
• Drill a 1-1/2" dia. hole in the cabinet wall within the
shaded areas shown in Figure A for the drain hose
connection. The hole should be smooth with no sharp
edges.
IMPORTANT– When
connecting drain line to disposer,
check to be sure that drain plug has
been removed. DISHWASHER WILL
NOT DRAIN IF PLUG IS LEFT IN PLACE.
Method 1 – Air Gap with Waste Tee or Disposer
An air gap must be used when required by local codes and ordinances.
The air gap must be installed according to manufacturer’s instructions.
Method 2 – Built-in “High Drain Loop” with Waste Tee or
Disposer
Figure A
Figure B
Figure C
Figure D
24"
Min.
This Wall Area
must be Free of
Pipes or wires
Plumbing and Electric Service
Must Enter Inside This Area
34-1/2"±1/4"
Underside of
Countertop
to Floor 4"
24"
Min.
6"
5" 5"
4"
Cabinets
Square
and
Plumb
Floor MUST be Even
With Room Floor.
28-3/8"
Countertop
Dishwasher
Clearance for Door
Opening 2" Minimum
18"
Min.
18"
Min.
Remove
Hopper
Plug
Note: Avoid unnecessary service call charges. Always be
sure disposer drain plug has been removed before attaching
dishwasher drain hose to the disposer.

Installation Preparation
4
For models equipped with power cord: Do not modify the
plug provided with the appliance; if it will not fit the outlet,
have a proper outlet installed by a qualified technician.
Cabinet Preparation and Wire Routing
• The wiring may enter the opening from either side, rear
or the floor within the shaded area.
• Cut a 1-1/2" max. dia. hole to admit the electrical cable.
Cable direct connections may pass through the same
hole as the drain hose and hot water line, if convenient.
If cabinet wall is metal, the hole edge must be covered
with a bushing. Note: Power cords with plug must pass
through a separate hole.
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwasher.
• For cable direct connections the cable must be routed
as shown in Figure E. Cable must extend a minimum of
24" from the rear wall.
• For power cord connections, install a 3-prong grounding
type receptacle in the sink cabinet rear wall, 6" min. or
18" max. from the opening, 6" to 18" above the floor.
White
18"
6"
24"
from Wall
3"
from
Cabinet
Alternate
Receptacle
Location
Ground
Black
1-1/2" Dia. Hole (Max.)
18"
6"
Receptacle
Location
Area
Figure E
PREPARE ELECTRICAL WIRING
Electrical Requirements
• This appliance must be supplied with 120V, 60Hz., and
connected to an individual properly grounded branch
circuit, protected by a 15 or 20 ampere circuit breaker
or time delay fuse.
• Wiring must be 2 wire with ground and rated for 75°C
(176°F).
• If the electrical supply does not meet the above
requirements, call a licensed electrician before
proceeding.
Grounding Instructions–Cable Direct
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
be connected to the equipment grounding terminal or
lead on the appliance.
Grounding Instructions–Power Cord Models
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resis-
tance for electric current. This appliance is equipped
with a cord having an equipment grounding conductor
and a grounding plug. The plug must be plugged into an
appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
FOR PERSONAL SAFETY: Remove
house fuse or open circuit breaker
before beginning installation. Do not
use an extension cord or adapter plug
with this appliance.
The improper connection of the equip-
ment grounding conductor can result in
a risk of electric shock. Check with a
qualified electrician or service repre-
sentative if you are in doubt that the
appliance is properly grounded.

Installation Instructions
5
Figure G
STEP 1 CHECK DOOR BALANCE
With dishwasher on wood skid, check the door balance
by opening and closing the door.
• If door drops open when released, increase spring
tension. If door closes when released, decrease
tension.
Note: Increase or decrease
tension as shown. Adjust
both springs to the same
tension setting to correct
balance.
Tip: If door spring adjustment is necessary, check door
opening and closing. If door does not open easily or
falls too quickly, check spring cable routing. The cable
is held in place by “shoulders” on the pulley. Check to
be sure cable has not slipped over the pulley shoulders.
PREPARE HOT WATER LINE
• The line may enter from either side, rear or floor
within the shaded area shown in Figure F.
• The line may pass through the same hole as the
electrical cable and drain hose. Or, cut an additional
1-1/2" dia. hole to accommodate the water line. If
power cord with plug is used, water line must not
pass through power cord hole.
6"
5" 5" 4"
Cabinet Face
Shut-off
Valve
4"
2" From Floor
19" From Wall
2"
From
Cabinet
1-1/2" Dia.
Hole
Hot
Figure F
Water Line Connection
• Turn off the water supply.
• Install a hand shut-off valve in an accessible location,
such as under the sink. (Optional, but strongly recom-
mended and may be required by local codes.)
• Water connection is on the left side of the dishwasher.
Install the hot water inlet line, using no less than 3/8"
O.D. copper tubing. Route the line as shown in Figure F
and extend forward at least 19" from rear wall.
• Adjust water heater for 120°F to 150°F temperature.
• Flush water line to clean out debris.
• The hot water supply line pressure must be 20-120 PSI.
Increase
Spring
Tension
Decrease
Spring
Tension
Insert
Hook
Over
Bracket
Correct
Incorrect
• Screw leveling legs back into the dishwasher
frame, approximately 1/4" from frame as shown.
Figure H
STEP 2 REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IMPORTANT– Do not kick off wood base!
Damage will occur.
• Move the dishwasher close to the installation
location and lay it on its back.
• Remove the four leveling legs on the underside of
the wood base with an adjustable
wrench or 15/16" socket.
• Discard base.
Approx.
1/4"
CAUTION:
Do not remove wood base until you are
ready to install the dishwasher. The dishwasher will tip
over when the door is opened .
BEFORE YOU BEGIN
Locate and set aside (for use in Step 12) the
2 Phillips special head screws wrapped with
yellow tape and stuck to the top or side of the dish-
washer. Remove drain hose from upper rack, if it has
not been pre-installed, and set aside for use in Step 5A.

Toekick
Remove 2
Toekick Screws
White
Ground Black
Check That White, Black and
Green Dishwasher Wires Are Threaded
Thru Small Hole in Bracket
Remove
Junction Box
Cover
Insert Power
Cord Wires Thru
Strain Relief
and Tighten
Use UL Listed
Wire Nuts
A
B
C
D
Drain Hose
Hose
Clamp
Front of Dishwasher
90°
Elbow
Thread Seal Tape
Fill
Hose
Water Valve
Bracket
Installation Instructions
6

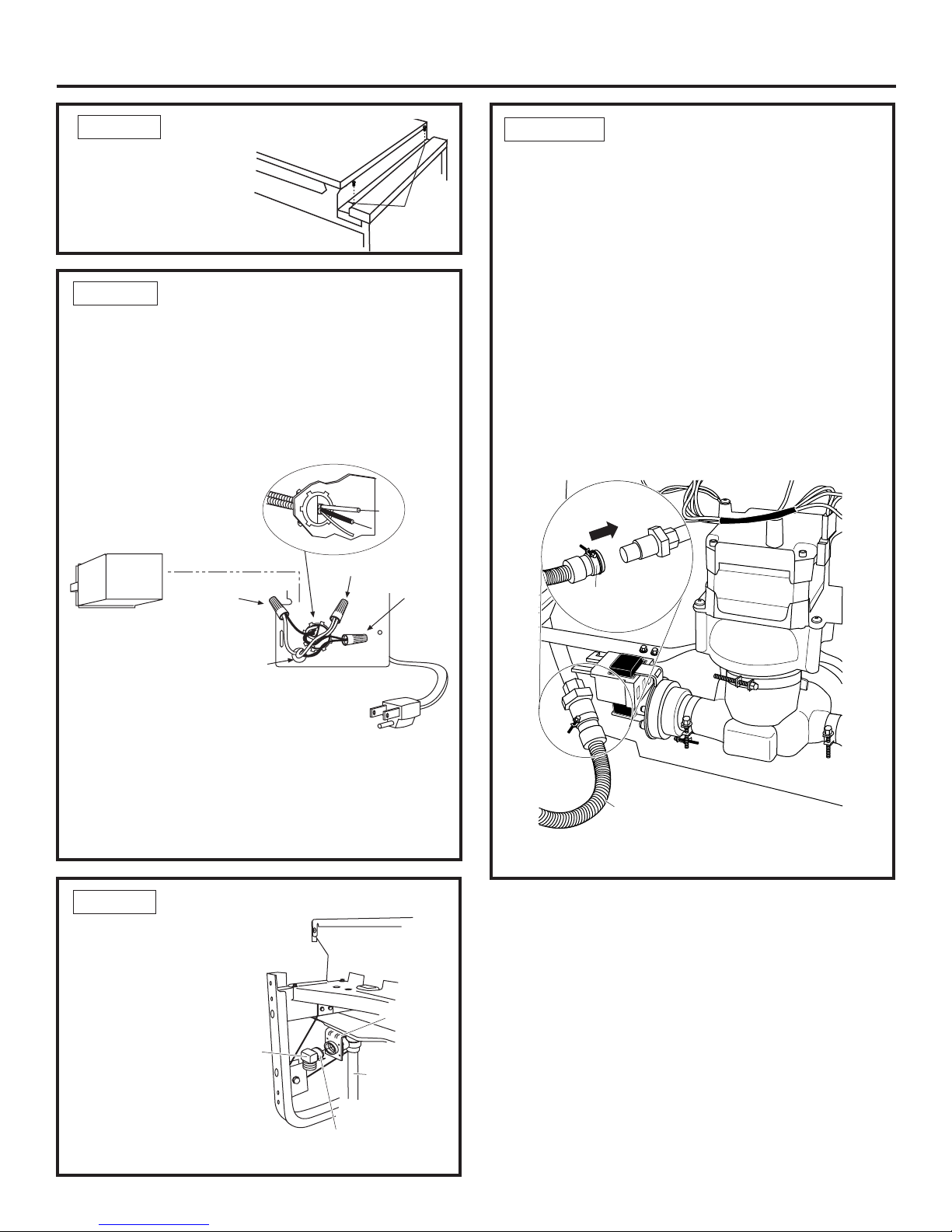

• Connect incoming power cord white (or ribbed) to
dishwasher white, black (or smooth) to black and
ground to dishwasher green wire. Use UL listed
wire nuts of appropriate size.
• Replace junction box cover. Be sure wires are not
pinched under the cover.
STEP 4 INSTALL POWER CORD
Skip this step if dishwasher will be direct wired or
has a factory installed power cord.
Use Power Cord Kit WX09X70910, available for
purchase from an authorized GE Appliance Dealer.
The power cord and connections must comply with
the National Electrical Code, Section 422 and/or local
codes and ordinances.
• Maximum power cord
length is 6 feet.
Figure J
Figure I
STEP 3 REMOVE TOEKICK
• Remove the
2 toekick screws
and toekick.
Set aside for use
in Step 18.
STEP 5A INSTALL DRAIN HOSE
TO DISHWASHER
DRAIN PORT
Skip this step if drain hose has been pre-installed. In
this step you will need the drain hose set aside prior
to Step 1.
• Remove hose clamp attached to drain hose. Place
hose clamp over the small end of the drain hose.
Tip: Prevent drain hose damage and possible leaks.
Be careful not to nick or cut the drain hose.
• Push the small end of the drain hose over the drain
port of the dishwasher, see Figure L.
• Make sure hose is fully seated on the dishwasher
drain port.
• Position hose clamp against the front lip of the drain
hose and tighten clamp.
Figure L
STEP 5 INSTALL 90°
ELBOW
• Wrap 90°elbow with
thread seal tape.
• Install a 90°elbow onto
the water valve.
• Do not over tighten
90°elbow. Water
valve bracket could
bend or water valve
fitting could break.
• Position the end of the
elbow to face the rear
of the dishwasher. Figure K

Installation Instructions
7
STEP 9 INSTALL TRIM PIECES
Skip this step if trim is not supplied with the
dishwasher.
• Locate trim strips inside dishwasher.
• Press trim onto the tub flange on each side. Start with
the top edge, pressing on as you move towards the
bottom.
• Press the two top trim pieces on each side of the latch.
• Open and close the door to check that trim does not
bind and does not interfere with door latch.
Figure P

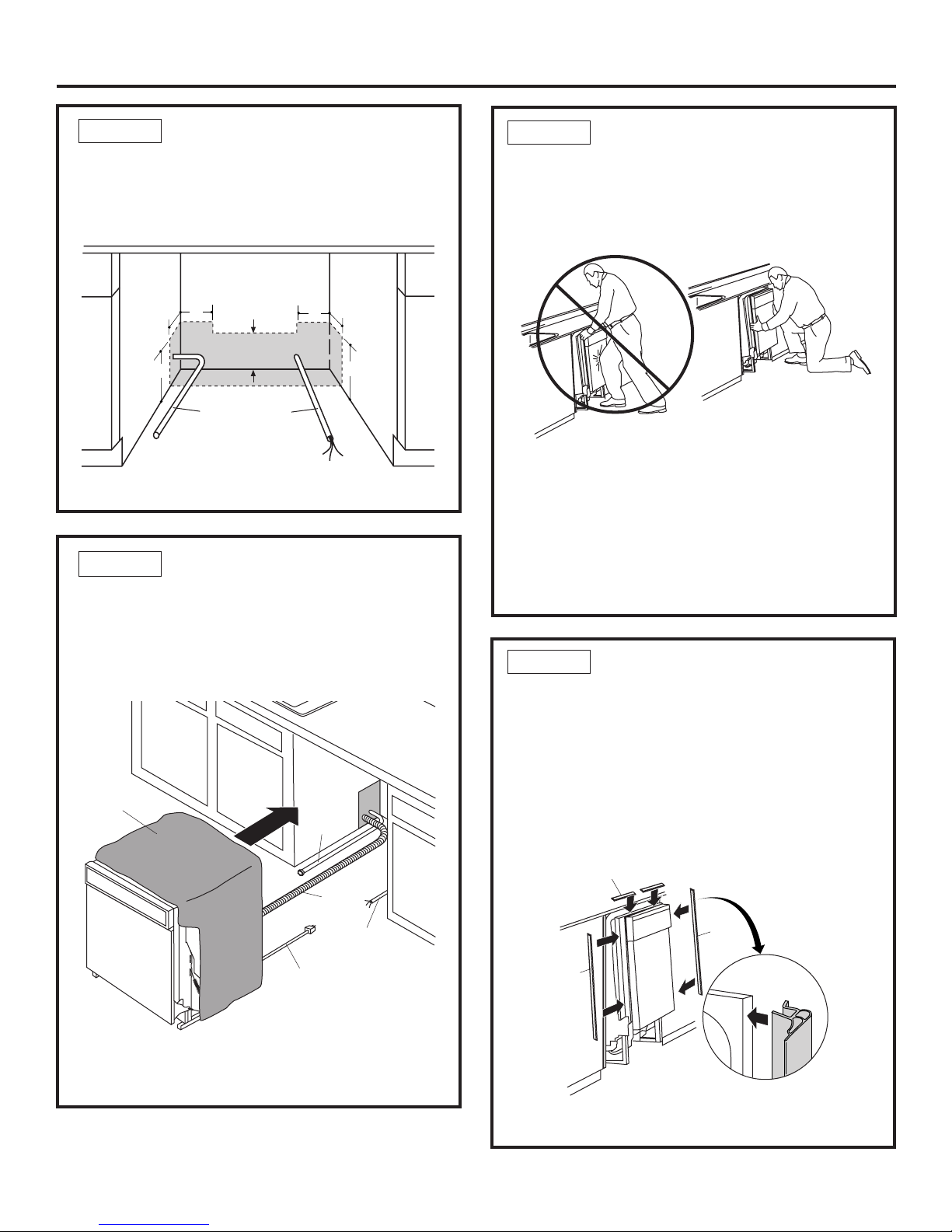

STEP 8 SLIDE DISHWASHER
PARTIALLY INTO CABINET
DO NOT PUSH AGAINST FRONT PANEL WITH KNEES.
DAMAGE WILL OCCUR.
• Slide dishwasher into the opening a few inches at a
time.
• As you proceed, pull the drain hose through the open-
ing under the sink. Stop pushing when the dishwasher
is a few inches forward of adjacent cabinets.
• Make sure drain hose is not kinked under the dish-
washer and there is no interference with the water
line and wiring or any other component.
Do Not Push Against
Front Door Panel With
Knee. Damage to The
Door Panel Will Occur.
Figure O
Tip: Position water line and house wiring on the floor
to avoid interference with base of dishwasher.
Figure N
STEP 7 INSERT DRAIN HOSE
THROUGH CABINET
• Turn the dishwasher upright and position in front of
the opening. Insert drain hose into the hole in
cabinet side. If a power cord is used, guide the end
through a separate hole.
Power Cord
(If Used)
Insulation
Blanket Water
Line
Maximum Drain Hose
Length 10'
House
Wiring
Drain
Hose
Trim Strip
Trim
Strip
Trim
Strip
Top View
STEP 6 POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the
floor of the opening to avoid interference with base
of dishwasher and components under dishwasher.
Figure M
Water
Line House
Wiring
5" 5"
4" 4"
6"
6"
4"

Check
Level
Side-
to-Side
Check
Level
Front-
to-Back
STEP 11 LEVEL DISHWASHER
IMPORTANT– Dishwasher must be level
for proper dish rack operation and wash performance.
• Place level on door and rack track as shown. Check to
make sure that the dishwasher is level.
• Level the dishwasher by adjusting the four leveling
legs individually.
• If adjustment to the right rear leveling leg is re-
quired, loosen junction box bracket screw (through
the access hole) and rotate bracket clockwise.
Tip: Pull lower rack out, about halfway. Check to be
sure the rack does not roll forward or back into
dishwasher. If the rack rolls in either direction, the
dishwasher must be leveled again.
• If door hits tub, the dishwasher is not installed
correctly. Adjust leveling legs to align door to tub.
Installation Instructions
8
STEP 10 PUSH DISHWASHER
INTO FINAL POSITION
Tip: Check tub insulation blanket, if equipped. It
should be positioned so it is not “bunched up” or
interfering with door springs. Check by opening and
closing door.
• Push dishwasher into the cabinet. The edges of the
dishwasher door should be behind the cabinet
frame and evenly aligned with the front face of
cabinet doors.
• Carefully open and close the door to ensure the
door panel is not catching or rubbing on the
cabinet frame.
Figure Q
Door
Fits and
Swings
Back
Behind
Cabinet
Frame
Correct
Alignment
Door Catches
on Cabinet Frame
Incorrect
Alignment
Figure R
STEP 9A INSTALL SIDE-MOUNT
BRACKETS (included with
some models)
Skip this step if underside of countertop is wood or
wood-like material.
• Install side-mount brackets if underside of countertop
is granite or similar material that will not accept
wood screws. The bracket kit is located in the
Owner’s Manual bag on models with this feature.
Note: The brackets are available for purchase when
needed for models not factory equipped with the side-
mount kit. Order part GPF65 from your authorized GE
Appliance Dealer.
• Fasten the left-hand bracket to the left side of the
dishwasher frame. Fasten the right-
hand bracket to the right side
of the dishwasher frame,
using the #8 pan-head
screws included with the kit.
Refer to Step 12, Figure U for
orientation and placement.
Figure S
Side-Mounting Brackets
on some models
Turn Legs
to Adjust
Access HoleJ. Box

Installation Instructions
9
STEP 13 CONNECT WATER SUPPLY
Connect water supply line to 90°elbow.
• Slide compression nut, then ferrule over end of
water line.
• Insert water line into 90°elbow.
• Slide ferrule against elbow and secure with compression nut.
IMPORTANT– Check to be sure that door spring
does not rub or contact the fill hose or water supply line. Test by
opening and closing the door. Reroute the lines if necessary. Figure W
90° Elbow
Ferrule
90° Elbow Hot Water
Supply Line
Compression Nut
Door Spring
In this step you will need the 2 Phillips special head
screws set aside prior to Step 1.
The dishwasher must be secured to the countertop or
the cabinet sides. When the underside of the counter-
top is wood, use Method 1. Use Method 2 when the
underside of the countertop is made of a material, such
as granite, that will not accept wood screws.
Tip: Prevent door panel and control panel damage.
Dishwasher must be positioned so the front panel and
control panel do not contact the adjacent cabinets or
countertop. Mounting screws must be driven straight
and flush. Protruding screw heads could scratch the
door panel or control panel and interfere with door
operation.
Method 1
Secure dishwasher to underside of wood countertop.
• Recheck alignment of the dishwasher in the cabinet.
Refer to Step 10, Figure Q and Step 11. Door panel
and/or control panel must not hit cabinets or
countertop.
• Fasten the dishwasher to the underside of the
countertop with the 2 Phillips special head screws
provided. Refer to Figure T. Make certain screws are
driven straight and flush to prevent panel damage.
STEP 12 POSITION DISHWASHER, SECURE TO COUNTERTOP OR CABINET
Figure V
Granite Countertop
Side Brackets
Brackets Wood Countertop
Figure T
Method 2
Secure dishwasher to cabinet sides
• Recheck alignment of the dishwasher in the cabinet.
Refer to Step 10, Figure Q and Step 11. Door panel
and/or control panel must not hit cabinets or
countertop.
• Fasten the dishwasher to the adjacent cabinets with
the 2 Phillips special head screws provided. Refer to
Figures U and V. Make certain screws are driven
straight and flush to prevent panel damage.
Bracket
Attachment
Screws
(2 Each
Side)
Side-
Mounting
Brackets
Countertop
Mounting
Brackets
Tub Frame
Figure U

Installation Instructions
10
• If a longer drain hose is required, add up to 42" of
length for a total of 10' to the factory installed hose.
Use 5/8" or 7/8" inside diameter hose and a coupler to
connect the two hose ends. Secure the connection
with hose clamps.
Figure X
STEP 14 CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODES AND ORDINANCES.
Identify the type of drain hose you have. The molded
end of the drain hose will fit 5/8" through 1" diameter
inlet ports on the air gap, waste tee or disposer.
• Determine size of inlet port
• Cut drain hose connector on the marked line, if
required, to fit the inlet port.
DRAIN LINE INSTALLATION
• Connect drain line to air gap, waste tee or disposer
using either previously determined method.
Waste Tee Installation
Method 1 – Air gap with waste tee or disposer
Disposer Installation
Waste Tee Installation
Method 2 – Built-in “High drain loop” with waste tee or
disposer
Disposer Installation
Figure Z
Figure AA
• Secure the drain hose to the air gap, waste tee or
disposer with clamps.
Note: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
10 FEET FOR PROPER DRAIN OPERATION.
Figure Y
Hose Clamp
Coupler Hose Clamp
18"
Min.
18"
Min.
Cutting Line
1" 5/8"
IMPORTANT: Do not cut corrugated
portion of hose
Cutting Lines
1" 3/4" 5/8"
IMPORTANT: Do not cut corrugated
portion of hose
Type 1
Type 2
IMPORTANT–When connecting drain line to
disposer, check to be sure that the drain plug has been
removed. DISHWASHER WILL NOT DRAIN IF PLUG IS
LEFT IN PLACE.
Tip: Avoid unnecessary service call charges. Always be
sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
Remove
Hopper
Plug

Installation Instructions
11
STEP 16 PRETEST CHECK LIST
Review this list after installing your dishwasher to
avoid charges for a service call that is not covered
by your warranty.
Check to be sure power is OFF.
Open door and remove all foam and paper
packaging.
Locate the Owner’s Manual in the literature
package.
Read the Owner’s Manual for operating
instructions.
Check door opening and closing. If door does not
open and close freely, check for proper routing of
spring cable over pulley. If door drops or closes
when released, adjust spring tension. See Step 1,
Figure G.
Check to be sure that wiring is secure under the
dishwasher, not pinched or in contact with door
springs or other components. See Step 8.
Check door alignment with tub. If door hits tub,
level dishwasher. See Step 11 and 12.
Pull lower rack out, about halfway. Check to be
sure it does not roll back or forward on the door. If
the rack moves, adjust leveling legs. See Step 11.
Check door alignment with cabinet. If door hits
cabinet, reposition dishwasher. See Step 12.
Check that door spring does not contact water
line, fill hose, wiring or other components. See
Step 13.
Verify water supply and drain lines are not kinked
or in contact with other components. Contact with
motor or dishwasher frame could cause noise.
Turn on the sink hot water faucet and verify water
temperature. Incoming water temperature must be
between 120°F and 150°F, 120°F min. temperature
is required for best wash performance. See
“Prepare Hot Water Line,” page 5.
Add 2 quarts of water to the bottom of the
dishwasher to lubricate the pump seal.
Turn on water supply. Check for leaks. Tighten
connections if needed.
Remove protective film if present from the control
panel and door.
Figure BB

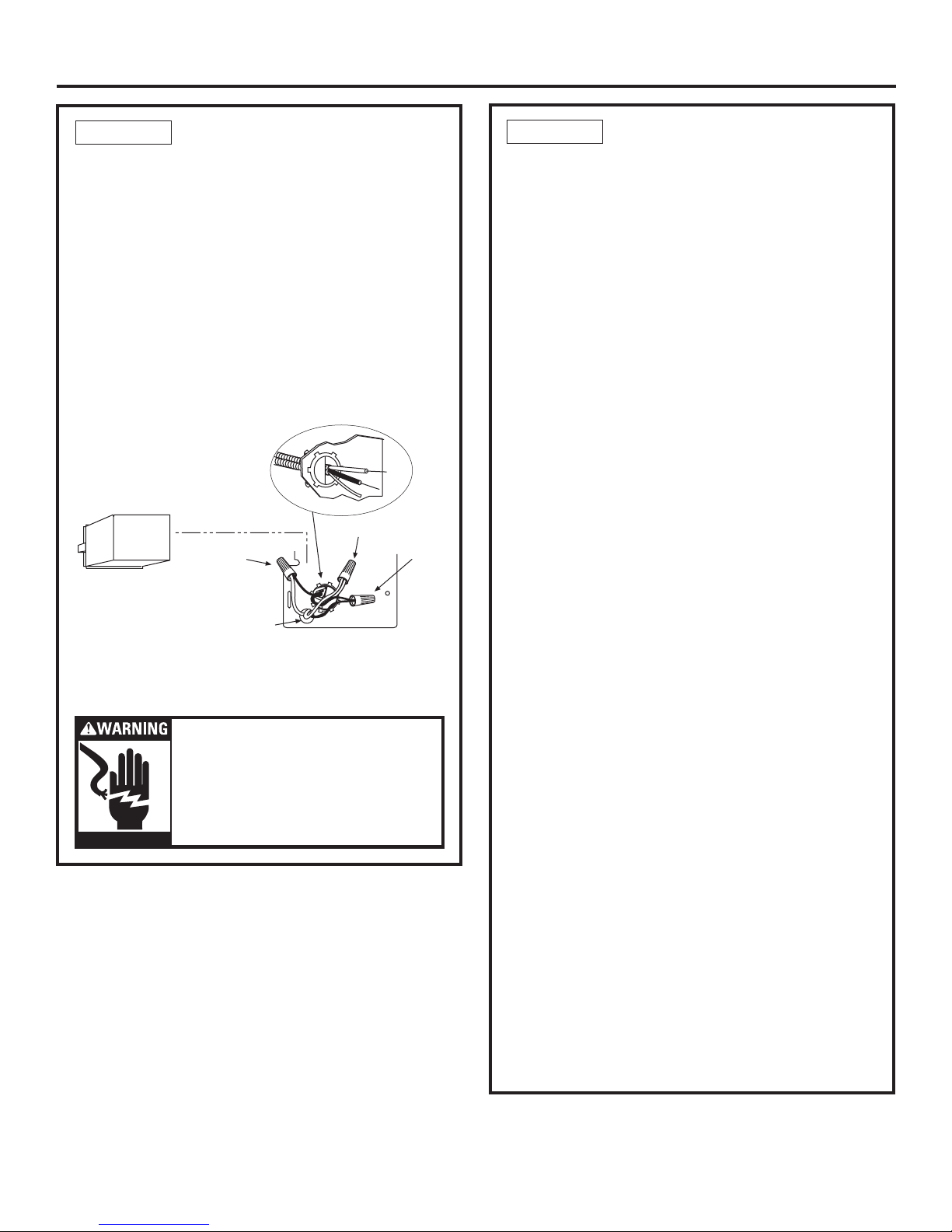

STEP 15 CONNECT POWER
SUPPLY
Skip this step if dishwasher is equipped with power
cord. Verify that power is turned off at the source.
If a power cord with plug is used, proceed to Step 16.
• Remove junction box cover.
• Secure house wiring to the back of the junction box
with a strain relief.
• Locate the three dishwasher wires, (white, black and
green) with stripped ends. Insert dishwasher wires
through the small hole in the junction box. Use wire
nuts to connect incoming ground to green, white to
white and black to black.
• Replace junction box cover. Check to be sure that
wires are not pinched under the cover.
If house wiring is not 2-wire with
ground, a ground must be provided
by the installer. When house wiring is
aluminum, be sure to use UL Listed
anti-oxidant compound and alumi-
num-to-copper connectors
White
Ground Black
Check That White, Black and
Green Dishwasher Wires Are Threaded
Thru Small Hole in Bracket
Remove
Junction Box
Cover
Insert Power
Cord Wires Thru
Strain Relief
and Tighten
Use UL Listed
Wire Nuts
A
B
C
D

Pub. No. 31-30579
Dwg. No. 206C1559P119
N.D. 923-02 (2/04) Rev. 1
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
• Align the toekick with the bottom edge and make
sure it is against the floor.
• Insert and tighten the two toekick attachment
screws. The toekick should stay in contact with the
floor.
Tip: Make sure toekick is against floor to minimize
noise.
Figure CC
STEP 19 LITERATURE
• Be sure to leave complete literature package and
Installation Instructions with the consumer.

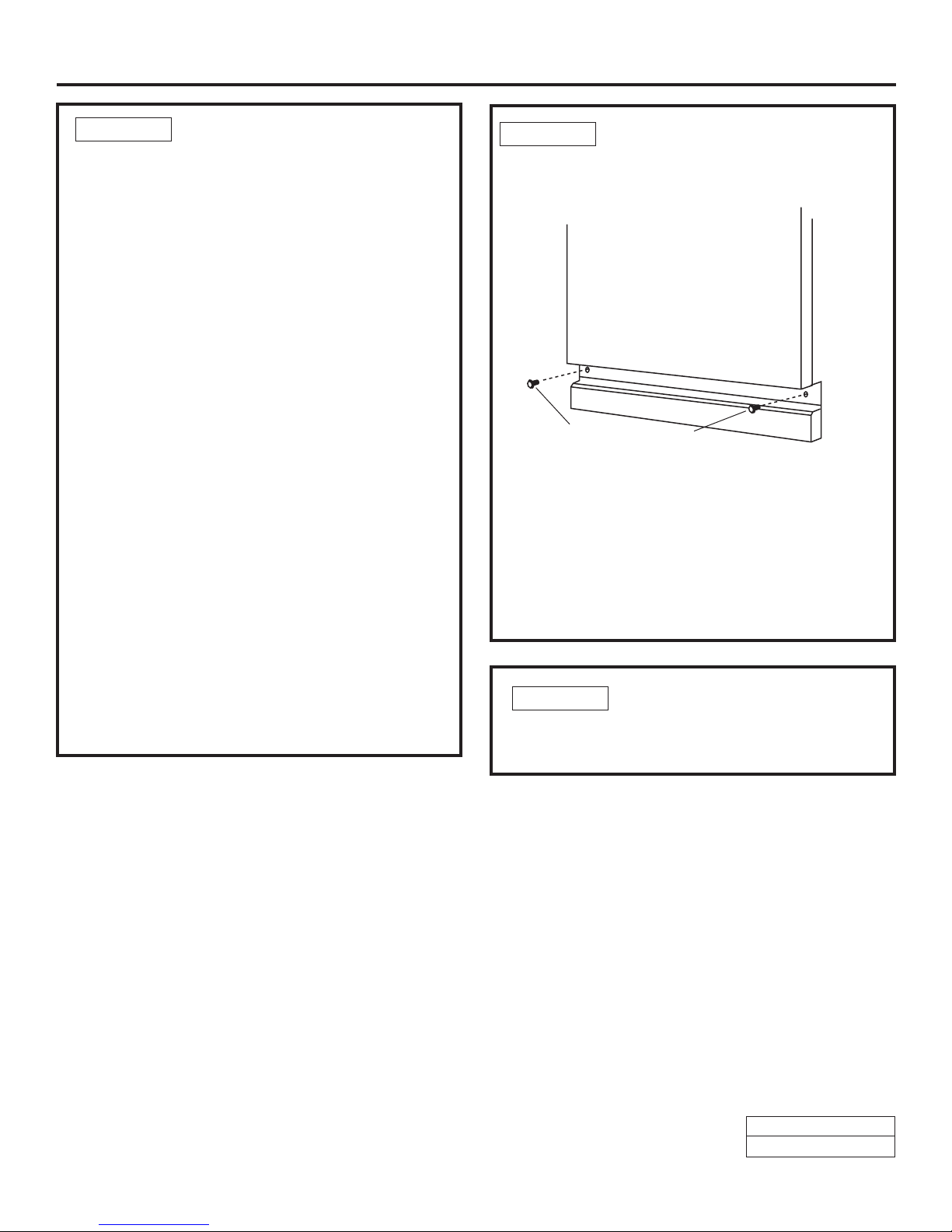

STEP 18 REPLACE TOEKICK
• Place toekick against the legs of the dishwasher.
Installation Instructions
STEP 17 DISHWASHER WET TEST
Turn on power supply (or plug power cord into
outlet, if equipped).
Latch door.
Push “Rinse Only” button.
Push start/reset pad once. Dishwasher should start.
Check to be sure that water enters the dishwasher.
If water does not enter the dishwasher, check to be
sure that water and power is turned on.
Check for leaks under the dishwasher. If leak is
found, turn power supply off, then tighten connec-
tions. Restore power after leak is corrected.
Check for leaks around the door. A leak around the
door could be caused by door rubbing or hitting
against adjacent cabinets. Reposition the dish-
washer if necessary. See Step 12.
The dishwasher will drain and turn off about 5
minutes after it was started. Check drain lines. If
leaks are found, turn power off at the breaker,
correct as necessary. Restore power after correc-
tions are made. See Step 5A and 14.
Open dishwasher door and make sure most of the
water has drained. If not, check that disposer plug
has been removed and/or air gap is not plugged.
See Step 14.
Press Start/Reset pad once again and run dish-
washer through another “Rinse Only” cycle. Check
for leaks and correct if required.
Toekick
Attachment Screws
