GEAppliances JVE330 Operating instructions

Range Hoods
Vented
GEAppliances.ca
350A4502P760 07-14 ATS
Safety Information...........2
Operating/Care and
Cleaning Instructions
Charcoal Filters ..................4
Grease Filters .................... 3
Hood Lights......................4
Painted Surfaces ................. 4
Stainless Steel Surfaces ..........4
Vent Controls .................... 3
Installation Instructions..5–12
Troubleshooting Tips .......14
Consumer Support
Consumer Support ..............18
Product Registration ............15
Warranty .......................17
JVE330
Owner’s Manual
and Installation
Instructions
Write the model and serial
numbers here:
Model # ________________
Serial # _________________
Find these numbers on a label on
the back wall of the hood.
Printed in China

2350A4502P760
SAFETY PRECAUTIONS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed control device.
D. If using a cord connection kit, use only with range hood cord-
connection kit JXHC1 that has been investigated and found
acceptable for use with this model range hood.
E. This unit must be grounded.
CAUTION –FOR GENERAL VENTILATING USE ONLY.
DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPORS.
WARNING – TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal
tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If
the flames do not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
B. NEVERPICKUPAFLAMINGPAN—Youmaybeburned.
C. DONOTUSEWATER,includingwetdishclothsortowels—a
violent steam explosion will result.
D. UseanextinguisherONLYif:
1. YouknowyouhaveaClassABCextinguisher,andyou
already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. Youcanfightthefirewithyourbacktoanexit.
*Based on “Kitchen Fire Safety” published by NFPA.
WARNING – TO PROVIDE PROTECTION AGAINST
ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY.
WARNING – TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
B. Always turn hood ON when cooking on high heat or when
flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn
Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
WARNING – TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association
(NFPA), the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local code authorities.
When applicable, install any makeup (replacement) air system
in accordance with local building code requirements. Visit
GEAppliances.ca for available makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
WARNING – TO REDUCE THE RISK OF FIRE AND TO
PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE—DO NOT
VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR
INTO ATTICS, CRAWL SPACES OR GARAGES.
WARNING – TO REDUCE THE RISK OF FIRE, USE
ONLY METAL DUCTWORK.
nDo not attempt to repair or replace any part of your hood unless
it is specifically recommended in this guide. All other servicing
should be referred to a qualified technician.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
READ AND SAVE THESE INSTRUCTIONS

350A4502P760 3
HI
OFF
LO
FAN LIGHT
OFF
ON

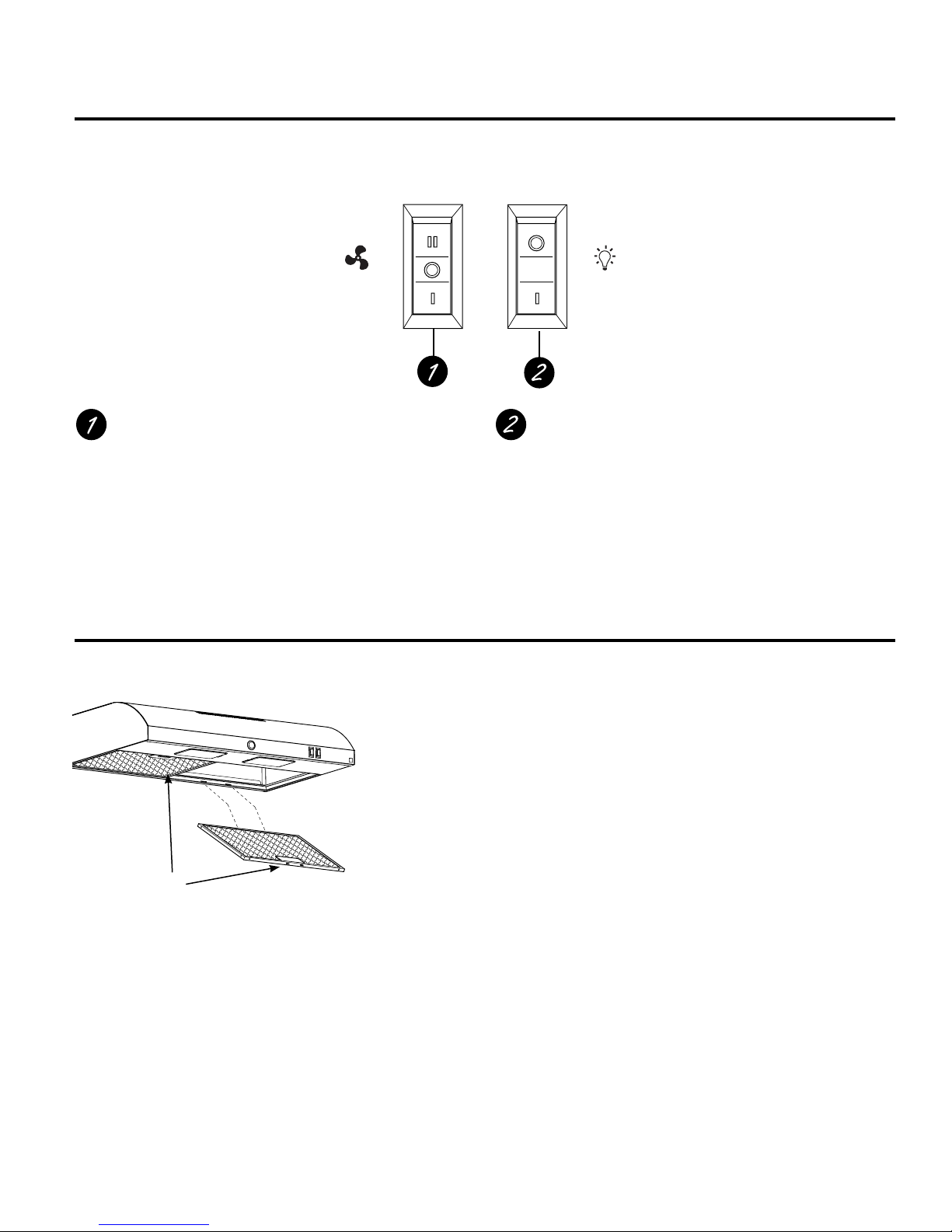

Using the hood controls. GEAppliances.ca
Throughout this manual, features and appearance may vary from your model.
FAN Control
Press the rocker switch at the top to turn the fan on
HI and at the bottom to turn it on LOW. The center
position is OFF.
Continuous use of the fan system while cooking helps
keep the kitchen comfortable and less humid. It also
reduces cooking odors and soiling moisture that create a
frequent need for cleaning.
LIGHT Control
Press the rocker switch at the bottom to turn the light ON
while cooking. Press the rocker switch at the top to turn
the light OFF.
Rocker Switch Controls
Reusable Metal Grease Filters
The hood has 2 metal reusable grease
filters.
The metal filters trap grease released
by foods on the cooktop. They also help
prevent flaming foods on the cooktop
from damaging the inside of the hood.
For this reason, the filters must ALWAYS
be in place when the hood is used. The
grease filters should be cleaned once a
month, or as needed.
To remove, press the filter locks back
and pull the filters down and out.
To replace, insert the rear filter tabs
in the frame slots at the back of the
opening. Push the filters up and lock
them into place.
To clean the grease filters, soak them
and then swish them around in hot
water and detergent. Don’t use ammonia
or ammonia products because they will
darken the metal. Do not use abrasives
or oven cleaners. Light brushing can be
used to remove embedded dirt. Rinse,
shake and let them dry before replacing.
They may also be cleaned in an
automatic dishwasher.
NOTE: Before cleaning, make sure the
charcoal filters, if present, are unclipped
and removed. See the Charcoal Filters
section.
If it ever becomes necessary to replace
the metal grease filters, they may be
ordered from your GE supplier.
Filter locks
Care and cleaning of the vent hood.
Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

4350A4502P760
To clean the hood surface, use a hot, damp
cloth with a mild detergent suitable for
painted surfaces. Use a clean, hot, damp
cloth to remove soap. Dry with a dry, clean
cloth.
Do not use steel-wool pads or other abrasive
cleaners. They will scratch the surface. Wipe
with a clean, hot, damp cloth after using
cleansers.
Painted Surfaces (on some models)
WARNING:
Hg
- Lamp contains Mercury. Manage
in accord with disposal laws. See www.
lamprecycle.org or 1-800-435-4448.
For installation, handling and disposal
precautions, refer to the fluorescent lamp
packaging literature.
WARNING:
nTo reduce the risk of electric shock, do
not connect electrical power to the hood
without both lamps in place.
CAUTION:
n Do not touch the hood lamps when they
are on. They may be hot enough to cause
injury.
nTo prevent injury from broken lamps,
handle lamps carefully and do not operate
hood without lamp lens covers in place.
This hood requires two Compact Fluorescent
Lamps (CFL) with a GU24 base (included),
maximum 15 watts.
To change the lamps:
When installing or replacing a lamp,
make sure that power to the light has
been turned off. Never allow a lamp to
come into contact with water.
Remove the lens cover by sliding it in a
horizontal direction and pulling it down
and away from the hood.
Grasp the lamp by the plastic base
portion of the lamp and unscrew it.
Replace with energy saving GE 15W
Compact Fluorescent Lamp with GU24
baseGEServicePart:WB08X10064.
Hood Lights
NOTE: Charcoal filters are not
included with the hood. They
must be ordered from your
GE supplier.
If the model is not vented
to the outside, the air will
be recirculated through
disposable charcoal filters that
help remove smoke and odors.
The charcoal filters should
be replaced when they are
noticeably dirty or discolored
(usuallyafter6–12months,
depending on hood usage).
NOTE: DO NOT rinse, or put
charcoal filters in an automatic
dishwasher.
Note: If the hood in installed
for recirculation mode, it is
not Energy Star®certified.
Charcoal Filters (on some models)
The charcoal filters
cannot be cleaned.
They must be replaced.
Order Kit no.
WB02X11000.
This kit can be ordered
from your GE supplier.
The charcoal filters are clipped
inside of each reusable metal
grease filter.
Care and cleaning of the vent hood.
Stainless Steel Surfaces (on some models)
Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface, use
warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface in
the direction of the grain. Follow the cleaner
instructions for cleaning the stainless steel
surface.

350A4502P760 5

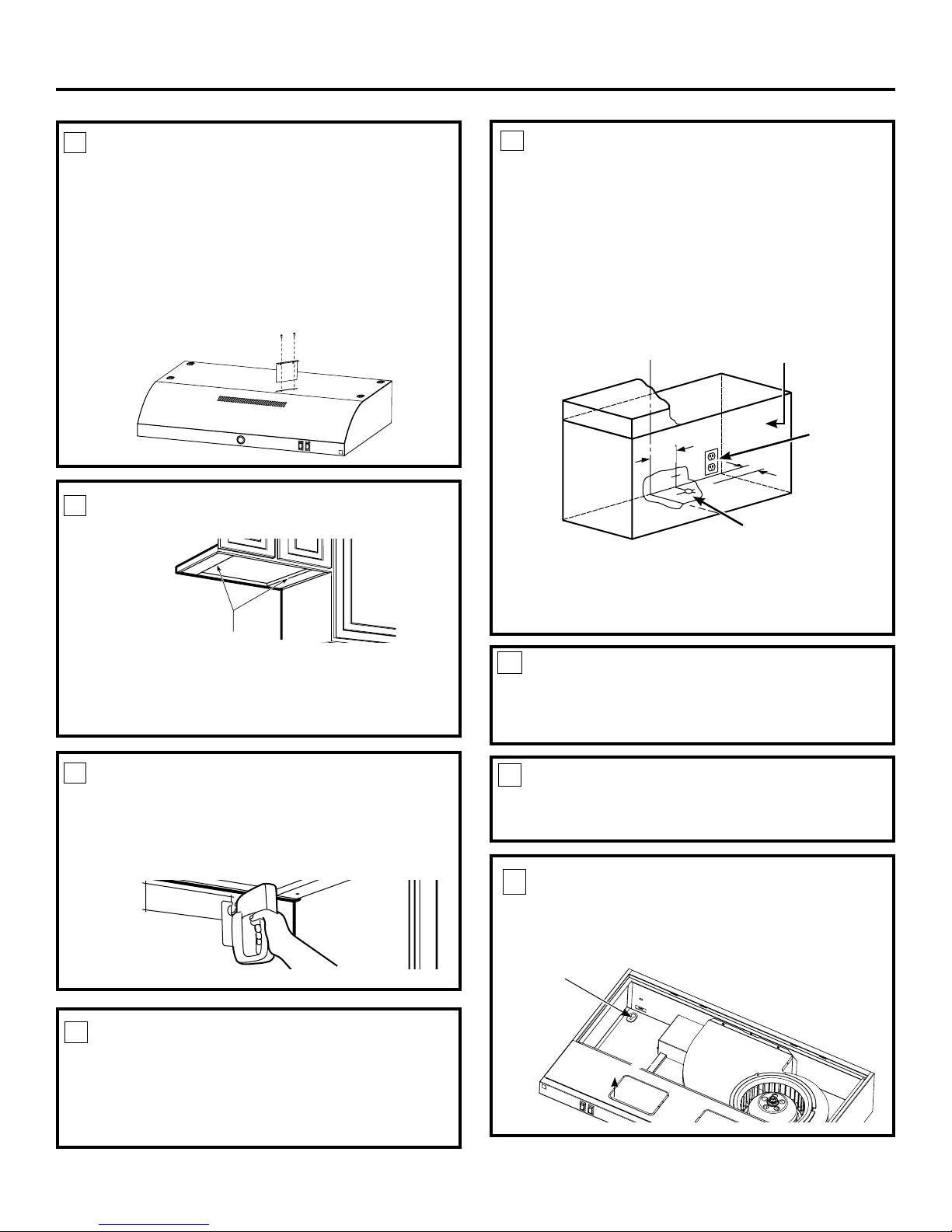

BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT – Save these instructions for local
inspector’s use.
•IMPORTANT – Observe all governing codes and
ordinances.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for future
reference.
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
• Completion time – 1–3 hours
• Properinstallationistheresponsibilityoftheinstaller.
• Productfailureduetoimproperinstallationisnotcovered
under the Warranty.
*IMPORTANT: If a rectangular-to-round
transition adaptor is used, the bottom
corners of the damper will have to
be cut to fit, using the tin snips, in
order to allow free movement of the
damper. Equivalent lengths of duct
pieces are based on actual tests and
reflect requirements for good venting
performance with any hood.

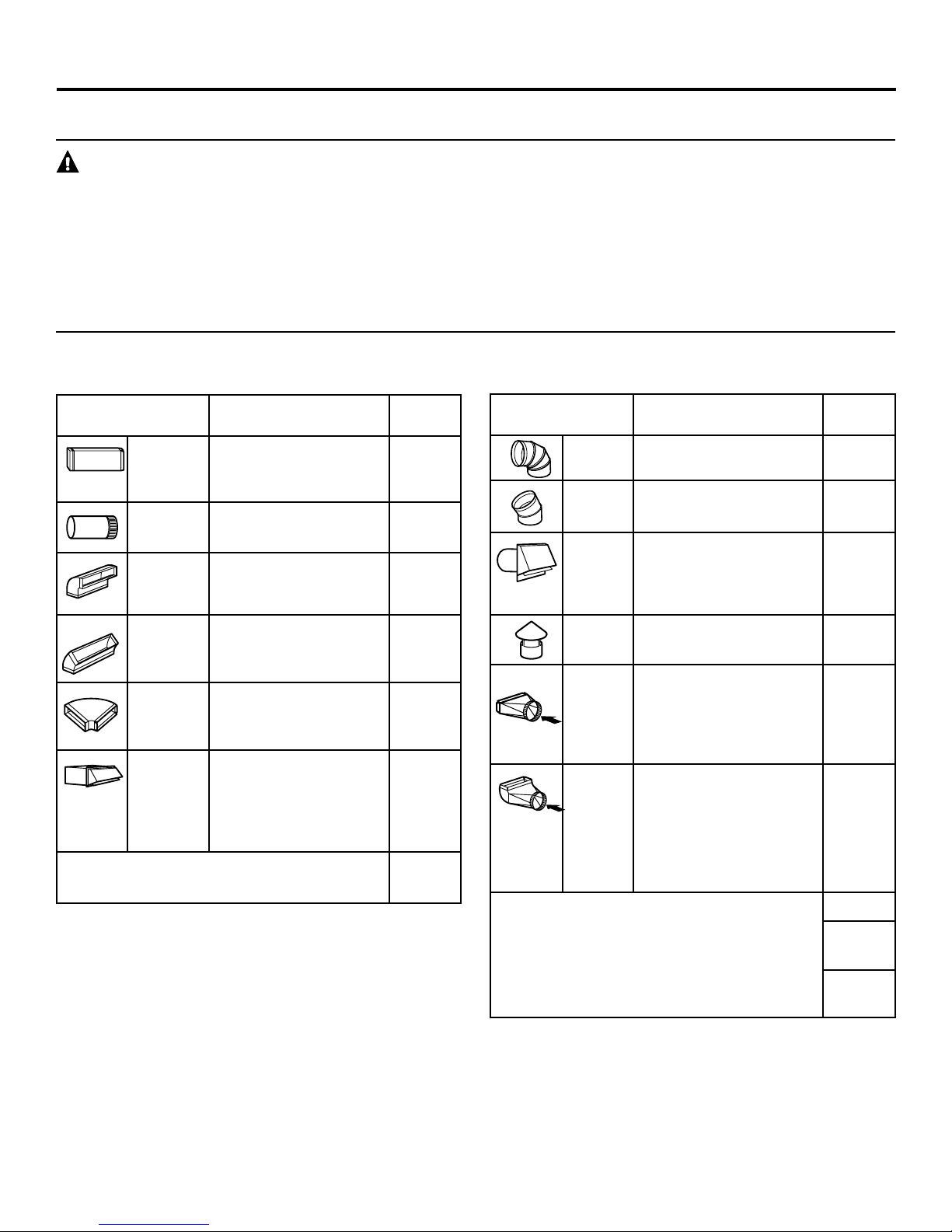

DUCTWORK REQUIREMENTS
WARNING – Before beginning the
installation, switch power off at service panel and lock the
service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
FOR YOUR SAFETY:
Questions? Call 800.561.3344 or Visit our Website at: GEAppliances.ca
Installation Range Hood
Instructions
WARNING – TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCTWORK.
NOTE: Read the ductwork sections only if you do not have
existing ductwork. If you have existing ductwork, skip to
the “Damage” section and proceed.
The venting system must exhaust to the outside.
This hood can be vented vertically through upper cabinets
or horizontally through an outside wall. Ductwork is not
included.
Exhaust connection:
The hood exhaust has been designed to mate with
standard 31⁄4” x 10” rectangular ducting.
If a 7” round duct is required, a rectangular-to-round
transition adaptor must be used*. Do not use less than a
7” diameter duct.
Maximum duct length:
For satisfactory air m ovement, the total duct length of a
31⁄4” x 10” rectangular shouldnotexceed65equivalentfeet.
NOTE: It’s important that ducting be installed using the
most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Elbows, transitions, wall and roofcaps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct longer than their actual
physical size. When calculating the total duct length, add
the equivalent lengths of all transitions and adaptors plus
the length of all straight duct sections. The charts on the
following pages show you how to calculate total equivalent
ductwork length using the approximate feet of equivalent
length of some typical ducts.
WARNING – TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association
(NFPA), the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local code authorities.
When applicable, install any makeup (replacement) air system
in accordance with local building code requirements.
C. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
WARNING – TO REDUCE THE RISK OF FIRE AND
TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE—
DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR
CEILINGS OR INTO ATTICS, CRAWL SPACES OR GARAGES.
1" = 2.5 cm; 1' = 0.3 m

6350A4502P760
DUCT EQUIVALENT NUMBER
PIECES LENGTH x USED = TOTAL
31⁄4”x 10”1 Ft. x ( ) = Ft.
Rect.,
straight
7”Round, 1 Ft. x ( ) = Ft.
straight
31⁄4”x 10”14 Ft. x ( ) = Ft.
Rect. 90°
elbow
31⁄4”x 10”8 Ft. x ( ) = Ft.
Rect. 45°
elbow
31⁄4”x 10”33 Ft. x ( ) = Ft.
Rect. 90°
flat elbow
31⁄4”x 10”24 Ft. x ( ) = Ft.
Rect. (18 ft. w/o
wall cap damper) x ( ) = Ft.
with
damper
Subtotal column 1 = Ft.
WORKSHEET - CALCULATE TOTAL EQUIVALENT DUCTWORK LENGTH
DUCT EQUIVALENT NUMBER
PIECES LENGTH x USED = TOTAL
7”Round, 14 Ft. x ( ) = Ft.
90° elbow
7”Round, 9 Ft. x ( ) = Ft.
45° elbow
7”Round 28 Ft. x ( ) = Ft.
wall cap ( 21 ft. w/o
with damper) x ( ) = Ft.
damper
7”Round 39 Ft. x ( ) = Ft.
roof cap
7”Round 1 Ft. x ( ) = Ft.
to
31⁄4”x 10”
rect.
transition
7”Round 5 Ft. x ( ) = Ft.
to
31⁄4”x 10”
rect.
transition,
90° elbow
Subtotal column 2 = Ft.
Subtotal column 1 = Ft.
Total ductwork = Ft.
Installation Instructions
MAXIMUM DUCT LENGTH: For satisfactory air movement,
the total duct length of a 31⁄4”x 10”rectangular should not
exceed 65 equivalent feet.
NOTE: Any home ventilation system, such as a ventilation
hood, may interrupt the proper flow of combustion air and
exhaust required by fireplaces, gas furnaces, gas water
heaters and other naturally vented systems. To minimize the
chance of interruption of such naturally vented systems, follow
the heating equipment manufacturer’s guidelines and safety
standards such as those published by NFPA and ASHRAE.
When applicable, install any makeup (replacement) air system
in accordance with local building code requirements.
GROUNDING INSTRUCTION
WARNING – Improper grounding can result in a risk of
electric shock.
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
This appliance is qualified for use with a power cord having a
grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
Consult a qualified electrician or service technician if the
grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too
short, have a qualified electrician install an outlet near the
appliance.
1" = 2.5 cm; 1' = 0.3 m

350A4502P760 7
PART QUANTITY
Metal Grease Filters 2
Mounting Screws 4
Exhaust Adaptor/Damper 1
(for 31⁄4”x 10”rect. venting)
Exhaust Adaptor Screws 1
•Iftheunitisdamagedinshipment,returntheunittothe
store in which it was bought for repair or replacement.
•Iftheunitisdamagedbythecustomer,repairor
replacement is the responsibility of the customer.
•Iftheunitisdamagedbytheinstaller(ifotherthan
the customer), repair or replacement must be made
by arrangement between customer and installer.
DAMAGE-SHIPMENT/INSTALLATION
PARTS INCLUDED
MOUNTING SPACE
NOTES:
•Thisrangehoodisforinstallationoverrangesupto30”
wide.
•Ifyouaregoingtoventyourrangehoodtotheoutside,
see the “Ducting Requirements” section for exhaust duct
preparation.
66”or
more from
the floor to
the top of
the hood
30”
30”
min.
Bottom edge of
cabinet needs
to be 30”or
more from
the cooking
surface
Flat blade and Phillips
screwdrivers Pencil
Metal snips
(in some
applications)
Electric drill
Saw (saber or
keyhole)
Duct tape
Pliers
Level
Caulking
Tape measure
Charcoal Filters If recirculating
order Kit no. WB02X11000
OPTIONAL ACCESSORIES
This kits can be ordered from your GE supplier.
TOOLS YOU WILL NEED
1/4”pivoting
hex socket
Flashlight
Wire stripper
1/4”Nutdriver
Installation Instructions
Note: If the hood in installed for recirculation
mode, it is not Energy Star®certified.
1" = 2.5 cm; 1' = 0.3 m

8350A4502P760
Outside top exhaust
(Verticalduct—31⁄4”x 10”Rectangular)
Outside rear exhaust
(Horizontalduct—31⁄4”x 10”Rectangular)
A
B
Recirculating
(Non-ventedductless—Optional)
C
Installation Instructions
CHOOSE VENT OPTION
Determine the vent option that your installation will require
fromthefollowingchoices:
The outside vent exhaust option that your installation
requires will determine the hood knockouts that you
will use.
IMPORTANT: If the hood is to be installed in a recirculating,
non-vented ductless manner, do not knock out any vent
openings in the hood. Only an electrical access hole will be
knocked out of the hood.
1
1" = 2.5 cm; 1' = 0.3 m

350A4502P760 9
REMOVE FILTERS
Remove the protective shipping film from the edges
of the metal grease filters. Press the filter locks back and
lift the filters out. Set them aside.
REMOVE WIRING COVER
FROM THE JUNCTION BOX
Remove the wiring cover from inside the hood.
Set the cover and its mounting screw aside.
Wiring
cover
Mounting
Screw
REMOVE WIRING KNOCKOUT
Remove either the top or the back wiring knockout as
needed and install an approved strain relief clamp.
Strain relief
clamp
2
3
4
5
Filters
Installation Instructions
REMOVE DUCT KNOCKOUT(S)
If recirculating, non-vented ductless see note below and
skip to Step 7 and proceed.
Using a flat blade screwdriver, remove the appropriate
duct knockout(s) from the top or back of the hood.
31⁄4”x 10”Rectangular
vertical discharge.
Remove top rectangular
duct knockout only.
31⁄4”x 10”Rectangular
horizontal discharge. Remove
rear rectangular duct
knockout only.
NOTE: If the hood is to be installed in a recirculating,
non-vented ductless manner, order charcoal filters, kit
number WB02X11000 for 30”hood models. These kits
can be ordered from your GE supplier. Skip to Step 7C and
proceed.
NOTE: If the hood in installed for recirculation mode, it is
not Energy Star®certified.
1" = 2.5 cm; 1' = 0.3 m

10 350A4502P760

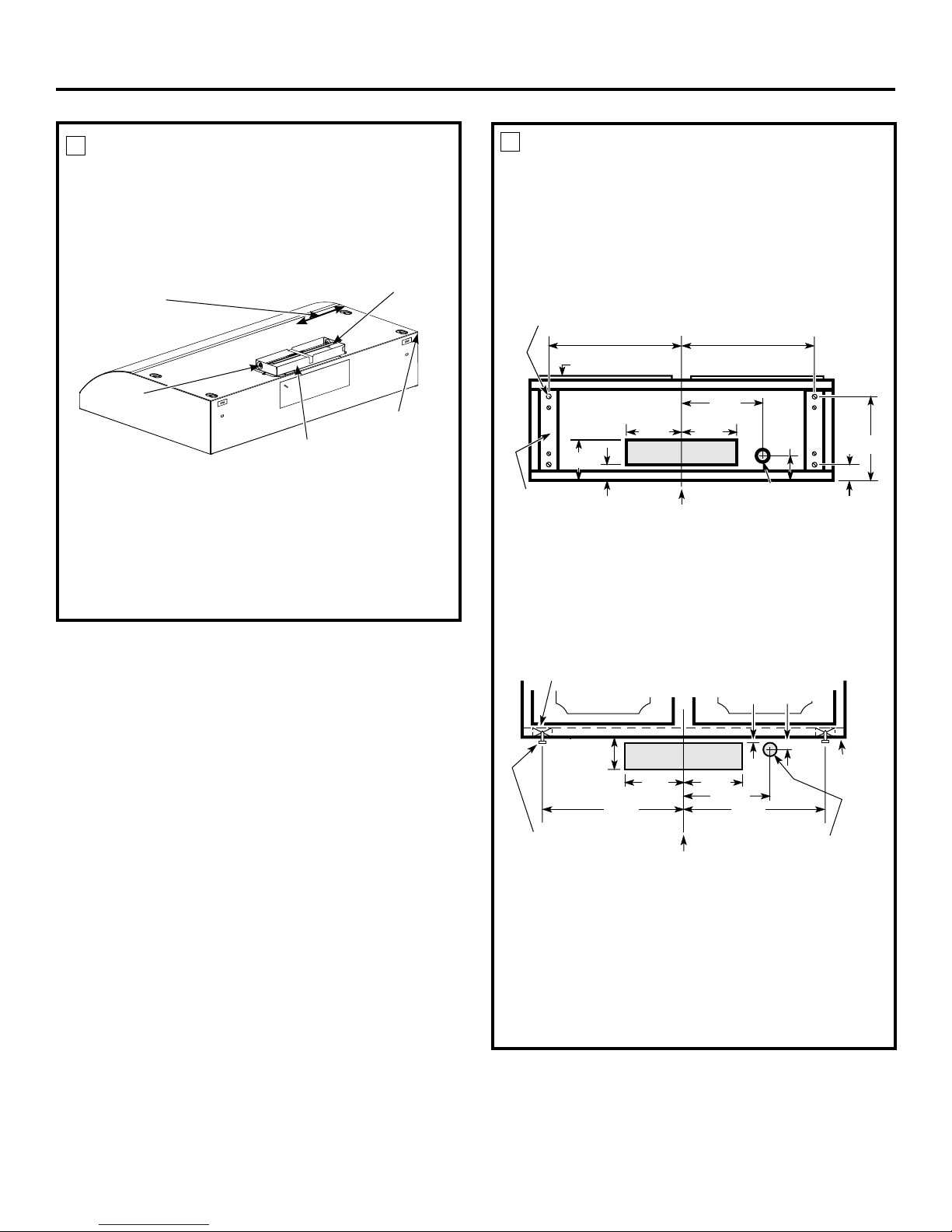

MARK HOLES
Select the vent option that your installation will require
andproceedtothatsection:
Hood mounting screws (4)
13¾”
13¾ ”
Cabinet front
Center
line
Electrical access
hole (in cabinet
bottom)
Wood shims
(recessed-bottom
cabinets only)
Vertical duct
access hole
9¼”
14⁄16”
1¼”
7 ¾ ”
311/16”
11/16”
A. Outside top exhaust
(Vertical duct–31⁄4
” x 10 ” Rectangular)
•Usethediagramorthehoodasatemplateandmark
the locations on the cabinet for ductwork, electrical
wiring and keyhole screw slots.
Cabinet Bottom
7
Wood shims (recessed-bottom cabinets only)
Cabinet front
Center line
Electrical
access hole
(in wall)
Hood mounting
screws (4)
Horizontal duct
access hole Cabinet
bottom
13¾”
1¼”
½”
3½”
51⁄4”51⁄4”
7¾”
13¾”
B. Outside rear exhaust
(Horizontal duct–31⁄4
” x 10 ” Rectangular)
•Usethediagramorthehoodasatemplateandmark
the locations on the cabinet for ductwork, electrical
wiring and keyhole screw slots.
C. Recirculating (non-vented ductless)
•Usethehoodasatemplateandmarkthelocations
on the cabinet for the electrical wiring and keyhole
screw slots.
•Sincethehoodistoberecirculated(nottobevented
outside), do not cut out any vent openings in the wall
or cabinet bottom.
FOR 31⁄4”x 10”RECTANGLE DUCTED
DISCHARGE INSTALLATIONS:
Attach exhaust adaptor/damper over knockout
opening with two exhaust adaptor screws. Make sure
damper pivot is nearest to top/back edge of hood.
Remove tape from damper flap.
Up to 1”side-to-
side adjustment
Tape
Top/back edge
Exhaust adaptor/damper
(vertical discharge position
shown)
Pivot
6
Installation Instructions
NOTE: The exhaust adaptor/damper can be installed
up to 1 inch on either side of the hood center to
accommodate off-center ductwork. In extreme off-center
installations, one end of the duct connector may need to
be trimmed to clear the electrical cable clamp.
51⁄4”51⁄4”
1" = 2.5 cm; 1' = 0.3 m

350A4502P760 11
CHOOSE VENTING OPTION
8
The hood can be set to vent outside or to recirculate air
back into the kitchen.
•To vent to the outside,refertosteps5and6.
•To recirculate air into the kitchen, remove two
screws securing the duct block off plate. Discard
plate. Replace two screws.
Note: Hood is Energy Star®certified only when it vents
air to the outside.
Installation Instructions
CUT HOLES
Cut holes at marked locations for duct and electrical
wiring. For the vertical duct, cut out 3/4”extra toward
the front of the cabinet so you can move the duct
freely when installing the hood. It may also ease
installation by cutting the hole 101⁄2”instead of 10”.
FOR RECESSED-BOTTOM CABINETS
ONLY
10
9
Wood shims
•Ifthecabinetshavefront,sideorbacktrim,make
2 wood shims the width of the trim and attach them to
the cabinet bottom recess on both sides. See Step 7 for
marking locations.
RUN WIRES
Run the electrical wires through the wall or cabinet
according to National Electrical Code and applicable
local codes.
NOTE: DO NOT turn the power on until installation is
complete.
11
SCREW IN PARTWAY
Drive a mounting screw (from the hardware packet)
partway into each center of the narrow neck of the
keyhole slots marked on the cabinet bottom.
13
FEED IN WIRES
Lift the hood into position and feed the house
wiring through the wiring knockout.
14
SECURE HOOD
Slide the hood back against the wall. Tighten the
mounting screws. Be sure the screw heads are in
the narrow neck of the keyhole slot.
Keyhole (4)
15
OPTIONAL POWER CORD KIT JXHC1
Use only with range hood cord-connection kits
that have been investigated and found acceptable
for use with this model range hood.
For installation with a standard 3-prong, grounded
wall outlet, Power Cord Connection Kit model
JXHC1 must be used. This kit contains a power
cord and the hardware required to connect it
to the range hood. It is available at extra cost
from your GE supplier. Follow the Installation
Instructions packed with the kit.
12
NOTE: If using optional Power Cord Kit JXHC1, feed
the power cord through the hole in the top cabinet
while raising the hood. Loop any excess length of
cord and tie away with a suitable tape or tie.
Cabinet
73⁄4″
3-prong
wall outlet
(if using cord
connection)
11⁄4″
13⁄4″ dia. clearance hole
for optional power
supply location
C
L
1" = 2.5 cm; 1' = 0.3 m

12 350A4502P760
TROUBLESHOOTING CHECKLIST
If the hood seems to be operating at high speed when
the control is not set on high, or if ventilation seems
inadequate,checkthefollowing:
Knockouts not removed from hood.
Damper blade not opening.
Reduced airflow because the duct is too small or the
duct length is too long.
The duct is blocked.
Undersized or restrictive wall or roof cap.
REPLACE WIRING COVER
Replace the wiring cover.
CONNECT WIRING
Connect house black to hood black wire, house white
to hood white wire, and house ground to hood green/
yellow wire. Securely tighten the strain relief clamp
onto the house wiring.
19
20
17
CONNECT DUCTWORK TO HOOD
Use duct tape to make joints secure and air tight.
Note: Illustration shows rectangular to round duct adapter.
Duct tape
16
REPLACE FILTERS
The installation is complete. Turn on power at service
panel, and test for proper operation.
Installation Instructions
21
WARNING:
Hg
- Lamp contains Mercury. Manage in accord with
disposal laws. See www.lamprecycle.org or 1-800-435-4448.
For installation, handling and disposal precautions, refer to
the fluorescent lamp packaging literature.
WARNING:
n To reduce the risk of electric shock, do not connect electrical
power to the hood without both lamps in place.
CAUTION:
nDo not touch the hood lamps when they are on. They may
be hot enough to cause injury.
nTo prevent injury from broken lamps, handle lamps
carefully and do not operate hood without lamp lens covers
in place.
This hood requires two Compact Fluorescent Lamps (CFL)
with a GU24 base (included), maximum 15 watts.
To change the lamps:
When installing or replacing a lamp, make sure that
power to the light has been turned off. Never allow a
lamp to come into contact with water.
Remove the lens cover by sliding it in a horizontal direction
and pulling it down and away from the hood.
Grasp the lamp by the plastic base portion of the lamp
and unscrew it.
Replace with energy saving GE 15W Compact Fluorescent
LampwithGU24baseGEServicePart:WB08X10064.
INSTALL LAMPS
FOLLOW ELECTRICAL CODE
Complete the electrical wiring according to National
Electrical Code and local codes.
NOTE: This hood must be permanently grounded.
Connect house wiring (120 VAC) to hood wiring.
18
1" = 2.5 cm; 1' = 0.3 m

350A4502P760 13
Notes

14 350A4502P760
Before you call for service…
Troubleshooting Tips
Save time and money! Review the following chart first
and you may not need to call for service.
Problem Possible Causes What To Do
Fan does not operate A fuse may be blown or a  • Replacefuseorresetcircuitbreaker.
when the switch is on circuit breaker may be tripped.
Fan fails to circulate air Excessively soiled filter. • Washandreplacethefilters.SeetheReusable
or moves air more slowly Metal Grease Filters section.
than normal  • Replacethefilterifitistoosoiledtoclean.Ifit
is not soiled, or if replacing the filter does not
solve the problem, call for service.
  • Sufficient makeup (replacement) air is required for
exhausting appliances to operate to rating. Check with
local building codes, which may require or strongly advise
the use of makeup air. Visit GEAppliances.ca for available
makeup air solutions.
Fan continually cycles The motor is probably  • Replacethefilterifitissoiled.Ifitisnotsoiled,
off and on overheating and turning itself or if replacing the filter does not solve the problem,
off. This can be harmful to call for service.
the motor. Filter may be
excessively soiled.
Compact Fluorescent This is normal for Compact • Allowlamptorunforseveralminutes.Ifthiswarmup
Lamp appears dim Fluorescent Lamps especially time does not solve the problem replace the lamp.
on start up on first installation.
Compact Fluorescent This is normal for Compact • Allowlamptorunforseveralminutes.
Lamp briefly Fluorescent Lamps If this warm up time does not solve the problem
flickers on start up especially on first installation. replace the lamp.
After replacing one The replacement lamp may • UseaGE15WGU24baselampwitha2700Krating.
lamp, the new lamp have a different color GEServicePartnumberWB08X10064.
appears to be a temperature rating : i.e. is
different color 3000K instead of 2700K.
The replacement lamp may • UseaGE15WGU24baselampwithaGEServicePart
be from a different numberWB08X10064.
manufacturer.

350A4502P760 15
OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1
(FOR CANADIAN CONSUMERS ONLY -
POUR RÉSIDENTS CANADIENS SEULEMENT)
Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à :

16 350A4502P760
CUT ALONG THIS LINE AND RETURN CARD – THANKS
DÉCOUPEZ ICI ET ENVOYEZ LA FICHE – MERCI
For Canadian
Customers
Pour les
consommateurs
canadiens
OWNERSHIP REGISTRATION CERTIFICATE – FICHE D’INSCRIPTION DU PROPRIÉTAIRE
Please register your product to enable us to contact you in
the remote event a safety notice is issued for this product
and to allow for efficient communication under the terms of
our warranty, should the need arise.
REGISTER ON-LINE: www.geappliances.ca
ENREGISTREMENT SUR INTERNET À : www.electromenagersge.ca
MAIL TO:P.O. BOX 1780, MISSISSAUGA
POSTEZ À : ONTARIO, L4Y 4G1
MR. / M. MRS. / MME
MISS/MLLE MS.
FIRST NAME / PRÉNOM LAST NAME / NOM
STREET NO / N
O
RUE STREET NAME / RUE APT.NO/APP./RR#
CITY / VILLEPROVINCE
AREA CODE/
IND. RÉG.
TELEPHONE/TÉLÉPHONE E-MAIL/COURRIEL
DID YOU PURCHASE A SERVICE CONTRACT FOR THIS APPLIANCE?
AVEZ-VOUS ACHETÉ UN CONTRAT DE SERVICE POUR CET APPAREIL ?
YES/OUI
NO/NON
IF YES/SI OUI : EXPIRATION
Y/A MD/J
NAME OF SELLING DEALER / NOM DU MARCHAND
INSTALLATION DATE / DATE D’INSTALLATION
Y/A M D/J CORRESPONDENCE ENGLISH
CORRESPONDANCE FRANÇAIS
I do not wish to receive any promotional offers regarding this product.
Je ne désire pas recevoir d’offres promotionnelles concernant ce produit.
MODEL / MODÈLE
SERIAL / SÉRIE
Veuillez enregistrer votre produit afin de nous permettre de
communiquer avec vous si jamais un avis de sécurité concernant
ce produit était émis et de communiquer facilement avec vous en
vertu de votre garantie, si le besoin s’en fait sentir.
POSTAL CODE/CODE POSTAL

350A4502P760 17
For The Period Of: Mabe Will Replace:
One Year Any part of the range hood which fails due to a defect in materials or workmanship.
From the date of the During this limited one-year warranty, Mabe will also provide, free of charge, all labor and
original purchase in-home service to replace the defective part.
nService trips to your home to teach you how to use
the product.
nImproper installation, delivery or maintenance.
nFailure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
nReplacement of house fuses or resetting of circuit breakers.
nDamage to the product caused by accident, fire, floods
or acts of God.
nIncidental or consequential damage caused by possible
defects with this appliance.
nIncidental or consequential damage caused by possible
defects with this appliance.
nDamage caused after delivery.
nProduct not accessible to provide required service.
What Mabe Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within Canada. If the product is located in an area where service by a Mabe Authorized Servicer is not
available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized
Mabe Service Location for service.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from province to province.
To know what your legal rights are, consult your local or provincial consumer affairs office or your province’s
Attorney General.
Warrantor: MC Commercial Inc. Burlington, Ontario
All warranty service provided by our Factory Service Centers, or an
authorized Customer Care®technician. To schedule service, visit us
on-line at GEAppliances.ca, or call 800.561.3344.
Please have serial number and model number available when
calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
EXCLUSION OF IMPLIED WARRANTIESYour sole and exclusive remedy is product repair as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
GE Range Hood Warranty.

18 350A4502P760
GE Appliances Website GEAppliances.ca
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts or even schedule service on-line.
Schedule Service GEAppliances.ca
Expert Mabe repair service is only one step away from your door. Get on-line and schedule your service at
yourconvenienceanydayoftheyear!Orcall800.561.3344duringnormalbusinesshours.
Parts and Accessories GEAppliances.ca
Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes(VISAandMasterCardareaccepted).Orderbyphoneat800.661.1616duringnormalbusinesshours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us GEAppliances.ca
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
includingyourphonenumber,orwriteto: GeneralManager,CustomerRelations
MC Commercial Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance GEAppliances.ca
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
Youmayalsomailinthepre-printedregistrationcardincludedinthepackingmaterial.
Consumer Support.
