Extractor hood

2
en
ÚTable of contents
[en]Instruction manual
( Important safety information 2
7 Environmental protection 5
Saving energy 5
Environmentally-friendly disposal 5
Ç Operating modes 5
Exhaust air mode 5
Air recirculation 5
1 Operating the appliance 6
Controls 6
Setting the fan 6
Intensive setting 6
Intermittent mode 7
Run-on function 7
Lighting 7
Saturation signal 7
2 Cleaning and maintenance 8
Cleaning agents 8
Cleaning the metal mesh grease filters 8
Removing metal grease filter 9
Installing the metal mesh grease filter 9
Replacing the batteries in the remote control 9
3 Trouble shooting 10
After-sales service 10

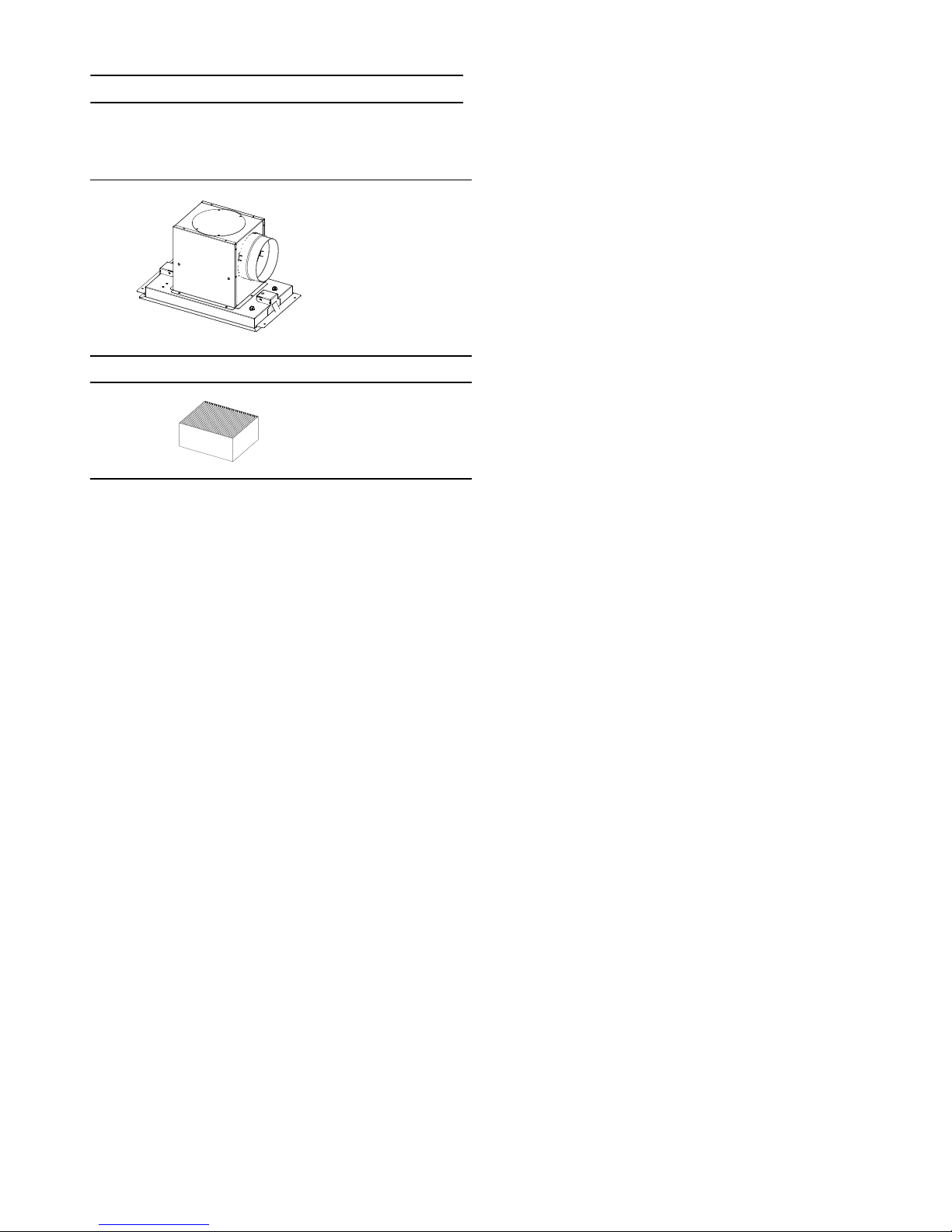

_ Accessories for air recirculation mode 11
Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com and in the online shop
www.gaggenau.com/zz/store
m ( Important safety
information
Importantsafetyinformation Read these instructions carefully. Only then will
you be able to operate your appliance safely
and correctly. Retain the instruction manual
and installation instructions for future use or for
subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old at a
safe distance from the appliance and power
cable.

3
Important safety information en
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
Only a licensed professional may connect
appliances without plugs. Damage caused by
incorrect connection is not covered under
warranty.
mWarning – Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
mWarning – Danger of death!

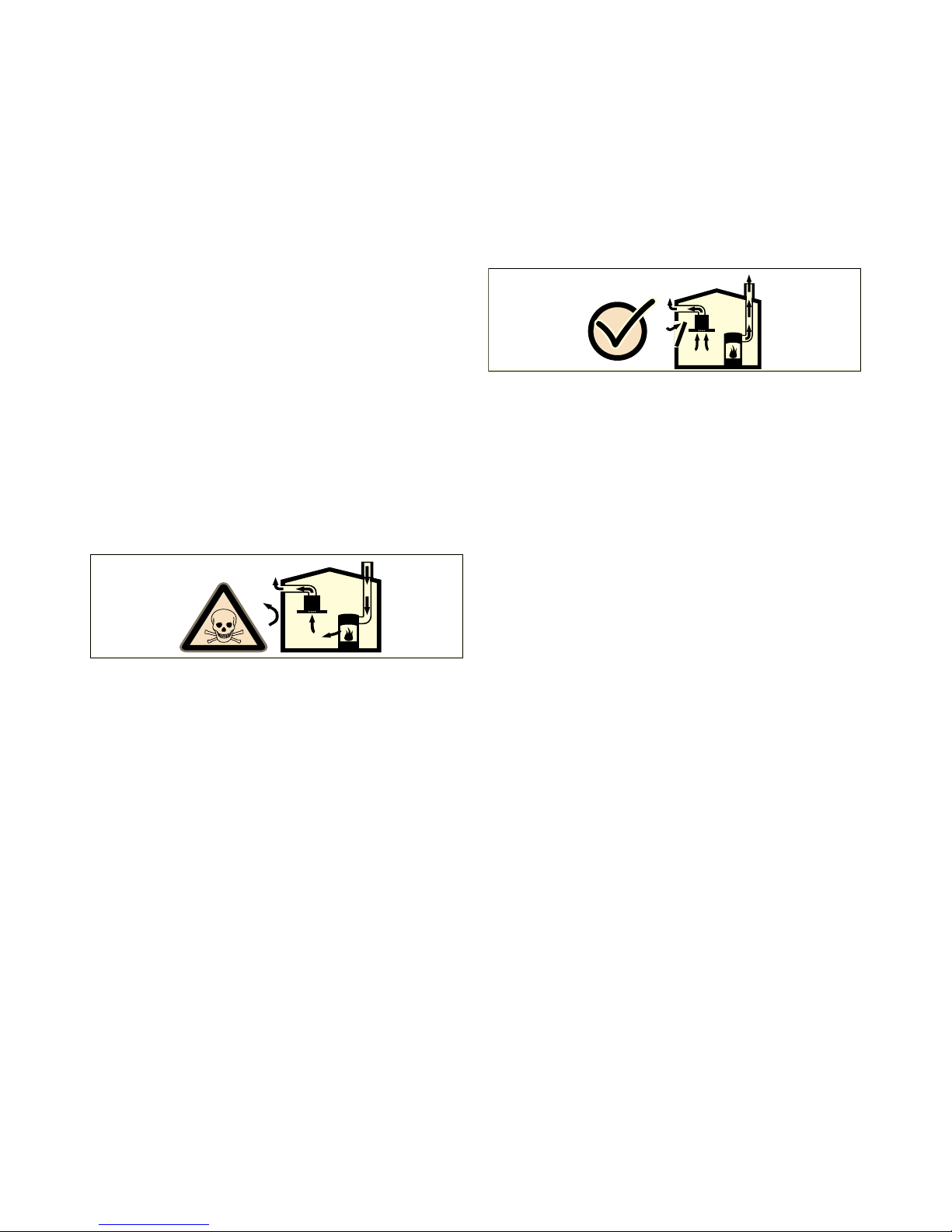

Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room if
the appliance is being operated in exhaust air
mode at the same time as room air-dependent
heat-producing appliance is being operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-operated
heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
▯Adequate incoming air must therefore
always be ensured.
▯An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the partial
vacuum in the place where the heat-producing
appliance is installed does not exceed 4 Pa
(0.04 mbar). This can be achieved when the air
needed for combustion is able to enter through
openings that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
mWarning – Risk of fire!
▯Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
▯Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must be
no flying sparks.
Risk of fire!
▯Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch
off the hotplate. Extinguish flames carefully
using a lid, fire blanket or something
similar.

4
en Important safety information
Risk of fire!
▯When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
▯Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner
of more than 5 kW (wok) is equivalent to
the power of two gas burners.
mWarning – Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
mWarning – Risk of injury!
▯Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
▯Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
▯The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than
100 seconds.
mWarning – Risk of electric shock!
▯A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
▯Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
Risk of electric shock!
▯Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless steel
cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and abrasive
cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly
(1° slope).

5
Environmental protection en
7 Environmental protection
Environmentalprotection Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy when
using the appliance, and how to dispose of your
appliance properly.
Saving energy
▯Only switch the ventilation on when necessary. You
do not need to switch the ventilation on when
cooking something for a short time that does not
have a strong smell.
▯Select a fan setting according to what you are
cooking.
▯Switch the ventilation off again after cooking.
▯Cleaning the grease filter regularly will increase the
efficiency of the ventilation.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
Ç Operating modes
Operatingmodes Exhaust air mode
Note: The air must not be discharged into a flue that is
used for exhausting fumes from appliances burning gas
or other fuels (not applicable to appliances that only
discharge the air back into the room).
▯Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
▯If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Air recirculation
Note: To bind odours in air recirculation mode, you
must install an activated carbon filter. The different
options for operating the appliance in air recirculation
mode can be found in the brochure. Alternatively, ask
your dealer. The required accessories are available from
specialist retailers, from customer service or from the
Online Shop.
This appliance is labelled in accordance
with European Directive 2012/19/EU
concerning used electrical and electronic
appliances (waste electrical and electronic
equipment - WEEE). The guideline
determines the framework for the return and
recycling of used appliances as applicable
throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter, and is conveyed back into
the kitchen.

6
en Operating the appliance
1 Operating the appliance
Operatingtheappliance Notes
– Press the buttons briefly to activate the various
functions. The function you are trying to select will
not be activated if you hold the button down for too
long.
– The appliance will emit a beep to confirm that a
button has been pressed.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Controls
Use the remote control to set and adjust the various
different functions of your appliance.
Note: The remote control requires 23AE 12 V batteries.
For information on how to insert the batteries, refer to
the section entitled~"Cleaning and maintenance"
on page 8
Note: Heat and penetrating moisture may damage the
remote control. Never expose the remote control to
intense heat or moisture.

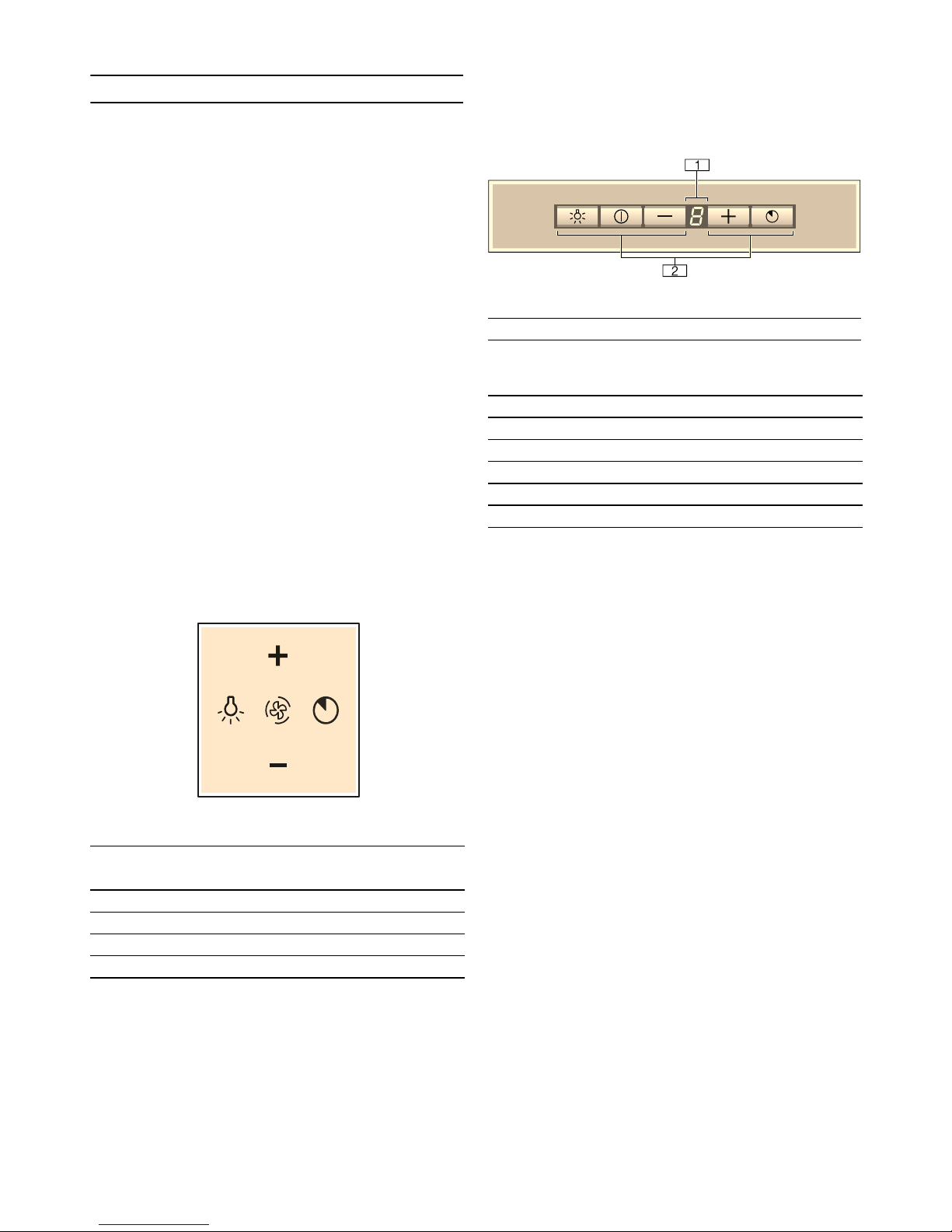

Remote control
Operating buttons
Connecting the remote control to the appliance
If the appliance cannot be operated with the remote
control, e.g. after the battery has been changed, the
connection between the remote control and the
appliance must be re-established.
1Press and hold the @button.
2Attach the appliance to the mains voltage.
A long audible signal sounds. The remote control
has been connected to the appliance.
Note: If no audible signal sounds within 30 seconds,
repeat this procedure.
Extractor hood's control panel
Operating buttons
Setting the fan
Note: Always adjust the setting according to the current
conditions. To eliminate strong cooking smells, select a
high fan setting.
Switching on
1Press the @button.
The fan will start at fan setting ƒ.
2Press the @or A button to set a different fan
setting.
Note: The appliance has three fan settings and an
intensive setting. To set the lowest setting,
press Aonce. If you press it more than once, the
appliance will switch off again.
Switching off
Press and hold the Abutton until the appliance
switches off.
or press the ÿbutton.
Intensive setting
You can use the intensive setting if there is a large build-
up of odours and fumes/vapours.
Press and hold the @button until ˜appears in the fan
settings display .
Note: Intensive mode runs for four minutes. Once this
time has elapsed, the appliance will switch back to fan
setting ƒ.
Explanation
=Light on/off/dimming
gIntermittent ventilation
žFan run-on
@Increase fan setting
ADecrease fan setting
(Fan settings display
0Operating buttons
Explanation
@Light on/off/dimming
#Switch the extractor hood on and off
ADecrease fan setting
@Increase fan setting
žFan run-on

7
Operating the appliance en
Intermittent mode
Intermittent mode automatically switches on the
extractor hood for 10 minutes every hour. The function
switches itself off again after 24 hours.
This function can be activated from the control panel or
using the remote control.
Note: If intensive mode or the run-on function has been
activated, the intermittent function will not be available.
Switching on intermittent mode from the control
panel
1Press the ÿand @buttons at the same time. ‚will
appear on the display.
2Press the @or A button to set a different fan
setting.
3Press the ÿand @buttons at the same time to
confirm the fan setting for intermittent mode.
Switching on intermittent mode using the remote
control
1Press the gbutton. ‚will appear on the display.
2Press the @or A button to set a different fan
setting.
3Press the gbutton to confirm the fan setting for
intermittent mode
Note: Pressing any of the buttons (except the button for
the light) will deactivate intermittent mode.
Run-on function
The run-on function allows the extractor hood to
continue running for a few minutes after it has been
switched off. This eliminates any remaining cooking
smells. The extractor hood will then switch itself off
automatically.
Switching on
Note: If intensive mode has been activated, the run-on
function will not be available.
Press the žbutton on the control panel or on the
remote control.
The fan will run for 10 minutes at setting ‚and a dot will
flash on the display during this time. Then the fan will
switch itself off automatically.
Switching off
Press the žbutton on the control panel or the extractor
hood's remote control.
This will deactivate the run-on function immediately.
Lighting
Press the @button on the control panel or the
=button on the remote control.
Saturation signal
The following will happen when the filters are saturated:
▯The ªsymbol appears in the display: Clean the
metal grease filter
▯The ’symbol appears in the display and a signal
sounds: Replace the activated charcoal filter
See the "CleanAir air recirculation module" printed
supplement or the section entitled~"Cleaning and
maintenance" on page 8
Resetting the saturation signal
When the fan is switched off, the signal is also switched
off.
The relevant filter(s) should be cleaned now if you have
not already done so.
Switching over the appliance to air recirculation
1Switch off the appliance.
2Press the ÿand žbuttons on the control panel at
the same time until the ’indicator lights up. Then
release the buttons.
The ’indicator will go out shortly afterwards. The
electronic controller has now been switched over to air
recirculation mode.
Switching over the appliance to air extraction
Note: The default setting is air extraction mode.
1Switch off the appliance.
2Press the ÿand žbuttons on the control panel at
the same time until the ª indicator lights up. Then
release the buttons.
The ªindicator will go out shortly afterwards. The
electronic controller has now been switched over to air
extraction mode.

8
en Cleaning and maintenance
2 Cleaning and maintenance
Cleaningandmaintenance mWarning – Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
mWarning – Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the circuit
breaker in the fuse box.
mWarning – Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
mWarning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning agent, observe the
information in the table. Do not use any of the following:
▯Harsh or abrasive cleaning agents,
▯Cleaning agents with a high alcohol content,
▯Hard scouring pads or cleaning sponges,
▯High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the
cleaning agents.
Cleaning the metal mesh grease
filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
mWarning – Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
– Do not use any aggressive, acidic or alkaline
cleaning agents.
– When cleaning the metal mesh grease filters, also
clean the holder for the metal mesh grease filters in
the appliance using a damp cloth.
– The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for stubborn
dirt. It can be ordered via the Online Shop.
▯Soak the metal mesh grease filters in a hot soapy
solution.
▯Clean the filters with a brush and then rinse them
thoroughly.
▯Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has no
effect on the function of the metal mesh grease filters.
▯Do not clean heavily soiled metal mesh grease
filters together with utensils.
▯Place the metal mesh grease filters loosely in the
dishwasher. The metal mesh grease filters must not
be wedged in.
Area Cleaning agent
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry
with a soft cloth.
Clean stainless steel surfaces in the
grind direction only.
Special stainless steel cleaning prod-
ucts are available from our after-sales
service or from specialist retailers.
Apply a very thin layer of the cleaning
product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry
with a soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and plas-
tic
Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a
glass scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and dry
with a soft cloth/towel.
Risk of electric shock caused by pene-
trating moisture.
Risk of damage to the electronics from
penetrating moisture. Never clean oper-
ating controls with a wet cloth.
Do not use any stainless steel cleaners.
Area Cleaning agent

9
Cleaning and maintenance en
Removing metal grease filter
1Open the filter cover by pulling it downwards.
Notes
–The filter cover is heavy. Hold the filter cover
with both hands.
–Open the filter cover slowly and carefully.
2Press the lock on the metal grease filters.
Note: To avoid causing damage, do not bend the
metal grease filter.
3Take the metal grease filter out of the holder.
Note: Fat may accumulate in the bottom of the
metal grease filter. Hold the metal grease filter level
to prevent fat from dripping out.
4Clean the appliance from the inside.
5Clean the metal grease filter and let it dry before
refitting it.
Installing the metal mesh grease filter
1Insert metal grease filter.
While doing this, place your other hand under the
metal grease filter.
2Fold up metal grease filter and engage the lock.
3Close the filter cover upwards.
Note: Ensure that the filter cover lock engages
correctly.
Replacing the batteries in the remote
control
1Undo screws.
2Remove cover.
3Remove the batteries.
4Correctly insert the new batteries (23AE 12 V).
5Dispose of flat or faulty batteries according to local
regulations.
Note: Do not dispose of batteries in general household
waste.

10
en Trouble shooting
3 Trouble shooting
Troubleshooting Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
mWarning
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by one
of our trained after-sales technicians. If the appliance is
defective, unplug the appliance from the mains or switch
off the circuit breaker in the fuse box. Contact the after-
sales service.
LED lights
Defective LED lights must only be replaced by the
manufacturer, their customer service department or a
licensed technician (electrician).
Malfunction table
--------
After-sales service
Our after-sales service is there for you if your appliance
needs to be repaired. We will always find the right
solution in order to avoid unnecessary visits from a
service technician.
When calling us, please give the product number (E no.)
and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
with these numbers can be found inside the appliance
(remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Trust the expertise of the manufacturer, and rest
assured that the repair will be carried out by trained
service technicians using original spare parts for your
domestic appliance.
Fault Possible cause Solution
The appliance
does not work
The plug is not
plugged into
the mains
Connect the appliance to
the power supply
Power cut Check whether other
kitchen appliances are
working
The fuse is
faulty
Check in the fuse box to
make sure that the fuse for
the appliance is in work-
ing order
The lighting is
not working
The LED lights
are defective
Call the after-sales service
The ’ symbol
appears in the
display and a
signal sounds.
The activated
charcoal filter is
saturated.
Replace the filter; see the
"CleanAir air recirculation
module" printed supple-
ment
The remote
control is not
working
The battery is
flat
Replace the batteries in
the remote
control.~"Cleaning
and maintenance"
on page 8
The appliance
is not respond-
ing to the
remote control
The remote
control is not
connected to
the appliance
Connect the remote con-
trol to the
appliance.~"Cleaning
and maintenance"
on page 8
E no. FD no.
After-sales serviceO
GB 0344 892 8988
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak.
Off peak 0.0088 € per minute.
AU 1300 368 339
NZ 09 477 0492

11
Accessories for air recirculation mode en
_ Accessories for air recirculation mode
Accessoriesforairrecirculationmode (not supplied)
AA010810
AA200110

*DJJHQDX+DXVJHUlWH*PE+
&DUO:HU\6WUDH
0QFKHQ
*(50$1<
ZZZJDJJHQDXFRP
*9001161261* 9001161261 (970412)
en
