Cooke & Lewis INTX60SV User manual

Cooker Hood
INTX60SV -Version 03
WARNING: Read the instructions before using the appliance.

[01] x 1
[03] x 1
[02] x 1
[06] x 1
[04] x 1
TEMPLATE
[05] x 1
x 2
x 2

3
Let's
get started...
Getting started... 04
Before you start 05
Safety 07
In more detail... 11
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
Guarantee
12
12
14
16
17
17
20
Appendix
GB IE
Installation 22
ErP Information of the bulb provided 31
Information for EU66 32

Getting
Started...
Getting started...
GB IE
Before you start 05
Safety 07
4

Before you start
Before you start
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. Please keep this
instruction booklet for future reference and pass it on to any
future owners. After unpacking the appliance please check
that it is not damaged. If in doubt, do not use the appliance
,)KU(82110084430nosecivreSremotsuCtcatnoctub
01 4475261 (Ireland).

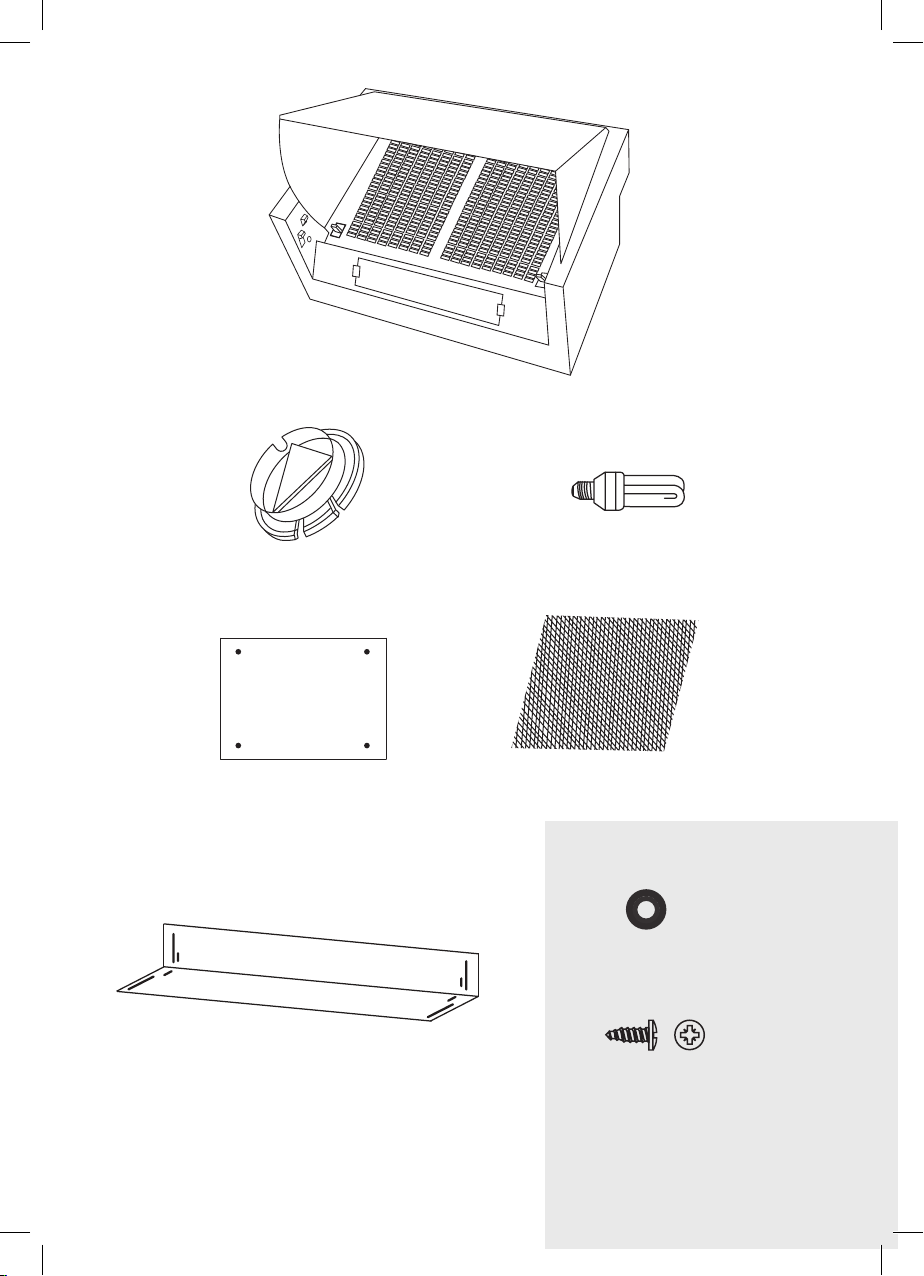

Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
or handling to prevent personal injury or damage to the
product.
ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with the
appliance and its safety warnings.
5
Getting started...
GB IE

Before you start
Ø6mm
Tools required
Accessories not supplied
Ø125mm
VENT PACK 2 (UK & IE)
Recirculation Extraction
SELF ADHESIVE
ALUMINIUM TAPE
3.9 x 32 mm
Short Screw for cabinet & door
Wall Plug Ø6mm
CARBFILT1 (UK &IE)
CARBON FILTER ORDERING HOTLINE
0344 800 1128 (UK) 01 4475261 (IE)
x 4
x 8
x 4
6
Getting started...
GB IE

Safety
7
Getting started...
GB IE
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
•All installation work must be carried
electrician.
•This appliance must be installed correctly
following the manufacturer’s instructions.
ThisappliancecomplieswithallcurrentEuropean
safetylegislation,however,theManufacturermust
emphasise that this compliance does not prevent
the surfaces of the appliance from heating up
duringuseandremaininghotduringitsoperation.
Accessible parts may become hot during use.
Young children should be kept away. Care should
be taken to avoid touching the appliance
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
Thisappliancecanbeusedbychildrenagedfrom
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children unless they are older
than 8 and supervised.

Safety
8
Getting
started...
GB IE
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for disconnection must be incorporated
rules. An all-pole disconnection switch having a
contact separation of at least 3 mm in all poles
Regularly check the power plug and power cord
for damage. If the supply cord is damaged,
it must be replaced by the manufacturer, its
order to avoid a hazard.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
to the appliance.
Please dispose of the packing material
carefully.
to the appliance.

Safety
9
Getting started...
GB IE
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to
that room ventilation is appropriate with the
local authorities. Make sure the maximum air
room does not exceed 4 Pa (0.04 mbar). The
room must have adequate ventilation if an
extractor hood is used simultaneously with
appliances that run on gas or other fuels. The
used for exhausting fumes fromappliances
burning gas or other fuels. Regulations
regarding air extraction must be complied with.
Warning: Before connecting the hood: switch
off the electricity supply and check that the
supplied voltage and frequency coincide with
that indicated on the appliance nameplate.

Safety
10
Getting
started...
GB IE
Warning: The hood may stop working during
an electrostatic discharge (e.g. lightning). This
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect
after one minute.
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services.
Flambe cooking must not be carried out
underneath this appliance.
When installing the appliance, make sure
that the following distances between the top
of cooker or hob and the lowest part of the
cooker hood must be observed:
> Gas hobs: 750mm.
> Electric hobs: 650mm.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning
cleaning is not carried out in accordance with
the instructions.

In more detail...
In more
detail...
GB IE
Product functions 12
Operation 12
Care and maintenance 14
Troubleshooting 16
Recycling and disposal 17
Technical and legal information 17
Guarantee 20
11

Product functions
This appliance extracts the air of the kitchen to remove the odours
and keep an optimum level of air quality inside the room, it also
allows you to illuminate the cooking area.
Operation
Using Your Cooker Hood.
The light and the fan motor will not operate if the outer cover is in
the closed position.

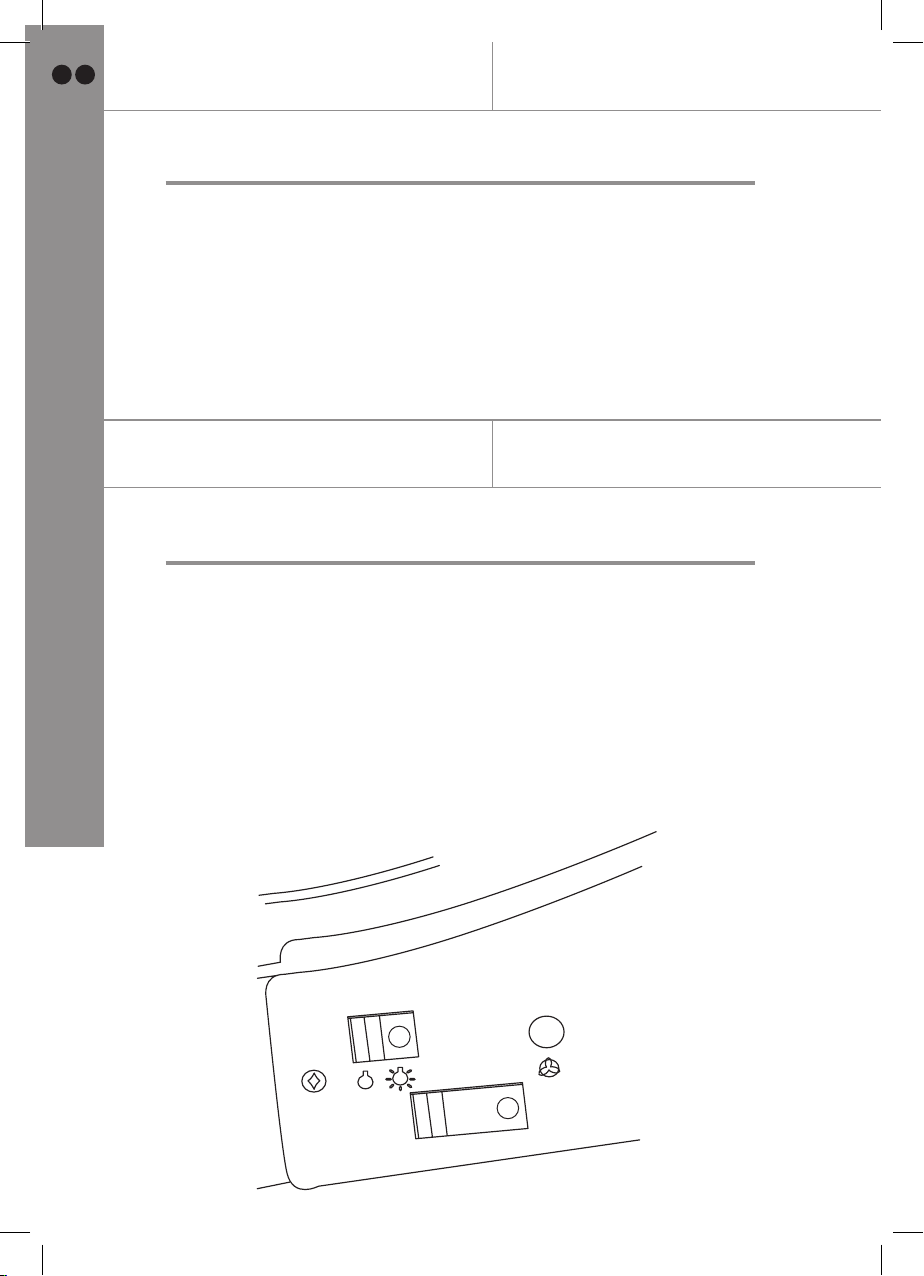

Pull open the outer door and the control switches can be seen on
the left side panel.
The upper slider switch (A) will turn the lamps on and off. The
lower slider switch (B) will turn the extractor fan motor on and off.
There are three motor speeds available.
Product Functions
Operation
B
A
12
In more detail...
GB IE

Lighting OFF
Lighting ON
Extractor fan OFF
Extractor fan speed – button: speed 1
Extractor fan speed – button: speed 2
Extractor fan speed – button: speed 3
Extractor fan operating control pilot light
Position 1, should be selected when simmering or using only one
pan.
Position 2, for normal cooking, up to four pans.
Position 3, when frying or cooking foods with strong odours.
If the outer door is closed without switching off the fan motor, or
lamps, an override switch will turn the cooker hood OFF.
When the outer door is opened the cooker hood will resume
working at its previous settings.
The cooker hood will not operate when the outer door is
opened if the switches are in the OFF position.
To obtain the best results from your cooker hood it is
recommended that you leave it switched on for 15 minutes after
Operation
13
In more detail...
GB IE

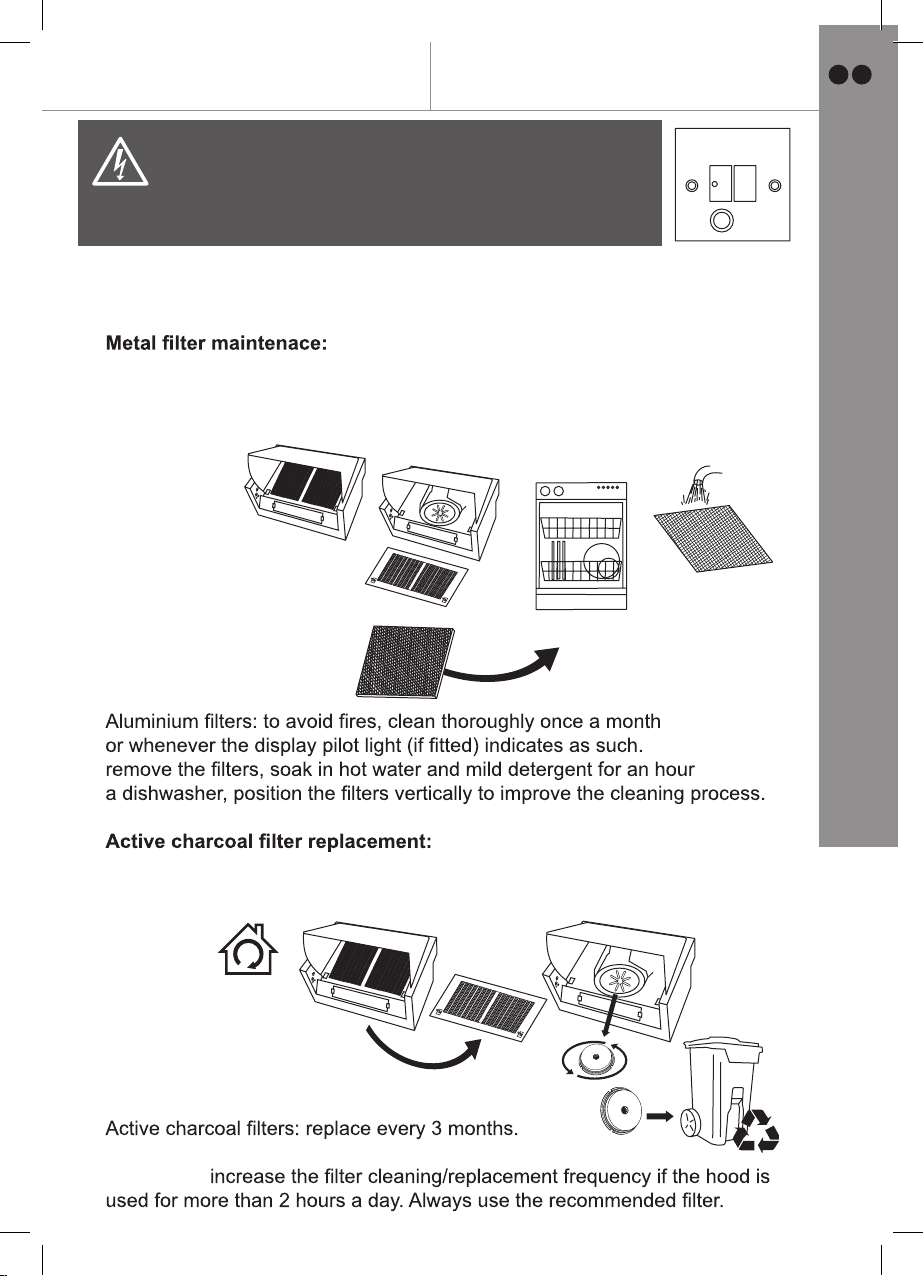

Care and maintenance
Care and maintenance
Warning: always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a fault, contact
customer services.
Bulb replacement
The Bulb may be hot, leave it 10 minutes before removing it.
Turn the lamp to remove.
10’
FUSE
OFF
14
In more detail...
GB IE

Care and maintenance
1 x ACTIVE CHARCOAL FILTER (NOT SUPPLIED).
MODEL NUMBER CARBFILT1 (UK & IE).
Clean using non-corrosive, liquid detergent or a special stainless steel
cleaner and avoid the use of abrasive cleaning products.
To do so,
. If using
Important:
1 MONTH
MAX.65˚C
3 MONTHS
FUSE
OFF
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
15
In more detail...
GB IE

Troubleshooting
Troubleshooting
Fault Cause Solution
Excessive
Vibration TheAppliance is not hung properly on the brackets. Take down the appliance and check it is properly
The fan blade is damaged. Switch off the appliance.
Repair to be carried out by
only.
tightly.
Light on, but
motor does
not work.
The fan blade is jammed.
The motor is damaged.
Both light and
motor do not
work.
Light bulb blown. Replace with a bulb with
correct rating.
Power connection loose. Check power supply.
Suction
performance
reduced.
Speed may be too low. Select a higher speed.
Distance between the
cooker hood and the hob
is too great.
Readjust the distance to:
Gas cookers: 750mm
Electric cookers: 650mm
dirty. and maintenance)
Top vent might be
obstructed. (CLVH60SS-C
& CLVH60W-C)
Clear any obstruction.
Optional vent kit might be
twisted. Ensure that the vent kit is
instructions.
Works normally
but cooking
smells linger. in recirculation mode or
grease.
recirculating or change
maintenance)
16
In more detail...
GB IE

Recycling and disposal
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
The symbol on the product or its packaging indicates
that this product cannot be treated as normal
household waste. This product must be handed over to
an electric and electronic equipment collection point for
recycling.
On ensuring that this product is disposed of correctly, you will help
to avoid possible negative consequences for the environment
and public health, which could occur if this product is not handled
correctly. To receive more detailed information about recycling this
product, contact your local government, domestic waste disposal
services or the outlet where the product was bought.
Technical and legal information
Power supply : 220-240V~ 50Hz
Power consumption – Fan : 1x125W
Power consumption – Luminary : 1 x 9W Max
Power consumption – Total : 134W
Protection class : II
Light bulb : Max. 9 W (E-14)
17
In more detail...
GB IE
Technical and legal information

All installation work must be carried out by a
Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on
the rating plate inside the cooker hood.
WARNING : THIS APPLIANCE MUST NOT BE
EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct
Connection
Direct Connection
If the appliance is being connected directly to the mains an
omnipolar circuit-breaker must be installed with a minimum
opening of 3mm between contacts.
If the supply cord is damaged, it must be replaced by the
order to avoid a hazard
The installer must ensure that the correct electrical connection has
been made and that it complies with wiring diagram.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized
technicians only.
OFF
N(bleu)
L(brun)
N(bleu)
L(brun)
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3AMP FUSE
FUSE ON
EUR UK
18
In more detail...
GB IE Technical and legal information

Electrical Requirements
Any permanent electrical installation must comply with the latest
I.E.E. Regulations and local electricity company regulations. For
roll of the National Inspection Council for Electrical Installation
Contracting (NICEIC) should undertake the electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate inside
the cooker hood.
WARNING: THIS APPLIANCE MUST NOT BE EARTHED
The appliance is supplied with a 2-core mains cable and must be
connected to the electricity supply via a double pole switch having
a 3mm minimum contact gap on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4
is recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the
following code:
Brown = L - Live
Blue = N - Neutral
The connection point must be placed in a position adjacent to the
appliance so as to be readily accessible for an engineer in the
event of a breakdown.
Disconnect the appliance from the mains supply before
carrying out any kind of maintenance or cleaning.
19
In more detail...
GB IE
Technical and legal information

Guarantee
Manufacturer's Guarantee
This appliance is covered by afull manufacturer’s 24 month parts and
labour guarantee and covers all parts and labour costs associated with
the repair of the appliance in a domestic environment. We will repair any
defect that arises due tofaulty materials or workmanship and use genuine
manufacturers parts.
All claims must be supported with the original receipt or other reasonable
proof of purchase.
If, during the guarantee period, the appliance becomes irreparable as
agreed by the engineer approved by GAAthen we reserve the right, at our
discretion, to exchange the defective product with a replacement appliance
at GAA’s sole cost. If the same product is no longer available an alternative
will be offered with the same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance
of the GAAguarantee will be valid and any further call outs during this
prescribed period will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to
repair the appliance then the warranty will be invalid.
The guarantee applies tothe UK mainland, Scotland, Ireland, ROI and
France but is not transferrable between EUcountries.
This guarantee is non-transferrable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not
diminish your legal rights.
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install , use or care of the products in accordance with the
manufacturer’s instructions -GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse,
neglect, wilful or accidental damage or act of god.
Normal wear and tear.
20
In more detail...
GB IE
