GEAppliances GFDN120EDWW User instructions

GE Appliances
Model#: GFWH1200DWW
GE® ENERGY STAR® 3.6 DOE Cu. Ft.
Capacity Frontload Washer
Approx Dimensions (HxDxW):
39 4/5 in X 32 in X 27 in
•HydroHeater™ internal water heater - Boosts water temperatures and helps
achieve sanitization
•eWash™ option - Energy-saving option uses a cold water wash on select
cycles without sacrificing performance
•ENERGY STAR® qualified and CEE Tier III - Meets or exceeds federal
guidelines for energy efficiency for year-round energy and money savings
•Vibration Control - Adjusts spin patterns for each floor type for a smoother wash
without walking or shaking
•1100 RPM spin speed - Fast speeds remove more water during the spin cycle
to minimize drying time
•Speed Wash - Provides a quick wash for lightly soiled items that are needed in
a hurry
•Load-sensing adaptive fill - Washer automatically fills with just the right amount
of water for the load
Model#: GFDN120EDWW
GE® 7.0 Cu. Ft. Capacity Electric Dryer
Approx Dimensions (HxDxW):
39 31/100 in X 32 187/1000 in X 27 in
•DuraDrum™ interior - Provides long-lasting dependability
•HE SensorDry™ - With dual thermistors continually monitors moisture and
temperature to prevent clothing wear and tear due to over-drying and
inconsistent heat
•Speed Dry - Quickly dries items and small loads for families on the go
•eDry™ option - Energy-saving option reduces dry temperatures on select
cycles without sacrificing performance
•4 heat selections - Provide the right temperatures for your clothes-drying needs
•Delay start - Set the dryer to begin cycles whenever it’s convenient for you
Brochure prepared exclusively for GREERS APPLIANCE CENTER on Jan 21, 2013. Date Created: 01/21/13

For answers to your Monogram,® Profile Series
or GE appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Specification Revised 9/12 360487
Listed by
Underwriters
Laboratories

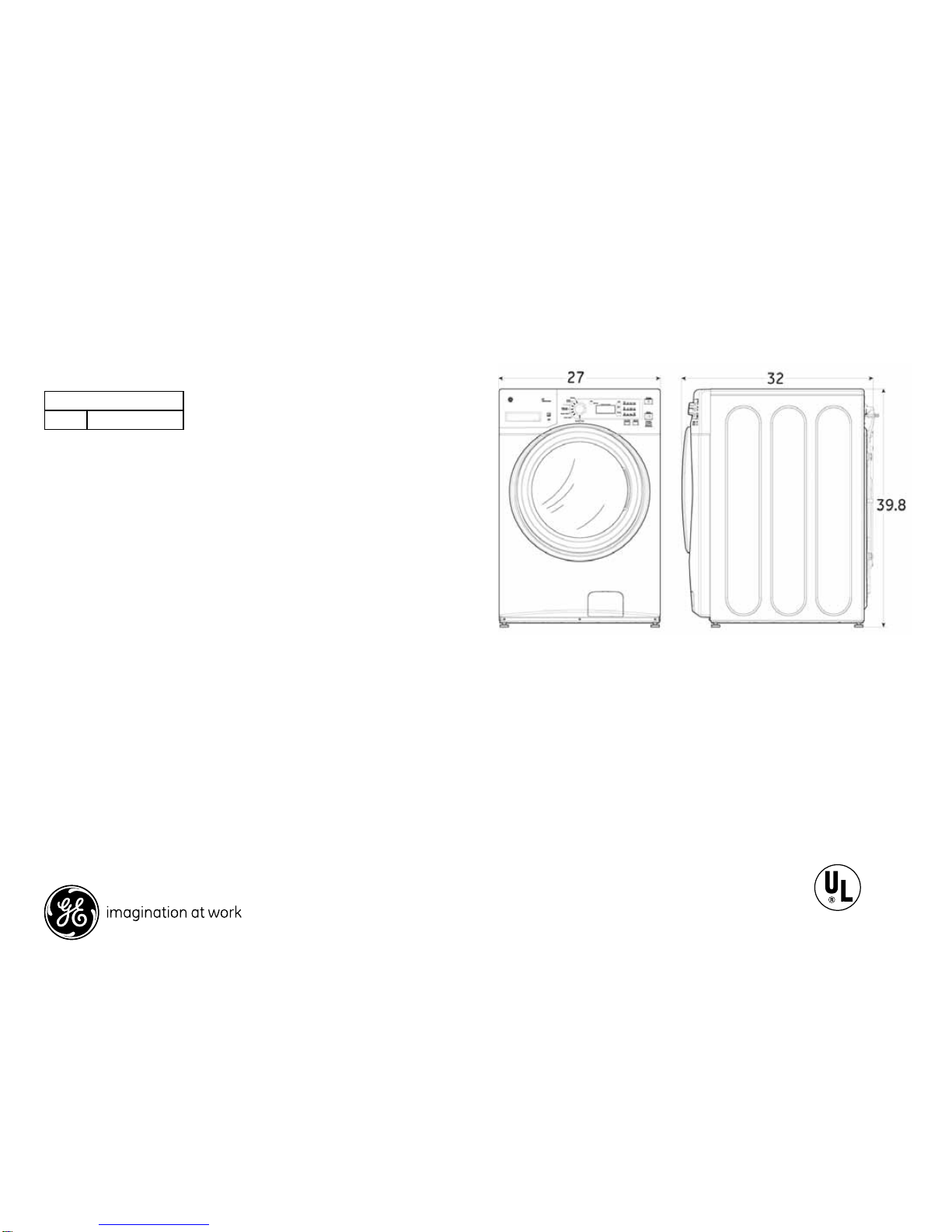

Dimensions and Installation Information (in inches)
Installation Information: For complete information, see
installation instructions packed with your washer.
GFWH1200D
GE®ENERGY STAR®3.6 DOE IEC Cu. Ft. Capacity Frontload Washer with Stainless Steel Basket
Above illustration intended for dimensional reference only.
Refer to photography for actual product appearance.
Electric Rating
120V 12.0A, 60Hz

Listed by
Underwriters
Laboratories
For answers to your Monogram,® Profile Series
or GE appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Special Installation Requirements:
Stacked Installation:
•Bracketsforstackingdryeroverwasherarenotincludedwiththewasher.
Order part no. GEFLSTACK or part no. WE25X10018.
Alcove or Closet Installation:
•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe
stated on a label on the dryer back.
•ThedryerMUSTbeexhaustedtotheoutside.
•Minimumclearancesbetweendryercabinetandadjacentwallsorother
surfaces are: 0" either side, 3" front and rear
•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".
•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina
minimum of 60 sq. in. of open area equally distributed. If this closet contains
both a washer and a dryer, doors must contain a minimum of 120 sq. in. of
open area equally distributed.
•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwith
a gas dryer.
Bathroom or Bedroom Installation:
•ThedryerMUSTbeexhaustedtotheoutdoors.
•Theinstallationmustconformwiththelocalcodes,orintheabsenceof
local codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223.
Minimum Clearance other than Alcove or Closet Installations:
•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.
For more information on venting kits and accessories,
please call 1-800-GE-CARES.

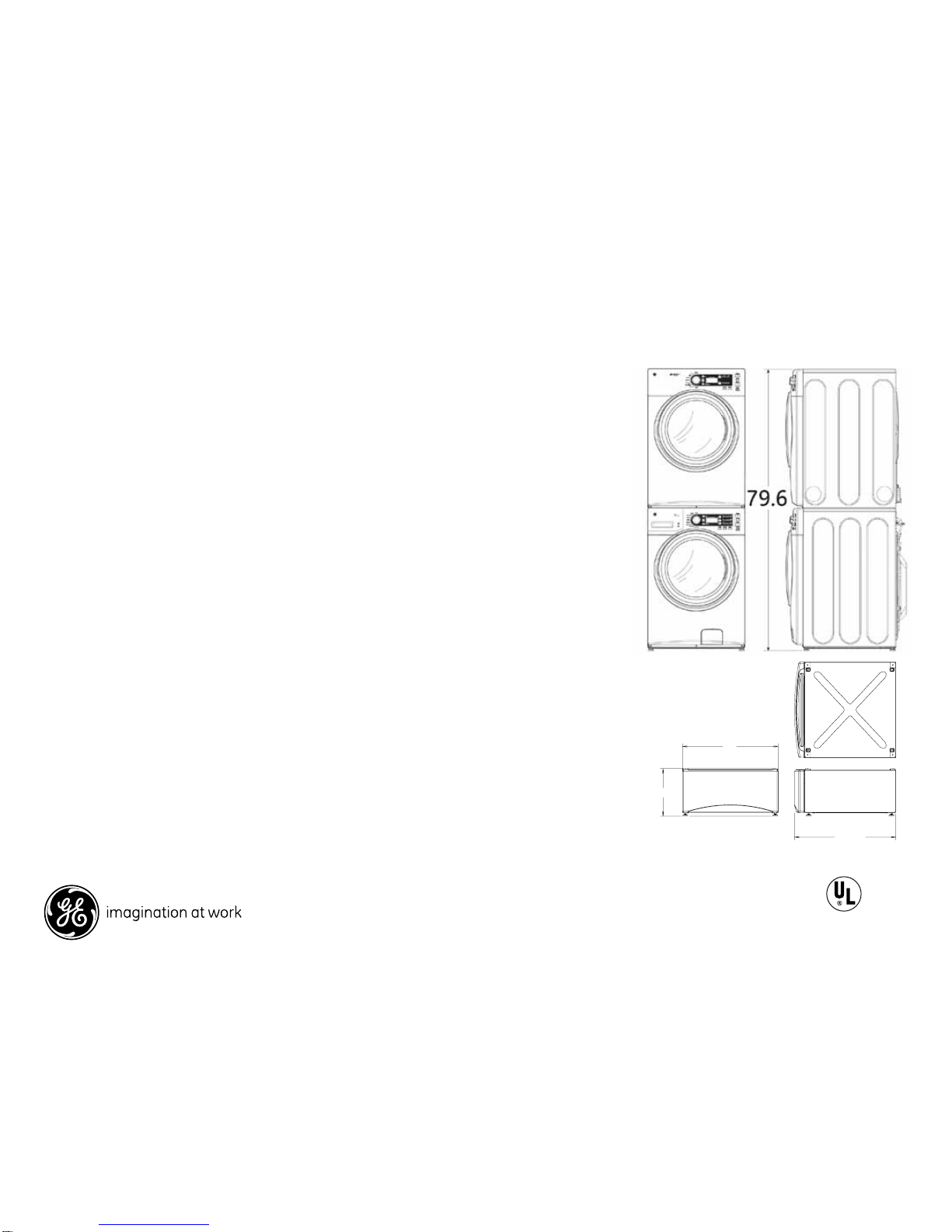

Stacked Dimensions (in inches)
27
13
28-3/4
Pedestal Dimensions (in inches)
SBSD137HWW - white
This optional 13" pedestal raises
the door opening and height of
the washer or dryer. Feet on 13"
pedestalallowittoadjustto
13-3/8"height.
Specification Revised 9/12 360487
GFWH1200D
GE®ENERGY STAR®3.6 DOE IEC Cu. Ft. Capacity Frontload Washer with Stainless Steel Basket
Above illustrations intended for dimensional reference only.
Refer to photography for actual product appearance.

Features and Benefits
•HydroHeater™internalwaterheater-Boostswatertemperaturesandhelps
achieve sanitization
•eWashoption-Energy-savingoptionusesacoldwaterwashonselectcycleswithout
sacrificing performance
•ENERGYSTAR®qualifiedandCEETierIII-Meetsorexceedsfederalguidelinesfor
energyefficiencyforyear-roundenergyandmoneysavings
•VibrationControl-Adustsspinpatternsforeachfloortypedforasmootherwash
without walking or shaking
•1100RPMspinspeed-Fastspeedsremovemorewaterduringthespincycleto
minimize drying time
•SpeedWash-Providesaquickwashforlightlysoileditemsthatareneededinahurry
•Load-sensingadaptivefill-Washerautomaticallyfillswithjusttherightamountof
water for the load
• ModelGFWH1200DWW–White
Specification Revised 9/12 360487
GFWH1200D
GE®ENERGY STAR®3.6 DOE IEC Cu. Ft. Capacity Frontload Washer with Stainless Steel Basket
Modified Energy Factor (MEF) 2.41
Water Factor (WF) 4.0

Specification Revised 9/12 360490
Listed by
Underwriters
Laboratories
Dimensions and Installation Information (in inches)
Exhaust Options: 4-way via rear, right, left and bottom.
Circuit Requirements: An individual, properly grounded
branch circuit, protected by a 30-amp circuit breaker or
a time-delay fuse, is required.
Note: Dryer wall outlet must be located within 36”
of service cord entry and accessible when dryer is
mounted in position.
Installation Information: For complete information, see
installation instructions packed with your dryer.
Electric Dryer Rating
240V 5600W, 24A, 60Hz
208V 4400W, 22A, 60Hz
GFDN120ED
GE®7.0 Cu. Ft. Capacity Frontload Electric Dryer
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.

Special Installation Requirements:
Stacked Installation:
•Brackets for stacking dryer over washer are not included with the dryer.
GEFLSTACK or part no. WE25X10018.
Alcove or Closet Installation:
•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe
stated on a label on the dryer back.
•ThedryerMUSTbeexhaustedtotheoutside.
•Minimumclearancesbetweendryercabinetandadjacentwallsorother
surfaces are: 0" either side, 3" front and rear.
•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".
•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina
minimumof60sq.in.ofopenareaequallydistributed.Ifthisclosetcontains
both a washer and a dryer, doors must contain a minimum of 120 sq. in. of
open area equally distributed.
•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwith
a gas dryer.
Bathroom or Bedroom Installation:
•ThedryerMUSTbeexhaustedtotheoutdoors.
•Theinstallationmustconformwiththelocalcodes,orintheabsenceof
localcodes,withtheNationalElectricCodeandNationalFuelGasCode,ANSIZ223
for gas dryers.
Minimum Clearance other than Alcove or Closet Installations:
•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.
For more information on venting kits and accessories,
please call 1-800-GE-CARES.
Stacked Dimensions (in inches)
27
13
28-3/4
Pedestal Dimensions (in inches)
SBSD137HWW - white
This optional 13" pedestal raises
the door opening and height of
the washer or dryer. Feet on 13"
pedestalallowittoadjustto
13-3/8" height.
Listed by
Underwriters
Laboratories
Specification Revised 9/12 360490
GFDN120ED
GE®7.0 Cu. Ft. Capacity Frontload Electric Dryer
Above illustrations intended for dimensional reference only.
Refer to photography for actual product appearance.
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.

Best performance
Domestic
dryer models
Maximum length of 4"
dia. rigid metal duct
Number
of
90°
turns
Exhaust hood type
A
4"
opening
B
2-1/2"
opening
7.5 cu. ft. capacity
electric and gas dryers
7.8 (except GTDL740)
7.0 and 6.0 cu. ft.
capacity models
all electric dryers
0
1
2
3
4
90 ft.
60 ft.
45 ft.
35 ft.
25 ft.
60 ft.
45 ft.
35 ft.
25 ft.
15 ft.
A
4
B
2-1/2
A
7.8 (except GTDL740),
7.0 and 6.0 cu. ft.
capacity models all
gas dryers DCVH480EK
0
1
2
3
90 ft.
60 ft.
45 ft.
35 ft.
60 ft.
45 ft.
35 ft.
25 ft.
2-1/2
1-3/4
12
3-1/2
Electrical
Connection
Gas Pipe
Connection
Dryer Exhausting Information – Metal Duct Only
For complete information, see installation instructions packed with your dryer.
Ducting Materials: For best performance, this dryer should be vented with 4” diameter
allrigidmetalexhaustduct.Ifrigidmetalductcannotbeused,thenUL-listedflexible
metal(semi-rigid)ductingcanbeused(KitWX08X10077).Inspecialinstallations,itmay
benecessarytoconnectthedryertothehouseventusingaflexiblemetal(foil-type)duct.
AUL-listedflexiblemetal(foil-type)ductmaybeusedONLYininstallationswhererigid
metalorflexiblemetal(semi-rigid)ductingcannotbeusedANDwherea4”diametercan
be maintained throughout the entire length of the transition duct. Please see installation
instructionpackedwithyourdryerforcompleteinstructionswhenusingflexiblemetal(foil
type) ducting.
Exhaust Length Calculation:
1. Determinethenumberof90°turnsneededforyourinstallation.Ifyouexhausttothe
side or bottom of dryer, add one turn.
2. Themaximumlengthof4’rigid(aluminumorgalvanized)ductwhichcanbetoleratedis
shown in the table.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be
treated as a 90° elbow.
A turn over 45° should be treated as a 90° elbow.
Dryers mustbeexhaustedtotheoutside.
Caution: Forpersonalsafetydonotterminateexhaustintoachimney,underanyenclosed
house floor (crawl space), or into an attic, since the accumulated lint could create a fire
hazardormoisturecouldcausedamage.Neverterminatetheexhaustintoacommonduct
orplenumwithakitchenexhaust,sincethecombinationoflintandgreasecouldcreatea
fire hazard.
Exhaustductsshouldbeterminatedinadamperedwallcaptopreventbackdrafts,bird
nesting, etc. The wall cap must also be located at least 12" above the ground or any other
obstruction with the opening pointed down.
For more information on venting kits and accessories, please call 1-800-GE-CARES.
Listed by
Underwriters
Laboratories
Specification Revised 9/12 360490
GFDN120ED
GE®7.0 Cu. Ft. Capacity Frontload Electric Dryer
Above illustration intended for dimensional reference only.
Refer to photography for actual product appearance.

Features and Benefits
•DuraDrum™- Provides long-lasting durability
•HESensorDry-Withdualthermistorscontinuallymonitorsmoistureand
temperature to prevent clothing wear and tear due to over-drying and
inconsistent heat
•SpeedDry-Quicklydriesitemsandsmallloadsforfamiliesonthego
•eDryoption-Energy-savingoptionreducesdrytemperaturesonselectcycles
without sacrificing performance
•4heatselections-Providetherighttemperaturesforyourclothes-dryingneeds
•Delaystart-Setthedryertobegincycleswheneverit’sconvenientforyou
• ModelGFDN120EDWW–White
Specification Revised 9/12 360490
GFDN120ED
GE®7.0 Cu. Ft. Capacity Frontload Electric Dryer
