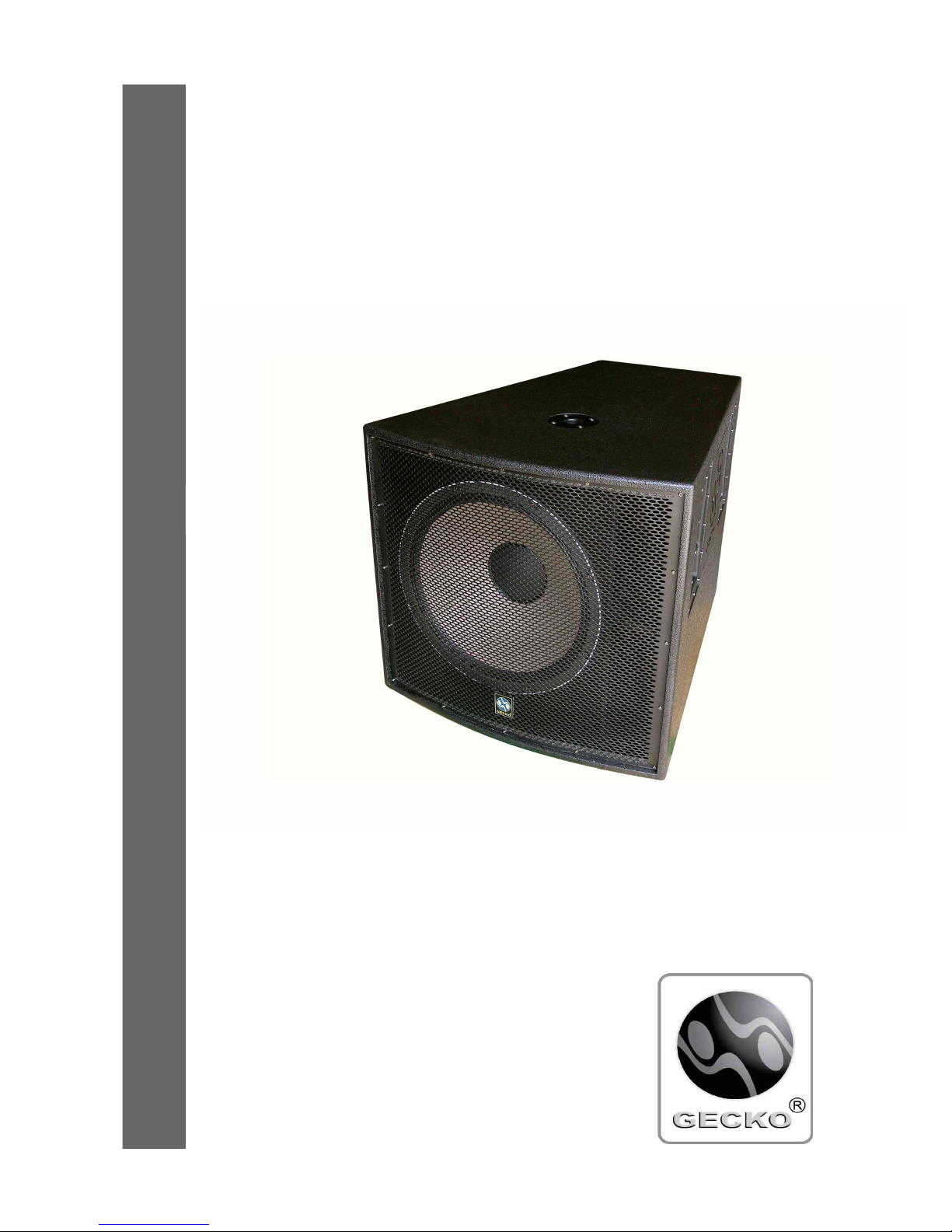

Gecko REVELATION SR 618WA User manual

GECKO® REVELATION SR 618WA
www.geckomusic.ne
www.geckomusic.ne
OWNER'S MANUAL
OWNER'S MANUAL

GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE
GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE
For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be
read carefully.
SYMBOLS:
SYMBOLS:
SAFETY INSTRUCTIONS:
SAFETY INSTRUCTIONS:
•To reduce the risk of electrical shock, do not remove covers. No user serviceable parts inside. Please
refer servicing to qualified personnel.
•To reduce the risk of electrical shock or fire, do not expose the equipment to rain or moisture.
•o not impose unnecessary stress on your equipment (i.e. placing heavy objects on it, overscrewing its
mounting etc).
•Read and keep the instruction manuals in a safe place for future references.
•o not attempt to clean the equipment with chemical solvents as this may damage the finish. Clean only
with dry cloth.
•o not block any ventilation openings.
•o not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that
produce heat.
•o not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the grounding prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for the replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
•Unplug the apparatus during lightning storms or when it is not in use for a long period of time.
NOTES
NOTES
Contain important information and useful tips on the operation of your equipment.
WARNING
WARNING
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to
alert the user to the presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
CAUTIONS
CAUTIONS
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in thee
literature accompanying the appliance. Please read the manual carefully.
H
HEADPHONES EADPHONES SAFETY SAFETY WARNIN WARNING G
Contain important information and use useful tips on headphones outputs and monitoring
levels.
!

•Use only attachments / accessories specified by the manufacturer.
•Always shut down power supply when not in use to save energy and for prolonged lifespan.
•Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary
considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if
exposed to sufficiently intense noise for a period of time. The U.S. Government’s Occupational Safety
and Health Administration (OSHA) has specified the permissible noise level exposures shown in the
following chart. According to OSHA, any exposure in excess of these permissible limits could result in
some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels
use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or
over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if
exposure is in excess of the limits set forth here:
Duratio /Day (Hours) dB, Sou d Pressure Level (SPL) Descriptio s
Below 90 dB Safe zone
8.00 90 Hearing damage
6.00 92
4.00 95
3.00 97
2.00 100 Serious hearing damage
1.50 102
1.00 105
0.50 110
0.25 or less 115 Human pain threshold
GECKO MUSIC GROUP
GECKO MUSIC GROUP
No. 59, 59-1, 61, 61-1, 63, 63-1, Jalan PE 3, Taman Paya Emas,
Paya Rumput, 76450 Melaka, Malaysia.
Mobile: [phone]
Email: [email protected]t • Website: www.geckomusic.net

FOREWORD
FOREWORD
ear Friends,
Thank you very much for purchasing quality products by GECKO MUSIC GROUP. I am indeed very
delighted that we have journeyed this far, setting new standards in the audio and music industry while
touching and changing lives along the way!
At GECKO MUSIC GROUP we focus on developing nothing but the best professional audio equipment and
premium grade musical instruments you ever need! It has been our philosophy all this while that good sound
reproductions can be achieved at a fraction of a premium. Our engineering team is constantly doing research
and development to meet this objective. We thank God that by HIS grace, we have succeeded in developing
the revolutionary C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being
encoded, reproduced and managed!
On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our
traditions in serving music and audio communities around the world with more value-added highest possible
quality GECKO® professional audio equipment and premium grade musical instruments!
Once again, thank you very much for your support.
Yours truly,
aniel Foo
Founder / Chairman
GECKO MUSIC GROUP

TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION 1
SUBWOOFER ELEMENTS 2
MAKING CONNECTIONS 4
SPECIFICATIONS 5
WARRANTY 6
NOTES: Congratulations on purchasing the GECKO® REVELATION
SR 618WA! We recommend that you take a moment and read through
the manual as it provides information that will assist you in using your
unit to its fullest potential.
______________________________________________________________________________________
© GECKO MUSIC GROUP. All Rights Reserved.

INTRODUCTION
INTRODUCTION
Engineered to complement the REVELATION series full-range systems, the innovative GECKO®
REVELATION SR 618WA 18” active audiophile long-throw subwoofer incorporates a very powerful yet
versatile built-in C.R.I.S.T.A.L.® Audiophile Class H amplifier, enabling robust audiophile output as well as
simplicity of use. Its wide low frequency spectrum coverage ensures perfect natural reproduction of any bass
playback.
Incorporating state-of-the-art dynamic speaker cones with superb wide horizontal area coverage of 90º, it is
guaranteed to cover all floor spaces of concern, and this advantage translates to cost savings as fewer
subwoofer units will be required for any given venue.
The GECKO® REVELATION SR 618WA 18” active audiophile long-throw subwoofer is housed in a weather-
resistant birch ply cabinet. It is built to withstand the rigorous demands of any concert touring, and to take on
the hard knocks of demanding stage usage.
______________________________________________________________________________________
1
1
© GECKO MUSIC GROUP. All Rights Reserved.

SUBWOOFER ELEMENTS
SUBWOOFER ELEMENTS
1. GRILLE
Powder coated perforated steel grille to protect the REVELATION SR 618WA's woofer from possible
damages contributed by external factors.
2. ENCLOSURE
All REVELATION series enclosures are made using Baltic birch plywood, oven-baked painted with textured
wear resistant black paint to ensure best resonance and durability.
3. RECESSED HANDLE
To ease the carrying of the REVELATION SR 618WA.
4. POLE MOUNT SOCKET
Located at the top of the enclosure, the pole mount socket is commonly used to hold the REVELATION
series full-range systems using a speaker pole.
5. INPUTS
Two balanced, female XLR type INPUT connectors are provided.
______________________________________________________________________________________
2
2
© GECKO MUSIC GROUP. All Rights Reserved.
2
5
6
3
4
1
6
5
7
8
10
9
11121314

6. OUTPUTS
Two balanced, male XLR type OUTPUT connectors are provided to loop-thru signal from one REVELATION
SR 618WA to another REVELATION SR 618WA, active speaker or power amplifier.
7. LED INDICATORS
CLIP (RED LED)
Shows OUTPUT capability is being exceeded, with clipping distortion.
SIGNAL (GREEN LED)
Shows signal is present on the REVELATION SR 618WA.
POWER (AMBER LED)
Illuminates when main power supply is active on the REVELATION SR 618WA.
8. PHASE SWITCH
Compensates for having REVELATION SR 618WA and main speakers in different locations. Ideally,
REVELATION SR 618WA sound should reach the listening position at the same time as sound from the main
speakers. However, if the distance from the listening position to the REVELATION SR 618WA, and from the
listening position to the main speakers differ, the sound from each will reach your ears at different times. The
PHASE SWITCH, when switched to “REVERSE”, delays the signal by 180 degrees, so the REVELATION
SR 618WA output will blend into that of the main speakers. At the listening position, listen to the mid-bass
output. If it sounds weak, set PHASE SWITCH back to “NORMAL”.
9. HF ROLLOFF FREQUENCY CONTROL
This crossover control allows you to adjust the upper limit of the REVELATION SR 618WA’s response from
30Hz to 160Hz. The REVELATION SR 618WA’s response will begin rolling off above the set frequency. Set
the crossover frequency to the lowest frequency response rating of the main speakers.
10. GAIN CONTROL
This knob is used to regulate the output level of the REVELATION SR 618WA. Use this to set the balance
between the main speakers and the REVELATION SR 618WA.
11. AC POWER CORD RECEPTACLE
The REVELATION SR 618WA is provided with a detachable power cord. This cord must be attached to the
IEC receptacle on the REVELATION SR 618WA before the cord is plugged into the AC wall socket.
12. VOLTAGE SELECTOR
This switch is pre-set at the factory for the proper local voltage, so there is no need to change the switch
setting. For 110V operation, set the VOLTAGE SELECTOR to 110V.
WARNING: Always ensure you have the appropriate voltage rating selected on your
REVELATION SR 618WA before plugging in to an AC outlet. Connection to an
inappropriate power source may result in fire or electric shock, and extensive
damage which is not covered by the warranty.
______________________________________________________________________________________
3
3
© GECKO MUSIC GROUP. All Rights Reserved.

13. REPLACEABLE FUSE
Protects system from overload, replace with fuse rating as indicated on REVELATION SR 618WA's amplifier
panel at fuse location.
14. POWER SWITCH
Push in on the top [I] of the rocker switch to apply AC mains power to the REVELATION SR 618WA. Push in
on the bottom [O] of the rocker switch to turn the REVELATION SR 618WA OFF.
MAKING CONNECTIONS
MAKING CONNECTIONS
To connect the REVELATION SR 618WA to your sound system, refer to the following steps:
1. Turn OFF all equipment before making any connections.
2. Place the REVELATION SR 618WA approximately 4 - 5 feet, either to the left or to the right of your
main speakers (with the exceptions if you are using REVELATION series full-range systems as main
speakers, whereby you can pole-mount them above the REVELATION SR 618WA enclosures).
3. For purest of sound, make connections using only quality audio cables (i.e. GECKO® TRUTH
T3AL), and connectors (i.e. GECKO® OLYMPIAN connectors) according to your requirements.
4. Turn ON all equipment after making connections.
______________________________________________________________________________________
4
4
© GECKO MUSIC GROUP. All Rights Reserved.

SPECIFICATIONS
SPECIFICATIONS
Speaker:
18” Waterproof Cloth/Aluminium Woofer with iecast Aluminium Frame
Max SPL:
125dB/m
Max RMS:
1000W
Impeda ce:
8Ω
Freque cy Respo se:
30Hz ~ 160Hz (C.R.I.S.T.A.L.® Audiophile Linear Response)
Nomi al Coverage:
C.R.I.S.T.A.L.® WaveGuide 90° (H) Coverage
Se sitivity:
100dB/W/m
I put Se sitivity Impeda ce:
Unbalanced, 20kΩ
Balanced, 10kΩ
Amplifier Rated Output:
8Ω: 775W per Channel, 3-Tier C.R.I.S.T.A.L.® Audiophile Class H
Amplifier Protectio s:
Mid-Point C rift, Short Circuit (ISC), Open Circuit, Thermal (UQC), Overload, Clip Limiter (ACLC), Soft
Start (SSC), Subsonic ( HPF), Ultrasonic and RF
Systems:
HF Rolloff Frequency Crossover, Phase Reverse Circuitry, Ultra Quiet Cooling esign
Physical Properties:
Enclosure: 20mm Baltic Birch Plywood
Finish: Wear Resistant Textured Black Paint
Hardware: 4 x Recessed Handle (Sides), 1 x Pole Mount Cup (Top)
Grille: Powder Coated Perforated Steel (Black)
Audio Connectors: Balanced XLR Male Out (2), XLR Female In (2)
Net Weight: 45.00Kg
imension: (H) 650mm x (W) 895mm x ( ) 700mm
AC Power:
110/220V ~ 50/60Hz Selectable Voltages
Specifications subject to change without prior notice. Manufactured under ISO9000 certified management
system.
______________________________________________________________________________________
5
5
© GECKO MUSIC GROUP. All Rights Reserved.

GECKO
GECKO® ® TERMS OF WARRANTY TERMS OF WARRANTY
WARRANTY:
GECKO MUSIC GROUP warrants its GECKO® products for a period of three (3) years from the original date
of purchase, in accordance to the warranty regulations described below.
WHAT IS COVERED:
uring the applicable warranty period, GECKO MUSIC GROUP warrants the product against defects in
materials and workmanship and against malfunctions. GECKO MUSIC GROUP will remedy all such defects
and malfunctions without charge for parts or labour if the warranty applies. In the case that other parts are
used which constitutes an improvement, GECKO MUSIC GROUP may, at its discretion, charge the customer
for the additional cost of these parts. Final determination of warranty coverage lies solely with GECKO
MUSIC GROUP.
WHAT IS NOT COVERED:
1. If the product needs to be modified or adapted in order to comply with applicable technical or safety
standards on a national or local level, in any country which is not the country where the product was
originally developed and manufactured, this modification/adaptation shall not be considered a defect in
material or workmanship.
2. Normal wear and tear, in particular, of faders, cross faders, potentiometers, keys/buttons, valves,
guitar/bass strings, machine heads, pick-up covers, vinyl covers, illuminants, and similar parts are not
covered by this warranty.
3. Improper handling, neglect or failure to operate the unit in compliance with the instructions given in the
user or service manuals.
4. Connection or operation of the unit in any way that does not comply with the technical or safety
regulations applicable in the country where the product is used.
5. amages/defects caused by force of nature or any other condition that is beyond the control of GECKO
MUSIC GROUP.
6. Any repair or opening of the unit carried out by unauthorized personnel (user included) will void the
warranty.
7. Modification or removal of serial numbers.
OBTAINING WARRANTY SERVICE:
To return a GECKO® product for warranty service, first fill out the O li e Tech ical Report on
www.geckomusic. et and submit for an authorization/service number. Write the authorization/service
number so that it is prominently displayed on the outside of the shipping carton. Any products received
without an authorization/service number that is clearly visible upon arrival at the factory will be refused.
Enclose proof of the original delivery date or a copy of the original sales receipt/invoice. Enclose a
description of the suspected defect or malfunction and the condition, if any, which caused the problem.
Return the product to GECKO MUSIC GROUP.
WARRANTY SHIPPING:
You are responsible for prepaying shipping costs F.O.B. GECKO MUSIC GROUP, Melaka, Malaysia.
Shipped product(s) must be properly packaged. Use original shipping cartons and packing materials where
possible. GECKO MUSIC GROUP is not responsible for damages resulting from inadequate and or improper
packing. Products received with damages due to improper packaging will be deemed out of warranty.
______________________________________________________________________________________
6
6
© GECKO MUSIC GROUP. All Rights Reserved.

Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s expense.
GECKO MUSIC GROUP will inform the buyer of such circumstance. If the buyer fails to submit a written
repair order within six (6) weeks after notification, GECKO MUSIC GROUP will return the unit C.O. . with a
separate invoice for freight and packing. Such costs will also be invoiced separately when the buyer has sent
in a written repair order.
WARRANTY RIGHTS:
This warranty is exclusive and extended to the original buyer and is not transferable to anyone who may
subsequently purchase this product. No other person (apart from authorized GECKO® Stores) shall be
entitled to give any warranty promise on behalf of GECKO MUSIC GROUP.
+-
______________________________________________________________________________________
7
7
© GECKO MUSIC GROUP. All Rights Reserved.
