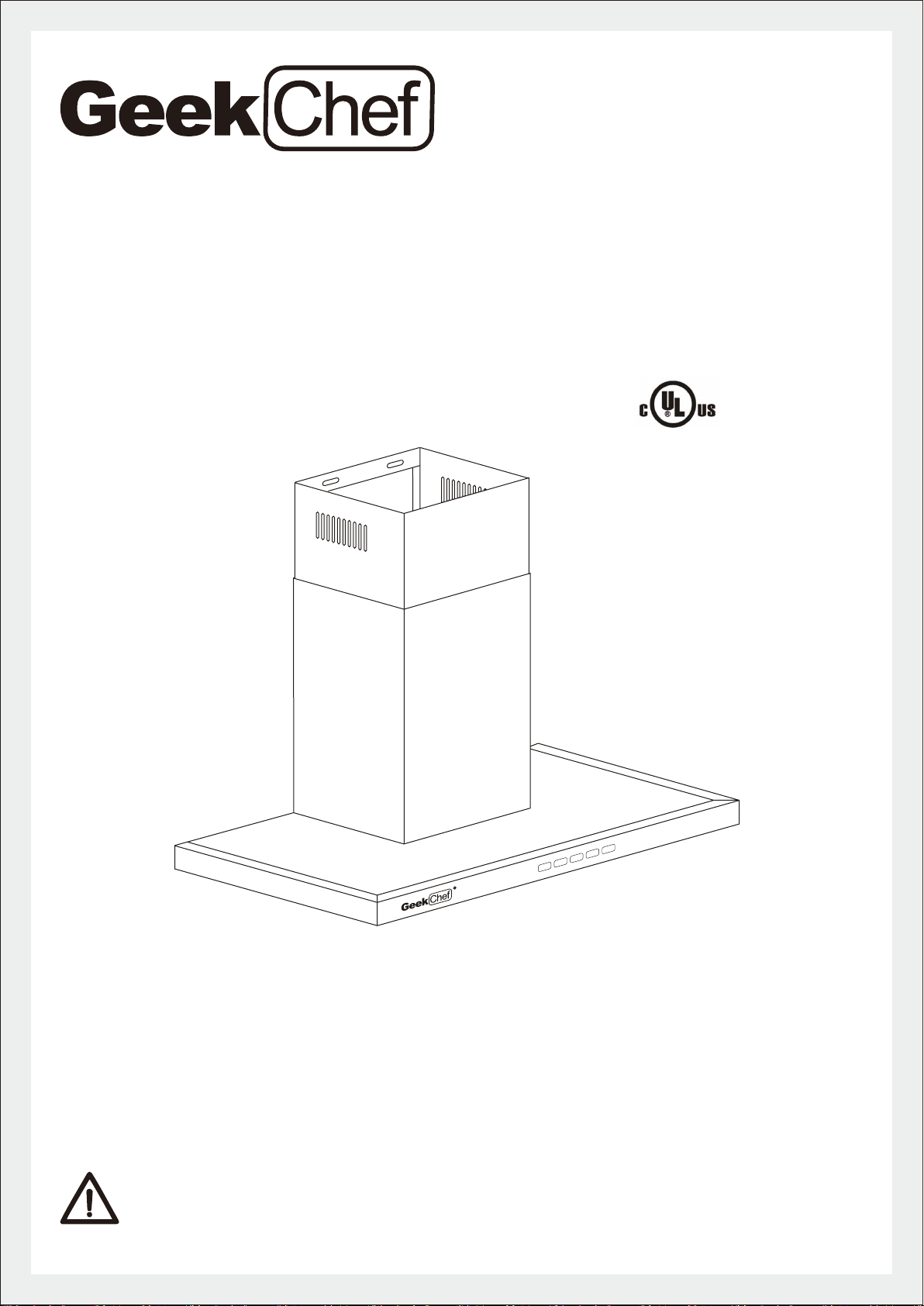

GeekChef GWS-M30A User manual

IMPORTANT: DO NOT use this range hood until you have read this entire manual.
Please keep it for future reference.
Range Hood User Manual
Model:GWS-M30A
Customer Service: 1-844-801-8880

2
1. Warning & Caution………………………………………Page 3-4
2. Prepare the hood………………………………………..Page 5-7
3. Install the hood…………………………………………..Page 8
4. Maintenance……………………………………………..Page 9
5. How to use…………………………………………….....Page 10
6. Parts list……………….………………….……………….Page 11
7. Troubleshooting…………...……………………………...Page 12

3
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer at the address or telephone number listed in the warranty.
WARNING
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
To reduce the risk of a range top grease fire:
1. Never leave surface units unattended at high settings. Over heat cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambé).
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the surface element.

4
1. Smother flames with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. Be
careful to prevent burns. If the flames do not go out immediately, evacuate and call the fire
department.
WARNING
To reduce the risk of injury to persons in the event of a range top grease fire, observe the
following:
2. Never pick up a flaming pan - You may be burned.
3. Don’t use water, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher only if:
 You know you have a Class ABC extinguisher and you already know how to operate it.
 The fire is small and contained in the area where it started.
 The fire department is being called.
 You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
CAUTION
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials
and vapors.
5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it
becomes overheated. The motor will restart when it cools down. If the motor continues to
shut off and restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24"
and a maximum of 33" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. This product is equipped with a thermostat which may start blower automatically. To reduce
the risk of injury and to prevent power from being switched on accidentally, switch power off
at service panel and lock or tag service panel.
10. Use with approved cord-connection kit only.
11. Please read specification label on product for further information and requirements.
SAVE THESE INSTRUCTIONS! HOUSE HOLD USE ONLY

5
PREPARE THE HOOD

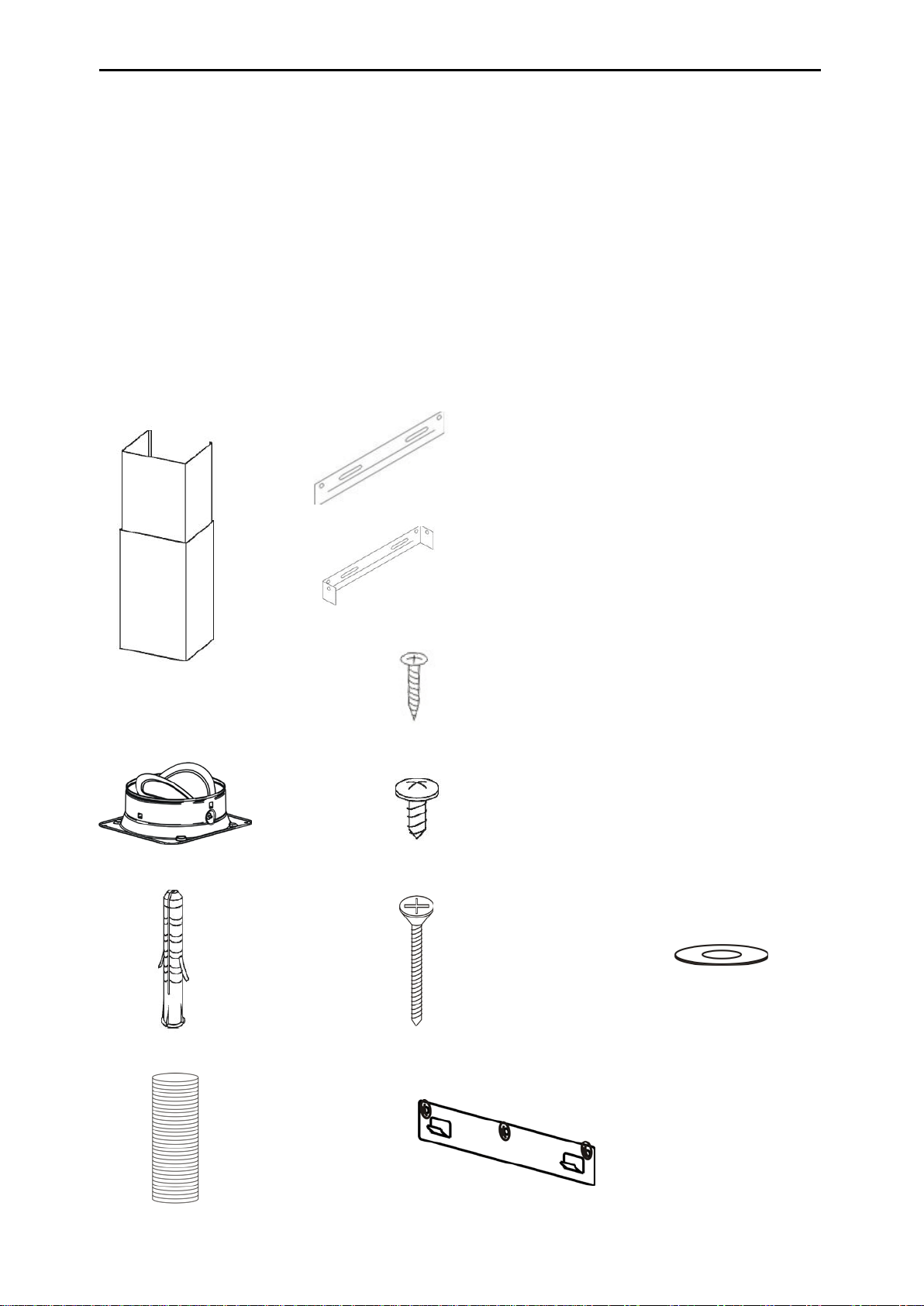

Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:
1 - Mounting Bracket
1 - Vent
1 - Duct fixing support
1 - Slider duct fixing support
7 - Mounting Screws (4 x 40mm)
10 - Mounting Screws (4 x 8mm)
9 - Drywall Anchors (2 for φ8 holes)
2 - Washer (for φ8 holes)
1 - Aluminum Flex Duct
1 - Installation Instructions
1 - Warranty Card
2 - Safety screws (ST4 x30mm)
Duct fixing support
Slidery duct fixing support
Mounting Screws (4 X 8MM)
Mounting Screws
(4 x 40mm)
Drywall Anchors
Washer
Aluminum Flex Duct
Mounting Bracket
Safety Screw (ST4 x30MM)
Vent
Decorative Flue

6
1RWH
This range hood must be properly grounded. The unit
should be installed by a qualified electrician in
accordance with all applicable national and local
electrical codes.

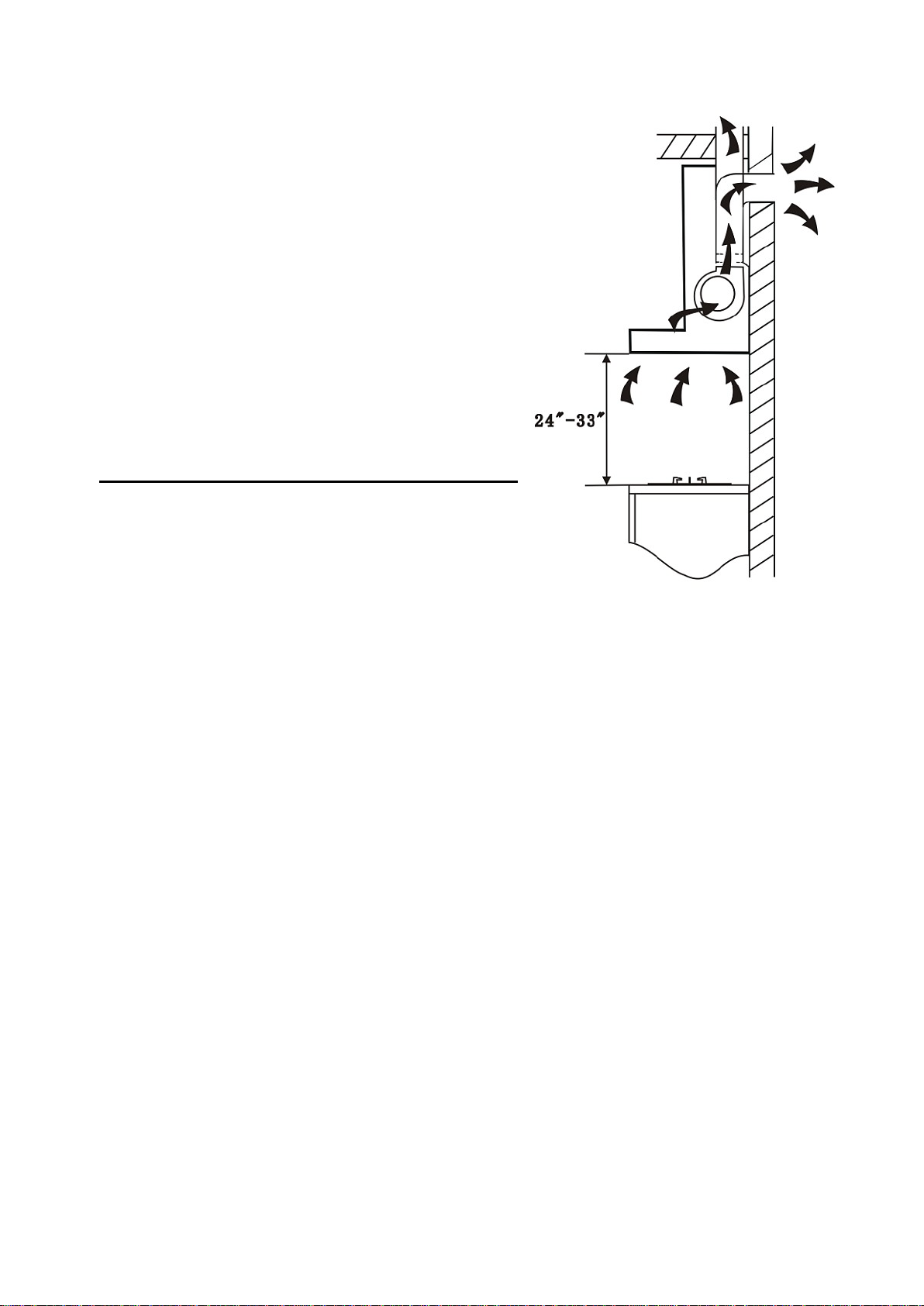

The minimum hood distance above cook top must not be
less than 24’’. A maximum of 33” above cook top is highly
recommended for best capture of cooking impurities.
Distances over 33” are at the installer and users
discretion.
INSTALL THE DUCTWORK
Note: To reduce the risk of fire, use only metal
ductwork.
1. Decide where the ductwork will run between the hood
and the outside.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Install the Aluminum Flex duct on the vent towards hood location.

7

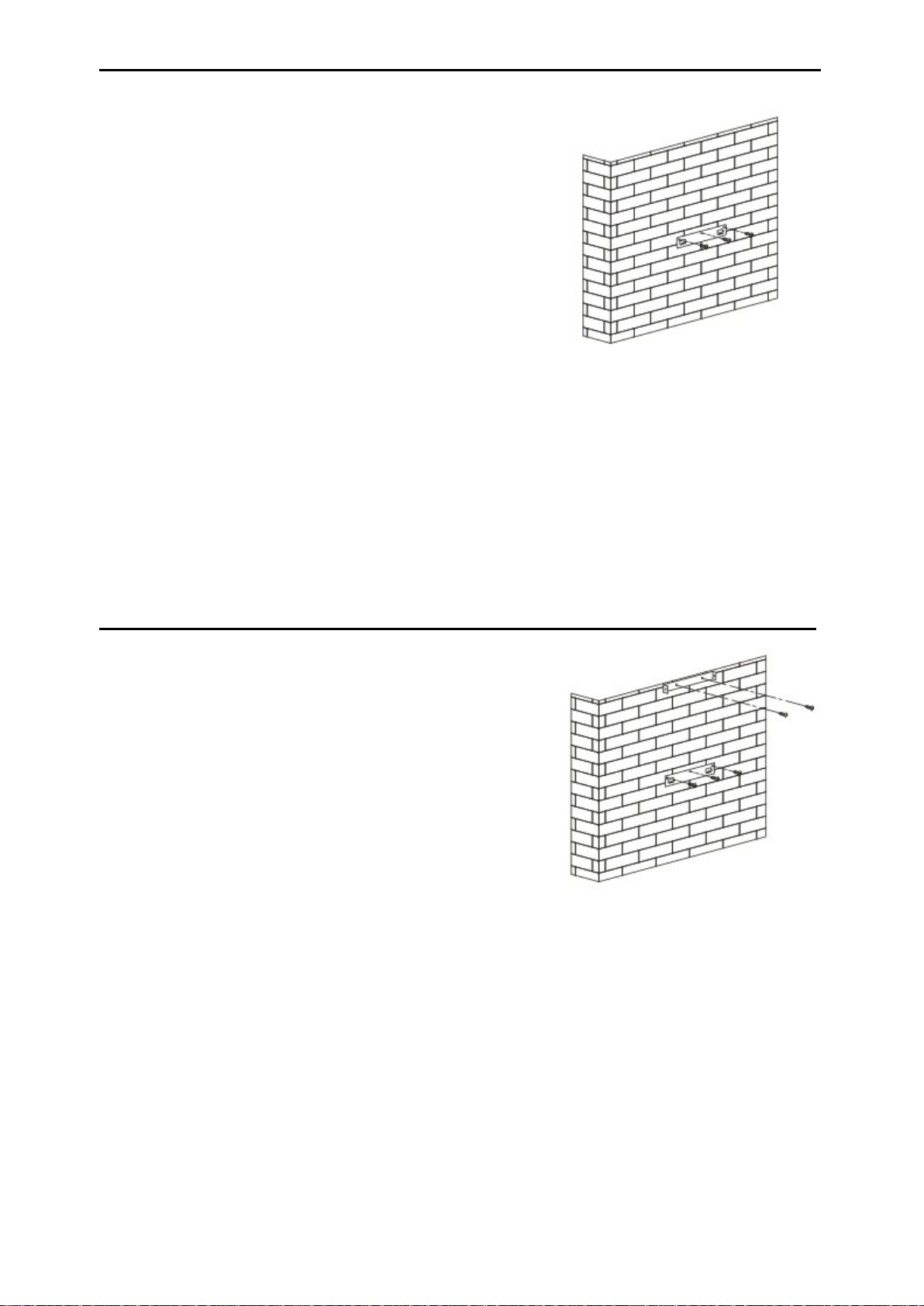

1. After evaluating the height of the hood, place the hook
center over installation location. Drill 3 holes of Ø8mm on
a suitable place to fix the mounting brackets.
INSTALL MOUNTING BRACKETS
2. Put the drywall anchors into the holes and fix the
mounting screws (4x40mm) into the anchors, and install
the hook on the wall as shown.
INSTALL SLIDERY DUCT, FIXING SUPPORT
1. Calculate the final height of the U-shaped section, drill 2
holes of Ø8mm on a suitable place in line with the slider
duct fixing support.
2. Put the drywall anchors into the holes and fix the
mounting screws (4x40mm) into the anchors, and install
the hook on the wall as shown.

8
Note: at least two people will be required to mount the hood.
INSTALL THE HOOD
1. Raise the hood into its mounting position.
2. Align the rectangular opening on the back of
the hood with the wall-mounting bracket. Gently
lower the hood until it securely engages the
bracket.
3. Open the Al. filter and find the two φ8 mm
holes on the back of the hood. Level the hood
with 2 mounting screws (4*30mm) with washer.
Use drywall anchors provided.
4. Measure the height of the glass to the slider duct fixing
support. Adjust the height of the chimney according to the
height. Then use the duct fixing support with two screws
(4x8mm) to fix the chimneys. Shown as in the picture.
5. Put the chimney on the hood, use two screws (4x8mm)
to fix the chimney to the slider duct fixing support.
6. Use the other two screws (4x8mm) to fix the bottom of
chimney.
7. After adjusting the position, open the filter and fix
the body inside with safety screws.
4x8mm
Screw

9
MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Filters
The filters must be cleaned approximately
once every 30 hours of operation (when
the central segment on the display goes
on or starts blinking).
Use a warm detergent solution. Grease
filters are dishwasher safe.

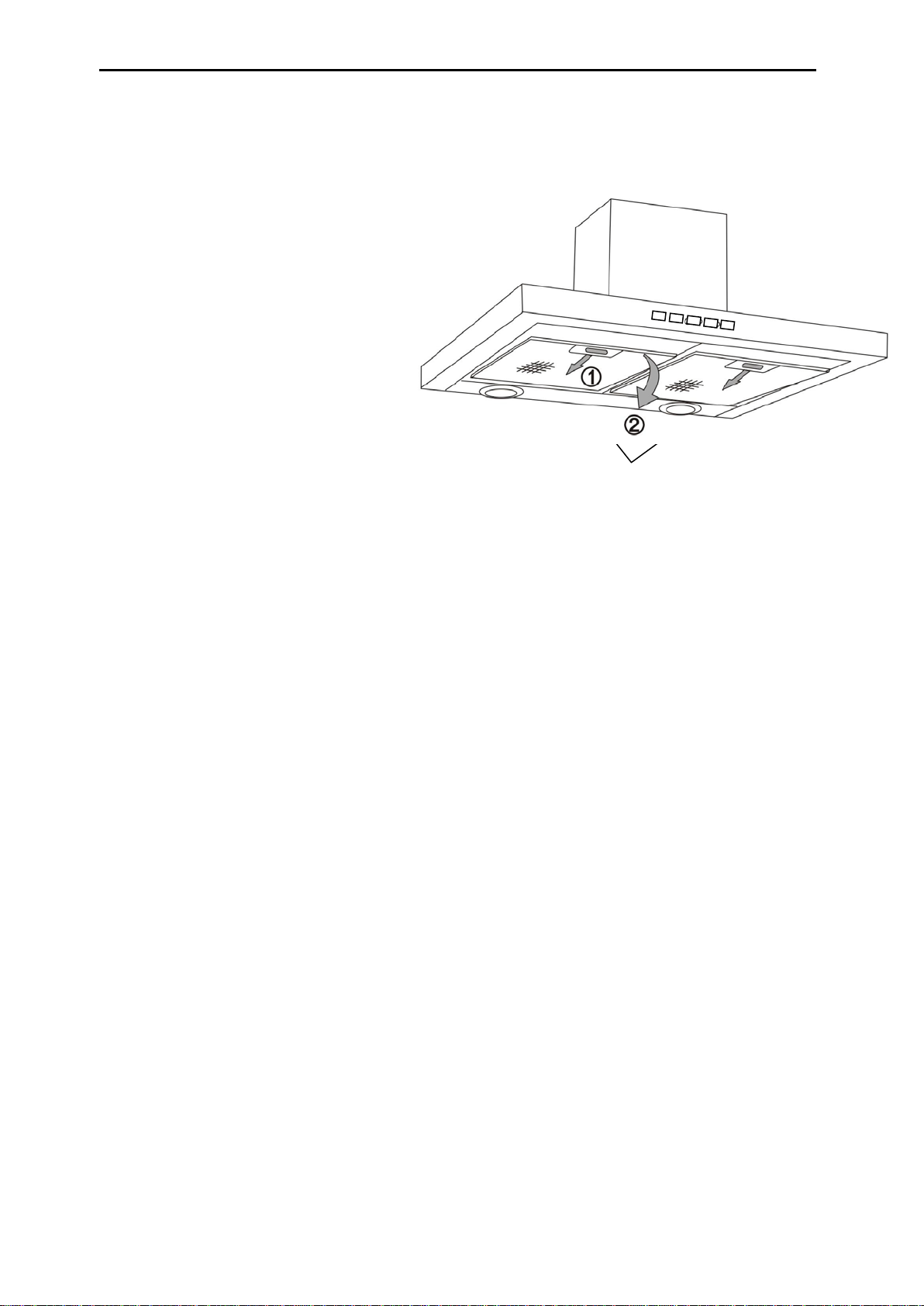

Remove filter by pushing filter towards the
back of hood and rotating filter downward.
Duct free (Carbon) Filters-buy separately
The duct free filters should be changed every 6 months. Rotate the filters to remove and replace.
Hood Cleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its
fine appearance.
Cleaning tips:
 Hot water with soap or detergent is all that is usually needed.
 Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water
marks.
 For discolorations or deposits that persist, use a non-scratching household cleanser or stainless
steel polishing powder with a little water and a soft cloth.
 For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleanser and
water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too
much pressure which may mar the surface.
 Don’t allow deposits to remain for long time.
 Don’t use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
causing rust.
 Don’t allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals which
may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
Filter

10
 After you have connected the appliance to the mains supply the backlight will turn on. It will turn
off after 5s without any operation and the hood will enter stand-by mode.
TOUCH CONTROLS
 Press one of the speed buttons to turn the appliance on.
 Press the button for low speed. Push the button again and the motor will stop.
 Press the button for medium speed. Push the button again and the motor will stop.
 Press the button for high speed. Push the button again and the motor will stop.
 Press the button and the lights will come on. Push the button again and lights will turn
off.
 While the range hood is in use, if you press the timer button once, the range hood will run
for 5 minutes and then enter stand-by mode.
Light may be hot, please rotate when the light is cool.
LED LIGHTS
Always switch off the electricity supply before carrying out any operations on the appliance.
To change the light:
Open the filter and find the spring of the light, push the spring and the light will be slip out. Change
the light as with same kind of 4Volt, 2.5 Watt LED light.
Caution:

11

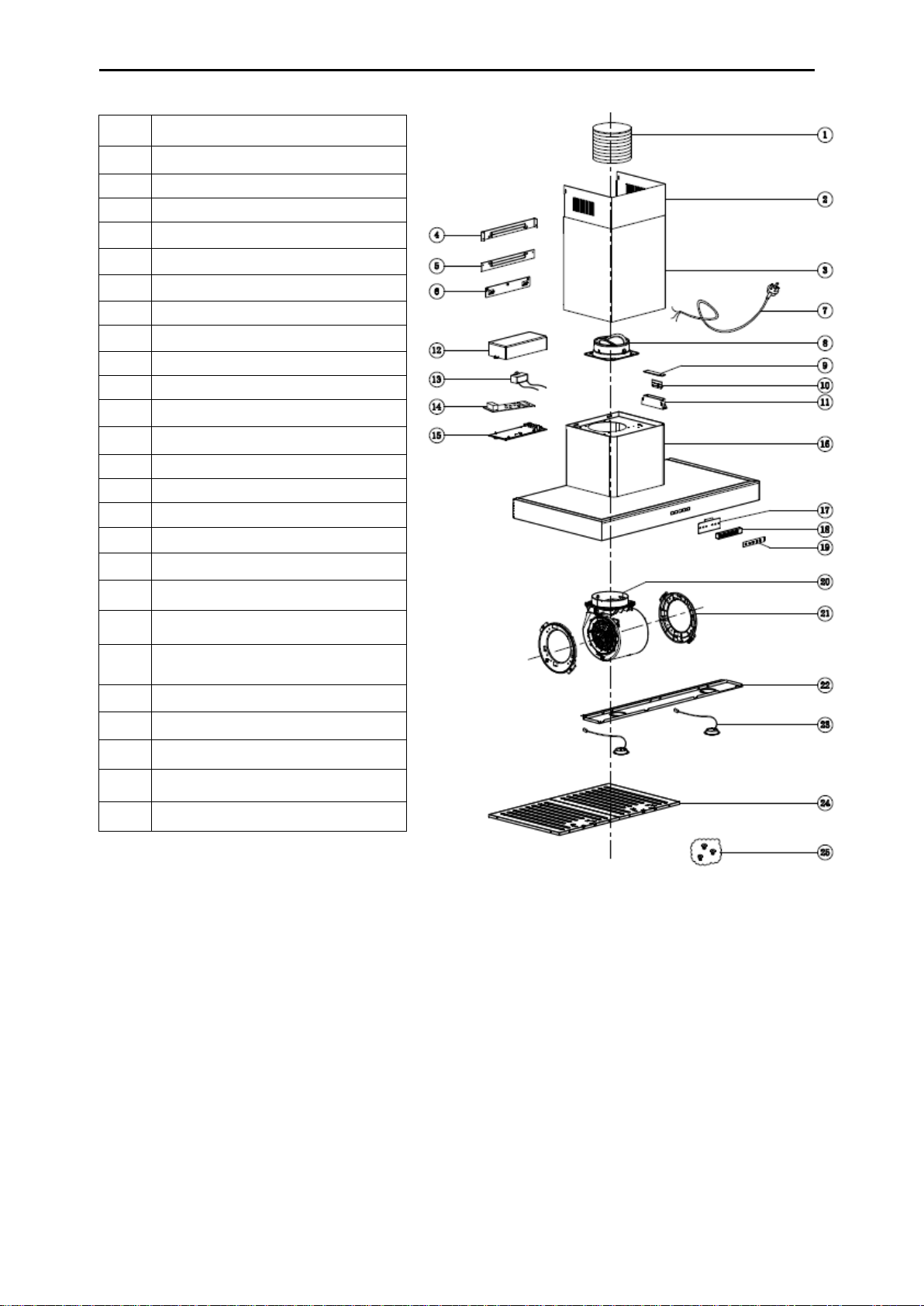

PARTS LIST
No. Part name
1 Flexible tube
2 Decorative upper flue
3 Decorative lower flue
4 Upper flue mounting bracket
5 Lower flue mounting bracket
6 Hood mounting hook
7 Power cord
8 Metal VENT
9 Cover of Transformer
10 Transformer
11 Box of Transformer
12 Cover of electric box
13 Capacitor
14 PCB board
15 Base of electric box
16 Housing
17 Bracket of control
18 Box of control
19 Controller assembly
20
Blower assembly (include
motor)
21 Bracket of charcoal filter
22 Light panel
23 LED lights (1 set with 2pcs)
24 Baffle filter (1 set with 2pcs)
25 Screw bag

12
Problem
TROUBLESHOOTING
Cause Solution
Light on, but motor does not
work
The leaf blocked Get rid of the blocking
The capacitor damaged Replace capacitor
The motor jammed bearing damaged Replace motor
The internal with of motor off or a bad
smell from the motor Replace motor
Light does not work, motor
does not work
Beside the above mentioned, check the following:
Light damaged Replace lights
Power cord looses Connect the wires as per the
electric diagram
Oil leakage
One way valve and the air ventilation
entrance are not tightly sealed
Take down the one way valve
and seal with glue
Leakage from the connection of
U-shaped section and cover
Tak e U-shaped section down
and seal with soap or paint
Shake of the body
The leaf damaged and causes shaking Replace the leaf
The motor is not tightly hanged Lock the motor tightly
The body is not tightly hanged Fixed the body tightly
Insufficient suction
The distance between the body and
the gas top too long Readjust the distance
Too much ventilation from open doors
or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight enough Tighten the hanging screw and
make it horizontal
The hanging screw not tight enough Tighten the hanging screw and
make it horizontal

Customer Service: 1-844-801-8880
E-mail: [e-mail]
www. geekappliances.com
