Gefen EXT-HDMI-CAT5-148 User manual

www.gefen.com
f
1:8 CAT5
Distribution
Amplifier
EXT-HDMI-CAT5-148
User Manual

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
[email protected]
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
1:8 HDMI CAT5 Distribution Amplifier is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
Rev X2

CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Descriptions
5 Receiver Panel Descriptions
6 Connecting And Operating The 1:8 HDMI CAT5 DA
7 Manual Equalization Procedure
8 Network Cable Wiring Diagram
9 Specifications
10 Warranty

1
Congratulations on your purchase of the 1:8 HDMI CAT5 Distribution Amplifier
DA. Your complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 1:8 HDMI CAT5 DA
The Gefen 1:8 HDMI Over CAT5 Distribution Amplifier allows you to distribute a
single HDMI video source remotely to as many as 8 separate HDTV displays via
inexpensive and standard CAT5 cables as well as HDMI cables.
How It Works
Simply plug your master video source into the Gefen 1:8 HDMI Over CAT5 DA
sender unit, then run your cables to the remote locations.
If you are using CAT5 cables, pair up your cables with separately purchased
HDMI CAT5 DAR receivers at each video display.
If you are using HDMI cables, just attach up to 8 HDMI cables on the outputs and
connect the other ends to the displays.
After connection of cables, power up (or re-start) all equipment and you will have
effortless HDMI video duplication at all locations.
INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 1:8 HDMI CAT5 DA
The• 1:8 HDMI CAT5 DA unit is housed in a metal box for better RF shielding.
An HDMI jumper cable (8 are included) must be connected from each of the• lower board outputs to each of the upper board inputs for proper extension
operation.
The maximum cable extension is 300 feet (91 meters) for video resolutions of• 1080i and below.
The maximum cable extension is 150 feet (45 meters) for video resolutions of• 1080p.
Display information (EDID) from the display attached to the HDMI CAT5 DAR• receiver, which is then routed to HDMI output port 1 (lower board), will be sent back
to the source. Therefore, all other displays connected to the receivers at the remote
locations must be capable of accepting the timings and resolutions of the display
that is attached to HDMI output port 1. It is recommended that the display with the
lowest native resolution be connected to HDMI output port 1. This is to ensure that
a compatible video signal will be able to be displayed on all connected monitors.
Shielded CAT6 with metal RJ-45 connectors is recommended to protect from• random flashes caused by EMI.
Extensions under 130 feet can use Auto EQ (which is on by default).• Extensions over 130 feet will require you to manually EQ your signal (see page
5).
Each cable is recommended to be one continuous run from one end to the• other. While wall jacks and punch down blocks can be used, they may cause
degraded performance or unforeseen issues.
Do not use stranded or low/no skew cabling. Solid core cabling should be used• for maximum performance.
HDMI \ HDCP Compliant.•
The included power supply for the RECEIVER must be connected before the• connection of the CAT-5 cables. Once the power LED is active on the receiver
the CAT-5 cables can then be connected.Always follow this initialization
procedure on the RECEIVER if power has to been cycled due to a power
outage or for troubleshooting purposes.
2
OPERATION NOTES

3
Features
HDMI Video Distribution to up to 8 displays•
300 ft. at 1080i; 150-ft range for 1080p•
Maintains high resolution video - beautiful, sharp HDTV resolutions up to• 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
Enables greater versatility when installing multiple HDMI displays•
HDMI / HDCP compliant•
Package Includes
(1) 1:8 HDMI CAT5 Distribution Amplifier (Sender Unit)
(1) 6 foot HDMI Cable (M-M)
(8) 1 foot HDMI Cable (M-M)
(1) 24V DC power supply
(1) User Manual
FEATURES

4

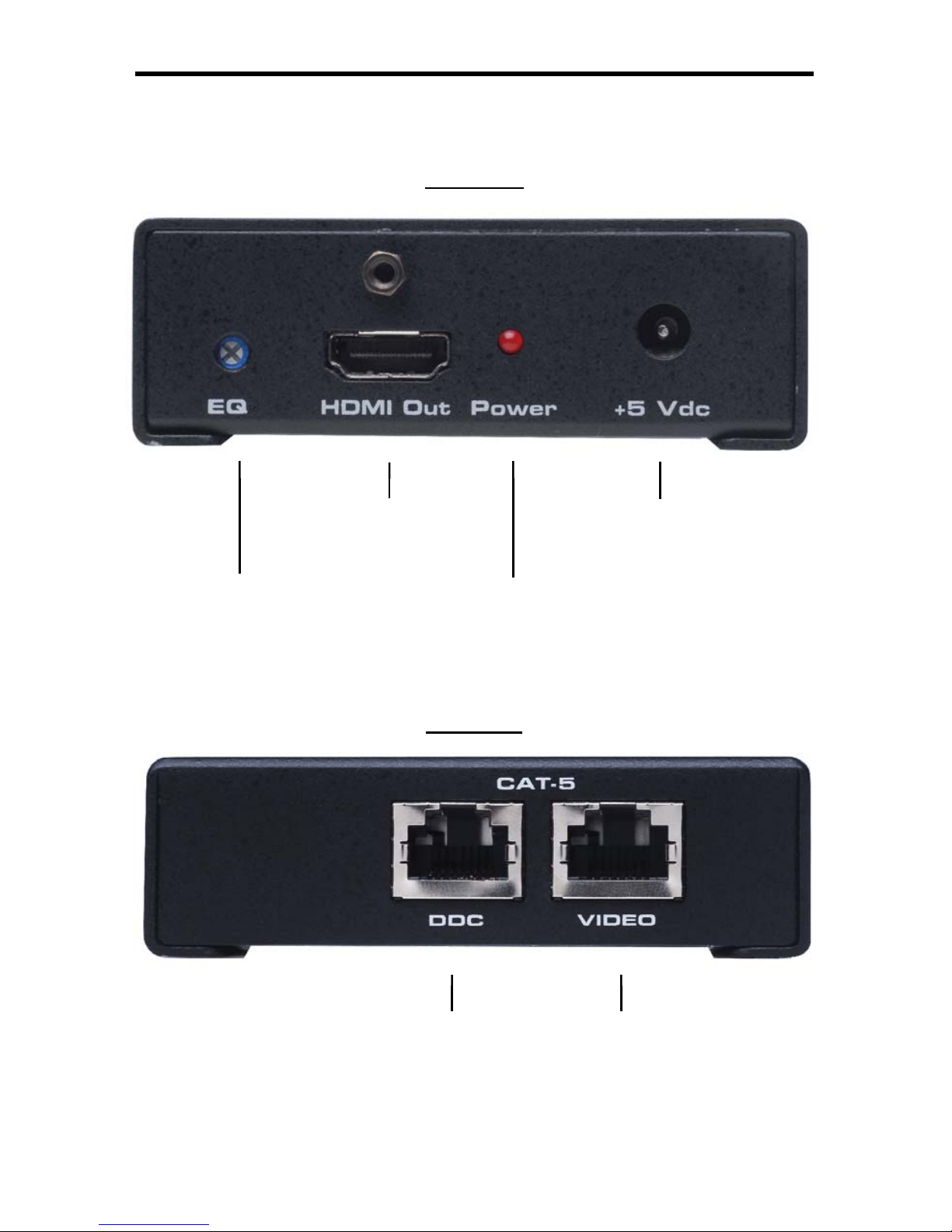

Front Panel
Back Panel
HDMI 1 & 5
RJ-45 Outputs HDMI 2 & 6 RJ-45 Outputs
HDMI 1*
Output HDMI 5 Output
*NOTE: Display information (EDID) is used from whichever display is connected to this port.
Main
HDMI
Input
HDMI 3
Output HDMI 7 Output
Power LED
Indicator
HDMI 2
Output HDMI 6 Output
24V DC Power
Input
HDMI 4 & 8
Input
HDMI 3 & 7
Input
HDMI 2 & 6
Input
HDMI 1 & 5
Input
HDMI 4
Output HDMI 8 Output
HDMI 3 & 7
RJ-45 Outputs HDMI 4 & 8 RJ-45 Outputs
SENDER PANEL DESCRIPTIONS

5
Front Panel
Back Panel
HDMI Output
VIDEO RJ-45
Port
DDC RJ-45 Port
5V DC
Power input
Power LED
Indicator
EQ trim pot
RECEIVER PANEL DESCRIPTIONS

6
How to Connect the 1:8 HDMI CAT5 DA
Connect the single HDMI source to the 1:8 HDMI CAT5 DA main HDMI input1. using the supplied 6 foot HDMI cable.
Using the 8 supplied 1 foot HDMI jumper cables, connect each output on2. the lower portion of the back panel to each of the HDMI inputs on the upper
portion of the 1:8 HDMI CAT5 DA.
Connect the remote displays (up to eight) to each of the HDMI CAT5 DAR3. receivers using user supplied HDMI cables.
Connect the 5V DC power supply to each of the4. HDMI CAT5 DAR
Receivers.
NOTE: The included power supply for the RECEIVER must be connected before
the connection of the CAT-5 cables. Once the power LED is active on the receiver
the CAT-5 cables can then be connected.Always follow this initialization procedure
on the RECEIVER if power has to been cycled due to a power outage or for
troubleshooting purposes.
Connect each of the HDMI CAT5 DAR receivers (up to eight) to the 1:85. HDMI CAT5 DA sending unit using a pair of CAT-5, CAT-5e or CAT-6 cables.
NOTE: If field terminating network cable, please adhere to the TIA/EIA-568-B
standard. Please see page 8 for more information.
Connect the included 24V DC power supply to the 1:8 HDMI CAT5 DA.6.
Power on the displays.7.
Power on the source.8.
NOTE: If an image is not being shown on the display, please check all cabling for
proper connections and follow the steps outlined below and in the next section.
The 1:8 HDMI CAT5 DA and HDMI CAT5 DAR receivers have built-in auto
equalization that will automatically tune out any unwanted video noise. This
feature is reliable with premium cable runs up to a maximum of 130 feet. It may
be necessary to disable this feature if there is either no video being displayed on
initial start-up, there is video noise in the image, or the cable run exceeds 130
feet. First, verify that all the proper connections have been made and that all
devices are powered on before attempting to disable auto equalization. Please
follow the section on the next page to manually equalize the video signal.
1:8 HDMI CAT5 DA CONFIGURATION
CONNECTING AND OPERATING THE 1:8 HDMI CAT5 DA

7
MANUAL EQUALIZATION PROCEDURE
The HDMI CAT5 DAR receiver units have a set of dip switches located on the
underside of their casings. There is a piece of silver metallic tape that must be
removed to expose these dip switches. Each HDMI CAT5 DAR receiver carries
one bank of 4 dip switches. All dip switches on the HDMI CAT5 DAR receiving
units are used in this procedure. Dip switches 1 relates to the Auto Equalization
function, while dip switches 3 and 4 control the boost strength from the 1:8
HDMI CAT5 sending unit. By default, all dip switches on the HDMI CAT5 DAR
should be in the OFF position. To turn off auto equalization, turn dip switch 1 on
the receiving units to the ON position (Auto EQ off). With these settings, please
follow the steps below to equalize the picture.
Insert a small flat head tool into the trim pot on the receiver unit.1.
Turn the trim pot in a clockwise fashion until it comes to a stop. Do not force2. the trim pot beyond this point. Doing so may render the trim pot useless.
Slowly turn the trim pot counter-clockwise in millimeter increments until the3. image stabilizes and all video noise disappears.
Carefully remove the adjustment tool.4.
NOTE: If your cable run is beyond 130 feet, or the steps above do not produce
any video, it may be necessary to increase the boost from the sending unit. Use
the chart below to increase the senders boost strength by changing the HDMI
CAT5 DAR receiver’s dip switches. Once a new boost setting is set, repeat steps
1 through 4 from above. The required boost setting will largely be dependant
on the quality and length of cabling. Experiment with all boost settings until the
image stabilizes and all video noise has been eliminated.
Receiver Auto EQ Dip Switch Settings
Setting Switch 1 Switch 2
Manual EQ ON Not Used
Auto EQ (Default) OFF Not Used
Receiver Boost Dip Switch Settings
Setting Switch 3 Switch 4
No Boost (Default) OFF OFF
Medium Boost OFF ON
High Boost ON OFF
Very Low Boost ON ON

12345678
Gefen has specifically engineered their products to work with the TIA/EIA-568-B
specification. Please adhere to the table below when field terminating cable for
use with Gefen products. Failure to do so may produce unexpected results and
reduced performance.
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling. CAT-6 cable is also recommended
for best results.
Each cable run must be one continuous run from one end to the other. No splices
or use of punch down blocks.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
8
NETWORK CABLE WIRING DIAGRAM

9
Video Amplifier Bandwidth ....................................................................... 165 MHz
Input Video Signal .............................................................................. 1.2 volts p-p
Input DDC Signal ......................................................................... 5 volts p-p (TTL)
Single Link Range ................................................................... 1080p/1920 x 1200
HDMI Video Connector ...................................................... Type A, 19 Pin Female
Power Supply ............................................................................................ 24V DC
Power Consumption ....................................................................... 60 watts (max)
Dimensions ........................................................... 17.125” W x 3.50” H x 4.125” D
Shipping Weight .......................................................................................... 10 lbs.
SPECIFICATIONS
