INTRODUCTION
Thank you for purchasing the Home Theater Scaler Plus.
The Gefen Home Theater Scaler Plus allows you to upscale and switch your standard
definition or high definition component and HDMI sources to resolutions up to 1080p.
Anything from set-top boxes, DVD players to the next generation of gaming consoles
including the Xbox 360 and PS3 can be plugged into the Home Theater Scaler.
The Home Theater Scaler Plus supports one component source with analog audio, one
composite or S-video source with analog audio, and two HDMI sources with digital audio.
TheanalogaudiofromtheanalogsourcesisdigitizedandoutputtedtotheHDMIconnection
as well as the digital audio outs. The HDMI inputs also have separate digital audio inputs,
so you can use DVI sources and separate digital audio and the Home Theater Scaler Plus
will embed the digital audio into the HDMI output as well as the digital audio outs.
Easy to use on-screen menus accessible through the IR remote control allow for
effortless setup and image adjustment to accommodate different viewing modes and
screen sizes.
Note: The switching is done by using the the RMT-SR-IR remote control. Any HDTV with
DVI inputs can be connected to the HDMI output of the Home Theater Scaler by using a
HDMI to DVI adapter, if the cable being used is DVI.
1
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE HOME THEATER SCALER PLUS
• The Home Theater Scaler Plus works with all DVI and HDMI displays.
• The Home Theater Scaler Plus is fully HDCP compliant.

2
FEATURES
Features
• Both digital and analog inputs are format converted and pixel re-scaled through the
Home Theater Scaler. It outputs a large range of formats and resolutions that will
easily match the native resolution/ format of your display to ensure highest picture
quality.
• DVI/HDCP/HDMI compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
• Supports digital HD output up to 1080p.
• Dual high quality scaling engines.
• Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
• Option to select Audio input from HDMI or TOSlink/SPDIF audio source.
• Supports HDCP compliant devices
• Integrated 8-bit triple-ADC/PLL.
• Integrated DVI/HDCP/HDMI compliant receiver.
• Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
• High performance frame rate conversion engine.
• Option to select Audio input from HDMI or TOSlink/SPDIF audio source.
• 3D noise reduction on analog inputs only.
• Aspect Ratio Control
• Digital Audio Delay to match audio/video timing
• Less then one frame delay allowing for gaming
• The ProprietaryAdvanced Color Engine technology gives: Brilliant and fresh color,
Intensified contrast and details, Vivid skin tone, Sharp edge,Accurate and
independent color control
Includes:
(1) Home Theater Scaler Plus
(1) 6 ft HDMI cable (M-M)
(1) 5V Power Supply
(1) IR Remote control
(1) User’s Manual

PANEL LAYOUT
3
Component Video and
Analog Audio 1 Input
Composite Video and
Analog Audio 2 Input
Connects 5V
Power Supply
IR Extender Eye
Digital Audio and
HDMI Output Digital Audio and
HDMI Input 4 Digital Audio and
HDMI Input 5
S-Video
Input
Power
On/Off

OPERATION CONTROLS AND FUNCTIONS
PC INPUT: RGBHV VGA/SVGA/XGA/SXGA/UXGA/WXGA/WSXGA/WUXGA
VGA@ (60//72/75/85/SVGA @ (56/60/72/75/85)
XGA @ (60/70/75/85)/SXGA @ (60/75/85)/UXGA @ 60/
WXGA @ 60(1280x800)/WSXGA @ 60(1680x1050)
WUXGA @ 60(1920x1200)/1360x768
HDMI INPUT: Digital VGA @ (60/72/75/85)/SVGA @ (56/60/72/75/85)
XGA @ (60/70/75/85) / SXGA @ (60/75/85) /
UXGA @ 60/WXGA @ (1280x800)
WSXGA @ 60(1680x1050)
WUXGA @ 60(1920x1200)/1360x768
480i/p @ 50/60Hz
576i/p @ 50Hz
720p @ 50/60Hz
1080i @ 50/60Hz
1080p @ 50//60Hz
COMPONENT YPbPr 480p @ 50/60Hz
576 @ 50Hz
720p @ 50/60Hz
1080i @ 50/60Hz
1080p @ 50//60Hz
YCbCr 480i @ 60Hz
576i @ 50Hz
Composite /
S-Video YUV / Y-C 480i @ 60Hz
The Home Theater Scaler Plus accepts component, PC and HDMI inputs with audio on
each. The formats supported by these inputs are as follows:
4
When connecting to a component source (either SD or HD resolution) use a 3RCA to
3RCA cable to connect the YPbPr or YCbCr output of a DVD or Set Top Box to the
y-Cb/Pb-Cr/Pr input connector of the Home Theater Scaler Plus.
When connecting to an DVI source, use an DVI to HDMI cable (or adaptor) to connect
the DVI output of a STB or DVD to the HDMI input connector of the Home Theater
Scaler Plus.
The Home Theater Scaler Plus can automatically detect the input resolution of all three
inputs.
When connecting to a HDMI source, use an HDMl cable to connect the HDMl output of
a STB or DVD to the HDMI input connector of the Home Theater Scaler Plus.
The Home Theater Scaler Plus can automatically detect the input resolution of all four
inputs.

After you power on the unit, press the menu button and it will bring up the main menu
as follows:
OPERATION CONTROLS AND FUNCTIONS
Video (or PC): When Video is selected, a sub menu as shown below, will come up.
5

OPERATION CONTROLS AND FUNCTIONS
Picture mode: There are 4 picture modes for customer to choose from.
User: Select to adjust to your favorite setting and store it.
Standard: Standard factory default setting for optimal display in a normal
environment.
Vivid: High saturation picture for optimal display in a bright room.
Movie: Picture for comfortable low brightness display in a dark room.
Scale: Select overscan when input source is SD or HD video to ensure no black
band around screen border. Select underscan when input source is PC signal to
ensure full picture content will fall within screen border.
Noise Reduction: This function only works when input is analog RGB or component,
It will not work for DVI input. There are four settings that will Noise Reduction-Off, Low,
Middle, and High. The Noise Reduction will remove the noise that results from the ana-
log to digital convertion and digital scaling process.
H & V position: To adjust for the best horizotal and vertical position of the picture
in the screen.
User: Select to adjust to your favorite color ternperature setting.
Normal: Normal color tone setting where white is pure white.
Warm: Warm color tone makes white a little reddish.
Cool: Cool color tone makes white a little bluish.

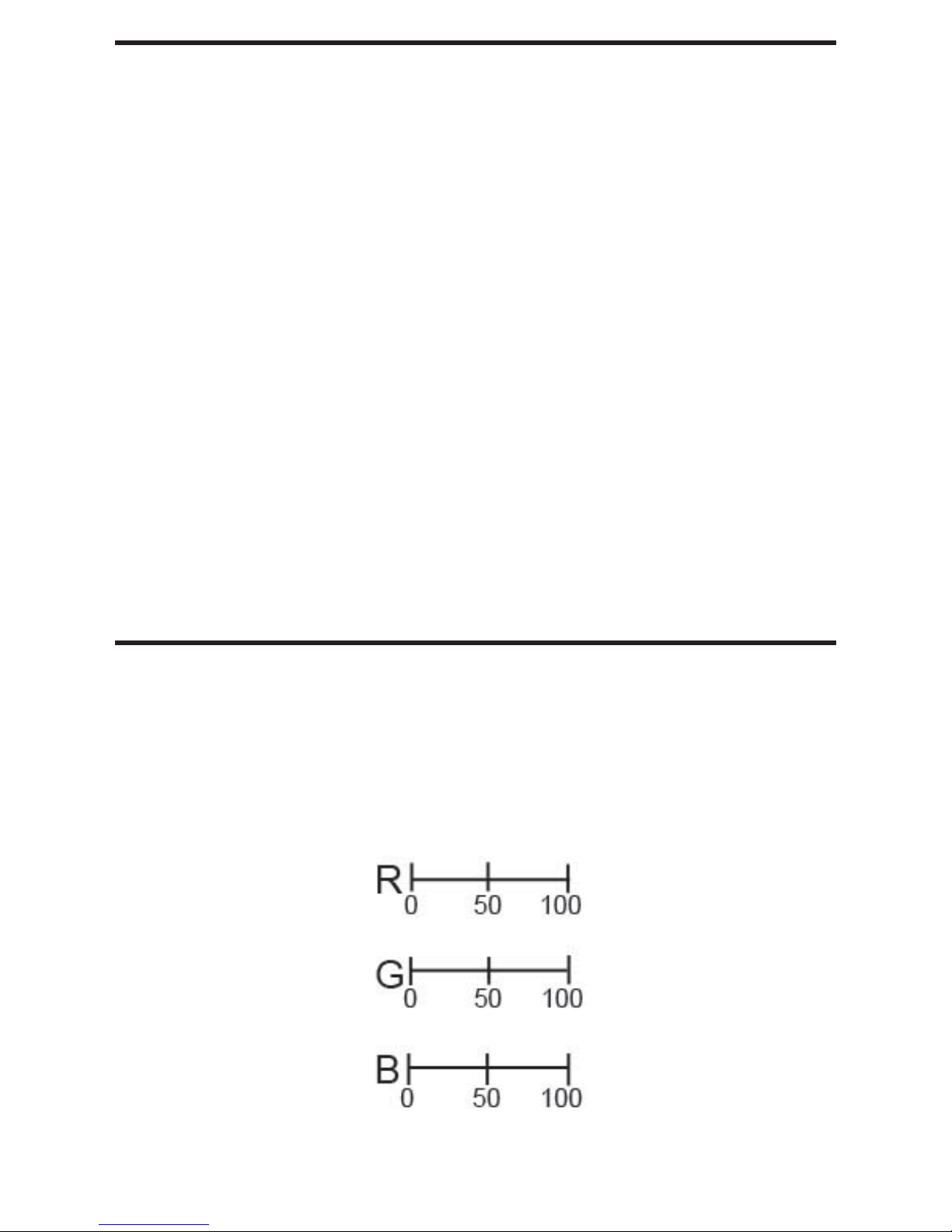

COLOR SETTINGS
6
Value of normal setting

OUTPUT SETTINGS
DVI/HDMI (up to 165 MH) Resolution 1/p* Format
480i 720x480 i RGBHV
480p 720x480 p RGBHV
576i 720x576 i RGBHV
576p 720x576 p RGBHV
720p @ (50/60) 1280x720 p RGBHV
1080i @ (25/30) 1920x1080 i RGBHV
1080p @ (50/60) 1920x1080 p RGBHV
VGA @ 60 640x480 p RGBHV
SVGA @ 60 800x600 p RGBHV
XGA @ 60 1024x768 p RGBHV
SXGA @ 60 1280x1024 p RGBHV
UXGA 1600x1200 p RGBHV
WXGA @ 60 1280x800 p RGBHV
WSXGA @ 60 1680x1050 p RGBHV
WUXGA @ 60 1920x1200 p RGBHV
* i: interlaced p; progressive
Natlve: When it is selected, the Home Theater Scaler will automatically adjust its
output timing to match the native timing of the display.
Output: The Home Theater Scale Plus can output a wide variety of PC and HD \
resolutions as follows:
H. Position: Adjust the horizontal position of the OSD graphic.
V. Position: Adjust the vertical position of the OSD graphic.
Time out: Set a predetemined Time to turn off OSD menu on the screen.
Background: To select transparent or solid background of OSD graphic.
OSD ADJUSTMENT
Project: Show product model number.
Input: Show input resolution i.e XGA.
Output: Show output resolution i.e 720p.
Date: Show date of firmware version.
INFORMATION
7

USING THE HOME THEATER SCALER PLUS
1.
2.
3.
4.
8
Connect all the sources to the DVI and/or Component Inputs to the Home Theater
Scaler Plus.
Connect the HDMI/DVI displays to the DVI output, with the proper cable and/or
adapter, on the HD Mate.
Connect the 5VDC powersupply to the Home Theater Scaler Plus.
Controlling the Home Theater Scaler Plus using the RMT-SR-IR:
By Pressing
Buttons... Does...
input select changes between sources
output select changes between display outputs
power power the scaler on/off
menu bring up the on screen menu
exit allows user to exit the on screen menu
up,down,left,right allow user to navigate through menu
ok (enter) allows user to confirm their selection
reset press the bulfon to reset the unit’s
firmware setting to the factory default value.
auto adjust press the button to optimize the
position of the picture (picture centering) on the screen.
*Note for computers connected to the Home Theater Scaler Plus- When your
computer boots up, it looks for an EDID (extended display identification data) from
the display to tell it what monitor is connected and what resolution to output. During
boot up of the computer you should have the DVI input selected so that the com-
puter gets the EDID of the display that is selected.
This step can also be eliminated by using a DVI Detective.

9
RMT8-IR INSTALLATION
1. Remove battery cover from the back of the RMT-SR-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up.
The side that is not marked must be facing down.
4. Test the RMT-SR-IR remote by pressing ONLY one button at a time. The indicator
lighton the remote will flash once each time you press a button. WARNING: Do not
press multiple buttons simultaneously and do NOT press buttons rapidly. These
actions will cause the remote to reset and steps 1-4 will have to be repeated.
Note* The RMT-SR-IR ships with two batteries. One battery is required for operation,
the second battery is complimentary.

PIN CONFIGURATION
10
HDMI Output Pin Assignment
Pin # Function Assignment Pin # Function Assignment
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect

Digital Video Amplifier Bandwidth.......................................................................1.65 Gbps
Component Video Bandwidth................................................................................350 Mhz
Input DDC Signal......................................................................................5 volts p-p (TTL)
Input Video Signal...........................................................................................1.2 volts p-p
Single Link Range................................................................................1080p/1920 x 1200
Input/Output HDMI Connector...........................................................Type A 19 pin female
Analog Video Connector 1....................................................................3 RCAComponent
Analog Video Connector 2.....................................................................1 RCAComposite
Analog Video Connector 3......................................................................................S-video
Digital Audio Connector..................................................Optical TOSlink and Coax SPDIF
Analog Audio Connector...........................................................................................2 RCA
Power Supply...........................................................................................................5V DC
Power Consumption....................................................................................20 watts (max)
Dimensions..........................................................................6.875”W x 2.125”H x 6.875”D
Shipping Weight.........................................................................................................6 lbs.
SPECIFICATIONS
11

DDC
Short form for Display Data Channel. It is a VESA standard for communication between
a monitor and a video adapter. Using DDC, a monitor can inform the video card about its
properties, such as maximum resolution and color depth. The video card can then use
this information to ensure that the user is presented with valid options for configuring the
display.
DDWG
Digital Display Working Group DDWG are the creators of the DVI specification.
DVI
Digital Visual Interface. Connection standard developed by Intel for connecting computers
to digital monitors such as flat panels and DLP projectors.Aconsumer electronics version,
notnecessarilycompatible with thePC version, isusedas a connectionstandardfor HDTV
tuners and displays. Transmits an uncompressed digital signal to the display. The latter
version uses HDCP copy protection to prevent unauthorized copying.
HDCP
High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV
signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent
unauthorized duplication of copy written material.
HDMI
TheHigh-DefinitionMulti-mediaInterface (HDMI) isanindustry-supported,uncompressed,
all-digitalaudio/videointerface. HDMI providesaninterface between anycompatibledigital
audio/video source, such as a set-top box, DVD player, andA/V receiver and a compatible
digital audio and/or video monitor, such as a digital television (DTV).
HDTV
High-DefinitionTelevision.Thehigh-resolutionsubsetofourDTVsystem.TheATSC defines
HDTVasa16:9 image withtwicethehorizontalandverticalresolutionofourexisting system,
accompanied by 5.1 channels of Dolby Digital audio. The CEAdefines HDTV as an image
with 720 progressive or 1080 interlaced active (top to bottom) scan lines. 1280:720p and
1920:1080i are typically accepted as high-definition scan rates.
RS-232
RecommendedStandard 232.This is thede facto standardfor communicationthrough PC
serial ports. It can refer to cables and ports that support the RS232 standard.
VESA
VideoElectronic StandardsAssociation,aconsortiumof manufacturers formedtoestablish
andmaintainindustrywide standards forvideocardsand monitors. VESAwasinstrumental
in the introduction of the Super VGA and Extended VGA video graphics standards with
a refresh rate of 70 Hz, minimizing flicker and helping to reduce user eyestrain and
fatigue.
TERMINOLOGY
12

Gefen Inc. warrants the equipment it manufactures to be free from defects in material and
workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within two (2) year
from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment,
provided that the equipment has not been subjected to mechanical, electrical, or other
abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the of repair. Such repairs are warranted for
ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose, all
of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
The information in this manual has been carefully checked and is believed to be accurate.
However, GefenInc. assumes noresponsibility for anyinaccuraciesthat maybecontained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the Home Theater Scaler Plus features and specifications is subject to change
without notice.
WARRANTY
13
