Gematronic SCE-650 User manual

GAMATRONIC ELECTRONIC INDUSTRIES LTD.
17 Hartom St., P.O.B. 45029, Jerusalem 91450, Israel
Tel: [phone] Fax: [phone]
Email: [e-mail] Website: www.gamatronic.com
SMART COMPACT UPS
User’s Manual
650 VA 750 VA 1000 VA 1500 VA
Release 1.8, November 2013
2MUXSMART-E

ii
Gamatronic Electronic Industries Ltd.
Har Hotzvim Industrial Park
17 Hartom St., PO Box 45029, Jerusalem 91450 Israel
Tel: [phone] Fax: [phone]
Email: [email protected] Website: www.gamatronic.com
The equipment described in this document is not intended to be used in connection with any application
requiring fail-safe performance, unless the application design includes appropriate redundancy. This
exclusion includes, but is not limited to, the direct operation of any life support system or any other system
whose failure could lead to serious injury, death, environmental damage or mass destruction.
Copyright 2013 by Gamatronic Electronic Industries Ltd. All rights reserved worldwide.
Any representations in this document concerning the performance of Gamatronic's product(s) are for informational purposes only and are not
warranties of future performance, either express or implied. Gamatronic's standard limited Warranty, which accompanies its sales contract
or order confirmation form, is the only warranty offered by Gamatronic Electronic Industries Ltd. in relation thereto.
Gamatronic Electronic Industries Ltd. ("Gamatronic") warrants the products it manufactures to be free from defect for a period of one calendar
year from the date of invoice, including the date of invoice. Gamatronic's liability is limited to repairing or replacing any defective parts in the
equipment under warranty. Gamatronic reserves the right to determine whether the repair work shall be performed at Gamatronic's factory, at the
customer's premises, or at an alternate site. The customer must obtain authorization from Gamatronic before returning any parts or equipment to
Gamatronic for repair or replacement. Any items returned to Gamatronic must be sent freight prepaid.
Gamatronic’s liability and warranty to the product are according and subject to the fulfillment and implementation by the customer of all the terms
and instructions in connection with “preventive maintenance” and “service and repair” as further detailed in the user guide which is attached to
the product and forms an integral part of it.”
Gamatronic is not responsible for any damage to the product due to unauthorized repair work, misuse or abuse of the product, or force majeure.
If the product is delivered without batteries, Gamatronic is not responsible for any damage or malfunction due to incorrect wiring of the batteries.
Gamatronic is not liable for and the Purchaser waives any right of action it has or may have against Gamatronic for any consequential or special
damages arising out of any breach of warranty, and for any damages that the Purchaser may claim for damage to any property or injury or death
to any person arising out of its purchase or the use, operation or maintenance of the subject product.
This warranty includes parts and labor; however, Gamatronic shall not be responsible for any labor subcontracted or performed by the Purchaser
to prepare the warranted item for return to Gamatronic or Gamatronic's agent.
The information contained in this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual
property, as well as any specific agreement protecting Gamatronic's rights in the aforesaid information. Neither this document nor the information
contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of
Gamatronic. In addition, any use of this document or the information contained herein for any purposes other than those for which it was
disclosed is strictly forbidden.
Gamatronic reserves the right, without prior notice or liability, to make changes in equipment design or specifications.
Information supplied by Gamatronic is believed to be accurate and reliable. However, no responsibility is assumed by Gamatronic for the use
thereof nor for the rights of third parties which may be affected in any way by the use thereof.
This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless
specifically undertaken in Gamatronic Electronic Industries Ltd. standard limited Warranty. Information contained herein is periodically updated
and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Gamatronic Electronic Industries Ltd.
All specifications are subject to change without prior notice.

iii
Table of Contents
1. SAFETY PRECAUTIONS ..............................................................................1
1.1 Do’s.........................................................................................................1
1.2 Don’ts .....................................................................................................1
2. OVERVIEW ....................................................................................................2
2.1 Introduction and specifications ...........................................................2
2.2 In case of ac mains power failure ........................................................2
2.3 Features of the SMART COMPACT UPS..............................................3
2.4 Included with your SMART COMPACT UPS........................................3
3. FRONT AND REAR PANEL OF THE UPS....................................................4
3.1 Audible alarms.......................................................................................5
4. INSTALLATION INSTRUCTIONS..................................................................6
4.1 Site preparation .....................................................................................6
4.2 Access to the UPS.................................................................................6
4.3 Before first use, the UPS Battery must be charged ...........................6
4.4 Installing the SMART COMPACT UPS..................................................6
5. OPERATION INSTRUCTIONS ......................................................................7
5.1 Starting the UPS ....................................................................................7
5.2 Turning off the UPS...............................................................................7
5.3 Testing the UPS batteries.....................................................................7
5.4 Installation and use of the monitoring software.................................8
6. TROUBLESHOOTING...................................................................................8
7. PREVENTIVE MAINTENANCE .....................................................................9
8. SERVICE AND REPAIRS..............................................................................9
9. SYSTEM SPECIFICATIONS........................................................................10

iv
This page left blank deliberately.

Gamatronic Electronic Industries Ltd. User Guide
Smart Compact UPS
Safety Precautions
1
1. SAFETY PRECAUTIONS
1.1 Do’s
•Read this manual carefully before operating the UPS.
•Review these safety precautions to avoid damaging users or equipment.
•Install the UPS in a stable, clean, dry and well-ventilated location. Do not expose the UPS
to direct sunlight or to sources of high heat.
•Leave at least 20 cm of clearance space between the ventilation holes of the UPS and
other objects or walls.
•The UPS must be grounded to the building’s grounding system. Ensure that the power
outlet you use is properly grounded.
•The UPS contains batteries. Improper treatment of the UPS can result in electric shock,
even when the UPS is not connected to the ac power mains.
•Ensure that foreign objects do not enter the UPS’s ventilation holes.
•Allow only qualified technicians to service the UPS. There are no user-serviceable
components. Do not try to repair it yourself!
WARNING
Appropriate precautions should be taken during inspection and servicing; there is a risk of
lethal electric shock. The battery cabinet contains 12-Volt batteries that provide high
voltage even when the UPS is not connected to the mains.
1.2 Don’ts
•Do not open the cover under any circumstances.
•Do not insert any objects through the ventilation holes.
•Do not place objects on the top of the UPS.
•Do not move the UPS while it is operating.
•Do not turn the UPS upside down during transportation.
•Do not turn on the UPS when it is disconnected from the ac power mains.
•Do not disconnect the UPS from the power mains until the UPS is turned OFF.
•Do not place the ac power supply cord where it will be subject to strain or abuse.
•Do not turn on the UPS when it is disconnected from the ac power mains.
•In the event that the UPS is in storage for an extended period of time, recharge the
UPS batteries by connecting the UPS to the ac power mains for 8 hours.
•Do not use any liquid cleaners to clean the UPS. Use a dry cloth only.
WARNING
Do not touch the battery terminals of external batteries with bare hands.

User Guide Gamatronic Electronic Industries Ltd.
Smart Compact UPS
OVERVIEW
2
2. OVERVIEW
2.1 Introduction and specifications
Gamatronic is proud to present to you the line-interactive SMART COMPACT UPS (Uninterruptible
Power Supply). The SMART COMPACT UPS provides high-quality protection for a PC, a network
workstation, or any small Internet-connected device. The SMART COMPACT UPS includes built-in line
conditioning known as AVR (Auto-Voltage regulation), the best technology for protecting your PC against
all power disturbances, including power blackouts, power surge and power sag. Your choice of the
SMART COMPACT UPS means you are working smart, protecting your PC against power irregularities,
and protecting yourself against data loss.
2.2 In case of ac mains power failure
In the event of a power failure, the SMART COMPACT UPS supplies stable backup power to your
computer (or other connected device) from internal batteries. There is no interruption of power to your
computer.
The SMART COMPACT UPS informs you of the loss of ac power by lighting the orange LED on the front
panel, and beeping every four seconds.
The length of time that the SMART COMPACT UPS can supply backup power depends on the power
usage of the attached computer or other load, and on the level of battery charge.
In the case where the UPS is connected to a typical PC computer and the UPS battery is fully charged,
you can count on at least three to five minutes of backup, enough time to save your work and shutdown
the computer in an orderly fashion.
Printers typically draw large amounts of power, as do many household appliances. The SMART
COMPACT UPS is not designed to provide large amounts of power so do not connect a printer or
household appliances to the UPS.
Be aware that you need to charge the UPS batteries before your first use of the UPS. See section 4.3 on
page 6.

Gamatronic Electronic Industries Ltd. User Guide
Smart Compact UPS
OVERVIEW
3
2.3 Features of the SMART COMPACT UPS
•Transfer to backup mode is microprocessor-controlled.
•Automatic detection of ac input frequency (50/60 Hz).
•Reverts to power-saving “sleep mode” when the connected devices are not in use.
•Automatic Voltage Regulation for steady voltage.
•USB port for connection to a computer (see section 5.4).
•Can protect a modem or phone line from voltage spikes.
•Capable of “cold-starting” from the internal battery when there is no ac mains voltage.
•Automatic self-test at startup, and immediate notification of low battery and overload conditions.
•Protected against overload and against short-circuit in the attached equipment.
•Immediate notification of ac power failure via LED and audible alarm.
2.4 Included with your SMART COMPACT UPS
•Two power cables with male-female ends for connecting a computer and a monitor (screen) to the
UPS.
•A USB-USB cable for connection between the PC and the UPS, and a software program on CD
ROM for installation on the PC, which together make it possible to perform an orderly unattended
shutdown of the computer in the event of an ac power failure.
•A warrantee certificate.
•A user guide (this book).

User Guide Gamatronic Electronic Industries Ltd.
Smart Compact UPS
Front and rear panel of the UPS
4
3. FRONT AND REAR PANEL OF THE UPS

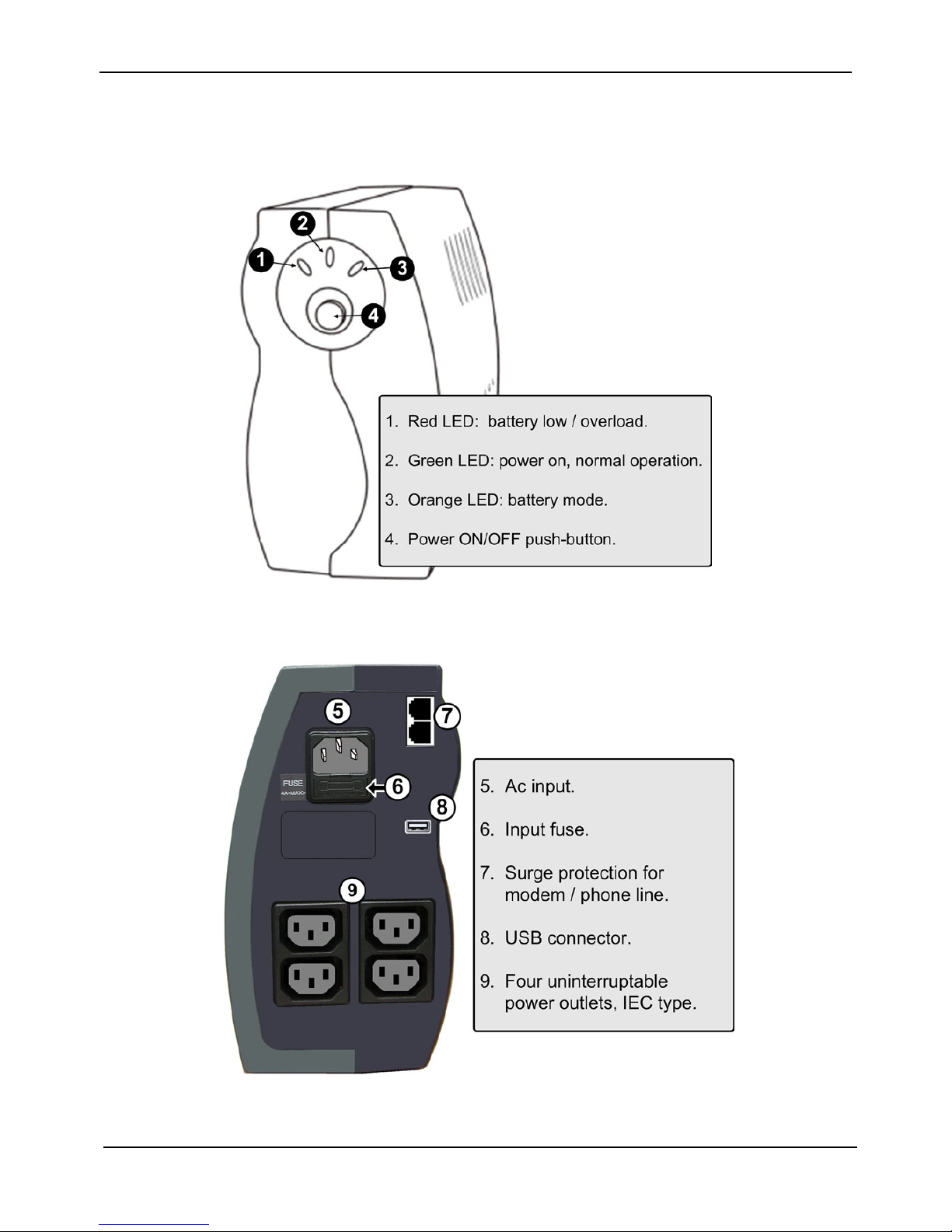

The UPS features shown in Figures 1 and 2 are explained in Table 1.
Figure 1 : Front view of the Smart Compact UPS
Figure 2 : Rear view of the Smart Compact UPS

Gamatronic Electronic Industries Ltd. User Guide
Smart Compact UPS
Front and rear panel of the UPS
5
Table 1 : UPS controls, indicators, and connectors
Item Description
1. Red LED When lit, indicates an overload condition, or a battery low condition.
2. Green LED When lit, indicates that ac power is present and the UPS is operating
normally, filtering the ac power and ready in the event of an ac failure.
3. Orange LED When lit, indicates that an ac power failure has occurred and that the UPS is
supplying power from its battery.
4. On/Off switch
Turns the UPS on and off.
Also used to “cold start” the UPS from battery power when there is no ac
power present.
5. Ac input connector The ac input power cord is connected here.
6. Ac input fuse
Protects the UPS in the event of a short circuit or other case of input power
overload. If it becomes necessary to replace the fuse, the new fuse must be
of the same rating.
7. RJ11 ports for
modem / phone line
These two female RJ11 ports – one for input and one for output – enable
you to protect a single modem line or telephone line from power surges.
8. USB type A port
Used to connect the UPS to the computer if it is desired to use the
unattended shutdown feature when a power failure occurs.
9. Ac output sockets
Supply stabilized ac power, and uninterrupted power in the event of an ac
power failure.
3.1 Audible alarms
The SMART COMPACT UPS has an audible alarm - it beeps - to indicate any of several problem
conditions. Table 2 explains how to understand the alarm.
The alarm can be silenced by pressing the ON/OFF button for 3 seconds and then releasing it.
The alarm will automatically be reactivated in the event of a new alarm condition.
Table 2 : Interpreting the audible alarm
Type of beep
Meaning
Every 4 seconds
The UPS is supplying power from the UPS battery due to a failure or other
irregularity in the normal ac power. On certain models the alarm can be silenced
by pressing and holding the On/Off switch for 2 seconds.
Every 1 second
Battery voltage is low.
Continuous
Overload condition.

User Guide Gamatronic Electronic Industries Ltd.
Smart Compact UPS
Installation instructions
6
4. INSTALLATION INSTRUCTIONS
4.1 Site preparation
The SMART COMPACT UPS is designed to operate in a wide variety of work environments. To ensure
long and satisfactory service from your UPS:
1. Choose a location for the UPS that is well ventilated and dust-free, close to the ac power supply
and to the device to be protected.
2. Ensure at least 20 cm of clearance space between the ventilation holes of the UPS and other
objects and walls.
3. Ensure that the UPS’s ventilation holes do not become obstructed.
4.2 Access to the UPS
All UPS controls and indicators are on the front panel.
All input and output cable connections are on the rear panel of the UPS.
4.3 Before first use, the UPS Battery must be charged
Before first use of the UPS, its batteries must be charged.
To charge the UPS batteries:
1. Plug the UPS into the ac power main
2. Turn on the UPS by pressing the ON/OFF button for 6 seconds.
3. Leave the UPS in this state for at least 8 hours, with no devices connected to it.
4. After 8 hours, the UPS is ready for use.
4.4 Installing the SMART COMPACT UPS
To prepare the UPS for first use:
1. Verify that the ac power mains voltage is a nominal 230 Vac.
2. Connect the UPS ac input to the ac power main. For this purpose you can disconnect the computer's
ac input cord from the computer and connect it to the UPS (see Figure 2 on page 4).
3. Using one of the supplied power cords, connect the computer's ac input socket to one of the UPS's
power outlets on the rear of the UPS. (See Figure 2 on page 4, and Table 1 on page 5.)
4. If your computer monitor (the screen) draws power from the computer, it is already protected by the
fact that you have plugged the computer into the UPS’s protected power output. If the computer
monitor is connected directly to the ac power line, unplug the monitor from the ac mains and plug it in
to one of the protected outlets on the rear of the UPS. (See Figure 2 on page 4, and Table 1 on page
5.)

Gamatronic Electronic Industries Ltd. User Guide
Smart Compact UPS
Operation instructions
7
5. OPERATION INSTRUCTIONS
5.1 Starting the UPS
5.1.1 Performing a regular (“warm”) start
1. Start up the UPS by pressing and holding the On/Off button on the front panel for four seconds. The
UPS performs a self-check and begins to operate, using the ac input power.
2. Verify that the green LED on the front panel of the UPS is lit.
3. You can now turn on the computer or other device and use it as normal, knowing that it is now
protected against voltage surges and sudden ac cutoff.
5.1.2 Performing an emergency (“cold”) start
In the event of a power outage that occurred when the UPS was off, the UPS can be started on battery
power to supply a few minutes of power to the computer or other load device.
Be aware that in cold-start mode, in order to conserve battery power the UPS performs no self-test at
startup.
The actual length of time the load device can be operated in this mode depends on the power
consumption of the load device and the battery charge level.
To perform a cold start of the UPS:
Press the On/Off button for 6 seconds.
5.2 Turning off the UPS
1. Turn off the computer or other load devices connected to the UPS.
2. Press the On/Off button on the UPS front panel for about 6 seconds.
The orange LED lights up, then the red LED. Following this the UPS shuts off.
5.3 Testing the UPS batteries
When the UPS is operating, you can simulate an ac power outage and cause the UPS to work off of its
batteries by pressing and holding the On/Off button for six seconds. Verify that the orange LED comes
on; this indicates that the UPS is working in battery mode.
It is recommended that you conduct the battery test when a computer or other device is connected to the
UPS and turned on. This verifies that the UPS supplies power properly when there is no ac power.

User Guide Gamatronic Electronic Industries Ltd.
Smart Compact UPS
Troubleshooting
8
5.4 Installation and use of the monitoring software
The Smart Compact UPS is delivered with a disk containing software that can be used to automatically
perform an orderly shutdown of a computer in the event of an ac mains failure. The software also
enables you to monitor the status of the Smart Compact UPS from a computer.
The software is compatible with the following operating systems:
•WINDOWS : 95, NT4.0, 98SE, ME, 2000, XP, VISTA 32bits, VISTA 64bits.
•LINUX : Redhat 7.0~7.3, Mandrake 8.2
•NOVELL : 4.X , 5.1
1. Connect one end of the supplied USB-USB cable to the USB port on the UPS rear panel. Connect
the other end of the cable to one of the computer's USB ports.
2. Place the supplied CD ROM in the computer’s CD ROM reader. The installation wizard will start up
automatically on most computers. If it does not start automatically, display the CD ROM’s directory,
and run the setup file.
3. Follow the instruction of the software wizard to complete the software installation.
4. Simulate a power outage by holding the On/Off button for six seconds. Verify that the orange LED
lights up; this indicates that the UPS is working in battery mode. Verify that the computer performs an
orderly shutdown after the time you have defined in the shutdown software has elapsed.
6. TROUBLESHOOTING
The UPS advises you of exceptional condiditions by means of its LEDs and a beeping alarm. Table 3
outlines some of the most common problems, and their solutions.
Table 3: Troubleshooting
Problem
Probable cause
Possible solution
The UPS does not
start up, even though
the input ac power is
OK.
1. Input ac cable not properly connected to
the UPS or to the ac power lines.
2. The fuse on the UPS’s input line has
failed.
1. Properly connect the input ac cable to the ac
socket and to the UPS.
2. Replace the UPS’s input fuse with a fuse of
the same type and rating.
The UPS starts up,
but the red LED is lit. The UPS battery voltage is low due to an extended ac power outage.
When the ac power returns, charge the UPS
battery for at least 8 hours by leaving it on and
connected to the ac power but with no load.
The UPS does not
provide backup for
the expected length
of time.
The battery is not properly charged. This
could be due to:
1. An extended power outage;
2. Overload (too many devices connected
to the UPS);
3. The battery is approaching the end of its
useful life.
1. Charge the UPS battery for at least 8 hours
by leaving it on and connected to the ac
power mains, but with no load.
2. Turn off unnecessary load devices and
disconnect them from the UPS.
3. Replace the battery.
The red LED is lit and
the UPS emits a
continual beep.
UPS failure.
Disconnect the power cable from the UPS and
contact your UPS salesperson for support
information.

Gamatronic Electronic Industries Ltd. User Guide
Smart Compact UPS
Preventive Maintenance
9
7. PREVENTIVE MAINTENANCE
Every Gamatronic UPS contains technologically advanced electronic systems. These electronic systems
are sensitive to environmental conditions. It is important that the operating and storage environments of
the UPS be clean and dust-free, free of dampness and excess humidity.
The system's batteries provide back-up power to the UPS when needed. An environmental temperature
of 20 °C (68 °F) is ideal for the batteries. Significantly higher temperatures shorten the batteries' lifespan.
The UPS and its batteries both require periodic preventive maintenance inspections. At the least, these
inspections should include a visual inspection of the UPS and its batteries, and the tightening of any
screws and bolts that have over time become loosened. The owner of the UPS is responsible for
ensuring that the preventive maintenance inspections take place. This is done by contacting
Gamatronic's service department and arranging a mutually convenient time for a technician to perform
the inspection.
It is important that the UPS owner continue to arrange regular preventive maintenance inspections even
after the expiration of the initial warrantee period.
Gamatronic bears no liability for damage caused to the UPS due to improper maintenance by third
parties, in particular after the expiration of the warrantee or service agreement.
It is the responsibility of the UPS owner to uphold his responsibilities according to the warrantee or
service agreement. This includes ensuring that the UPS's environment meets requirements.
8. SERVICE AND REPAIRS
Gamatronic maintains a team of service technicians, repair laboratories, and an ample inventory of spare
parts, dedicated to the service and repair of our products. When service is required, it will be performed
either at the customer's site or in one of our laboratories, according to the judgment of our technician and
the specifics of the service agreement between the customer and Gamatronic.
In regards to service, oral agreements have no standing. Service shall be provided gratis during the
warrantee period, on the condition that the UPS has been properly maintained and a written record has
been kept of any maintenance performed on the system.
The initial warrantee period can be extended by a written service agreement between Gamatronic and
the customer. Without a written agreement, Gamatronic is under no obligation to provide service after
expiration of the initial warrantee period.
Gamatronic will not be responsible for maintenance or changes to the UPS that are performed by an
agent without written authorization from Gamatronic.

User Guide Gamatronic Electronic Industries Ltd.
Smart Compact UPS
System Specifications
10
9. SYSTEM SPECIFICATIONS
MODEL
SCE-650
SCE-750
SCE-1000
SCE-1500
CAPACITY
650 VA
750 VA
1000 VA
1500 VA
INPUT
Voltage
230 Vac
Voltage range
+25 % / –25 %
Frequency
50/60 Hz (auto-sensing)
OUTPUT
Voltage
230 Vac ±10 %
Frequency
50/60 Hz ±0.5 Hz
Transfer time
2 ms – 4 ms (typical)
Voltage regulation
Automatic buck and boost regulation
Sockets
4 IEC type
BATTERY
Type
Sealed, lead-acid, maintenance free
Capacity
12 Vdc
Recharge time
4 Hrs. (to 90% of full capacity)
Protection
Over-discharge protection
PROTECTION
Spike protection
80 joules over 2 ms
Unit input
Fuse for overload and short circuit protection.
Overload
Alarm when over 110 %, automatic shutdown when over 150 %
Short circuit
Input fuse protection; UPS output cuts off immediately.
ALARM
Battery back-up
Beep every 4 s
Battery low
Beep every 1 s
Overload
Continuous beep
INDICATORS
Green LED
Power on / normal operation
Red LED
Battery low / overload
Yellow LED
Battery mode
GENERAL
Standard features Auto-sensing of input frequency. Cold start function.
UPS auto restart. Green mode: inverter auto-shutdown when no load.
Telephone/modem protection (RJ11). USB communications interface.
Auto shutdown and
monitoring software
Compatible with Windows (95, NT4.0, 98SE, ME, 2K, XP, Server 2003, Vista)
Linux (Redhat 7.0 – 7.3 and Mandrake 8.2); Novell (4.x, 5.1)
ENVIRONMENT
Altitude
<5000 m
Temperature
0 °
C
– 40 °
C
Humidity
0 % – 90 % (non-condensing)
Audible noise
<40 dBA @ 1 m
STANDARDS
Noise suppression
CE, EN50091, FCC Class B, VCCI, BSMI
Surge suppression
IEEE587 & EN61000-3-2
Safety
EN50091-1
DIMENSIONS
HxWxD 202 x 110 x 275 mm
Weight (net) 4.4 kg 5.3 kg 5.9 kg 6.4 kg
All specifications are subject to change without prior notice.
