General Dynamics Gobook XR-1 User manual

Getting Started
This online document, GoBook XR-1 Help, contains all the information you need to set up and use your
GoBook XR-1. For information on printing, navigating or otherwise using GoBook XR-1 Help, see the
How to Use This Help System topics. If you have suggestions for how we may improve this document,
p
lease see Documentation Feedback.
Unpacking Your System
Inside your packaging you will find:
Standard Parts
Standard Features
O
p
tional Features
GoBook®XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 1 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Optional Parts and Accessories
Where to Look For Information
About Your Computer
About Windows
Startup Problems?
If your computer does not startup properly, try these solutions first:
zConnect the AC adapter to charge the battery if it is not charged
NOTE If the AC adapter is connected and functioning properly, the Power LED on the AC
adapter should be lit as well as the External Power LED on the GoBook XR-1.
zIf the AC adapter is connected but the unit will still not turn on, make sure the electrical outlet you
are using works
zCheck to make sure the battery is installed and charged properly
zIf the battery does not begin charging, perform the following:
1. Remove the battery.
2. Connect the AC adapter.
3. Turn on the computer by pressing the Power Button .
4. Reinstall the battery. The Battery LED is a steady green while the battery is charging.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 2 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Safety
Read these instructions carefully. Following these guidelines will help prevent damage to your computer
and help protect your personal safety.
zRead and follow all warnings and instructions marked on the product and noted in this
documentation, including the Notices and Compliance section
zFollow all warnings and instructions noted in Windows Help and Support, found on the Start
Menu
zThe first time you use your computer, we recommend that you carefully read the section on Power
Management to familiarize yourself with basic battery information and ensure optimum
performance
zCAUTION To reduce the risk of fire, only use a No. 26 AWG or larger telecommunication line
cord
zCAUTION This notebook computer is designed to be used with the provided dedicated AC
Adapter or Vehicle Adapter
zUnplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning.
Aerosols, solvents, or strong detergents are not recommended cleaning solutions and may void
your warranty. For system decontamination recommendations please contact your service
technician
zSlots and openings in the computer case are for ventilation purposes. Do not block or cover these
openings or the system could overheat
zDo not place the product on a soft surface such as a bed, sofa, or rug where the ventilation slots
and openings may be blocked
zDo not place this product near or over a radiator or heat register
zDo not place this product in a built-in installation unless proper ventilation is provided
zDo not operate the computer at temperatures above 140°F (60°C) or below -10°F (-23C)
zDo not store the computer at temperatures above 167°F (75°C) or below -67°F (-55°C)
zDo not step on or place anything on the power cord
zDo not slam the display lid when you close it
zDo not place any object on top of the computer when the display is closed
zIf you use the computer with an extension cord, ensure that the total ampere ratings of all the
devices sharing the extension do not exceed the rating of the extension cord or the rating of the
wall outlet
Pa
g
e 3 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

zDo not push foreign objects into the computer through any of the slots or openings. Dangerous
voltages are present, which could cause electric shock, fire, or damage sensitive components
zThe computer is designed to withstand spills. If a spill occurs, power off the computer and wipe it
down before continuing to use the computer
zFor best results, use a power strip with a built-in surge protector. Do not use inferior extension
cords as this may result in damage to your computer
zFAA regulations require that all transmit/receive devices be turned off during flight. If you have
radios in your computer (including GPS) and your computer is equipped with a radio on/off
switch, please use it to turn your radios off during flight. If you have radios and you do not have a
switch to turn the radios off, either leave your computer off during flight or contact your help desk
for assistance
Service and Upgrade Safety and Precautions
zDo not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks and may void your warranty. Refer all servicing to
qualified service personnel
zUnplug this product from the wall outlet and refer servicing to authorized service personnel under
the following conditions:
{When the power cord or plug is damaged or frayed
{If the product does not operate normally when the operating instructions are followed.
Adjust only those controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work by
a qualified technician to restore the product to normal condition
{If the product exhibits a distinct change in performance, indicating a need for service
zDo not upgrade or service this computer without prior authorization from the manufacturer.
Damage caused by servicing that is not authorized may void your warranty
zBefore performing any manufacturer authorized service or upgrade, first follow these instructions:
{Prevent damage from static electricity by following ESD precautions
{Place the computer on a clean, flat surface
{Turn off the computer and disconnect the power supply
{Undock the computer if it is in a docking device (such as an office dock or vehicle dock)
{Disconnect any attached peripherals
{Disconnect an
y
attached network, tele
p
hone or telecommunication line
Pa
g
e 4 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

{Remove any PC Cards, EXPRESS Cards, Smart Cards, CDs, DVDs or any other media in
your computer's slots or bays
{Remove the battery (See Battery Removal)
{Remove the hard drive (See Hard Disk Drive Removal)
Battery Pack Safety and Precautions
zWARNING! There is danger of explosion if the battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of used batteries
promptly and according to the manufacturer's instructions
zWARNING! Batteries may explode if not handled properly. Do not disassemble, open, puncture
or dispose of battery packs in a fire. The battery pack could burst or explode releasing hazardous
chemicals
zWARNING! Keep battery packs away from children
zObserve the safety instructions printed on the battery
zOnly use approved Li-Ion battery packs with your computer and replace the battery pack only
with the approved part
zDo not abuse, deliberately pierce, or subject the battery pack to excessive impact
zImmediately discontinue use of the battery if it appears damaged or abnormal in any way, consult
your local provider for advice
zDo not immerse the battery pack in liquid
zDo not short together the battery connections. Do not store the battery pack with metallic objects
due to the risk of short circuit
zBattery chemical leakage is harmful. In the unlikely event of battery leakage; DO NOT TOUCH.
In case of accidental contact with the eyes or skin, immediately wash with running water and seek
medical advice. In the case of accidental ingestion, seek immediate medical attention
zFollow Battery Tips for use and storage.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 5 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Tips for New Owners
zTake responsibility for backup
Back up files often. Users who need to manage large amounts of data may wish to use backup
devices
zCreate a set of recovery CDs or DVDs to recover your hard disk in case it becomes corrupted.
To do this, use the Recovery CD Wizard by selecting Start, Programs, Mobile Computer Tools.
zDon't leave passwords anywhere on your notebook or carrying case
zBe careful when placing your notebook on an airport security conveyor belt
In most airports, security conveyor belts are safe for computers. If you are not sure, ask the
security staff. You should keep a close eye on your computer
zTape your business card to the notebook and accessories
In the workplace, notebooks and accessories may often look exactly alike, leading to equipment
mix-ups. Prevent such mix-ups by placing your name on your equipment
zInstall antivirus software
zConsider using a lock
For added security, consider purchasing a computer lock to put into the Security Slot on the back
edge of your computer near the battery. Use the lock to secure the computer to a desk or table
zDevelop ergonomic work habits
The science of ergonomics studies the relationship between health and a suitable work
environment. For more information on ergonomics, contact your nearest computer
bookstore, or local library. The Internet also has information on this and other related
subjects
NOTE Using a computer for extended periods of time with a poor workstation setup and
incorrect work habits can cause health problems
Turning Off the Computer
Turning off the computer properly is important to maintaining your computer.
To Turn off Your Com
p
ute
r
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 6 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Select Start, Shut Down, Shut Down and follow the instructions on the screen.
If you are going to be away from the computer for a short period, there are ways to conserve power
without shutting down the system. See Power Management and Battery Tips for details.
NOTE If you are unable to shut down your computer normally, follow the instructions in
Troubleshooting.
CAUTION Shutting off the computer improperly may result in data loss.
Getting Familiar with Your Computer
The GoBook XR-1 computer is a rugged, weather-sealed laptop computer system designed for the
demanding environment of the mobile worker. It is a superior work tool for collecting, managing, and
communicating information in the field.
This section describes the external and internal features of your GoBook XR-1 computer.
Tour of Your Computer
This section shows all views of your computer with a summary of key features.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 7 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Front View
Hover the mouse over each number on the picture to see a description
# Feature Description
1 Display Latch The display latch holds the display when closed
2 Pen / Stylus
Slot
Two custom touch screen pens (styluses) are stored in slots on
each side of the display
3 Keyboard Standard keyboard with embedded numeric keypad
4 Fingerprint
Scanner
The optional swipe style fingerprint scanner can be used for all
standard security uses
5 Touchpad
Buttons
Use like the buttons on a mouse
6 Internal
Microphone
Integrated, weatherized microphone can be used with various
software applications that require audio input
7 Touchpad Use for navigation
8 Button and
LED strip
Area above the keyboard with the power button, radio on/off
switch, application launch button and LED status indicators
9 Display 12.1-inch, Enhanced XGA, outdoor-viewable, color display with
an integrated touch screen
10 Speakers Integrated stereo speakers for audio output
Pa
g
e 8 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Left Side View
Hover the mouse over each number on the picture to see a description
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
# Icon Feature Description
1 Back Handle Mount The back handle mount, located on both sides of the
computer is used with an optional back handle
2 DC-in Jack Connects to an AC adapter
3 Network Jack (RJ45/LAN) Connects to an Ethernet-based network. Connection
speed is 10/100/1000 Mbps
4
Modem Jack (RJ11) Connects a phone line to the internal fax/data modem.
It can transmit data using the 56 Kbps V.90 or V.92
protocol, and send and receive faxes at 14.4 Kbps.
NOTE In some countries, local regulations may not
permit the use of the fax/modem designed for this
system. In this case, you may use a PCMCIA modem
5 Microphone Jack Connect a microphone to this jack to record audio
6 Audio Out Jack Connect external speakers or a stereo headset to this
j
ack to listen to multimedia
7 Cooling Fan Exhaust Cooling Fan exhaust area. Do Not Block. This area
may become hot as air vents from the computer
8 External Monitor Port Connects to a display monitor (up to 2048x1536
Pa
g
e 9 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Right Side View
Hover the mouse over each number on the picture to see a description
resolution)
9 Pen / Stylus Slot Two custom touch screen pens (styluses) are stored in
slots located on each side of the display.
10 Smart Card Reader or EXPRESS
Card Slot option
Depending on your configuration, use with a Smart
Card EXPRESS Card
11 Front Handle Mount The front handle mount, located on both sides of the
unit, is used with an optional front handle.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
# Icon Feature Description
1 Front Handle Mount The front handle mount, located on both sides of the
computer, is used with an optional front handle
2 Three 2.0 USB Ports Connects to USB devices (e.g., USB digital camera)
3 Serial Port Connects your computer to serial devices such a
fax/modem or a serial mouse. This port is identified
as COM1
4 PC Card Slot Use this slot for PC Card devices
5 Media Bay Combo DVD-ROM/CD-RW, DVD Multi-Drive
(DVD-RAM/DVD-ROM/DVD-RW/CD-R/CD-
ROM/CD-RW), or second battery module
6 Pen / Stylus Slot Two custom touch screen pens (styluses) are stored
in slots located on each side of the display.
7 IEEE 1394 (Firewire™)Port Use this port to connect IEEE 1394-compatible
Pa
g
e 10 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Bottom View
Hover the mouse over each number on the picture to see a description
devices, such as digital cameras, to the computer
8 Back Handle Mount The back handle mount, located on both sides of the
computer is used with an optional back handle
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
# Feature Description
1 Dual External Antenna
Connector (DEAC)
The DEAC gives you the ability to switch the internal
WLAN and CRMA to an external antenna to gain better
performance when you are in a vehicle.
2 CRMA Express Module Upgradeable WWAN radio module (optional)
3 Memory compartment User expandable memory slot
4 WLAN compartment Integrated wireless LAN radio
5 Hard Disk Drive Locks Open and turn these to lock or unlock the removable hard
disk drive
6 Docking Connector 84-pin cradle connector that mates with the Vehicle Dock,
or Office Dock
Pa
g
e 11 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

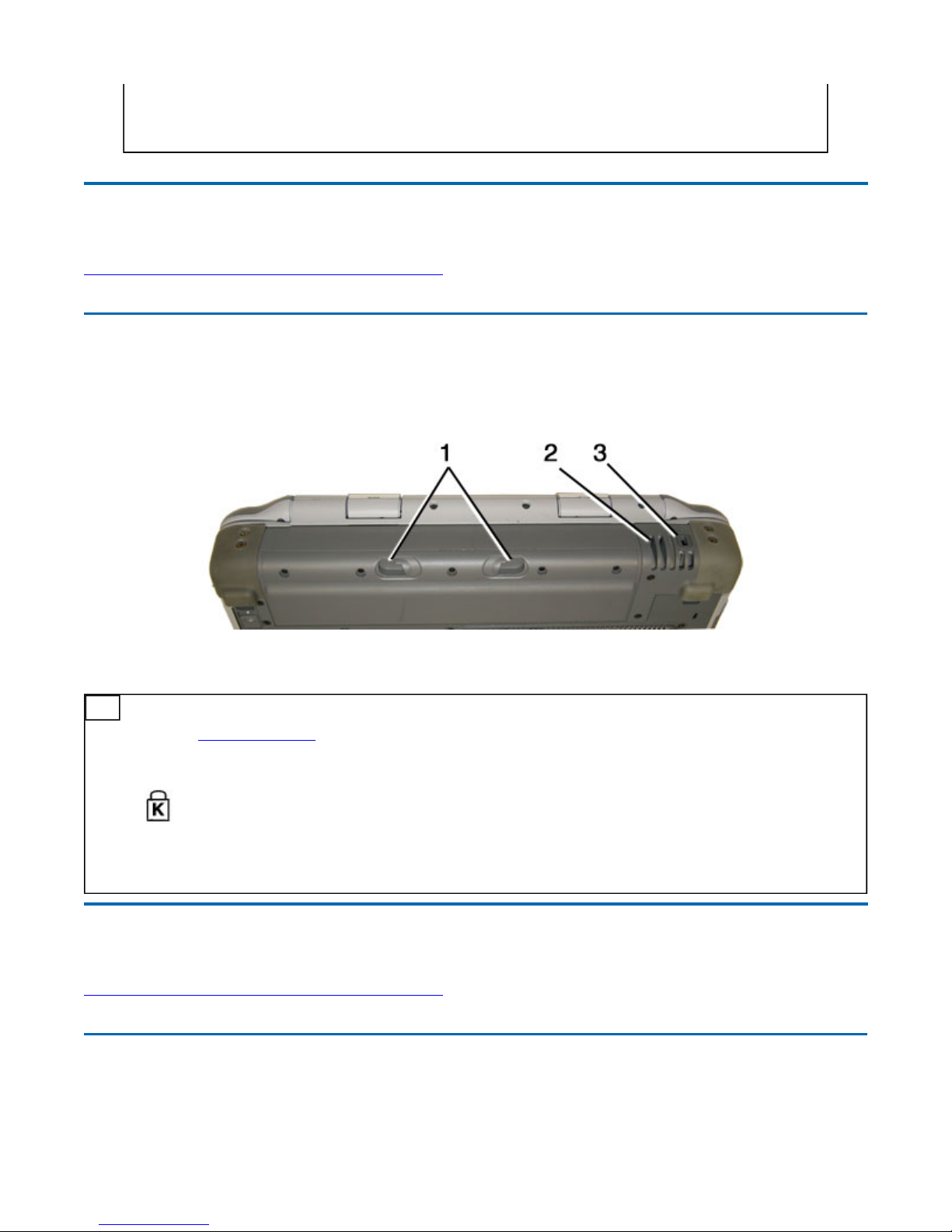

Back Edge View
Hover the mouse over each number on the picture to see a description
Keyboard Basics
The GoBook X
R
-1 features:
7 Media Bay Release After unlocking the media drive, slide this to release the
media drive
8 Media Bay Lock Slide this to unlock the media drive before releasing it
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
# Icon Feature Description
1 Battery Release Latches Slide these toward the center of the unit to release the
battery
2 Cooling Fan Intake Air intake for fan. Do NOT block this area
3 Security Slot The Security Slot can be used with a standard laptop-
locking device, such as a Kensington Lock. You can
connect the computer to a large object with the lock to
prevent theft. See the documentation that comes with
your lock for more information.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 12 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

zFull size, glow-in-the-dark (GID) keys on a 85-key keyboard
zTwelve function keys
zEmbedded numeric keypad
zApplication launch button (programmable button)
zRadio ON/OFF switch (option)
zErgonomically designed wide palm rest located below the keyboard.
Primary Keys
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Key Description
Alt The Alt (alternate) key is used with other keys to perform special tasks. On some
o
p
eratin
g
s
y
stems
p
ressin
g
Ctrl+Alt+Del twice soft reboots the com
p
uter .
BackspaceThe Backspace key, sometimes represented on the keyboard as a left arrow, moves
the cursor one
p
osition to the left. The character to the left of the cursor is erased.
Caps
Lock Pressing the Caps Lock key one time locks keys A through Z in the UPPER CASE
position. Pressing the Caps Lock key again returns the letters to lower case. While
in the upper case mode, pressing the Shift key results in lowercase characters
when entered. You still have to use the Shift key to display characters located on
the upper portion of the keyboard. For example, press Shift+8 to type an asteris
k
(*), even when the Caps Lock key is activated.
The Ca
p
s Loc
k
LED li
g
hts when the ke
y
board is in Ca
p
s Lock mode.
Ctrl The Ctrl (control) key works with other keys to perform a variety of functions.
Enter The Enter key signals the computer that you have completed your entry. This is
y
our wa
y
of tellin
g
the com
p
uter to
p
rocess the information that
y
ou have entered.
Esc The Esc (escape) key allows you to exit a pop-up window or message box.
Prtsc In Windows, pressing the Prtsc (print screen) key or ALT+Prtsc key copies the
current screen or window to the cli
p
board so
y
ou can
p
aste it into documents.
Shift The Shift key changes the keys A through Z to the UPPER CASE position. When
you press an alphabetic key, the character appears as a capital letter. When you
press Shift with other keys, the characters on the upper part of the keys appear.
For exam
p
le,
p
ressin
g
Shift+7 dis
p
la
y
s an am
p
ersand
(
&
)
.
Fn Some special Fn (function) keys have been established to perform important tasks
when pressed and held with the Fn key. These keys are described later in this
document. The Fn key legend is color keyed to other special keys on the
ke
y
board.
Pa
g
e 13 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Arrow Keys
The arrow keys are defined by the software
application.
The up arrow key usually moves the cursor up one
line. In some cases, you can use the up arrow to
make selections from menus and scrollable list
boxes.
The down arrow key usually moves the cursor down
one line. In Windows, you can use the down arrow
to make selections from menus and scrollable list
boxes.
The right arrow key usually moves the cursor one character position to the right.
The Left arrow key usually moves the cursor one character position to the left.
Function Keys and Key Combinations
When using function keys, press and hold the Fn key before pressing the other key in the key
combination.
spacebar Use the spacebar to enter a space and move the cursor one character to the right.
Tab The Tab key moves the cursor to the next tab stop or field. Tab stops are defined
by your operating system or application program. Press the Tab key to move from
one field or text box to another.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Function
Key
Function Icon Description
Fn+F1Screen
blank Turns off the display screen backlight and turns
off the external monitor, if attached. Press any
key to turn it back on.
Pa
g
e 14 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

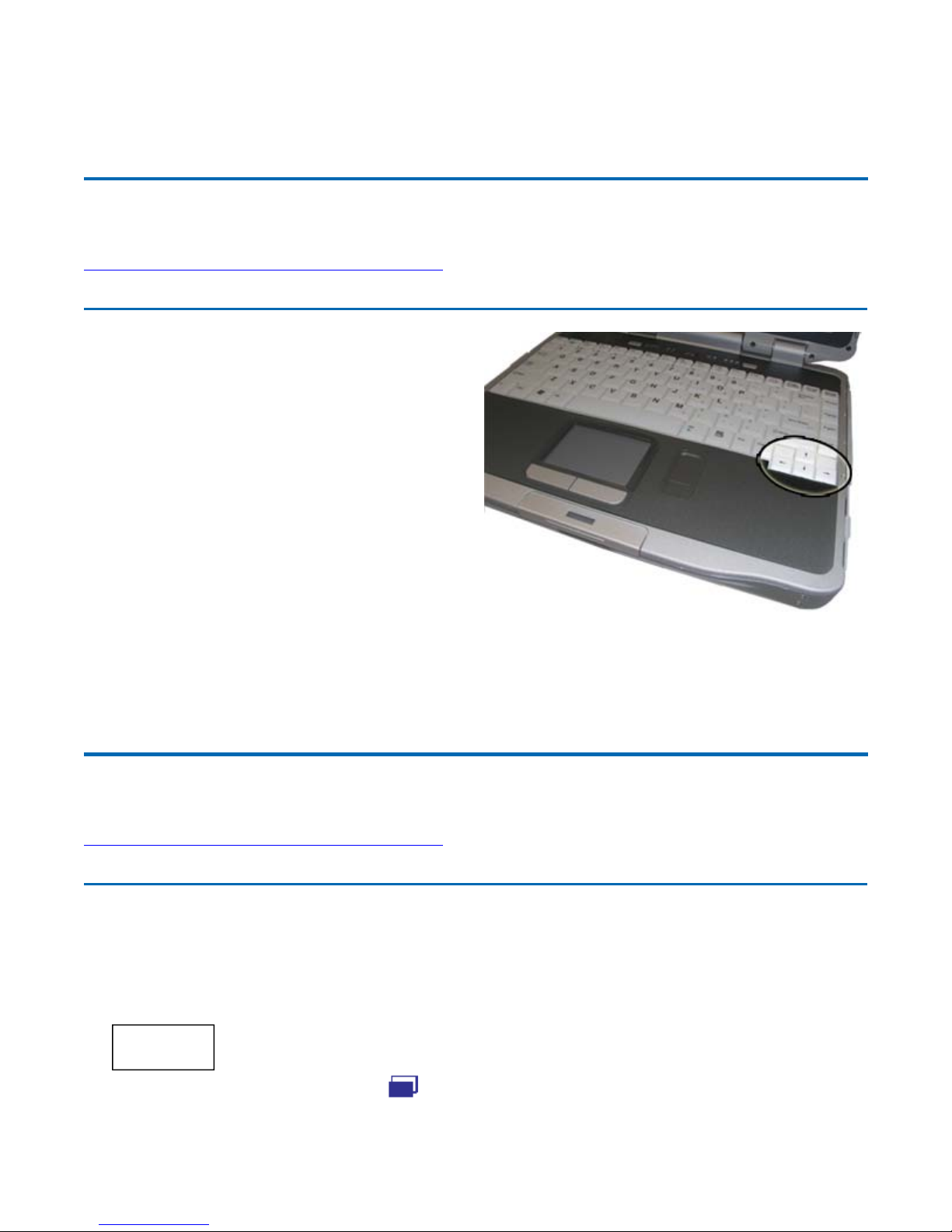

Numeric Keypad
The embedded numeric keypad consists of sixteen keys that make
number intensive input more convenient. It is indicated by small
characters located on the lower right corner of the key. Press NumLk to
enable or disable the numeric keypad.
Fn+F2Display
toggle Switches the display output between the display screen, external monitor (if connected) and both
the display screen and external monitor
NOTE When a DVD or VCD is playing, this
hotkey is disabled.
Fn+F3Standby
Puts the computer in standby mode, which can
be defined with Power Saver.
Fn+F4Keyboard
Backlight
Brightness Down
Decreases the keyboard backlight brightness if
you have the optional EL keyboard.
Fn+F5Keyboard
Backlight
Brightness
Up
Increases the keyboard backlight brightness if
you have the optional EL keyboard.
Fn+F6Display
Brightness Down Decreases the screen brightness
Fn+F7Display
Brightness Up Increases the screen brightness
Fn+F8Audio Volume
Down Decreases the audio volume
Fn+F9Audio Volume Up Increases the audio volume
Fn+F10Speaker
on/off Turns the speakers on and off; mutes the sound
Fn+Ri
g
ht
AltTouchpad
on/off Toggles the touchpad on and off
Fn+ Left
Shift
Keyboard
backlight
Toggles the keyboard backlight (option) on and
off
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Standard Key Key with
Numlock On
Pa
g
e 15 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Lock Keys
The keyboard has three lock keys which you can toggle on and off.
7 7
8 8
9 9
0 *
U 4
I 5
O 6
P -
J 1
K 2
L 3
; +
M 0
. .
/ /
Enter Carriage Return
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Lock Key Description
Caps Lock Pressing the Caps Lock key one time locks keys A through Z in the
UPPER CASE position. Pressing the Caps Lock key again returns the
letters to lower case. While in the upper case mode, pressing the Shift key
results in lowercase characters when entered. You still have to use the
Shift key to display characters located on the upper portion of the
keyboard. For example, press Shift+8 to type an asterisk (*), even when
the Caps Lock key is activated.
The Ca
p
s Loc
k
LED li
g
hts when the ke
y
board is in Ca
p
s Lock mode.
Num Lock When Num Lock is on, the embedded keypad is in numeric mode. The
keys function as a calculator (complete with the arithmetic operators +, -,
*, and /). Use this mode when you need to do a lot of numeric data entry.
Alternately, connect an external keypad. See External keyboard.
The Num Loc
k
LED li
g
hts when the ke
y
board is in Num Lock mode.
Scroll Lock Enters Scroll Lock mode. Scroll Lock varies between applications. It does
not work with some applications.
Pa
g
e 16 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Radio ON/OFF Switch
(option)
CAUTION FAA regulations require
that all transmit/receive devices be
turned off during flight. If you have
radios in your computer (including GPS)
The Scroll Lock LED lights when the keyboard is in Scroll Loc
k
mode.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Key Icon Description
Windows Logo Key Start button. Combinations with this key perform special
functions. Below are a few examples:
+ TAB (Activates next Taskbar button)
+ E (Opens My Computer in Windows Explorer)
+ M (Minimizes all Windows)
SHIFT + + M (Restores Minimized Windows)
+ R (Displays Run dialog box)
Refer to Keyboard Shortcuts in Windows Help and Support for
a complete list of Windows key combinations.
Application Key Opens the application's context menu (same as right-click)
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 17 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

and your computer is equipped with a
Radio ON/OFF switch, please use it to turn your radios off during flight. If you have radios and you do
not have a switch to turn the radios off, either leave your computer off during flight or contact your help
desk for assistance.
The wireless Radio ON/OFF switch is the middle button above the keyboard. This switch toggles the
p
ower on and off to all radio devices. Radio devices include GPS, Bluetooth, WLAN, and WWAN
radios.
To Turn all Radios on or off
1. Slide the radio switch to the left to power off all radio devices (airplane mode).
2. Slide the radio switch to the right to turn radio power on.
Application Launch Button
The application launch button is the right button
above the keyboard. By default the application
launch button opens the Power Saver
Application.
To program the Application Launch Button
1. Click the Launch Button Control icon
in the taskbar .
2. Select the a
pp
lication
y
ou want it to o
p
en:
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 18 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

3. Default Internet browser
4. Default email application
5. Notepad
6. Application of your choice with a .exe, .com or .bat extension.
3. If selecting your own application, press the "..." button and browse to the application and select
Open.
4. Select the check mark button to save and close. Select the X mark button to cancel and close.
Touch Screen Display
The GoBook XR-1 features a 12.1-inch, XGA, outdoor-viewable, hi-bright, color display with an
integrated touch screen. You can start programs and input data on the touch screen using one of the
approved pens (styluses) that come with the computer. The Colorvue™ Transmissive display
technology uses a built-in backlight for easy reading in most ambient light conditions. The backlight
remains on whenever the display is on. The transmissive display enhancement provides improved
outdoor visibility and even works well in sunlight.
Touch Screen Calibration
To Calibrate the Touch Screen
1. Remove a pen (stylus) from one of the slots on either
side of the display.
2. Select Start, All Programs, Touchkit, Configure
Utility.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 19 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm

3. Select the Tools tab.
4. Select the 4 pts Calibration button for basic touch screen calibration. Select the Linearization
button for better touch screen linearity.
5. Touch and hold the tip of the pen to the center of each blinking symbol as they appear on the
screen until calibration is complete.
6. Select OK to save and exit.
Adjusting Display Brightness
To Manually Adjust Display Brightness
Function keys increase or decrease the display brightness.
zPress Fn + F6 to decrease display brightness
zPress Fn + F7 to increase display brightness
Automatic Dim Feature
To save battery power, your computer automatically dims the display when the computer is not attached
to external power.
N
OTE You may still manually adjust display brightness.
See Managing Power for more information on power management features.
To Enable or Disable Automatic Dim
1. Restart the computer by selecting Start, Shut Down, Restart.
2. Press Del during boot up to open the Setup Utility.
3. Select CMOS Setup Menu.
4. Use the ri
g
ht arrow ke
y
to select the Advance
d
screen.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook®XR-1 Help
Pa
g
e 20 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
