Generic Trigger X User manual

Attention:
The first driving 1000km is very important for the whole driving life. With a careful driving you can improve
the lifetime and power of the engine and the whole vehicle.
Preface:
Thanks for the choosing of Trigger motorcycle. We have absorbed the advanced technology abroad and
domestic, to provide the happy and safety driving.
Driving of motorcycle is one of the most inspired sports, before your driving, you should sufficiency know
every regulates and requirements in the user manual.
This user manual summarize the proper maintain and keeping, if you can operate according to this
regulates, it will make sure your motorcycle will show its perfect effect and wear well.
Our company have the special technology and maintain department, it can provide you good technology
maintaining service. Our company always keep the “make the consumer more satisfaction” quality
tenet，and our company keep to improve the quality and effect, this maybe will make the change of the
colour and structure, make the difference between the fact and the user manual, please understanding.
Please read the manual carefully and abide to the main points in it. We just use the “attention” “careful”
“warning” and such words to stress the importance of every item, please take care of these words.
Safety references
This motorcycle is just used for road, don’t use for competition or the user should be responsible for the
result.
Please do the checking before starting the engine. This can prevent the accident and damage of machine.
The driver can drive when he passed the test of traffic control department and have the driving license,
please don’t lend them to the one who don’t have the license.
In order to avoid the hurt of other motor vehicle, the driver should be noticeable, so please do the following:
Dress the colourful clothes.
Don’t be so close to the other motor vehicle.
Apply to the every law and statute of nation and local.
Excessive speed driving is one of the most important reasons of accident. So please don’t excess the
maximum limited speed on road.
Please use the turning light to attract others attention when you change the driving line and turning.
Please pay more attention when you are driving on the across road, passageway of park and fast lane.
When you are driving, hold the handle by two hands and stamp on the footrest. The passengers should
hold motorcycle or the driver, and stamp the passenger footrest.
If you refit or tear down the original spare parts, this will not keep the safety driving and also will effect the
maintain evidence.
The collocate of accessory should not effect the safety driving and operating, especially the over loading of
electric system will cause dangerous.

Helmet and exposure suit:
To keep the safety, the driver must dress the helmet and should have goggle, boot, glove and exposure
suit, also the passenger also must dress the helmet.
During the driving period, the exhaust system becomes heat, even when you stop the engine a moment, it
still is heat, don’t touch the exhaust system when it is heat. The driver should dress the boot or some thing
can take care of leg.
Please don’t dress the long and big clothes that is easy to be stripped by the control lever, foot starter or
wheels。
Guard against theft
Please make sure to lock the frame lock and pull out the key
If possible, please put your motorcycle in a closed carport
Make a good quality lock to your motorcycle。
VIN and Engine Number:
Write down the vehicle identification number in the user manual. These numbers might be important for the
right spare part order of your dealer.
The VIN is craved in the right side of the front pipe. The Engine Number is craved in the left side of
crankcase
VIN: ___________________________
ENGINE NR: _______________________

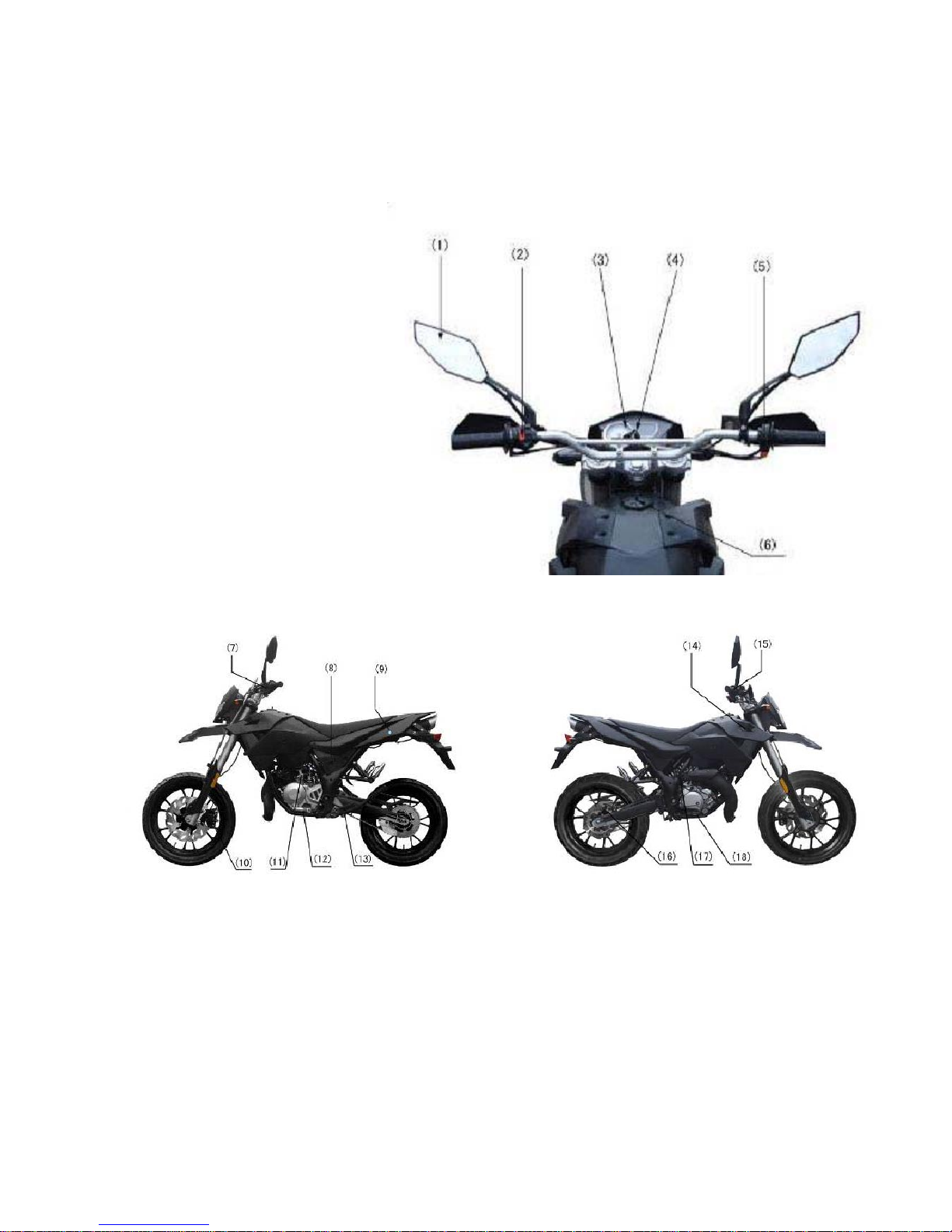

Location of the Parts:
(1) Rear view mirror
(2) Left handle switch
(3) Speedometer
(4) Steering lock
(5) Right handle switch
(6) Fuel tank cap
(7) Clutch controller grip
(8) Air cleaner
(9) Seat lock
(10) Front detent
(11) Fuel tank lock
(12) Gear shift footplate
(13) Side stand
(14) Water tank cap
(15) Front detent handle
(16) Rear detent
(17) Kick starter
(18) Rear detent pedal

Main Parts:

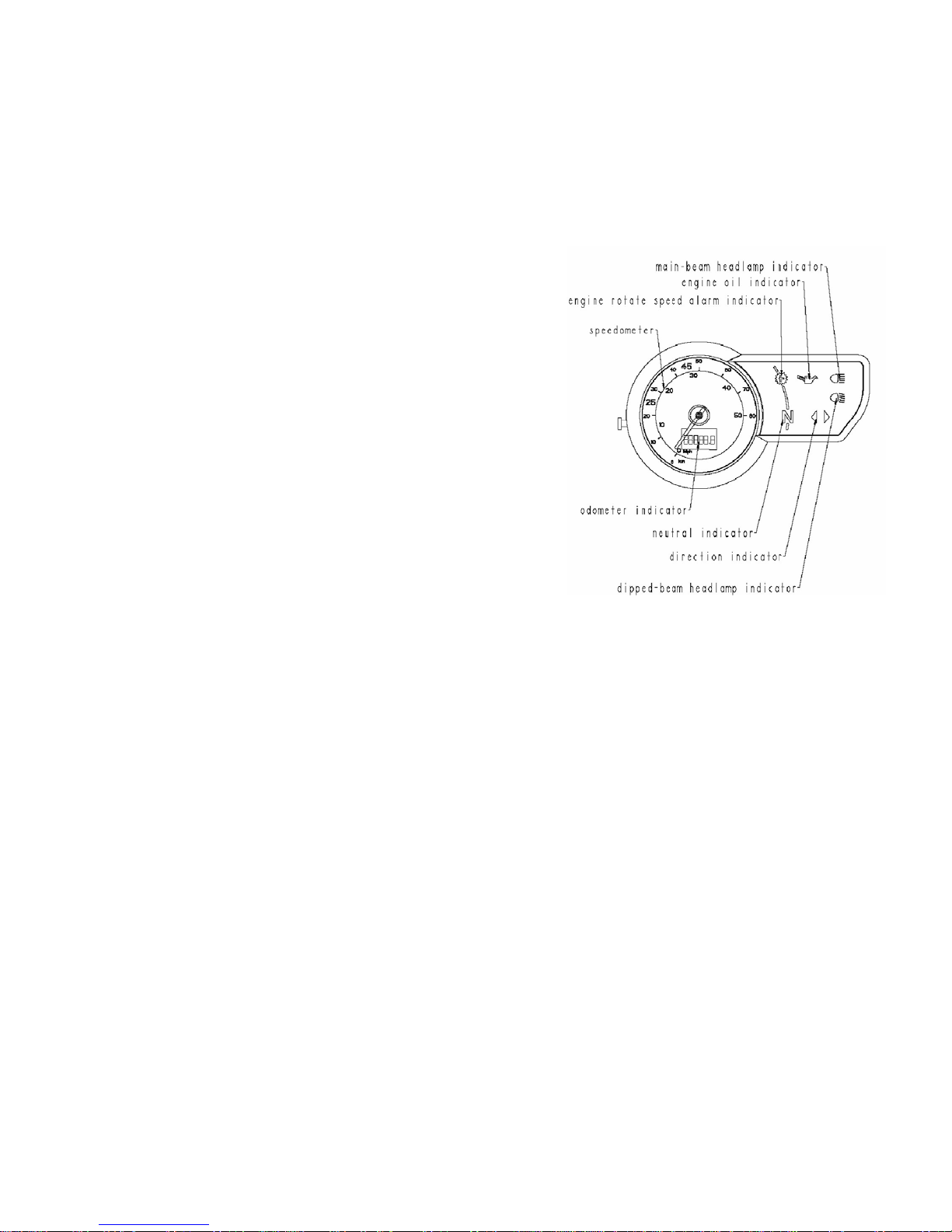

Speedometer and indicator
SPEEDOMETER
Indicates speed in km/h.
Odometer indicator
Indicates total distance
Turning indicator
When lift or right turning signal is on
Far sight indicator
Lights up when blue far sight light is in the on position.
Near sight indicator
Lights up when green near sight light is in the on position.
Engine rotate speed alarm indicator
When engine rotate speed is too high the red light is in the
on position.
Neutral indicator
When derailleur on neutral the green light is in the on position
Oil indicator
When the oil level in the tank case has dropped below minimum the red light is in the on position.

Main switch
power switch
“”（off）：all the electrict parts are off
“”（on ）：engine can be started.
Stearing Lock
Turn handle bar to the left, insert key, push down and anticlockwise turn, draw the key out when locked.
WARNING：
DON’T IMPEL WHEN MOTORCYCLE IS
LOCKED,OTHERWISE MOTORCYCLE
MAYBE WILL OVERTURN
CAUTION：
MAKE SURE TURING LOCK IS LOCKED
WHEN PARKING

LEFT HANDLE
Dimmer Switch
Turn switch to“ ”position，the head light work，Meanwhile,
high beam indicator on instrument panel will light. Switch
to“ ” head light goes downward and works. When switch is
on“ ”，the head light works in middle and this indicates the
vehicles that are passed.
Turn signal switch
Switch to“ ”, the left signal light indicates；Switch to“ ”,
the right light and the indicator light indicates. Switch to
middle will stop the right light and the indicator working.
WARNING
Please make sure use turn signal lights while turning or
changing lanes. It cannot stop automatically, return it to original position after use, and turn off the signal
lights.
Horn button
Press the button, the horn will hoot.
CHOKE SWITCH
Adjust the choke according to the direction showed by the symbol.
RIGHT HANDLE
Electrical starter switch
Press Electrical Starter Switch , the motor running and you
can start the engine.

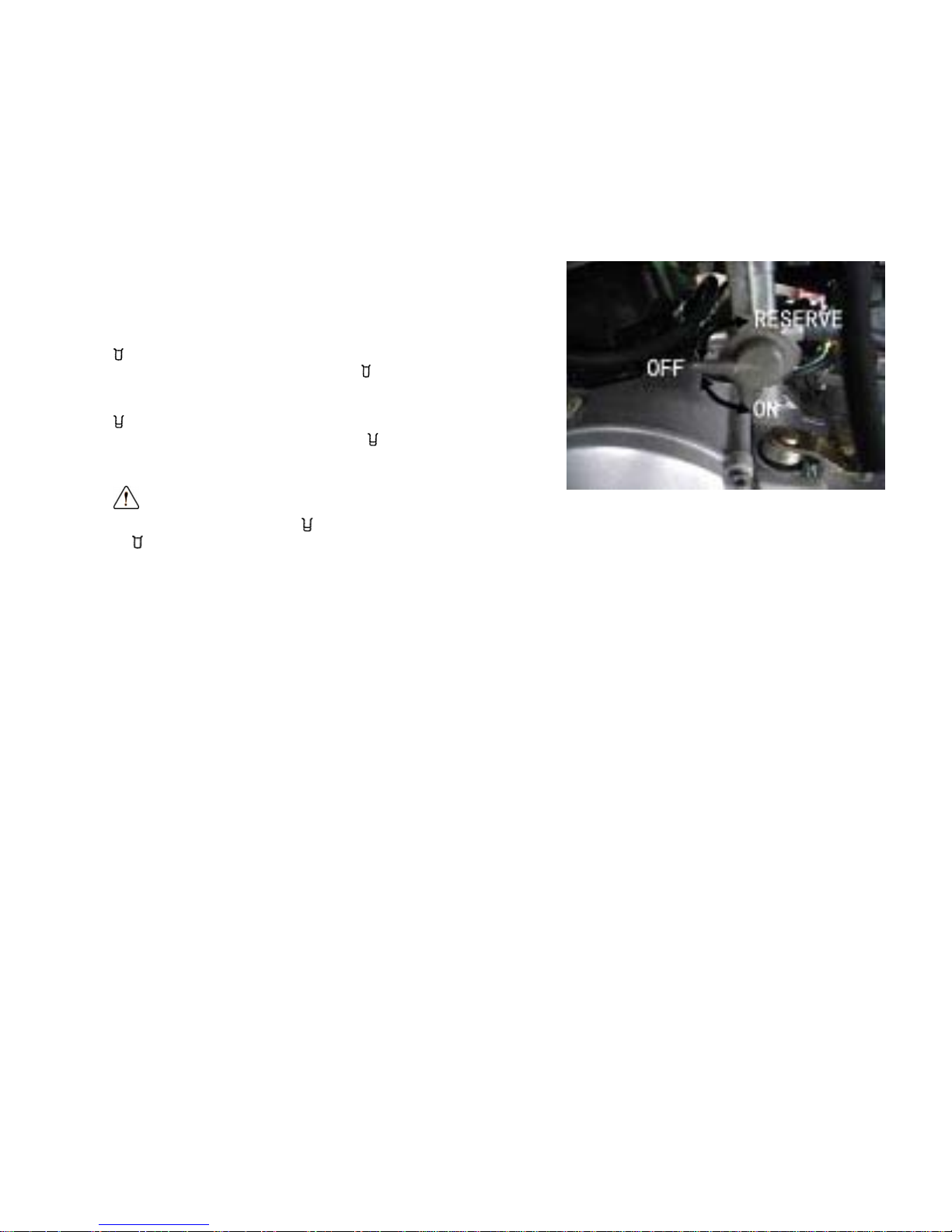

FUEL TANK SWITCH
●OFF
When the fuel switch is on the position "●" no fuel runs to the
carburettor. Please turn off the switch when you don’t ride
the motorcycle.
ON
When the switch on the position" ", the fuel will be poured
into carburetor from the main fuel tank.
RESERVE
When the switch on the position" "，reserve fuel tank will
work.
WARNING
After you switched to the position urgently fill the fuel tank again. After filling, the switch should be turned
to (ON) position.

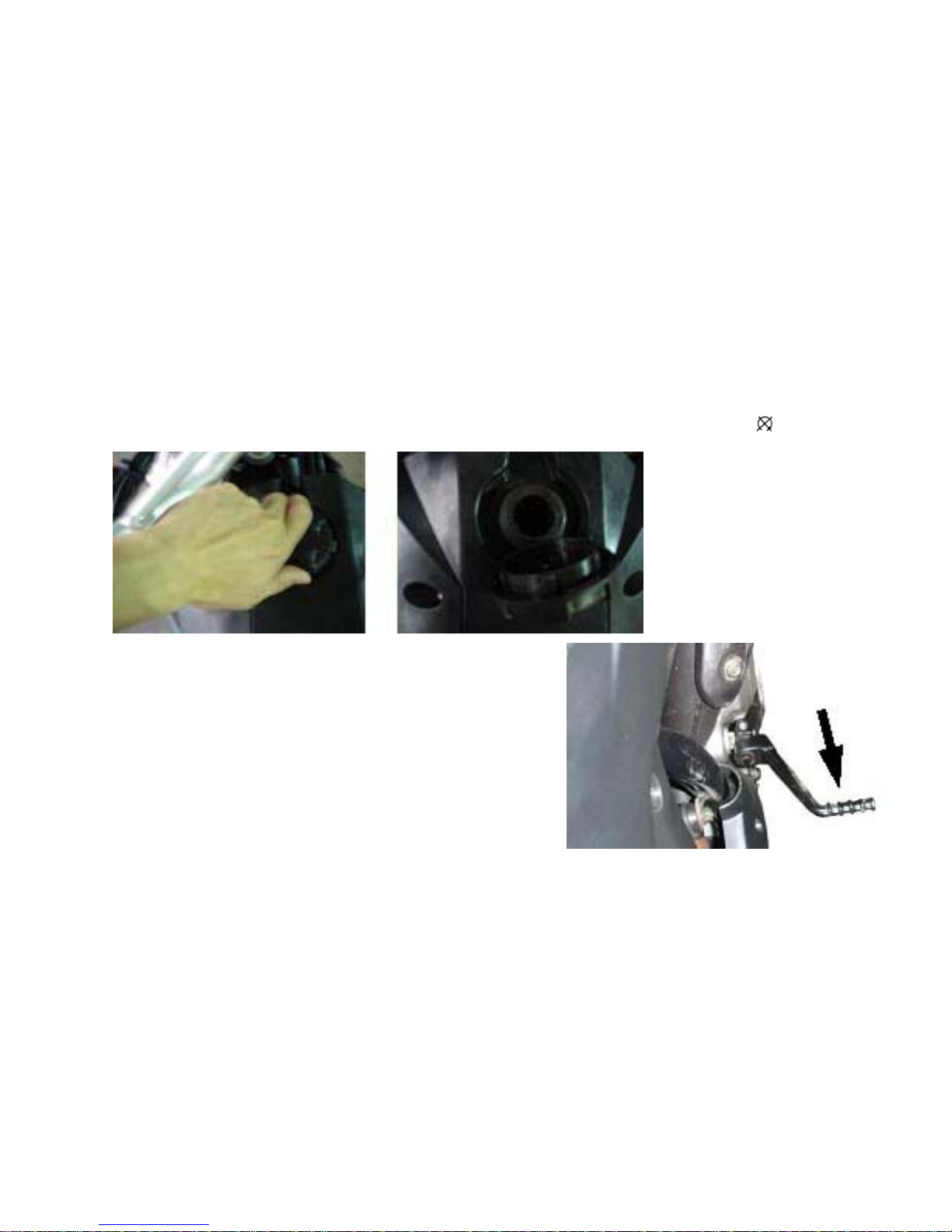

FUEL TANK CAP
When filling fuel, please turn the cap to right side. After filling, please turn left for tighten.
NOTICE
Please use fuel with 95 Oct at least or the higher standard kinds of fuel.
WARNING
Fuel tank can not be excessively filled. It is very dangerous to spatter fuel to the hot engine.
WARNING
When fill the fuel, the engine should be ended and turn the ignition key to the “off" position .
KICKING START LEVER
There is a kicking start lever at the right side of engine, but
you only can kick it when engine is in GEAR N
NOTICE
After starting the engine, the kicking start lever should
returns to its normal position.

SIDE STAND
Side support is at the left side of vehicle. When vehicle stops,
please kick the side support down. When you make the
vehicle stand-up, side support will be back automatically.
NOTICE
Do not stop the vehicle on a downward ground，this may
turn over the vehicle.

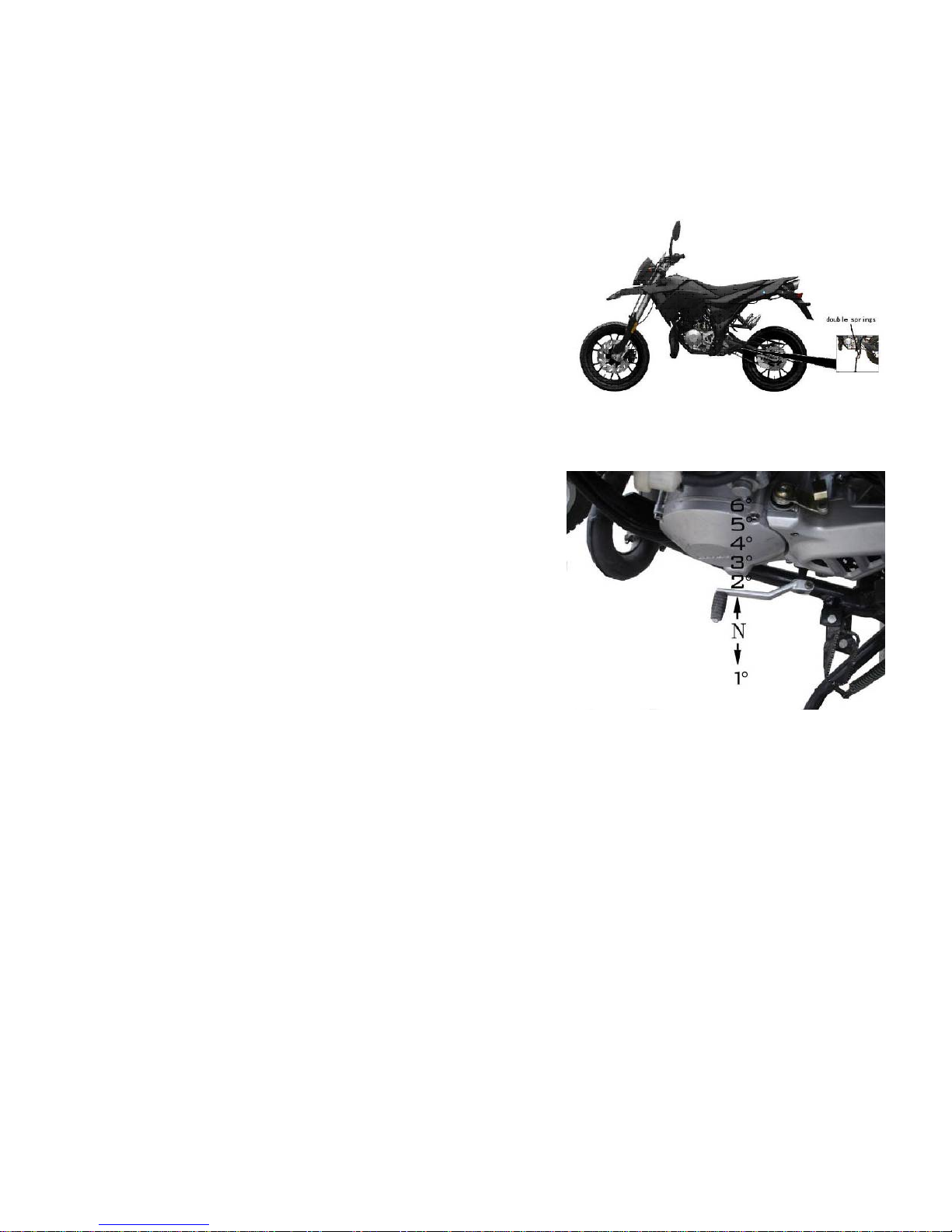

GEAR SHIFT LEVER
This vehicle has six gears speed gear-box. The operating as the picture shows. After selected one gear
speed, the gears pedal returns automatically, so that the next gear level can be easily selected
Step the Gear Changing Pedal down from the idle position; it
enters into the low speed level. The gear changes into the
next high speed level with every rising Gear Changing Pedal.
This gear-box does not allow to change the more gears
once.
Before changing to low speed level, you should slowdown
the motorcycle. Increase the engine rotate speed before
joint the clutch, and it can prevent the unnecessary abrasion
between the transmission chain system and the rear tire.
CAUTION:
When the gear-box is in the idle position, the indicator light
lights, it’s necessary to loose the clutch lever slowly to make
sure the gear-box in the idle position.

BRAKE HANDLE AND BRAKE PEDAL
Turn down the brake handle, this will brake the front wheel and the brake light works.
When stepping on the brake pedal the rear wheel brakes and the brake light works.
SEAT LOCK
Insert the key to the lock and turn to open it. Then lift the rear
part of seat up.
When you want to lock the seat, press down the rear part of
seat.
TOOLS KIT
The tools are in the toolbox (Pic.A) under the seat. You can
use them for adjustment and repair.

Checking before driving
Before driving your motorcycle, you must check it as followings。Don’t neglect the importance of checking
and complete it before driving.
content Inspection focus
Handle Bar 1）steady
2）turning agile
3）have not become less crowded
Brake System 1）handle and footplate have the right gap
2）the response of brake is sensitive
3）have adequate brake oil
Tires 1）air pressure is right
2）proper depth of tire carving
3）no abnormal abrasion
Fuel Amount Adequate fuel amount for driving given distance
Lamplight operate all lamps-front light、rear light、brake light、turning light and so on
Indicator Light Far sight indicator ，gear indicator ，turning indicator
Horn And
Brake Switch Function is right
Machine Oil machine oil in the right level
water tank adequate coolant
accelerograph 1）accelerograph tightwire have right clearance
2)appropriate acceleration/deceleration response
clutch 1）tightwire windage appropriate
2）operate smooth
Transmission
chain 1）appropriate degree of tightness
2）appropriate lubricate

Key point of driving
Starting the engine
Check whether or not the fuel switch is on the position of “ ”, put the key into the switch and turn the
position of “ ”, let the transmission gear on the zero position and the neutral indicator is on.
When engine is cold set the choke on the close position, use the kick-starter or the electric starter to start
the engine. Then set the choke on the midway position in order to warm the engine. At last set the choke
on the open position, if the engine operates smoothly, it implies the warmed engine.
When engine is warm open the accelerograph 1/8—1/4turn, start the engine .In that case, it is no need use
the choke system.
WARNING
Don’t start the engine in an airless or air tight room.Don’t leave your motorcycle unattended, especially not
with the engine ON or the key inserted.
CAUTION:
When no driving, don’t let your motorcycle operate excessly, or less it will become very hot, in that situation,
the parts of the engine may be damaged.
Driving the motorcycle
Grip the clutch handle, stay for a moment and kick the gear lever adown to the first gear. Turn the steering
handle towards the diver, at the same time, undo the clutch handle, the motorcycle will move.
Use the gear changing system
Gear changing system can make the engine running at the normal range .The driver should chose the right
speed according the situation and let the engine running at the normal range rather than change the clutch
in order to increase the speed.

Driving on the slope
When driving on the slope, the motorcycle decreases the speed and seems inadequate power, in that
case, please change the lower gear so that keeping the power. When driving downhill, please change the
lower gear in order to break easily. Please don’t let the engine’s rotate speed too high.
Using the brake system and stopping the motorcycle
Shut down the accelerograph ，turn the steering handle against the driver，use the brake systems
equably, change the lower gear to reduce the speed.
Before the motorcycle stopping, grip the clutch; change the neutral gear, checking the neutral indicator is
ON.
CAUTION：
The driver lack of experience may only use the rear brake, it may let the brake wear quickly and longer
distance before stopping.
WARNING
Only use front brake or rear brake is dangerous，this may bring skid or out of the control。During driving on
the dank or slick rode and the corner use the brake system carefully. Brake suddenly is very dangerous!
Stand your motorcycle on a flate, even surface.
If the motorcycle must stay on the slope, change the gear to the first gear to prevent roll down. Before start
the engine change it to the neutral gear. Let ignition switch on the position of“ ”. Take away the key. Turn
the fuel tank switch on the position“”. Lock the handle bar lock.
WARNING
The higher vehicle speed, braking distance will be proportional to the increase.
Please confirm your vehicle or object in front of you with the safe braking distance
With regard new motorcycle at the beginning 1,000km, don’t abuse the engine, don’t let it exceed the
maximum speed of 80%; don’t use it when the choke on the open position, at the same time change the
gear appropriately. If you use the motorcycle using carefully at the beginning time it is benefitable to extend
the service life.
Caution：
At the first 300 km, please clean Oil Filter and adjust valve clearance according the request.

CHECKING AND MAINTAINING:
The following table shows the regular maintenance time accord the kilometers traveled.
When the times drawing near, please check lubricates and maintain according the instruction. Redirector
system, supporting and wheel system is the key parts and request technical staff maintain them.
We suggest you consign sales department or qualified technical staff to check and maintain it
Maintenance schedule
I：check、clean、adjust、lubricate or replacing; C：clean; R：replacing; A：adjust; L：lubricate
A new motorcycle after the 1000km, must operate the correct maintain according the instruction.
Maintenance
schedule Mileage km（）
schedule
content
Maintenance remarks 1,000km 4,000km 8,000km 12,000km
* Fuel pathway I I I
* Fuel filter C C C
* Reed valve I I I
air cleaner C C C
spark plug I R I
Gear oil I R R R
* Oil filtrate C C
* Carburetor I I I I
* battery I I I
Brake system I I I I
* spotlight I I I
clutch I I I I
* Brake light I I I
chain  Per 1000km:I、L、A
I I I I
* hose of brake Replacing after 4 years
I I I I
* The oil of the brake Replacing after2 years
Rear suspended carrier I I I
* nut、bolt、crossbar I I
* wheel I I I I
* Axletree of turning I I

Oil
When the oil indicator is on, please fill oil into the sump.
As the right picture shows with a little pull,
You can open the sump cap.
CAUTION：
Only use the oil of you authorized Generic Dealer. Only use
the right 2-Stroke engine oil. CASTROL Power 1 Racing
Gear box oil lever and replace the gear oil
gear oil level
Before start the engine, please check the gear oil level.
When check the gear oil level ,let the motorcycle stand on
flat, oil lever should between maximum and minimum level,
add SF lever SAE 85W90 gear oil to the maximum level if
required.
CAUTION
IT is easier to drain the engine oil when the engine is warm.
1. First remove the cap of the oil hole.
2. Screw bolt under the engine to drain the old oil.
3. Kick the engine some times to drain the oil cleanly
4. Add the proper oil，observing the lever, to the
maximum lever.
5. Fix the cap.
6. Start the engine，Let the engine rotate a few
minutes under idle conditions, then switch off the
engine.

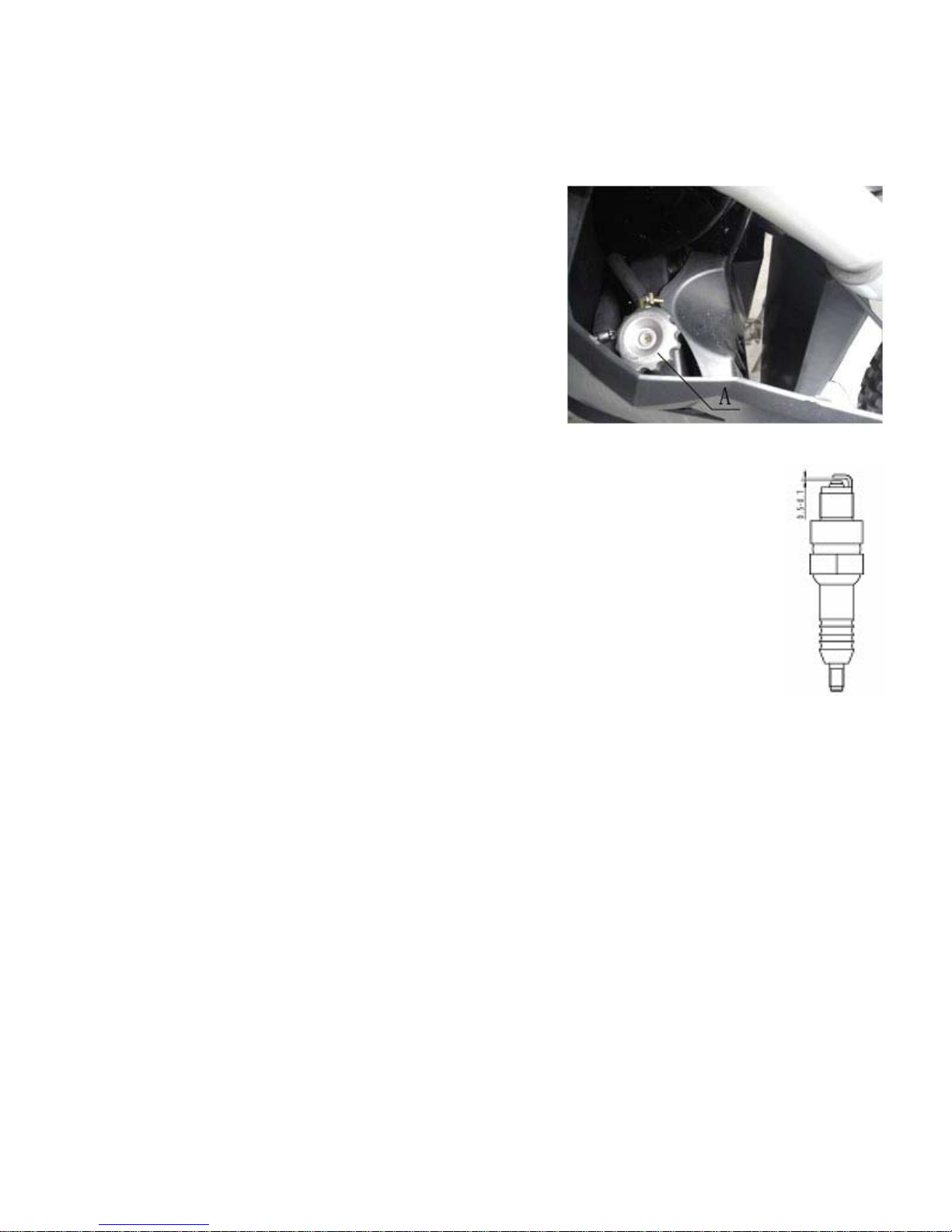

Water tank
The cycle was adopted the form of water-cooling, it locates
in the front of cycle, right. Please look at photo.
Before riding motorcycle, please balance the cycle and
check that how many water is there?
WARNING
Don’t open the cover of water tank when the engine is hot.
Spark Plug
CAUTION: please don’t screw the spark plug too strictly or intervene the worm, do this, it’ll
mangle the worm of the cylinder cover. When dismantle spark plug, please prevent
impurity entering into the engine by spark plug.
Please take little wire or spark plug cleaner clear up stack of dust and adopt measure patch
of spark in order to adjust electrode clearance and make it keep0.5-0.7 millimeter when
the cycle was steered 1000 kilometers and run every 4000kilometers. Please instead of
plug when the cycle steered 8000km.

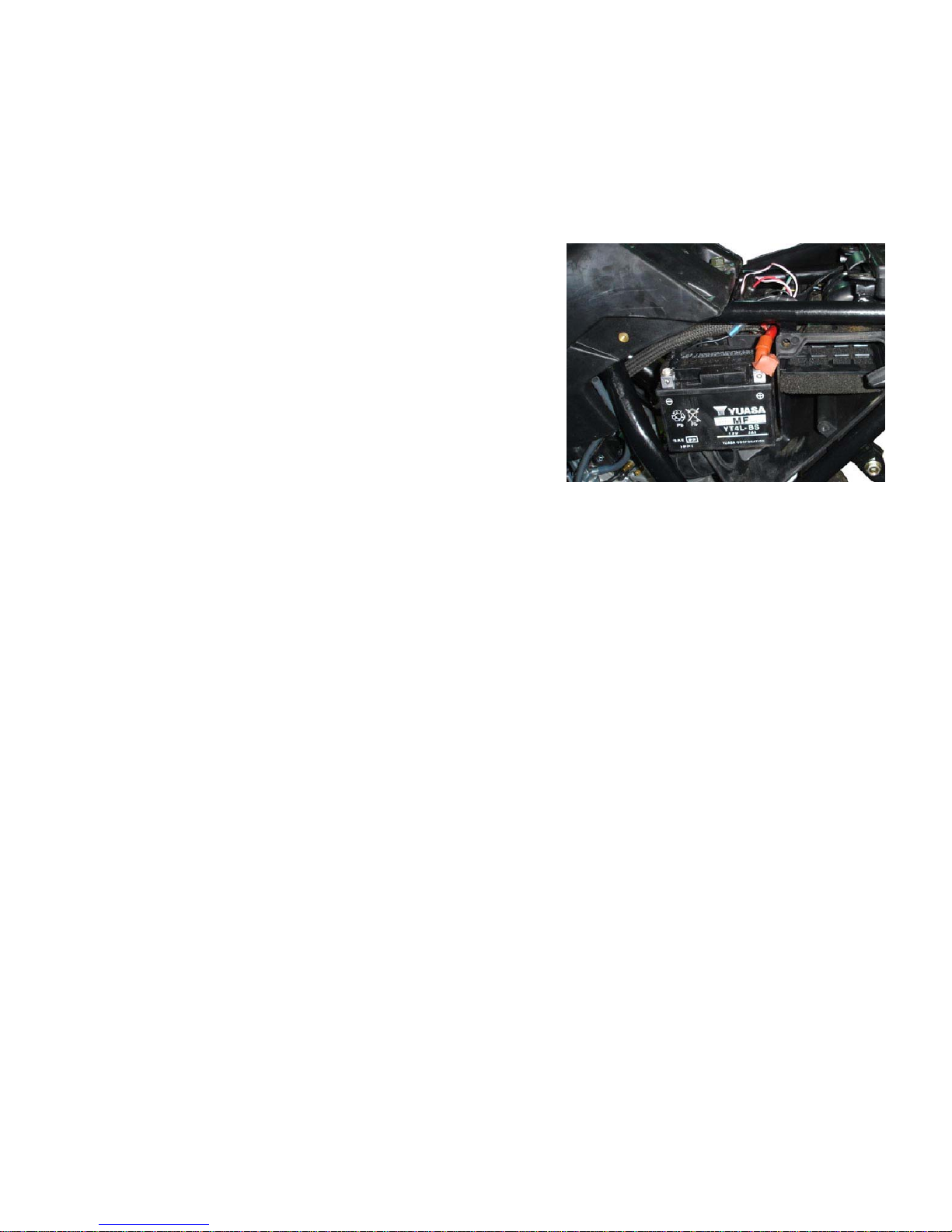

Battery
The cycle’s battery don’t need maintenance, it is been
installed in air cleaner box that locate in seats.
The battery doesn’t need to check the lever of liquid and add
electrolyte.
If you find the battery lacks energy and gives birth to jump-
starting trouble, weak light and feebleness horn, please keep
touch with dealer that authorized by QIANJIANG or
maintenance sector. High frequency starting, steering in
short distance, steering at low velocity for a long time, high-
frequency of trigin or fit superfluity electricity component,
these factors will make battery creep age ,increase load and
shorten life-span
Gradation of checking battery:
(1) Turn off motorcycle’s switch
(2) To dismantle side cover
(3) Dismantle cathode at first, then dismantle anode
(4) Take battery softly
When you want to fit battery, please do this according to reverse gradation. Replacing battery please keep
touch with dealer that authorized by QIANJIANG or maintenance sector.
WARNING: If you must do a job approaching battery, you should wear rubber glove and glass to save skin
and eyes.
WARNING：
If you put battery’s wire in wrong gradation, it’ll bring on electric circuit system’s broken red wire must
connect anode, black wire should connect cathode. When you want to check or replace battery, you
should turn off switch.

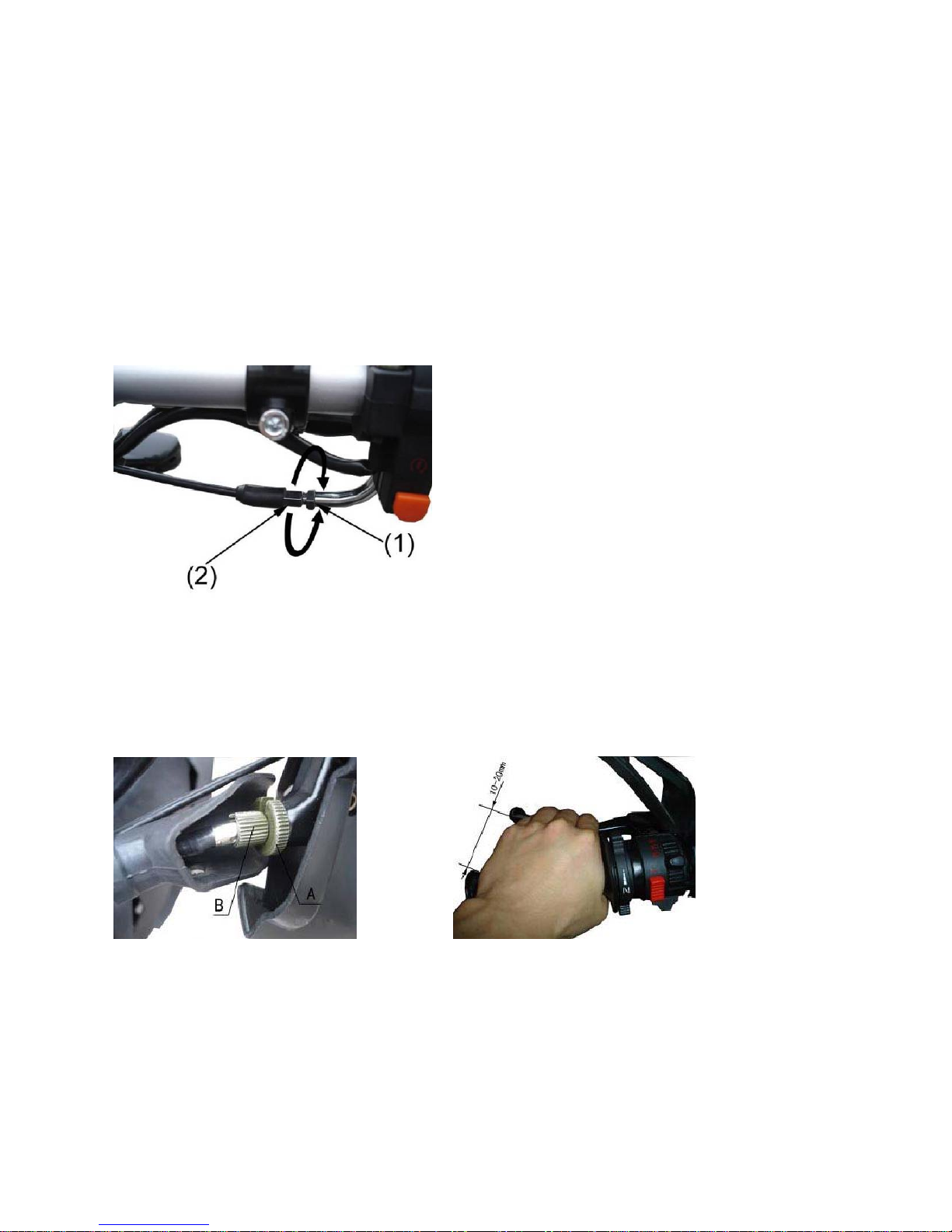

The Regulation of Accelerograph Tight wire
1. When you want to check valve’s artificial switch in the left, right of whole turning orientation, from
whole opening orientation to whole closing orientation, whether they are agility or not.
2. To measure free extent of valve’s artificial switch at side of valve’s artificial switch. The standard of
free extents: 10°～15°
If you want to adjust free extent, you should relax screw and regulate adjustor
Clutch’s regulation
Before the clutch was become loosing, Clutch’s free extent focus on clutch’s controller, free extent is 10 to
20mm.
If you find it is abnormal, you can take the following adjustments:
1. To loosen lock nut A
2. To screw on or off adjust nut B, and then make free journey catch the stated requirements
3. To screw down lock nut A

Driven chain
The life-span of driving chain depend on the proper lubricate and adjustment. Improper maintenance may
result in earlier abrasion of driving chain and chain wheel.
Driven chain’s regulation
When you drive 1000 kilometers everytime,take the following step to adjust the laxity of the driving chain in
order to maintain the vertical of driving chain between 10mm and 20mm.According to your driving
condition, the driving chain needs adjust frequently.
WARNING：
This suggestion is maximal time alternation; you should check and adjust chain before every time you drive.
Too much looseness can result in accident of taking off chain or heavy damage of the engine.
Take following step to adjust chain:
1. stand your motorcycle
2. To loosen back axes nut.
3. To loosen lock nut.
4. to regulate screw towards left or right in order to adjust chain’s laxity, you must keep line between
front wheel and rear wheel when you regulate chain. In order to help you to finishing this regulation
process, in swing arm and reference mark on each chain regulator, they can aim at each other or
as contrast from end to end.
After adjust chain endurance between 10-20mm, refax nuts of rear shaft and execute final examination.
ATTENTION: If necessary, check the abrasion of two chain wheel before replace with new chain.
When execute when execute periodical checking, please check below steps:
(1) Loosed pin
(2) Broken idler wheel
(3) Dry or rusty chain burl
(4) Tweaked or blocked chain burl
(5) Excessive dandify
(6) Adjust chain
WARNING
Chain’s nip is located in the openings; please fit it with reverse direction.
If above defects appeared which cause may dandify to the chain wheel.
Must check below:
(1) Excessive worn gear.
(2) Snapped or damaged gear.
(3) Loosed fix up nuts of chain wheel.
Lubricate of drive chain
