Genexis FiberTwist Series User manual

P2110B
FiberTwist–Series
Installation Guide
Button overview Port overview
Power portLAN port
Unlock button
Remove FiberTwist or Blind Cover – press and
hold while twisting counterclockwise
LED dim button
Dim LEDs – press and release to dim LEDs in
steps
LED overview
System
Green – system ok
O– power o
Uplink
Green – link ok
O– no link
Box contents
• Genexis FiberTwist (active device)
• Power adapter
• Label (self-adhesive)
• Installation Guide (this document)
Label position
The product label is positioned on the
back of the active device.
Preparation
Ensure there is a power socket
within reach of where the device
is being installed.
Important: Instructions need
to be followed precisely and
uninterrupted. This minimizes
the risk of damage to the fiber
optic connectors, causing a severe
degradation of signal quality.
Dierent language versions of this document and additional product information
are availableon https://genexis.eu/download-portal/#fibertwist
Installation guide
Remove Blind Cover (if present)
1.Press and hold the unlock button (see button overview).
2. Rotate the Blind Cover counterclockwise till it blocks.
3. Remove the Blind Cover from the baseplate (FTU) by pulling
it towards yourself.
4. Store the Blind Cover in a safe place.
Remove dust cap
1.Take the FiberTwist out of the box.
2. The dust cap is connected to the red string
located on the rear of the FiberTwist.
3. Remove the dust cap by pulling the red string.
4. Store the dust cap in a safe place.
Twist!
1.Place the FiberTwist on the FTU as shown in the picture below,
in a 30–degree angle.
2. Rotate clockwise until it clicks into place.
3. Make sure the FiberTwist is aligned squarely on the FTU,
each edge must line up directly with the FTU below.
Your FiberTwist is now installed!
Company Name
Genexis B.V.
Company Address
Lodewijkstraat 1a
5652 AC Eindhoven
The Netherlands
Name and title of authorized person
Maarten Egmond, CTO
Signature of authorized person
Place of issue Date of issue
Eindhoven 2020-07-27
The Netherlands
Hereby, Genexis B.V. declares that the product FiberTwist-P2110B is in compliance
with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, Delegated Directive
2015/863 and Ecodesign Directive 2009/125/EC.
The full text of the EU declaration of conformity is available at the following
internet address: https://genexis.eu/red/ft-P2110B
EU Declaration of Conformity
Connecting the FiberTwist
1.Connect your personal device to the LAN port via an RJ45 network cable.
2. Connect the supplied power adapter to the FiberTwist and plug the adapter
into a power socket.
Warning: The FiberTwist is a Class 1laser product.
If at some point in the future it becomes necessary to uninstall the FiberTwist,
please place the Blind Cover back on the FTU immediately and put the dust cap
back on the FiberTwist.
Revision 1.0- July 2020 - Copyright © 2020 Genexis B.V. All rights reserved.
Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves
the right to change, modify, transfer, or otherwise revise this publication without notice.

Other manuals for FiberTwist Series

26

This manual suits for next models

1

Other Genexis Media Converter manuals

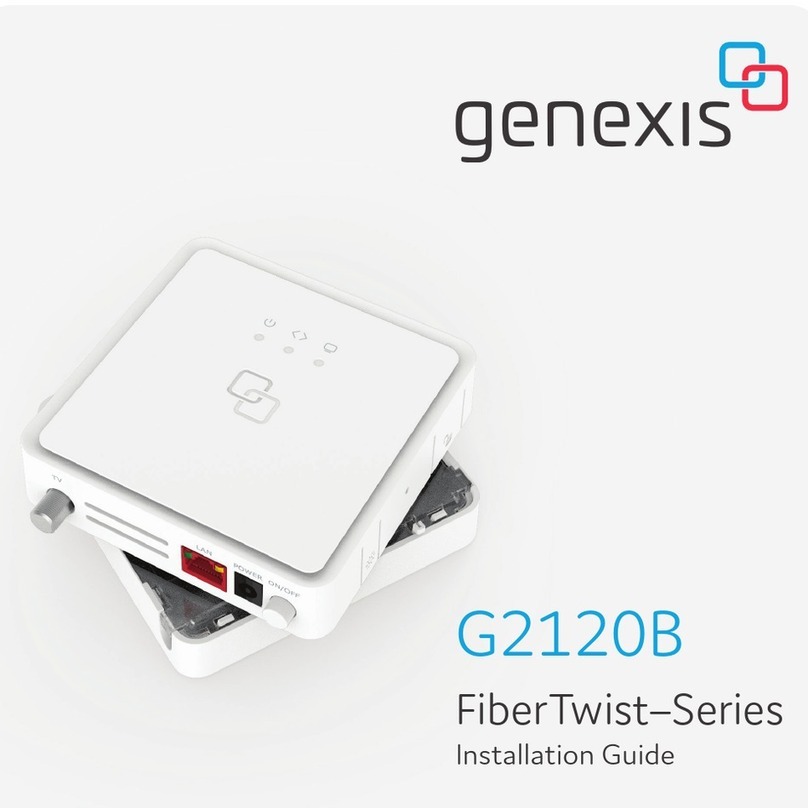

Genexis FiberTwist Series User manual

Genexis

Genexis FiberTwist Series User manual

Genexis FiberTwist Series User manual

Genexis

Genexis FiberTwist Series User manual

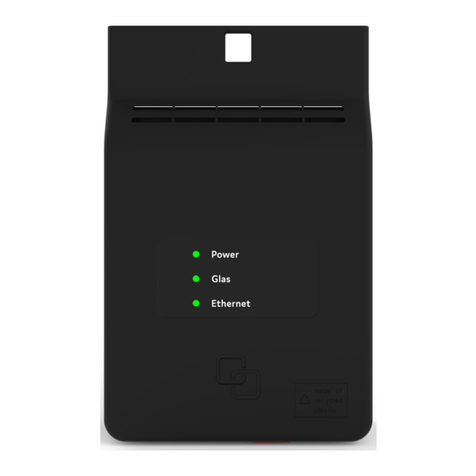

Genexis GMC-TK01-P2110 User manual
