GenICam ICD FLIR AX5 User manual

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
1 (20)
GenICam ICD FLIR AX5 Camera - PC
Contents
1 Connectivity Overview 2
1.1 Physical interfaces 2
1.2 Low level protocols 2
1.2.1 Ethernet 2
1.3 Functionality 2
1.3.1 GenICam 2
1.3.2 IP services 3
2 GeniCam Commands 4
2.1 Introduction 4
2.2 GenICam registers 5
2.2.1 Register types 5
2.2.2 IP Engine status and control 6
2.2.3 GigE Vision (GEV) standard interface 9
2.2.4 FLIR AX5 Camera interface 13
PHONE: 1-888-919-2263
PHONE INTL: 1-845-343-4077
FAX: 1-845-343-4299
Email: [email protected]

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
2 (20)
1Connectivity Overview
1.1 Physical interfaces
The FLIR IR camera, when used for GenICam data transfer, can be used in two ways.
•Dedicated Gigabit Ethernet
•Shared Ethernet
A Dedicated Gigabit Ethernet is recommended for high speed applications and when
image streaming would disturb other equipment on a Shared Ethernet.
1.2 Low level protocols
On the mentioned physical interface, it is possible to run different low level protocols.
1.2.1 Ethernet
The IP GigEVision streaming protocol is used for image transfer and the GigEVision
control protocol is used for camera control.
Some other IP protocols are supported for network management functions. They should
work seamlessly on any LAN, provided that a proper IP adress, netmask and possibly
gateway is set in the camera.
1.3 Functionality
The ethernet communication functionality is provided by an iPORT IP Engine inside the
camera. You can use it to manage image streaming and control the camera through the
GenICam command control interface.
1.3.1 GenICam
To be able to acquire images and control the camera, you have to have a software
environment that meets the specifications of the machine vision standards GigE Vision
and GenICam. For more information about this, see http://www.genicam.org/.
Such environments are, for example,
•"Measurement and Automation Explorer (MAX)" from National Instruments.
•"EBus SDK" from Pleora Technologies.
•"Common Vision Blox" from Stemmer Imaging.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
3 (20)
The camera supports the GenICam standard command set, and some FLIR specific
commands.
The GenICam Standard Features Naming Convention (available at
http://www.genicam.org/) is used.
1.3.2 IP services
It is also possible to access the system using tcp/ip with the exposed services described
here.
1.3.2.1 DHCP
The camera supports the client part of the Dynamic Host Configuration Protocol (DHCP).
1.3.2.2 Remote detection
1.3.2.2.1 GigEVision Control Protocol (GVCP)
GigEVision camera queries return the model name and MAC address of the cameras
found.
For more information, see http://www.machinevisiononline.org

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
4 (20)
2GeniCam Commands
2.1 Introduction
The goal of GenICam is to provide a generic programming interface for all kinds of
cameras.
The GenICam standard consists of multiple modules according to the main tasks to be
solved:
•GenApi : GenICam application programming interface (API) for camera
configuration and control
•GenTL : GenICam transport layer (TL) for grabbing images
The GenApi module deals with the problem of how to configure and control a camera.
The key idea is to make camera manufacturers provide machine readable versions of the
manuals for their cameras. These camera description files contain all of the required
information to automatically map a camera’sfeatures to named registers.
The GenTL module is still under construction. Until it is finished, image transfers are
made through software environment specific interfaces.
This section defines the GenICam registers of the GigEVision compatible camera.
Inside the FLIR AX5 camera, there is an iPORT IP Engine. It has a number of status
registers and registers that control the way in which it acquires images from the camera.
From the iPORT IP Engine point of view, the FLIR AX5 camera is regarded as a GigE
Vision device with some special FLIR Camera features.
To be able to use these registers to acquire images and control the camera, you have to
establish a connection to it through a software environment that meets the specifications
of the machine vision standards GigE Vision and GenICam, such as the eBus SDK from
Pleora Technologies.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
5 (20)
2.2 GenICam registers
Depending on the camera model, all registers may not be available or functional on a
particular camera.
2.2.1 Register types
The registers have one of the following types:
Integer An integer value, between -2 147 483 648 and 2 147 483 647.
String
(max length
including null)
An ASCII string, for example "ThermaCAM".
The string must be terminated with a Null (binary 0) character
Bool The integer value 1 for true, or the integer value 0 for false.
Float An IEEE 754 -1985 encoded floating point value, between
±3.4028235×10^38 .
Enum An integer value with a specific encoding.
Cmd An integer value with a specific encoding used as a command.
They can be accessed in one of these three ways:
RO Read only
RW Read write
WO Write only

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
6 (20)
2.2.2 IP Engine status and control
To establish a connection through the Pleora eBUS SDK, you have to connect using the IP
address of the camera and retrieve a handle to the map of register nodes. Information
about them will automatically be downloaded from the camera.
2.2.2.1 Device Information registers
Registers associated with device information
Name Type Access Comment
DeviceVendorName String
(32) RO Provides the name of the manufacturer of the
device.
DeviceModelName String
(32) RO Provides the model of the device.
DeviceVersion String
(32) RO Provides the version of the device.
DeviceManufacturerInfo String
(48) RO Provides extended manufacturer information
about the device. *)
DeviceID String
(16) RO This register holds a camera identifier.
DeviceUserID String
(16) RW This register holds a user-programmable
identifier.
DeviceReset Cmd WO Resets the Camera Head and the IP Engine.
CameraSN Integer RO Camera module serial number.
SensorSN Integer RO Sensor serial number.
CameraFirmwareVersion Integer RO Camera module software version.
SensorFirmwareVersion Integer RO Sensor firmware version.
SensorResolution Enum RO Sensor resolution
0=Tau2 640x512, 17u
1=Tau2 336x256, 17u
2=Tau2 320x256, 25u
3=Tau2 160x128
4=Tau2 80x64
SensorFocalLength Enum RO Sensor focal length in millimeters
0=7.5 mm
1=9 mm
2=13 mm

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
7 (20)
3=19 mm
4=25 mm
5=35 mm (Fits onto the WFOV flange)
6=35 mm
7=50 mm
8=60 mm
9=100 mm
10=5 mm
SensorFrameRate Enum RO Sensor frame rate
0=Slow
1=Fast
SensorTemperature Float RO FPA temperature in Celsius
HousingTemperature Float RO Sensor module housing temperature. (Added
in XML interface ver 1.1.8)
CameraHeadReset Cmd WO Resets only the Camera Head. (Added in
XML interface ver 1.1.7)
*) The DeviceManufacturerInfo register contains six entries separated by commas
(Camera ID, Generic ID, Streaming interface, Streaming interface version, Command
interface, Command (or XML) interface version), for example: "ATAU, Gen_A/G, GEV,
1.0.0,GEV,1.1.6".

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
8 (20)
2.2.2.2 IP Engine status registers
Registers associated with the IP Engine status
Name Type Access Comment
IPEngineFirmwareVersionMajor Integer RO This register represents the major version of
the iPORT IP Engine firmware.
IPEngineFirmwareVersionMinor Integer RO This register represents the minor version of
the iPORT IP Engine firmware.
IPEngineInitSequenceStatus Integer RO This register reports the status of the
initialization sequence. A null value indicates
that the initialization sequence ran
successfully. Otherwise, it returns the index
of the register write that failed in the
sequence.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
9 (20)
2.2.3 GigE Vision (GEV) standard interface
2.2.3.1 GigE Vision Image size control registers
Registers associated with the image size.
Name Type Access Comment
Width Integer RW This register represents the current image
width from the camera (in pixels). Mandatory
GEV feature.
Height Integer RW This register represents the current image
height from the camera (in pixels).
Mandatory GEV feature.
OffsetX Integer RW This register represents the horizontal
distance (in pixels) from the center of the
detector to the center of the image. This
offset plus the current image width cannot
exceed the detector width.
OffsetY Integer RW This register represents the vertical distance
(in pixels) from the center of the detector to
the center of the image. This offset plus the
current image width cannot exceed the
detector height.
PixelFormat Enum RW This register indicates the format of the pixel
to use during the acquisition. Pixel format as
defined in GVSP (the GigEVision Streaming
Protocol). Mandatory GEV feature. The
difference between Mono14 and Mono16 is
the alignment of the 14-bit signal value. In
Mono16 the value is MSB aligned (bit2 to
bit15) and in Mono14 the value LSB aligned
(bit0 to bit13).
PayloadSize Integer RO Number of bytes transferred for each image
on the stream channel. Mandatory GEV
feature.
TestImageSelector Enum RW This feature selects the type of test image that
is created by the GEV interface board.
0=Off
1= TestPattern

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
10 (20)
2.2.3.2 GigE Vision Acquisition control registers
Registers associated with the IP Engine acquisition of images from the camera and their
transmission on the ethernet.
Name Type Access Comment
AcquisitionFrameCount Integer RW This register provides the number of frames
to be acquired in MultiFrame Acquisition
mode.
AcquisitionMode Enum RW This register controls the acquisition mode of
the device. Mandatory GEV feature.
0=Continuous
1=SingleFrame
2=MultiFrame
AcquisitionStart Cmd WO This register starts the Acquisition of the
device. Mandatory GEV feature.
AcquisitionStop Cmd WO This register stops the Acquisition of the
device at the end of the current Frame.
Mandatory GEV feature.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
11 (20)
2.2.3.3 GigE Vision Network Configuration registers
Registers associated with the GEV transport protocol.
Name Type Access Comment
GevVersionMajor Integer RO This register represents the major version of
the GEV specification
GevVersionMinor Integer RO This register represents the minor version of
the specification.
GevDeviceModeIsBigEndian Bool RO Endianness might be used to interpret multi-
byte data for READMEM and WRITEMEM
commands.
GevDeviceModeCharacterSet Enum RO This register represents the character set used
by all the strings of the bootstrap registers.
GevMACAddressHigh Integer RO This register stores the upper two bytes of the
MAC address of the given network interface.
GevMACAddressLow Integer RO This register stores the lower four bytes of
the MAC address of the given network
interface.
GevSupportedIPConfigurationLLA Bool RO This register indicates if Link Local Address
IP configuration scheme is supported by the
given network interface.
GevSupportedIPConfigurationDHCP Bool RO This register indicates if DHCP IP
configuration scheme is supported by the
given network interface
GevSupportedIPConfigurationPersistentIP Bool RO This register indicates if Persistent IP
configuration scheme is supported by the
given network interface.
GevCurrentIPConfigurationLLA Bool RW This register indicates if Link Local Address
IP configuration scheme is activated on the
given network interface.
GevCurrentIPConfigurationDHCP Bool RW This register indicates if DHCP IP
configuration scheme is activated on the
given network interface.
GevCurrentIPConfigurationPersistentIP Bool RW This register indicates if PersistentIP
configuration scheme is activated on the
given network interface
GevCurrentIPAddress Integer RO This register reports the IP address for the
given network interface once it has been
configured.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
12 (20)
Name Type Access Comment
GevCurrentSubnetMask Integer RO This register provides the subnet mask of the
given interface.
GevCurrentDefaultGateway Integer RO This register indicates the default gateway IP
address to be used on the given network
interface.
GevFirstURL String
(512) RO This register holds the first URL to the XML
device description file.
GevSecondURL String
(512) RO This register holds the second URL to the
XML device description file.
GevNumberOfInterfaces Integer RO This register indicates the number of physical
network interfaces supported by this device
GevPersistentIPAddress Integer RW This register indicates the Persistent IP
address for this network interface.
GevPersistentSubnetMask Integer RW This register indicates the Persistent subnet
mask associated with the Persistent IP
address on this network interface.
GevPersistentDefaultGateway Integer RW This register indicates the persistent default
gateway for this network interface.
GevHeartbeatTimeout Integer RW This register indicates the current heartbeat
timeout in milliseconds.
GevCCP Enum RW This register is used to grant privilege to an
application.
0=Open access
1=Exclusive access
2=Control access
GevSCPInterfaceIndex Integer RW Index of network interface to use (from 0 to
3).
To make the iPort announce network configuration changes on the ethernet, you have to
reset the iPort using the DeviceReset command register.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
13 (20)
2.2.4 FLIR AX5 Camera interface
2.2.4.1 Feature registers
Registers associated with camera features
Name Type Access Comment
CameraCapabilities Integer RO Camera capabilities. Bit mask.
0=Focus, auto focus single shot
1=Focus, motor
2=Digital I/O capable
3=IRWindowing
SensorSetDefaults Cmd WO Sets all current settings as power on defaults
SensorSetToFactoryDefaults Cmd WO Reset camera with factory header values.
SyncMode Enum RW External sync feature.The camera provides
the ability to either accept or output a frame
synchronization signal.
0=Disabled (default). The camera will turn
off frame synchronization.
1=SelfSyncMaster. The camera will output a
frame synchronization signal on the Sync
output pin of the GPIO connector.
2=SelfSyncSlave. The camera will accept a
frame synchronization signal on the Sync
input signal on the GPIO connector. The
camera output will be frozen if the camera is
in slave mode and no external
synchronization signal is received.
3=ExtSyncMaster. The camera will accept a
frame synchronization signal on the Sync
input signal on the GPIO connector. The
camera output will be frozen if the camera is
in slave mode and no external
synchronization signal is received. The
camera will output a frame synchronization
signal on the Sync output pin of the GPIO
connector when configured as a Sync master.
BaudRate Enum RW Gets or sets the baud rate of the serial comm.
channel. Default is Auto detected.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
14 (20)
2.2.4.2 Measurement registers
The camera has a list of measurement ranges (called gain modes) which you can inspect
through these registers. You can also make the camera switch to one of them using the
SensorGainMode register.
Temperature (in Kelvin) = B / log(R / (S - O) + F), where S is the 14-bit digital signal
value. log(x) is the base-e logarithm of the x parameter.
Name Type Access Comment
SensorGainMode Enum RW Dynamic range control mode.
1=Low gain mode (lower sensitivity), high
temperatures.
2=High gain mode for lower temperatures (<
100 deg Celsius)
R Integer RW Gets and sets the Planck R constant. This
value is used when converting from signal
value to temperature.
B Float RW Gets or sets Planck B constant. This value is
used when converting from signal value to
temperature. Value range 1300 - 1600.
F Float RW Gets or sets Planck F constant. This value is
used when converting from signal value to
temperature. Value range 0.5 - 2.
O Float RW Gets and sets Planck O (offset) constant. This
value is used when converting from signal
value to temperature.
Spot Float RO Center spot meter in degrees Celsius.
LensNumber Enum RW Gets or sets the active lens (which affects
which correction terms are applied)
0=Lens type 0 (default)
1=Lens type 1
LensSelector Enum RW Selected lens (0 - 1)
FNumber Float RW Selected lens F number (focal ratio), 0.5 - 8.0
Transmission Float RW Selected lens transmission factor, 0.5 - 1.0
2.2.4.3 Object Parameter registers
Registers associated with infrared measurement conditions.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
15 (20)
Name Type Access Comment
ReflectedTemperature Float RW Kelvin, 224.0 - 600.0
ObjectEmissivity Float RW 0.5 - 1.0 (default 1.0)
EstimatedTransmission Float RW 0.5 - 1.0 (default 1.0)

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
16 (20)
2.2.4.4 Monochrome 8-bit video registers
Registers associated with the 8-bit monochrome video format. Manipulating these
registers will only have effect if the DigitalOutput register is bit8bit and the PixelFormat is
Mono8.
Name Type Access Comment
Contrast Integer RW Image contrast. Available when
ImageAdjustMethod is Manual, Once bright
or Autobright.
Brightness Integer RW Image brightness. Available when
ImageAdjustMethod is Manual.
ImageAdjustMethod Enum RW 0=Plateau histogram
1=Once bright
2=Autobright
3=Manual
4=Linear
VideoOrientation Enum RW Digital 8-bit video orientation mode
0=Normal
1=Invert (flip image vertically)
2=Revert (flip image horizontally)
3=InvertRevert (flip image vertically and
horizontally)
PlateauLevel Integer RW Plateau level for ImageAdjustMethod =
histogram mode. Range 0-1000.
ITTMidpoint Integer RW Gets and sets the ITT midpoint offset
BrightnessBias Integer RW Gets and sets the brightness bias value in
auto bright mode. Range -2048 - 2048. Only
available when ImageAdjustMethod equals
Autobright.
MaxAGCGain Integer RW Gets and sets the max value of video gain.
Range 0-255.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
17 (20)
Name Type Access Comment
ITTFilter Integer RW Gets and sets the IIR filter value. Range 0-
255. The IIR filter is used to adjust how
quickly the AGC algorithm reacts to a
change in scene or parameter value. If the IIR
filter value is set to a low value, then if a hot
object enters the field of view, the AGC will
adjust more slowly to the hot object, resulting
in a more gradual transition. In some
applications, this can be more pleasing than a
sudden change to background brightness.
Default value is 64.
SensorVideoStandard Enum RW Analogue video mode. Affects frame rate on
digital interface.
0=NTSC, 30 Hz
1=PAL, 25 Hz
4=NTSC, 60 Hz (default)
5= PAL, 50 Hz
2.2.4.5 Image quality registers
Registers associated with the image quality
Name Type Access Comment
NUCMode Enum RW Non-Uniform Correction (NUC) mode
0=Off (manual)
1=Automatic by camera
2=External (no shutter is used)
NUCAction Cmd WO Do NUC operation.
NUCTempDelta Float RO Temperature difference in Celsius used to
trigger automatic NUC.
NUCTempDeltaW Integer WO Sets the temperature difference used to
trigger automatic non-uniform corrections.
Each increment represents 0.1 C.
NUCIntervalFrames Integer RO The interval (in frames) between automatic
NUC corrections.
NUCIntervalFramesW Integer WO The interval (in frames) between automatic
NUC corrections.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
18 (20)
Name Type Access Comment
SensorDDEMode Enum RW Dynamic Digital Detail Enhancement mode
0=Manual
1=Automatic
SensorDDEGain Integer RW Gain of the DDE filter. Range 1-63.
Available only when SensorDDEMode is
Manual.
SensorDDEThrs Integer RW Threshold of the DDE filter. Range 0-255.
Available only when SensorDDEMode is
Manual.
SensorDDESpatial Integer RW DDE Spatial Threshold. Range 0-15.
Available only when SensorDDEMode is
Manual.
ShutterPosition Enum RW Gets or sets the shutter position
0=Open
1=Close

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
19 (20)
2.2.4.6 Image stream registers
Registers associated with the image format or with the image stream..
Name Type Access Comment
IRTestPattern Enum RW This register selects the type of test image
that is created by the IR camera.
0=Off
1= Ascending ramp pattern
DigitalOutput Enum RW Gets and sets the digital output channel
mode.
2=bit8bit (mono8 digital video, default)
3=bit14bit (filtered 14-bit pixel data)
XPMode Enum RW Gets and set the XP channel mode
0=Disabled
1=BT656
2=CMOS (default)
LVDSMode Enum RW Gets and sets the LVDS mode
0=Disabled (default)
1=Enabled
CMOSBitDepth Enum RW Gets and sets the CMOS mode bit depth
0=14 bit (default)
1=8 bit
LVDSBitDepth Enum RW Gets and sets the LVDS mode bit depth
0=14 bit (default)
1=8 bit
The image pixels are transferred left to right, row by row, from top to bottom. The byte
order is in accordance with the GevDeviceModeIsBigEndian register.

Date
1/6/12
© 2011-2012, FLIR Systems AB. All rights reserved worldwide. Publ. No. T 559 775, Rev. B
20 (20)
2.2.4.7 External I/O registers
Registers associated with configuring camera external I/O ports.
Name Type Access Comment
LineSelector Enum RW Current selected Input port. Line0 represents
GPI (General Purpose Input).
LineMode Enum RO Type of I/O port
0=Input
1=Output
LineStatus Boolean RO Returns the current status of the selected
input line
LineDebounceFactor Integer RW Controls the width of the window during
which spurious transitions from input lines
are filtered out (in increments of ~480 ns).
Value range is 0 to 65535.
UserOutputSelector Enum RW Current selected Output port. UserOutput0
represents GPO (General Purpose Output).
UserOutputValue Boolean RW Sets the current status of the selected output
line.
Table of contents
Popular Digital Camera manuals by other brands

Nikon
Nikon Coolpix e1989 user guide

Panasonic
Panasonic LUMIX DMC-FS25 operating instructions

Pentax
Pentax PC35AF-M SE Date manual

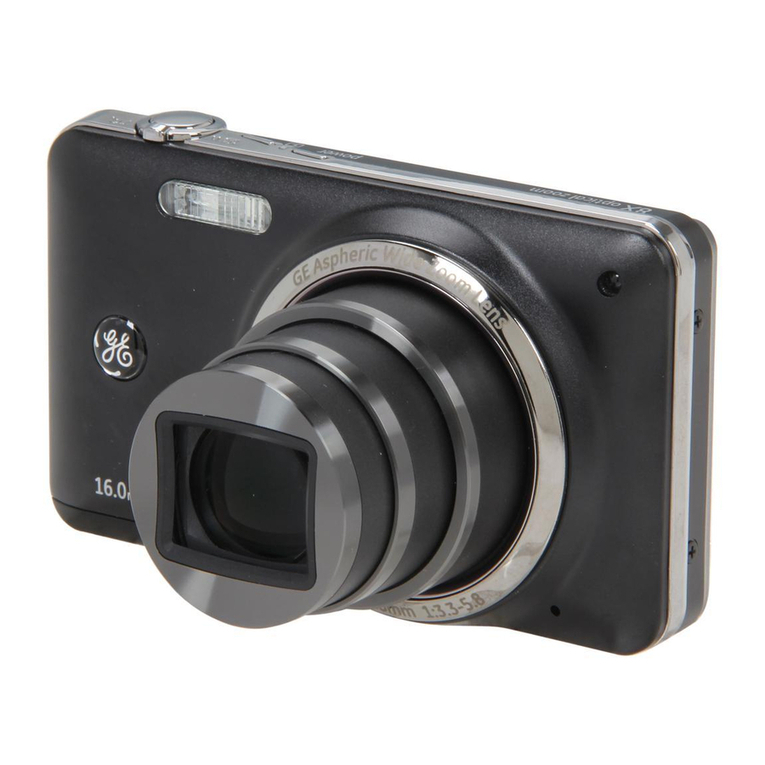

GE
GE E1680W user manual

Sony
Sony DSLR-A300 - alpha; Digital Single Lens Reflex Camera... Service manual

D-Link
D-Link DSC-350 - Digital Camera - 0.35 Megapixel quick start guide
