German Light Products Max 250 ELC User manual

250 ELC
Instruction Manual
From Version 1.1
email: [email protected]
Internet: http://www.glp.de

GLP 

 German Light Production (V2.1) 2

GLP 

 German Light Production (V2.1) 3
Contents
1Introduction.............................................................................................................4
1.1 Safety rules.......................................................................................................5
2Installation...............................................................................................................6
2.1 Mounting...........................................................................................................6
2.2 Secure the Max.................................................................................................6
2.3 Connectors .......................................................................................................6
2.3.1 AC Connector.........................................................................................6
2.3.2 DMX.......................................................................................................6
2.4 Fuses................................................................................................................6
3Selecting Address/Basic Functions ......................................................................7
3.1 Adjust the DMX-Address ..................................................................................7
3.2 Special Function...............................................................................................8
3.2.1 Sound function.......................................................................................8
3.2.2 Standalone Function..............................................................................8
3.2.3 Reset......................................................................................................8
3.2.4 Switch off Lamp......................................................................................8
4Channel selection ( Overview table ).....................................................................9
5Change the Lamp..................................................................................................12
5.1 Safety rules.....................................................................................................12
5.2 How to change the lamp.................................................................................12
6Maintenance the MAX...........................................................................................13
6.1 Optical System................................................................................................13
6.2 Cleaning the Fans...........................................................................................13
7Technical Data /Overview.....................................................................................14

GLP 

 German Light Production (V2.1) 4
1 Introduction
Illustration 1-1

GLP 

 German Light Production (V2.1) 5
1.1 Safety rules
The M Ma ax x is a High-Tech Product. To guarantee a smooth operation, it is
necessary to keep following rules.
1. Make sure that Head and Arm of the M Ma ax x, can rotate without any mechanical
problems and that all fan openings are clean and not blocked by anything.
2. Touching the head while moving can cause serious injuries.
3. Unplug the M Ma ax x from the AC outlet before any service.
4. Wait at least 30 minutes after disconnecting the AC before you open the M Ma ax x.
Please do not touch the Bulb unless you are absolutely sure it is cold. -Danger
of BURNING-.
5. For safe operation, follow the Installation guide described in chapter 2.
Operating the M Ma ax x without Safety cables or clamps/hooks can increase the risk
of an accident.
6. The installation should be done by qualified personal only. You need to pay
attention to the common rules of technology that are not explicitly mentioned in
this manual.

GLP 

 German Light Production (V2.1) 6
2 Installation
2.1 Mounting
Mount clamps and/or hooks directly to the base plate.
Please make sure to use right sized clamps and hooks and fit them securely.
The M Ma ax xis fully operational whether it stands, hangs or is mounted to the wall.
Using the M Ma ax xstanding on the ground requires a rough but even surface. Make
sure that the fan openings are not blocked in any circumstance.
2.2 Secure the Max
Use always safety wires to secure the M Ma ax x, connect them with the base plate (see
Drawing 1-1 Chapter 1) and check for tight fit!
2.3 Connectors
2.3.1 AC Connector
230/120 Volt, 50/60 Hz
Please see printing on the case for the right Power supply
2.3.2 DMX
DMX 512 Standard input/output
Please see printing on the case for the right Pin usage.
2.4 Fuses
The M Ma ax x electronic system is protected by 5x20 T3.15A fuse 250V, or 5x20 6.3AT
fuse 120V. Please see the printing on the M Ma ax x for more details look at the
Drawing 1-1 at Chapter 1.
Disconnect AC outlet before changing a fuse !!!

GLP 

 German Light Production (V2.1) 7
3 Selecting Address/Basic Functions
Adjust DMX-Address and basic functions before connecting the M Ma ax xto AC Power !!!

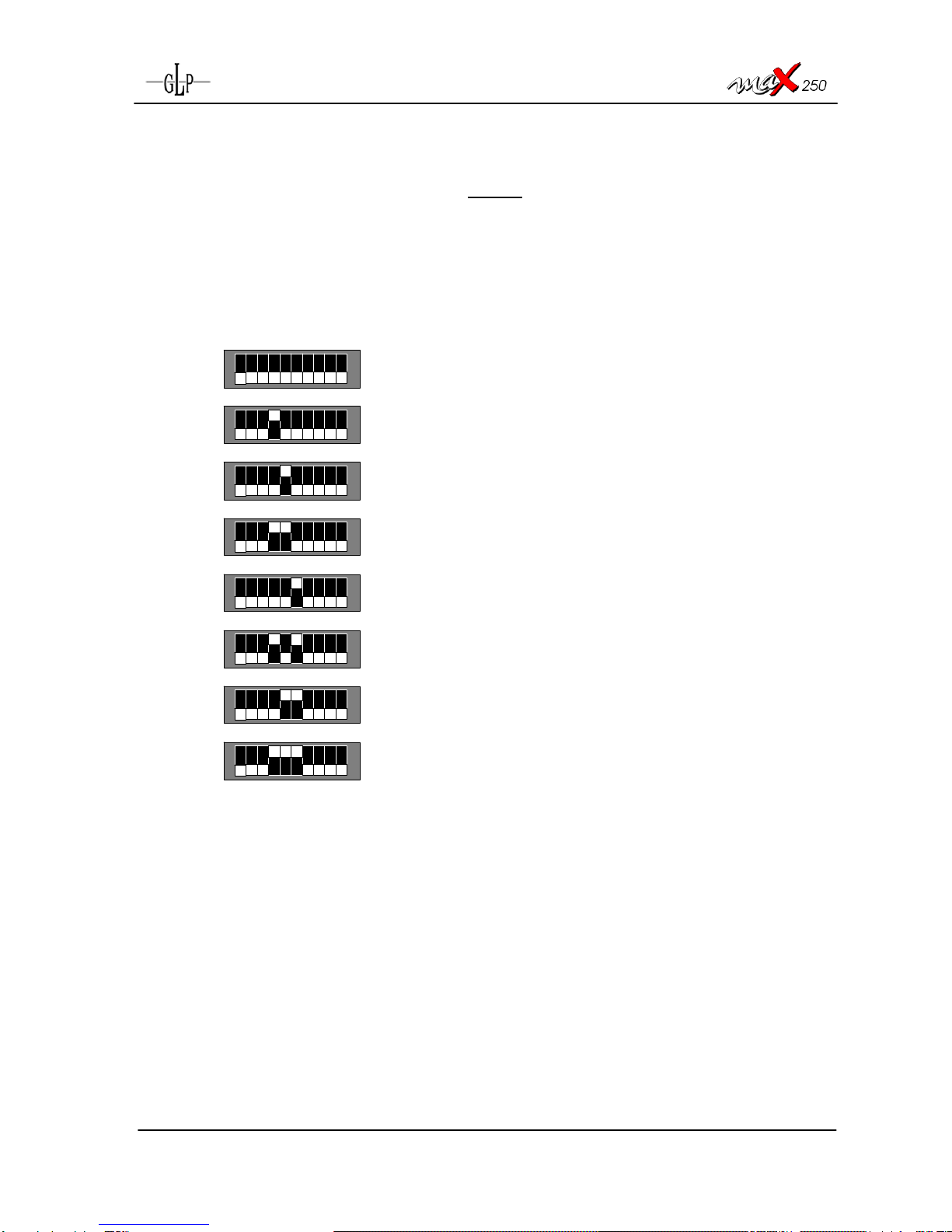

3.1 Adjust the DMX-Address
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
9
9
9
9
9
9
9
9
8
8
8
8
8
8
8
8
10
10
10
10
10
10
10
10
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Address
max 1
max 2
max 3
max 4
max 5
max 6
max 7
max 8
DMX Address 0
DMX Address 8
DMX Address 16
DMX Address 24
DMX Address 32
DMX Address 40
DMX Address 48
DMX Address 56

GLP 

 German Light Production (V2.1) 8

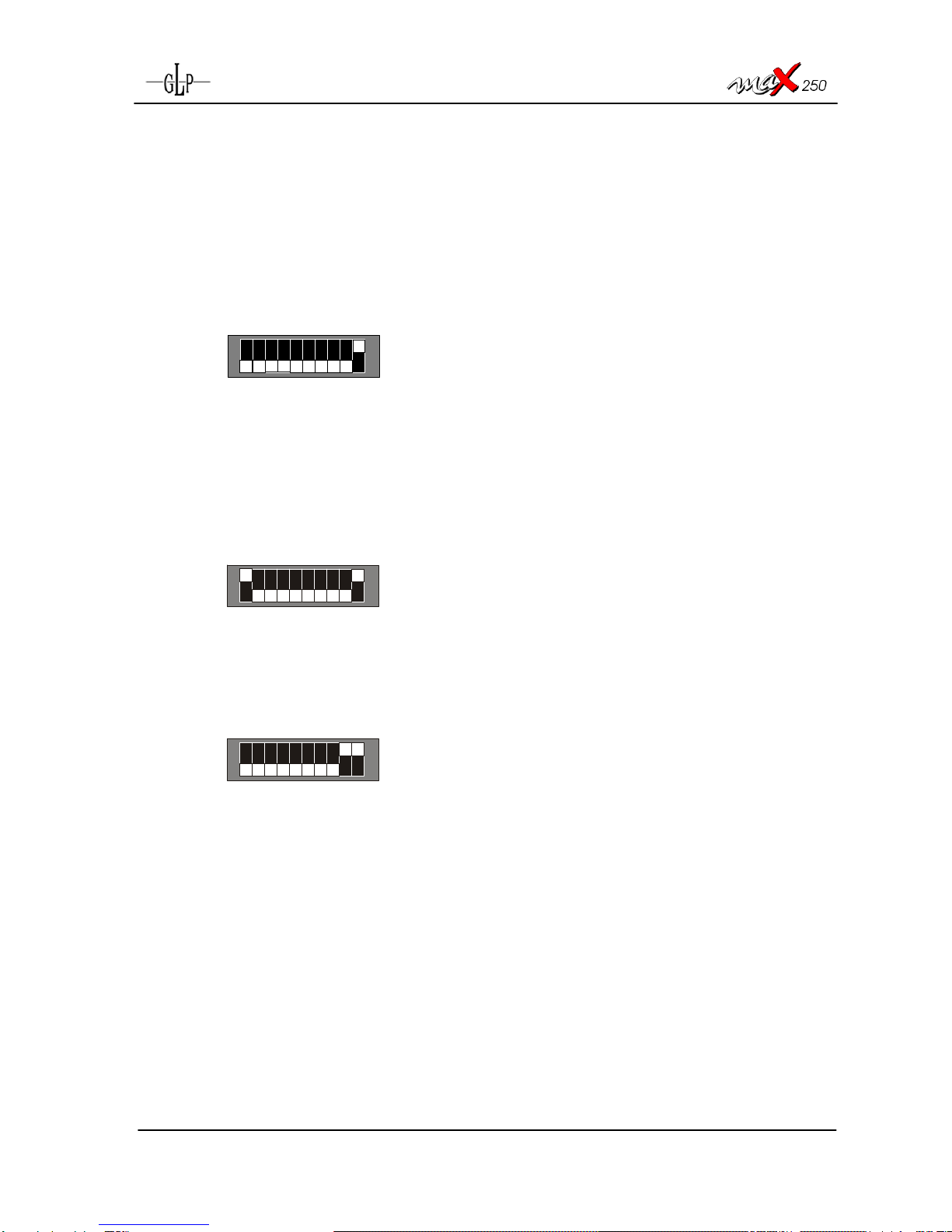

3.2 Special Function
3.2.1 Sound function
Sound controlled run of factory stored programs is possible by switching the
DMX Address at first M Ma ax xas seen in the picture below. Set the Dip
switches of any other connected M Ma ax xto OFF.
1 2 3 4 5 6 7
9
8
10
ON
OFF
Address
3.2.2 Standalone Function
Automatically Runs factory stored program. If you want to use this setting
while connecting more than one M Ma ax xin a line, set the Dip switches of all
others connected units to OFF.
1 2 3 4 5 6 7
9
8
10
ON
OFF
Address
3.2.3 Reset
All functions will Reset and move to zero position.
1 2 3 4 5 6 7
9
8
10
ON
OFF
Address
3.2.4 Switch off Lamp
If the channels 3 (Speed Arm), 4 (Speed Head) and 8 (Shutter) on M Ma ax x
zero at the same time, the lamp of the M Ma ax xwill switch off immediately. Any
change of channel 8 (Shutter) will start the lamp again.
If there is no signal on channel 8 (Shutter) for more than 2 min. on DMX
zero, the lamp will switch off automatically. Any signal of channel 8
(Shutter) will start the lamp again.

GLP 

 German Light Production (V2.1) 9
4 Channel selection ( Overview table )
Channel Description DMX-Value Hex- Value Value in %
1) Pan Armposition 0 - 255 0 - FF 0 – 100
2) Tilt Headposition 0 - 255 0 - FF 0 – 100
3) Speed
(Arm) Armspeed 1/8min-2/sec 0 - 255 0 - FF 0 – 100
4) Speed
(Head) Headspeed 1/8min-2/sec 0 - 255 0 - FF 0 – 100
5) Movements Head Arm
Pos min Pos min 0 - 15 0 - F 0 – 5
Pos min Pos Max 16 - 31 10 - 1F 6 – 12
Pos Max Pos min 32 - 47 20 - 2F 13 – 18
Pos Max Pos Max 48 - 63 30 - 3F 19 – 24
Rotation left Pos min 64 - 79 40 - 4F 25 – 31
Rotation left Pos Max 80 - 95 50 - 5F 32 – 37
Rotation right Pos min 96 - 111 60 - 6F 38 – 43
Rotation right Pos Max 112 - 127 70 - 7F 44 – 50
Pos min Rotation left 128 - 143 80 - 8F 51 – 56
Pos Max Rotation left 144 - 159 90 - 9F 57 – 62
Pos min Rotation right 160 - 175 A0 - AF 63 – 68
Pos Max Rotation right 176 - 191 B0 - BF 69 – 75
Rotation left Rotation left 192 - 207 C0 - CF 76 – 81
Rotation right Rotation right 208 - 215 D0 - D7 82 – 84
Rotation left Rotation right 216 - 231 DA - E7 85 – 90
Rotation right Rotation left 232 - 254 E8 - FE 91 – 99
Reset all functions 255 FF 100
6) Color Color correction filter 5600K 0 -3 0 - 3 1
Halfcolor 1 4 - 7 4 - 7 2
blue 107 8 - 11 8 - B 3
Halfcolor 2 12 - 15 C - F 5
blue110 16 - 19 10 - 13 7
Halfcolor 3 20 - 23 14 - 17 8
blue101 24 - 27 18 - 1B 10
Halfcolor 4 28 - 31 1C - 1F 11
cyan 401 32 - 35 20 - 23 13
Halfcolor 5 36 - 39 24 - 27 15
green 201 40 - 43 28 - 2B 16
Halfcolor 6 44 - 47 2C - 2F 18
green 204 48 - 51 30 - 33 19
Halfcolor 7 52 - 55 34 - 37 21
yellow 601 56 - 59 38 - 3B 22
Halfcolor 8 60 - 63 3C - 3F 24

GLP 

 German Light Production (V2.1) 10
Channel Description DMX-Value Hex- Value Value in %
orange 306 64 - 67 40 - 43 25
Halfcolor 9 68 - 71 44 - 47 27
red 304 72 - 75 48 - 4B 29
Halfcolor 10 76 - 79 4C - 4F 30
pink 303 80 - 83 50 - 53 32
Halfcolor 11 84 - 87 54 - 57 33
magenta 501 88 - 91 58 - 5B 35
Halfcolor 12 92 - 95 5C - 5F 36
magenta 507 96 - 99 60 - 63 38
Halfcolor 13 100 - 103 64 - 67 40
cyan 104 104 - 107 68 - 6B 41
Halfcolor 14 108 - 111 6C - 6F 43
orange 302 112 - 115 70 - 73 44
Halfcolor 15 116 - 119 74 - 77 46
türkis 208 120 - 123 78 - 7B 47
Halfcolor 16 124 - 127 7C - 7F 49
pink 310 128 - 131 80 - 83 50
Halfcolor 17 132 - 135 84 - 87 52
yellow 603 136 - 139 88 - 8B 54
Halfcolor 18 140 - 143 8C - 8F 55
UV blue 108 144 - 147 90 - 93 57
Halfcolor 19 148 - 151 94 - 97 58
red 301 152 - 155 98 - 9B 60
Halfcolor 20 156 - 159 9C - 9F 61
open (no filter) 160 - 175 A0 - AF 62 – 68
Rotation 1 fast-slow 176 - 208 B0 - D0 69 – 81
Rotation stop 209 - 221 D1 - DF 82 – 86
Rotation 2 slow-fast 222 - 255 E0 - FF 87 – 100
7) Gobos Gobo 1 0 - 7 0 - 7 2
Gobo 2 8 15 8 - F 5
Gobo 3 16 - 23 10 - 17 8
Gobo 4 24 - 31 18 - 1F 11
Gobo 5 32 - 39 20 - 27 15
Gobo 6 40 - 47 28 - 2F 18
Gobo 7 48 - 55 30 - 37 21
Gobo 8 56 - 63 38 - 3F 24
Gobo 9 64 - 71 40 - 47 27
Gobo 10 72 - 79 48 - 4F 30
Gobo 11 80 - 87 50 - 57 33
Gobo 12 88 - 95 58 - 5F 36
Gobo 13 96 - 103 60 - 67 40
Gobo 14 104 - 111 68 - 6F 43

GLP 

 German Light Production (V2.1) 11
Channel Description DMX-Value Hex- Value Value in %
Gobo 15 112 - 119 70 - 77 46
Gobo 16 120 - 127 78 - 7F 49
Gobo 17 128 - 135 80 - 87 52
Gobo 18 136 - 143 88 - 8F 55
Gobo 19 144 - 151 90 - 97 58
Gobo 20 152 - 159 98 - 9F 61
Gobo 21 160 - 175 A0 - A7 68
Rotation fast-slow 176 - 208 B0 - D0 69 – 81
Rotation stop 209 - 255 D1 - FF 82 – 100
8) Shutter Shutter closed 1 0 - 7 0 - 7 2
Shutter open 8 - 15 8 - F 5
Shutter closed 2 16 - 23 10 - 17 8
Shutter frequency, high/low 24 - 127 18 - 7F 9 – 50
Shutter open, color/gobo speed slow - fast 128 - 255 80 - FF 51 – 100
Lamp off After 2 min. if:
Shutter close or Shutter close 2 0 – 7 or
16 – 23
0 – 7
or
10 – 17
0 – 2
or
5 – 8
Lamp off Immediately if:
Shutter close 1 and Speed Pan/Tilt = 0 Shutter 0 – 7 and
Speed=0
Shutter
0 – 7 and
Speed=0
Shutter=2
and
Speed=0
Lamp on If Shutter not closed Shutter≠0 Shutter≠0 Shutter≠0

GLP 

 German Light Production (V2.1) 12
5 Change the Lamp
For a hassle free change of the Light bulb, it is absolutely necessary to follow all
descriptions in this chapter step by step.
5.1 Safety rules
Unplug AC power connection
Allow to cool (over 30 minutes)
Don’t touch lamp with bare fingers.
Close the M Ma ax xbefore you connect the AC power!
5.2 How to change the lamp
Please look at Picture1-1
1. Unscrew knurled knob on the Head Cover
2. Remove Head Cover and put it aside
3. Remove Lamp carefully from its holder and disconnect lamp socket
4. Mount new lamp and close case using step 1-3 in reverse order
Attention: Make sure that the lamp and the connectors fit in the right
position and place !!!

GLP 

 German Light Production (V2.1) 13
6 Maintenance the MAX
The cleaning of the inner optical System, color filters and color correction filter should
be done by qualified person only! Contact your local GLP Dealer for details.
ATTENTION:Use no strong detergents, acid etc. for cleaning the case !!!
6.1 Optical System
Clean the M Ma ax x optical system with a moistened cloth and a little cleaner.
Remove the Lens holder to clean the lens
ATTENTION: Let everything dry carefully before connect AC Power!
6.2 Cleaning the Fans
It is necessary to clean the fan openings, air channels and fan gratings on a
regular basis (depending on the local environment).
ATTENTION: If using the Max on the floor requires a continuously flow of air
into the base fan opening !!!

GLP 

 German Light Production (V2.1) 14
7 Technical Data /Overview
♦Supply data 230/120 Volt 5x20 3.15AT/6.3AT
♦Lamp: 24V 250W ELC GX 5,3
♦DMX 512 Standard
♦Weight 13.5 kg
♦Dimensions: 240 x 335 x 430 mm
♦21 gobos
♦20 dichroitic colors
♦High speed Shutter
♦Stand alone
♦Music controlled
♦Base: 1U/12 min – 120U/min
♦Head: 1U/4min – 60U/min

GLP 

 German Light Production (V2.1) 15
