Getinge Castle MTP 1800 Series User manual

SERIES 1800
CAGE AND BOTTLE
WASHER
®
OPERATING MANUAL
61301604086 Rev. A

SERIES 1800
CAGE AND BOTTLE
WASHER
®
USER MANUAL
Getinge/Castle, Inc.
1777 East Henrietta Road
Rochester, New York 14623-3133
Phone: [phone] USA
Facsimile: [phone]

ii
USER MANUAL 61301604086
Rev. A (10/23/00) First Release
DESCRIPTION OF SYMBOLS & NOTES IN MANUAL
The following symbols with related notes appear in this manual.
“Warning” notes alert the user to the possibility of personal injury.
“Caution” notes alert the user to the possibility of damage to the equipment.
“Notes” alert the user to pertinent facts and conditions.
This manual contains proprietary information of Getinge/Castle, Inc. It shall
not be reproduced in whole or in part without the written permission of
Getinge/Castle, Inc.
is a registered trademark.
Copyright ©2000 by Getinge/Castle, Inc.
WARNING
NOTE
CAUTION
NOTE
Castle
®

61301604086 iii
Table of Contents
SPECIAL SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . vii
Section 1 General Description
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Emergency Stop Switch. . . . . . . . . . . . . . . . . . . . . . . . 1–4
Electrical Disconnect Switch . . . . . . . . . . . . . . . . . . . . 1–4
Exhaust Damper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Alarm (Not Shown). . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Service Area (Not Shown) . . . . . . . . . . . . . . . . . . . . . . 1–5
Dispenser (Option). . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Automatic Self-Cleaning Debris Filter . . . . . . . . . . . . . 1–5
Door Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
OPEN DOOR Switches . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Emergency Stop Switches (Load and Unload End). . . 1–6
Unload End Control Panel . . . . . . . . . . . . . . . . . . . . . . 1–6
Spray Manifold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Guide Rail (not shown) . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Sump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Header Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Strip Chart Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Vertical Powered Door. . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Double Door Pass-Through . . . . . . . . . . . . . . . . . . . . . 1–8
Electric Heat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Automatic Agent Injection System . . . . . . . . . . . . . . . . 1–8
Internal Chamber Illumination . . . . . . . . . . . . . . . . . . . 1–8
Automatic Self-Cleaning Debris Filter . . . . . . . . . . . . . 1–9
Drain Discharge Cool-down System . . . . . . . . . . . . . . 1–9
Removable Center Washing Header . . . . . . . . . . . . . . 1–9
Mouse Box Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Rat Box Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Pan Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Transfer Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Feeder Bottle Baskets . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Automatic Seven Phase Treatment Cycle . . . . . . . . . 1–11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11
Treatment Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

iv
Section 2 The Control Panel
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
TOUCH CONTROL PANEL (TCP) . . . . . . . . . . . . . . . . . . 2–2
Control Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Cycle Programming. . . . . . . . . . . . . . . . . . . . . . . . . . 2–11
Example: Programming a Sample Cycle. . . . . . . . . . 2–11
LED CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . 2–16
Key Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16
Control Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19
Processing Cycle Screen Description . . . . . . . . . . . . 2–20
Standby Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20
Cycle Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20
Review Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21
Manual Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22
Cycle Programming. . . . . . . . . . . . . . . . . . . . . . . . . . 2–23
Cycle Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–24
Programming a Cycle . . . . . . . . . . . . . . . . . . . . . . . . 2–24
Example: Programming a Sample Cycle. . . . . . . . . . 2–27
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–27
Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–27
Starting Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . . . 2–29
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–29
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–29
FillTemperature Settings . . . . . . . . . . . . . . . . . . . . . . 2–30
Section 3 Operating Instructions
GENERAL MACHINE OPERATION . . . . . . . . . . . . . . . . . 3–1
Start-up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Shut-down Procedure . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
General Operating Instructions . . . . . . . . . . . . . . . . . . 3–1
Treatment Schedule: . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
DAILY CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Operational Readiness . . . . . . . . . . . . . . . . . . . . . . . . 3–3
EMERGENCY STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
Using the EMERGENCY STOP Switch. . . . . . . . . . . . 3–4
Pressing ABORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
Shutting Down the Washer . . . . . . . . . . . . . . . . . . . . . 3–4
Section 4 Maintenance
GENERAL MAINTENANCE SCHEDULE . . . . . . . . . . . . . 4–1
ROUTINE MAINTENANCE SCHEDULE—STANDARD . . 4–2
When required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Daily. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

61301604086 v
Weekly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Six (6) Months . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
RECOMMENDED SPARE PARTS LIST . . . . . . . . . . . . . . 4–6
Consumable Stock. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Section 5 Troubleshooting
Shutting Down the Washer . . . . . . . . . . . . . . . . . . . . . 5–2
Section 6 Installation Instructions
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1
UNCRATING & EQUIPMENT INSPECTION . . . . . . . . . . . 6–1
INSTALLATION /ASSEMBLY CHECKLIST . . . . . . . . . . . . 6–2
Equipment Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2
STARTUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
LED Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3
Touch Control Panel (TCP) . . . . . . . . . . . . . . . . . . . . . 6–4
CHECK-OUT PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . 6–5
TECHNICAL DATA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5
Section 7 Optional Equipment
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1
MOST COMMON OPTIONS . . . . . . . . . . . . . . . . . . . . . . . 7–1
Right or Left Handed Service. . . . . . . . . . . . . . . . . . . . 7–1
Vertical Sliding Door or Drop Down Door . . . . . . . . . . 7–1
Single Door or Double Door (Pass-Through). . . . . . . . 7–1
Door Interlock (Only Available on
Double Door [Pass-Through]) . . . . . . . . . . . . . . . . 7–1
Temperature Guarantee . . . . . . . . . . . . . . . . . . . . . . . 7–2
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2
RS232 Data Computer Port. . . . . . . . . . . . . . . . . . . . . 7–3
RS485 Data Computer Port. . . . . . . . . . . . . . . . . . . . . 7–3
Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3
Removable Center Washing Header . . . . . . . . . . . . . . 7–7
Service Enclosure System. . . . . . . . . . . . . . . . . . . . . . 7–7
Internal Chamber Illumination . . . . . . . . . . . . . . . . . . . 7–8
Stainless Steel Treatment Components . . . . . . . . . . . 7–8
Non-Recirculated Final Pure Water Rinse. . . . . . . . . . 7–8
Water Pressure Reducing Station . . . . . . . . . . . . . . . . 7–8
Hot Tap Water Temperature Booster. . . . . . . . . . . . . . 7–9
Automatic Agent Injection System (Optional) . . . . . . 7–10

vi
Automatic Agent Injection System –Time Based . . . 7–12
Agent Neutralization System Non-Monitored . . . . . . 7–12
pH Monitored. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13
Power Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–14
Drain Discharge Cool-Down System
–Non-Monitored . . . . . . . . . . . . . . . . . . . . . . . . . 7–15
Steam and Water Pressure Gauges . . . . . . . . . . . . . 7–15
Vapor Removal Condenser . . . . . . . . . . . . . . . . . . . . 7–15
M.O.D.E.M. (MTP Online Diagnostics, Evaluation,
and Monitoring) System . . . . . . . . . . . . . . . . . . . 7–16
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Mouse Box Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Rat Box Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Pan Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Transfer Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17
Feeder Bottle Baskets . . . . . . . . . . . . . . . . . . . . . . . . 7–17
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1
PROGRAMMING CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . A–1

61301604086 vii
SPECIAL SAFETY INSTRUCTIONS
SPECIAL SAFETY INSTRUCTIONS APPEAR BELOW. READ THEM
CAREFULLY BEFORE OPERATING THE UNIT.
“Warning”notes alert the user to the possibility of personal
injury.
Safety Precautions
WARNING —FALL HAZARD: Areas located immediately around the
washer may become a fall hazard due to water dripping. For a safe
environment, keep the floor clean and dry.
WARNING —BURN HAZARD: This washer operates at extremely high
temperatures.
•Hot water and steam can cause injury such as burns. Use caution in and
around the washer chamber and external piping.
•Steam may escape when the door is opened. Stand back and to the side
when opening the door.
•Allow the load to cool before removing it from the chamber.
•Allow the washer to cool down prior to any maintenance.
WARNING —SHOCK HAZARD: Disconnect all utilities and follow standard
lockout/tagout procedures for your workplace before performing
maintenance on the washer.
WARNING —PERSONNEL HAZARD: Safe and efficient operation of this
equipment requires scheduled preventive maintenance. Routine
adjustments and replacement of parts by other than qualified maintenance
personnel may cause personal injury or equipment malfunction.
Running a Cycle
BURN HAZARD: Steam may escape when the door is opened. Stand back
and to the side when opening the door.
Wear protective gloves when removing the load from the chamber. The
chamber interior and accessories, as well as the load, will be HOT.
General Machine Operation p. 3–1, 3–4
BURN HAZARD: Do not open a Washer door during a cycle. This could
release hot water through the door opening, resulting in burns to personnel.
HOT SURFACES: The metal surface that surrounds the opening at the load
and unload end of unit becomes hot during normal operation. Use caution
when loading and unloading the washer.
WARNING

viii
Daily Checklist p. 3–3
HOT SURFACES: The Chamber could be HOT. Use caution when loading
and unloading the Chamber.
Emergency Stop p. 3–4
The Electrical Disconnect Switch de-energizes the controls only; it does not
remove all power from the washer.
Routine Maintenance Schedule—Standard p. 4–5
ELECTRIC SHOCK HAZARD: Only an electrician should perform this test!
If this test fails, contact your Authorized Service Technician

61301604086 1–1
Section 1 General Description
INTRODUCTION
Figure 1–1. ,MTP1800 Series Washers
The MTP1800 series units are an automatic, heavy-duty, single chamber,
cabinet- type, hydrospray washers. The units are designed to efficiently and
thoroughly clean and sanitize cages, bottles, debris pans and utensils used
in research animal care facilities.
Units are available in vertical or drop down door configurations. Units are
floor mounted and may be recessed through one or two walls or installed
free standing. Left side service access and control terminal location is
standard with right side service access and control terminal location
optional.

General Description
1–2
Models and dimensions are listed in Table 1-1.
The above dimensions are the maximum chamber opening. The load size
must be smaller to allow for loading clearances.
Routine operation consists of placing the load to be cleaned in the chamber,
close the chamber door, select the desired cycle, and press the cycle start
button. The washer automatically proceeds through the treatment process
and alerts the user when the process is complete. The user then opens the
chamber door and removes the cleaned load.
At the end of the processing period, the user places the unit in the
STANDBY mode. All processing functions will immediately stop and the
sump will automatically drain.
Standard Features •Microcomputer Color Touch Screen Control
•Twelve User Programmable Cycles
•Automatic Seven Phase Treatment Cycles
•Program Access Code Security
•Wash and Rinse Temperature Assurance
•Built-In Service Diagnostics
•Personnel Safety System
•Water Conservation System
•7.5 HP Pump (Models 1810 & 1830)
•10 HP Pump (Models 1820 & 1840)
•Automatic Sump Water Level Control
•Automatic Self-Cleaning Debris Filter
•Agent Injections Ports and Contacts
•Stainless Steel Steam Coil Heating
•Vertical or Drop Down Doors
•All Stainless Steel Construction
•Full Work Area Stainless Steel Grating
•Insulated Chamber Construction
•Left or Right Service Side Installation
Table 1–1. MTP 1800 Washer
MODEL CHAMBER SIZE
(see note)
EXTERNAL
OVERALL SIZE
DOOR
CONFIGURATION
1810 48”W x 32”H x 34”D 73”W x 82”H x 38.5”DVertical
1820 48”W x 32”H x 48”D 73”W x 82”H x 52.5”DVertical
1830 48”W x 32”H x 34”D 73”W x 82”H x 38.5”D Drop Down
1840 48”W x 32”H x 78”D 73”W x 82”H x 52.5”D Drop Down
NOTE

Series 1800 Washers
61301604086 1–3
Optional Features •Strip Chart Printer
•RS232 Port for Data Download
•Double Door Pass Through
•Double Door Interlocks for Manual Doors
•Powered Vertical Doors with Interlocks
•Electric Stainless Steel Sump Heaters
•Stainless Steel Treatment Components
•Cold Water Pre-Wash Treatment
•Non-Recirculated Final Tap Water Rinse
•Non-Recirculated Final Pure Water Rinse
•House Tap Water Temperature Booster
•Pure Water Temperature Booster
•Automatic Agent Injection Systems
•Internal Chamber Illumination
•Stainless Steel Automatic Damper
•Power Exhaust Fan
•Vented/Non-Vented Vapor Removal Condenser
•Drain Discharge Cool-Down Systems
•Treatment Solution pH Neutralization Systems
•Removable Center Header
•Recessed or Free Standing Cabinet Installations
•Seismic Design
•Knocked Down Shipment
•Modem Troubleshooting
Accessories •Mouse Box Processing Rack
•Rat Box Processing Rack
•Pan Processing Rack
•Transfer Cart
•Feeder Bottle Baskets
•Custom Accessories

General Description
1–4
EXTERIOR COMPONENTS
Figure 1–2. EXTERNAL COMPONENTS
Control Panel Provides a pressure sensitive touch screen for the user that is connect to a
Programmable Logic Control (PLC) located in the Control Box. Enables the
user to select, program, and monitor processing cycles.
Emergency Stop Switch The EMERGENCY STOP Switch should be used to terminate all treatment
functions and activate the audible alarms.
Electrical Disconnect Switch Rotate the Electrical Disconnect Switch to the:
•ON position to energize the washer.
•OFF position to de-energize the washer.
Exhaust Damper Opens fully during the Exhaust phase of a wash cycle to permit residual
vapors to escape from the chamber. Closed 70% during the wash and rinse
phases of the wash cycle.
Control Panel
Emergency Stop
Switch
Drop Down Door
Electrical Disconnect
Switch
Exhaust Damper

Series 1800 Washers
61301604086 1–5
Alarm (Not Shown) Sounds an audible alert when:
•A cycle is completed (Pulsing/Audible alarm).
•A cycle is aborted.
•The Programmable Logic Controller (PLC) detects processing
problems.
Service Area (Not Shown) Contains piping, valves, pumps, control box, manifold drive motor, etc.
Dispenser (Option) An optional Chemical Dispenser automatically pumps the required chemical
into the water solution held in the sump. The Dispenser is activated during
the Wash phases of a processing cycle.
Automatic Self-Cleaning
Debris Filter
The output of the wash pump is provided with a self-cleaning debris filter
screen having perforations smaller than the spray jet orifices to prevent
plugged jets. The filter is attached to the Treatment Pump and is back
flushed by a ball valve operated by the control system. The filter screen can
be accessed without the use of tools.
A screen is provided at the input to the pump to prevent large debris from
entering the pumping system.
The automatic self-cleaning debris filter screen should be rinsed clean daily,
removing any debris. See Table 4–1, “Maintenance Schedule–Standard,”on
page 4–1.
FILTER
HOUSING
FILTER SCREEN
Part # B300232A
O-RING
Part # P0015136

General Description
1–6
Door Configurations VERTICAL SLIDING DOOR (Models 1810 and 1820
The unit contains a manually operated, counter balanced, vertical sliding
door. The door is double wall construction with insulation. A tempered glass,
water-tight observation window is provided in both the load and optional
unload doors.
DROP DOWN DOOR (Models 1830 AND 1840)
The unit contains a manually operated, counter balanced, drop down door.
The door is double wall construction with insulation. A tempered glass,
water-tight observation window is provided in both the load and optional
unload doors. A stainless steel washing rack that rolls out onto the door is
included for ease of loading and unloading.
OPEN DOOR Switches Stops Washer operation if a Load or Unload End door is opened during a
cycle. Prevents the start of washer operation if a door is not closed. Lights
indicating an open door are located on the Load and Unload End Control
Panels.
Emergency Stop Switches
(Load and Unload End)
Pressing the EMERGENCY STOP switch terminates all functions of the
washer and sounds the alarm.
Unload End Control Panel Displays the operational status of the unit at the Unload End

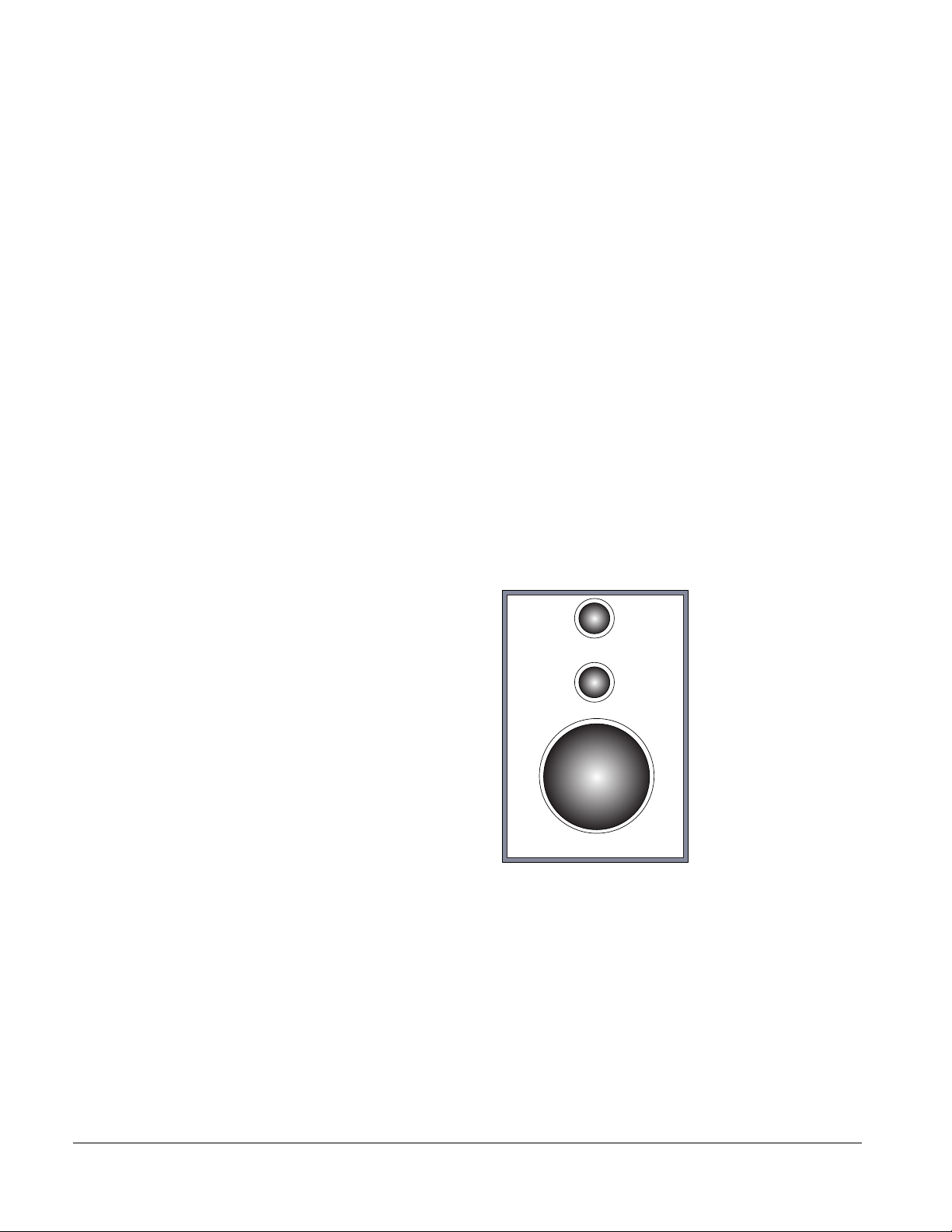

Figure 1–3. UNLOAD END CONTROL PANEL
IN PROGRESS INDICATOR
Displays an amber light for the duration of an ongoing processing cycle. The
IN PROGRESS Indicator is located at the Unload End of the Washer.
CYCLE COMPLETE INDICATOR
Displays a green light whenever the Electrical Disconnect Switch is turned
ON, as long as a cycle is not operating. The light turns off at the start of a
processing cycle. When the cycle ends, the light comes back on. The
CYCLE COMPLETE Indicator is located at the Unload End of the Washer.
IN
PROGRESS
CYCLE
COMPLETE
EMERGENCY
STOP

Series 1800 Washers
61301604086 1–7
INTERIOR COMPONENTS
Figure 1–4. Internal Components (door and front panels not shown)
Spray Manifold Delivers the various wash and rinse spray treatments to the load during a
processing cycle. Vertical and horizontal sections - fitted with spray nozzles
- make up the complete assembly.
Guide Rail (not shown) Functions as a restraint to keep items, such as utensil carts, from being
improperly positioned. Four rails are provided on the inside of the chamber
door.
Sump Holds the supply of solution (wash and rinse) that is pumped to the Spray
Manifold during a processing cycle. During processing, it collects all
drainage for recirculation. A steam heating coil installed in the sump
maintains the temperature of the wash solution, and other treatment
solutions - if specified.
Header Drive Motor Moves the Spray Manifold back and forth inside the chamber during the
processing cycles.
Spray Manifold
Sump
Header Drive Motor
Self Cleaning Debris Filter

General Description
1–8
MOST COMMON OPTIONS
Strip Chart Printer A strip chart printer with paper take-up, records all cycle program and in-
process performance data. Each cycle program, including time and
temperature set points, may be printed on demand. In-process cycle data is
automatically printed at the beginning and end of each cycle phase, as well
as at the beginning and end of each cycle phase, to provide a chronological
time/temperature profile of actual cycle performance.
Vertical Powered Door The door is powered open and closed to permit ease in loading and
unloading the chamber. The system includes door activation switches and
status lights at the door location, which are wired to the automatic control
system.
Double Door
Pass-Through
The unit is provided with an additional door for pass through operation and
is complete with an unload end user control panel.
Electric Heat Stainless steel, electric immersion heaters are provided in the sump in place
of the steam coil heater to maintain the recirculated treatment solution
temperature. The unit requires a separate electrical connection.
Automatic Agent Injection
System
TIME BASED
A non-monitored, time based, volumetric type injection system is provided
to automatically meter user supplied liquid cleaning agent into the sump.
(Two systems are required if an alkaline and acid treatment solution are to
be used).
MONITORED
A monitored proportional type injection system is provided to automatically
inject user supplied liquid cleaning agent into the sump. The treatment
solution concentration is sensed with a probe, and a proportional amount of
agent is injected to attain and maintain the selected agent concentration.
(Two systems are required if an alkaline and acid treatment solution are to
be used.)
Internal Chamber
Illumination
An exterior vapor proof port and light is provided to illuminate the chamber
interior.

Series 1800 Washers
61301604086 1–9
Automatic Self-Cleaning
Debris Filter
The output of the wash pump is provided with a self-cleaning debris filter.
The filter is attached to the treatment pump and is back-flushed by a ball
valve operated by the control system. The filter screen may be accessed
without the use of tools.
An additional perforated stainless steel debris basket is provided above the
recirculated tank to prevent large debris from entering the piping and pump
system. The screen can be easily removed for cleaning.
Drain Discharge Cool-
down System
NON-MONITORED
Cold tap water is automatically injected into the drain discharge to lower the
discharge temperature to below 140°F before entering into the building’s
drain system.
MONITORED
The discharge of the machine is drained into a stainless steel holding tank.
The system senses the discharge temperature with a probe and adds the
required amount of cold water to lower the discharge temperature to below
140°F before discharging tot he building’s drain system.
Removable Center
Washing Header
An additional header is provided in the center of the chamber to increase
the washing capacity of the unit. This header can be removed to
accommodate larger items to be washed. This option increasesthe overall
washer width by8inches.

General Description
1–10
ACCESSORIES
Mouse Box Rack Two stainless steel racks are provided.
•Models 1810 and 1830 —have the capacity to process 24 standard
mouse shoe boxes per load. (48 boxes per load if the machine is
equipped with center washing header.)
•Models 1820 and 1840 —have the capacity to process 40 standard
mouse shoe boxes per load. (60 boxes per load if the machine is
equipped with center washing header.)
Rat Box Rack Two stainless steel racks are provided.
•Models 1810 & 1830 —have the capacity to process 8 standard rat
shoe boxes per load. (18 boxes per load if the machine is equipped
with center washing header.)
•Models 1820 & 1840 —have the capacity to process 16 standard rat
shoe boxes per load. (16 boxes per load if the machine is equipped
with center washing header.)
Pan Rack Two stainless steel racks are provided to process pans with a maximum
width of two inches.
Transfer Cart A stainless steel transfer cart is provided to transport racks to and from the
washer. The transfer card interfaces with the chamber opening to permit
easy transfer of racks into and out of the chamber.
Feeder Bottle Baskets Stainless steel bottle baskets are provided for processing 8, 16, or 32 oz.
bottles. Baskets are configured in a 4 x 6 pattern.
