Getinge 7800A Series User manual

7800A SERIES
FLOOR MOUNTED
CART AND UTENSIL
WASHER
OPERATOR MANUAL
61301604768 Rev. C

7800A SERIES
FLOOR MOUNTED
CART AND UTENSIL
WASHER
OPERATOR MANUAL
Getinge USA, Inc.
1777 East Henrietta Road
Rochester, New York 14623-3133
Phone: [phone]
Facsimile: [phone]

ii
OPERATOR MANUAL 61301604768
Rev. A (12/27/01)
Rev. B (12/20/02)
Rev. C (10/02/03)
Related Publications:
Installation Instructions 61301604981
Service Manual 61301605323
Parts Catalog 61301605342
DESCRIPTION OF SYMBOLS AND NOTES IN MANUAL
The following symbols with related notes appear in this manual.
“Warning” notes alert the user to the possibility of personal injury.
“Caution” notes alert the user to the possibility of damage to the equipment.
“Notes” alert the user to pertinent facts and conditions.
This manual contains proprietary information of Getinge, USA. It shall not
be reproduced in whole or in part without the written permission of Getinge,
USA.
• POSSIBILITY OF INJURY: Misuse of equipment may result
in personal injury.
• POSSIBILITY OF EQUIPMENT DAMAGE: Misuse of
equipment may result in equipment damage.
The 7800A Washer is designed to clean and dry case carts,
stands, utensils, containers, tote boxes, and similar bulk items.
This equipment is NOT intended for use other than expressly
stated.
If the 7800A Washer is used in a manner not specified by
Getinge, USA, the protection provided by the equipment may
be impaired.
Getinge is a registered trademark.
Copyright ©2003 by Getinge, USA.
NOTE
CAUTION
WARNING
NOTE
CAUTION
WARNING

61301604768 iii
Table of Contents
SPECIAL SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . VII
SAFETY LABELS USED ON THE EQUIPMENT . . . . . . . . VIII
Section 1 General Description
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
EXTERIOR COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . 1–4
Unload End Indicator Panel . . . . . . . . . . . . . . . . . . . . . 1–4
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Door Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
CONTROL POWER ON OFF/RESET Switch . . . . . . . 1–4
Touch Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Dispensers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Service Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Alarm (Not Shown). . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Holding Tank (Not Shown). . . . . . . . . . . . . . . . . . . . . . 1–5
Pit (Not Shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
INTERIOR COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Spray Manifold Drive Assembly . . . . . . . . . . . . . . . . . . 1–6
Exhaust Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Spray Manifolds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Floor Grates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Sump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Heated Air Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Guide Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Emergency Stop Cable . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Chamber Light (Not Shown) . . . . . . . . . . . . . . . . . . . . 1–7
TREATMENT SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Debris Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Solution Holding Tank . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Wash Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Rinse Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Drain Pan and Sump . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Return Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Treatment Dispensers . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Drying System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Evacuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
PROCESSING CYCLE DESCRIPTION. . . . . . . . . . . . . . . 1–8
Tank Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

iv
Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Purified Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Tank Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Section 2 Touch Control Panel
OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Main Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Numeric Keypad Panel . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Cycle Setup Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6
Cycle Review Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
In Cycle Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9
Supervisor Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11
Time and Date Panel. . . . . . . . . . . . . . . . . . . . . . . . . 2–13
Cycle Count Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14
Section 3 Operating Instructions
GENERAL WASHER OPERATION. . . . . . . . . . . . . . . . . . 3–1
Starting Up the Washer . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Loading a Utensil Cart. . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Running a Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
Normal In-Cycle Messages . . . . . . . . . . . . . . . . . . . . . 3–7
Extending a Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9
Stopping during a Cycle . . . . . . . . . . . . . . . . . . . . . . . 3–9
Draining the Holding Tank and Sump . . . . . . . . . . . . 3–10
Shutting Down the Washer . . . . . . . . . . . . . . . . . . . . 3–10
EMERGENCY STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11
Emergency Stop Using the ABORT CYCLE Button . 3–11
Emergency Stop Using the CONTROL POWER
ON OFF/RESET Switch . . . . . . . . . . . . . . . . . . . . . . 3–12
Resetting the Emergency Stop Switch . . . . . . . . . . . 3–12
OPERATING THE LIQUID SUPPLY DISPENSERS . . . . 3–13
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13
Dispenser System Components . . . . . . . . . . . . . . . . 3–13
Checks Prior to Routine Operation . . . . . . . . . . . . . . 3–13
Prime a Dispenser Pump. . . . . . . . . . . . . . . . . . . . . . 3–14
Replace a Liquid Supply . . . . . . . . . . . . . . . . . . . . . . 3–14
Enter the Detergent Concentration . . . . . . . . . . . . . . 3–15
SUPERVISOR OPERATIONS. . . . . . . . . . . . . . . . . . . . . 3–16
Programming a Cycle . . . . . . . . . . . . . . . . . . . . . . . . 3–16

7800A Series Floor Mounted Cart and Utensil Washer
61301604768 v
Disable Low Dispenser Supply Faults . . . . . . . . . . . . 3–19
Change the Tank Cycle Count. . . . . . . . . . . . . . . . . . 3–20
Change the Supervisor Password . . . . . . . . . . . . . . . 3–21
Set the Time and Date . . . . . . . . . . . . . . . . . . . . . . . . 3–22
Reset the Daily Load Count. . . . . . . . . . . . . . . . . . . . 3–23
Protect or Unprotect a Cycle . . . . . . . . . . . . . . . . . . . 3–24
Section 4 Maintenance
GENERAL MAINTENANCE SCHEDULE. . . . . . . . . . . . . . 4–1
ROUTINE MAINTENANCE SCHEDULE . . . . . . . . . . . . . . 4–2
When Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Daily. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Weekly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Monthly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
Every Six Months . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7
Every Year . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7
Section 5 Troubleshooting
ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1
Resetable Error Messages . . . . . . . . . . . . . . . . . . . . . 5–1
Non-resetable Error Messages . . . . . . . . . . . . . . . . . . 5–3
Appendix A Recorder/Printer
DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1
FEED/ON/OFF Switch . . . . . . . . . . . . . . . . . . . . . . . . . A–2
STATUS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Paper Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Output Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Input Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
Cover Latches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
PAPER ROLL LOADING . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4
Self-Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4
Feeding Paper without Self-Test . . . . . . . . . . . . . . . . . A–4
Appendix B Liquid Dispenser Setup
DETERMINE THE DETERGENT DISPENSER
FLOW RATE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1
RINSE AID DISPENSER CALIBRATION. . . . . . . . . . . . . . B–3

vi
Appendix C Consumable Stock and Spare Parts
CONSUMABLE STOCK. . . . . . . . . . . . . . . . . . . . . . . . . . . C–1
SPARE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2

7800A Series Floor Mounted Cart and Utensil Washer
61301604768 vii
Special Safety Instructions
THE FOLLOWING SAFETY INSTRUCTIONS APPEAR WITHIN THIS
MANUAL. READ THEM CAREFULLY BEFORE OPERATING THE UNIT.
"Warning" notes alert the user to the possibility of personal
injury.
Running a Cycle p. 3–3
RISK OF INFECTION. This washer does not sterilize processed goods.
Critical items that present a high risk of infection to a patient must be
processed further by terminal sterilization before use. Failure to sterilize
critical items could result in infection to patients.
BURN HAZARD. Do not open a washer door during a cycle. Doing so could
release hot water through the door opening, resulting in burns to personnel.
DANGER OF FALLING. The compartment’s floor may be slippery when
wet. When you are inside the compartment, walk carefully to maintain
balance and to avoid falls.
Emergency Stop p. 3–8
BURN HAZARD. Do not open a washer door for at least 30 seconds after
stopping a processing cycle that was running a wash or rinse phase. This
delay allows time for the spray manifolds to stop functioning. Otherwise, hot
water could spray out of the door opening, resulting in burns to personnel.
BURN HAZARD. Do not enter a washer compartment immediately after
stopping a processing cycle that have been running a drying phase. Allow
sufficient time for all metal surfaces within the compartment to cool.
Otherwise, hot surfaces may contact and cause burns to personnel.
WARNING

viii
Safety Labels Used on the Equipment
The following safety labels are used on the 7800A washer:
You must remove all power to the washer before removing the back cover
to the washer chamber light assembly.
High voltage is present inside the control box. You must remove all power to
the washer before opening the door to the control box.
If you change a fuse, you must use an equivalently rated replacement.
Refer to “Spare Parts”on page C-2 for a list of spare fuses.
If you are inside the washer when someone closes the door, press firmly on
this label on the inside of either door to open the door and, if applicable,
stop the washer.
CAUTION
CAUTION

61301604768 1–1
Section 1 General Description
Introduction
The Model 7800A is a fully automatic, large capacity, hydro-spray washer
that is used to clean and dry case carts, stands, utensils, containers, tote
boxes, and similar bulk items.
Routine operation consists of loading the compartment, closing the door,
and touching a START button. The washer starts an operator-selected
processing cycle and shuts off when the cycle is complete. The operator
then opens the unload end door and removes the load.
Treatment solutions are delivered by an oscillating (back and forth) manifold
equipped with spray nozzles. Detergent and rinse aid solutions are
dispensed automatically as a standard feature.
Processing cycles are set up using a programmable controller equipped
with a touch screen interface (touch control panel). Four cycle definitions
are possible. The operator needs only to select and start a cycle.
A standard cycle consists of the following sequential phases: wash, rinse,
drying, and exhaust. If the pure rinse option is installed, a purified rinse
phase replaces the standard rinse phase. The length of a cycle’s phase can
be adjusted at the touch control panel.
The washer can be installed in a shallow pit or at floor level. When installed
in a pit, the floor of the washer’s chamber is level with the room floor, which
allows the direct loading and unloading of carts. When the washer is
installed at floor level, the floor of the chamber is higher than the room floor.
Ramps are then provided as standard equipment for loading and unloading.
Figure 1–1. 7800A Floor Mounted Cart and Utensil Washer
HW-001

General Description
1–2
The 7800A washer is available in three models based on load length.
Table 1–1. 7800A Floor Mounted Cart and Utensil Washer
Options The 7800A washer may be equipped with the following options.
Purified Water Rinse
A washer cycle can be programmed to provide a final non-recirculated rinse
using water from the customer’s purified water source. The purified rinse
phase replaces the standard rinse phase in the cycle.
Non-Vented Drying
This optional feature is intended for locations where building exhaust is not
available. A vapor condenser package is installed and uses cold water to
condense moisture from hot vapors before discharging low humidity air
back into the room.
Cycle Printer
A strip chart recorder provides a printed record of performance during each
cycle operation. Refer to Appendix A for more information.
Seismic Anchorage
This seismic anchorage kit is available when state or local code requires
approved floor anchoring.
Model Load Length Overall Cabinet
78003 80" (2032 mm) 71" W x 108" H x 88" L
78004 98" (2489 mm) 71" W x 108" H x 106" L
78005 112" (2845 mm) 71" W x 108" H x 120" L

7800A Series Floor Mounted Cart and Utensil Washer
61301604768 1–3
Accessories The following accessories are available for the 7800A washer.
Floor Mounted Ramps
Stainless steel ramps are provided standard with the floor mounted washer.
Utensil and Container Processing Carts
Three processing carts for utensils and rigid containers are available for use
with the washer.
The PCS-UW100 Utensil Wash Cart can accommodate five levels of racks
and comes equipped with an assortment of vinyl-coated racks: four racks
for large utensils, four racks for medium size utensils, and two racks for
smaller utensils.
The PCS-UW101-2 Container Wash Cart provides a maximum of four levels
of holding racks. This cart is equipped with two racks to hold rigid
containers, lids, and filter covers. the additional space between standard
racks allows loading of up to nine containers racked on their short side. An
additional container rack increases the capacity to twelve containers that
are loaded on the long side.
The PCS-UW101-4 Container Wash Cart provides four sets of racks for up
to sixteen rigid containers, including lids and filter covers.

General Description
1–4
Exterior Components
Figure 1–2. Exterior Components
Unload End Indicator Panel The IN OPERATION indicator lights yellow for the duration of an ongoing
processing cycle. This indicator is located on the unload end of the washer.
The CYCLE COMPLETE indicator lights green when a cycle is complete.
The light turns off when unloading is complete. This indicator is located on
the unload end of the washer.
Doors Provide access to the load and unload ends of the washer chamber. Each
door is equipped with a sealing gasket, an observation window, and safety
latches. The safety latches are designed to release a closed door when a
moderate amount of physical force is applied against the door from the
inside of the chamber.
Door Switches These proximity switches, mounted on both doors, stop washer operation if
a door is opened during a cycle. The switches also prevent the start of a
cycle if both doors are not closed properly.
CONTROL POWER ON
OFF/RESET Switch
Activates and deactivates the washer controls. A green light illuminates the
switch when it is in the ON position.

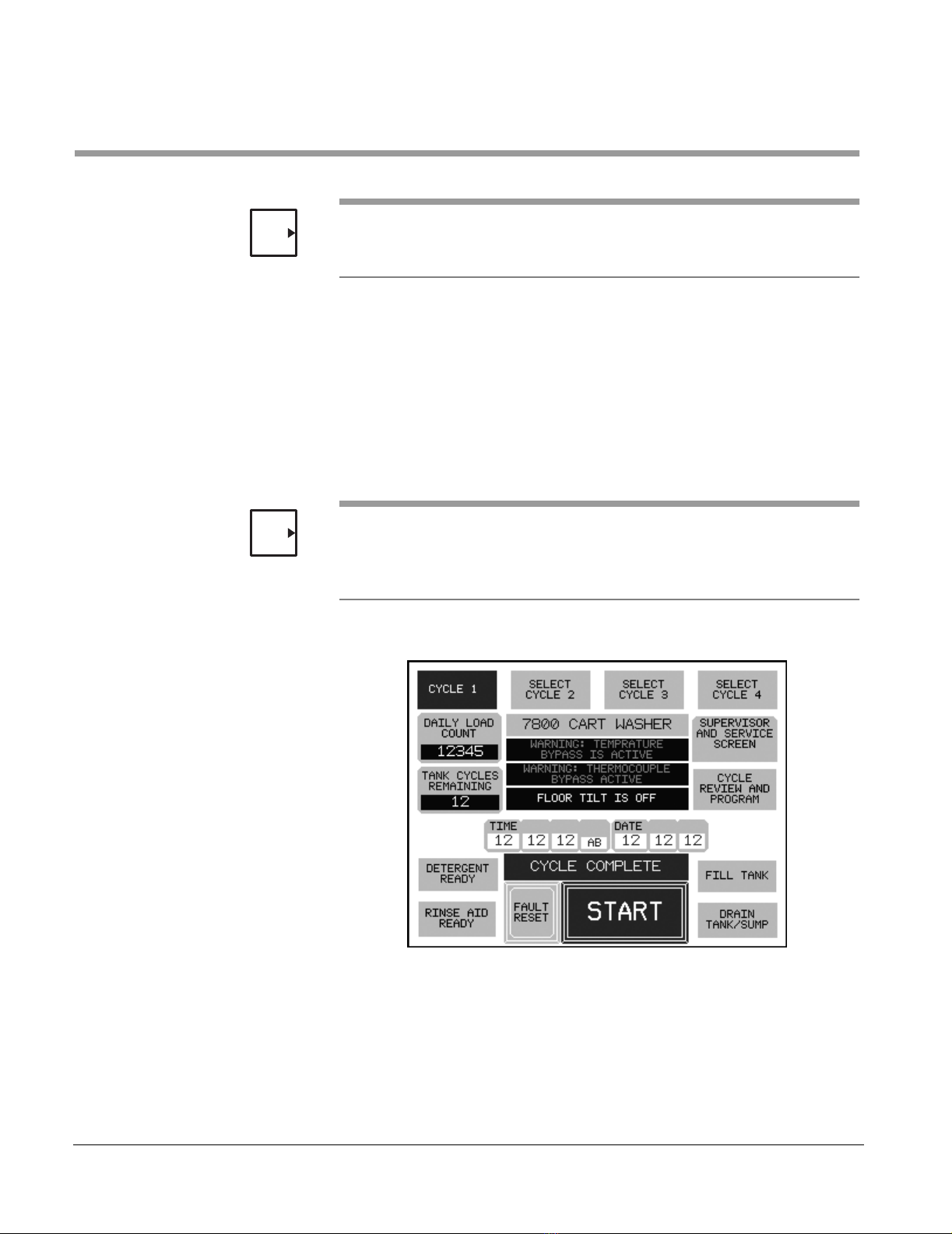

Touch Control Panel Provides a touch screen interface to the washer’s programmable controller
located in the control box. The touch control panel enables the operator to
select, program, and monitor processing cycles.
Dispensers Pumps detergent and rinse-aid agent at the appropriate times in a
processing cycle. Refer to “Treatment System”on page 1-7.
HW-002
UNLOAD
END D
OOR
LOAD
END DOOR
CONTROL POWER
ON/OFF
RESET SWITCH
DISPENSERS
SERVICE
AREA
U
NL
O
AD EN
D
INDI
C
AT
O
R PANE
L
CONTROL
PA N E L
DOOR
SWITCH

7800A Series Floor Mounted Cart and Utensil Washer
61301604768 1–5
Service Area Provides access to components such as plumbing, valves, pumps, holding
tank, control box, and manifold drive motor. The optional service area is
enclosed by removable panel sections.
Alarm (Not Shown) Sounds an audible alert:
•When a cycle is completed.
•If an abort condition occurs.
Holding Tank (Not Shown) Serves as a reservoir for the detergent solution during the wash phase.
Refer to “Treatment System”on page 1-7.
Pit (Not Shown) Supports the bottom structure of the washer within a minimum 5-inch deep
drained enclosure, enabling the washer’s compartment to be situated at
floor level for ease of loading and unloading.

General Description
1–6
Interior Components
Figure 1–3. Interior Components
Spray Manifold Drive
Assembly
Continuously moves the manifold system back and forth along the length of
the compartment during a processing cycle.
Exhaust Duct The chamber includes a flanged vent to connect to the building exhaust
system. The vent includes an automatic motorized damper that closes
during heated cycle phases and opens during exhaust evacuation.
Spray Manifolds The system consists of two manifold sections suspended from a carriage.
Each manifold travels only half of the chamber length, but the manifolds
ensure complete coverage of the load. The manifold sections are fitted with
spray nozzles. Each section contains two independent wash and rinse
manifolds.
Floor Grates Provide load support and drainage during a processing cycle. The floor can
be programmed to tilt during the cycle to prevent pooling and enhance
drying. The grates can be removed to expose the sump.
Sump Directs spent solution to the return pump so that it can be returned to the
holding tank.
FLOOR GRATES
SPRAY MANIFOLD
SUMP
SPRAY MANIFOLD
DRIVE ASSEMBLY
GUIDE RAIL
HW-003

7800A Series Floor Mounted Cart and Utensil Washer
61301604768 1–7
Heated Air Duct Enables hot air to be circulated through the compartment to dry the load
after the final rinse phase.
Guide Rails Restraints for loaded utensil carts to protect the manifolds when the floor
tilts during a cycle. There are five rails: three on the “tilt”side of the
compartment and two on the other side.
Emergency Stop Cable Safety feature that shuts down the washer when pulled.
Chamber Light (Not Shown) A 75-Watt moisture-proof light assembly illuminates the interior when the
control power is on.
Treatment System
Debris Screens These in-line screens prevent jet clog and permit a free flow of wash
solution. The debris screens are located in the sump, the holding tank, and
in a collar surrounding the return pump.
Solution Holding Tank The insulated external tank is the reservoir for the recirculation of water and
is used to prepare the detergent solution prior to the start of the wash
phase. The solution is recirculated and then discharged to the drain when
the tank cycle count is reached.
Wash Pump The wash pump is a 5 HP unit to provide 40 PSI from the holding tank to the
4 GPM jets used on the wash manifold system.
Rinse Pump The 1.5 HP pump ensures 50 PSI rinse water to the jet spray nozzles on the
rinse manifold.
Drain Pan and Sump The sump is sloped to catch and direct spent treatment solutions to the
return pump.
Return Pump The pump returns spent solution from the sump to the holding tank during a
treatment phase.
Treatment Dispensers The washer is equipped with two dispensing pumps. The first pump pumps
rinse aid into the holding tank when it is initially filled for the wash phase and
replenishes detergent in the tank before subsequent wash phases. The
second pump injects rinse-aid agent directly into the rinse water line.
The detergent pump is controlled by the PLC for concentration. The rinse-
aid pump is volume-adjustable. Both pumps are sequenced by the
microprocessor.
Drying System The washer is equipped with a steam heat exchanger and a high velocity
1 HP, 1300 CFM blower system. Air is forced through the exchanger and
heated to the temperature programmed for the drying phase of the cycle.
Evacuation On vented washers, the automatic damper opens to exhaust hot air to the
building vent system at the completion of the drying phase.

General Description
1–8
Processing Cycle Description
The 7800A washer runs the following processing cycle.
Tank Fill Hot water fills the holding tank while detergent is injected automatically for a
period necessary to bring the solution to the required detergent
concentration. As the tank fills, the steam coil brings the water up to the
programmed wash temperature of 140 °F to 150 °F (60 °C to 66°C).
Wash When the tank is full, the wash solution is recirculated under pump pressure
and sprayed over the load. When the solution has reached the programmed
temperature, phase timing, which can be set to a time of 1 to 15 minutes,
begins. The steam coil maintains the wash water at the programmed
temperature. At the completion of the wash phase, the wash solution
remains in the tank until the next wash. When the tank cycle count is met,
the tank is drained. The tank cycle count can be programmed to re-use the
wash water for up to 20 cycles. Prior to the start of the second cycle (and
subsequent cycles until the cycle count is reached), additional detergent is
dispensed into the tank to restore the desired concentration.
Rinse Fresh hot water is mixed with rinse aid and sprayed over the load for the
programmed time of 1 to 5 minutes. The rinse water is boosted by a steam
heat exchanger and can be programmed to a temperature from 120 °F to
180 °F (49 °C to 82 °C). Spent rinse water is returned to the holding tank,
which is replenished with detergent for use in the wash phase of the next
cycle.
Purified Rinse When the purified rinse option is installed, this phase takes the place of the
standard rinse. A purified water rinse is sprayed over the load for the
programmed time of 30 seconds to 3 minutes. The purified rinse phase
replaces the standard rinse phase in the cycle. The temperature of the
purified rinse water is boosted by the steam heat exchanger and can be
programmed to a temperature from 120 °F to 180 °F (49 °C to 82 °C). Spent
purified rinse water is returned to the holding tank as it is in the rinse phase.
Drying A high velocity blower forces air through a steam heat exchanger and
directly over the load for very effective drying. The temperature of the air
from the heater can be set for 200°F to 240°F (93°C to 115°C) and the
drying time can be set for 0 to 15 minutes. The dryer air passes over a
condenser coil to remove moisture from the air.
Exhaust After the drying phase, the power damper of vented washers automatically
opens for 0 to 99 seconds to exhaust moisture-laden hot air into the
connected vent system.
Tank Drain When the washer reaches its tank cycle count, the water is drained from the
tank and refilled. Cold water is mixed with the drain water to ensure a
temperature of 140°F or lower.

61301604768 2–1
Section 2 Touch Control Panel
Overview
The touch control panel provides the operator with a touch screen interface
to the programmable logic controller located in the control box.
The controls on the panel enable the operator to:
•Select and start a processing cycle.
•Review the phase settings for a cycle.
•Program or edit the phase duration and temperature for a cycle.
•Monitor the status of the cycle in progress.
•Manually drain the holding tank and sump.
•Fill the holding tank with fresh wash water.
•Extend the length of the phase in progress.
•Stop the cycle in progress.
Additional password-protected controls enable supervisory personnel to:
•Disable alarms for low levels in the detergent and rinse aid dispensers.
•Prime and run the detergent and rinse aid dispenser pumps.
•Change the tank cycle count.
•Change the supervisor password.
•Display and update the load counters and time/date display.
•Specify the desired detergent concentration in the wash solution.

Touch Control Panel
2–2
Description
To activate the touch control panel, the PC POWER switch located near the
bottom in the control box must be set to ON. This switch is normally set to
ON at installation and left in that position.
When the touch control panel is activated, an indicator in the lower-left
corner of the panel lights green and the screen displays the Power Up panel
until communications with the processor is established and the Main panel
appears. Although the panel is activated, the Main panel displays the
CONTROL POWER IS OFF message until control power is applied.
The touch control panel is operative when the washer’s CONTROL POWER
ON OFF/RESET switch is set to ON. When the panel is operative, the
START button replaces the CONTROL POWER IS OFF message.
•All panel functions are inaccessible when control power is off.
•If the touch control panel remains idle and untouched for a one-hour
period, the “screen saver”feature causes the panel to go dark. To
illuminate the panel, touch the panel once anywhere on the screen.
Main Panel Figure 2–1. Main Panel
SELECT CYCLE 1/2/3/4 / CYCLE 1/2/3/4
Enables you to select the desired processing cycle. When you touch a
button, the label changes to CYCLE 1/2/3/4.
NOTE
