GEV GS 3 Guide

EDIZIONE 01/15
OPERATING MANUAL
AND
SPARE PARTS LIST
OILLESS VACUUM PUMPS
GS TYPE
GENERAL EUROPE VACUUM Srl
VIA DEL COMMERCIO 9
20090 BUCCINASCO (MI) ITALY
TEL. ++39 02 48841120
FAX ++39 02 4453957
e-mail: [email protected]
http://www.gevac.com

___________________________________________________________________________
GS Pumps – use and maintenance
page 2 of 20

___________________________________________________________________________
GS Pumps – use and maintenance
page 3 of 20
DICHIARAZIONE DI CONFORMITA’ COMPLIANCE DECLARATION
DECLARACION DE CONFORMIDAD KONFORMITAETSERKLAERUNG
DECLARATION DE CONFORMITÉ
BOMBA DE VACÍO VACUUM PUMP
POMPA VUOTO VAKUUMPUMPE
POMPE A VIDE
Modelo
Modello
Model
GS 3-6-10-16-25-40-100
Matricula
Matricola
Serial nº.
Maschinen nº.
Nº. De machine
Desde/ Da/ From: 1501001 Hasta/ A/ To: 1512500
Año de Construcción – Anno di costruzione - Baujahr
Year of manufacture – Anèe de construction 2015
LA FIRMA – LA SOTTOSCRITTA – THE UNDERSIGNED – LA SOUSSIGNEE –
DIE UNTERZEICHNENDE
GENERAL EUROPE VACUUM, S.r.l.
Via Del Commercio 9 * I-20090 BUCCINASCO (Milano) ITALY
Dichiara sotto la propria
responsabilità che il
suddetto macchinario
denominato : pompa
rotativa a palette,
accoppiata direttamente
ad un motore elettrico
trifase o monofase con
raffreddamento realizzato
da ventola motore;
ventola calettata sul
giunto di trasmissione o
serpentina/radiatore è
conforme alle seguenti
direttive: 2006/42 CE,
73/23CEE, 89/336CEE e
loro successivi
emendamenti.
.
Declares under its own
liability that the new
machine herebolow
described as : Rotary
vanes vacuum pump
directly coupled to
electric
threephase/monophase
motor with air cooling
carried out by means of
motor fan, fan directly
coupled to the
trasmission joint or by
coil/radiator, fully
complies the following
directives no.
2006/42CE, 73/23CEE,
89/336CEE and the
following
amendaments.
Declare sous sa propre
rèspon-sabilitè que la
machine neuve dont la
description est la
suivante: pompe couplèe
directment à un moteur
electrique triphase ou
1phase. Le
refroidissement est
realise directment par
ventilateur du moteur,
par une ventilateur
couplèe sur le manchon
de trasmis-sion ou par le
radiateur /serpentin de
refroidissement, est
conforme aux dispo-
sition: 2006/42/CE,
73/23CEE, 89/336CEE
et aux modification
successiv
Erklaert unter eigener
Verantwortung, dass die
neue Maschine nachstehend
beschrieben als:
Vakuumpumpe direkt
gekoppelt mit elektri-schen
Motor, dreifasig oder
einfasig.Die kuehlung
erfolgt direkt durch den
Ventilator des Motors,
Ventilator direkt an
Trasmissionskupplunggeko
ppelt oder Radiator kuehl-
schlange. Entspricht den
gesetzlichen Bestimmungen
unter folgenden
Vorschriften 2006/42 CE,
73/23CEE, 89/336CEE und
allen nachtraeglichen
Abaenderungen
.
Declara bajo su propia
responsabilidad, que la
maquina indicada arriba
denominada: bomba
rotativa de paletas,
acoplada directamente a un
motor eléctrico, trifasico ó
monofasico, con el
enfriamiento de la misma
producido por el ventilador
del motor; el ventilador
instalado directamente en la
unión de transmisión
motor/bomba ó
serpentín/radiador, es
conforme a las directiva
2006/42 CE, 73/23CEE,
89/336CEE y sus sucesivas
actualizaciones.

___________________________________________________________________________
GS Pumps – use and maintenance
page 4 of 20
Descriptions and pictures shown in this handbook are not binding; G.E.V. S.r.l. therefore reserves
the right, firmly keeping the essential features of the types herein described, to modify, at any time,
without this handbook, any structure , details or spares, that it may consider valuable for improving
its production or for satisfying commercial requirements
G.E.V. S.r.L.

___________________________________________________________________________
GS Pumps – use and maintenance
page 5 of 20
COMPILANCE DECLARATION
G.E.V. pumps types GS have been designed and produced according to the italian safety standards included
in the CE machines directive 2006/42 CE and further additions. The compliance declaration, with the CE
marking printed on it, is supplied with the pump.
RECOMMENDED OPERATING CONDITION
G.E.V. pumps type GS have been manufactured under the Italian standards.
All component in the pumps comply with Italian standards.
It is strictly forbidden to carry out repairs and/or maintenance operations to the pumps while electric
power is on and/or safety devices are switched off
It is strictly forbidden to remove the protection covers which are fitted to protect the end user
The G.E.V. vacuum pumps types GS have been manufactured using technologically advanced
components, providing that all the maintenance instructions supplied by our technicians to end user are
carefully followed, G.E.V. guarantees apply.
ENVIRONMENTAL OPERATING LIMITS
It is advisable to avoid environmental temperatures below 10 °c as in these conditions condensation will
occur thus negating the warrantee
Humidity from 20% to 95%
LIABILITIES LIMITS
GS vacuum pumps are equipped with safety devices fitted to ensure safe operation in normal conditions,
G.E.V. liabilities the vacuum pumps only

___________________________________________________________________________
GS Pumps – use and maintenance
page 6 of 20
INDEX
1.00 DESCRIPTION
1.01 Design and function............................................................................................ Pag. 7
2.00 LIFTING AND TRANSPORT
2.01 Lifting and transport.......................................................................……............ Pag. 7
3.00 OPERATION
3.01 Installation....................................................................................…….. ........... Pag. 8
3.02 Electrical connections.......................................................................................... Pag. 8
4.00 RISK’S LIST
4.01 Mechanical risks................................................................................................ Pag. 9
4.02 Temperature risks............................................................................................... Pag. 9
4.03 Acoustic risks ….…………................................................................................ Pag. 9
5.00 START - UP
5.01 Check – up……................................................................................................. Pag. 9
6.00 MAINTENANCE
6.01 Ordinary maintenance ..................................................................................... Pag. 10
6.02 Periodical maintenance ..................................................................................... Pag. 10
6.03 Trouble shooting…...………............................................................................. Pag .10
7.00 FILTERS
7.01 Dimension and features................................................................................ Pag. 11
8.00 SPARE PART LIST Pag. 12

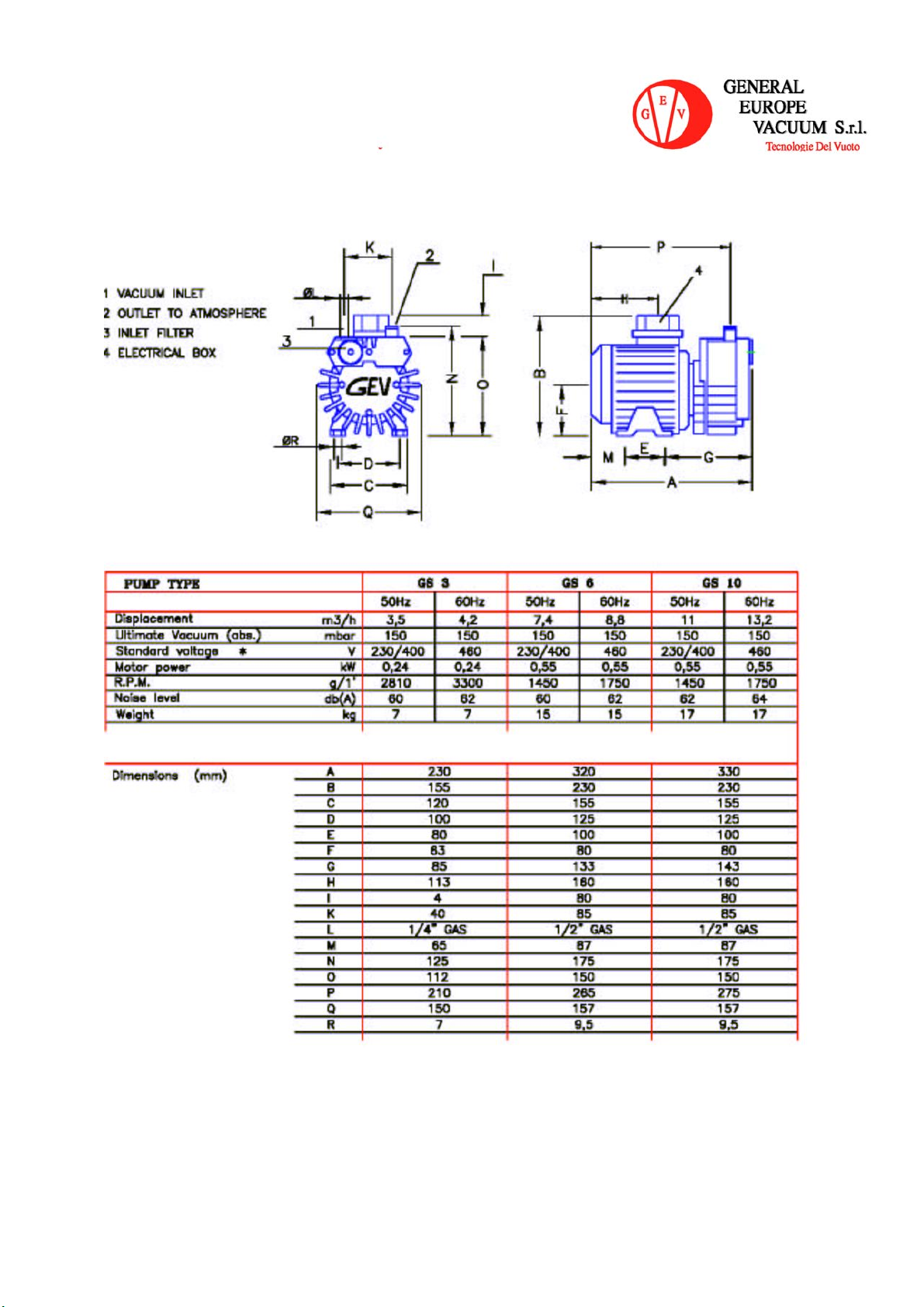

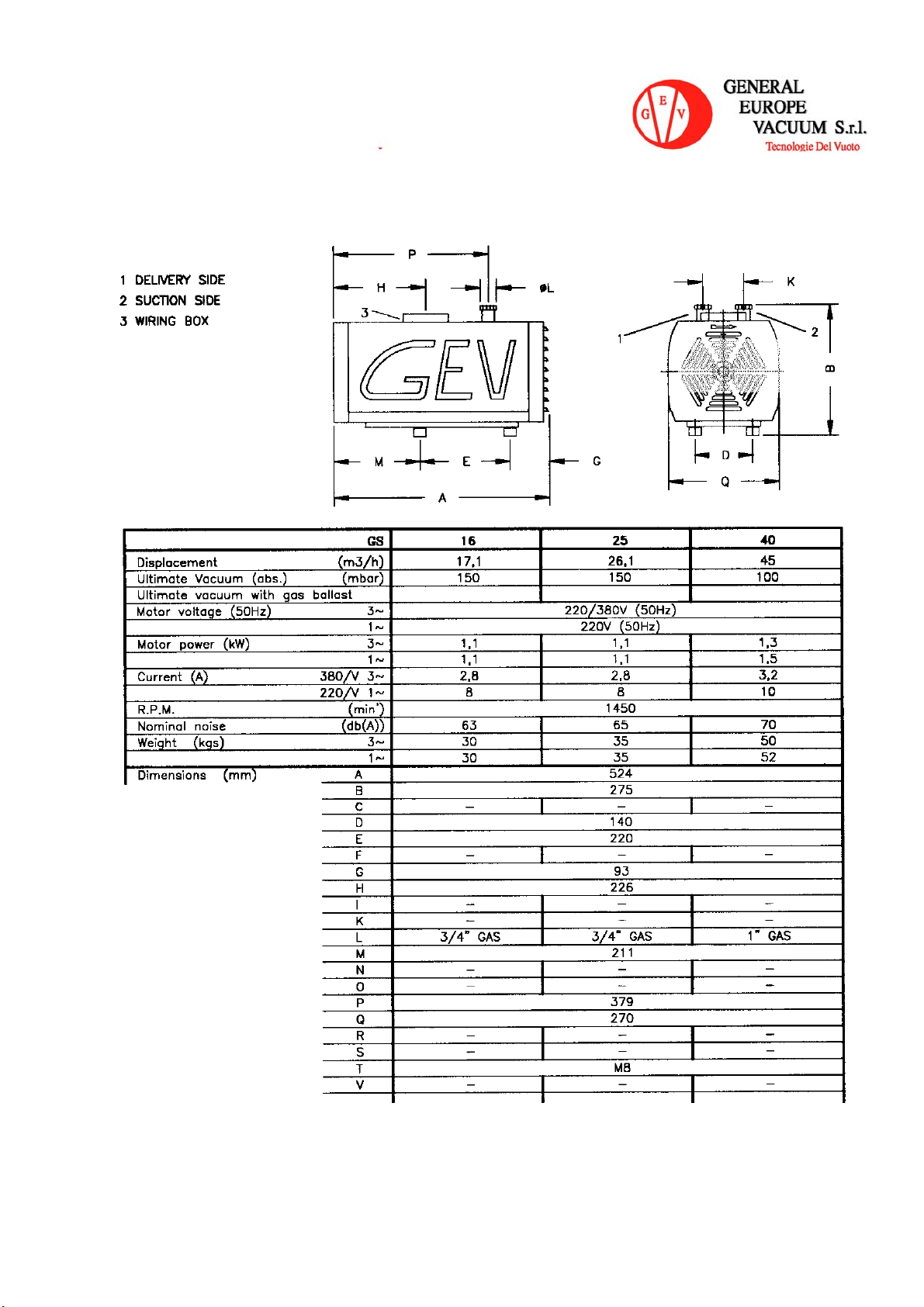

9.00 TECHNICAL FEATURES SHEET AND DIMENSIONS Pag 18

___________________________________________________________________________
GS Pumps – use and maintenance
page 7 of 20
1.0 DESCRIPTION
1.01 Design and function
The G.E.V. GS series pumps are single stage, rotary vane vacuum pumps. Both models are equipped with
standard CE motors coupler directly to the pump by means of a flexible coupling. These vacuum pumps are
mainly utilized in the fields of handling, packing, packaging, woodworking and cardboard industries.
If the pump is particulate it is advisable to include a proper inlet filter with a replaceable cartridge (see start-
up point a). In case of gas steams saturation it is advisable to equip vacuum pumps with a condensate
collecting tank.
2.00 LIFTING AND TRANSPORT
2.01 Lifting and transport
The models 3-6-10 and 16 GS can be easily lifted. G.E.V. anyway reminds to final users to carefully follow
the given lifting instructions and to take all precautions, like gloves and forklift when carrying out such
operation
GS 3 kgs 7 GS 25 kgs 35
GS 6 kgs 14 GS 40 kgs 40
GS 10 kgs 15 GS 100 kgs 100
GS16 kgs 31

___________________________________________________________________________
GS Pumps – use and maintenance
page 8 of 20
3.00 OPERATION
3.01 Installation
The pump must be installed on a level horizontal surface. It should also be installed in a n easily accessible
area for occasional maintenance or filter replacement. Insure that the area has sufficient air flow for the air
cooling circulation of the pump: this is very important to prevent the pump from overheating. Proper inlet
connections should be used to prevent leaks. Leaks will reduce the performance of the pump. Never restrict
the pump exhaust.
3.02 Electrical connections
Connect the motor’s cable to the winding box being careful to protect the motor with a suitable safety device
calibrating to the nominal current shown on the motor lab (pumps are not equipped with an own electric
switch as they are usually installed on a centralized plant)
G.E.V. vacuum pumps are supplied without electric cable. G.E.V. recommends to get this cable assembledby
a skilled technician as no liability for consequent misfunction can be taken

___________________________________________________________________________
GS Pumps – use and maintenance
page 9 of 20
4.00 RISKS LIST
4.01 Mechanical risk
The presence inside the vacuum pump of detachable parts leades to the evaluation of the possible machanical
risks due to the parts same. For this reason, G.E.V. has equipped all their machines with protective casing
firmily screwed on pumps and fit for protecting the personnel dealing with the pumps. It is reccomended to
provide for skilled personnel.
4.02 Temperature risks
In those model where the ABS protective casing are missing, a lable is usually stickered on to prevent high
4.03 Acoustic risks
G.E.V. vacuum pumps have been designed and manufactured taking into consideration the acoustic risks’
standards presently in force in all CE countries.
5.00 START – UP
5.01 Check - up
Check that the motor is rotating in the correct direction; if the pump is installed in a dusty environment, it is
necessary to fit one or more additional filters. For some applications, it is advisable to equip vacuum pump
with an oil bath filter (GFOP) in line with a cartridged filter (GFMV or GFCV) as follows:

___________________________________________________________________________
GS Pumps – use and maintenance
page 10 of 20
6.0 MAINTENANCE
6.01 Ordinary maintenance
Check if filter cartridges inside the pumps are full up and ,if necessary, clean it/them by means of
compressed air blown inside the cartridge. The same operations should have to be done in case of
additional filtering elements mounted in suction.
G.E.V. is not liable for operational failure due to mistakes during the assembling operation or the
utilization of non G.E.V. spare parts
6.02 Periodical maintenance
1500 hours Change filter cartridge. Refer to assembling scheme for removing the
cartridge
3000 hours Change blades in case their widths get reduced as follows:
GS 3 : 16,5 mm
GS 6 : 25.5 mm
GS 10 : 25.5 mm
GS 16 : 26 mm
GS 25 : 26 mm
GS 40 : 33 mm
GS 100 : 36 mm
This operation must be carried out by a skilled technician
G.E.V. is not liable for operational failure due to mistakes during the assembling operation or the
utilization of non G.E.V. spare parts
6.03 Trouble shooting
TROUBLE CAUSE REMEDY
Higt noise level Blades have worm out Replace blades
Motor bearing gets broken Replace bearing
Insufficient vacuum Blades have worm out Replace blades
Suction filter is dirty Clean or replace

___________________________________________________________________________
GS Pumps – use and maintenance
page 11 of 20

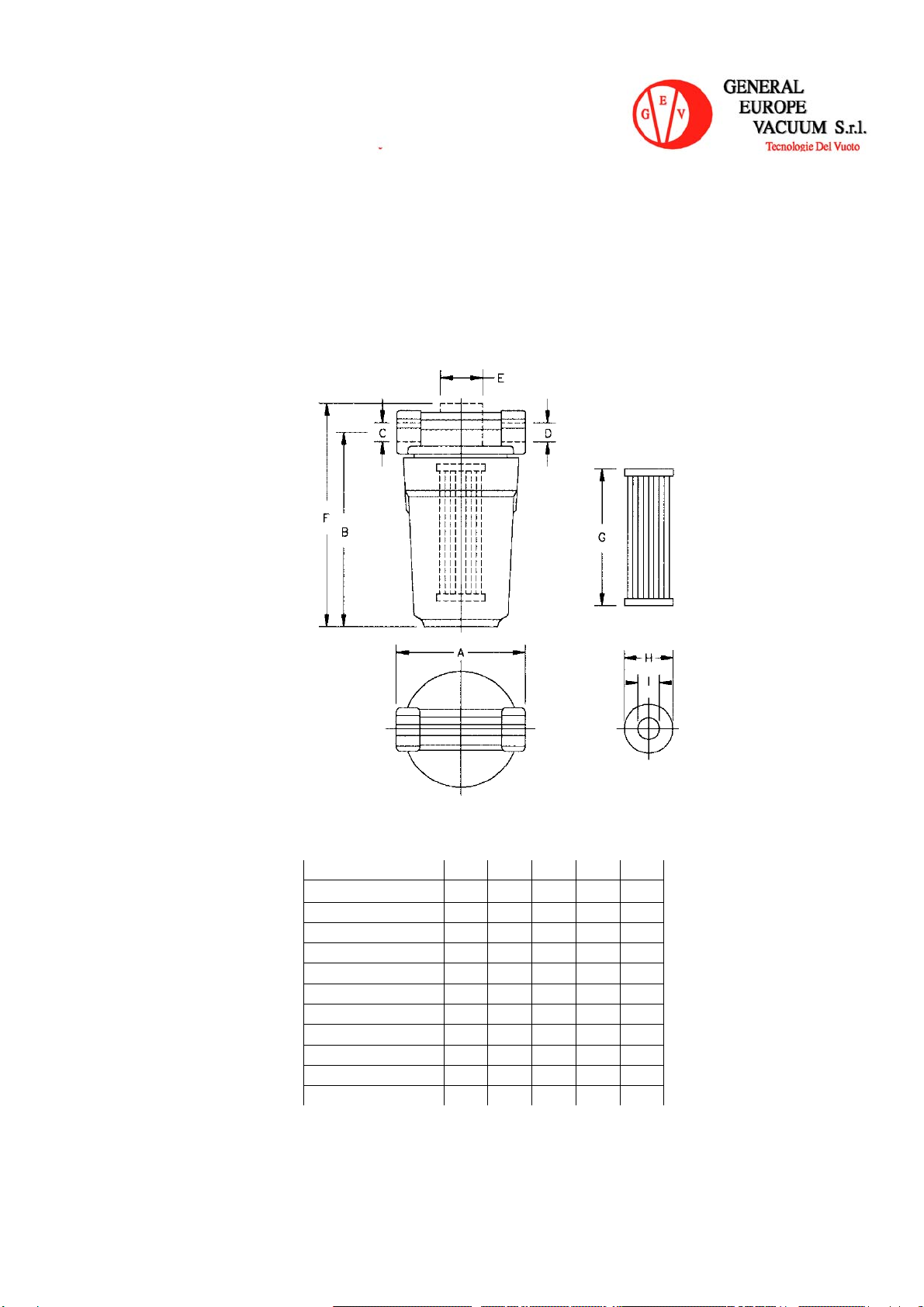

7.0 INLET FILTERS
A comprehensive range of inlet filters is available to ensure efficient protection of all pumps from the
entry solid particles which cause internal pump damage resulting in perfomance degradation and
premature breakdown. There are two different types of filter :GFC (with paper cartridge) and GFM
(with metal cartridge)
Type 20 60 100 200 300
Capacity (m3/h) 20 65 110 200 300
Weight (kg) 0,5 0,7 0,9 2 2,5
A 90 145 145 185 185
B- 145 225 230 340
C Ø ½”G 1”G 1”G 2”G 2”G
D Ø ½”G 1”G 1”G 2”G 2”G
E Ø - - - - -
F- - - - -
G123 82 170 140 260
H Ø 46 71 71 95 95
I Ø 22 26 26 65 65

___________________________________________________________________________
GS Pumps – use and maintenance
page 12 of 20

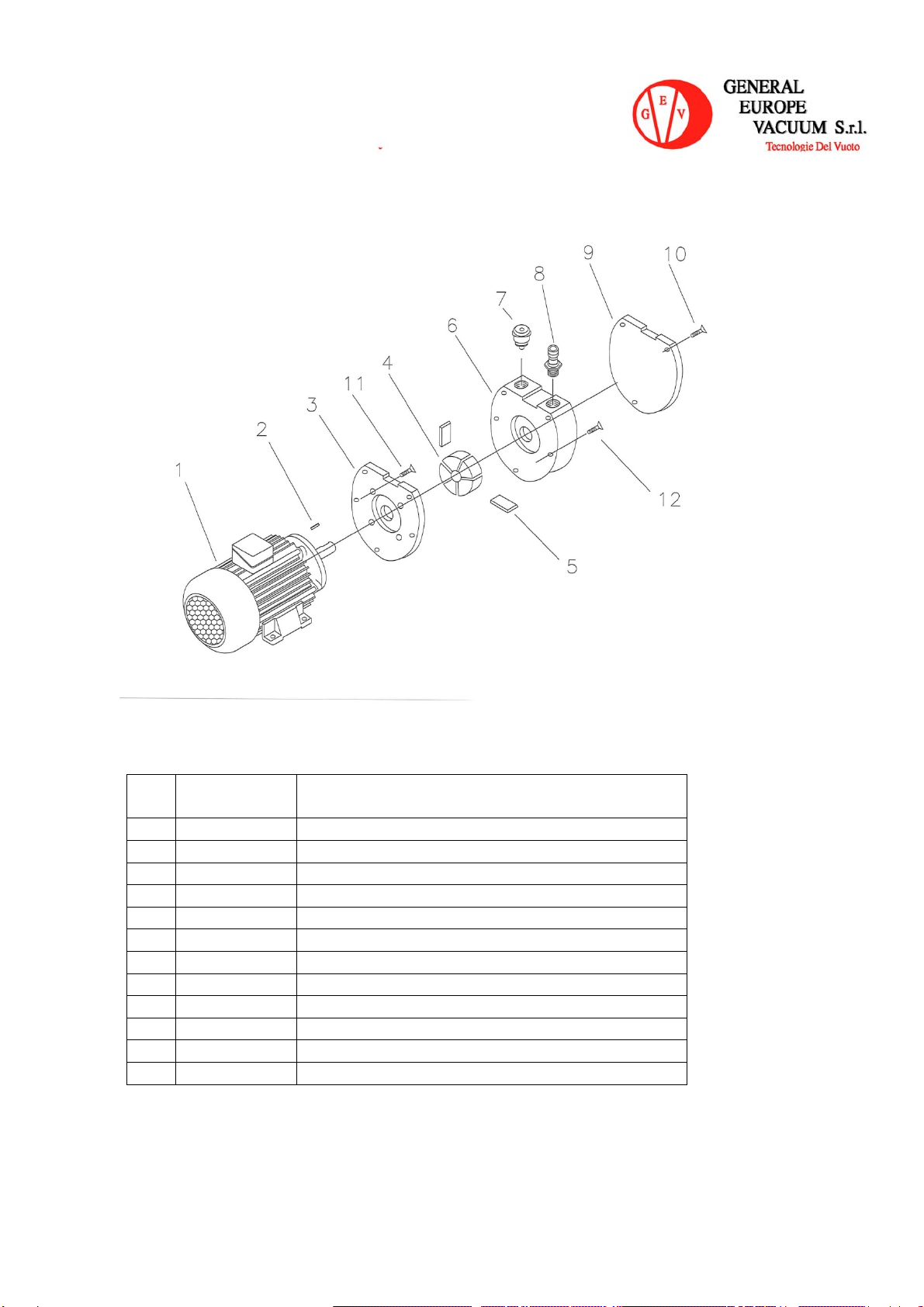

PUMP TYPE GS 3
POS QUANTITY
GS 3 DESCRIPTION
1 1 MOTOR
2 1 KEY
3 1 FRONT COVER
4 1 ROTOR
5 5 BLADE
6 1 STATOR
7 1 SILENT VALVE
8 1 PIPING FITTING
9 1 REAR COVER
10 1 SCREW
11 1 SCREW
12 1 SCREW

___________________________________________________________________________
GS Pumps – use and maintenance
page 13 of 20

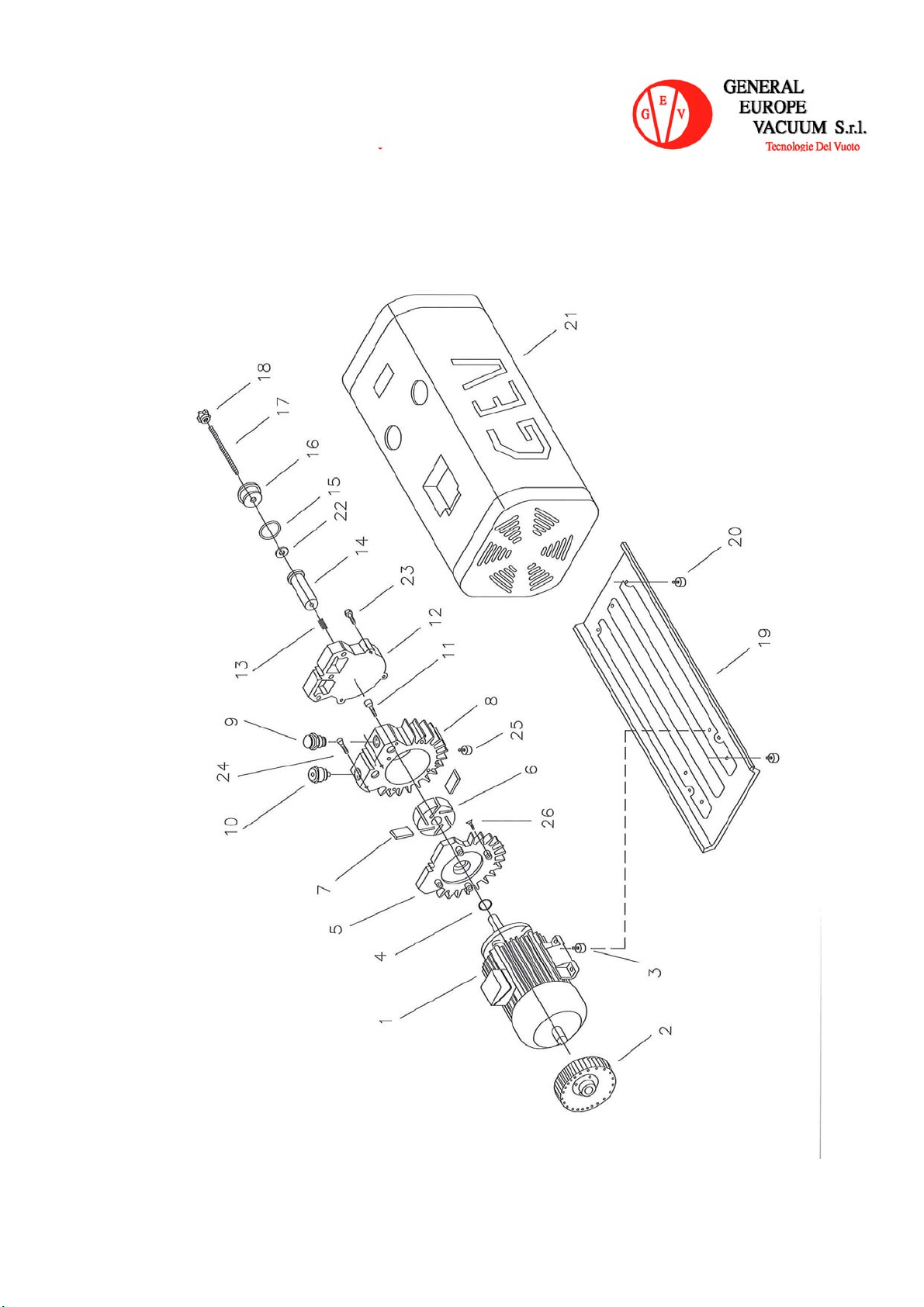

PUMP TYPE GS 6-10
POS QUANTITY DESCRIPTION
GS GS
6 10
1 1 1 MOTOR
2 1 1 FRONT COVER
3 1 1 ROTOR
4 6 6 BLADE
5 1 1 STATOR
6 1 1 SILENT VALVE
7 1 1 CONICAL SCREW
8 1 1 REAR COVER
9 1 1 SUCTION FILTER CARTRIDGE
10 1 1 RUBBER DISC
11 1 1 FILTER SPRING
12 - 1 WASHER
13 1 1 O-RING
14 1 1 FILTER HOLDER PLUG
15 1 1 SCREW
16 1 1 SCREW
17 1 1 SCREW
18 1 1 SCREW

___________________________________________________________________________
GS Pumps – use and maintenance
page 14 of 20
PUMP TYPE GS 16-25-40

___________________________________________________________________________
GS Pumps – use and maintenance
page 15 of 20
POS QUANTITY DESCRIPTION
GS GS GS
16 25 40
1 1 1 1 MOTOR
2 1 1 1 IMPELLER
3 4 4 4 ANTIVIBRATION
4 1 1 1 TIGHT RING
5 1 1 1 FRONT COVER
6 1 1 1 ROTOR
7 7 7 7 BLADE
8 1 1 1 STATOR
9 1 1 1 3 PCS. NIPPLE
10 1 1 1 SILENCE VALVE
11 1 1 1 CONICAL SCREW
12 1 1 1 REAR COVER
13 1 1 1 FILTER SPRING
14 1 1 1 AIR FILTER
15 1 1 1 O-RING
16 1 1 1 FILTER HOLDER PLUG
17 1 1 1 THREADED BAR
18 1 1 1 KNOB
19 1 1 1 CASING BASE
20 4 4 4 ANTIVIBRATION
21 1 1 1 CARTER BODY
22 1 1 1 WASHER
23 6 6 6 SCREW
24 2 2 2 SCREW
25 1 1 1 ANTIVIBRATION
26 4 4 4 SCREW

___________________________________________________________________________
GS Pumps – use and maintenance
page 16 of 20

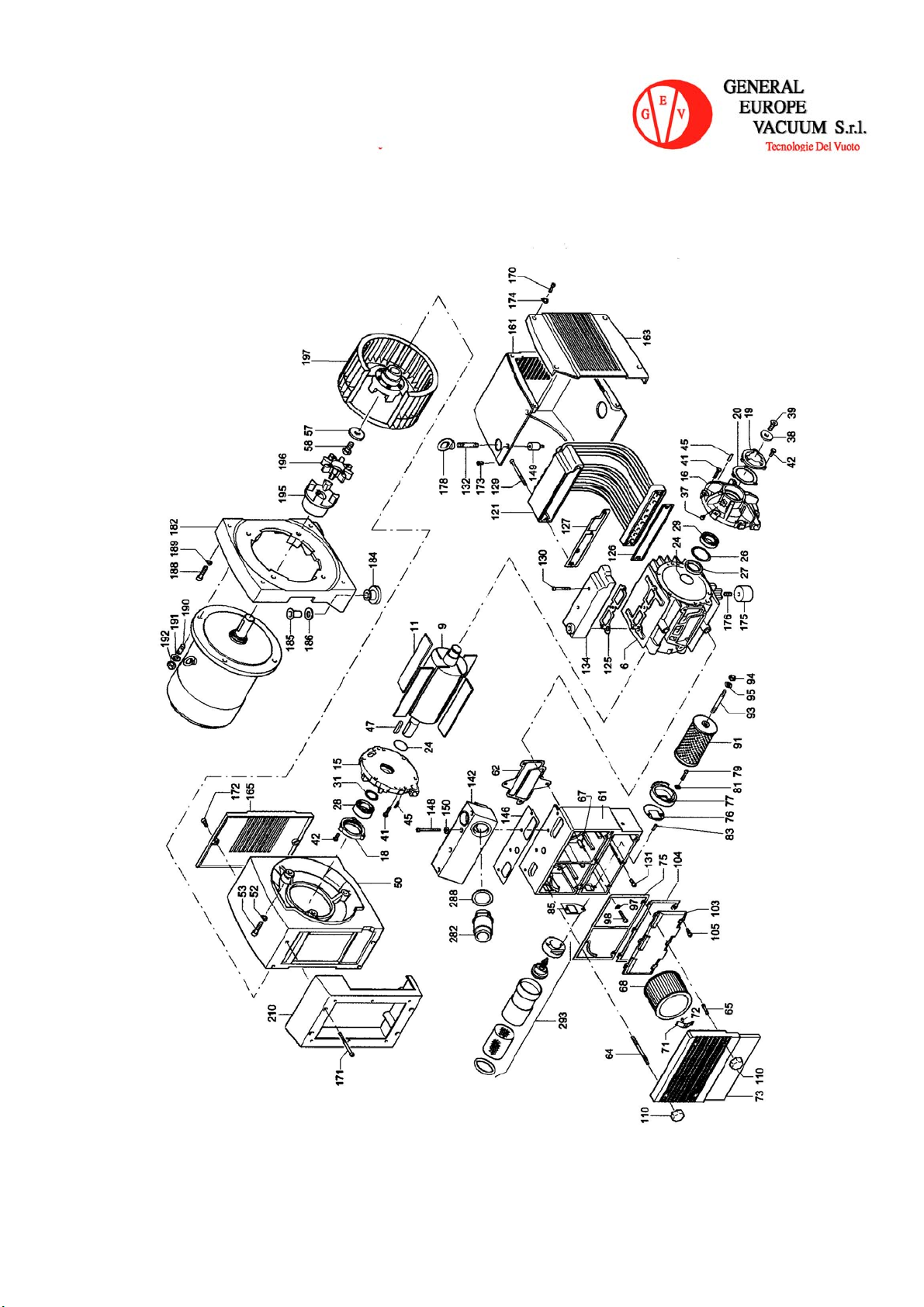

PUMP TYPE GS 100

___________________________________________________________________________
GS Pumps – use and maintenance
page 17 of 20
POS DESCRIPTION POS DESCRIPTION
6 PUMP BODY 105 SOCKET HEAD SCREW
9 ROTOR 106 WASHER
11 CARBON VANES 110 HANDLE
15 LID 121 COOLER
16 LID 125 GASKET
18 BEARING COVER 126 GASKET
19 BEARING COVER 127 GASKET
20 GASKET 129 SOCKET HEAD SCREW
24 SEAL 130 SOCKET HEAD SCREW
26 COMPENSATING DISK 131 SOCKET HEAD SCREW
28 BALL BEARING 132 STUD
29 BALL BEARING 134 COVER
31 SET DISTANCE DISC 142 CONNECTING PIECE
37 HEX-HEAD SCREW 146 GASKET
38 CLAMPING DISK 148 SOCKET HEAD SCREW
39 SCREW 149 RUBBER BUFFER
41 HEX-HEAD SCREW 150 WASHER
42 HEX-HEAD SCREW 161 COVERING HOOD
45 STRAIGHT PIN 163 AIR GUIDE HOOD
47 KEY 165 VENTILATOR HOOD
50 CONNECTION FLANGE 170 SOCKET HEAD SCREW
52 WASHER 171 SOCKET HEAD SCREW
53 SOCKET HEAD SCREW 172 SOCKET HEAD SCREW
57 WASHER 173 SCREW
58 SHAFT END BOLD 174 SPRING DISK
61 FILTER HOUSING 175 RUBBER BUFFER
62 GASKET 176 THREADED PIN
64 STUD 178 RING UNIT
65 STUD 182 FLANGES
67 SILENCER TUBE 184 RUBBER BUSHING
68 FILTER CARTRIDGE 185 PIPE RIVET
71 LEAF SPRING 186 WASHER
73 FILTER-COVER 188 SOCKET HEAD SCREW
75 GASKET 189 WASHER
76 GASKET 190 STUD
77 FILTER HOLDER 191 WASHER
79 SOCKET HEAD SCREW 192 HEX NUT
81 WASHER 195 COUPLING
83 LOCATING PEG 196 COUPLING DISK
85 GASKET 197 COUPLING WITH FAN
91 FILTER CARTRIDGE 210 VENTILATOR HOOD
COMPL
93 STUD 282 VACUUM REGULATING
VALVE
94 HEX.NUT 288 SEALING RING
95 WASHER 293 BLOW-OFF VALVE
97 WASHER
98 SOCKET HEAD SCREW
103 COVER
104 GASKET

___________________________________________________________________________
GS Pumps – use and maintenance
page 18 of 20

___________________________________________________________________________
GS Pumps – use and maintenance
page 19 of 20

___________________________________________________________________________
GS Pumps – use and maintenance
page 20 of 20
