Gfp FLORIAN 1207 User manual

Assembly instructions
METAL GARDEN SHED
FLORIAN 1207
Thank you for choosing our product!
This manual is for the model ESD-1207E
Restrictions on the installation location:
- Do not mount on the roof of a building!
- Do not block any passageways or escape routes!
- Avoid installation in places where avalanches could fall on the tool shed or
where roof water falls directly onto the garden shed!
- Only set up where appropriate safety is guaranteed (not on cliffs or
in extremely windy places!)
Assembly:
- Ensure that the garden shed is well anchored to its foundations!
- Wear protective gloves during assembly!
- Do not assemble the tool shed in strong winds!
- Where required, use a sturdy stepladder
- Make sure that all screws and metal parts are tightened securely and no parts are left over!
- Some holes and recesses may not be required for your model – therefore work exactly
according to these instructions!
For safety
- When locking it, make sure that no one is inside the tool shed!
- Always lock the tool shed when it is not in use!
- Make sure that children do not use the tool shed (as a toy)!
Foundation points
If you choose a point foundation, place the
foundation points as follows
Make sure that the foundation points are
balanced and that the points are aligned at right
angles!
Make sure that you leave enough distance to
adjacent walls etc. for installation, as you need
this space!
Make sure that the roof overhangs do not collide
with a wall, etc.!
The following packages are required:
Designation: Package no. Amount
Sidewall: ES4-0425 1
Roof, oor: ES4-0913 1
Rear wall: ES4-1022 1
Door: ES4-1722 1
Shelf (optional): ES4-1917 1
Shelf (optional): ES4-1918 1
Front

IMPORTANT INFORMATION
CHECKING PARTS LISTS
We strongly recommend checking the parts of the frame as well as the twin-wall sheets for completeness
on the basis of the parts list.
With the guarantee that all parts are completely available, a continuous structure is ensured and
you save time and hassle of having to stop assembly.
ATTENTION:
To rule out shortfalls as far as possible, we use the most modern weighing techniques, and the
individual packing steps are continuously and fully monitored by exact weight checks.
This allows us to largely rule out any shortages or any mixing up of parts.
However, if a part is damaged during transport, or if a part is missing, we will send it to you as quickly
as possible.
REQUEST:
The manufacturer / importer is GFP Handels GesmbH, Passauerstr. 24, A-4070 Eferding, Austria (hereinafter
also referred to as „the manufacturer“, „we“ or „us“).
If you have any questions about the assembly or the product itself, please contact the supplier
through whom you purchased your product.
Duration and commencement of the guarantee:
The guarantee for these metal products is granted for a
period of 20 years.
The guarantee covers rusting through of sheet metal parts
and parts which are demonstrably unusable or considerably
impaired in their usability due to faulty design or defective
workmanship. The period begins with the date of delivery.
Any replacement deliveries shall not result in an extension
of the guarantee period.
Guarantee conditions
• The assembly / installation was carried out competently
according to the enclosed assembly instructions
• The product has been used exclusively for its intended
purpose and within the scope of normal use.
• The product is owned by the original purchaser and has
not been disassembled and reassembled.
Guarantee coverage:
• The guarantee covers parts which are demonstrably
unusable or considerably impaired in their usability due
to faulty design or defective workmanship.
• Parts will be repaired or replaced free of charge at our
discretion.
• We do not cover the costs for removal, installation and
transport.
• Replaced parts either become the property of GFP or
are to be disposed of by the customer.
• GFP accepts no liability for any secondary damage.
Limitations of the guarantee:
This guarantee does not cover defects which are due to:
• transport damage (the carrier is liable for this - please
report immediately)
• external inuence or forces, extraordinary natural
phenomena (e.g. hail)
• general assembly errors
• defects with the foundation, lack of water drainage in
the area around the oor
• unsuitable installation site and/or lack of anchoring
• paint damage and scratches that are not immediately
repaired
• maintenance errors (e.g. not oiling/greasing the lock
and hinges).
• excessive levels of humidity or aggressive
environmental substances (e.g.: aggressive and
abrasive cleaning agents, road salt, fertilisers and
other chemical substances, salty and/or sandy local
conditions).
• wearing parts (e.g. door rollers, hinges, locks, etc.)
• colour changes, as dyes can change over time
• For rubber and plastic parts, only the statutory
guarantee period of 24 months applies.
Miscellaneous:
• The registered address for all liabilities arising from
guarantee obligations is A-4070 EFERDING.
• The buyer or a third party cannot derive any further
rights from this guarantee, in particular no claims for
damages of any kind or rights of offsetting or retention.
• The statutory guarantee claims remain unaffected by
this guarantee.
Guarantee policy

Note:
The key is attached to the back of the
door.
You can use the same key to lock the left
and right doors.
Screws used: M6x15
There are 3 spare screws for installation.
Stainless: 1 pc., golden coloured: 2 pcs.
Tool kit:
Phillips screwdriver
T-shaped wrench
Spirit level
The numbers listed above show the sequence of the individual assembly steps!
Roof
Metal clasp
Rear wall strut
Floor plate
Rear wall
Rear wall
Right door
Left door
Door handle
Door handle
Right side wall
Left side wall
Shelf stand
Middle door
Lintel

1. Place the oor plate on the prepared surface or foundation points and turn the adjustable feet on the four corners
clockwise with the T-shaped key until the oor plate is lifted from the surface or foundation points.
If the T-shaped key cannot be turned, insert a Phillips screwdriver into the hole of the T-shaped key and use it to turn
the key.
2. Align the oor plate with the spirit level by raising or lowering the adjustable feet accordingly.
3. Finally, turn the two adjustable feet in the middle of the oor plate until they reach the foundation.
The height is adjustable up to 32 mm.
4. Attach the covering caps of the adjustable feet. Use the caps on the two front corners.

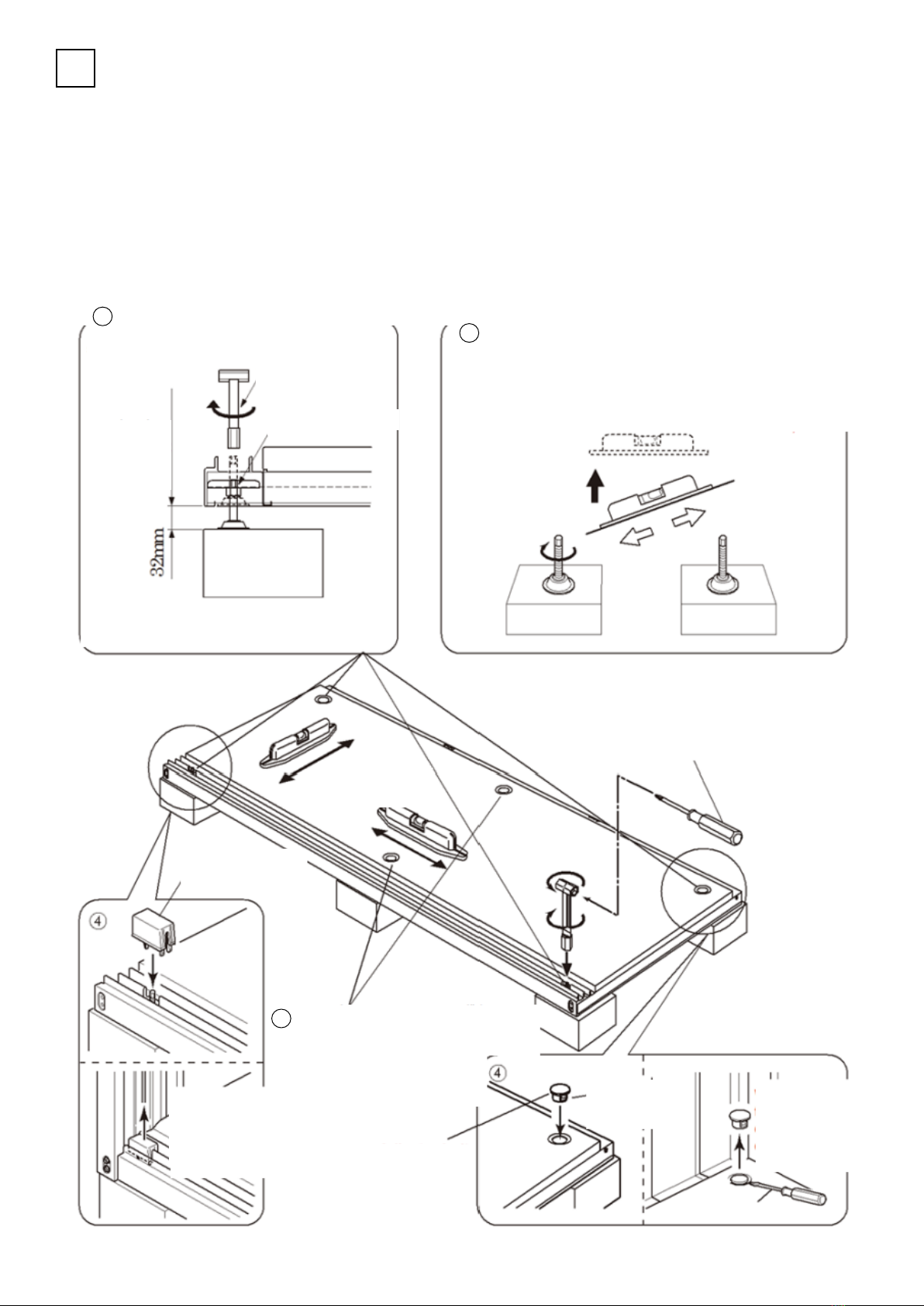

Laying the oor plate:
1
Balance the oor plate with the four
adjustable feet at the corners
Turn the T-key clockwise until the oor
plate is lifted from the foundation.
1
2
T-shaped key
Adjustable foot
maximum
adjustment
height
On delivery, the adjustable feet are fully
screwed into the oor plate.
How the spirit level works:
If the bubble is outside the marking in the centre of the spirit level, turn the
opposite adjustable foot clockwise. This is done until the air bubble is within the
marked area.
Phillips screwdriver
Floor plate
Covering caps
front
Covering caps
front
Claw
(1 point)
To remove the covering
cap,
please press against
the claw
Turn the two adjustable feet in the middle of
the oor plate clockwise until they reach the
foundation.
Do this only after the four
corners have been adjusted!
To remove the
adjustable feet covers,
simply lift them off!
3

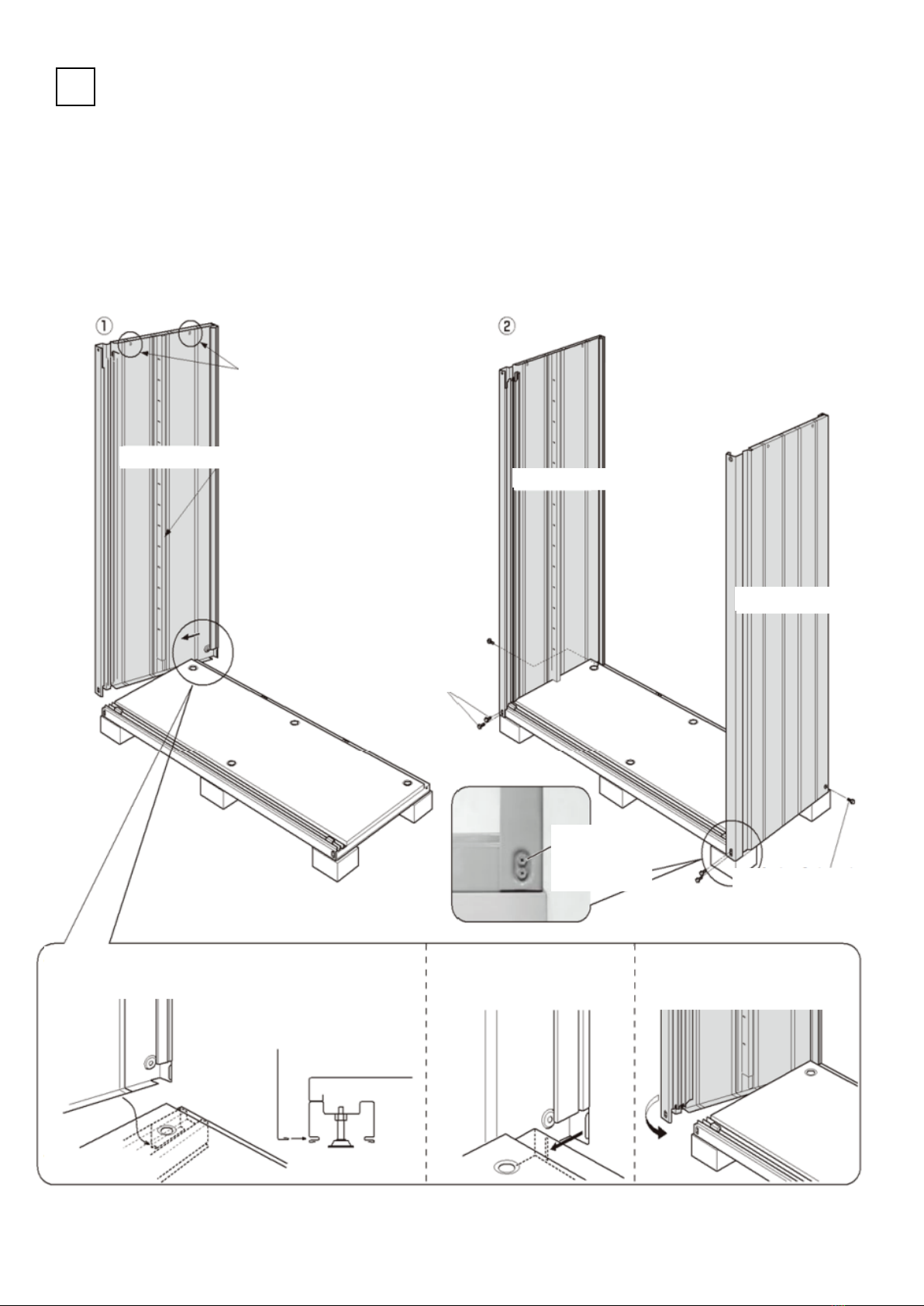

Installing the side walls
2
Tighten the
screw
from the
front!
Left side wall
Right side wall
Left side wall
Stainless steel screws
Stainless steel
screws
Ensure that the end of the side
wall with two holes is at the top
b. Insert the lip on the rear side of
the side wall into the groove of the
oor plate
a. Place the rear, bottom corner of the side wall into the groove
on the side of the oor plate
c. Bring the side wall forward and
attach it to the oor plate
Back
Front
Attaching
1. Place the rear, bottom corner of the side wall (left) into the groove on the side of
the oor plate
b. Insert the lip on the rear side of the side wall into the groove of the oor plate
b. Bring the side wall forward and attach it to the oor plate
2. Attach the front and back of the side wall with the stainless steel screws.
It is recommended to tighten the rear screw rst.
3. Fix the right side wall in the same way.
ATTENTION: In windy conditions, the side walls can fall over!

Attaching the door lintel
3
1. Place the lintel onto the door stop. The ends of the door stop
t into the L-shaped holes of the lintel.
2. a. Make sure that the side wall and the lintel are at right angles to each other and
place the bottom part of the metal tting for the lintel into the right-angled hole on the
inside of the door stop.
b. Bring the metal connector for the lintel tting to the side of the lintel and
fasten it to the lintel with a golden screw.
3. Fix the lintel with (stainless steel) screws from the front.
c. Fix the metal tting for the lintel (right and left) to the door stop with
a golden screw.
Interior view
Lintel Lintel
Golden
Right-angled
hole
Door stop
These pro-
tusions t
into L-shaped
holes There are metal ttings for the left and right lintels
Lintel
Stainless
Stainless
Door stop
Front Back

Attaching the roof panel
4
1. First remove the two stainless steel screws from the metal clasp.
After inserting the metal clasp into the roof panel, reattach it with the
stainless steel screws.
2. a. Place the roof panel over the side walls and the lintel.
b. Place the metal bracket for the roof panel in the rectangular hole on the side of the
roof panel, and attach the front side of the roof panel to the side walls only
with the golden screws.
The rear side of the roof panel is only screwed after the rear wall has been attached in Step 6!
Do not attach the
back of the roof
panel yet!
Left and right at the
back
Roof panel
Golden
Stainless
Metal clasp
Only screw in the
front side!
Metal bracket
(white)
for the roof panel

Attaching the rear wall strut
5
a. Slide the rear wall strut into the square opening of the roof.
b. Insert the bottom of the strut into the right-angled hole in the oor plate.
Place the metal fastener for the roof panel in the top part of the rear wall
strut as shown in Step 4 and secure it with a golden screw.
The notched part should point
upwards!
Insert
the top rst
Golden
Right-angled
hole
Notch
Rear wall strut
Insert the bottom
second
Right-angled
hole

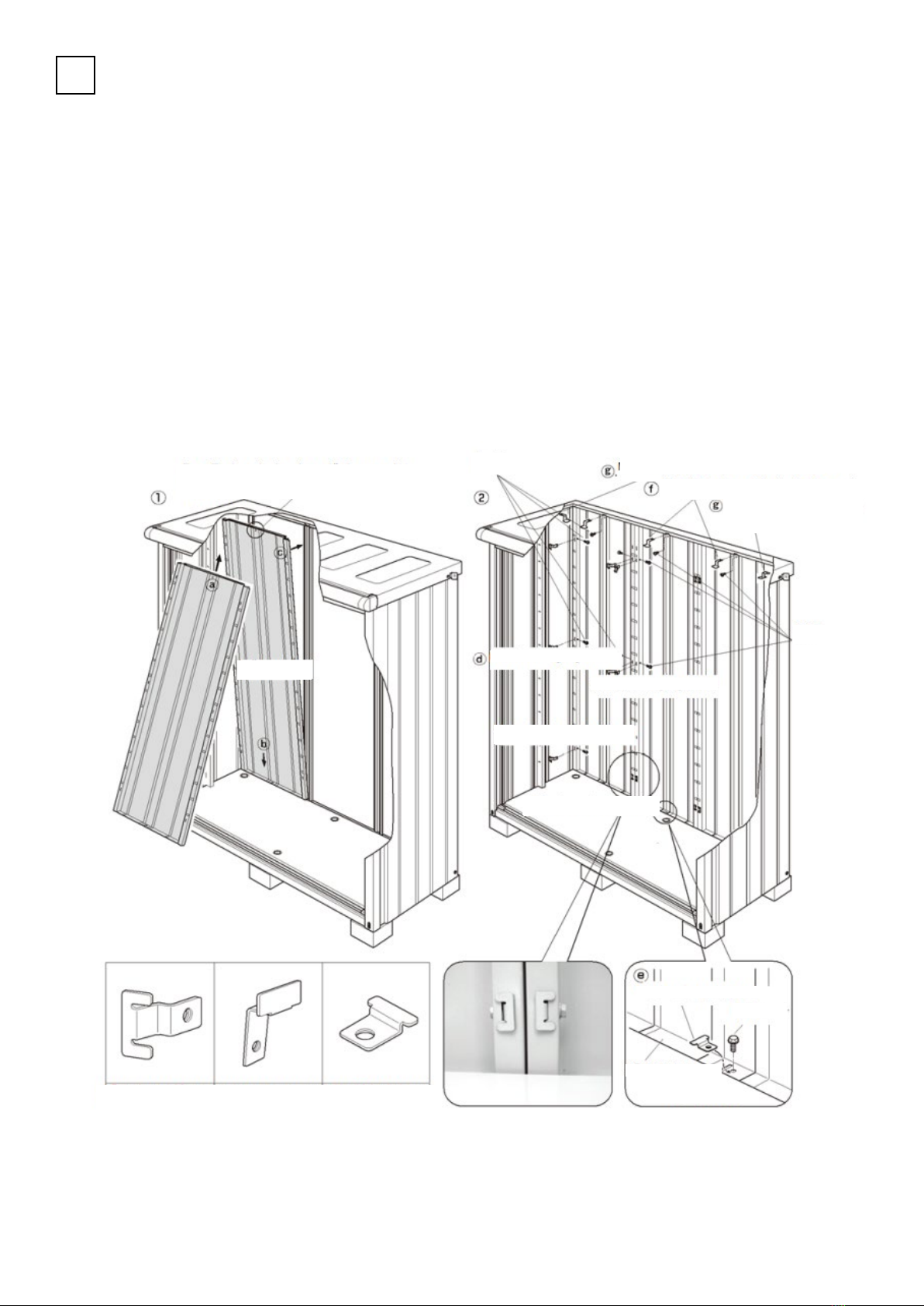

Attaching the rear wall panels
6
Rear wall
Golden
Metal fastener, wall
The end with the elongated holes
should point upwards!
Floor plate
Golden Metal fastener for the roof panel
Metal fastener for the roof panel
Metal fastener for the
roof panel
Metal fastener, wall
Metal fastener, wall
Metal fastener,
wall
White
Metal fastener,
roof
White
Metal fastener,
rear wall bottom
White
Metal fastener, wall
Golden
Floor plate
Rear wall, bottom
1a. Slide the top part of the rear panel into the inside of the tool shed
b. While pushing the top part of the rear wall upwards, insert the bottom part between the rear pillar
and the side walls, and then drop it down.
c. Set up the rear wall and insert the top part of the rear wall panel.
d. Insert the metal fastener for the wall into the right-angled hole in the middle of the rear wall and
secure it with a golden screw. (By inserting the metal fastener for the wall, you can prevent the rear
wall from falling down - even if you have not yet xed it with a screw).
e. Place the metal fastener for the bottom of the rear wall into the right-angled hole on the bottom of
the rear wall and fasten it with a (golden) screw in the middle. After inserting all three rear walls,
tighten the screws in Steps (d) and (e).
f. Place the metal fastener for the roof plate in the middle part of the rear wall in the same way as in
Step 4 (2b) and tighten the (golden) screw.
g. Now also fasten the backs of the side walls.

Attaching the shelf stand
7
You can choose how you want to place the shelves
according to how you want to use them.
Attach the top part of the shelf upright to the lintel
with a (golden) screw.
Then attach the bottom part of the shelf upright with
the oor plate with a (golden) screw.
Golden
Golden
Shelf stand
Shelf stand
Golden
Shelf
stand Shelf
stand
If you are assembling the
shelf stand on the right
If you are assembling the
shelf stand on the left
Examples of how to install the shelves
The hole cover on the oor
plate, where you attach
the shelf stand.
Hole cover
Front

Fixing the door handle and inserting the doors
8
1 Make sure the door handle is
pointing in the right direction and attach it to the door.
Slide the door handle into the handle body until the claws on the
upper and lower parts of the door handle make a clicking sound
and make sure that the door handle is rm.
Before the doors are inserted, the
door handle must be mounted on both
doors – otherwise the doors could
interlock when they are closed.
Metal tting of the middle
door
There are notch holes in
the door rail
The door handle is included in the door package
Attach the (large) door handle to the front of the door and
the (small) door handle to the back of the door.
There are two ways to release the temporary locking
mechanism.
1 Attach the door handle and release the locking mecha-
nism.
2. Turn the shaft inside the fastening part of the door
handle with pliers or something similar.
2. Attaching the doors
Attach the doors on the right, centre and
left
Attach the doors where a recess for
attaching them is provided above the
door rail.
You can only attach the doors in these
places!
When you attach the other (middle
and left) doors, make sure that the
previously attached doors (right or
middle) overlap.
Left RightCentre
Arrangement of the doors
viewed from the top
Door
rollers
Door,
right
thick
thin
Outer side of the door
Door (right and Left)
Door handle recess
Door handle (large)
Interior view
Door (right and Left)
Door handle recess
Door handle
(small)
Make sure that
the door handle
is positioned
correctly!
The small door handle differs left and right
3. Preventing the door from falling out
It is of the utmost importance to do the following:
After inserting the doors, slide them to the right side and loosen the
screw (where the doors were inserted) on the inside of the door lintel.
(See the inside view of the bearing, Figure 1)
Lower the door rail together with the screw and x it again with the
screw.
(See the inside view of the bearing, Figure 2)
Loosen the screw
Lintel
Lintel
Fig. 1 Interior view of the garden shed
Door rail
Lintel
Bring together the door
rail with the screw pointing
down and x it again with
the screw.
Door InsideOutside
Door rail, top 1. Loosen the screw
3. Tighten the screw.
Fig. 2 Interior view of the garden shed
Door rail
2. Lower the
rail
Attach the door handle
for the left-hand door as
shown in the drawing.
When attaching the door
handle to the right-hand
door, x it so that the
thick part of the handle
is on the right side, in
the opposite direction to
the left door handle.

Before entering the garden
shed for adjusting, make
sure that the door handle is
installed!
Adjust the door with the screw of the door roller on the
inside to align the door at a right angle to the garden shed.
Gap
Make sure that the doors can be securely locked
Door
Screw
Note:
a. There should be a gap between the top of the door and
the tool shed
If the gap is more than 5 mm, then the oor has to be
realigned!
a. There should be a gap between the bottom of the door
and the tool shed
Rotate
anti-clock-
wise
Rotate
clockwise
Setting up the door
9
Rotate
anti-
clockwise
Rotate
clockwise

Installing the shelves
10
Place the metal tting and the shelf support in the right-angled
holes of the rear wall, the door stop and the shelf support strut.
Attach the shelf board to the shelf support and the metal tting
as shown in Fig. 2.
A punch-out in the shelf support has the further function of
preventing the shelf board from falling down.
Fig. 1
Metal tting
Sidewall
Rear wall
Strut
Shelf support
Shelf support
Fig. 2
Shelf support
Metal tting
Ascending part
Shelf support
Metal tting
No shelf support is required for the
middle part
Insert the shelf support deep into the shelf support strut
Push the shelf support into the right-angled hole of the rear wall

Final assembly
11
1. To protect the tool shed from falling over, connect it with a building, etc., by fastening the
tool shed with a wire, etc. (not included in delivery) to the metal clasp.
Or attach the four anchoring brackets to the four corners and screw them onto the
foundation or use ground stakes (ground stakes and screwing material not included).
2. Align each corner of the tool shed at a right angle and make sure that all screws have
been properly tightened.
Metal clasp
Wire etc. not included in delivery
Remove the screws that
secure the side wall, attach the
anchoring brackets and screw
the screws back on tightly.
