GGM gastro EBRH12 User manual

PORTABLE AUTOMATIC ICE MAKER
EBRH12 / EBSH12
INSTRUCTION MANUAL
It is important that you read these instructions before using your portable ice maker and we
strongly recommend that you keep them in a safe place for future reference.

1
IMPORTANT SAFETY INSTRUCTIONS………………………………………………. ….2
PREPARING YOUR ICE MAKER FOR USE
IMPORTANT SAFETY TIPS………………………………………………………………………3
GETTING TO KNOW YOUR UNIT………………………………………………………… ………………………………………………………….5 .5
OPERATING PROCEDURES & MAINTENANCE
UNPACKING
UNPACKING YOUR YOUR ICE ICE MAKER MAKER………………… …………………. .…………………………………………… ……………………………………………. .. .7 7
CONNECTING
CONNECTING YOUR YOUR ICE ICE MAKER MAKER……………… ………………. .……… ………. .…………………………………… ……………………………………..7 ..7
CLEANING
CLEANING AND AND MAINTAINING MAINTAINING YOUR YOUR ICE ICE MAKER MAKER…
…. .………………………………………… …………………………………………. .7 7
USING YOUR ICE MAKER……………….……..…………………………………………..8
TROUBLESHOOTING
TROUBLESHOOTING…………………………… ……………………………. .…………………………………………… ……………………………………………..8 ..8
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM……………………..….………....9
EXPLOSIVE DRAWINGS…………………………………………………………………...10
WARRANTY INFORMATION……………………………………………………………….11
TABLE OF CONTENTS

2
DANGER
WARNING
Your safety and the safety of others are very important.
We have provided many important safety messages manual and your appliance.
Always read and obey all safety messages.
This is the safety alert symbol:
!
All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”.
These words mean:
You can be killed or seriously injured if you don’t immediate follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.
TABLE OF CONTENTSIMPORTANT SAFETY INSTRUCTIONS

3
When using electrical appliances, basic safety precautions should be followed to reduce the
risk of fire, electric shock, and injury to persons or property. Read all instructions before using
any appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Do not operate this，or any other appliance with a damaged cord.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
This ice-maker must be positioned so that the plug is accessible .
Connect to properly polarized outlets only. No other appliance should be plugged into the
same outlet. Be sure that the plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or other heat insulators. Do not cover the cord.
Keep cord away from traffic areas, and do not submerge in water.
We do not recommend the use of an extension cord, as it may overheat and become a risk
of fire. If you must use an extension cord, use No. 0.75mm2minimum size and rated no
less than 16A/250V~ with a plug.
Unplug the ice maker before cleaning or making any repairs or servicing.
Exercise caution and use reasonable supervision when appliance is used near children.
Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and
make sure that there is at least 10cm of space between the back of your unit and wall.
Keep a minimum distance of 10cm on each side of your unit free.
Do not use other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or
explosion.
Do not tip over.
If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to
room temperature before plugging it in.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
PREPARING YOUR ICE MAKER FOR USE

4
Children should be supervised to ensure that they do not play with the appliance.
This appliance must be earthed.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
–catering and similar non-retail applications.
Warning: Risk of fire/flammable materials used. Please according to
local regulations regarding disposal of the appliance for its flammable blowing gas.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WANING: Do not damage the refrigerant circuit.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process or ice harvesting process, other than those recommended by the manufacturer.
WARNING: Do not use other type of electrical appliances inside the ice-maker.
IMPORTANT:
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a strip yellow: Grounding
Blue: Neutral
Brown: Live
To avoid a hazard due to instability of the appliance, it must be placed at an even or flat
surface.

5

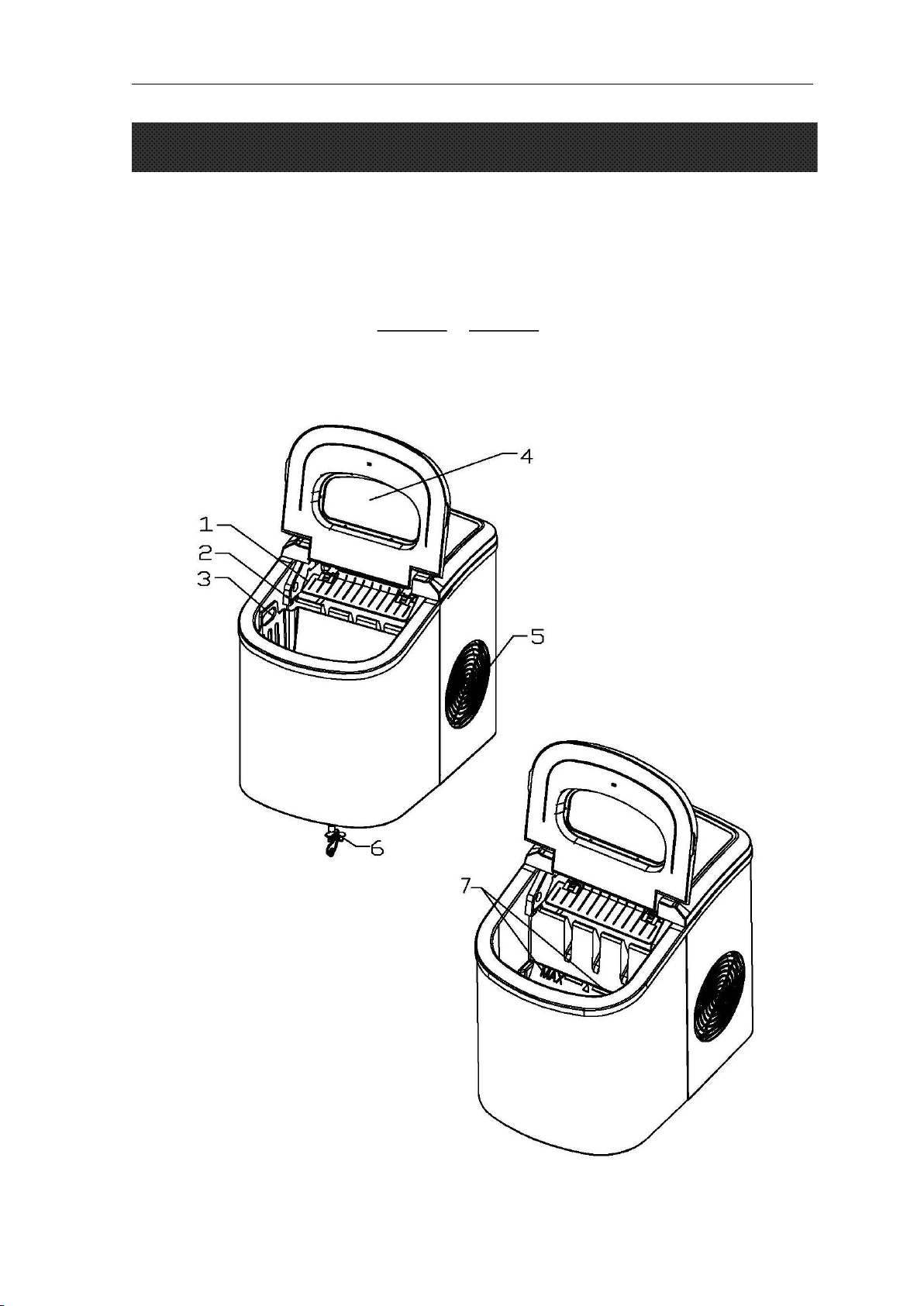

General instrucion
1. Ice scoop.
2. Ice full sensor
3. Ice basket
4. Top cover with transparent window
5. Air outlet
6. Water drain cap: at front btm side of the unit.
7. MAXIMUM WATER LEVEL: ▲
Remove the ice basket, you can see the water level mark.
GETTING TO KNOW YOUR UNIT

6

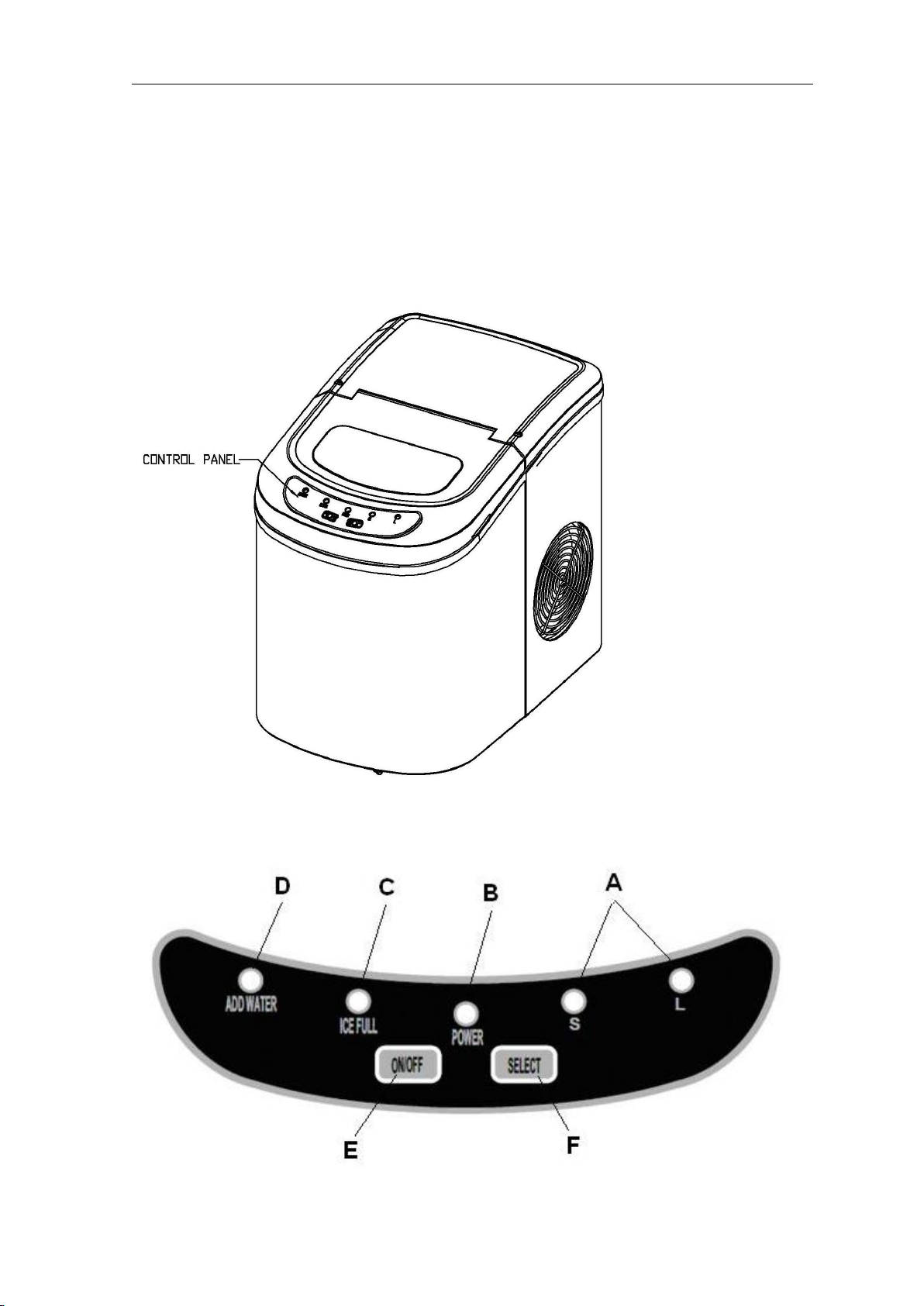

Postion of control panel & function
Control Panel: Easy to use, visible functions touch display setting.
A. Selected ice size displaying: Small and Large.
B. Power indicator
C. Ice-Full indicator
D .Water shortage indicator
E. Button to turn on/off the unit.
F. Button to select ice cube size.

7
DANGER
UNPACKING YOUR ICE MAKER
1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any
parts are missing, please contact our customer service.
2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of
heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 10cm gap between the
back & LH/RH sides with the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.
WARNING: fill with potable water only. Only use drinking water.
CONNECTING YOUR ICE MAKER
* Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged please call our customer service.
1. This unit should be properly grounded for your safety. The power cord of this appliance is
equipped with a grounding plug which mates with standard grounding wall outlets to
minimize the possibility of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounding wall outlet. Do not
under any circumstances, damage the grounding means of the plug under any
circumstances. Any questions concerning power and/or grounding should be directed
toward a certified electrician.
3. This appliance requires a standard 220-240Volt, 50Hz electrical outlet with good grounding
means.
CLEANING
CLEANING AND AND MAINTAINING MAINTAINING YOUR YOUR ICE ICE MAKER MAKER
Before using your ice maker, it is strongly recommended to clean it thoroughly.
1. Take out the ice basket.
2. Clean the interior with diluted detergent, warm water and a soft cloth.
3. Then use the water to rinse the inside parts, and drain out the water by unplugging the
drain cap on front bottom side.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and
warm water.
5. Dry the interior and exterior with a clean soft cloth.
6. When the machine is not to be used for a long time, drain water completely & dry the
interior.
OPERATING PROCEDURES & MAINTENANCE

8
1. Open the cover, remove the ice basket and pour water into tank.
Keep water level below the MAXIMUM water level mark.
2. Press “ON/OFF” button on the control panel to begin the ice making cycle.
3. Select the ice cube size by pressing the “SELECT” button. If the room temperature is lower
than 15℃, it is recommended to select small ice cube in order to avoid ice sticking together.
4. The ice making cycle lasts approx. 6 to 13 minutes, depending on seletion of ice cube size
and the room temperature. The recommended room temperature is 10℃ to 43℃
5. If water pump can’t inject water, the ice maker will stop automatically, and the “Add Water”
indicator will be on.Press “ON/OFF” button, fill water up to the max. water level mark and
press “ON/OFF” button again to turn on the unit again.Allow the refrigerant liquid inside the
compressor at least 3 minutes to settle before restarting.
6. The unit stops when the ice basket is full and the “Ice Full” indicator will be on. Warning:
Direct sunlight or sunlight reflection may cause infared sensor malfunction. If the
unit doesn’t stop even ice cubes obstruct sensor, move the unit where no sunlight.
7. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level.
If unit isn’t to be used, drain all the water and dry the tank.
USING YOUR ICE MAKER
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION:
“Add Water” indicator is
on.
Lack of Water.
Stop the ice maker, fill water, and
press “ON/OFF” button again to
restart the unit.
“Ice Full” indicator is on.
Ice is full in basket.
Remove ice from ice basket.
Continuous press “Select”
button 5 seconds, the unit
could make ice 10 cycles even
“Ice” indicator is on.
Ice cubes stick together.
The ice making cycle is too
long.
Stop the ice maker, and restart it
when the ice blocks melt. Select
the small size ice cube selection.
Water temperature in inner
tank is too low.
Replace the water. Temperature of
water recommended at 8-32℃
Ice making cycle is normal
but no ice formed.
Room temperature or
water temperature in inner
tank is too high.
The room temperature should be
10-43 ℃, water temperature
should be 8-32℃
Refrigerant in cooling
system leaks.
Verify by a qualified technician.
Pipe in the cooling system
is blocked.
Verify by a qualified technician.

9
Model
Model EBRH12 EBRH12
EBSH12 /
EBSH12 /
Protection
Protection Type Type I I
Climate
Climate Type Type SN/N/ST/T SN/N/ST/T
Power
Power 220-240 220-240V/ V/5 50Hz 0Hz
Ice
Ice Making Making Current Current 0.7A 0.7A
Ice
Ice Harvest Harvest Current Current 1. 1.0 0A A
Refrigerant
Refrigerant R R600 600a/ a/26 26g g
Net
Net Weight Weight 7.9 7.9kg kg
Vesicant
Vesicant C C5
5H
H10
10
Enclosure
Enclosure Stainless Stainless
TECHNINCAL PARAMETERS & CIRCUIT DIAGRAM

1
1. Power cord 2. Back panel 3. Plate inforce
4. Magnetism valve 5. Evaporator 6. Control box cover
7. Main PCB 8. Control box 9. Ice making box
10. Micro switch 11. Inner tank bracket, LH 12. Cam
13. Ice scoop link 14. Ice scoop 15. Back btm panel
16. Back top panel 17. Clear window 18. Displaying PCB
19. Touch pad 20. Front top panel 21. Front btm panel
22. Ice basket 23. Foaming asm 24. Water filter
25. Inner tank brackt, RH 26. Sychronuous motor 27. Stainless wire
28. Condenser 29. DC Fan motor 30. Filter dryer
31. Copper tube filter 32. Silicon plug drain 33. Nylon plug drain
34. Silicon sealing pump 35. DC water pump 36. Compressor
37. Plate bottom 38. Rubber foot 39. Air grille
EXPLOSIVE DRAWINGS
10

2
Warranty Information
– WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
– WARNING: Do not damage the refrigerant circuit.
The manufacturer provides warranty in accordance with the legislation of the customer's own
country of residence, with a minimum of 1 year (Germany: 2 years), starting from the date on
which the appliance is sold to the end user.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized service centre. When
making a claim under the warranty, the original bill of purchase (with purchase date) must be
submitted.
The warranty will not apply in cases of:
- Normal wear and tear
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
- Use of force, damage caused by external influences
- Damage caused by non-observance of the user manual, e.g. connection to an unsuitable
mains supply or non-compliance with the installation instructions
- Partially or completely dismantled appliances
11
