Giada AKC User manual

English

ENGLISH
39
User manual
GIADA
Index
Instructions.........................................................................................40
1 Presentation.............................................................................42
2 Technical data ..........................................................................42
3 Description of the machine ......................................................43
4 Warnings for the installer.........................................................44
5 Preparation ..............................................................................45
6 Changing the water..................................................................45
7 Push-button.............................................................................45
8 Dispensing spout......................................................................46
9 Machine On / O ......................................................................48
10 Making coee...........................................................................49
11 Making a cup of decaeinated coee.......................................49
12 Continuous dispensing.............................................................50
13 Making a cappuccino................................................................51
14 Making coee and milk............................................................52
15 Making hot milk.......................................................................52
16 Preparation of cold milk with a shot of coee ..........................53
17 Preparation of warm milk with a shot of coee .......................53
18 Preparation of foamed milk using the autosteamer .................54
19 Using steam .............................................................................55
20 Preparing tea ...........................................................................56
21 Grinding coee.........................................................................56
22 Getting rid of the grounds........................................................57
23 Washing...................................................................................58
24 Checks and routine maintenance .............................................58
25 Cleaning and maintenance.......................................................59
26
Suggestions on how to obtain a good cup of coee ............60
27 List of hazards ..........................................................................61
28 Display messages .....................................................................62
29 Grind program..........................................................................63
30 Added water option .................................................................64
31 Programming coee, milk, and tea doses ................................65
32 Programming coee doses (with added water) .......................66
33 Programming cappuccino and coee with milk .......................67
34 Correct coee, water, and milk doses .......................................68
35 C
orrection of cappuccino and coee with milk doses .........69
36 Programming the clock............................................................70

User manual
40
GIADA
Instructions
Read carefully
Carefully read every part of this booklet before
using the appliance.
The espresso coffee machine that you have
purchased has been designed and manufactured
with innovative methods and technologies which
ensure long lasting quality and reliability.
This booklet will guide you in discovering the
advantages of purchasing our product. You will
nd information on how to get the best out of your
machine, how to always keep it ecient and what
to do if you should have any problems.
Keep this booklet in a safe place. If you lose it, you
can ask the manufacturer for another copy.
We take this opportunity to send you our best
regards.
ENJOY YOUR READING... AND YOUR COFFEE
General warnings
t After removing the packaging, check the condi-
tion of the appliance. If in doubt, do not use it
but contact the retailer directly.
t The packaging material must not be left within
the reach of children since it is a potential source
of danger. It is advisable to keep the packaging
until after the guarantee has expired.
t Before using the machine, make sure that the
mains voltage corresponds to the information
on the data plate of the machine.
How to use this manual
The manufacturer reserves the right to make any
improvements and/or modications to the product.
We guarantee that this booklet reects the technical
state of the appliance at the time it is marketed.
We take this opportunity to invite customers to
make any proposals for improvement of the product
or the manual.
t Installation must be done in accordance with the
safety standards in force and by qualied and
prepared personnel. Incorrect installation may
be harmful to people, property or animals.
t This appliance is completely safe only if it is con-
nected to an eective grounding system, execut-
ed as required by current safety standards. The
electric system must be equipped with a suitable
dierential circuit breaker. It is important to have
compliance with these requirements checked. If
in doubt, have the system carefully checked by
qualied personnel.The manufacturer cannot be
considered responsible for any damage caused
by an inadequate electric system.
t Upon installation of the machine, qualied per-
sonnel will be required to install a main switch
as required by current safety regulations, with
a distance of contact aperture greater than or
equal to 3 mm.
t It is not advisable to use extensions or electri-
cal adaptors with multiple outlets. If their use is
indispensable, use only simple or multiple plug
adaptors and extensions which are in accordance
with the safety standards in force. Never exceed
the power value in kW indicated on the simple
adaptor and on the extensions and the maximum
power value indicated on the adaptor.
t This appliance is to be used only for what it has
been designed for. Any other use is considered
improper and therefore dangerous.The manufac-
turer cannot be held responsible for any damage
caused by an incorrect and unreasonable use.
t When using the electrical appliance several safety
behavioural standards must be observed:
- do not touch the appliance when hands or
feet are wet or damp;
- do not use the appliance in bare feet;
- do not use extensions in rooms where there
are showers or baths;
- do not pull on the power cord to unplug
the appliance;
- do not leave the appliance exposed to at-
mospheric agents (rain, sun, etc.)
- do not allow the appliance to be used by
children or incapable people.
t Make sure that the machine is used in a room that
is suciently lit, aerated, and hygienic.

ENGLISH
41
User manual
GIADA
! This symbol indicates that you must strictly
followthe instructionsto whichit refersin order
to avoid severe injury and/or damage to the
machine.
i This symbol provides additional information
on the operation of the machine and its
components.
t The spaces accessing the machine and the main
switch must be left left clear, in order to allow the
user to intervene without any constriction and
to be able to leave the area immediately in the
case of necessity.
t Do not spray water on the machine to clean it.
Clean daily following the instructions given in
this manual.
t Before any maintenance, disconnect the appli-
ance from the electrical mains through the main
switch.
t For daily cleaning, follow the instructions in this
manual.
t In case of breakdowns or poor functioning, turn
o the appliance and unplug it. Do not attempt
any repairs; call for specialised technical service.
t Any repairs must be done only by the manu-
facturer or an authorised service centre using
original spare parts only. If this standard is not
observed the safety of the appliance is compro-
mised and cancels the guarantee.
t Inside the device is a lithium button battery to
prevent programming data loss.
t The power supply cable must not be replaced by
the user. If the cord is damaged, turn the machine
o and contact professionally qualied person-
nel only.
t If you should decide not to use the appliance any
longer, unplug it and have it drained of water by
qualied personnel.
t To guarantee that the machine is ecient and
works properly it is essential to follow the manu-
facturer's instructions, having periodical mainte-
nance and a check of all the safety devices done
by qualied personnel.
t Do not expose your hands or other body parts
to the coee, steam, or hot water spouts. The
steam and water that come from the spouts can
cause burns.
t When functioning, the steam and water spouts
become overheated and are to be handled with
caution only in the indicated parts.
t The appliance must not be used by people (in-
cluding children) with reduced physical, senso-
rial or mental capacities or by people without
experience or knowledge, unless they can be
supervised by or receive instructions regarding
Typographical conventions
Guarantee
15 months on all components except electrical
and electronic components and expendable pieces.
appliance use from a person who is responsible
for their safety.
t Children must be supervised, to make sure they
do not play with the appliance.
t The coee machine must be used at a tempera-
ture between 5°C and 40°C.
t Any unauthorised tampering with any parts of
the machine renders any guarantee null and void.
t WARNING: consuming beverages that have been
prepared in this espresso machine will expose
you to lead, a chemical known to the State of
California to cause birth defects or other repro-
ductive harm.

User manual
42
GIADA
Part I - Instructions for the User
This section of the manual is dedicated to use of the machine. It contains simple, clean information for
the full, correct use of the appliance.
! Theusermustbesucientlyinformedtooperate
the machine correctly. It is recommended not to
carry out any operations on the machine which
may modify or alter its operation. WHEN THE
MACHINEIS IN OPERATION, THE BOILER CONTAINS
STEAM AND HOT WATER UNDER PRESSURE.
1Presentation
This product has been manufactured in
compliance with the regulations for foodstuff
s machinery according to par. 2.1 of Directive
2006/42/EC.
The espresso coff ee machine is strictly for
professional use only. It is designed for the
preparation of hot drinks such as tea, cappuccinos
and long, short and espresso co ee, etc.
Instructions for proper use of the machine are
provided below.
2Technical data
The technical data indicated in the table below
corresponds to the data plate located on the
machine.
Technical
data plate
Technical data table
Power supply voltage V 230 / 400 240
Total power W 3900-4250 4800-5250
Coee water tank capacity lt / UK gal 7 / 1,5
Steam boiler capacity lt / UK gal 1,7 / 0,37
Width mm / in 600 / 23,6
Depth mm / in 600 / 23,6
Height mm / in 900 / 35,4
Boiler pressure bar / psi 0,9 ÷ 1,1 / 13 ÷ 16
Coee dispensing pressure bar / psi 8 ÷ 9 / 116 ÷ 130,5
Operating conditions °C / °F 5 ÷ 40 / 41 ÷ 104

ENGLISH
43
User manual
GIADA
3Description of the machine
1. Grinder-doser hopper.
2. Funnel for decaeinated coee / washing tab.
3. Inspection door.
4. Programming key.
5. Steam knob.
6. Steam nozzle / Autosteamer.
7. Main switch.
8. Pressure gauge.
9. Spoutfordelivery ofcoee,milk,andcappuccino.
10. Feet.
11. Tray and cup support grille.
12. Grounds drawer.
13. Smart Card Reader.
14. Hot water dispensing pipe.

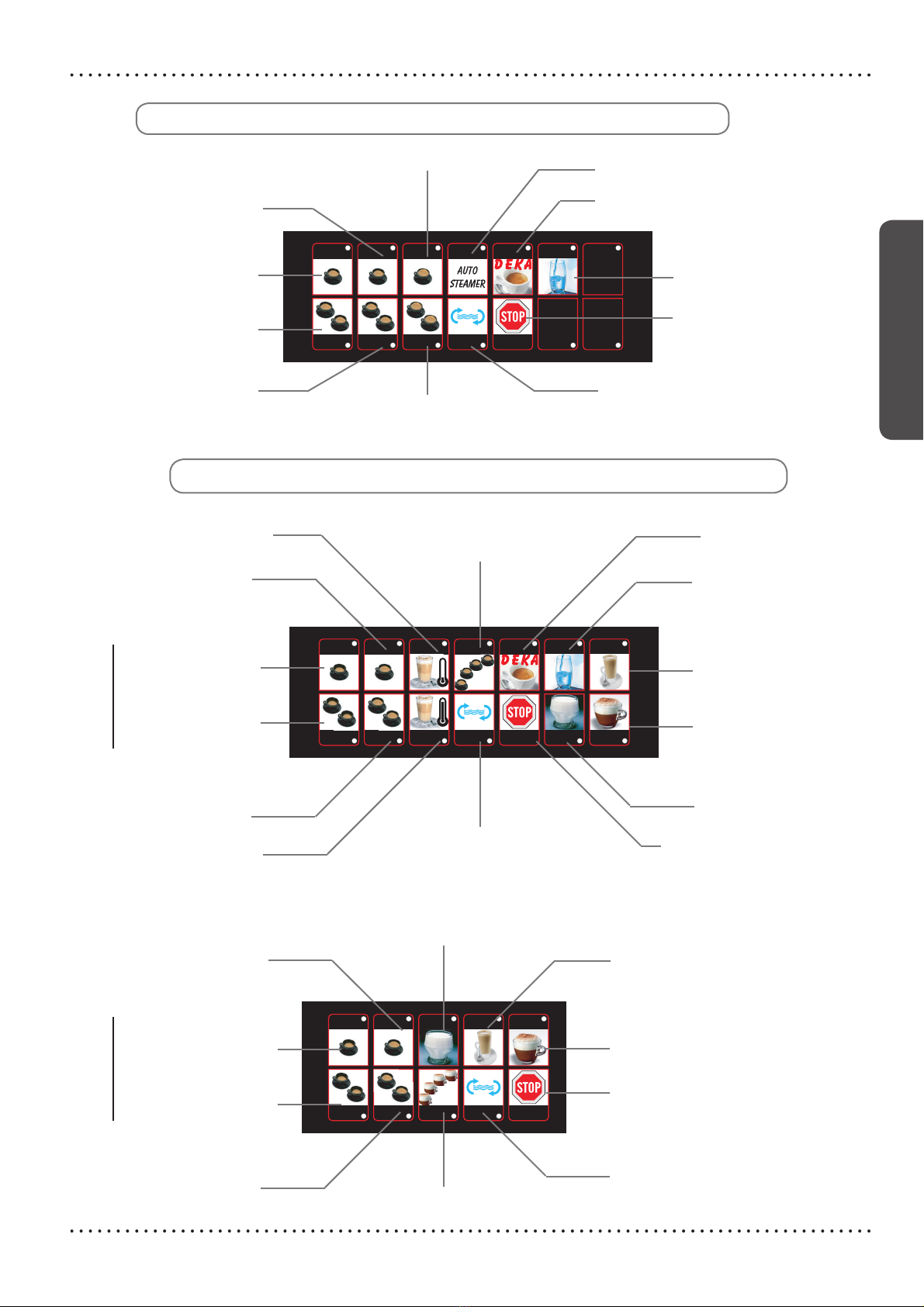

15. Selections push button panel.
16. Display push button panel.
17. Autosteamer.
2 16 151
3
7 10
4
5
6
13
14
812911
2 15 162 11
3
107
4
5
6
13
14
12 9 1591117

User manual
44
GIADA
! After installing the machine, the installer is
required to ll in the “Installation Form” that
goeswiththemachine.Onthis formmust be met
the hygiene and safety requirements in force on
the installation site and must be reported any
notes relating to changes or interventions
necessary for the proper functioning of the
equipment. Filled copies of theInstallation form
must be kept by the user and by the installer
until the end of life of the machine. In case of
withdrawal of the machine, the installer must
also provide for the withdrawal of the user’s
Installation form.
4Warnings for the installer
4.1 Power supply
The water supply of the appliance must be
carried out with water which is suitable for human
consumption, in compliance with the regulations
in force int the place of installation. The owner /
manager of the system must conrm to the installer
that the water meets the above listed requirements.
4.2 Materials to be used
During the installation of the appliance the
components and materials that were provided with
the appliance are to be used. Should the use of other
components be necessary, the installer must verify
their suitability to be used in contact with water
used for human consumption.
4.3 Hydraulic connections
The installer must carry out the hydraulic
connections in accordance with the hygiene norms
and the hydraulic safety norms for environmental
protection in force in the place of installation.
4.4 Installation report
When installation is complete, the appliance
has to be started, brought to the nominal working
condition and left for 30 minutes in the "ready to
operate" condition.
Afterwards, the appliance has to be turned o
and emptied of the rst water introduced in the
whole hydraulic circuit, to eliminate possible initial
impurities.
Then the appliance must be once again loaded
and brought to the nominal working conditions.
After having reached the "ready to operate"
condition, the following deliveries have to be
performed:
1. for each coee unit, carry out a continuous
delivery, in order to release the whole volume of
water contained in each associated coee tank ;
2. release the whole volume of hot water inside
the boiler, by performing a continuous delivery
from the appropriate nozzle. In the case of
several dispensing points, divide the volume
on the base of the number of the dispensing
points;
3. continuously release steam for at least 1 minute
for each steam dispensing point;
4.5 Maintenance and repairs
After ta maintenance and/or repair intervention,
the components used must ensure that the hygiene
and safety requirements initially foreseen for the
appliance are still met. These are met by using
original spare parts only.
After a repair or a substitution of components
related to parts in direct contact with water and
food, a washing procedure has to be carried out, as
in the case of rst installation.

ENGLISH
45
User manual
GIADA
7Dispensing spout
5Preparation
The preparation of the machine and its installation
must be carried out by qualied personnel.
The installer must strictly follow the indications
provided in chap. 4 “Warnings for the Installer”.
! Use of the machine without all the installation
operations having been carried out by technical
personnel could damage it seriously
i If you want to use a taller cup, push the spout
upwards.
6Changing the water
In case of breaks longer than 1 week, it is
necessary to perform the changing of the 100%
of the water contained in the hydraulic circuits of
the machine, by using the appropriate dispensing
points, as described in the Paragraph 4“Installation
report”.

User manual
46
GIADA
8Push-button
K15
K19
K16
K20
K17
K21
K18
K22
K24
K23
K1
K6
K2
K7
K3
K8
K4
K9
K5
K10
K11
K13
K12
K14
main control
Decaffeinated coffee
Button to stop the
on-going operation
Washing
Continuous dispensing of coffee
1 espresso coffee
1 strong coffee
2 espresso coffees
2 strong coffee 2 weak coffee
1 weak coffee
Button to stop the
on-going operation
Washing
Continuous dispensing of coffee
1 espresso coffee
1 strong coffee
2 espresso coffees
2 strong coffee 2 weak coffee
1 weak coffee
Button to start the
coffee-maker
Button to increase
Display
Mode
Enter
Button to reduce
2 GR COFFEE
left
Tea
right

ENGLISH
47
User manual
GIADA
K15
K19
K16
K20
K17
K21
K18
K22
K24
K23
K1
K6
K2
K7
K3
K8
K4
K9
K5
K10
K11
K13
K12
K14
K1
K6
K2
K7
K3
K8
K4
K9
K5
K10
K11
K13
K12
K14
Cappuccino
Button to stop the
on-going operation
Washing
Latte
1 espresso coffee
1 strong coffee
2 espresso coffees
2 strong coffee Continuous dispensing
of coffee
Hot milk
Decaffeinated coffee
Hot milk
Latte
Cappuccino
Tea
Button to stop the
on-going operation
Washing
Continuous dispensing of coffee
1 espresso coffee
1 strong coffee
2 espresso coffees
2 strong coffee
Warm milk with shot of coffee
Cold milk with shot of coffee
2GR COFFEE + 2 CAPPUC.+ MILK WITH A SHOT OF COFFEE
leftright
1 GR COFFEE + AUTOSTEAMER
Decaffeinated coffee
Button to stop the
on-going operation
Washing
Autosteamer
1 espresso coffee
1 strong coffee
2 espresso coffees
2 strong coffee 2 weak coffee
1 weak coffee
Tea

User manual
48
GIADA
Press the main switch of the coee-
maker. After a short test, the following
message appears on the display:
Press the main switch of the coee-
maker.
Press the start button of the coee-maker.
Wait for the coee-maker to be lled up and heated
(~20 min).
Press and hold the START button for
at least 3 seconds.
After a brief automatic setting cycle, the coee-
maker is ready to use.
Check that there are coee beans in the
hopper.
1
2
2
1
3
4
PRESS START
PLEASE WAIT
PRESS START
PLEASE SELECT
x,xx bar - hh:mm
! When the machine is operative THE BOILER
CONTAINS STEAM AND HOT WATER UNDER
PRESSURE.
9Machine On / O
9.1 Turning on the machine
9.2 Turning o the machine
4
1
2
3

ENGLISH
49
User manual
GIADA
Put the coee cup under the dispensing
spout.
Put the coee cup under the dispensing
spout.
The coffee-maker is
ready to make another
cup.
The coffee-maker is
ready to make another
cup.
Wait for dispensing to nish.
Put the ground decaeinated coee in
the funnel.
Wait for dispensing to nish.
Select the desired dose (e.g. 1 espresso coee).
Press the DEKA button.
Select the desired dose (e.g. 1 espresso coee).
1
1
4
6
3
3
5
2
2
4
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
1 ESPRESSO
DECAF
DECAF
1 ESPRESSO
1 ESPRESSO
DECAF
DECAF
1 ESPRESSO
10 Making coee
11 Making a cup of decaeinated coee
i To stop dispensing ahead oftime, pressthe STOP
button .
2
4
3
1
2
4
3
6
5
1
K1
K1
K5

User manual
50
GIADA
Put the coee cup under the dispensing
spout.
Put the coee cup under the dispensing
spout.
The machine dispenses
coee again.
The machine dispenses
coee again.
Select the desired dose (e.g. 1 espresso coee).
Select the desired dose (e.g. 1 espresso coee).
Wait for dispensing to nish.
Wait for dispensing to nish.
Holdingthe STOPbuttondown,set the numberof times
for dispensing with the UP and DOWN arrows.
Press the CONTINUOUS button.
Press the CONTINUOUS button.
1
1
6
6
4
4
5
5
3
2
2
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
CONTINUOUS
x,xx bar - hh:mm
CONTINUOUS
x,xx bar - hh:mm
CONTINUOUS NN
CONTINUOUS NN
CONTINUOUS NN
CONTINUOUS NN
CONTINUOUS NN
CONTINUOUS NN
CONTINUOUS NN

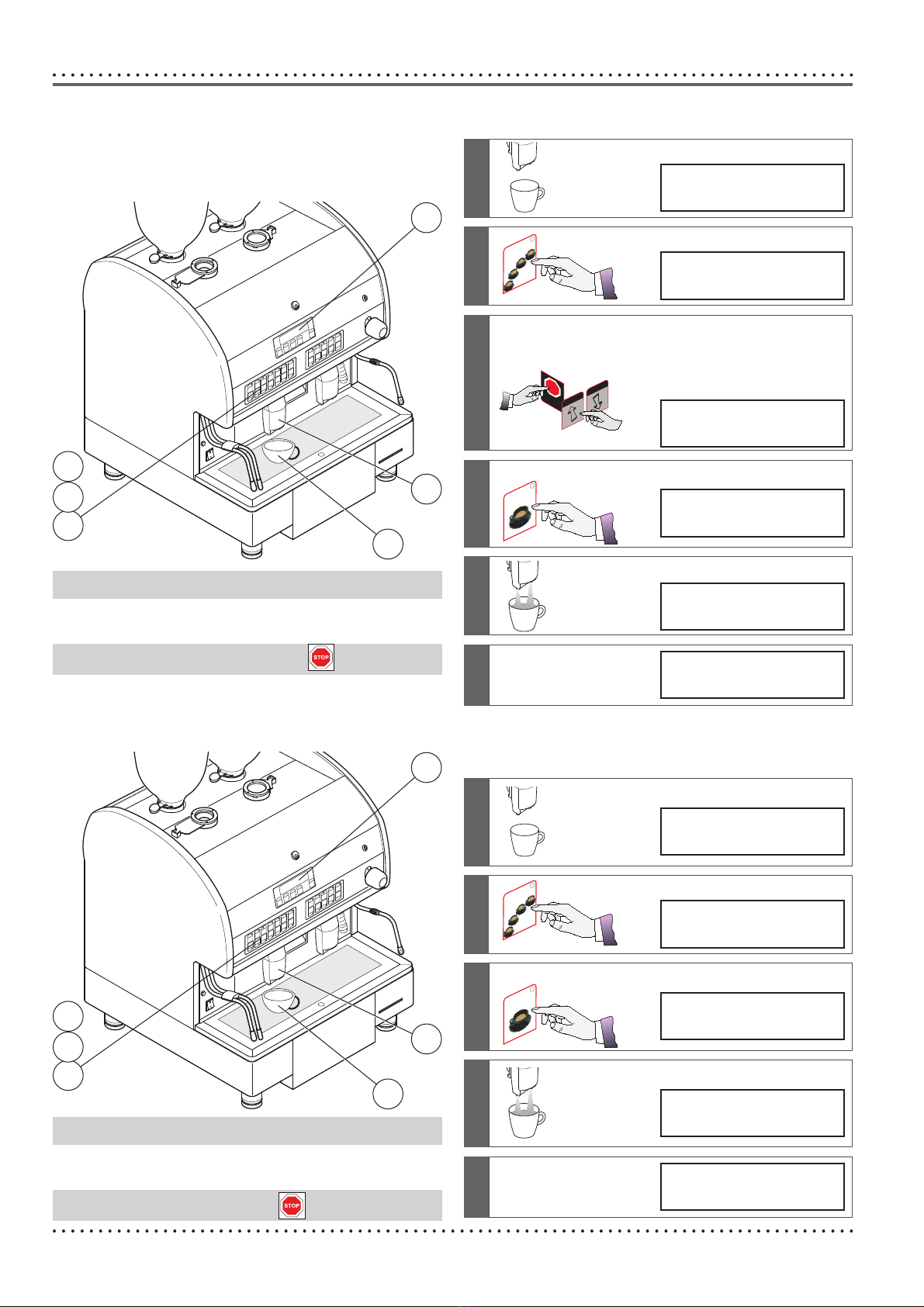

12 Continuous dispensing (only for coee selections)
12.1 Decreasing continuous delivery
12.2 Increasing continuous delivery
i
Oncethebuttonfortheselecteddoseispressed,the
machine will continuously dispense the number of
coees set (see point 3). To stop dispensing ahead
of time, press the STOP button .
i Once the button for the selected dose has been
pressed, the machine will carry out a number of
deliveries continuously, until either the coee
runs out or the STOP key is pressed.
4
3
2
6
5
1
4
3
2
6
5
1
STOP
K10
K4
K1
K4
K1

ENGLISH
51
User manual
GIADA
Put the milk suction tube in the milk con-
tainer.
Put the coee cup under the cappuc-
cino maker.
The coffee-maker is
ready to make another
cup.
Press the CAPPUCCINO button.
Wait for dispensing to nish.
1
2
5
3
4
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
CAPPUCCINO
CAPPUCCINO
13 Making a cappuccino (only with the AKC model)
i To stop milk delivery ahead of time, press the
CAPPUCCINO, COFFEE AND MILK, or HOT MILK
button. To stop coee delivery ahead of time,
press the STOP button .
i To change milk froth consistency, turn the screw
(AIRCAPP)on the sideofthe inspection cover. For
thicker froth, turn the screw counterclockwise.
For less froth, turn it clockwise.
2
1
0
6
5
4
3
2
1
0
6
5
4
3
3
5
2
4
K24

User manual
52
GIADA
Put the milk suction tube in the milk con-
tainer
Put the milk suction tube in the milk con-
tainer.
Put the coee cup under the cappuc-
cino maker.
Put the coee cup under the cappuc-
cino maker.
The coffee-maker is
ready to make another
cup.
The coffee-maker is
ready to make another
cup.
Press the COFFEE AND MILK button.
Press the MILK button.
Wait for dispensing to nish.
Wait for dispensing to nish.
1
1
2
2
5
5
3
3
4
4
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
LATTE
HOT MILK
LATTE
HOT MILK
14 Making coee and milk (only with the AKC model)
15 Making hot milk (only with the AKC model)
3
5
4
2
3
5
4
2
K18
K17

ENGLISH
53
User manual
GIADA
Put the milk suction tube in the milk con-
tainer.
Put the milk suction tube in the milk con-
tainer.
Put the coee cup under the cappuc-
cino maker.
Put the coee cup under the cappuc-
cino maker.
The coffee-maker is
ready to make another
cup.
The coffee-maker is
ready to make another
cup.
Press the button for COLD MILKWITH A SHOT
OF COFFEE.
Press the button forWARM MILK WITH A SHOT
OF COFFEE.
Wait for delivery of cold milk, foamy warm
milk, and fi-
nally the cof-
fee.
Wait for delivery of warm, non-foamed
milk, warm foamed milk and nally the
coee.
1
1
2
2
5
5
3
3
4
4
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
LATTE MACCHIATO
LATTE MACCHIATO
LATTE MACCHIATO
LATTE MACCHIATO
16 Preparation of cold milk with a shot of coee
(optional only for model AKC)
17 Preparation of warm milk with a shot of coee
(optional only for model AKC)
3
5
4
2
3
5
4
2
K3
K8

User manual
54
GIADA
Place the Autosteamer nozzle in the metal-
lic container.
Pour into enough milk to cover the
Autosteamer temperature probe bulb
into the metal container.
Upon reaching the preset temperature, the machine
is ready for another
delivery.
Press the AUTOSTEAMER button, and wait for the
simultaneous heating and foaming of the milk.
1
2
4
3
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
PLEASE SELECT
x,xx bar - hh:mm
AUTOSTEAM
18 Preparation of foamed milk using the autosteamer(optional)
! Before using the steam to heat beverages or to
foam milk, you should rst let some steam o
until all the condensation water is released.
! The use of the steam dispensing point
(autosteamer nozzle), must always be preceded
by the performance of the condensation
draining operation for at least 2 seconds.
! To keep the steam dispensers in perfect
working order, it is advisable to carry out a brief
delivery dry run after each use. Keep the tips
of the autosteamer clean at all times using a
cloth dampened in lukewarm water. If regular
cleaning is not carried out, the proper operation
of the autosteamer can be compromised.
! Do not leave the autosteamer nozzle immerged
in the milk when it is not being used. Handle
the autosteamer with utmost caution due to
the hazard resulting from the presence of high-
temperature steam.
i The system includes a time limit of a maximum
of 4 minutes for autosteamer operation.
i To change the temperature of the autosteamer,
and to enable or disable its operation, contact
the Technical Support Service.
4
2
1
3
K4

ENGLISH
55
User manual
GIADA
Put the milk container under the STEAM
nozzle.
Turn the steam knob counterclockwise.
Stop steam delivery by turning the knob
clockwise.
1
2
3
19 Using steam
! LEAVE THESTEAM NOZZLE IMMERGED INTHE MILK
ONLY FOR THE TIME REQUIRED FOR HEATING.
DO NOT OPEN THE STEAM TAP WITH THE STEAM
NOZZLE IMMERGED IN MILK WHILETHE MACHINE
IS OFF.
! The use of the steam dispensing point (steam
nozzle), must always be preceded by the
performance of the condensation draining
operation for at least 2 seconds.
! Carefully move the steam nozzle using the
anti-burn rubber bulb and never touch the
steam nozzle or the hot water nozzle: contact
with the hot water or steam may be harmful to
individuals, animals or property.
! To keep the steam nozzle tips in perfect working
order, it is advisable to carry out a brief delivery
dry run after each use. Keep the tips clean at
all times using a cloth dampened in lukewarm
water. Handle the nozzle with utmost caution
due to the hazard resulting from the presence
of high-temperature steam.
MILK
2
3
1

User manual
56
GIADA
Put the cup under the water dispensing
pipe.
Wait for dispensing to nish.
The coee-maker is ready to make another cup.
Press the “Hot Water” button.
1
3
4
2
PLEASE SELECT
x,xx bar - hh:mm
HOT WATER
PLEASE SELECT
x,xx bar - hh:mm
HOT WATER
20 Preparing tea
i To stop dispensing water ahead of time, press
the tea button.
i To adjust water temperature, open the top lid
of the coee-maker and turn the knob located
on the top. To increase water temperature turn
theknob clockwise; to decrease it, turn the knob
counterclockwise.By turning the knob clockwise
as far as it will go, only steam will exit the hot
water delivery tube.
Warm
Cold
21 Grinding coee
i To obtain a good espresso itis not recommended
that you store large amounts of coee beans.
Observe the expiry date indicated by the
producer.
To adjust the coarseness of your ground coee,
open the top door of the coee-maker and turn the
grinder-doser knob.
The value indicated by the cursor is the degree
of grinding:
1 nely ground, 7 coarsely ground.
4
2
3
1
K11

ENGLISH
57
User manual
GIADA
i The grounds drawer must be removed for 15 seconds or more. Replace the drawer when this message appears:
“COFFEE DREGS DRAWER OPEN”. If not, the coee-maker will not work. If the drawer is replaced before 15 seconds
have passed, repeat the operations provided above.
22 Getting rid of the grounds
Raise the coee spout by push-
ing it upwards.
Lower the coee spout.
Take the grounds drawer out and
empty it.
Put the grounds drawer back in
place.
1
4
2
3
COFFEE DREGS
DRAWER FULL
The coee grounds drawer must be emptied
each time empty the display shows the message:
(no machine function is active).
2
13
4
