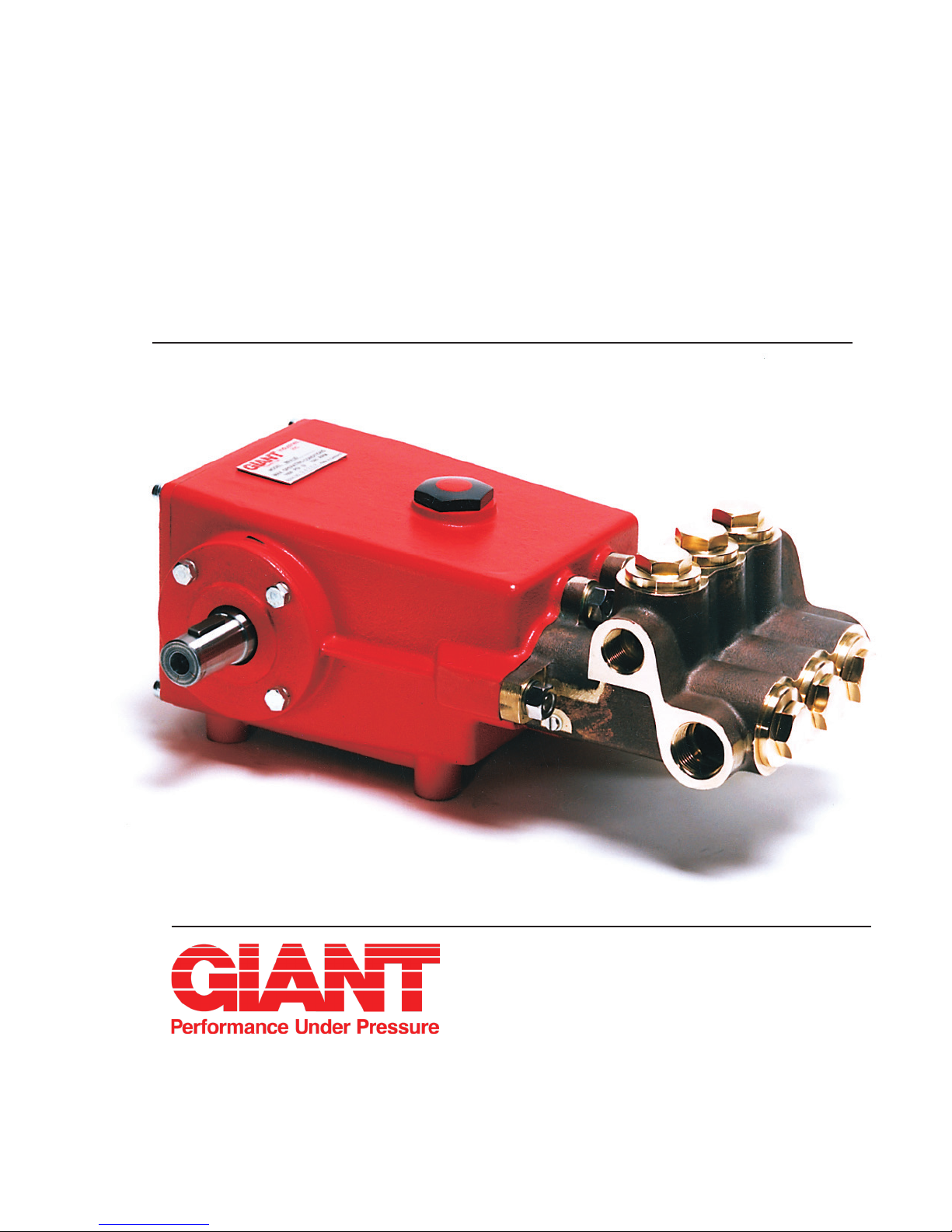

Giant MP4124-SWS User manual

Models
MP4120-SWS and
MP4124-SWS
Triplex Ceramic Plunger Pump
Operating Instructions/
Repair and Service Manual
Contents:
Installation Instructions: page 2
Pump Specications: page 3
Exploded View: page 4
Parts List / Repair Kits: page 5
Trouble Shooting: page 6
Repair Instructions: page 7-11
Torque Specications: page 11
Dimensions: page 11
Warranty Information: back page
Updated 07/18

INSTALLATION INSTRUCTIONS
Pressure in discharge line and in pump must
be at zero before any maintenance to the
pump takes place. Close up suction line. Dis-
connect fuses to ensure that the driving motor
does not get switched on accidentally.
Make sure that all parts on the pressure side of
the unit are vented and relled, with pressure
at zero, before starting the pump.
In order to prevent air, or an air/water-mixture
being absorbed and to prevent cavitation oc-
curring, the pump-NPSHR, positive suction
head and water temperature must be kept
under control.
Cavitation and/or compression of gases
lead to uncontrollable pressure kicks which
can ruin pump and unit parts and also be
dangerous to the operator or anyone stand-
ing nearby.
Giant plunger pumps are suitable for pump-
ing clean water and other non-aggressive or
abrasive media with a specic weight similar to
water.
Before pumping other liquids - especially
inammable, explosive and toxic media
- the pump manufacturer must under all
circumstances be consulted with regard to
the resistance of the pump material. It is
the responsibility of the equipment manu-
facturer and/or operator to ensure that all
pertinent safety regulations are adhered to.
Required NPSH refers to water: Specic
weight 1kg/dm3, viscosity 1 °E at max. per-
missible revolutions.
Operation and Maintenance
Check oil level prior to starting and ensure
trouble-free water supply.
Oil: Use 33.8 . ounces (1.0 liters) of Giant’s
part number 01154 or ISO VG 220 GL4 (e.g.
Aral Degol BG220) or SAE 90 GL4 gear oil.
Initial change after 50 operating hours and
then every 500 hours, after 6 months opera-
tion in any case.
Caution when operating in damp places or
with high temperature uctuations. Oil must
be changed immediately, should condensate
(frothy oil) occur in the gear box.
Keep NPSH under control.
Max. input pressure 145 PSI (10 bar), max.
suction head -4.35 (-0.3 bar).
Safety Rules
Pump operation without safety valve as well
as any excess in the temperature or speed
limits automatically voids the warranty. The
safety valve must be regulated in accordance
with the guidelines for liquid spraying units so
that the admissible operating pressure can
not be exceeded by more than 10%.
When the pump is in operation, the open
shaft end must be covered up by shaft pro-
tector (21), the driven shaft side and coupling
by a contact protector.
Preventative Maintenance Check-List & Recommended Spare Parts List
Check Daily Weekly 50hrs Every Every Every
500 hrs 1500 hrs 3000 hrs
Oil Level/Quality X
Oil Leaks X
Water Leaks X
Belts, Pulley X
Plumbing X
Recommended Spare Parts
Oil Change (1 Quart) X X
Seal Kit (1 kit/pump) X
(See page 6 for kit lit)
Valve Spare Parts (1 kit/pump) X
(See page 6 for kit list)

Consult the factory for special requirements that must be met if the
pump is to operate beyond one or more of the limits specied above.
Horsepower Ratings:
We recommend a 1.15 service factor be specied when selecting an electric motor as the power source.
To compute electric motor horsepower required, use the following formula: HP = (GPM X PSI) / 1450.
The formula to determine the horsepower required for a gas engine is: HP = (GPM X PSI) / 1150.
For the Application of a Hydraulic Motor:
To Determine the Torque of a Hydraulic Motor -- (GPM x PSI x 36.77) / RPM = Torque (in-lbs)
Calculating RPM / GPM of Pump:
A pump must be connected to an electric motor or gas or diesel engine with the correct ratio of pulleys
and belts to attain the required speed and GPM. The use of a Variable Frequency Drive (VFD) may also
be used to control the RPM of a properly sized electric motor when variable ows are required.
(Max. Pump RPM / Rated Pump GPM) x Required Pump GPM = Required Pump RPM
To calculate a pulley diameter one (1) pulley diameter and the required pump RPM must be known:
(Pump RPM x Pump Pulley Diameter) / Motor RPM = Motor Pulley Diameter
(Motor RPM x Motor Pulley Diameter) / Pump RPM = Pump Pulley Diameter
Common Specications:
Inlet Pressure ........................ 145 PSI (10 Bar)
Crankshaft Diameter.............. 1.10” (28 mm)
Crankcase Oil Capacity......... 33.8 . oz. (1 L)
Inlet Ports .............................. (2) 1” NPT
Discharge Ports..................... (2) 3/4” NPT
Stroke (except MP4126)........ 1.02” (26 mm)
Stroke (MP4126 only)............ 1.18” (30 mm)
Weight ................................... 66 lbs (30 kg)
Shaft Rotation............Top of Pulley Toward Fluid End
Materials Used for MP Pumps:
Manifold........ Aluminum Bronze
Plungers ....... Solid Ceramic Oxide
Valves ........... High Grade Stainless Steel
Seals............. Nitrile with Fabric Reinforcing
Gear End ...... Spheroidal Cast Iron
MP4120-SWS/MP4124-SWS PUMP SPECIFICATIONS
Max.
Flow
Max. Pres-
sure
Max.
Speed
Power
Required
Max.
Temperature
Plunger
Diameter
NPSH Re-
quired
Model GPM PSI RPM HP °F in Ft-Head
MP4120-SWS 8.9 3625 1450 23.1 160 0.787 24.6
MP4124-SWS 12.8 2610 1450 24 160 0.945 27.9
U.S. Measurements
Max.
Flow
Max. Pres-
sure
Max.
Speed
Power
Required
Max.
Temperature
Plunger
Diameter
NPSH Re-
quired
Model L/min bar RPM kW °C mm mWs
MP4120-SWS 33.8 250 1450 17.2 70 20 7.5
MP4124-SWS 48.6 180 1450 17.9 70 24 8.5
Metric Measurements

4
Exploded View - MP4120-SWS/MP4124-SWS

MP4120-SWS/MP4124-SWS PARTS LIST
MP4120-SWS/MP4124-SWS REPAIR KITS
Inlet Valve Assembly Kit - # 09062
Item Part # Description Qty
42B 07332 O-Ring Tension Plug 3
44 07280 Valve Seat 3
44A 07281 O-Ring, Valve-Seat 3
45 07282 Valve Plate 3
46A 06959 Valve Spring 3
53 12057 O-Ring 3
53A 12027 O-Ring 3
54 06115 Spring Retainer 3
Discharge Valve Assembly Kit - #09043
Item Part # Description Qty
42B 07332 O-Ring, Tension Plug 3
44 07280 Valve Seat 3
44A 07281 O-Ring 3
45 07282 Valve Plate 3
46 07283 Valve Spring 3
47 07284 Spring Retainer 3
Plunger Packing Kits
MP4120-SWS - #09044-SWS
Item Part # Description Qty
35B 13050 Rear Support Ring 3
35C 13049 Rear V-Sleeve 3
35D 07266 Rear O-Ring 3
40 07322 V-Sleeve 3
MP4124-SWS- #09731
Item Part # Description Qty
35B 13050 Rear Support Ring 3
35C 13049 Rear V-Sleeve 3
35D 07266 Rear O-Ring 3
40 06083 V-Sleeve 3
5
ITEM PART # DESCRIPTION
QTY.
1 06100 Crankcase 1
2 13000 Oil Filler Cap Assembly 1
4 07243 Cover, Crankcase 1
5 07244 O-Ring, Crankcase Cover 1
8 01008 Oil Dip Stick 1
9 01009 O-Ring, Dip Stick 1
10 01010 Screw, Crankcase Cover 4
11 01011-0400 Spring Washer 4
12 07109 Oil Drain Plug 1
13 07182 Gasket, Oil Drain Plug 1
14 07245 Bearing Cover 2
15 07247 Seal, Crankshaft 2
16 07627 O-Ring, Bearing Cover 2
17 07114 Hex Screw, Bearing Cover 9
20 07248 Roller Bearing, Tapered 2
20A 07249 Shim 2
20B 06962 Fitting Disc 2
21 05375 Shaft Protector 1
22 07251 Crankshaft 1
23 07252 Key 1
24 07253 Connecting Rod 3
25 07596 Crosshead Complete 3
28 07255 Crosshead Pin 3
29A 07256 Centering Sleeve 3
29B 07262 Ceramic Plunger (MP4120) 3
29B 13046 Ceramic Plunger (MP4124) 3
29C 13007 Bolt, Sold only w/#07258 3
29D 07258 Seal Washer 3
30 06136 Flinger 3
31 07260 Crankcase Oil Seal 3
35A 07265A Rear Seal Retainter (MP4120) 3
35A 04034 Rear Seal Retainer (MP4124) 3
ITEM PART# DESCRIPTION QTY.
35B 13050 Rear Support Ring (MP4124) 3
35C 13049 Rear V-Sleeve (MP4124) 3
35D 07266 O-Ring for Seal Retainer 3
36 07267 Snap Ring 3
39 07268 Pressure Ring (MP4120) 3
39 06082 Pressure Ring (MP4124) 3
40 07322 V-Sleeve (MP4120) 3
40 06083 V-Sleeve (MP4124) 3
41 07270 Support Ring (MP4120) 3
41 06084 Support Ring (MP4124) 3
41A 07329 Spacer 3
42 07275 Tension Spring 3
42A 06102 Tension Plug 3
42B 07332 O-Ring 3
43 06104 Manifold Head 1
44 07280 Valve Seat 6
44A 07281 O-Ring, Valve Seat 6
45 07282 Valve Plate 6
46 07283 Discharge Valve Spring 3
46A 06959 Inlet Valve Spring 3
47 07284 Spring Retainer, Discharge 3
48 06108 Plug, S.S. 3
48A 07332 O-Ring, Plug 3
49 06109 Stud, Manifold 6
49A 07313 Shim, Stud 2
50 07158 Nut, Manifold Stud 6
50A 07159 Spring Washer 6
51 06110 Spacer 3
52 06111 Valve Housing 3
53 12057 O-Ring 3
54 06115 Spring Retainer, Inlet 3
57 13020 Disc for Crankshaft 1

6
PUMP SYSTEM MALFUNCTION
MALFUNCTION
The Pressure and/or
the Delivery Drops
Water in crankcase
Noisy Operation
Rough/Pulsating
Operation with
Pressure Drop
Pressure Drop at Gun
Excessive Leakage
High Crankcase Tem-
perature
CAUSE
Worn packing seals
Broken valve spring
Belt slippage
Worn or Damaged nozzle
Fouled discharge valve
Fouled inlet strainer
Worn or Damaged hose
Worn or Plugged relief valve on
pump
Cavitation
Unloader
High humidity
Worn seals
Worn bearings
Cavitation
Worn packing
Inlet restriction
Accumulator pressure
Unloader
Cavitation
Restricted discharge plumbing
Worn plungers
Worn packing/seals
Excessive vacuum
Cracked plungers
Inlet pressure too high
Wrong Grade of oil
Improper amount of oil in crank-
case
REMEDY
Replace packing seals
Replace spring
Tighten or Replace belt
Replace nozzle
Clean valve assembly
Clean strainer
Repair/Replace hose
Clean, Reset, and Replace worn
parts
Check suction lines on inlet of
pump for restrictions
Check for proper operation
Reduce oil change interval
Replace seals
Replace bearings, Rell crankcase
oil with recommended lubricant
Check inlet lines for restrictions
and/or proper sizing
Replace packing
Check system for stoppage, air
leaks, correctly sized inlet plumbing
to pump
Recharge/Replace accumulator
Check for proper operation
Check inlet lines for restrictions
and/or proper size
Re-size discharge plumbing to
ow rate of pump
Replace plungers
Adjust or Replace packing seals
Reduce suction vacuum
Replace plungers
Reduce inlet pressure
Giant oil is recommended
Adjust oil level to proper amount

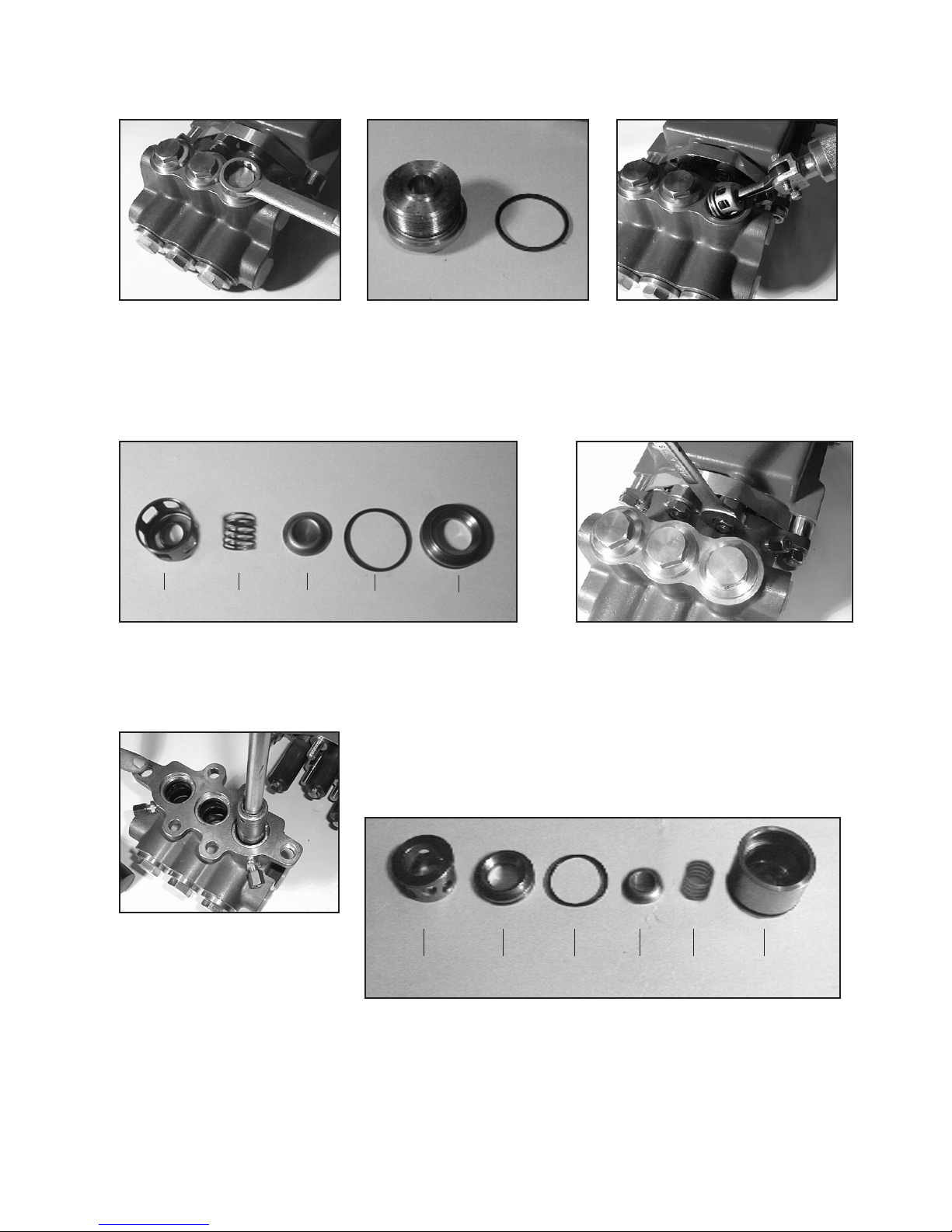

1. With a 27mm wrench, re-
move the three discharge
plugs (#48) and three inlet
plugs (#42A) from the
manifold (#43).
2. Inspect the plug o-rings
(#48A and #42B) and
replace as necessary.
3. From the discharge port remove
the spring retainer (#47)
spring (#46) and the valve plate
(#45). Using the valve puller
(Available from Snap-On Tools)
remove the valve seat (#44)
REPAIR INSTRUCTION - MP4120-SWS/MP4124-SWS
Disassembly sequence
4. Inspect all parts, especially the seating surface
of the valve plate (#45), and replace as neces-
sary.
5. Remove the six manifold stud nuts
(#50) with a 19mm wrench. Re-
move the spring washers (#50A).
Tap the back of the manifold with a
rubber mallet to dislodge and slide
it off the studs (#49). The spacer
(#51) can now be removed by pry-
ing gently outward with a screw-
driver through the front of the inlet
port.
6. To remove the inlet valve
assembly, insert a 13mm
socket with extension
through the rear of the
inlet manifold (#43) port
and tap it rmly with a
hammer. This will force
the tension spring (#46A),
valve housing (#52) and
the remainder of the inlet
valve assembly out through
the front of the inlet port.
7. Pull the inlet valve assembly apart for inspection. Any resis-
tance may be overcome by placing the valve housing (#52) in
a brass jawed vise and carefully tapping the back of the valve
plate (#45) with a screwdriver. Inspect the valve seats (#44),
spring (#46A), o-ring (#44A) and o-ring (#53A) for wear and
replace them as necessary.
51 44 44A 45 46A 52
47 46 45 44A 44
7

8. From the front of the manifold
(#43), remove the packing as-
sembly (#41A, 41, 40, and 39).
Use a small slide hammer puller
if necessary, or insert a wooden
dowel through the back of the
manifold and tap the assembly
out from the back to the front.
9. Turn the manifold (#43) over and remove the rear v-sleeve
snap ring (#36) and rear v-sleeve assembly (#35A-35D).
These parts should slide out with little resistance. If neces-
sary, a screwdriver may be used to pry outward. Replace
all rubber parts and inspect the metal parts for wear.
36 35D 35A 35B 35C
10. Note: The following pro-
cedure is only necessary
if a stud bolt (#49) has
been damaged and must
be replaced. To remove
the manifold studs (#49),
place a stud nut (#50),
lock washer (#50A), and
second nut on each stud.
Tighten the nuts against
each other. Hold the front
nut with one wrench, and
remove the stud bolt by
turning the rear nut coun-
terclockwise with another
wrench. To reassemble,
turn the front stud bolt nut
clockwise.
11. Inspect ceramic plunger pipe (29B). Clean any dirt or
grime. If the surface of the pipe is rough, scored or pitted,
replace plunger pipe. To remove the ceramic plunger
pipe, turn the plunger bolt (#29C) counterclockwise with
a 13mm socket. Use a steady torque to prevent ceramic
plunger pipe damage. Loosen and remove the plunger
bolt assembly (#29C and #29D) and replace the seal
washer (#29D).
12. Inspect the crankcase oil
seals (#31) for evidence of
leaking. If there is oil on
the crankcase (#1) at the
sight of the oil seals, they
must be replaced. The oil
seals are replaced after
removing the crosshead/
plunger assembly (#25) as
described on page 9.
31
REPAIR INSTRUCTION - MP4120-SWS/MP4124-SWS
8
29C 29D 29B
13. Clean the bolt threads
(#29C), apply locktite,
and remount.
14. Torque the ceramic plunger
bolt assembly to 300 inch-
pounds (34 Nm). If origi-
nally removed, reinstall the
stud bolts (#49).

REPAIR INSTRUCTIONS - MP4120-SWS/MP4124-SWS
9

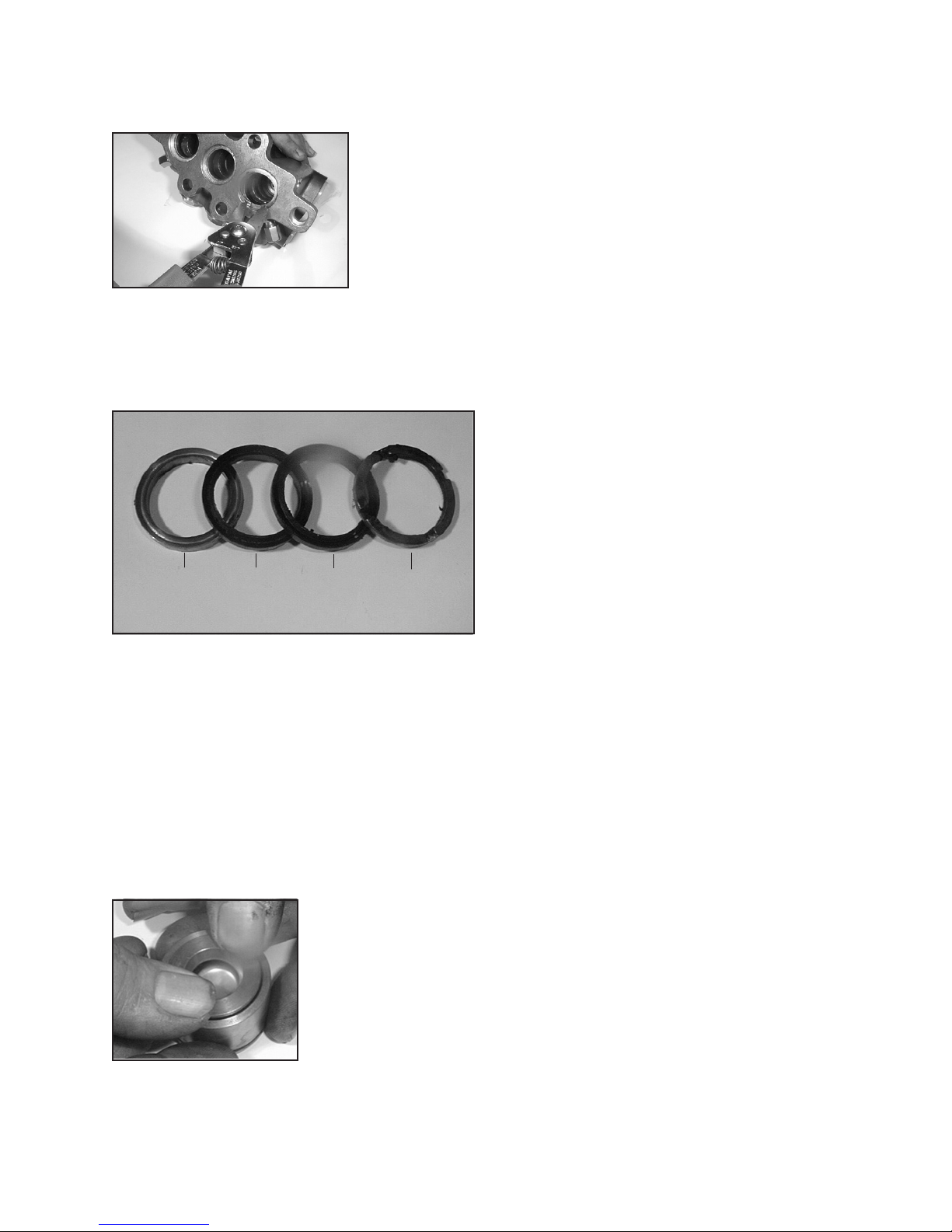

39 40 41 41A
15. Replace the rear v-sleeve assembly (#35A-35D) and replace the
snap ring (#36).
16. Reinstall the pressure ring (#39), v-sleeve
(#40), support ring (#41), and intermediate
ring (#41A) into each plunger bore. Re-install
the spacer ring (#52A).
17. Reassemble the inlet valve assembly in the reverse order of step #6. Make certain all the compo-
nents are press t together and that the spring retainer (#54) is slightly counter sunk in the valve
housing (#52). Grease the o-ring (#53) and replace it on to the valve housing. Reinstall the entire
inlet valve assembly into the manifold (#43). Replace the tension plugs (#42A) and tighten.
18. Reassemble the discharge valve assembly by placing the valve plate
(#45), spring (#46), and spring retainer (#47) on top of the valve seat
(#44). Press t together. Place the entire discharge assembly into dis-
charge port making certain the assembly is properly seated. Replace
discharge plug (#48) and tighten securely.
19. Again lubricate the plungers (29B) and slide the manifold (#43) gen-
tly and evenly over the plungers. Press the manifold rmly into place
against the crankcase (#1). Replace the spring washer (#50A) and
tighten the manifold stud nuts (#50) to 59 ft.-lbs. (80 Nm).

REPAIR INSTRUCTIONS - MP4120-SWS/MP4124-SWS
10
Gear End Disassembly
20. Remove the manifold and plunger assemblies as described earlier. Make sure the oil is drained
from the pump before removing the crankcase cover (#4). Remove all screws (#10). Inspect the
crankcase cover o-ring (#5) for damage and replace it as necessary.
21. Remove the connecting rod screws and washers with a 6mm allen wrench. Remove the back
halves of each connecting rod (#24) . Push the connecting rods down as far as possible into the
crankcase (#1) housing. Note that the connecting rod halves are numbered (or colored) and that
the numbers (or colors) must be matched for reassembly.
22. Remove the crankshaft bearing cover screws (#17) with a 13mm wrench. Remove the key (#23) from
the crankshaft (#22).
23. Remove the bearing cover (#14) and any shims (#20A) if any. Remember to replace shims on the
same side of the crankcase (#1) during the reassembly.
24. Steady the pump rear assembly and, using a rubber mallet, tap the crankshaft (#22) from one side.
The far side bearing race will be removed and the near side race will remain in the crankcase. The
roller bearings (#20) will remain on the crankshaft. When both ends are free, the crankshaft can be
removed by hand.
25. To remove the remaining bearing race, place a dowel against the inside edge of the race and tap it
out with a rubber mallet. This is done only if the race wear surface has been damaged.
26. Inspect the bearing race removed with the crankshaft (#22) and replace if wear surface is damaged.
27. Note: The following procedure is only necessary if the inspection shows evidence of heavy
wear. Inspect the crankshaft (#22) and bearings (#20) for wear. To remove the roller bearings from
the crankshaft, use a three inch push puller with a pulley attachment. To remount the bearings, tap
the bearings down the well-lubricated crankshaft with the Giant Bearing Tool. Be sure that the bearing
is rmly seated.
28. Remove the connecting rod (#24) with the attached crosshead/plunger assembly (#25) from the
crankcase (#1) by pulling it straight out. The oil seals (#31) may now be removed by tapping them
out through the front of the crankcase. Be careful not to damage the snap ring.
29. Inspect the surfaces of the crosshead/plunger assembly (#25) and connecting rods (#24) for heavy
scoring or galling due to poor lubrication. Check for play at the joint between connecting rod cross-
head/plunger assembly.
30. To remove the crosshead pin (#28) from the crosshead/plunger assembly (#25), the assembly should
be positioned in such a manner to prevent damage to the crosshead when driving the pin out. The
crosshead pin can be driven out by tapping on the tapered side of the pin.
Reassembly Sequence
Note: Always take time to lubricate all metal and nonmetal parts with a light lm of oil before reassem-
bly. This step will help ensure a proper t, at the same time it will protect the pump non-metal parts
(elastomers) from cutting and scoring.
31. Take the crosshead/plunger rod assembly and insert the connecting rod (#24) into the crosshead/
plunger assembly (#25). Drive the tapered end of the crosshead pin (#28) into the beveled side of
the crosshead and through the connecting rod completing the assembly.
Note: The crosshead pin should not extend beyond either side of the crosshead in order to prevent dam-
age to the crosshead bore of the crankcase.
32. Inspect the crankcase crosshead guides for any possible damage.
33. Replace the connecting rod (#24), crosshead/plunger rod assembly (#25) into the crankcase (#1).
34. If removed previously, replace the far side bearing race into the crankcase. Tap with a rubber mallet
until the edges are ush with the crankcase surface.
35. Remove the old crankshaft seal (#15) from the bearing cover (#14). Lubricate the edges of the new
seal and install using the standard Giant Bearing Tool. Remove the bearing tool and tap around the
perimeter of the seal with a rubber mallet to rmly seat the seal. Position the far bearing cover on the
crankcase (#1) and insert the cover bolts (#17). Tighten the cover evenly to the crankcase, setting the
bearing into position. Torque the cover bolts to 221 in.-lbs. (25 Nm).

36. Insert the crankshaft (#22) with the mounted bearings (#20) through the near side of the crankcase
(#1). Make certain that the numbers (or colors) or the crankshaft correspond to the numbers (or colors)
on the connecting rods (#24). Reinstall the near side bearing race by inserting it into the crankcase.
Supporting the crankshaft with one hand, tap the race with a rubber mallet until the edge is ush with
the crankcase.
37. Replace any shims (#20A, 20B) and position the bearing cover (#14) as before. Tighten the bearing
cover bolts (#17) evenly to position the bearing race. Torque the bolts to 125 inch-pounds. Once the
crankshaft reassembly is complete, oil the crankshaft races freely before replacing the connecting rod
(#24) end caps.
38. Reassemble the connecting rods (#24), matching the numbered (or colored) halves. Torque the con-
necting rod bolts (#24A) to 250 in-lbs. (28 Nm).
39. To replace the oil seal (#31) apply Locktite to the outside edges of the seal and install from the front
of the crankcase (#1). The side of the seal with the spring must face the oil. Make sure that the face
of the seal is ush with the crankcase.
Reassembly Sequence
REPAIR INSTRUCTIONS - MP-4120-SWS/MP4124-SWS
40. Clean the back edge of the crankcase and replace the crankcase cover (#4). be careful not to pinch
the crankcase cover o-ring (#5).
41. Fill the crankcase with 32 uid ounces of Giant oil or the equivalent SAE 80W-90 Industrial Gear oil
and check the oil level with the dip stick (#8). The proper level is center of the two lines. Reinstall the
Giant pump into your system.
MP4120-SWS/MP4124-SWS TORQUE SPECIFICATIONS
NOTE: Contact Giant Industries for
Service School Information.
Phone: [phone]
11
Position Item# Description Torque Amount
1 06100 Crankcase Loctite 270 N/A
10 01010 Screw, Crankcase Cover N/A 221 in.-lbs. (25 Nm)
12 07109 Oil Drain Plug 30 ft.-lbs. (40 Nm)
17 07114 Hex Screw, Bearing Cover 221 in.-lbs. (25 Nm)
24 07253 Hex Screw, Connecting Rod 106 in.-lbs. (12 Nm)
29C 13007 Bolt, Plunger Loctite 243 247 in.-lbs. (28 Nm)
31 07260 Crankcase Oil Seal Loctite 403 N/A
42A 06102/06103 Plug, Inlet 107 ft.-lbs. (145 Nm)
48 06108/07356 Plug, Discharge 107 ft.-lbs. (145 Nm)
50 07158 Nut, Manifold Stud 59 ft.-lbs. (80 Nm)

GIANT INDUSTRIES, INC., 900 N. Westwood Ave., Toledo, Ohio 43607
PHONE [phone], FAX [phone], www.giantpumps.com
© Copyright 2018 Giant Industries, Inc. 07/18 MP4124-SWS.indd
GIANT INDUSTRIES LIMITED WARRANTY
Giant Industries, Inc. pumps and accessories are warranted by the manufacturer to be free from
defects in workmanship and material as follows:
1. For portable pressure washers and self-service car wash applications, the dis-
charge manifolds are guaranteed for the life of the pump. Our other pump parts,
used in portable pressure washers and in car wash applications, are warranted
for ve years from the date of shipment for all pumps used in NON-SALINE, clean
water applications.
2. One (1) year from the date of shipment for all other Giant industrial and
consumer pumps.
3. Six (6) months from the date of shipment for all rebuilt pumps.
4. Ninety (90) days from the date of shipment for all Giant accessories.
This warranty is limited to repair or replacement of pumps and accessories of which the manufac-
turer’s evaluation shows were defective at the time of shipment by the manufacturer. The follow-
ing items are NOT covered or will void the warranty:
1. Defects caused by negligence or fault of the buyer or third party.
2. Normal wear and tear to standard wear parts.
3. Use of repair parts other than those manufactured or authorized by Giant.
4. Improper use of the product as a component part.
5. Changes or modications made by the customer or third party.
6. The operation of pumps and or accessories exceeding the specications set
forth in the Operations Manuals provided by Giant Industries, Inc.
Liability under this warranty is on all non-wear parts and limited to the replacement or repair of
those products returned freight prepaid to Giant Industries which are deemed to be defective
due to workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and
completed warranty evaluation form is required prior to the return to Giant Industries of all prod-
ucts under warranty consideration. Call (419)-531-4600 or fax [phone] to obtain an R.G.A.
number.
Repair or replacement of defective products as provided is the sole and exclusive remedy pro-
vided hereunder and the MANUFACTURER SHALL NOT BE LIABLE FOR FURTHER LOSS,
DAMAGES, OR EXPENSES, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES
DIRECTLY OR INDIRECTLY ARISING FROM THE SALE OR USE OF THIS PRODUCT.
THE LIMITED WARRANTY SET FORTH HEREIN IS IN LIEU OF ALL OTHER WARRANTIES OR
REPRESENTATION, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WAR-
RANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ALL
SUCH WARRANTIES ARE HEREBY DISCLAIMED AND EXCLUDED BY THE MANUFACTURER.
MP4120-SWS/MP4124-SWS DIMENSIONS - INCHES (mm)
