Owner's Manual
Owner's Manual
Gibson Dusk Tiger Manual V1.0,1 page 1

Important Safety Instructions
We value you as a customer—and want our products to give you an inspiring, and gratifying,
experience. So, to insure your safety and protect your investment in the Gibson Dusk iger guitar,
please read and follow all safety warnings and operating instructions before using this product, and
keep all documentation for future reference.
Environmental Factors
Heat and moisture can harm your Gibson Dusk iger. Please do not install or operate this guitar near
sources of moisture, such as sinks, damp basements, leaky roofs, etc. and never store it near heat
sources, such as heaters or radiators. Both you and your Dusk iger will be much happier if you store
and operate this product under safe conditions.
Power Sources
Use only the power source included in the Dusk iger package. Make sure any power supply cords
are not located where they are likely to be safety hazards, such as on the floor where people might
walk, or in locations where they may receive pressure from items placed upon or against them. Also,
be very careful with any power source connections, such as where the AC adapter connects to the
wall outlet. If this is jostled loose, the RIP audio interface included with Dusk iger may experience
extreme power differentials, which can potentially harm you and the product.
Service
Please do not attempt to service Dusk iger or any of its accessories yourself. Opening any of these
up may expose you to high voltages (besides, there are no user-serviceable parts), so let our expert
technicians handle any repairs for you.
Speaking of experts, always send the Dusk iger or RIP audio interface to an authorized service
technician if any of the following occurs (contact numbers for service centers are at the end of this
section):
Any foreign object (especially liquid) has gotten inside Dusk iger or its accessories
Dusk iger or its accessories have been exposed to water, dropped, or otherwise damaged
A marked change in Dusk iger’s performance
You hear anything rattling around inside if you shake the Dusk iger gently
Gibson Dusk Tiger Manual V1.0,1 page 2

Warranty Protection
It is extremely important to us that you are satisfied with Dusk iger. Register it and activate your
warranty protection by mailing the warranty card included with Dusk iger to Gibson USA,
Department W, P.O. Box 100087, Nashville, N 37210-0087. If you encounter any kind of problem,
contact us as soon as possible so we can make things right.
Once you your warranty protection is active, Dusk iger's electronic components are warranted to be
free from defects in materials and workmanship for a period of one (1) year from the date of original
purchase. Your warranty covers the cost of both labor and materials on any repair deemed necessary
by our Customer Service Representative for the warranty period, subject to the limitations below.
Please note that our warranty belongs to the original retail purchaser only, and may not be transferred
or assigned to subsequent owners.
If Dusk iger malfunctions as a result of faulty materials or workmanship, Gibson will determine
whether repair or replacement is more appropriate. In case the original materials are no longer
available for repair, Gibson reserves the right to use materials regularly utilized at the time of repair.
If we determine that replacing Dusk iger best serves your interests, or in the unlikely event that it is
destroyed, lost, or damaged beyond repair while in our possession for repairs, we will replace the
product. If it is no longer available, it will be replaced with the most similar product whose value does
not exceed your original product’s purchase price.
Remember—as a necessary condition to the warranty coverage described in this section, you
must activate your warranty by mailing the warranty card included with Dusk Tiger to Gibson
USA, Department , P.O. Box 100087, Nashville, TN 37210-0087.
Warranty Limitations
Unfortunately, it is not possible for your product warranty to cover any of the following:
Any product that has been altered or modified in any way, or upon which any serial or
registration number has been tampered with or altered in any way.
Any product whose warranty card has been altered or contains false information.
Any product that has been damaged due to misuse, negligence, accident or improper
operation or storage.
Any product damaged during shipment. Inspect the package immediately upon receipt, and
notify the carrier immediately if there is damage.
Any product damaged as a result of extreme temperature, humidity, or the use of an improper
power source.
Any product not purchased through an authorized dealer, or any product that has had repairs,
modifications or alterations made by an unauthorized service technician.
Wear and tear based on normal usage.
Factory installed electronics after more than one year following the original date of purchase.
Gibson makes no other express warranty of any kind. All implied warranties, including
warranties of merchantability and fitness for a particular purpose that exceed the specific
provisions of the warranty, are expressly and specifically disclaimed and excluded from the
Gibson Dusk Tiger Manual V1.0,1 page 3

warranty. Note, however, that some states and/or countries do not allow the exclusion or limitation of
implied warranties, so this paragraph may not apply to you. In particular, if you purchased your
product outside of the United States, contact your local distributor for the handling and resolution of
all warranty issues, as the warranty described here is not always applicable.
And of course, Gibson shall not be liable for any special, indirect, consequential, incidental or other
similar damages to you or to any third party, including, without limitation, damages for loss of profits
or business, or damages resulting from use or performance of the product, whether in contract or tort,
even if Gibson or its authorized representative has been advised of the possibility of such damages,
and Gibson shall not be liable for any expenses, claims or suits arising from or relating to any of the
foregoing.
o obtain warranty service, contact the service center nearest you:
US ( oll Free) 1-800-4GIBSON
US (Local) 1-615-871-4500
Email - [email protected]
Europe 00800-4GIBSON1
Email - [email protected]
Japan
Email - [email protected]
China 800-820-8841 (in China only)
Email - [email protected]
Please do not send a unit in for repair before contacting your customer service center. hey
will advise you of the proper procedure for a quick and efficient repair, as well as provide information
on where and how to send your Dusk iger.
      .   
Gibson Dusk Tiger Manual V1.0,1 page 4

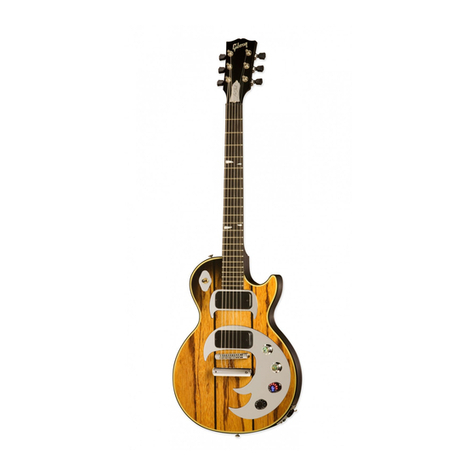

Introduction: Welcome to Dusk Tiger
Dusk iger is Gibson's third generation “Robot” guitar. Building on the success of the original Robot
Guitar and the groundbreaking Dark Fire, Dusk iger represents the apex of today's technology
matched with the Les Paul tradition of finely-crafted guitars. Some of Dusk iger's standout features
include:
hird-generation Robot uning echnology M for automatic, accurate tuning
Instantly selectable choice of tunings (standard and alternate tunings)
Chameleon one echnology M delivers iconic guitar sounds ithout digital modeling
Dusk iger is equally at home in live performance or recording environments
he Master Control Knob (MCK) includes a sophisticated display to help you select different
tunings, sounds, and functions.
Dusk iger comes with the Robot Interface Pack (RIP), a custom-designed, cross-platform
FireWire box that interfaces Dusk iger to a computer for computer-based recording.
Multiple outputs available for recording or live performance: Magnetic pickups, Piezo pickup,
individual (hex) string outputs, and Gibson's exclusive LP-Z M low impedance XLR output for
driving mixers, audio interfaces, and other low-impedance inputs directly
he pickup switch toggle is also a knob (“Piezo blend”) that, when turned, determines the
blend of magnetic and Piezo pickup sounds
Dusk iger is set up with advanced PLEK technology for exceptional playability
A companion software suite includes Gibson Chameleon Editor for creating custom sounds
and tunings, Native Instruments' Guitar Rig 4 Pro (full version), Ableton Live Lite 8 Gibson
Studio Edition, and Echo Audio RIP Console and Driver software
Software is compatible with Mac OS X and Windows XP, Vista, and Windows 7
User-replaceable, long-life battery—even switch easily in the middle of a gig.
Simplified “operating system” where the most common functions are extremely easy to access.
Most importantly, Dusk iger is an inspiring guitar that plays and feels that some of the finest Les
Pauls you've ever played.
Dusk iger offers so much you'll need time to learn its features. his manual, written by Dusk iger
owners for Dusk iger owners, will help make that process as simple as possible.
All of us at Gibson hope that you get the same joy out of playing Dusk iger that we've had in creating
it. We appreciate your confidence in Gibson. Should you encounter problems, our support staff is
always ready to help you resolve any issues.
Welcome to the Gibson family, and to the innovative world of Dusk iger.
Important Your Dusk Tiger Customer Code
Your Dusk iger accessory pack includes a card with your Customer Code (five groups of random
letters and numbers). his is your passport to downloading the accessory software from the Gibson
web site. Write down the number for reference, and file the card in a safe place.
Gibson Dusk Tiger Manual V1.0,1 page 5

Chapter 1: Dusk Tiger Essentials
1.0 STOP: Charge Dusk Tiger's Battery Before Use
Dusk iger contains an internal, user-replaceable, rechargeable battery that must be charged to use
the Piezo pickup, Chameleon one echnology, or Robot uning echnology. Using only the
magnetic pickups does not require power. Please charge the battery fully when you first receive
Dusk Tiger. he Quick Start guide gives battery basics, while Appendix C describes how to optimize
battery performance in greater detail.
o charge the battery, remove the battery plate from Dusk iger's back, place the battery in the
external charger (supplied), and plug the supplied AC adapter into the charger. he adapter is an
international type that accommodates 100-240V, 50/60Hz.
he charger's LED will shine red when charging, and green when the battery is charged. An
additional battery is supplied in the Dusk iger accessory pack; if you need more batteries, they are
available from stores such as Radio Shack (part #55029788).
1.1 The Master Control Knob
Dusk iger's four knobs are (going from neck to bridge) neck pickup volume, bridge pickup volume,
Master Control Knob (MCK), and tone control.
he MCK is a sophisticated “push-pull” knob with an illuminated interactive display called the Display
Matrix. he display shows Dusk iger's status as you select tunings, sounds, and more with the knob.
It is your primary way of interacting with Dusk iger's operating system.
Pulling the MCK up (furthest from the guitar body) activates it and applies power to Dusk iger.
Pushing down on the MCK (pushing toward the body until it clicks) turns off Dusk iger, and stores
the current tuning and sound for recall next time you power-up. (However, it's possible to specify a
custom default tuning for power-up using setup functions in the Red Bank; see Section 6.2, Function
1). When turned off, Dusk iger goes into Les Paul mode, where the guitar electronics are
deactivated. In this mode Dusk iger acts and sounds like a standard Les Paul guitar.
Gibson Dusk Tiger Manual V1.0,1 page 6

1.1.1 The MCK's “Enter” Function
he MCK can turn to make selections, but also responds to pressing on the knob's center. This is
very much like hitting “Enter” on a computer keyboard, so we refer to pressing on the knob's
center as “pushing Enter.”
You can rotate the MCK to make various selections, and “enter” your choices in two ways: Some
functions require a brief, momentary press on the MCK's Display Matrix, while some less-used
functions require a press longer than one second (but don't press too hard, as this will push the
MCK all the way in to the off position). he manual specifies when to use which type of press.
1.1.2 MCK Details
he MCK's outer ring of LEDs indicates the MCK's position and when tuning, indicates the status of
various strings. MCK positions are identified by symbols and letters.
Position/String LEDs. hese 10 LEDs surround the MCK's edge. After pulling the MCK out,
rotating the knob to a particular LED chooses a specific sound, function, or string.
b# symbol. Rotating the MCK fully counter-clockwise to accesses this position, which is used
often with Red Bank operations.
Rotating Arrow symbol. he text refers to this symbol as the “Rotating Arrow.”
Guitar symbol. Shows the status of the Piezo pickup, e.g., whether it's available to be blended
in with the magnetic pickup and whether its companion onboard EQ is on or off. his is set in
the accompanying Gibson Chameleon Editor software.
Pickup symbol. his indicates the status of Dusk iger's magnetic pickups—whether they're
operating as standard pickups, using coil switching to obtain different sounds, and whether the
onboard EQ section is on or off. his is set in the accompanying Gibson Chameleon Editor
software.
Variable color Display Matrix. his provides feedback on several aspects of Dusk iger: For
example, it changes color to indicate which Bank is selected, identifies particular parameters,
shows the battery charge, and more.
Peg symbol. he text refers to this symbol as the “Peg.”
| symbol. he text refers to this as the “|” symbol.
Gibson Dusk Tiger Manual V1.0,1 page 7

1.2 Dusk Tiger Banks
Dusk iger has four operating modes, which you choose with the MCK. Each mode corresponds to a
color-coded Bank of MCK settings:
Blue (Tuning) Bank. When turned on for the first time, Dusk iger defaults to this bank. he Blue
Bank allows selecting standard tuning (e.g., E-A-D-G-B-e) as well as any of 10 alternate tunings. he
default is the most recently-selected tuning, unless you've specified a different power-on default
(called the Instant Access uning) using the Red Bank's setup functions (Section 6.2, Function 1).
he MCK display shows the tuning preset ID associated with the current switch position; leaving the
MCK in that position for more than 300ms loads the indicated tuning preset.
Selecting a particular tuning sends signals to the RoboHeads that tune the strings automatically. he
selected tuning will remain until either changed to a different Blue Bank tuning, or you switch to the
Yellow Bank and choose a preset with a different tuning. For more on tuning, see section Chapter 2.
Green (Sound) Bank. Here you can select any of 10 guitar sounds by turning the MCK. he default
is the sound that was selected prior to powering-down Dusk iger when you last used it. he MCK
display shows the sound preset ID associated with the current switch position; leaving the MCK in
that position for more than 200ms loads the indicated sound preset.
hese presets can be the iconic guitar sounds shipped with Dusk iger, or you can replace them with
your own custom sounds by creating new sounds with the Gibson Chameleon Editor (see its
dedicated manual) and transferring these to Dusk iger.
Note that you can change sound independently of tuning by using the Green Bank to select a sound,
and tuning independently of the sound by using the Blue Bank to select a tuning.
An additional 11th position, obtained by turning the MCK fully counter-clockwise, checks the battery
charge.
Yellow (Preset) Bank. his Bank stores 88 custom user presets, arranged as 8 User Banks of 11
presets. Each preset can contain its own sound, tuning, and preset ID symbol. Dusk iger comes with
three User Banks of factory presets, but you can also create and edit your own with the companion
Gibson Chameleon Editor. It's possible to save any number of presets on your computer, then
transfer the ones you want to use to Dusk iger. You can think of the 88 presets as a “playlist” taken
from your master library of presets.
Red (Function) Bank. he Red bank is for configuring Dusk iger, intonating the guitar, doing
advanced tuning functions, and more.
1.3 Switching Among Dusk Tiger Banks
Switching between the Blue and Green Banks: As these are the most often- used Banks, it's easy
to switch between them. Pushing Enter briefly on the MCK while in the Green Bank switches to the
Blue Bank, and pushing Enter briefly on the MCK while in the Blue Bank switches to the Green Bank.
Gibson Dusk Tiger Manual V1.0,1 page 8

Switching among all Banks: With Dusk iger powered-on, push Enter on the MCK briefly, then
push Enter again within half a second. his takes you to the next Bank. A series of quick presses,
with each press within half a second of the next one, cycles through the various Banks.
he order of Bank selection is Green – Blue – Yellow – Red. his “wraps around,” so if Dusk iger is
in the Red Bank, pushing Enter on the MCK takes you to the Green Bank.
For example, suppose the Green Bank is the current Bank. Here's how to select the Red Bank:
1. Push Enter briefly on the MCK's center. he Blue Bank appears.
2. Within one second, again push Enter briefly on the MCK's center. he Yellow Bank appears.
3. Within one second, again push Enter briefly on the MCK's center. he Red Bank appears.
o summarize: Pushing Enter briefly on the MCK's center takes you to the next Bank in the series of
Banks. Repeated brief presses done within a half a second of each other toggles through the Banks.
1.4 Dusk Tiger Connections
Dusk iger has traditional magnetic pickups, a Piezo pickup in the bridge, and individual outputs for
each string (hex pickup), all of which feed a tip-ring-sleeve (TRS, or stereo) 1/4” output jack. here
are several ways to use these outputs.
As you familiarize yourself with Dusk Tiger, we suggest using either the “Traditional Electric
Guitar” or “Blended Electric/Piezo Sound” connections described next. he companion RIP
Computer Interface manual covers computer-based application in detail.
1.4.1 Traditional Electric Guitar
he magnetic pickups' output appears on the jack's tip. If you plug a standard mono guitar cable
into Dusk iger and plug the other end into an amp, Dusk iger (even when not powered-on) acts just
like a traditional Les Paul electric guitar. When powered-on, you can use the Robot uning and
Chameleon one echnology, as well as mix in the Piezo pickup sound.
1.4.2 lended Electric/Piezo Sound
1. Use a standard guitar cord to connect Dusk iger to your amplifier.
2. Pull the MCK out, tune Dusk iger, and select a sound, as described in the Quick Start guide.
3. When powered-on, Dusk iger's output carries a mix of the magnetic and Piezo pickup signals,
with the balance determined by the blend control (pickup switch toggle). urn the toggle
clockwise for more Piezo sound, or counter-clockwise for more magnetic sound.
Note:
here is an option to determine if the Piezo out appears on the tip and/or ring of the stereo cable or
neither. See Section 6.2, Functions 2 and 3.
Gibson Dusk Tiger Manual V1.0,1 page 9

1.4.3 Using the Gibson LP-Z Low Impedance Output Circuit
Dusk iger's output jack is a “combo” type that provides a standard 1/4” guitar output or Gibson's
exclusive low-impedance, balanced output LP-Z circuit. o activate the LP-Z output, set the switch (to
the left of the output jack) in the down position. he green LED next to the switch will illuminate.
Plug the appropriate p into Dusk iger's output. For driving a standard amp, use a 1/4” stereo or
mono guitar cable. For the LP-Z output, you will need either a custom length XLR male-to-XLR male
cable, or use two standard XLR male-XLR-female mic cables in conjunction with an XLR male-to-
male adapter (e.g. Radio Shack part #274-015). Caution: hen plugging the LP-Z output into a
mic input, never turn on the input's phantom power. This may damage the Dusk Tiger output.
1.4.4 Computer- ased Systems for Live and Studio
Here's an overview to provide a hint of what Dusk iger can do when connected to a computer. For
more information on the many possibilities offered by combining Dusk iger with a computer, see the
companion RIP Computer Interface manual.
For a basic computer-based live performance setup, load Guitar Rig 4 Pro into a laptop or
other computer. his software turns your computer into a “virtual guitar rack” with dozens of
virtual amp and effect options, while the RIP interface provides an input for Dusk iger along
with mono or stereo outputs for your mixer, PA, or active speakers.
For a computer-based live performance setup that takes advantage of Dusk Tiger's eight
outputs and individual string processing possibilities, load Ableton Live Lite 8 Gibson
Studio Edition into a laptop or other computer. Again, the RIP provides physical inputs and
outputs for the “virtual rack.” All eight Dusk iger signals are available in Ableton Live's eight
channels, and you can load plug-ins like Guitar Rig 4, or the plug-ins included in Ableton Live,
to process these signals (e.g., octave dividers on only the lower strings with magnetic pickups
going through an amp emulation, etc.). Live provides the routing and mixing for all these
signals, which then go to your amplification system via the RIP's stereo output.
For a computer-based studio setup, RIP provides an interface between your guitar and
computer, sending all guitar outputs through the FireWire connector directly to your computer.
Any modern “digital audio workstation” program such as Ableton Live, Cakewalk Sonar, MO U
Digital Performer, Apple Logic, etc. will recognize these outputs, and allow you to route,
process, mix, and record them within the audio software you're using (called the “host
program”). Because the RIP also acts as a high-quality computer interface/sound card, your
host program will be able to send its output through the FireWire cable to the RIP. From there,
the RIP's stereo output jacks can patch directly to a set of active monitor speakers (or to a
mixer, headphone distribution amp, etc.).
Gibson Dusk Tiger Manual V1.0,1 page 10

Chapter 2: Dusk Tiger Robot III Tuning Functions
o start playing, pull the MCK out. Dusk iger defaults to the most recently-selected tuning and
sound; out of the box, this is standard E-A-D-G-B-e tuning and sound 1. he MCK Display Matrix
shows the letter “S” to represent Standard tuning. he default tuning is called the Instant Access
uning (the default sound is called the Instant Access Sound).
You can change the default Instant Access uning (for example, an alternate tuning) rather than the
most recently-selected tuning, and even the calibration if you want “A” to be something other than
440Hz, by using the Red Bank's setup functions (see Chapter 6).
2.0 Tuning Dusk Tiger to the Instant Access Tuning
Once Dusk iger is in default mode from pulling the MCK out, here's how to tune to the selected
Instant Access uning.
1. Strum all six strings normally at the neck pickup position—not too hard or soft. Do not fret any
strings, or touch the neck, while tuning.
2. he RoboHeads will turn robotically, and the MCK's String LEDs will shine various colors to
indicate tuning status. Here's what the colors mean:
●Red: String not in tune, or not yet tuned
●Yellow: RoboHeads are turning to tune the string. If the corresponding RoboHead is not
turning when its LED flashes yellow, there is a physical or electrical problem.
●Green: Individual string in tune
●All LEDs green: uning is complete
●hite: Short circuit detected. Check if a string touches the tail piece, the bridge, a fret, or
another string; make sure that strings are cut close to the posts, and that all strings are in the
bridge saddle's center. If any part of a string touches something metallic that's not in the
normal string path, that string cannot be tuned.
3. When the guitar is in tune, all LEDs will turn off and Dusk iger will switch to the Green Bank
so you can select a Chameleon tone. If all the LEDs don't turn off, strum all six strings again.
his may be necessary if the guitar is considerably out of tune. It should take only one or two
strums for Dusk iger to tune itself; pause briefly (2-3 seconds) between strums.
Notes:
●urning the MCK during tuning cancels that tuning.
●Pushing Enter while tuning switches Dusk iger to the Green Bank.
●If you don't want to tune Dusk iger but go immediately to select a sound, instead of
strumming strings to initiate the tuning process, push Enter briefly to switch to the Green Bank.
Gibson Dusk Tiger Manual V1.0,1 page 11

2.1 Instant Access Alternate Tuning
o choose a tuning other than the default Instant Access uning:
1. Pull the MCK out. he Blue Bank appears by default.
2. Instead of strumming the strings, turn the MCK to the position that represents the tuning you
want (refer to the following chart).
3. After waiting more than 300ms so that the tuning can load, strum the strings, and the
RoboHeads will tune Dusk iger to the pitches required for the selected alternate tuning.
4. he string colors indicate the tuning status, as described in the previous section.
5. When Dusk iger is tuned, the string LEDs will all light solid green, then Dusk iger will switch
automatically to the Green Bank.
MCK position
Name Tuning (low string to high)
Peg Stan ar Tuning E A D G B e
i Droppe D D A D G B e
C Double Droppe D D A D G B D
E Open E Major E B E G# B e
A Open A Major E A E A C# e
D Open D Major D A D F# A D
G Open G Major D G D G B D
B E Flat Tuning Eb Ab Db Gb Bb eb
e Open E Minor E B E G B E
Arrow
Low D D G C F A D
Circle
DADGAD D A D G A D
2.2 Manual RoboHead Tuning
You can tune Dusk iger’s RoboHeads by hand as an alternative to using Robot tuning technology.
Caution: Never use a manual or mechanical string winding tool, or attempt to tune the
RoboHeads manually while they are operating robotically. Either one of these operations can
permanently damage the RoboHeads.
Unlike conventional tuning keys, RoboHeads all turn in the same direction. he RoboHead tuner
posts have locking nuts to secure the end of each string during tuning operations.
Robot technology includes special options for changing strings (see Sections 5.6, 5.7, and 5.8), as
this is much faster than changing strings manually. Gibson strongly advises using these functions
when changing strings not only because it's faster and more convenient, but because they minimize
RoboHead wear.
Gibson Dusk Tiger Manual V1.0,1 page 12

Chapter 3: Dusk Tiger Chameleon Tone Technology
3.0 About Chameleon Tone Technology
Dusk iger can offer a huge variety of guitar sounds, from traditional to groundbreaking, thanks to
Chameleon one echnology. Each sound can have a unique combination of the following sound-
shaping options, all of which can be edited with the companion Gibson Chameleon Editor software:
●Magnetic pickup coil settings (single, humbucking, parallel, series, or out-of-phase)
●Magnetic pickup 4-stage parametric equalizer settings (the EQ settings affect both pickups)
●Magnetic pickup EQ bypass/active
●Piezo pickup 4-stage parametric equalizer settings
●Piezo pickup EQ bypass/active
●Piezo pickup status (on/off)
●Sound ID (identifies the sound but doesn't affect tone)
Because Dusk iger doesn't use digital modeling, the signal path is all analog. Furthermore, the Piezo
pickup output can supplement the magnetic pickups for an acoustic type of sound.
Note:
●Dusk iger remembers the most recently-stored Chameleon magnetic pickup coil
configuration, even with no power. his is because Dusk iger's Chameleon one technology
uses special latching relays that “remember” their most recent state.
3.1 Choosing Chameleon Tones
1. Pull the MCK out, choose a tuning Preset if desired or use the Instant Access uning, and tune
the guitar as described in Chapter 2. When tuning is complete, Dusk iger will switch to the
Green Bank for Chameleon one selection.
2. o choose a different Chameleon one setting, turn the MCK to the position that represents
the sound you want (refer to the following chart). After the MCK stays in a position for more
than 200ms, that sound will be loaded.
Notes:
●In this chart, “PU” refers to the recommended pickup (N = neck, B = bridge, M = middle
position, P = piezo) to obtain the specified sound. However, choosing different pickups will give
other sounds that are equally useful.
●o obtain these sounds, the tone controls should be fully clockwise, and the piezo pickup
should not be blended in (except for Position A).
Gibson Dusk Tiger Manual V1.0,1 page 13

MCK Pos
Tone PU Comments
Peg LP 1958 N '58 Les Paul character
ILP 1955 N '55 Les Paul Dark Fire preset optimize for Dusk Tiger
CLP 1955 BM '55 Les Paul character with bri ge or mi le pickup
ELP Rhythm B '58/'60 Les Paul character, goo for '80s heavy rhythm
A335 N Also try mi le position; goo 335 character
DFunky N “Stratifie ” funky soun
GFunky B “Stratifie ” sharp rhythm soun
BTwang B Twangy “Telecaste ” soun
eTwang N Carve mi range, smooth an transparent highs
Arrow Acoustic N Set piezo level 25-30%, neck volume to taste
Circle Battery --- Green = full, yellow = mi , re = low
3.2 Battery Charge Indicator
Rotating the MCK fully counter-clockwise while in the Green Bank brings up the battery charge
indicator. his shows two lines of green dots, two lines of yellow dots, and two lines of red dots.
• • • •
• • • •
• • • •
• • • •
• • • •
• • • •
If all lines are lit, the battery is at full charge. Fewer lines indicate a more depleted battery. Here's how
to interpret what the lines are telling you.
●1 or 2 red bars = low charge
●2 red bars plus 1 or 2 yellow bars = medium charge. Charging is not essential, but will improve
performance because all six RoboHeads will be activated only if the charge is 50% or above.
With charges below 50%, the RoboHeads will take longer to tune because all six can't be
active at once.
●2 red bars, 2 yellow bars, one or 2 green bars = high charge (recommended for best
performance)
3.3 About Les Paul Mode
In addition to the Chameleon one possibilities, there is also a mode that causes Dusk iger's
pickups to work like a Les Paul: he bridge pickup coils are wired in series and humbucking, while the
Gibson Dusk Tiger Manual V1.0,1 page 14

neck pickup uses the north coil only (single coil). Dusk iger enters this mode automatically when
turned off.
3.3.1 About the Wiring in Les Paul Controls
he volume controls in a classic Les Paul interact with each other when the pickup toggle is in the
middle position (i.e., selecting both pickups). Due to this interaction, if either the neck or bridge
volume control is at “0” (all the way down), the signal is grounded and you will not hear any output—
regardless of the other control's setting.
If you want to change the mix of the magnetic pickups with the pickup toggle in the middle position,
start with both magnetic pickup volume controls on “5” (up halfway), then adjust to taste.
3.4 Other Factors Affecting Chameleon Tone
here are very significant differences in each Dusk iger Chameleon one setting. he tones were
worked on for some time in studio settings to match vintage guitars.
However, note that a guitar's tone results from a combination of factors. For example, putting a single
coil in a guitar does not necessarily make it sound like the classic guitars that use single coil pickups.
he four main factors influencing tone are:
he position of the transducer (pickup) between the nut and bridge
he pickup characteristics (coil windings, wire, magnets, etc.)
Guitar construction details, including wood type
Post-processing of the guitar (e.g., the amp you use, or adding effects in the studio)
he guitar construction imparts a characteristic tone by altering the vibrating string's frequency
response. It's possible to re-create this characteristic frequency curve by using very precise equalizer
circuits; Dusk iger does this primarily by using two 4-band parametric equalizers to mold the
frequency response. ( he reason for using analog technology is that digital processing requires
converting analog signals into digital streams, and then converting back to analog. his introduces a
delay that players often find disconcerting.) he placement of the pick up coils and their construction
allows Dusk iger to reproduce phase and other tone modifying affects.
Finally, remember that the classic Chameleon sounds require that no Piezo sound is blended in, and
the tone controls should be up full. But with so many options available to change tone in addition to
the Chameleon ones, it's possible to stray from the original, classic sounds. his makes it easy to
create useful variations on these classic sounds for even more tonal possibilities, but if Dusk iger
doesn't sound quite like the guitar you're trying to emulate, make sure you have the pickup switch,
Piezo blend, and tone controls set properly. Also, remember that any post processing you use (i.e.,
anything the modifies the tone after the signal leaves the guitar, like your amplifier) impacts the
sound. Some “classic” guitar sounds result from combining the guitar sound with a particular amplifier
—for example, a Les Paul going through a British stack will sound very different compared to going
through an American combo amp.
he bottom line is that each Chameleon one setting is very different, and factors other than the
guitar itself can change these sounds even further.
Gibson Dusk Tiger Manual V1.0,1 page 15

Chapter 4: The Yellow Bank, User Banks, and User
Presets
he Yellow Bank consists of several different elements.
●he Yellow Bank contains eight User Banks. You select a particular User Bank in the Red
(Function) Bank (Section 5.9).
●Each User Bank can hold 11 presets, so given that there are eight User Banks, the Yellow
Bank can hold a total of 88 presets.
●You can combine a custom sound and tuning within a single preset.
he Gibson Chameleon Editor makes it easy to create, store, back up, and share custom presets for
the Yellow Bank (as well as the Blue and Green Banks). If you don't have access to a computer, it is
possible to create presets for the Yellow Bank (see Section 5.4) but the process is more tedious, and
doesn't allow access to several useful functions.
Conceptually, many Dusk iger owners treat the Yellow Bank as a “playlist” of presets for live
performance. For example, the first Yellow Bank might contain presets for the first and second songs
of a set. he second Yellow Bank might contain presets for the third and fourth songs, and so on.
his allows “stepping through” the presets quickly and easily in live performance.
4.0 Factory Default Tunings for User Bank 1
hese are the same tunings as the Blue Bank factory defaults.
MCK position
Name Tuning (low string to high)
Peg Stan ar Tuning E A D G B e
iDroppe D D A D G B e
CDouble Droppe D D A D G B D
EOpen E Major E B E G# B e
AOpen A Major E A E A C# e
DOpen D Major D A D F# A D
GOpen G Major D G D G B D
BE Flat Tuning Eb Ab Db Gb Bb eb
eOpen E Minor E B E G B E
Arrow
Low D D G C F A D
Circle
DADGAD D A D G A D
Gibson Dusk Tiger Manual V1.0,1 page 16

4.1 Factory Default Sounds for User Bank 1
NH = Neck humbucker, NS = Neck single coil, B = Bridge, M = Middle pickup position
MCK Pos
Tone PU Comments
Peg LP, Comp NH Goo for clear chor s, efine an transparent character
ILP, Solo NH Also try mi le position; mi -range character, full an warm
CLP, lowmi , Solo B Les Paul '58/'60 character with bri ge or mi le pickup
ELP, Solo B '58/'60 Les Paul character, mi le position gives fat tones
AGent all N: Rockabilly, M: Daytripper soun (also try a ing about
20%-30% piezo soun for “big Who riffs”), M: Vary volume
control blen for funky soun s
DJazzy, P10 B Also try NH an M with 20% piezo a e
GFunky, P30 M N = single coil, B = out of phase; with M, set N volume on 8
an B higher than 8, a piezo to taste (e.g., 15%). Turn B
own for thicker soun , up for thinner soun .
BTwang, Smooth NS Rich, jazzy “Telecaste ” soun
eTwang, Sharp NS Sharp attack
Arrow Acoustic, P10-30 NS Set piezo level 25-30%, neck volume to taste
Circle Reso Sli e M B up full, N volume 5, a just B level for esire character.
4.2 Factory Default Sounds for User Bank 2
MCK Pos
Tone Comments
Peg L5 Original Dark Fire soun
IMetal Original Dark Fire soun
CFunky Original Dark Fire soun
EGibson Original Dark Fire soun
ATwang Original Dark Fire soun
DRock Original Dark Fire soun
GAcoustic Original Dark Fire soun
BBlues Original Dark Fire soun
eGibson Original Dark Fire soun
Arrow Gibson Original Dark Fire soun
Circle Gibson Original Dark Fire soun
Gibson Dusk Tiger Manual V1.0,1 page 17

4.3 Factory Default Sounds for User Bank 3
MCK Pos
Tone Comments
Peg 335 By Chris & Peter Weihe, create with Dark Fire
IFunky By Chris & Peter Weihe, create with Dark Fire
CLP 1955 P90 By Chris & Peter Weihe, create with Dark Fire
ELP 1958 By Chris & Peter Weihe, create with Dark Fire
AAcoustic Original Dark Fire soun
DTwang Original Dark Fire soun
GBlues Original Dark Fire soun
BRock Original Dark Fire soun
eL5 Original Dark Fire soun
Arrow Metal Original Dark Fire soun
Circle Gibson Original Dark Fire soun
Gibson Dusk Tiger Manual V1.0,1 page 18

Chapter 5: Red Bank General Functions
Dusk iger defaults to settings that are well-suited to the vast majority of players. However, it is
possible to change many of these defaults via Function Mode (Red Bank). Function Mode is also
where you can change strings easily, intonate your strings, activate a chromatic tuner, and more.
he general procedure is to enter Function Mode, choose the MCK position that corresponds to a
particular function, push Enter for more than one second, then edit the selected function.
5.0 Entering Function Mode
●If Dusk iger is not powered-up, pull the MCK out and push Enter four times in quick
succession.
●If Dusk iger is already in a Bank other than the Red Bank, push Enter in quick succession
until the Red Bank appears.
5.1 Selecting a Function
Once Dusk iger is in Function Mode, rotate the MCK to choose the position that corresponds to a
particular function. Upon selecting a position, the Display Matrix will show a red letter for the function
ID, then scroll through a series of white letters that give an abbreviated function name. he following
chart shows the details.
MCK Pos.
ID Abbreviation Function
Peg T TUNER Chromatic tuner function
I I INT A just Dusk Tiger intonation
C C CUS Create custom tuning
E R REF Sets reference pitch (e.g., A = 440)
A up arrow UP Tune replacement string(s) up to pitch
D own arrow DWN Tune string(s) own for removal
G U USR Access user banks
he following describes the various functions.
5.2 Chromatic Tuner (Position = Peg, ID = T)
he chromatic tuner detects a plucked string and displays the nearest note and frequency
offset compared to that note.
Gibson Dusk Tiger Manual V1.0,1 page 19

he center display can define the note in one of two modes:
●Note Mode: Shows the note's letter name
●Frequency Mode: Shows the note's frequency in Hertz. he frequency's numbers
scroll in sequence, accurate to one place to the right of the decimal point. In other
words, if you fret A = 440, the display will show 4-4-0-.-0
he outer LEDs can show the offset in two different modes:
●Offset Mode: he length of the “bar” made up of multiple LEDs indicates the relative
offset, with a longer bar indicating more offset.
●Strobe Mode: A rotating pattern shows the relative offset, with a faster rotation
indicating more offset.
In either case, the color of the outer ring of LEDs provides a rough indication of pitch.
●Red: Pitch is flat
●Yellow: Pitch is sharp
●Green: Pitch is correct
For example, if in strobe mode the pattern rotates slowly and the LEDs are red, then the
string is slightly flat.
5.2.1 Tuner Step-by-Step
1. While in the Red Bank, rotate the MCK to the Peg position.
2. Push Enter for more than one second
3. Push Enter briefly to toggle between Offset Mode (display shows “O”) or Strobe Mode
(display shows (“S”). his preference is stored when you turn off Dusk iger.
4. Rotate the MCK fully counter-clockwise.
5. Push Enter briefly to toggle between Note Mode (display shows “N”) or Frequency
Mode (display shows “F”). his setting is not stored; Note Name is the default.
6. Pluck a string (open or fretted) and observe the readout. Continue to pluck strings as
needed.
7. o exit tuner mode, rotate the MCK to any position other than fully clockwise or fully
counter-clockwise, and push Enter briefly.
5.3 Intonation (Position = I, ID = I)
When strings aren't properly intonated the octave (12th fret) is off-pitch compared to the open string.
When correctly intonated, the octave is exactly one octave above the open string.
Dusk iger's intonation function makes intonating guitar strings easy. Each string has an intonation
screw on the part of the bridge that faces away from the pickups. Adjusting these screws clockwise or
counterclockwise adjusts the intonation; Dusk iger will tell you exactly how much you need to turn
these screws, and in which direction.
Gibson Dusk Tiger Manual V1.0,1 page 20
