GIGA-BYTE TECHNOLOGY GA-MA69VM-S2 User manual

GA-MA69VM-S2
AMD AthlonTM 64 FX / AthlonTM 64 X2 Dual-Core /
AMD AthlonTM 64 / SempronTM AM2 Processor Motherboard
User's Manual
Rev. 1001
12ME-MA69VMS2-1001R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.

Mar. 12, 2007
Motherboard
GA-MA69VM-S2
Motherboard
GA-MA69VM-S2
Mar. 12, 2007

Copyright
© 2007 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to change
without prior notice.
Product Manual Classification
In order to assist in the use of this product, Gigabyte has categorized the user manual in the
following:
For detailed product information and specifications, please carefully read the
"Product User Manual".
For detailed information related to Gigabyte's unique features, please go to "Technology
Guide" section on Gigabyte's website to read or download the information you need.
For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -
Table of Contents
ItemChecklist ................................................................................................................. 6
OptionalAccessories ...................................................................................................... 6
GA-MA69VM-S2 Motherboard Layout ........................................................................... 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Considerations Prior to Installation .................................................................... 9
1-2 Feature Summary .......................................................................................... 10
1-3 Installation of the CPU and CPU Cooler ....................................................... 12
1-3-1 Installation of the CPU ......................................................................................... 12
1-3-2 Installation of the CPU cooler ............................................................................. 13
1-4 Installation of Memory .................................................................................... 14
1-5 Installation of Expansion Cards ...................................................................... 16
1-6 I/O Back Panel Introduction ........................................................................... 17
1-7 Connectors Introduction .................................................................................. 18
Chapter 2 BIOS Setup ................................................................................................ 29
The Main Menu (For example: BIOS Ver. : D11) ...................................................... 30
2-1 Standard CMOS Features ............................................................................. 32
2-2 Advanced BIOS Features .............................................................................. 34
2-3 IntegratedPeripherals ..................................................................................... 36
2-4 Power Management Setup ............................................................................. 39
2-5 PnP/PCI Configurations ................................................................................. 41
2-6 PC Health Status ........................................................................................... 42
2-7 Load Fail-Safe Defaults ................................................................................... 44
2-8 Load Optimized Defaults ................................................................................. 44
2-9 Set Supervisor/User Password ..................................................................... 45
2-10 Save & Exit Setup ......................................................................................... 46
2-11 Exit Without Saving ....................................................................................... 46

- 5 -
Chapter 3 Drivers Installation ...................................................................................... 47
3-1 Install Chipset Drivers .................................................................................... 47
3-2 SoftwareApplication ....................................................................................... 48
3-3 Software Information ....................................................................................... 48
3-4 Hardware Information ..................................................................................... 49
3-5 Contact Us ..................................................................................................... 49
Chapter 4 Appendix ................................................................................................... 51
4-1 Unique Software Utilities ................................................................................ 51
4-1-1 EasyTune 5 Introduction ..................................................................................... 51
4-1-2 Xpress Recovery2 Introduction ......................................................................... 52
4-1-3 Flash BIOS Method Introduction ........................................................................ 54
4-1-4 Configuring SATA Hard Drive(s) ........................................................................ 58
4-1-5 Installation of TV Output Cable (Optional Device) ........................................... 69
4-1-6 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 73
4-2 Troubleshooting ............................................................................................... 78

- 6 -
Item Checklist
IDE Cable x 1 & FDD Cable x 1
Serial ATAII Cable x 2
I/O Shield
* The items listed above are for reference only, and are subject to change without notice.
Optional Accessories
2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/ 51R)
4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/ 21R)
COM Port Cable (Part Number: 12CF1-1CM001-31/31R)
S/PDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/11R)
TV Out Cable (Part Number: 12CR1-10S001-01R)(Please refer to the instructions on Page 69)

- 7 -
GA-MA69VM-S2 Motherboard Layout
MS / KB
LPT
VGA
GA-MA69VM-S2
ATX_12V
CPU_FAN
Socket AM2
AUDIO
USB LAN
F_AUDIO
COMB
IT8716
BIOS
PCI1
PCI2
CD_IN
PCIE_16
COMA
CI
AMD 690V
RTL8110SC
DDRII2
DDRII1
ATX
FDD
CODEC
BATTERY
SATAII0
PCIE_4
F_USB2
F_USB1
SYS_FAN
IDE
SPDIF_IO
CLR_CMOS
F_PANEL
PWR_LED
USB
SATAII3
DDRII4
DDRII3
TV
F_USB3
SATAII2
SATAII1
AMD SB600

- 8 -
Block Diagram
4 SATA 3Gb/s
ATA-33/66/100/133
IDE Channels
PCI Bus
Floppy
LPT Port
PCIe CLK
(100 MHz)
LPC BUS
BIOS
DDRII 800/667/533 MHz DIMM
AMD
Socket AM2
CPU
Hyper Transport Bus
IT8716 COM Ports
AMD SB600
SPDIF Out
Line-Out
MIC
Line-In
SPDIF In
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
CODEC
2PCI
PCI CLK
(33 MHz)
10 USB
Ports
RJ45 RTL
8110SC
PCI Express x16
1 PCI Express x4
PCIe CLK
(100 MHz)
x4
Dual Channel Memory
PS/2 KB/Mouse
LAN
AMD 690V
GFX CLK (100 MHz)
CPU CLK+/-(200 MHz)
VGA
TV

Hardware Installation- 9 -
English
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic
pad or within a electrostatic shielding container.
5. Please verify that the power supply is switched off before unplugging the power supply
connector from the motherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers
are required for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the
information in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with
the motherboard circuit or its components.
5. Please make sure there are no leftover screws or metal components placed on the motherboard
or within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Instances of Non-Warranty
1. Damage due to natural disaster, accident or human cause.
2. Damage as a result of violating the conditions recommended in the user manual.
3. Damage due to improper installation.
4. Damage due to use of uncertified components.
5. Damage due to use exceeding the permitted parameters.
6. Product determined to be an unofficial Gigabyte product.
Chapter 1Hardware Installation

GA-MA69VM-S2 Motherboard - 10 -
English
1-2 Feature Summary
CPU Socket AM2 for AMD AthlonTM 64 FX / AthlonTM 64 X2 Dual-Core /
AthlonTM 64 / SempronTM processor
Front Side Bus 2000 MHz
Chipset Northbridge: AMD 690V
Southbridge: AMD SB600
LAN Onboard Realtek 8110SC chip(10/100/1000 Mbit)
Audio ALC888 CODEC
Supports 2 / 4 / 6 / 8 channel audio
Supports High Definition Audio
Supports Line In ; Line Out (Front Speaker Out) ; MIC ; Surround Speaker
Out (Rear Speaker Out) ; Center/Subwoofer Speaker Out ; Side Speaker
Out connection
S/PDIF In/Out connection
CD In connection
Storage AMD SB600
- 1 FDD connector, allowing connection of 1 FDD device
- 1 IDE connector with ATA-33/66/100/133 support, allowing connection
of 2 IDE devices
- 4 SATA 3Gb/s connectors, allowing connection of 4 SATA 3Gb/s devices
- Supports RAID 0, RAID 1,and RAID 0+1for Serial ATA
O.S Support Microsoft Windows 2000/XP/Vista
Memory 4 DDRII DIMM memory slots (supports up to 16 GB memory)(Note 1)
Supports dual channel DDRII 800/667/533 DIMMs
Supports 1.8V DDRII DIMMs
Expanstion Slots 1 PCI Express x16 slot
1 PCI Express x4 slot
2 PCI slots
Internal Connectors 1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
4 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 S/PDIF In/Out connector
3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
1 Power LED connector
1 COMB connector
1 Chassis Intrusion connector
1 TV out connector

Hardware Installation- 11 -
English
(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4 GB of physical
memory is installed, the actual memory available for the operating system will be less than
4 GB; Windows 64-bit operating system doesn't have such limitation.
(Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
(Note 3) EasyTune functions may vary depending on different motherboards.
Rear Panel I/O 1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 COMA port
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear
Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
I/O Control IT8716 chip
Hardware Monitor System voltage detection
CPU / System temperature detection
CPU / System fan speed detection
CPU / System warning temperature
CPU / System fan failure warning
Supports CPU Smart Fan function(Note 2)
BIOS 1 4 Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Additional Features Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune (only supports Hardware Monitor function)(Note 3)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
Bundle Software Norton Internet Security (OEM version)
Form Factor Micro ATX form factor; 24.4cm x 24.4cm

GA-MA69VM-S2 Motherboard - 12 -
English
1-3 Installation of the CPU and CPU Cooler
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the pin 1 marking (the small triangle) on the CPU. If you install the
CPU in the wrong direction, the CPU will not insert properly. If this occurs, please
change the insert direction of the CPU.
3. Please add an even layer of heat paste between the CPU and CPU cooler.
4. Please make sure the CPU cooler is installed on the CPU prior to system use,
otherwise overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It
is not recommended that the system bus frequency be set beyond hardware specifica
tions since it does not meet the required standards for the peripherals. If you wish to set
the frequency beyond the proper specifications, please do so according to your
hardware specifications including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installation of the CPU
Check the CPU pins to see that none are bent. Move the socket lever to the unlocked position as shown
in Fig. 1 (90oto the plane of the motherboard) prior to inserting the CPU. The pin 1 location is designated
on the CPU by a small triangle that corresponds to a triangle marking on the socket as shown in
Fig. 2. Align the CPU to the socket and gently lower it into place. Do not force the CPU into the socket.
Fig.1
Position lever at a 90 degree angle.
Fig.2
Pin 1 location on the socket and processor.
Gently place the CPU into position making sure that the CPU pins
fitperfectly into their holes. Once the CPU is positioned into its socket,
place one finger down on the middle of the CPU and gently press
themetal lever back into its original position.
Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly.
Rather than applying force, please change the positioning of the CPU.
Pin One
Socket Lever

Hardware Installation- 13 -
English
1-3-2 Installation of the CPU cooler
The CPU cooler may adhere to the CPU as a result of hardening of the heat paste. To prevent
such an occurrence, it is suggested that either thermal tape rather than heat paste be used for
heat dissipation or using extreme care when removing the CPU cooler.
Fig.1
Before installing the CPU cooler, please first add an even layer of heat
paste on the surface of the CPU. Install all the CPU cooler components
(Please refer to the heat sink manual for detailed installation instructions).
Fig.2
Please connect the CPU cooler power connector to the CPU_FAN con-
nector located on the motherboard so that the CPU cooler can properly
function to prevent CPU overheating.

GA-MA69VM-S2 Motherboard - 14 -
English
1-4 Installation of Memory
Notch
DDR II
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer
power is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be
installed in only one direction. If you are unable to insert the module, please switch the
direction.
The motherboard supports DDRII memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one
direction. The memory capacity used can differ with each slot.
Fig.1
The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction. Insert the DIMM memory
module vertically into the DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to
lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.

Hardware Installation- 15 -
English
Dual Channel Memory Configuration
The GA-MA69VM-S2 supports the Dual Channel Technology. After operating
the Dual Channel Technology, the bandwidth of Memory Bus will add double.
Due to CPU limitation, if you wish to operate the Dual Channel Technology,
follow the guidelines below:
1. Dual Channel mode will not be enabled if only one memory module is installed.
2. To enable Dual Channel mode with two memory modules (it is recommended to use memory
modules of identical brand, size, chips, and speed), you must install them into DIMM sockets
of the same color.
3. To enable Dual Channel mode with four memory modules, it is recommended to use memory
modules of identical brand, size, chips, and speed.
The following is a Dual Channel Memory configuration table:
(DS: Double Side, SS: Single Side, "--": Empty)
2 memory modules
4 memory modules
DDRII 1 DDRII 2 DDRII 3 DDRII 4
DS/SS DS/SS - - - -
- - - - DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
If two memory modules are to be used to achieve Dual Channel mode, we recommend
installing them in DDRII 1 and DDRII 2 DIMM sockets.

GA-MA69VM-S2 Motherboard - 16 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.

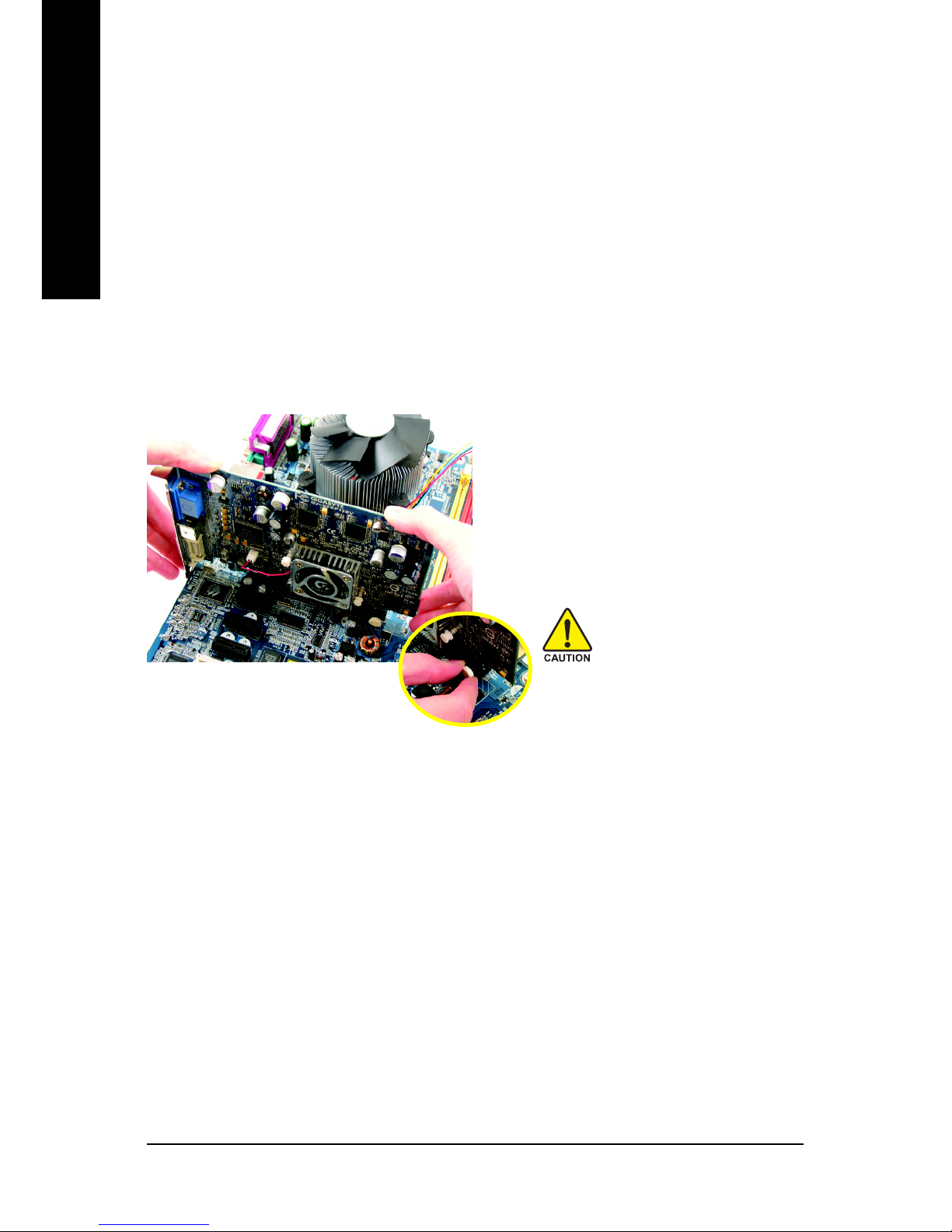

Installing a PCI Express x16 expansion card:
Please carefully pull out the small white-
drawable bar at the end of the PCI Ex-
press x16 slot when you try to install/
uninstall the VGA card. Please align the
VGA card to the onboard PCI Express
x16 slot and press firmly down on the
slot. Make sure your VGA card is locked
by the small white-drawable bar.

Hardware Installation- 17 -
English
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the
keyboard to the lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
COMA (Serial Port)
Connects to serial-based mouse or data processing devices.
VGA Port
Monitor can be connected to VGA port.
USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface.
Also make sure your OS supports USB controller. If your OS does not support USB controller,
please contact OS vendor for possible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.
LAN Port
The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of
10/100/1000 Mbps.
Center/Subwoofer Speaker Out
The default Center/Subwoofer Speaker Out jack. Center/Subwoofer speakers can be connected to
Center/Subwoofer Speaker Out jack.
Surround Speaker Out (Rear Speaker Out)
The default Surround Speaker Out (Rear Speaker Out) jack. Rear surround speakers can be
connected to Surround Speaker Out (Rear Speaker Out) jack.
Side Speaker Out
The default Side Speaker Out jack. Surround side speakers can be connected to Side Speaker Out
jack.
Line In
The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out (Front Speaker Out)
The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.
1-6 I/O Back Panel Introduction

GA-MA69VM-S2 Motherboard - 18 -
English

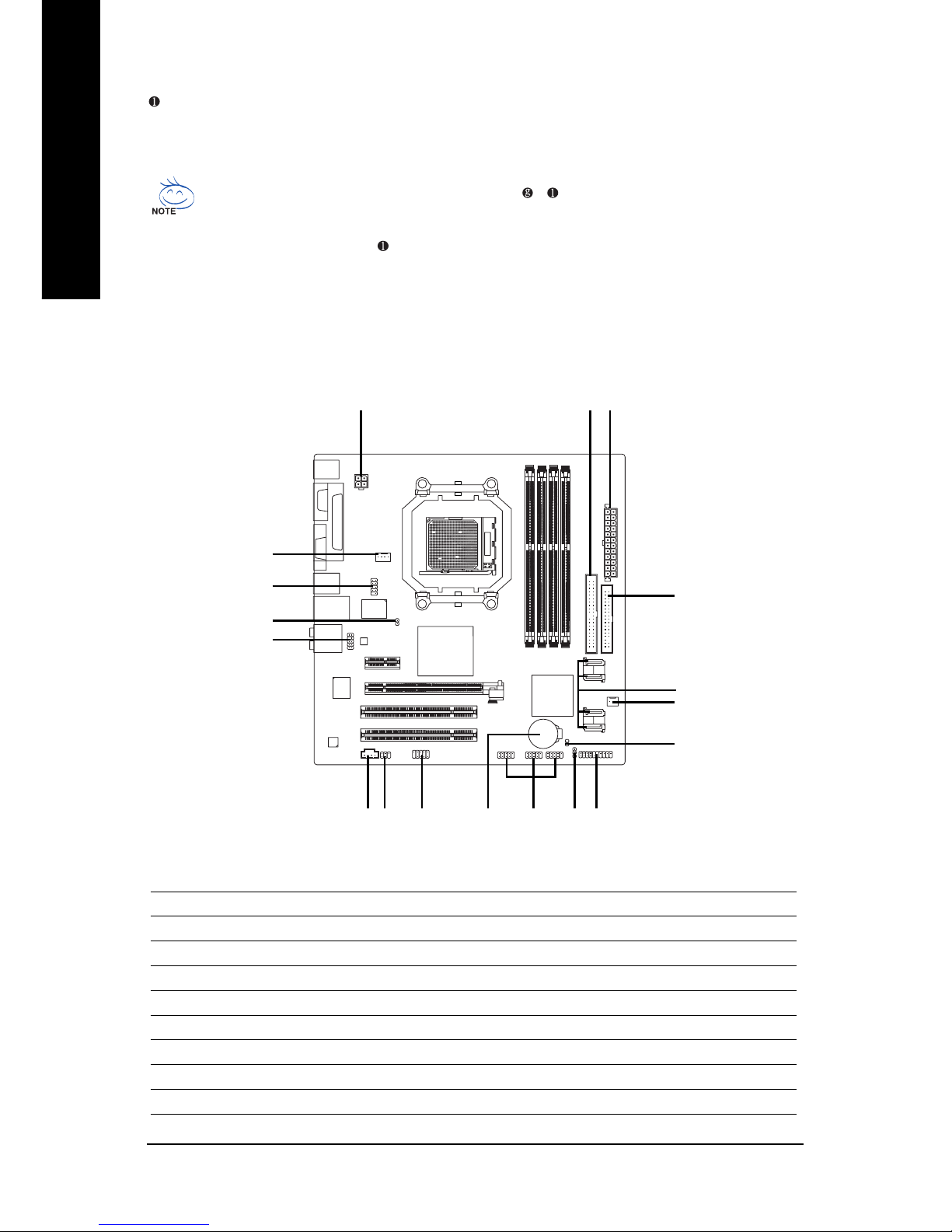

1-7 Connectors Introduction
In addition to the default speakers settings, the ~audio jacks can be reconfigured to
perform different functions via the audio software. Only microphones still MUST be connected
to the default Mic In jack ( ). Please refer to the 2-/4-/6-/8- channel audio setup steps for
detailed software configuration information.
MIC In
The default MIC In jack. Microphone must be connected to MIC In jack.
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE
7) SATAII0 /1 /2 /3
8) F_PANEL
9) CD_IN
10) F_AUDIO
11) F_USB1 / F_USB2/ F_USB3
12) POWER_LED
13) CI
14) CLR_CMOS
15) BATTERY
16) TV
17) SPDIF_IO
18) COMB
12
3
5
4
7
89 11
13
15 12
16
17 18
10
14
6

Hardware Installation- 19 -
English
1/2) ATX_12V/ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all
the components on the motherboard. Before connecting the power connector, please make sure
that all components and devices are properly installed. Align the power connector with its
proper location on the motherboard and connect tightly.
The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power
connector is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is
recommended that a power supply that can withstand high power consumption be used (300W
or greater). If a power supply is used that does not provide the required power, the result can
lead to an unstable system or a system that is unable to start.
If you use a 24-pin ATX power supply, please remove the small cover on the power connector
on the motherboard before plugging in the power cord; otherwise, please do not remove it.
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
Pin No. Definition
13 3.3V
14 -12V
15 GND
16 PS_ON(soft On/Off)
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V (Only for 24-pin ATX)
24 GND(Only for 24-pin ATX)
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5V SB(stand by +5V)
10 +12V
11 +12V(Only for 24-pin ATX)
12 3.3V(Only for 24-pin ATX)
ATX_12V
1
4
2
3
ATX
13 1
24 12

GA-MA69VM-S2 Motherboard - 20 -
English

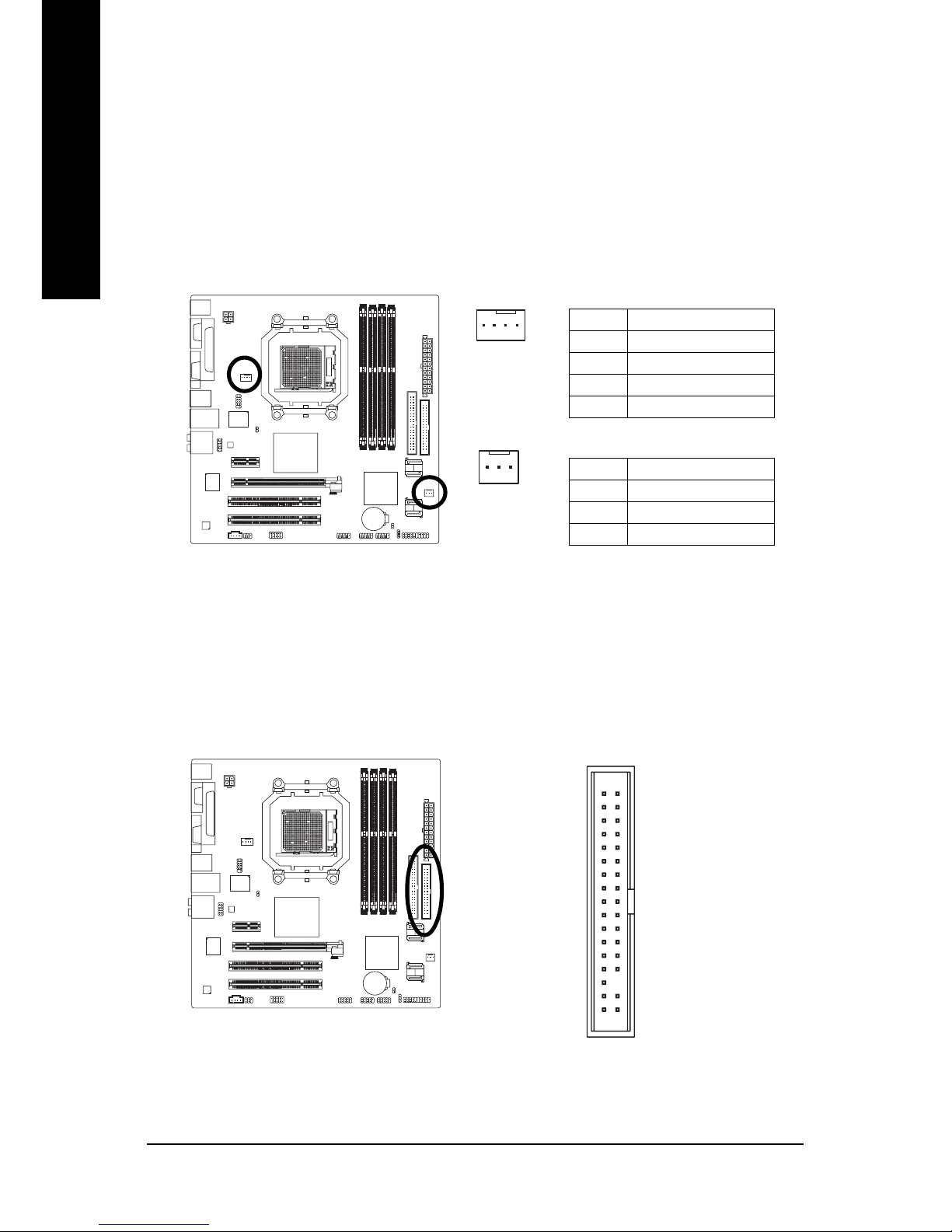

3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin/4-pin (only for
CPU_FAN) power connector and possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector
wire indicates a positive connection and requires a +12V power voltage. The black connector
wire is the ground wire (GND).
Remember to connect the CPU/system fan cable to the CPU_FAN/SYS_FAN connector to prevent
CPU damage or system hanging caused by overheating.
5) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to
the FDD drive. The types of FDD drives supported are: 360 KB, 720 KB, 1.2 MB, 1.44 MB and
2.88 MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD
connector.
2
34
1
33
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
CPU_FAN :
Pin No. Definition
1 GND
2 +12V
3 Sense
SYS_FAN :
CPU_FAN
SYS_FAN
1
1
