GA-F2A78M-DASH Motherboard Layout
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5GA-F2A78M-DASH motherboard
5Motherboard driver disk 5Four SATA cables
5User's Manual 5I/O Shield
5Quick Installation Guide
KB_MS_USB
CPU_FANSYS_FAN1
FM2+
ATX
GA-F2A78M-DASH
F_AUDIO
AUDIO
DDR3_1
DDR3_3
DDR3_2
DDR3_4
BAT
ATX_12V
SATA3
R_USB30
USB30_LAN
DP_HDMI
CODEC
M_BIOS
VGA
DVI
PCIEX16
LPT
PCIEX4
PCIEX1
TPM IC
PCI
F_USB2 F_PANELF_USB30_2
F_USB30_1
F_USB1COMBCOMA
SYS_FAN2
SPDIF_O CLR_CMOS
Realtek®
GbE LAN
VIA®VL805
AMD A78
024
135
iTE®
Super I/O
- 5 -
GA-F2A78M-DASH Motherboard Block Diagram
CODEC
S/PDIF Out
AMD APU
UMI
PCI Express Bus
PCI Express Bus
PCI Bus
LPC
Bus
PCIe CLK
PS/2 KB/Mouse
LPT
6 USB 2.0/1.1
4 USB 3.0/2.0
LAN
RJ45
x1
x1
x4
Realtek®
GbE LAN
VIA®VL805
x16 x1
1 PCI Express x16
1 PCI Express x1
1 PCI Express x4
6 SATA 6Gb/s
4 USB 3.0/2.0
AMD A78
DVI-D
DisplayPort
D-Sub
HDMI
Switch
iTE®
Super I/O
BIOS
1 PCI
PCI CLK
Dual Channel Memory
TPM
COM
- 6 -
Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•
sure they are connected tightly and securely.
•
•
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
- 7 -
APU FM2+ Socket:
- AMD A series processors
- AMD Athlon™series processors
Chipset AMD A78
Memory 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
the physical memory installed.
website when the memory modules are available on the market.
Dual channel memory architecture
modules
Onboard
Graphics
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600
* Support for 2560x1600 resolution requires both a monitor and cable that support
Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160
* The resolution of 4096x2160 can be supported when using an FM2+ APU; the
maximum resolution supported is 1920x1200 when using an FM2 APU.
* Support for HDMI 1.4a version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160
* The DisplayPort does not support Hot plug. If you want to change to another graphics
* Support for DisplayPort 1.2 version.
- Maximum shared memory of 2 GB
Audio Realtek®ALC887 codec
2/4/5.1/7.1-channel
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Realtek®
Expansion Slots
* To support PCI Express 3.0, you must install an FM2+ APU.
1 x PCI Express x1 slot
1 x PCI slot
Multi-Graphics
Technology Support for AMD Dual Graphics technology
- 8 -
Storage Interface Chipset:
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 10, and JBOD
USB Chipset:
VIA®VL805 chip:
- 4 x USB 3.0/2.0 ports on the back panel
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x APU fan header
2 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.0/2.0 headers
2 x USB 2.0/1.1 headers
1 x parallel port header
2 x serial port header
1 x Clear CMOS jumper
Back Panel
Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x DisplayPort
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
I/O Controller iTE®I/O Controller Chip
Hardware
Monitor
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan fail warning
APU/System fan speed control
install.
BIOS
Use of licensed AMI UEFI BIOS
Unique Features Support for @BIOS
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
- 9 -
1-3 Installing the APU
Read the following guidelines before you begin to install the APU:
•Make sure that the motherboard supports the APU.
•Always turn off the computer and unplug the power cord from the power outlet before installing the
APU to prevent hardware damage.
•Locate the pin one of the APU. The APU cannot be inserted if oriented incorrectly.
•Apply an even and thin layer of thermal grease on the surface of the APU.
•Do not turn on the computer if the APU cooler is not installed, otherwise overheating and damage
of the APU may occur.
•
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
card, memory, hard drive, etc.
Installing the APU
Locate the alignment keys on the motherboard APU socket and the notches on the APU.
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
•Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
Unique Features Support for Smart Recovery2
Support for ON/OFF Charge
Bundled
Software Norton®
Operating
System
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
prior notice.
* Please visit the Support & Downloads\Utility
for the software listed in the "Unique Features" and "Bundled Software" columns.
A Small Triangle
Marking Denotes Pin
One of the Socket
APU
A Small Triangle
Marking Denotes APU
Pin One
FM2+ Socket
- 10 -
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.
1-6 Back Panel Connectors
USB 2.0/1.1 Port
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200
D-Sub connection to this port.
DVI-D Port (Note 1)
Connect a monitor that supports DVI-D connection to this port. Please note that the actual resolutions
supported are dependent on the monitor being used and support for 2560x1600 resolution requires both
a monitor and cable that support Dual Link DVI.
DisplayPort (Note 2)
DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.
DisplayPort can support both DPCP and HDCP content protection mechanisms. You can use this port to
connect your DisplayPort-supported monitor. The DisplayPort Technology can support a maximum resolution
of 3840x2160 but the actual resolutions supported depend on the monitor being used.
This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the
Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR3_2, DDR3_4
Channel 1: DDR3_1, DDR3_3
Due to APU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2.
of the same capacity, brand, speed, and chips be used and installed in the same colored DDR3
sockets. For optimum performance, when enabling Dual Channel mode with two memory modules,
we recommend that you install them in the DDR3_1 and DDR3_2 sockets.
- 11 -
•
device and then remove it from the motherboard.
•
an electrical short inside the cable connector.
HDMI Port
The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD
audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported
resolution is 4096x2160, but the actual resolutions supported are dependent on the monitor being used.
After installing the Display or HDMI device, make sure to set it as the default sound playback device.
USB 3.0/2.0 Port
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
.
B. Playback of Blu-ray™
In order to get better playback quality, when playing the Blu-ray™discs, refer to the recommended system
•AMD A series processors
•
•
•
™discs is dependent on the
•
Triple-display
Combination Supported or Not
D-Sub + DVI-D + HDMI Yes
D-Sub + DVI-D + DP No
DVI-D + HDMI + DP Yes
Line In Jack (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
DisplayPort only.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
- 12 -
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•First make sure your devices are compliant with the connectors you wish to connect.
•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) SATA3 0/1/2/3/4/5
6) BAT
7)
8) F_PANEL
9)
10)
11) F_USB30_1/F_USB30_2
12) F_USB1/F_USB2
13)
14) LPT
1213
6
14
4
10
1 3
2
4
5
11
89 11 7
multi-channel audio feature through the audio driver.
The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to
Mic In Jack (Pink)
The Mic in jack. Microphones must be connected to this jack.
- 13 -
1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector)
off and all devices are properly installed. The power connector possesses a foolproof design. Connect the
power supply cable to the power connector in the correct orientation.
The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected,
the computer will not start.
3/4) CPU_FAN/SYS_FAN1/SYS_FAN2 (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
To meet expansion requirements, it is recommended that a power supply that can withstand high power consumption
lead to an unstable or unbootable system.
G.QBOFM
131
2412
ATX
ATX:
Pin No. Pin No.
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 +5V 16
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 -5V
9 21 +5V
10 +12V 22 +5V
11
23
12
24
CPU_FAN:
Pin No.
1 GND
2 +12V
3 Sense
4 Speed Control
SYS_FAN1/SYS_FAN2:
Pin No.
1 GND
2 Speed Control
3 Sense
4 Reserve
•Be sure to connect fan cables to the fan headers to prevent yourAPU and system from overheating. Overheating
may result in damage to the APU or the system may hang.
•
CPU_FAN SYS_FAN1 SYS_FAN2
G.QBOFM
G.QBOFM
G.QBOFM
1 1
1
ATX_12V:
Pin No.
1 GND
2 GND
3 +12V
4 +12V
ATX_12V
2
1
4
3
- 14 -

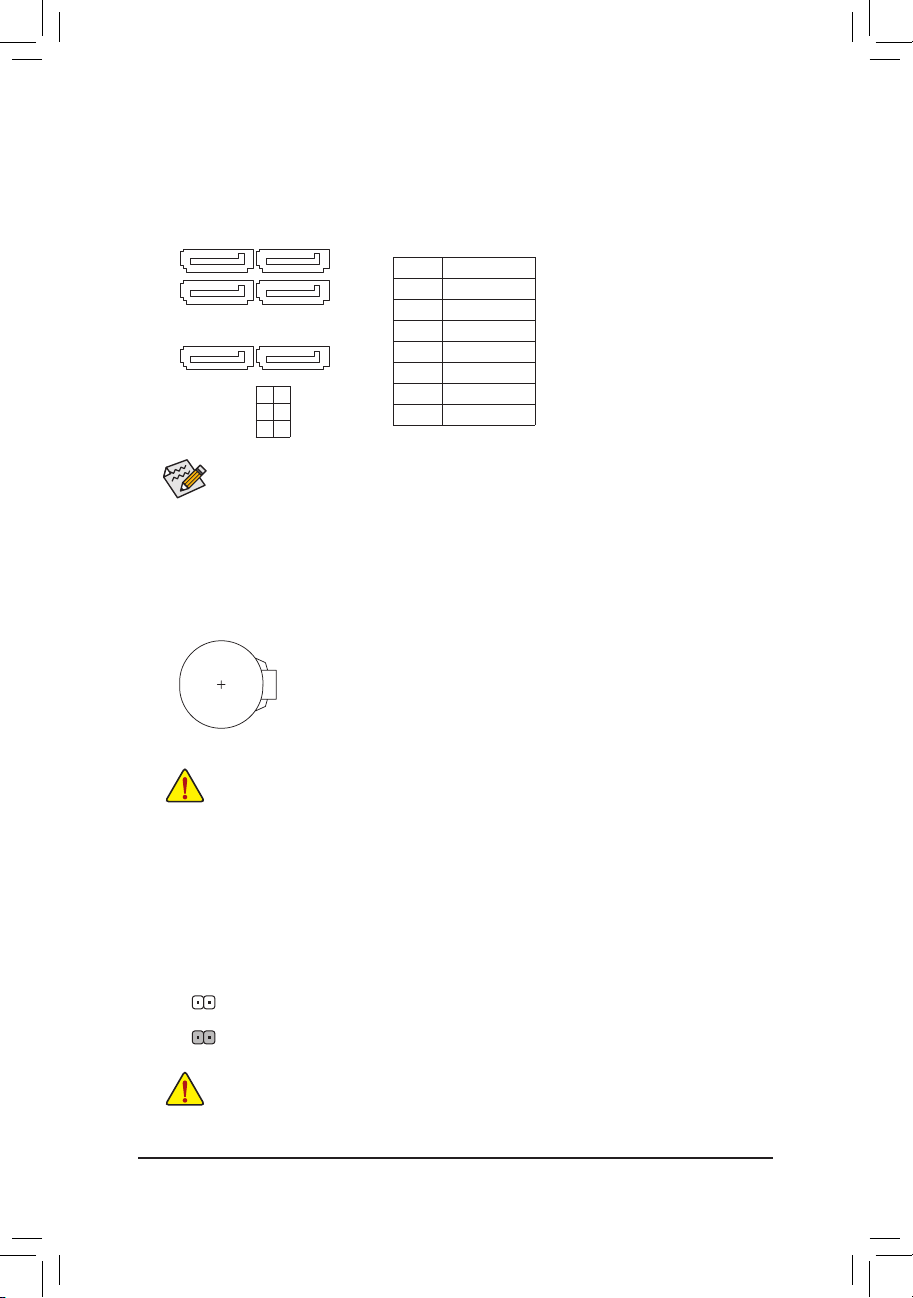

5) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA1.5Gb/s
standard. Each SATA connector supports a single SATA device. The AMD Chipset supports RAID 0, RAID 1,
RAID array.
Pin No.
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
6) BAT (Battery)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low
level, or the CMOS values may not be accurate or may be lost.
You may clear the CMOS values by removing the battery:
1. Turn off your computer and unplug the power cord.
2.
object like a screwdriver to touch the positive and negative terminals of the battery holder,
3. Replace the battery.
4. Plug in the power cord and restart your computer.
•Always turn off your computer and unplug the power cord before replacing the battery.
•Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect model.
•Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain
about the battery model.
•
•Used batteries must be handled in accordance with local environmental regulations.
7
7
7
1
1
1
G.QBOFM
G.QBOFM
G.QBOFM
G.QBOFM
G.QBOFM
G.QBOFM
SATA3 4 5
2 3
0 1
•
used, the total number of hard drives must be an even number.
•
the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.
•Always turn off your computer before clearing the CMOS values.
•
Open: Normal
Short: Clear CMOS Values
- 15 -
8) F_PANEL (Front Panel Header)
Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header
according to the pin assignments below. Note the positive and negative pins before connecting the cables.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch,
header, make sure the wire assignments and the pin assignments are matched correctly.
Power LED
1
2
19
20
CI-
CI+
PLED-
SPEAK+
SPEAK-
PLED+
Power LED
HD-
RES+
HD+
RES-
Hard Drive
Activity LED
Reset
Switch Chassis
Intrusion Header
Power Switch Speaker
•PW
Connects to the power switch on the chassis front panel. You may
•SPEAK
Connects to the speaker on the chassis front panel. The system reports
system startup status by issuing a beep code. One single short beep
will be heard if no problem is detected at system startup.
•PLED/PWR_LED
System Status LED
S0 On
S3/S4/S5 Off
Connects to the power status indicator
on the chassis front panel. The LED is on
when the system is operating. The LED is
off when the system is in S3/S4 sleep state
•HD
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is
reading or writing data.
•RES
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the
•CI
Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has been
removed. This function requires a chassis with a chassis intrusion switch/sensor.
your chassis front panel audio module to this header. Make sure the wire assignments of the module
connector match the pin assignments of the motherboard header. Incorrect connection between the module
connector and the motherboard header will make the device unable to work or even damage it.
1
2
9
10
For HD Front Panel Audio: ForAC'97 Front PanelAudio:
Pin No.
1 MIC2_L
2 GND
3 MIC2_R
4 -ACZ_DET
5 LINE2_R
6 Sense
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 Sense
Pin No.
1 MIC
2 GND
3 MIC Power
4 NC
5
6 NC
7 NC
8 No Pin
9
10 NC
•The front panel audio header supports HD audio by default.
•Audio signals will be present on both of the front and back panel audio connections simultaneously.
•Some chassis provide a front panel audio module that has separated connectors on each wire instead of a
single plug. For information about connecting the front panel audio module that has different wire assignments,
please contact the chassis manufacturer.
- 16 -
sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for
digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display
to the graphics card and have digital audio output from the HDMI display at the same time. For information
about connecting the S/PDIF digital audio cable, carefully read the manual for your expansion card.
12) F_USB1/F_USB2 (USB 2.0/1.1 Headers)
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
10
9
2
1
Pin No. Pin No.
1 6 USB DY+
2 7 GND
3 USB DX- 8 GND
4 USB DY- 9 No Pin
5 USB DX+ 10 NC
•
•Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord from the power
outlet to prevent damage to the USB bracket.
Pin No.
1 SPDIFO
2 GND
1
11) F_USB30_1/F_USB30_2 (USB 3.0/2.0 Headers)
purchasing the optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer.
11
1 10
20
Pin No. Pin No. Pin No.
1VBUS 8D1- 15 SSTX2-
2SSRX1- 9D1+ 16 GND
3SSRX1+ 10 NC 17 SSRX2+
4GND 11 D2+ 18 SSRX2-
5SSTX1- 12 D2- 19 VBUS
6SSTX1+ 13 GND 20 No Pin
7GND 14 SSTX2+
10
20 1
11
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
10
9
2
1
Pin No. Pin No.
1 NDCD- 6 NDSR-
2 NSIN 7 NRTS-
3 NSOUT 8 NCTS-
4 NDTR- 9 NRI-
5 GND 10 No Pin
- 17 -
G.QBOFM
14) LPT (Parallel Port Header)
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional
LPT port cable, please contact the local dealer.
2
26
1
25
Pin No. Pin No. Pin No.
1STB- 10 GND 19 ACK-
2AFD- 11 PD4 20 GND
3PD0 12 GND 21 BUSY
4ERR- 13 PD5 22 GND
5PD1 14 GND 23 PE
6INIT- 15 PD6 24 No Pin
7PD2 16 GND 25 SLCT
8SLIN- 17 PD7 26 GND
9PD3 18 GND
•
may result in system malfunction.
•
unexpected results. Inadequately altering the settings may result in system's failure to boot. If this occurs, try to
saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows
To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on.
- 18 -
2-1 Startup Screen
The following startup Logo screen will appear when the computer boots.
Function Keys
• item to set your system to its defaults.
•The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.
On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter>
to accept or enter a sub-menu. Or you can use your mouse to select the item you want.
2-2 M.I.T.
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
- 19 -
`M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.
`Advanced Frequency Settings
&CPU Clock Control
It is highly recommended that the CPU frequency be set in accordance with the CPU
&Processor Graphics Clock
&CPU NorthBridge Frequency
&CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
&CPU Frequency
Displays the current operating CPU frequency.
`Advanced CPU Core Settings
&CPU Clock Ratio, CPU Frequency
The settings above are synchronous to those under the same items on the Advanced Frequency Settings
menu.
&Core Performance Boost (Note)
&Turbo Performance Boost Ratio (Note)
&Core Performance Boost Ratio (Note)
Allows you alter the ratio for the CPB. The adjustable range is dependent on the CPU being installed.
&AMD Cool&Quiet function
Enabled Lets the AMD Cool'n'Quiet driver dynamically adjust the CPU clock and VID to reduce
Disabled Disables this function.
&cTDP function
&SVM Mode
&C6 Mode
CPU core frequency will be reduced during system halt state to decrease power consumption. The C6
&CPU core Control
Allows you to determine whether to manually enable/disable CPU cores. Automatic mode allows the BIOS
- 20 -
&(Note)
enabled.
&(Note)
&System Memory Multiplier
Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD
&
This value is automatically adjusted according to the CPU Clock Control and System Memory Multiplier
settings.
`Advanced Memory Settings
&(Note)
The settings above are synchronous to those under the same items on the Advanced Frequency Settings
menu.
&Memory Timing Mode
Manual and Advanced Manual allows the Channel Interleaving, Rank Interleaving, and memory timing
&
is set to Disabled, the value
is set to
or , the value is displayed according to the SPD data on the XMP memory.
&Channel Interleaving
Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access
different channels of the memory to increase memory performance and stability. Auto lets the BIOS
&Rank Interleaving
Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different
ranks of the memory to increase memory performance and stability. Auto lets the BIOS automatically
`Channel A/B Memory Sub Timings
This sub-menu provides memory timing settings for each channel of memory. This sub-menu provides memory
Memory Timing Mode is set to Manual or Advanced Manual. Note: Your system may become unstable or fail
to boot after you make changes on the memory timings. If this occurs, please reset the board to default values
`Advanced Voltage Settings
This sub-menu allows you to set CPU, chipset and memory voltages.
&APM
Other manuals for GA-F2A78M-DASH
1
Table of contents
Other GIGA-BYTE TECHNOLOGY Motherboard manuals
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY A520M H User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY A520M S2H User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY G191-H44 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-H310TN User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY Z370XP SLI User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY H410M H V3 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY R160-S34 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-P110-D3 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY B365M D2V User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-E3800N User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-X99-Designare EX User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY B460 HD3 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY B460M D2V User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-SBCAP3940 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-J3455N-D3H User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY H510M DS2V User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-Z97-HD3 User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-H110TN User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GIGABYTE GS-W42G-P08R User manual
GIGA-BYTE TECHNOLOGY
GIGA-BYTE TECHNOLOGY GA-F2A58M-S1 User manual
Popular Motherboard manuals by other brands
MSI
MSI 945GCM478 Series manual
Icop
Icop VORTEX86-6047LV-6S user manual
American Megatrends
American Megatrends Super Voyager PCI-II user guide
Asus
Asus Motherboard P5LD2-VM DH user manual
ASROCK
ASROCK CONROEXFIRE-ESATA2 - INSTALLATION - 03-2007 Installation
Gigabyte
Gigabyte B650E AORUS ELITE X AX ICE user manual
