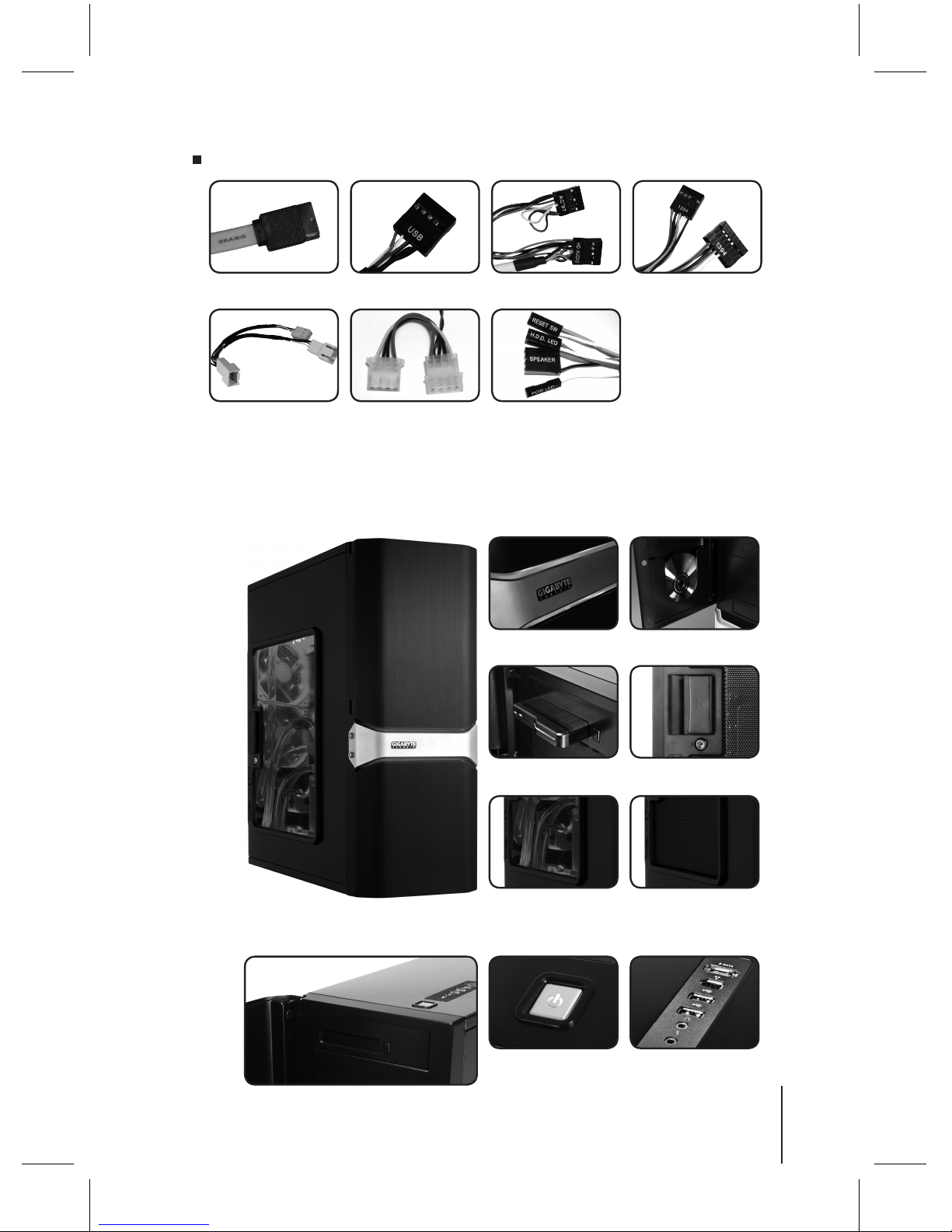

4-2.1 4-2.2 4-2.3

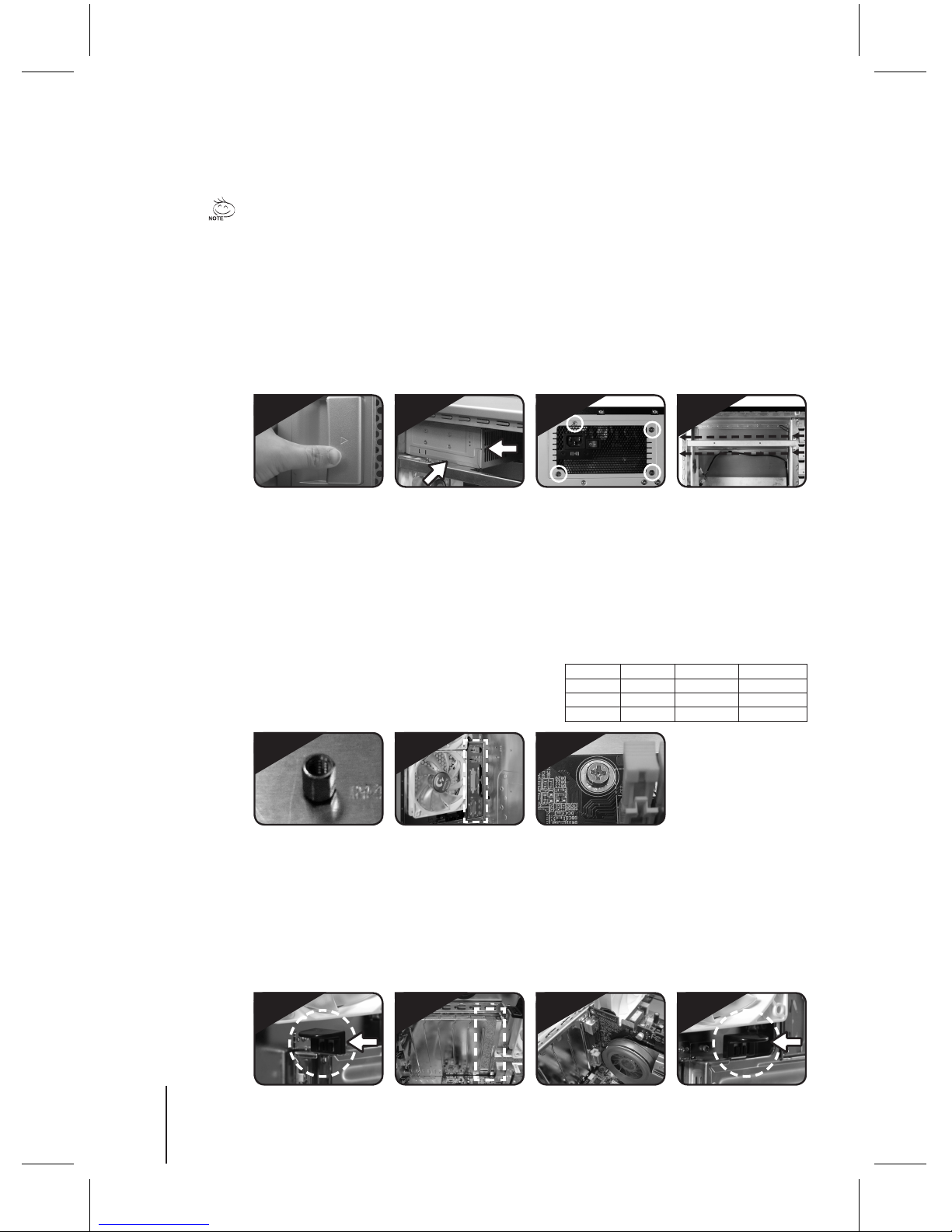

4-2 Installation of Motherboard
This chassis supports CEB / ATX / Micro ATX motherboards. Please confirm the dimensions and
fixing points of the motherboard prior to installation.
Required parts: Copper stand offs, Motherboard screws
4-2.1 According to the motherboard’s specifications, select the proper screw points. Screw in the
copper stand offs into the corresponding points on the motherboard.
4-2.2 Change the motherboard I/O bracket on the rear panel (supplied by the motherboard
manufacturer).
4-2.3 Secure the motherboard with the motherboard
screws (refer to your motherboard manual to
check what type of motherboard you have).
4. Installation Instruction
Motherboard Code on tray Securing screw Copper stand off
CEB E1- E8 8 8
ATX A1- A9 9 9
Micro ATX M1-M9 9 9
4-1.1 4-1.2 4-1.4
4-3.1 4-3.2 4-3.3 4-3.4
Please follow the reference sections in order for installation.
4-3 Installation of Add-On card
This chassis supports tool-free installation of add-on cards, e.g. graphics cards, sound cards, and etc.
Required Tools: None
4-3.1 Unlock the PCI slot clamp.
4-3.2 Remove the internally attached PCI slot blanking plate.
4-3.3 Insert the add-on card into the expansion slot with care.
4-3.4 Secure the PCI clamp.
4-1 Installation of Power Supply
To facilitate the installation, it is recommended to set the chassis upright on the table.
Required parts: power supply securing screws x 4
4-1.1 Remove side panel (see step 1-3.1on page 6). Place the power supply unit into the case.
4-1.2 Place the power supply unit into the case.
4-1.3 Secure the power supply with the 4 securing screws.
4-1.4 When using large power supply unit, please disassemble the cross bar by loosening screws.
Fasten the screws to secure the cross bar after the power supply installed.

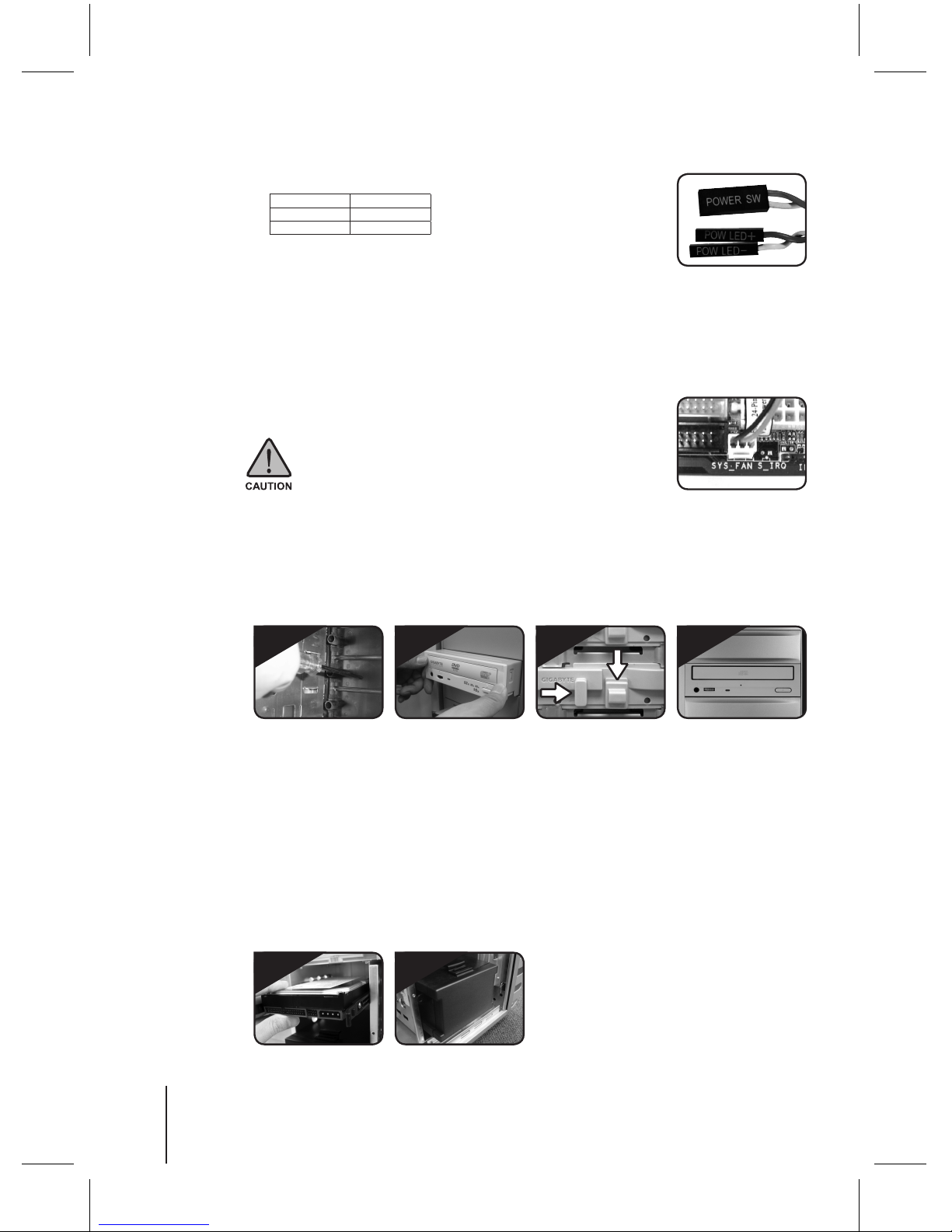

4-1.3
